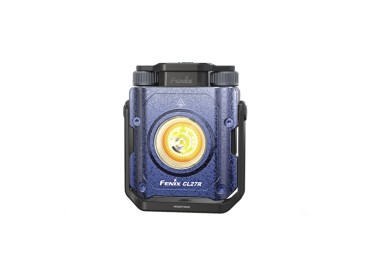

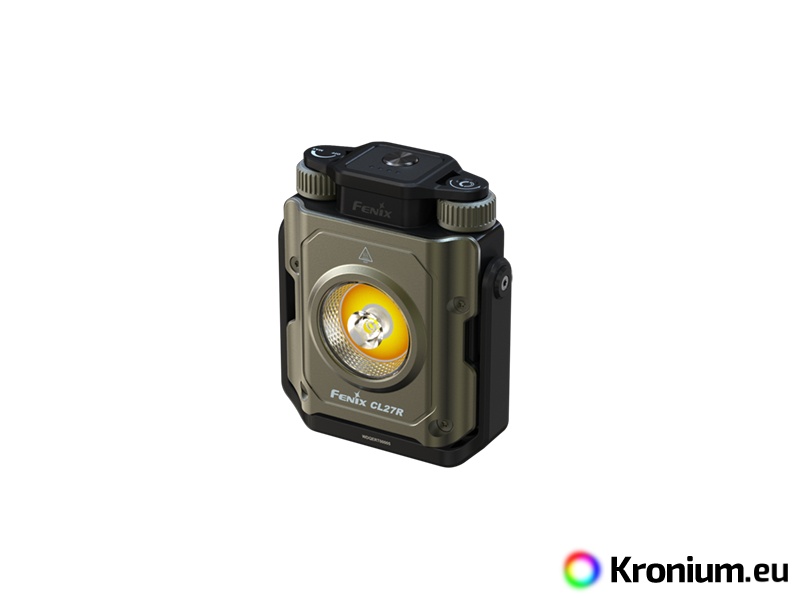

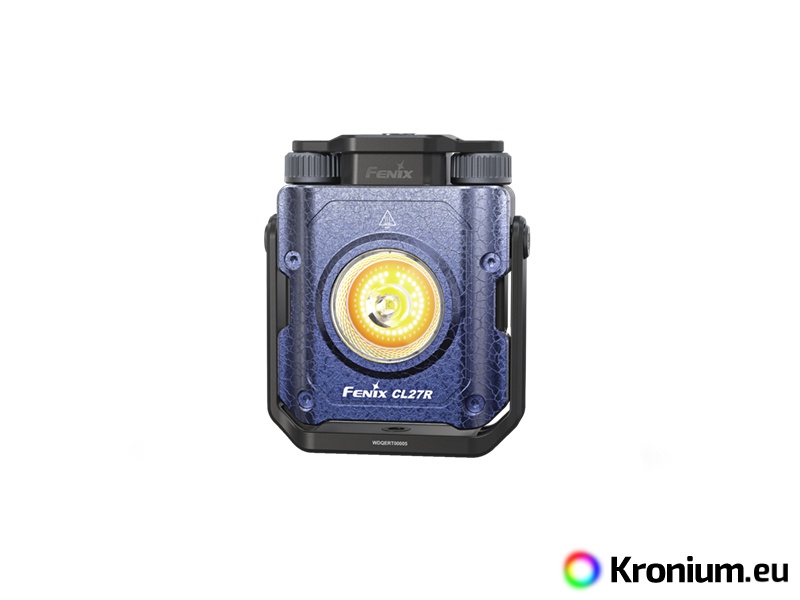

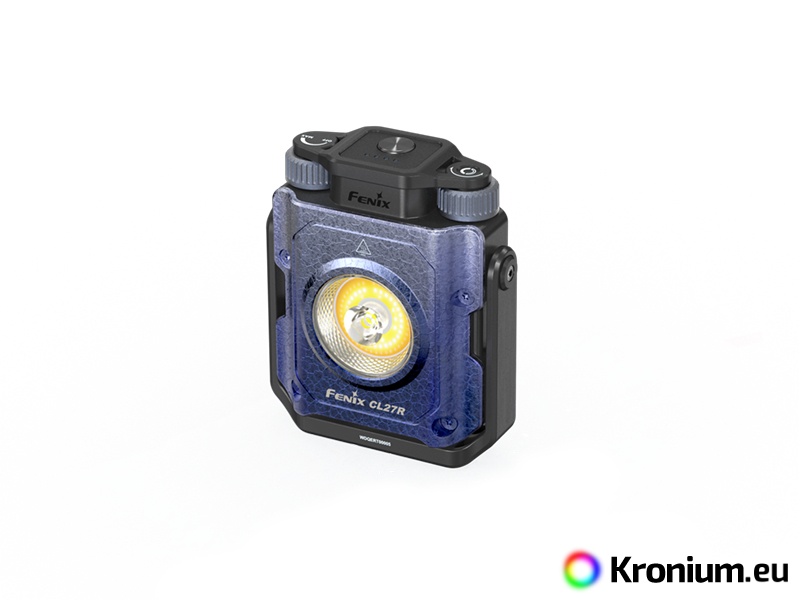

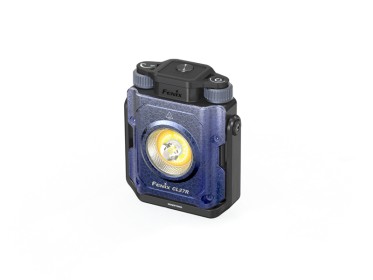

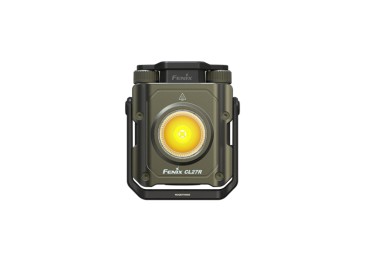

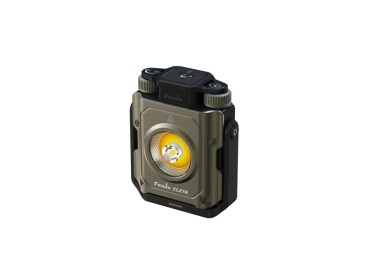

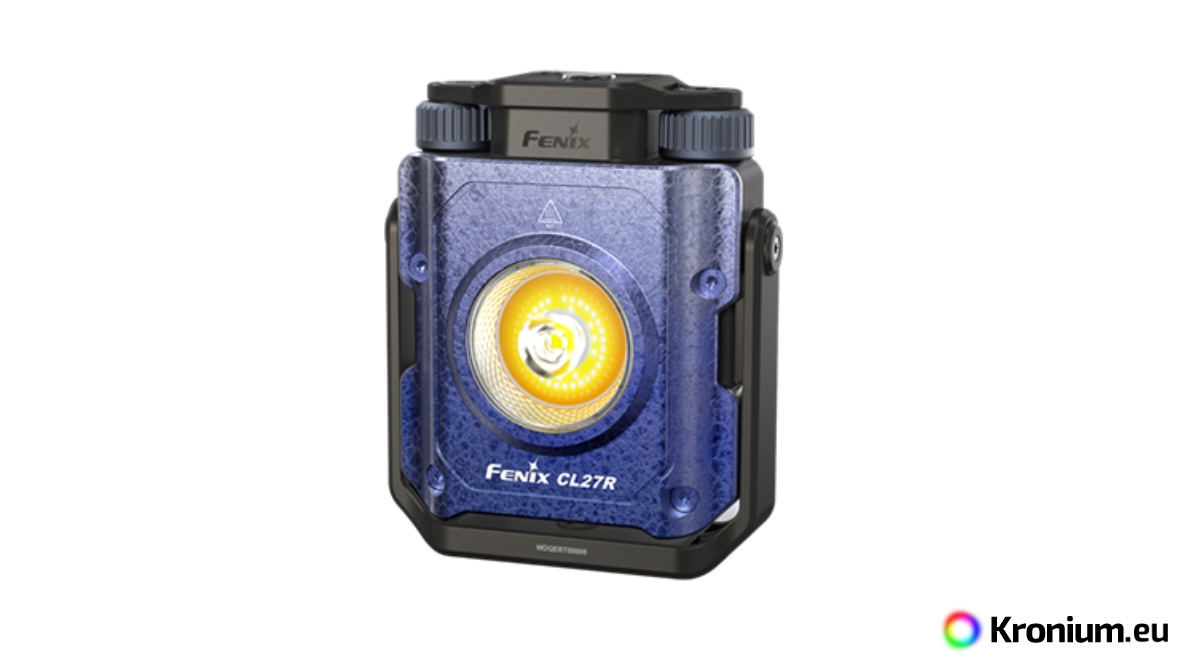

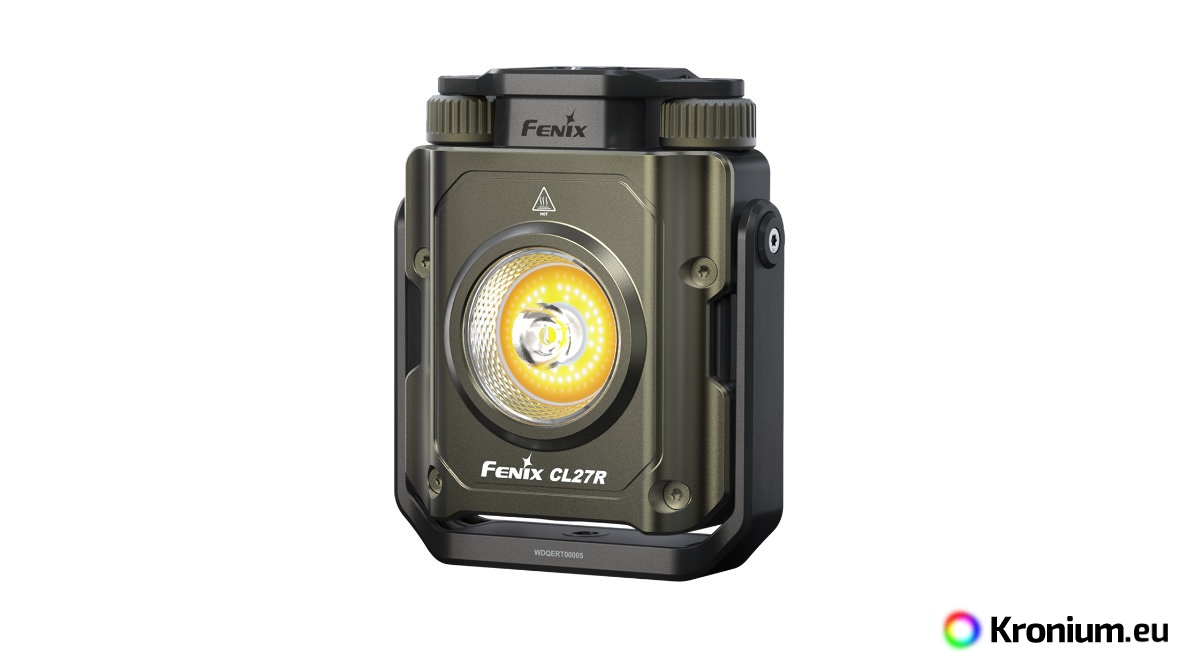

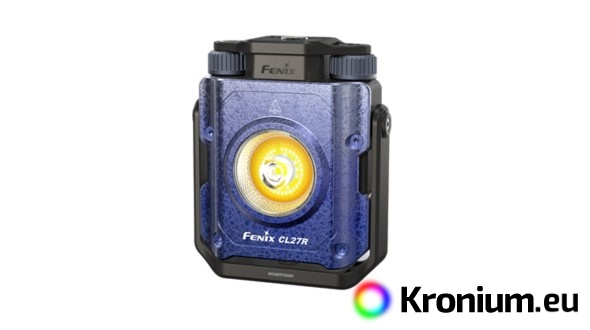

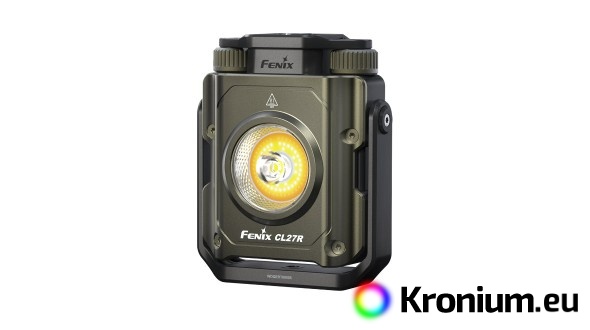

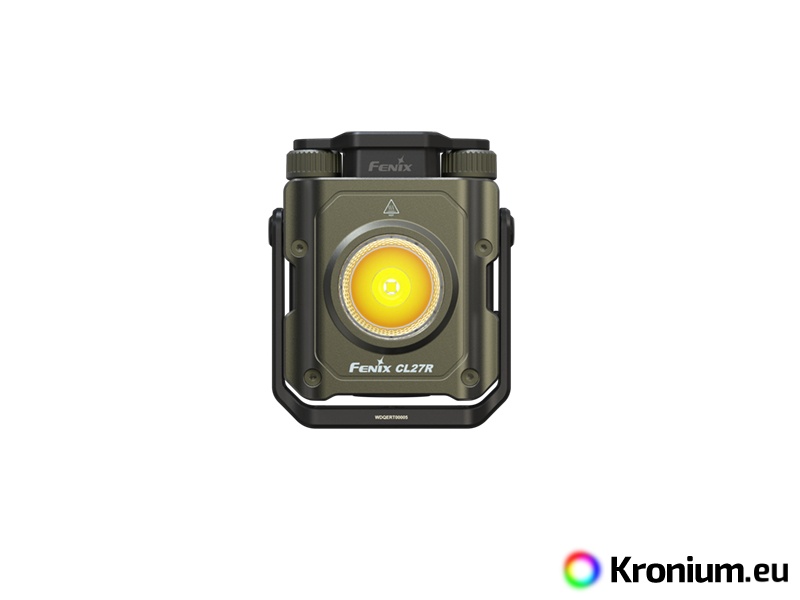

Fenix CL27R is a multifunctional rechargeable lantern and flashlight. In addition, it also works great as a rechargeable work light, a photographer's light and as a home, tent or car light. The high-brightness COB diode provides a Floodlight with up to 1200 lumens (ANSI) output, the intensity and shade of which can be seamlessly controlled by rotary dials. Also available is a Spotlight reflector with 800 lumens output and a range of 177 meters and in addition red light. The spotlight and floodlight can be combined for up to 1600 lumens. The CL27R is powered by a single Li-ion battery type 21700 with a 5000 mAh capacity (included). The battery is charged directly in the lantern via a USB-C connector.

Thanks to its durable and shockproof construction with IP66 protection, the light can withstand harsh weather conditions as well as a fall from 1.5 meters. The light's wide mounting options are provided by a handle that rotates 360°, includes built-in magnets and also has a tripod thread.

All flashlight parameters (output, battery life, waterproofness, throw and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

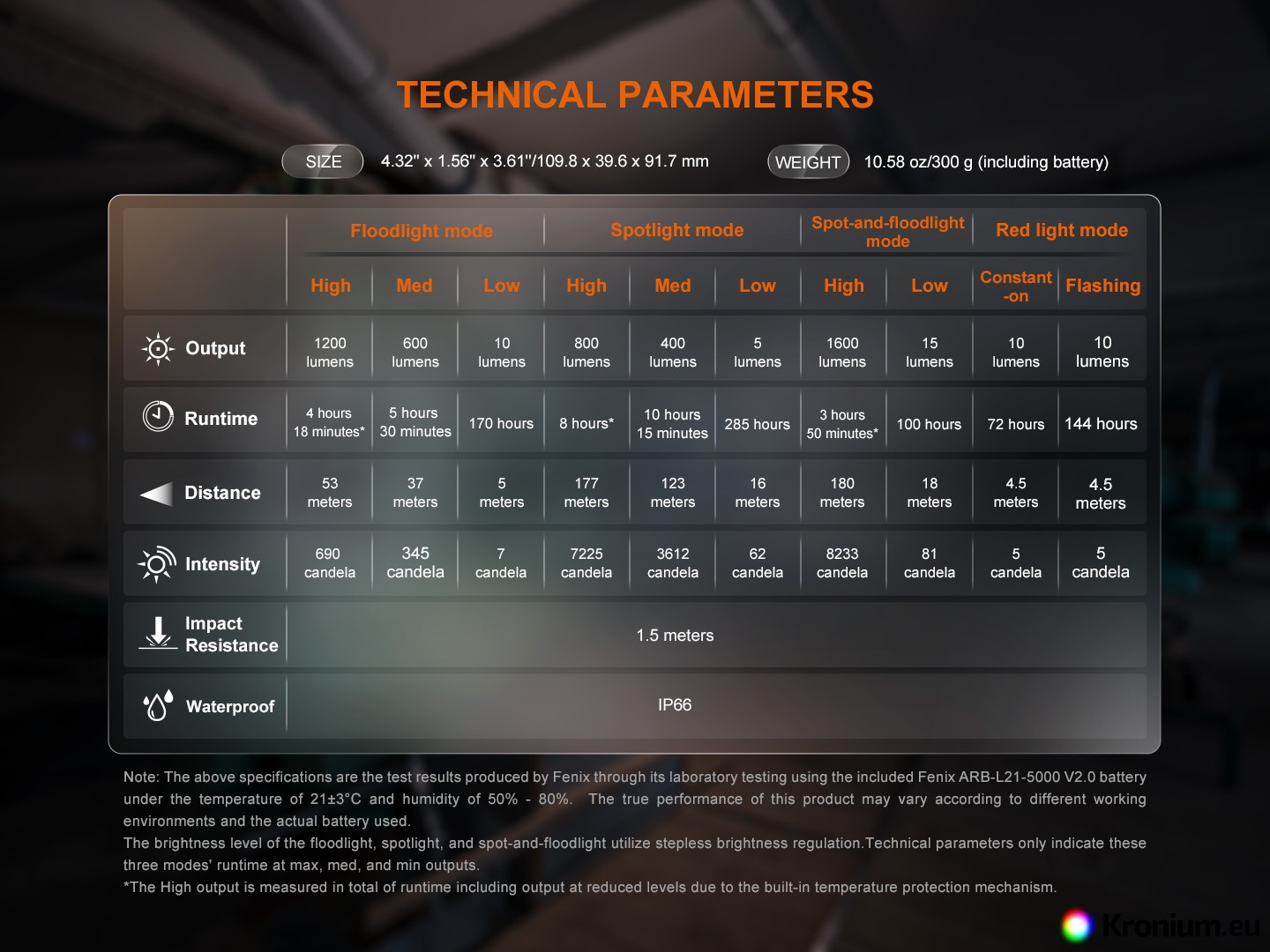

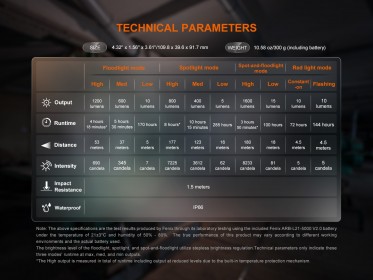

Fenix CL27R rechargeable worklight specifications

• Uses a COB LED with adjustable light temperature in the range of 2700 to 6500 K and a red chip and one Luminus SST-20 LED, both with 50,000 hours lifetime.
• Power modes:
  • Floodlight and spotlight combined: 1600 lumens to 15 lumens with 3.8 100 hours of life.
  • Floodlight: 1200 lumens to 10 lumens with 4.3 170 hours.
  • Spotlight: 800 lumens up to 5 lumens with 8 285 hours.
  • Red light: 10 lumens (72 hours) – flicker 10 lumens (144 hours)
• Uses a single rechargeable high capacity Li-ion battery 21700 with 5000 mAh capacity, included in the package, for power.

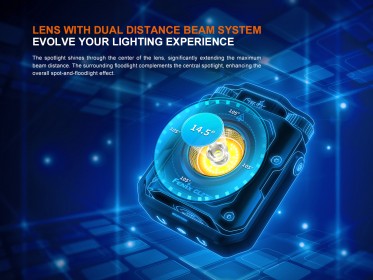

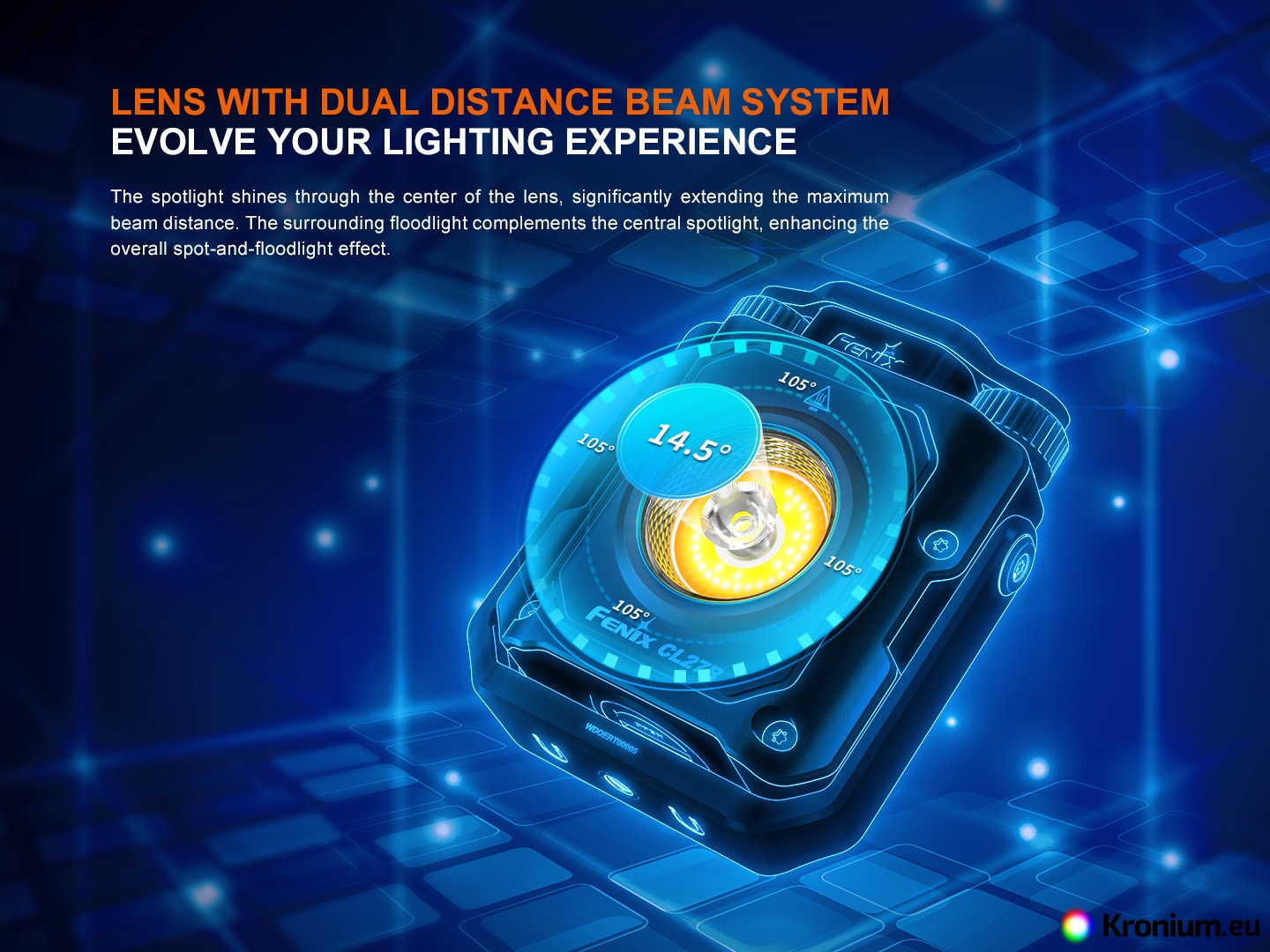

• Spotlight throw is 177 meters (8233 cd), floodlight throw is 53 meters (690 cd).
• Charge via USB-C connector, charging time is 2.5 hours.
• Battery charge status indication and low voltage warning.
• Light has memory for the set color temperature of the floodlight and always turns on at thelast used mode.

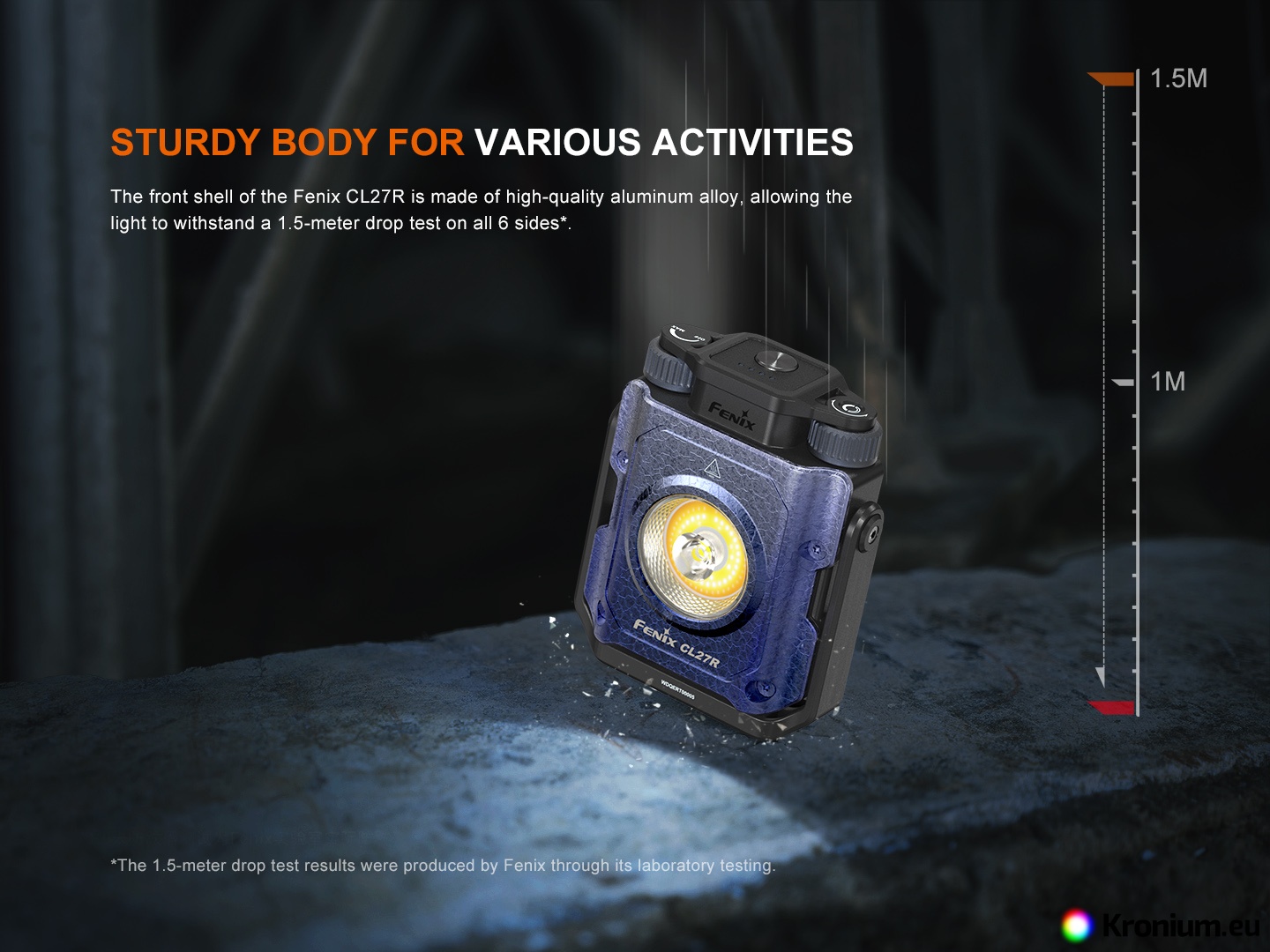

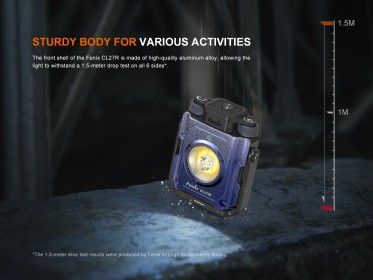

• Made of aluminium alloy and durable plastic, the lantern is shockproof against falls from a height of 1.5 metres.

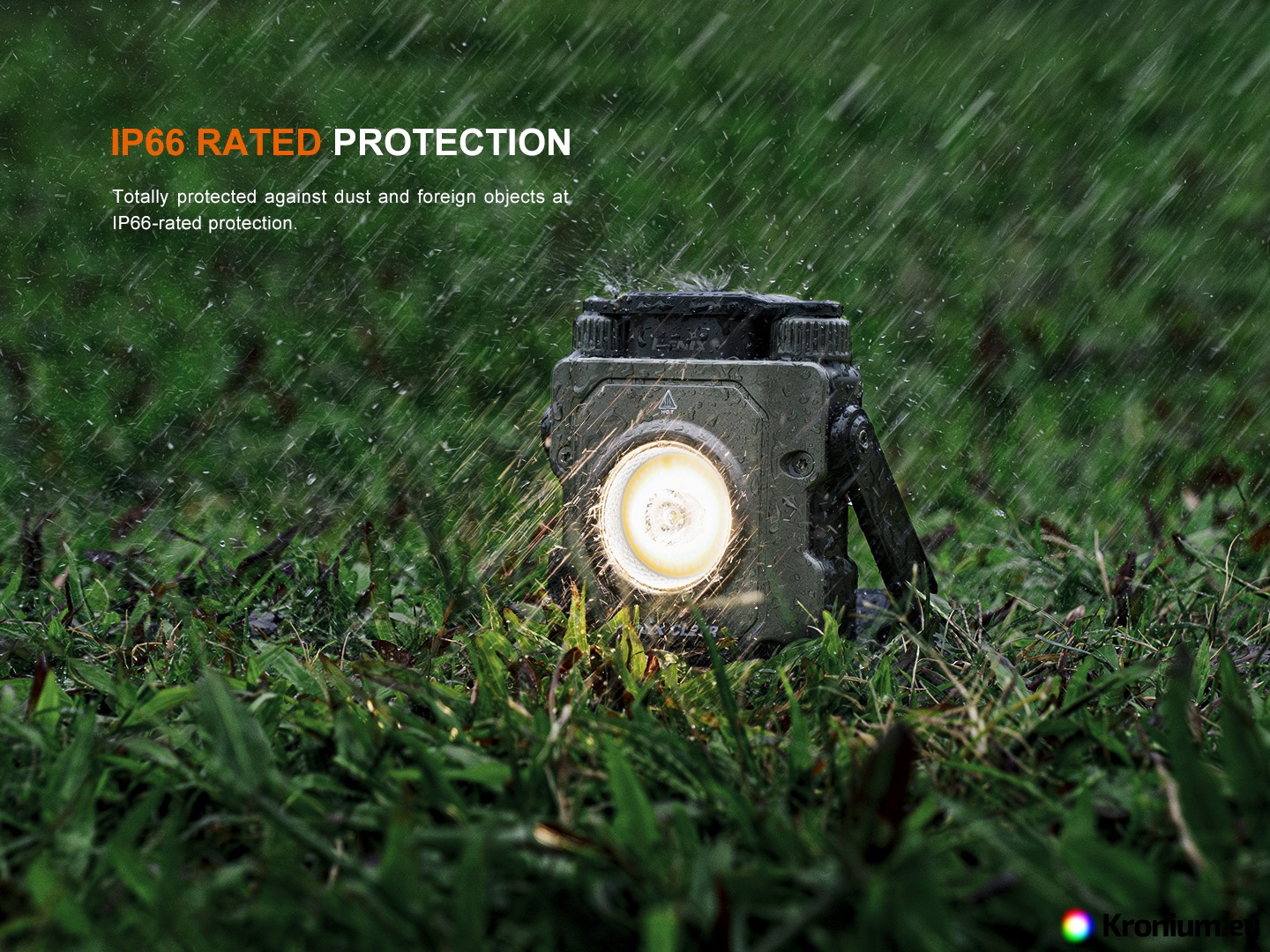

• Waterproof to IP66 standard (heavy rain).

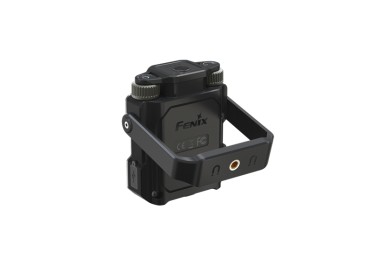

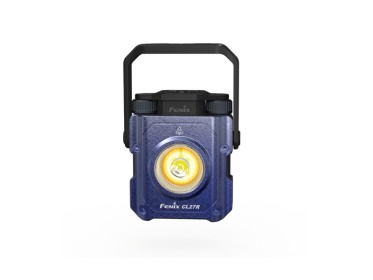

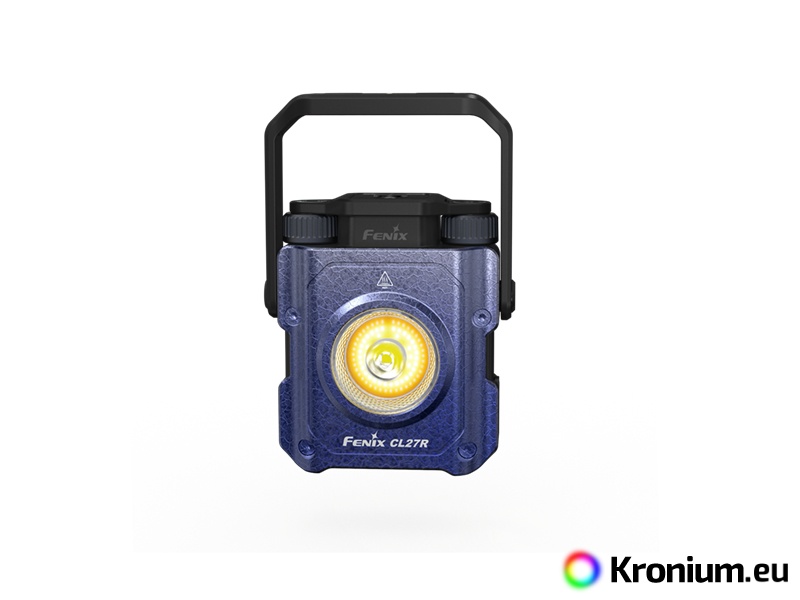

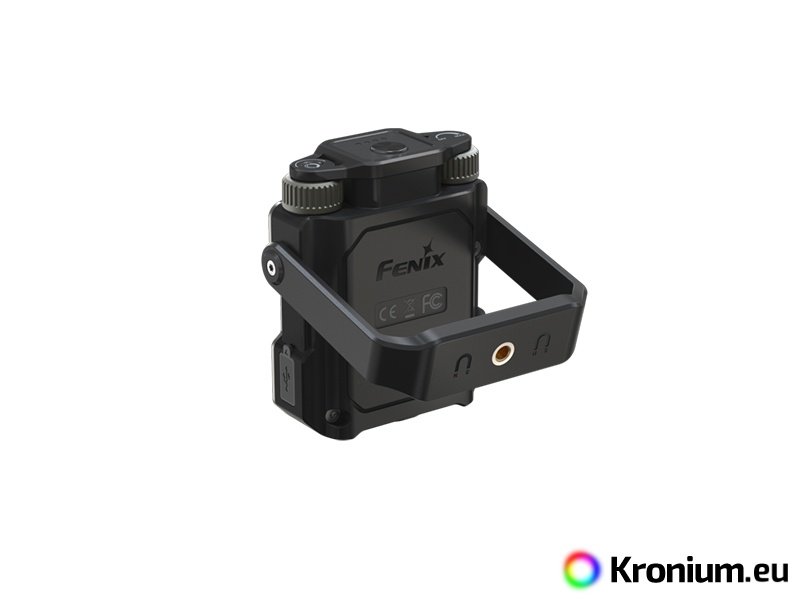

• The light is equipped with a threaded handle for tripod mounting and an integrated magnet. The handle is rotatable by 360°.
• Dimensions 10.9 cm x 9.2 cm x 3.9 cm.
• Weight 300 grams (including battery).

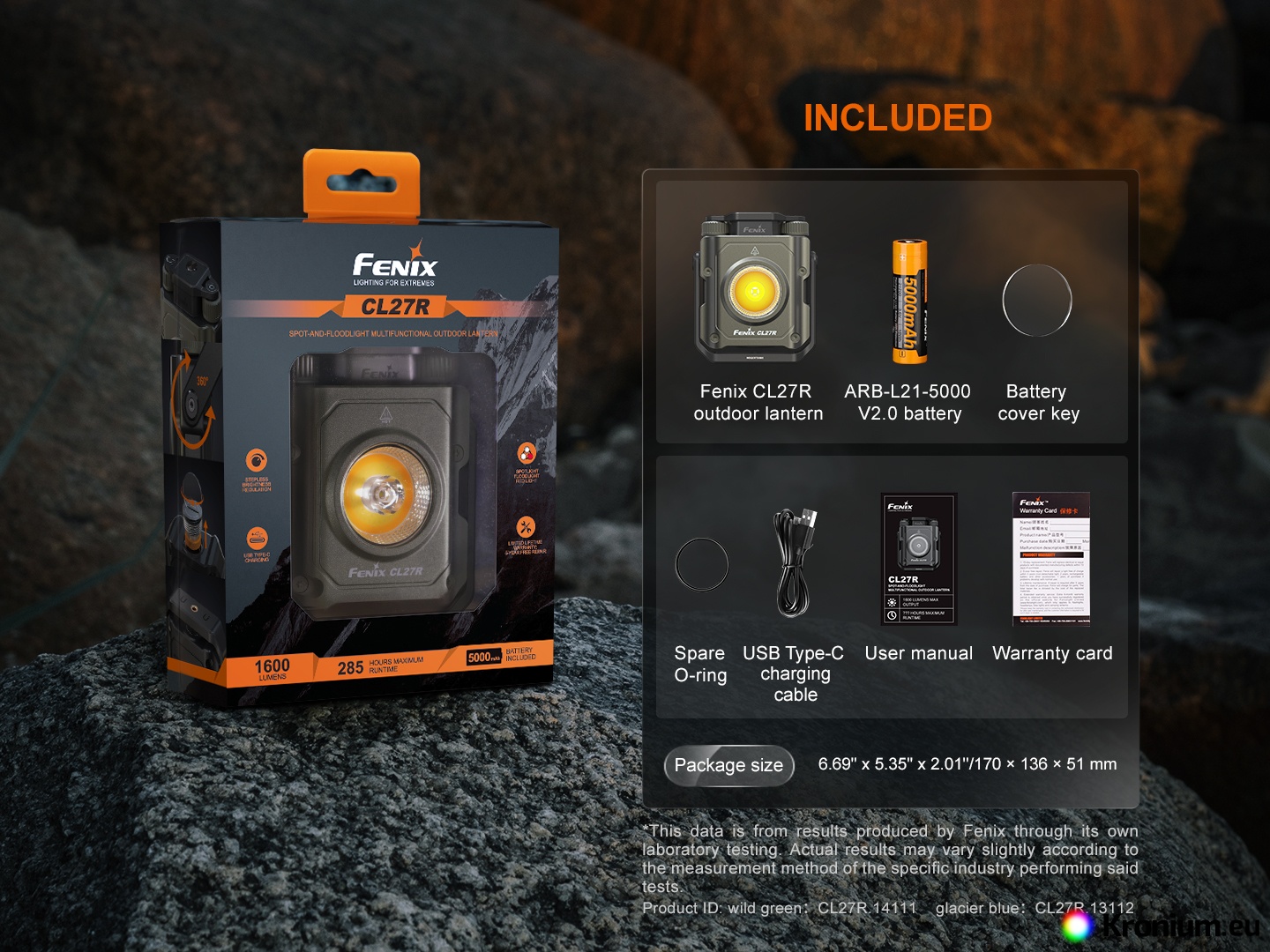

• Package includes lantern, ARB-L21-5000 V2.0 battery, plastic key to release battery cap, USB-C cable, spare o-ring.

 Using the lantern

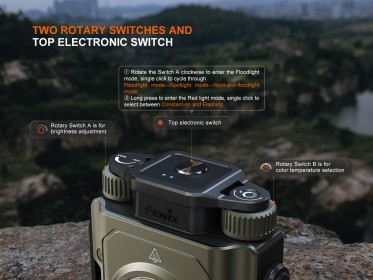

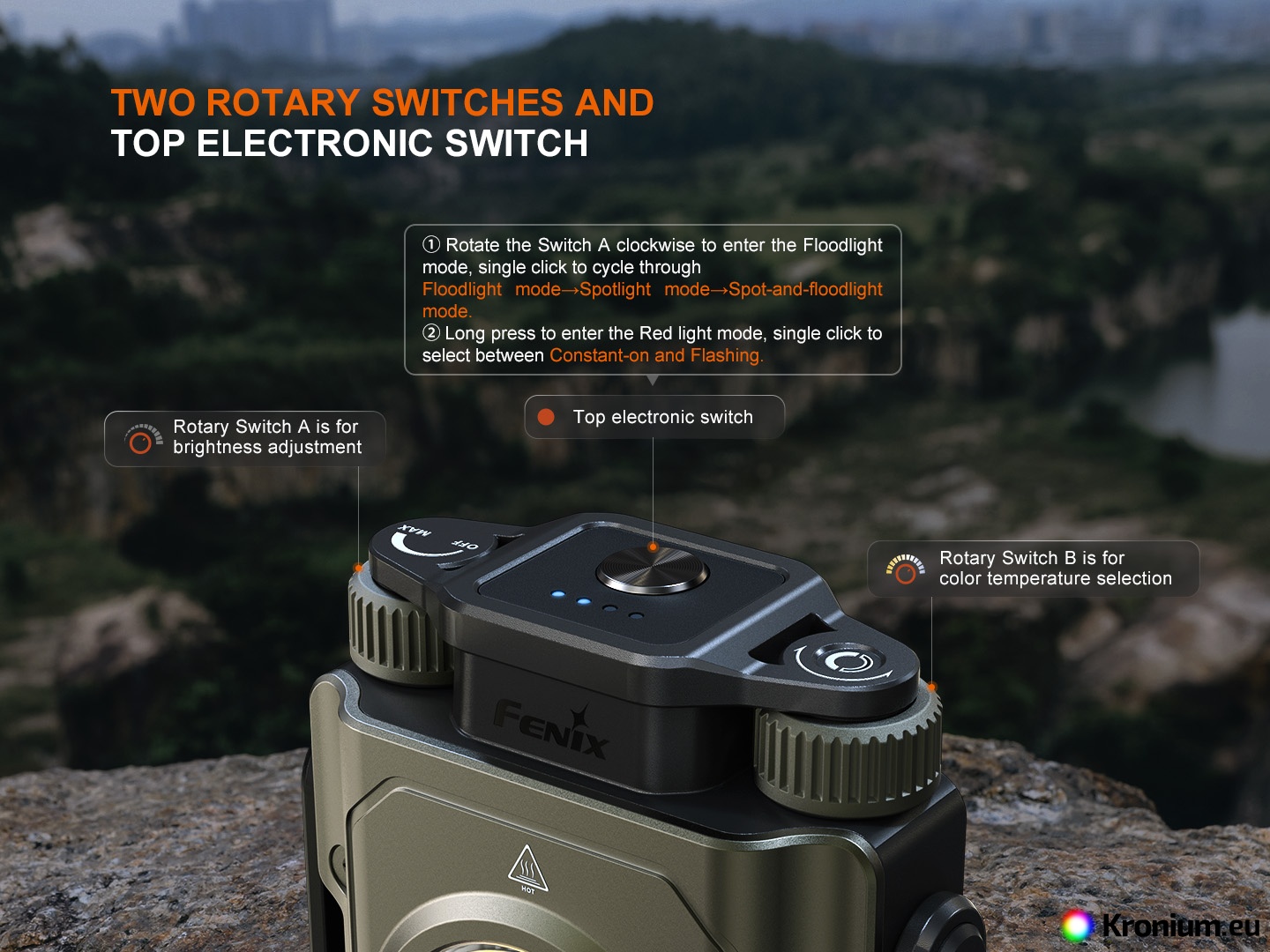

Turn on/off and change the white light output - Turn the left knob clockwise to turn on the white light mode. Turning it then smoothly adjusts the light output from lowest to highest. To reduce the output, turn the left hand dial anti-clockwise. To switch off, turn the left hand control counterclockwise to the extreme position.

Switching light modes - turn the lantern on with the left control clockwise, it will always turn on in floodlight mode. The top button can then be pressed to cycle between floodlight - spotlight - fcombined spot and floodlight modes.

Changing the shade of the floodlight- When the lantern is switched to floodlight or combination mode, the shade of the white light of the floodlight can be changed continuously by turning the right knob in the range of 2700 to 6500 K. The shade of the light of the floodlight is 5700 K and cannot be changed. The lantern remembers the set light shade of the floodlight even after switching off.

Red light - When the lantern is switched off, the red light is switched on and off by holding the electronic switch for 0.5 s. Further presses of the button cycles through the red light modes.

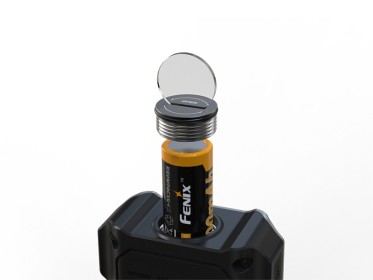

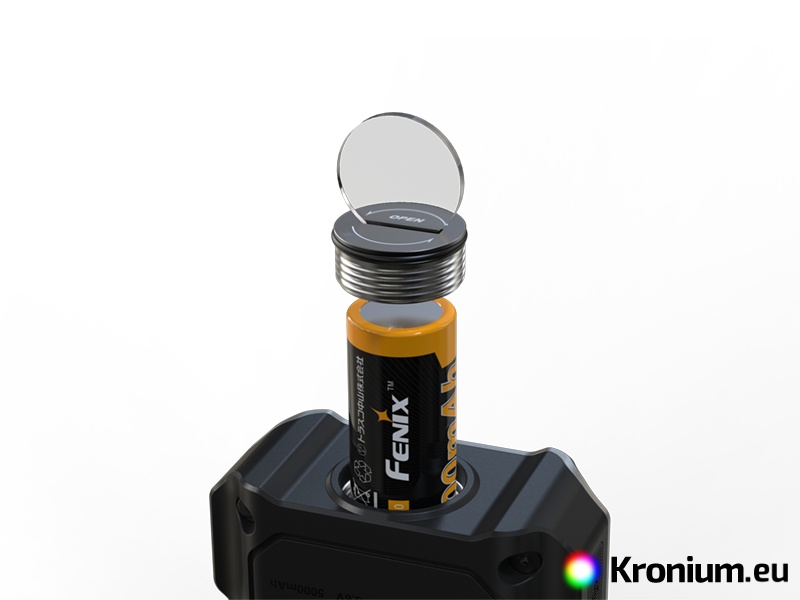

Changing the battery - Use the included plastic key to loosen the battery cap by turning it counterclockwise. Insert the battery with the plus side facing inside the lantern, then tighten the cap fully again. Caution: screwing the battery cap with a sharp tool may cause scratching.

Battery charge indication - after a short press of the button or after switching on the lantern, the LED charge indicator will activate for 3 seconds. Four lit LEDs indicate that the battery is 80-100% charged, three lit 60-80%, two lit 40-60%, one lit 20-40% and one flashing LED indicates that the battery is less than 20% charged.

Discharged battery warning - If the battery voltage drops below a set level, the lantern will automatically switch to a lower mode until it reaches its lowest output. When low power is reached, the battery charge indicator will flash to remind you to recharge or replace the battery.

Charging the Fenix CL27R

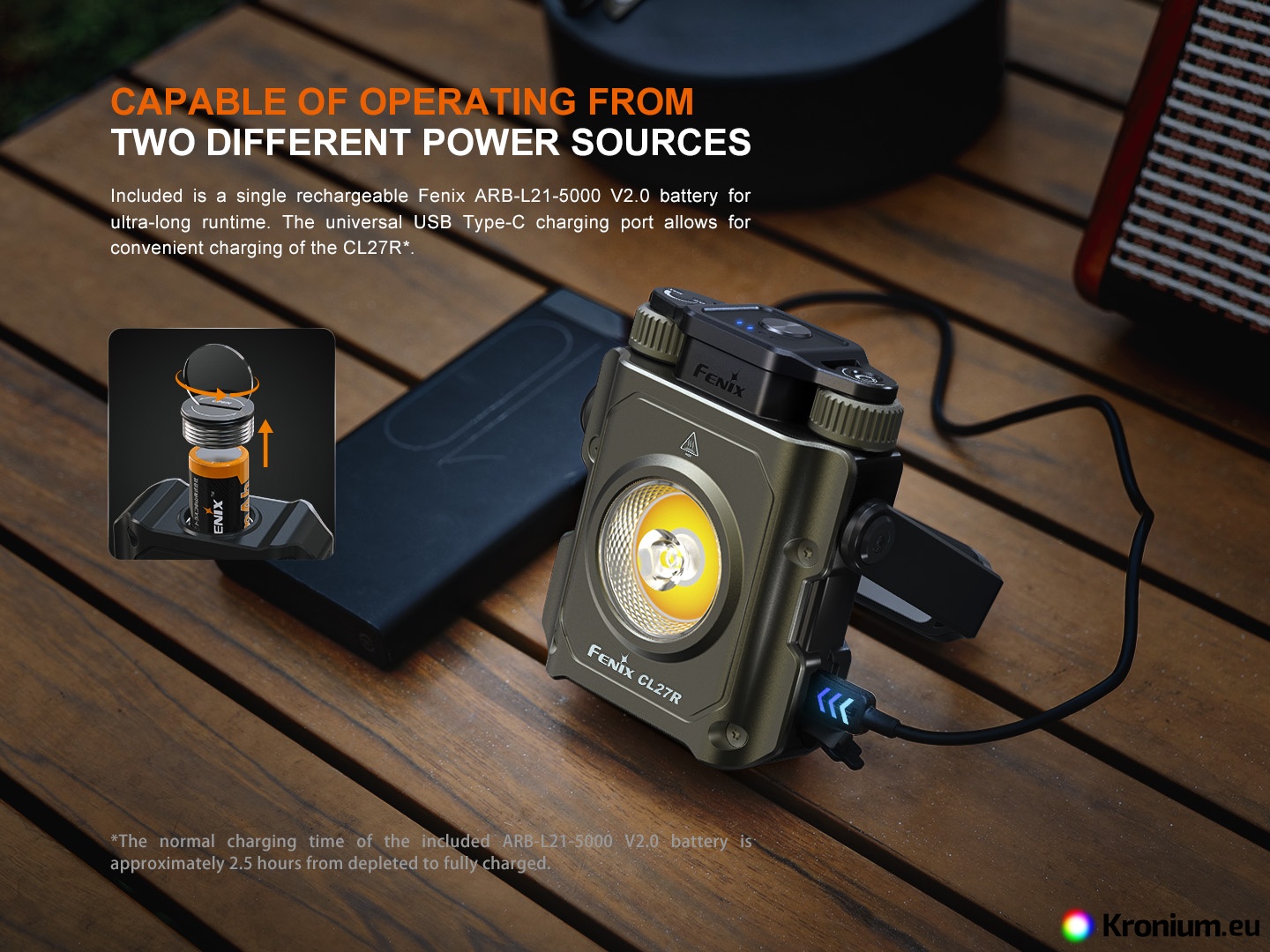

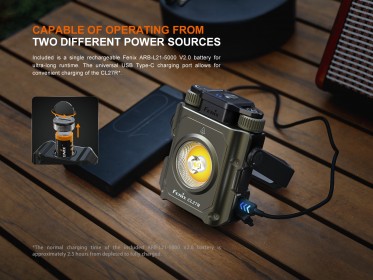

Remove the dust cap and plug the USB-C charging cable into the lantern's charging port. Replace the dust cap when charging is complete. Normal charging time is 2.5 hours for a fully discharged lantern. The lantern can also be used while charging. During charging, the indicators flash from left to right, after a full charge all four will remain permanently lit.

Warning

• Do not disassemble the sealed parts yourself, it will violate the warranty.
• Remove the battery from the flashlight if you will not be using it for an extended period of time or loosen the battery cap by half a turn.
• Regular cleaning of the electrical contacts ensures trouble-free operation of the flashlight, as dirty contacts can cause the flashlight to flicker, glow intermittently, or even fail to light for the following reasons:
  • The battery is dead. Charge it or replace it with a charged one.
  • The electrical contacts inside the flashlight are dirty, clean them with a cotton ball dipped in alcohol.

Warranty

Five years warranty, two years on the battery.
