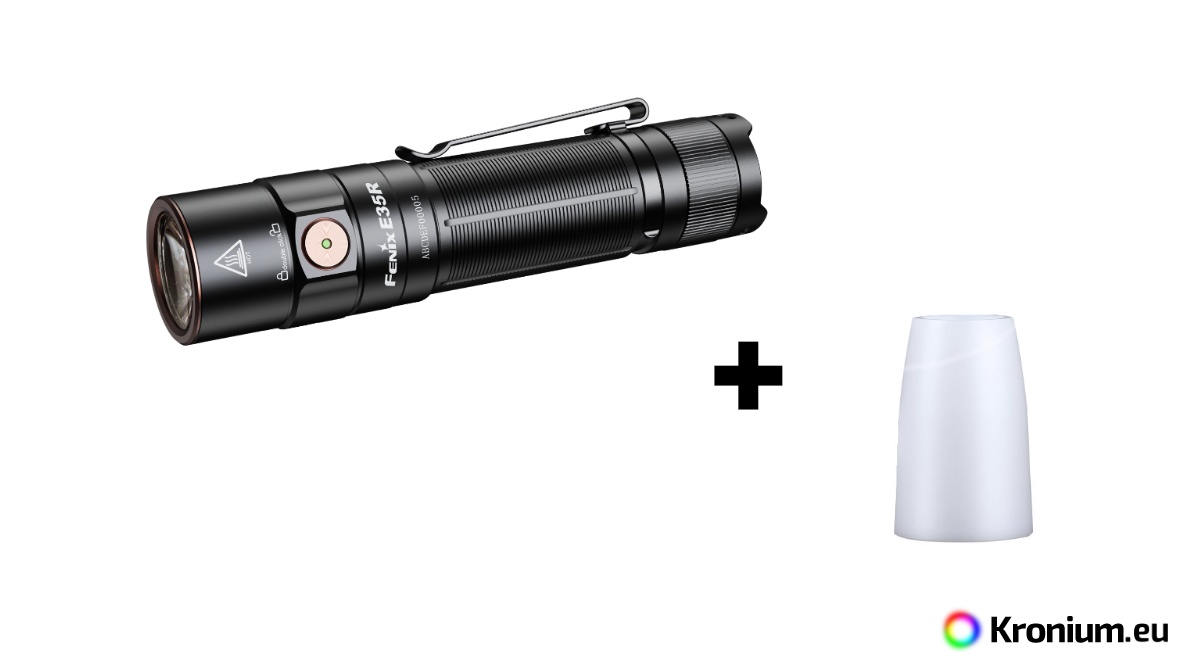

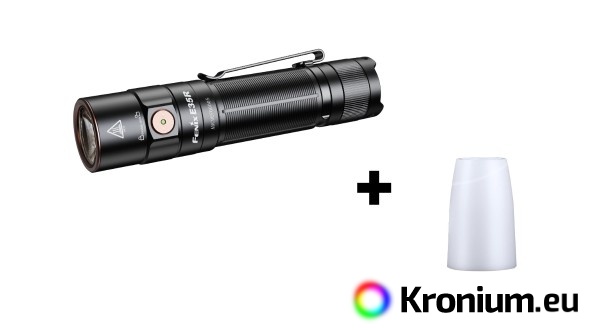

Discounted set of Fenix E35R flashlight and Fenix AOD-S V2.0 white diffuser.

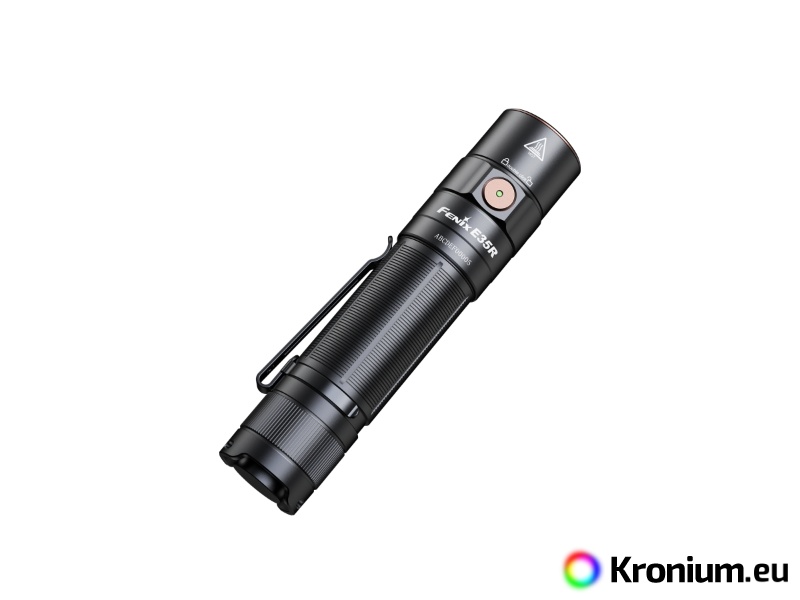

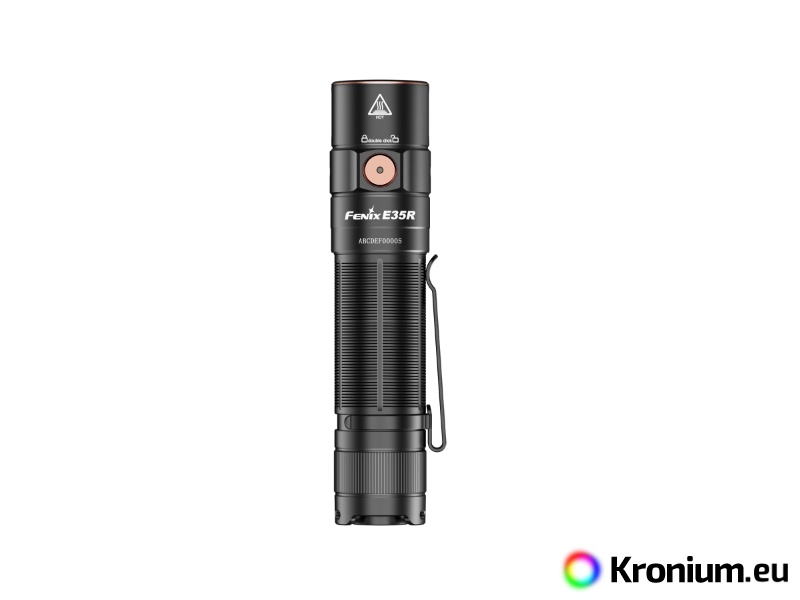

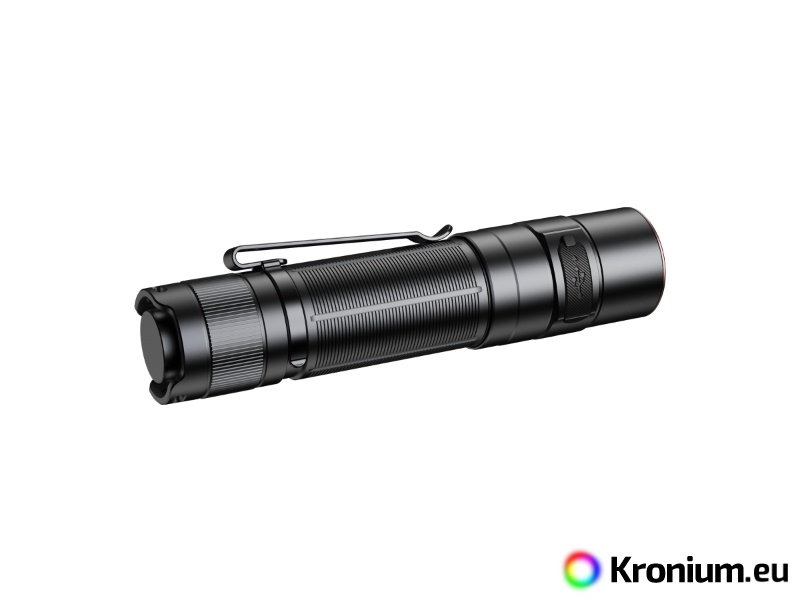

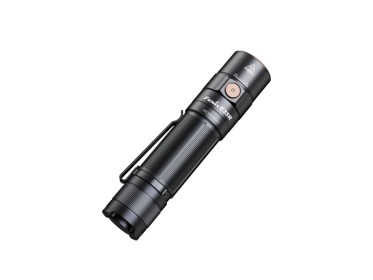

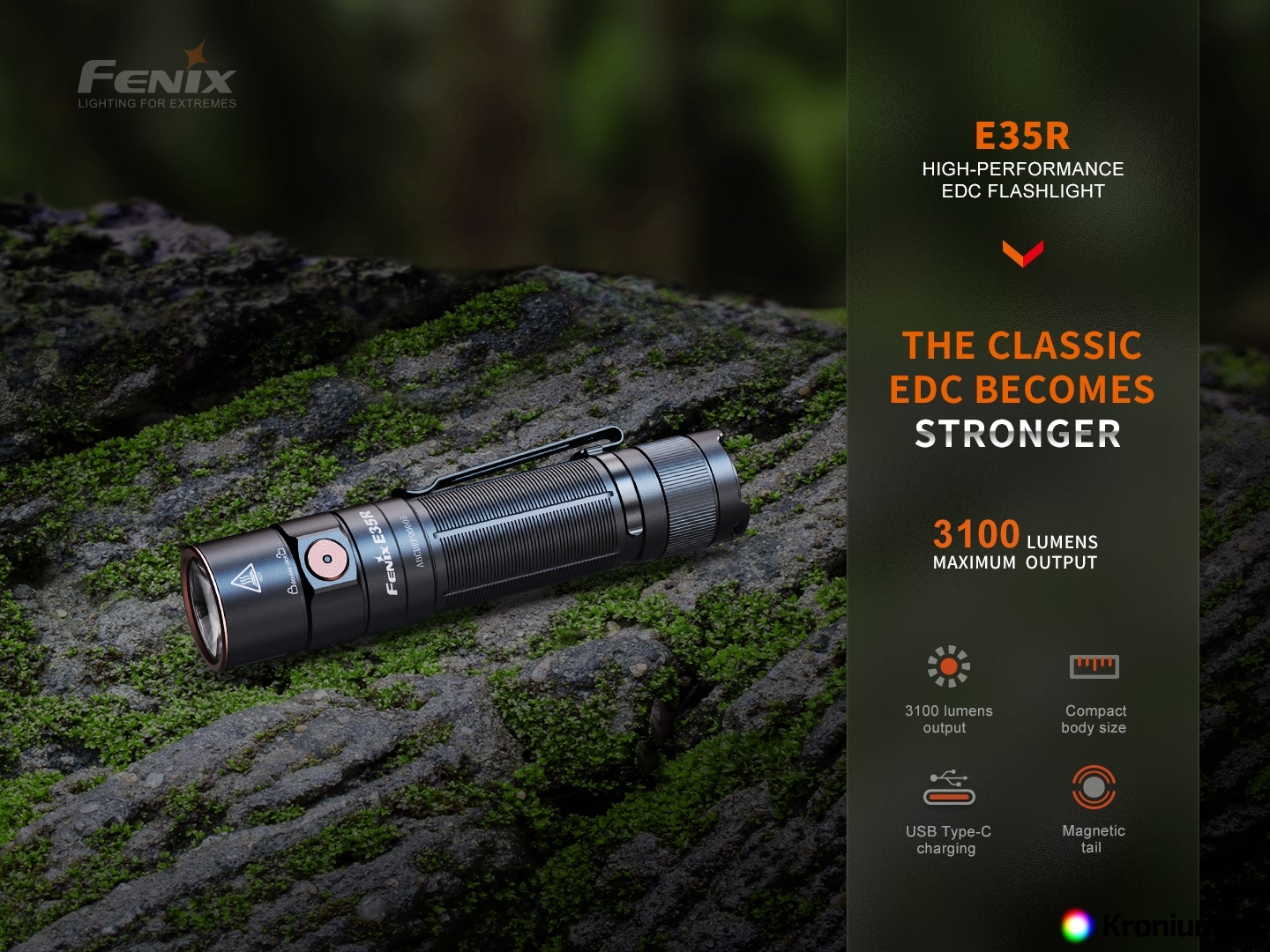

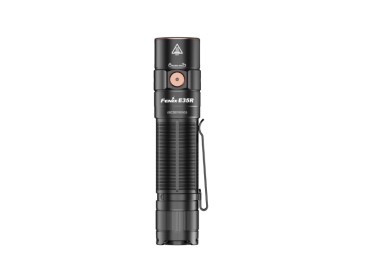

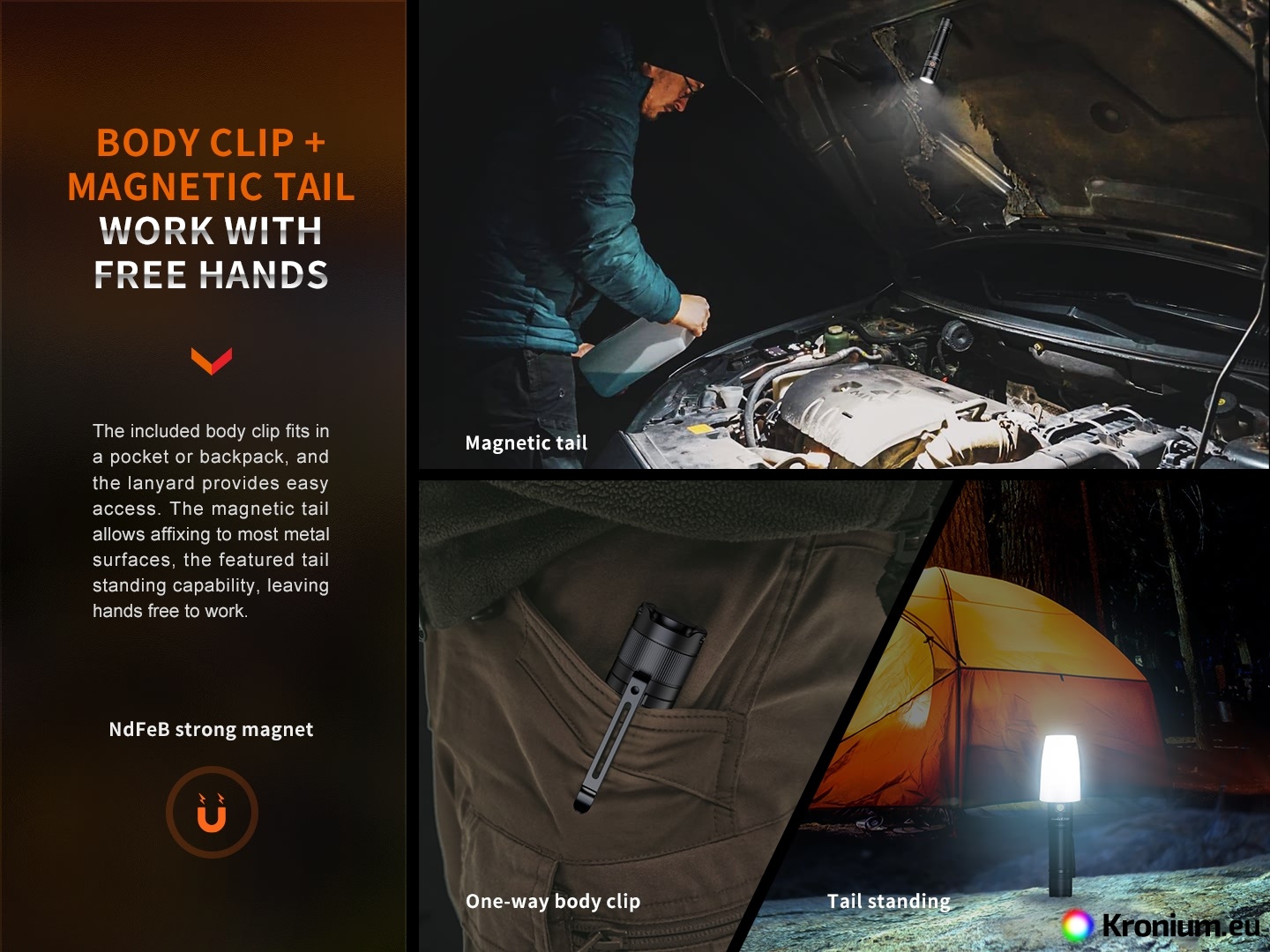

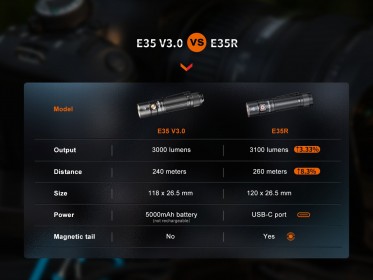

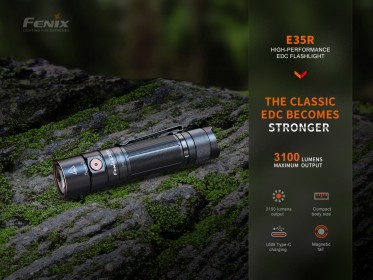

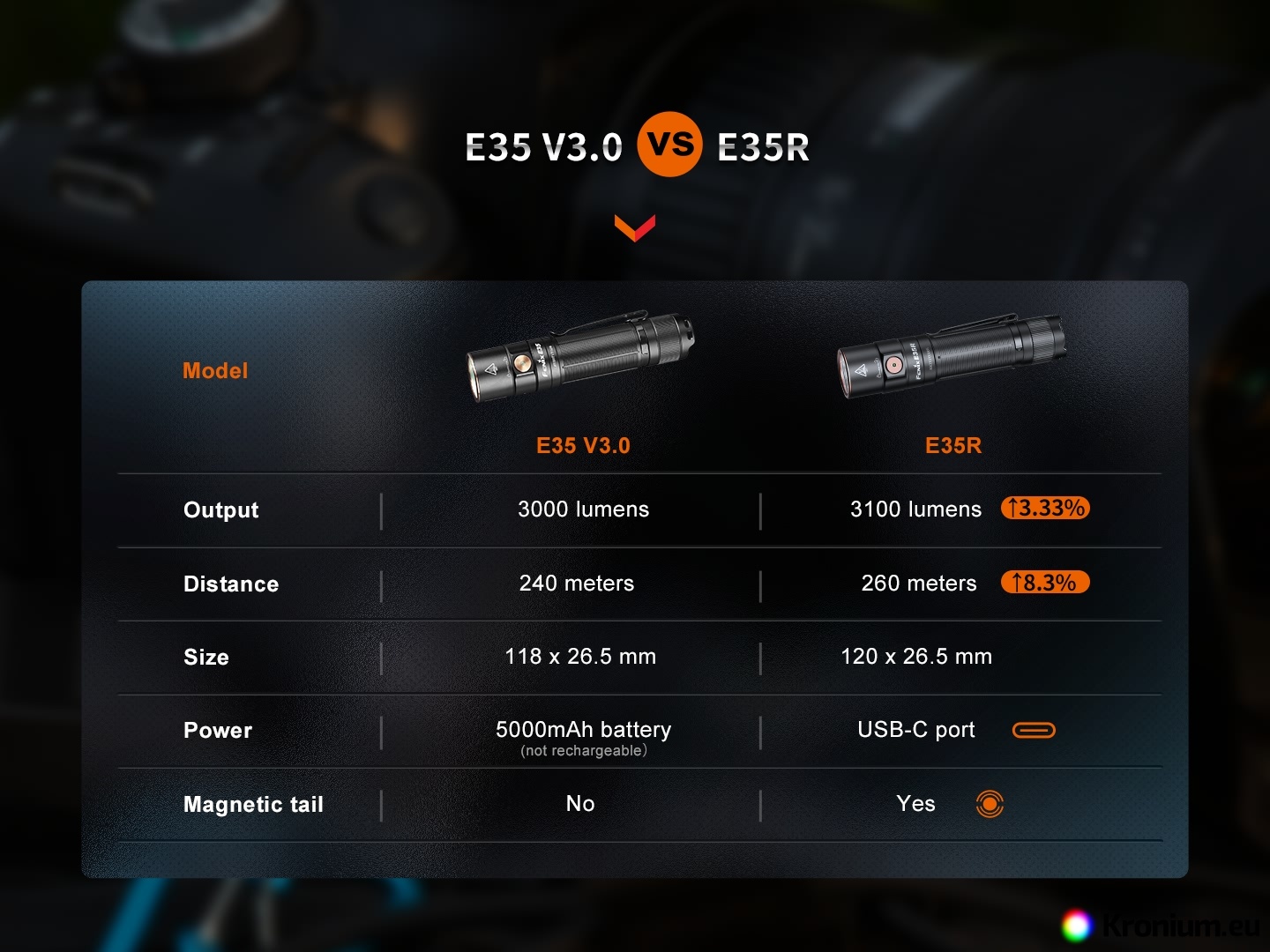

The Fenix E35R rechargeable pocket flashlight offers up to 3100 lumens (ANSI) and a range of up to 260 meters. Excellent performance has been achieved using the advanced Luminus SST-70 LED. A high-capacity Li-ion battery of type 21700 with 5000 mAh capacity is used for power supply. It is recharged via the USB-C connector on the side of the flashlight. The E35R replaces the successful E35 V3.0 flashlight, and has a built-in charging connector and magnetic tip to counter it. The flashlight has been designed with ease of use and broad applicability in mind. The six light functions allow you to choose between high power and more than two and a half days of runtime. There is also a blinding strobe for emergency situations. The Fenix E35R is powered by a digitally controlled constant current to guarantee a constant light output even when the voltage in the battery is reduced (when it is slowly discharging). The flashlight is equipped with an ultra-thin collimator that is made using technologies from the auto industry. Switching on and switching modes is done by a button ergonomically placed on the side. A magnet in the end cap is handy, the flashlight can be attached to iron objects. This flashlight is an ideal light tool with an excellent ratio of high performance, quality and price. It can be recommended for a wide range of outdoor, sports, work and professional activities.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

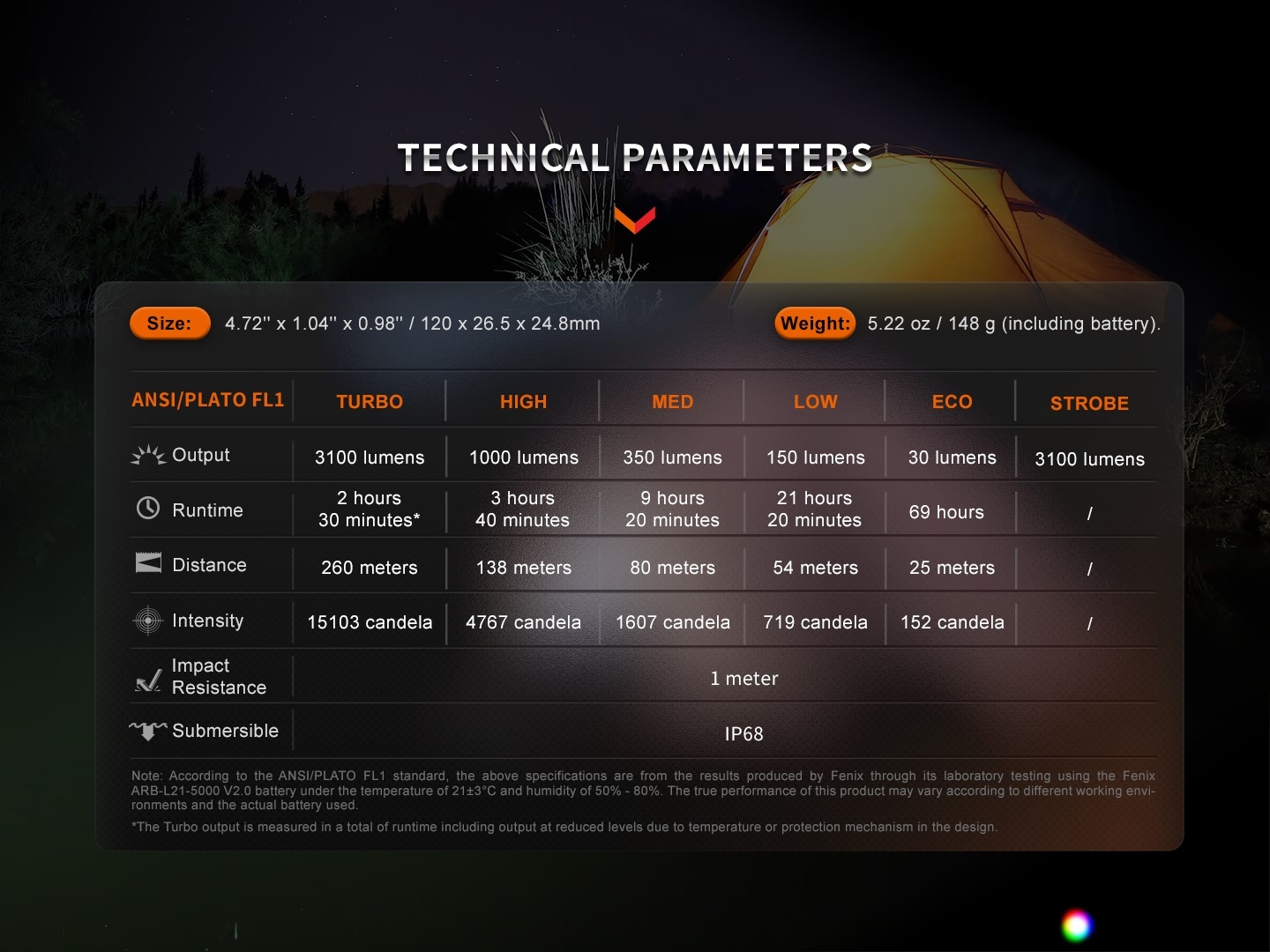

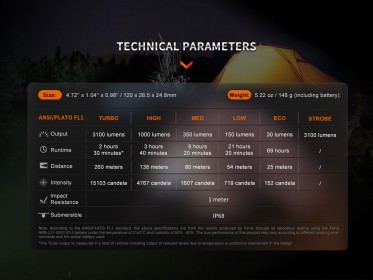

Fenix E35R rechargeable flashlight specifications

• Premium Luminus SST-70 LED with 50,000 hours lifetime is used.

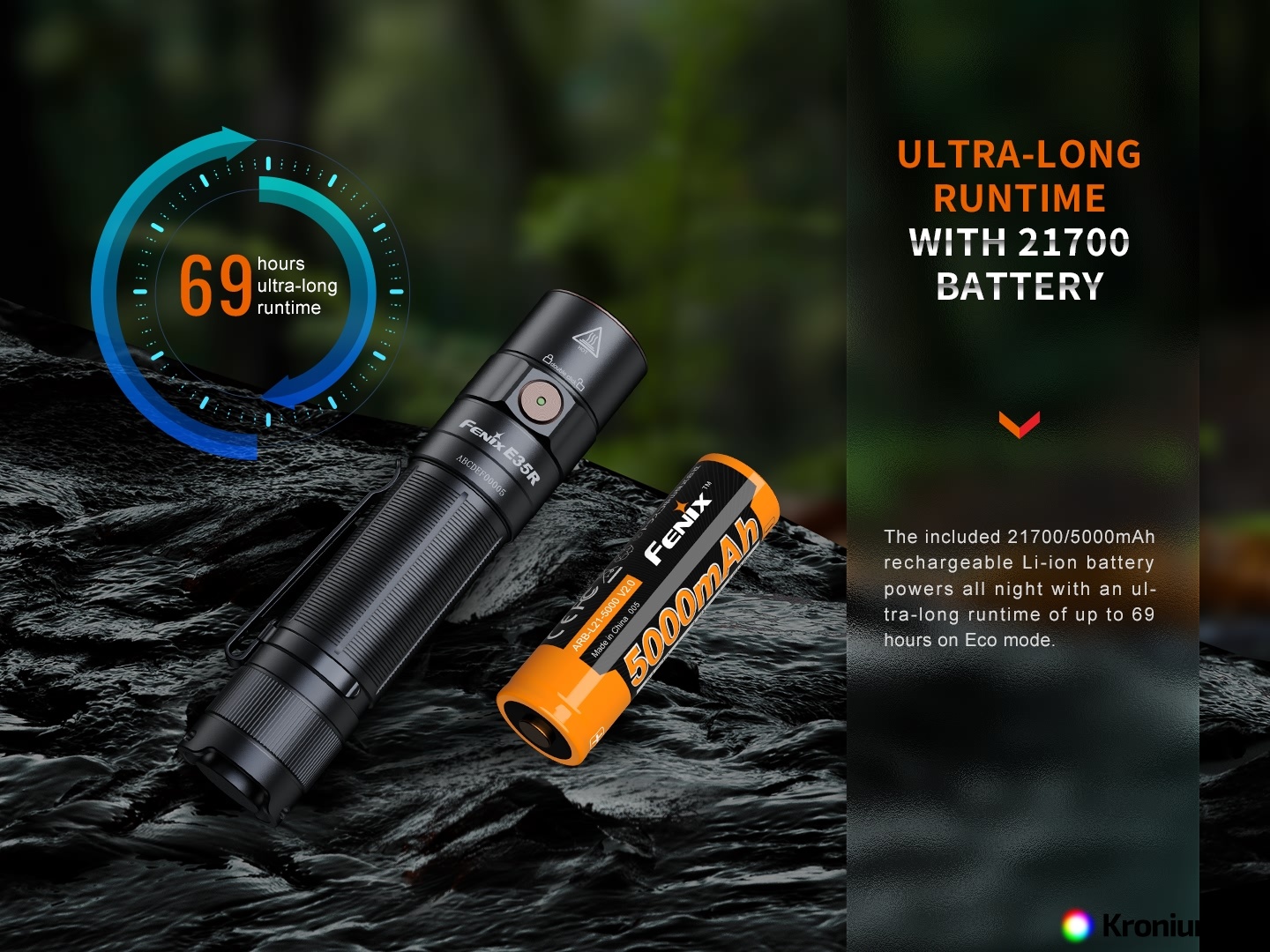

• Six power modes: 3100 lumens (2.5 hours) -> 1000 lumens (3.67 hours) -> 350 lumens (9.3 hours) -> 150 lumens (21.3 hours) -> 30 lumens (69 hours) - Strobe with variable frequency (3100 lumens).

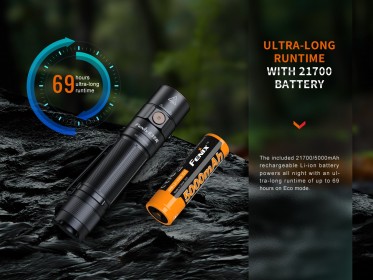

• Light output and run times are measured with the included Li-ion 21700 battery with 5000 mAh capacity.
• The flashlight has memory and will turn on in the last mode selected (only valid for 30, 150 and 350 lumen modes).
• Electronics with digital constant control and intelligent overheat protection.

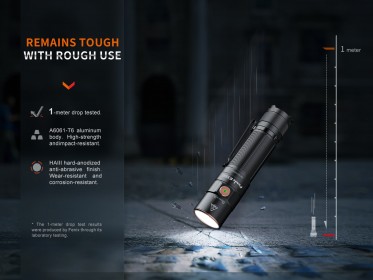

• Made of T6 type aerospace hardened aluminum, the flashlight is shockproof against drops from 1 meter.
• Protection against accidental insertion of the battery in reverse (reverse polarity).
• Resistant surface - Type III hard anodized.
• Battery charge status indication built into the button.

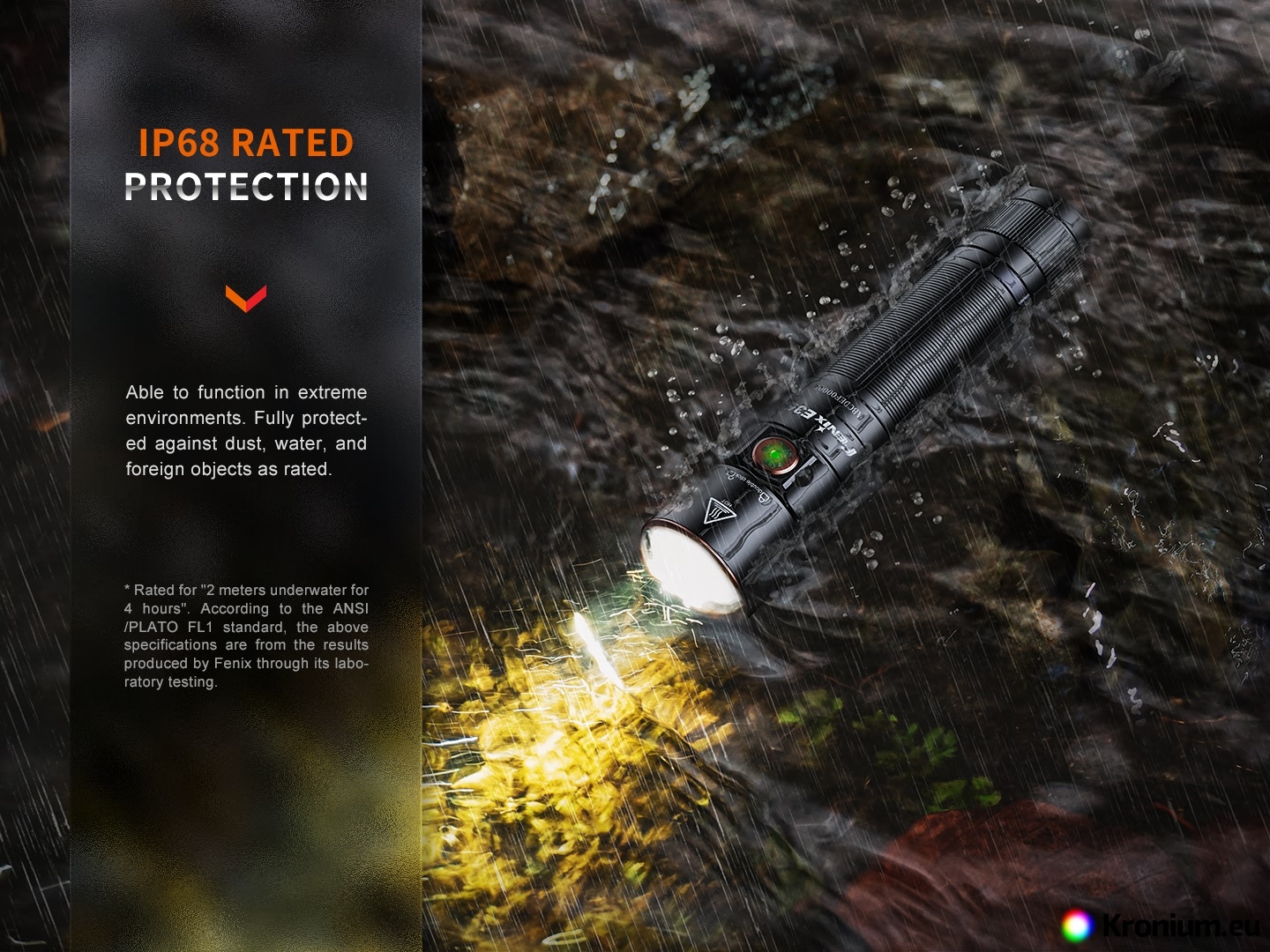

• Waterproof to IP68 standard (tested underwater at a depth of 2 meters).
• Unique super-thin collimator for perfect light cone with 260 meters (15103 cd) range.

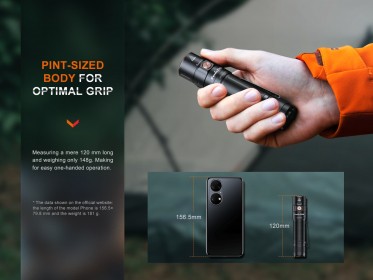

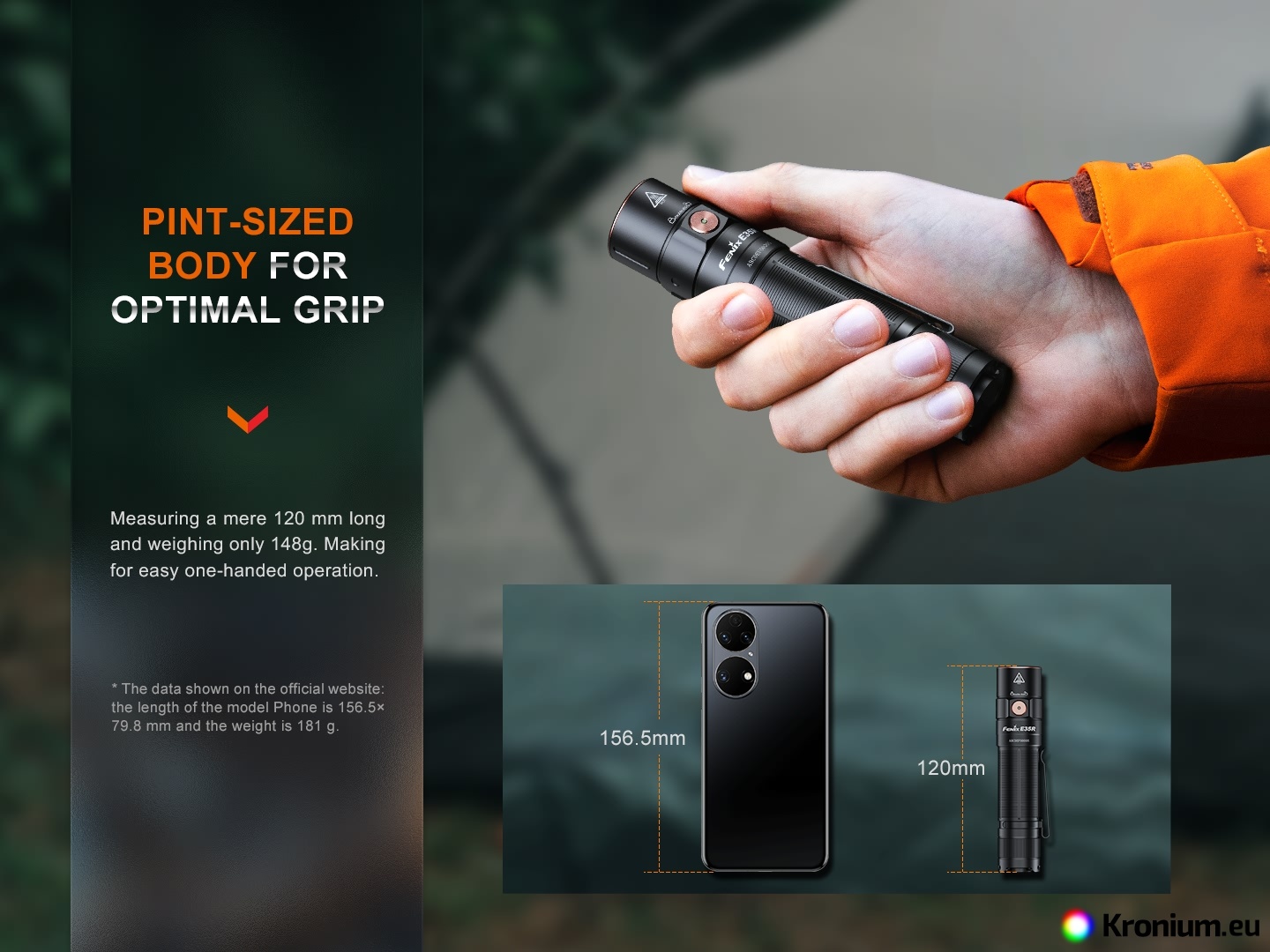

• Dimensions 12 cm (length) x 2.65 cm (diameter).
• Weight 148 grams with battery.

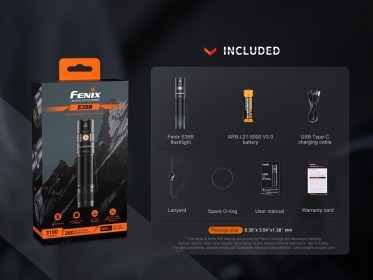

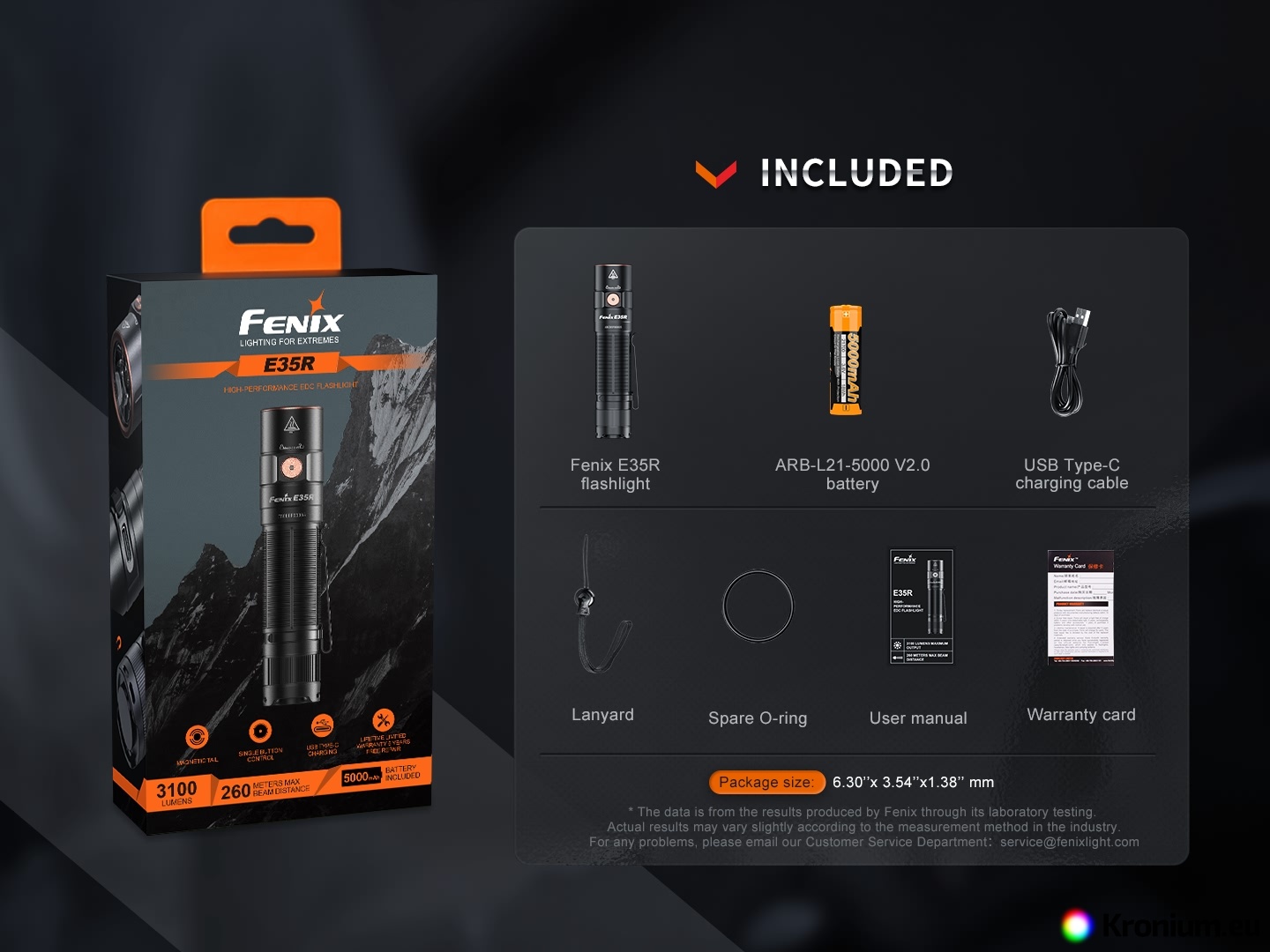

• The flashlight comes with a Fenix ARB-L21-5000 V2.0 battery, USB-C charging cable, wrist lanyard, and replacement o-ring.
• E Series models are shipped without a case. This basic case can be purchased separately.
• As optional original accessories, the following can be purchased: AOD-S V2.0 diffuser, red traffic cone AOT-S+, Fenix ALD-05 strap for using the flashlight on a helmet, swivel belt holster, bike holder, Fenix bike holder, USB mains adapter and USB car adapter.
• The flashlight is also compatible with the LockBlocks bike holder, BikeBlock bike helmet holder.

 Using the Fenix E35R work flashlight

From manufacture, there may be an insulating cap inside the flashlight on the battery. Remove it from the battery pack before first use.
To turn on or off, hold the side button for approximately 0.5 seconds, the flashlight will always turn on in the last selected mode with the exception of the two highest modes (turbo and high). You can switch power modes at any time during operation by pressing shortly the side button. The strobe can be activated by holding the button for 1.2 seconds. When the button is released, the strobe will turn off.

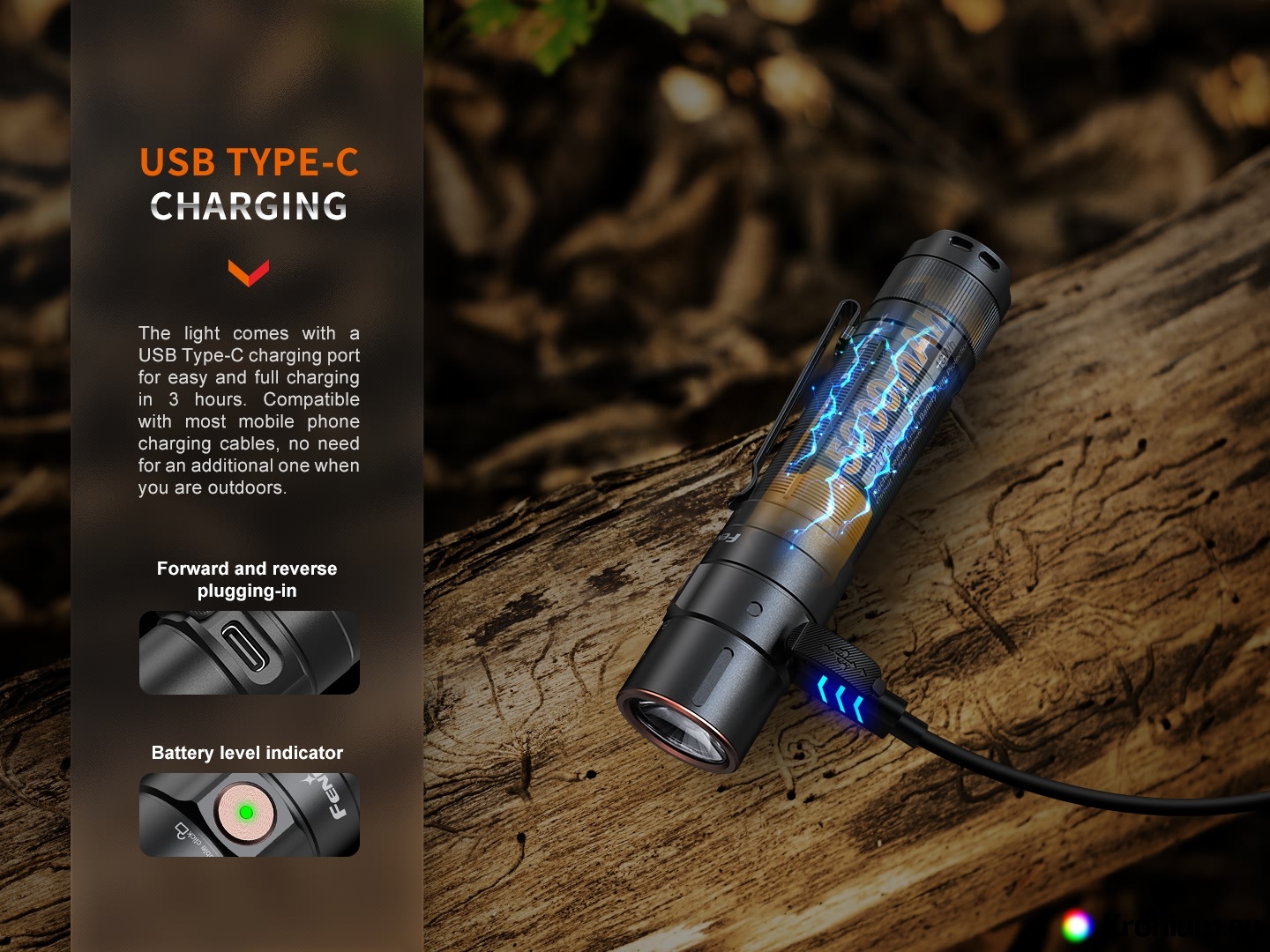

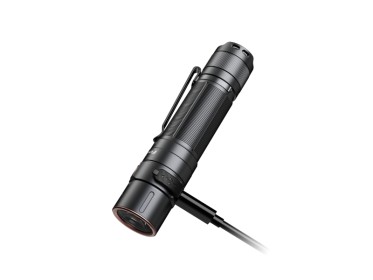

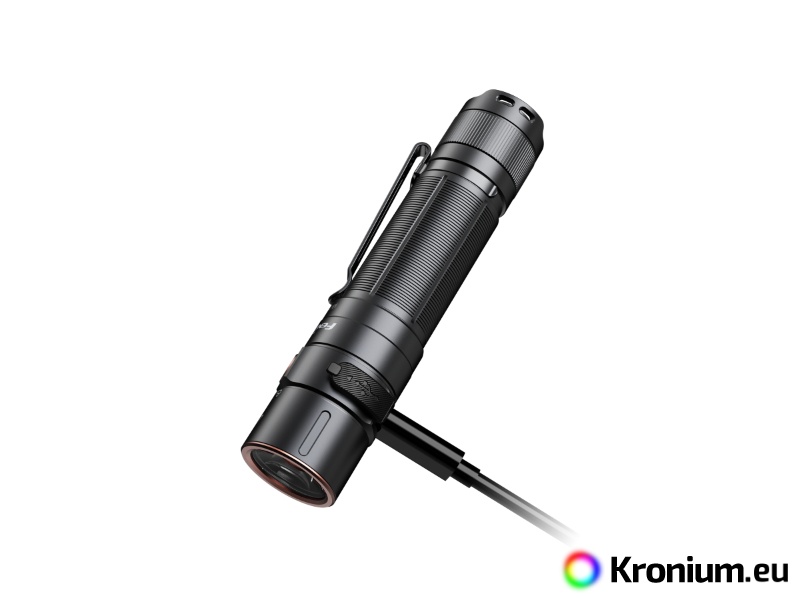

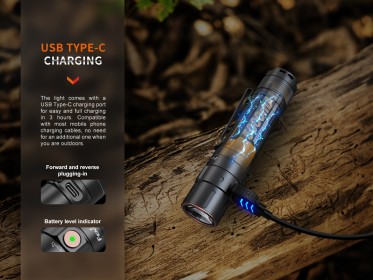

Charging - flip off the rubber cap of the charging connector on the side of the flashlight and plug in the included cable (USB-C connector), plug the other end of the cable into a computer or a USB adapter to the mains or car. During charging, the indicator LED lights red. When fully charged, it will light up green. Charging a fully discharged battery takes approximately 3 hours (with a 2A power supply). 30, 150 and 350 lumen modes can be used during charging.

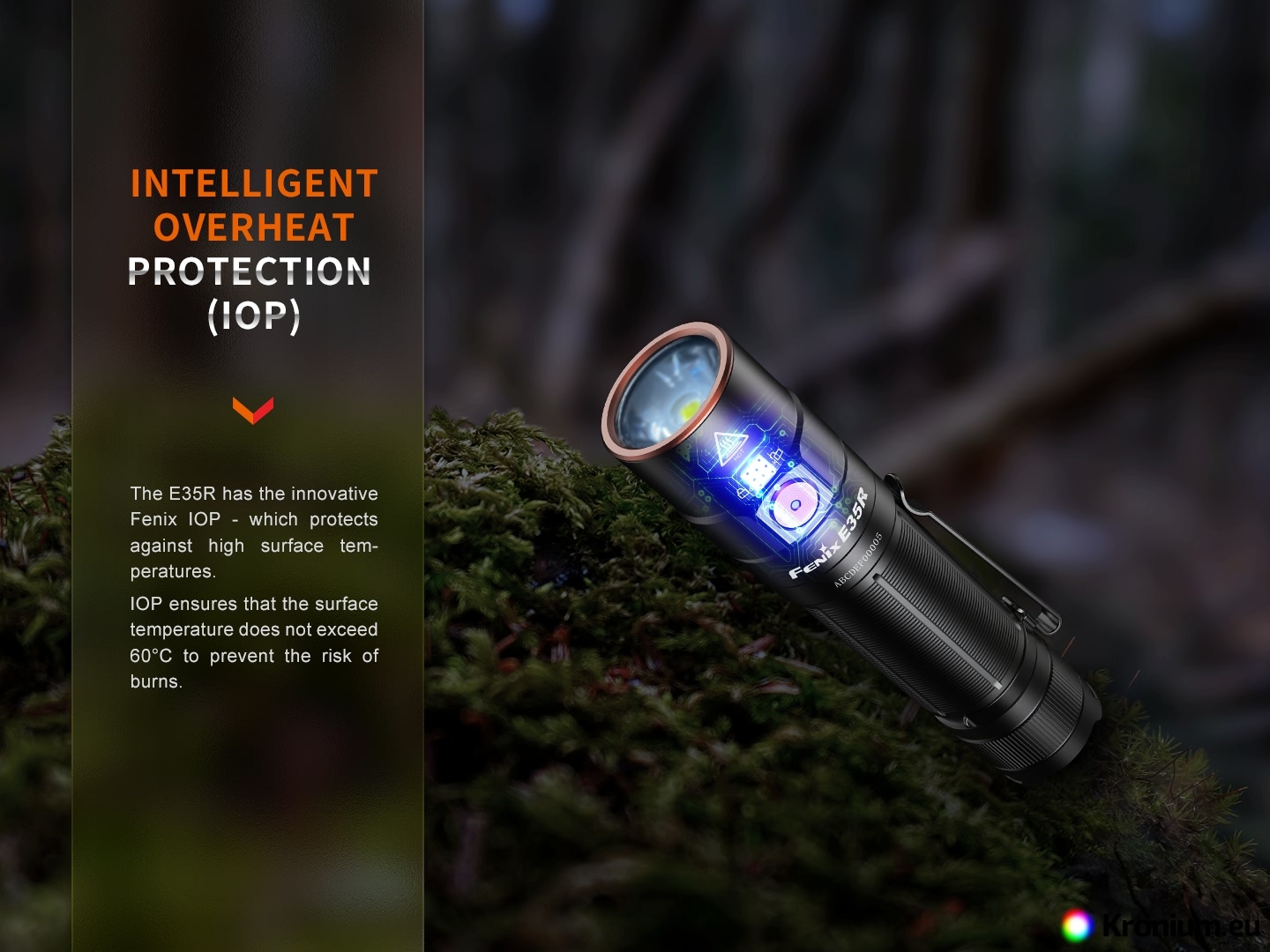

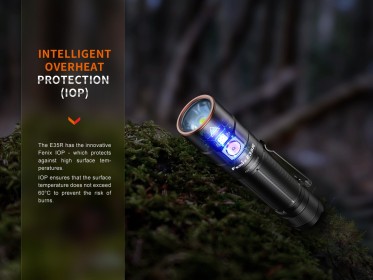

Intelligent overheat protection- If the temperature exceeds 60°C, it will automatically reduce the power. Once the temperature drops below 60°C, the highest power can be used again.

Battery charge indication - After a short press of the button (the flashlight must be switched off), the LED indicator in the button is activated. If the indicator LED is green the battery is more than 85% charged. Green flashing means 50-85% capacity. If it is red, the battery is 25-50% charged. Red flashing indicates less than 25% battery capacity remaining.

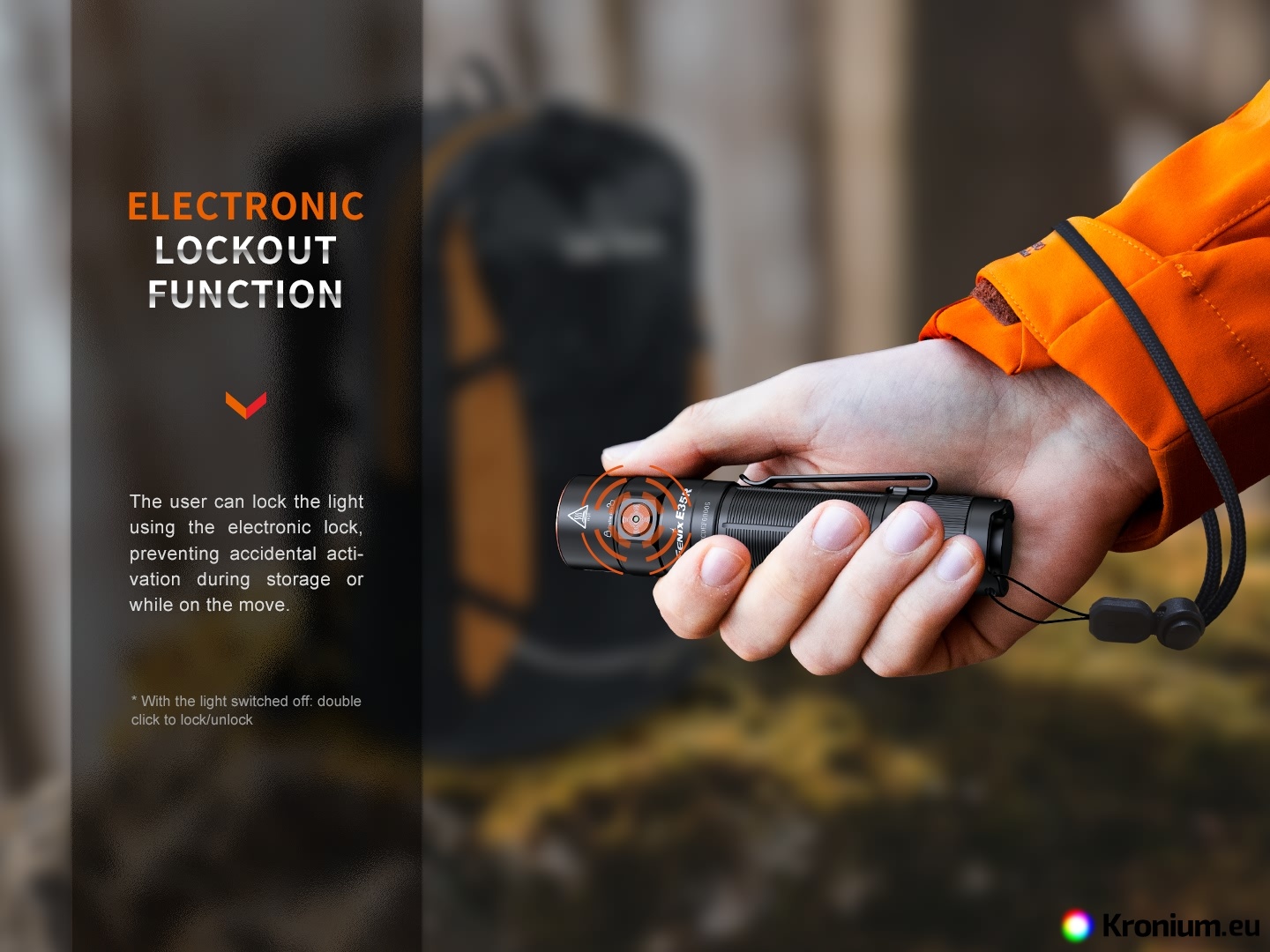

Lock Button - if you want to prevent the flashlight from accidentally turning on in luggage, press the button twice quickly within 0.5 seconds (the flashlight must be turned off), the flashlight will then flash twice in low mode and cannot be turned on. Unlocking is done by pressing the button again quickly twice. Accidental switching on can also be prevented by loosening the body of the flashlight.

Discharged battery warning - the side button will flash red and the flashlight will automatically switch to the lowest mode.

Warning

• Do not disassemble the sealed part in the flashlight head yourself, it will violate the warranty.
• Use only high quality 21700 Li-ion batteries to prevent damage to the flashlight, for example due to leakage of substances from the battery.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight flickers, does not switch to higher power, or does not light up, it may be due to one of the following reasons
  • If the battery is dead, charge it.
  • The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.
  • The body of the flashlight is loose, tighten it.
