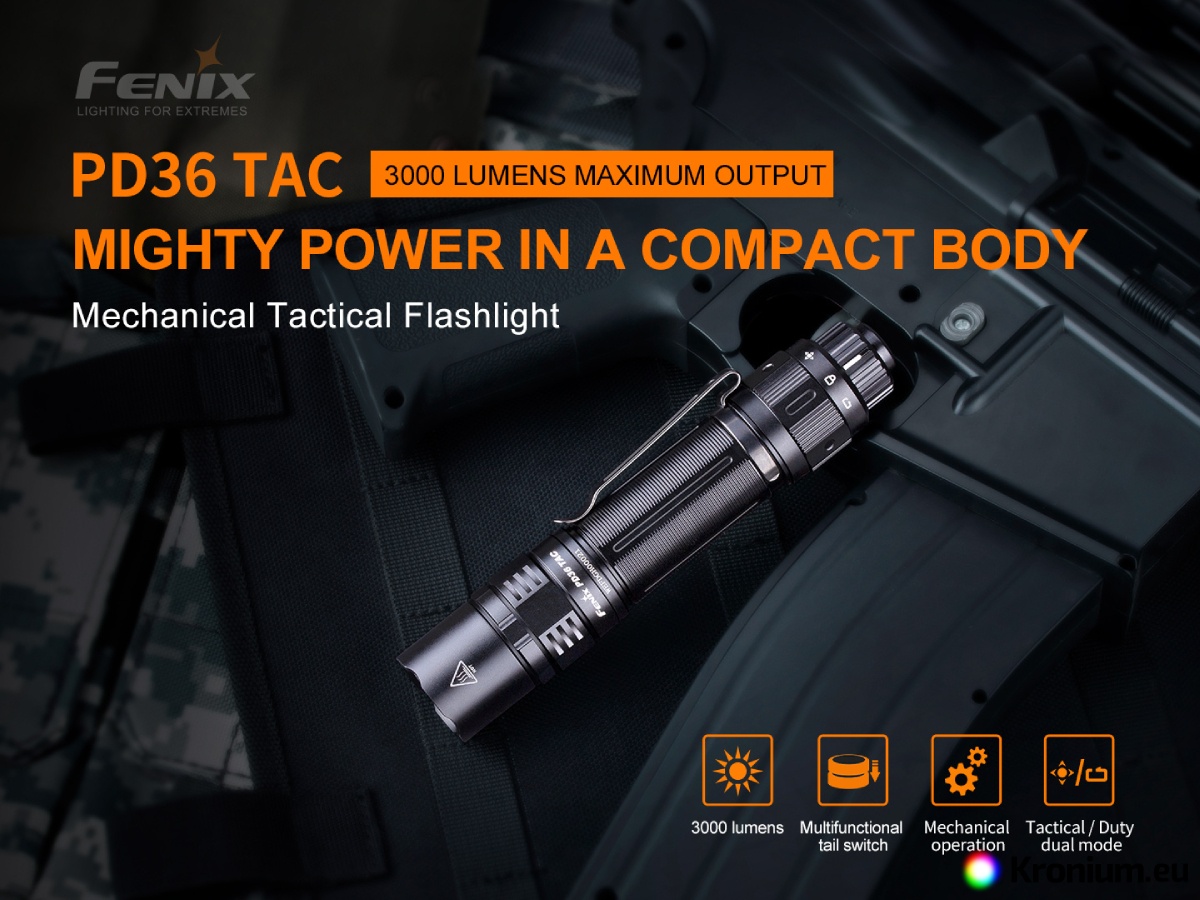

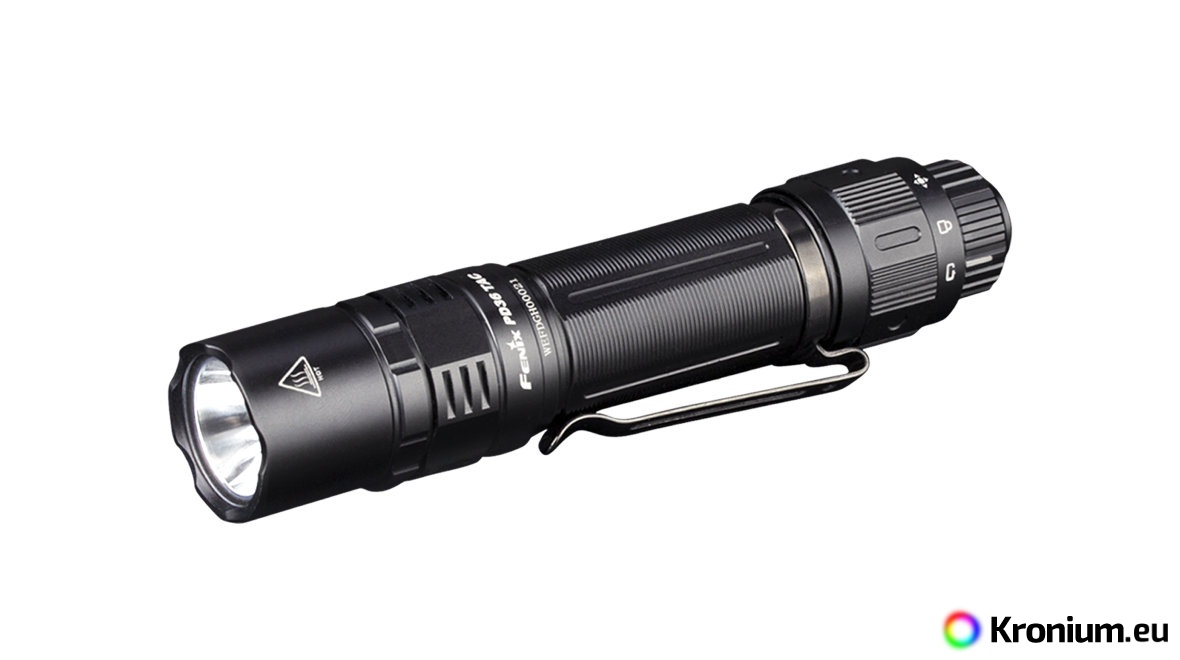

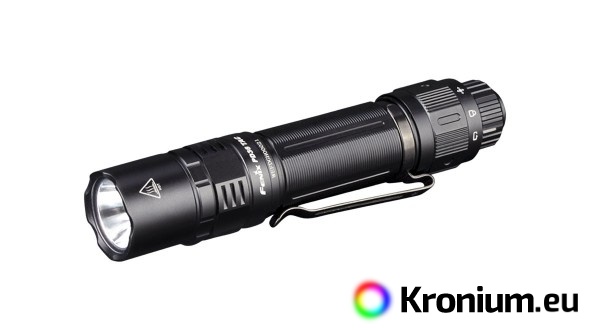

Fenix PD36 TAC is a very powerful tactical flashlight with simple operation with quick strobe activation. It is equipped with the latest LED LUMINUS SST-70 and delivers lumen output up to 3000 lumens (ANSI) and range up to 274 meters. A rechargeable 21700 Li-ion battery with 5000 mAh capacity is included and charges via its own USB-C connector. The flashlight is equipped with a rotary switch-ring that can be used to lock the controls or select one of two modes of use. In tactical mode, the flashlight can be switched to 2000 lumens or strobe mode. In service mode, you can choose between five light modes and strobe. On the lowest mode, it can shine for up to 43 hours. The precision and waterproof design makes this tactical flashlight primarily suited for harsh outdoor conditions. Great for law enforcement, search and rescue operations, and hunting.

All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

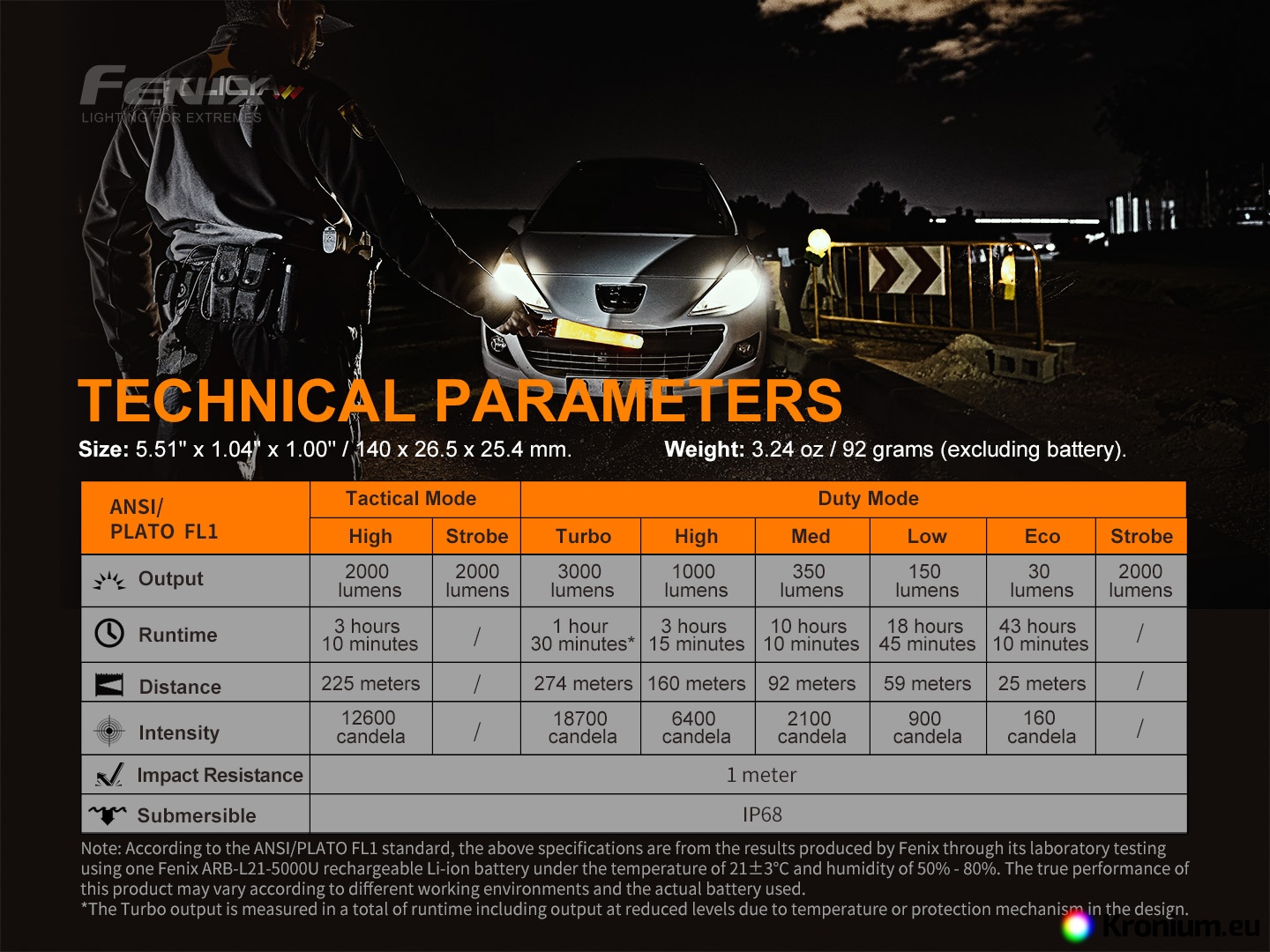

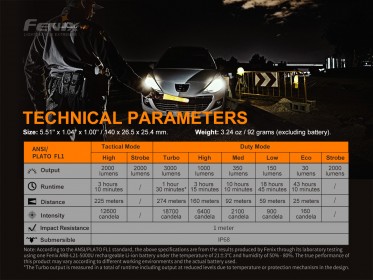

Fenix PD36 TAC tactical flashlight specifications

• The powerful Luminus SST-70 LED is used with a lifetime of 50,000 hours.
• Two lighting modes:
  • Tactical mode: 2000 lumens (3.1 hours) -> strobe 2000 lumens.
  • Service mode: 3000 lumens (1.5 hours) -> 1000 lumens (3.25 hours) -> 350 lumens (10.1 hours) -> 150 lumens (18.75 hours) -> 30 lumens (43.1 hours) strobe -> 2000 lumens
• Duration times are measured with a Li-ion rechargeable battery type 21700 with a 5000 mAh capacity.
• Highly efficient smooth cone reflector with range up to 274 meters (18700 cd).
• Intelligent overheat protection.
• Discharged battery warning.
• Dimensions 14 cm (length) x 2.65 cm (head diameter) x 2.54 cm (body diameter).

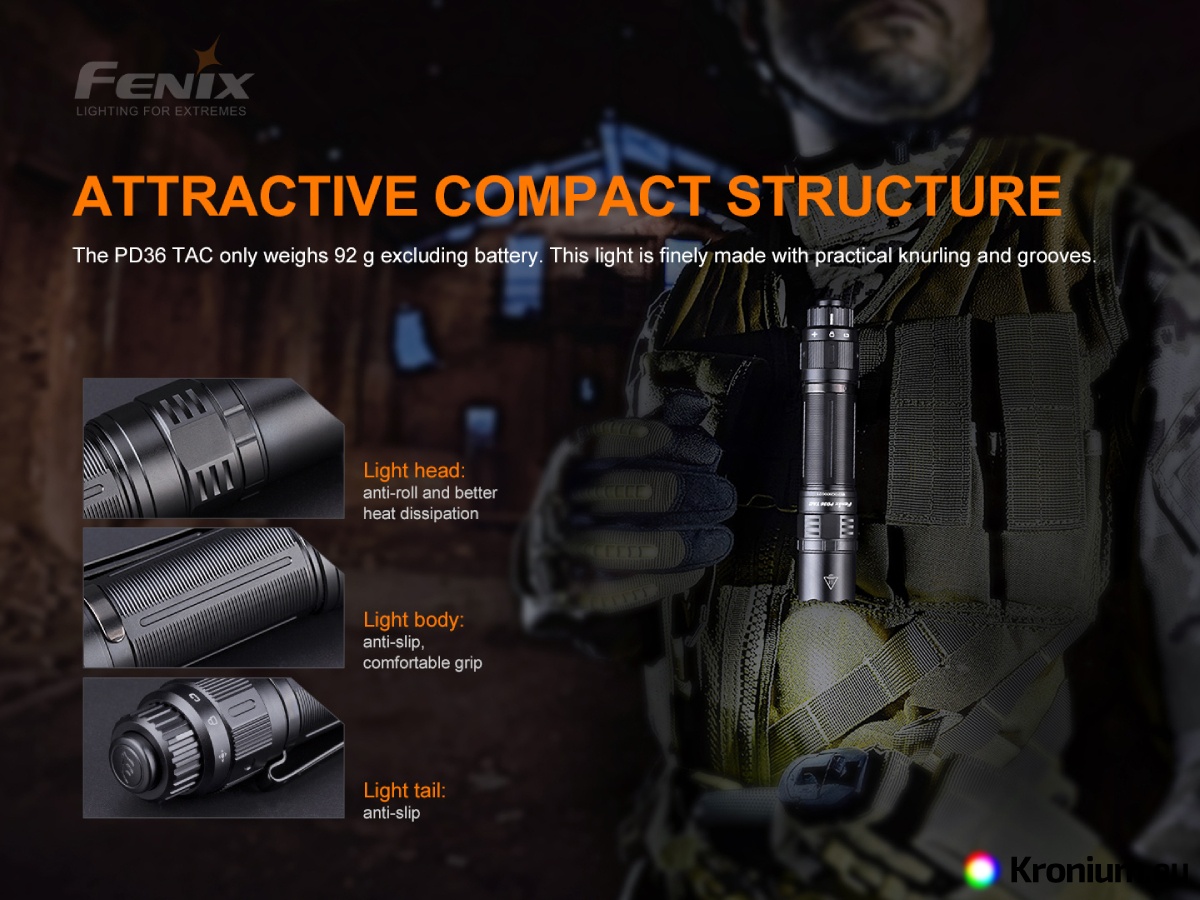

• Weight 164 grams (including battery), 92 grams (without battery).

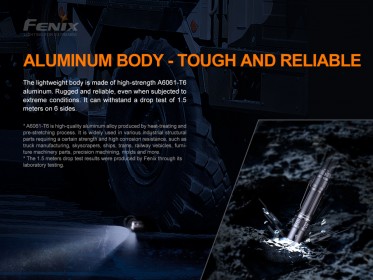

• Body construction of A6061-T6 aerospace hardened aluminum.
• Hard scratch resistant finish - Type III hard anodized.
• Resistant to drops from a height of 1 meter.

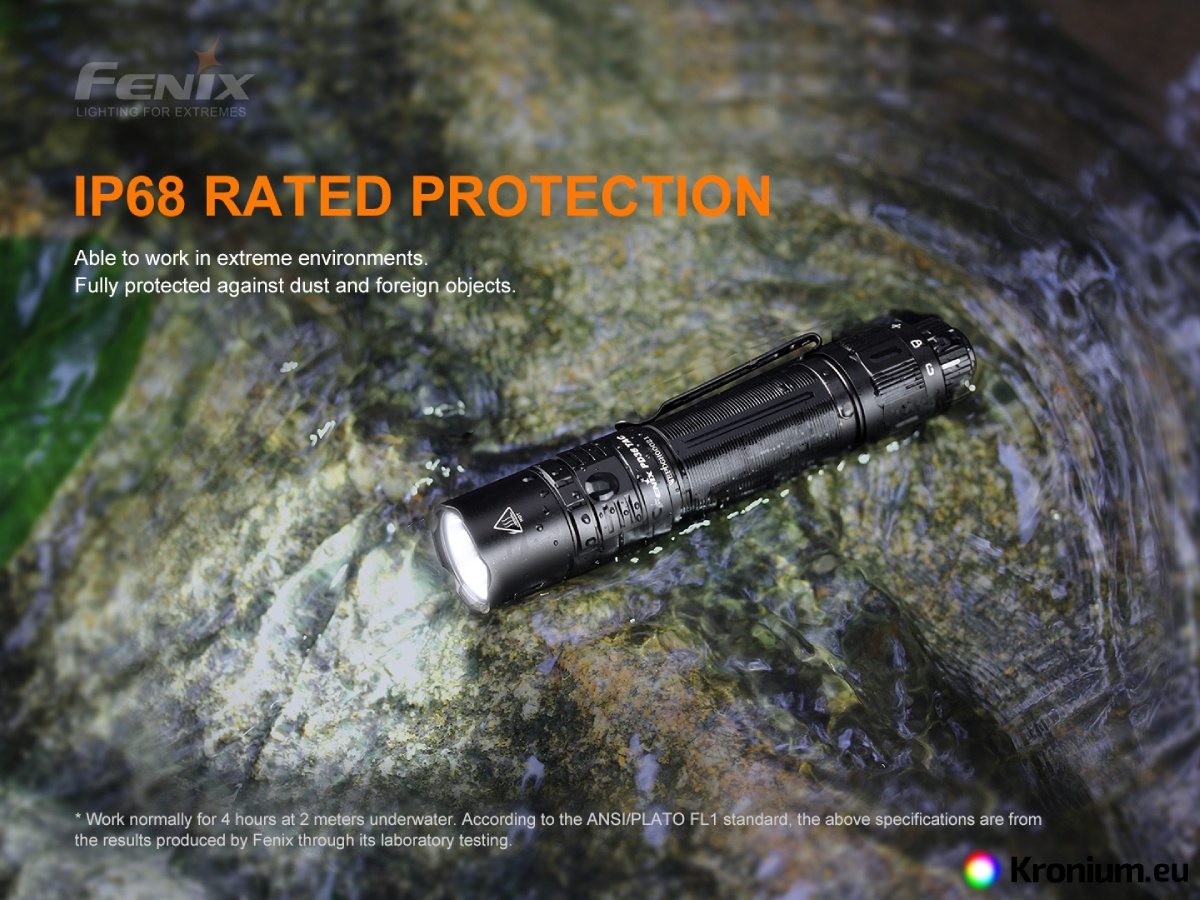

• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Hardened ultra clear glass lens with anti-reflective surface.
• Tactical switch at the end of the flashlight (instant on/off function by pressing).
• Highly wear-resistant trapezoid threads.

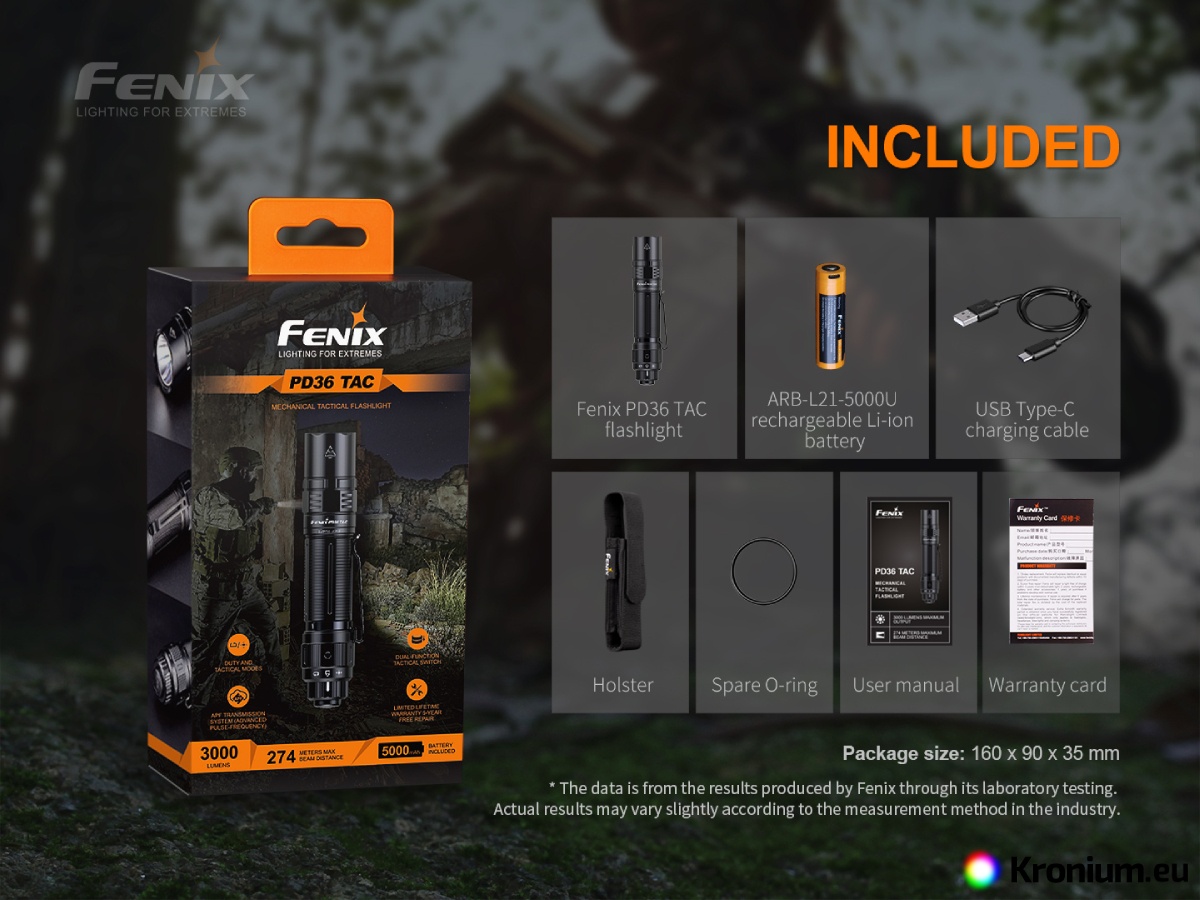

• Package includes flashlight, Fenix ARB-L21-5000U battery with USB-C connector, USB-C cable, replacement o-ring and belt pouch.

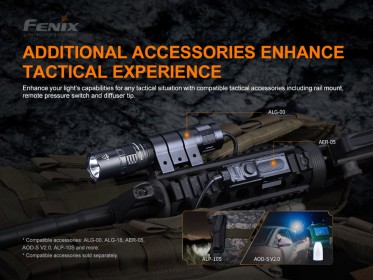

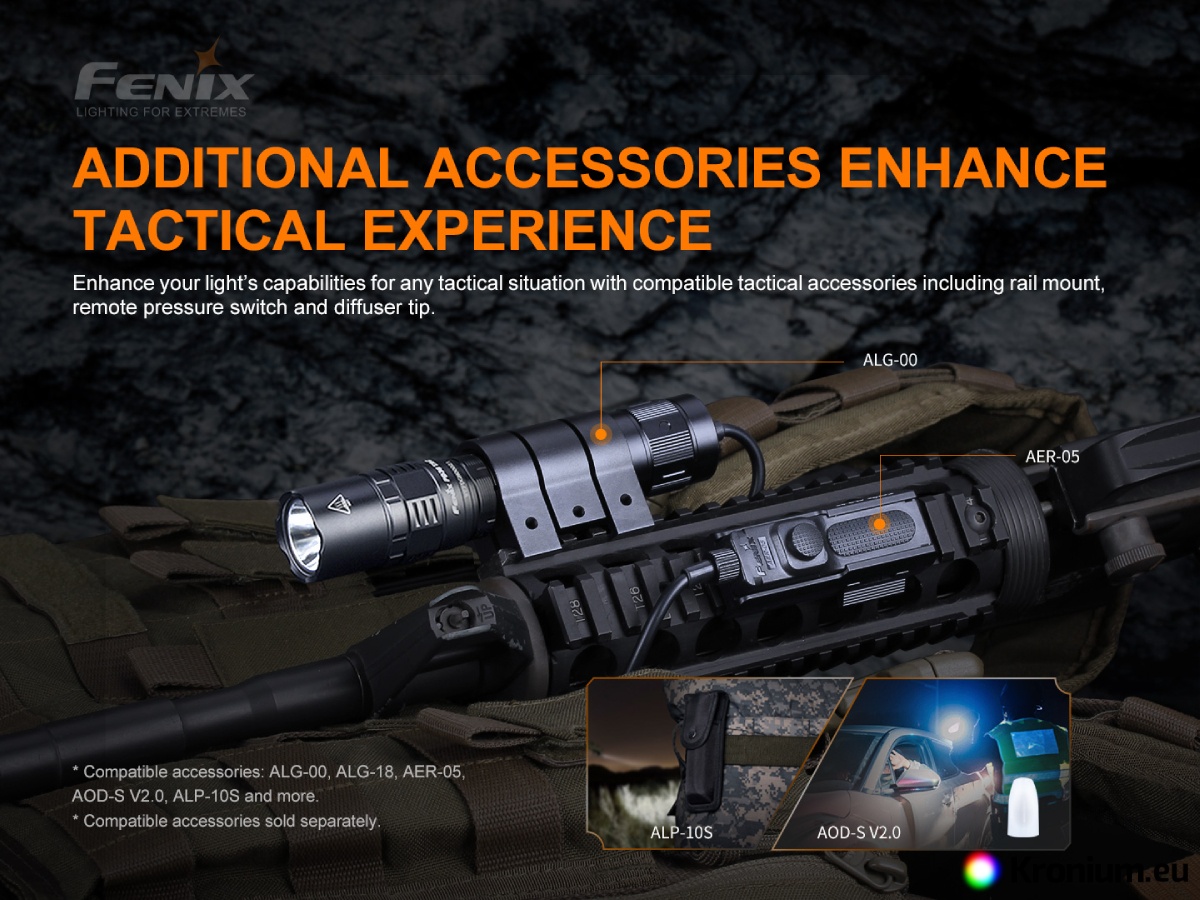

• Optional accessories can be purchased as: AER-05 cable switch, quick-release rail mount ALG-15, quick release barrel mount ALG-00, barrel mount ALG-18.
• The following accessories are also compatible with the flashlight: AOD-S V2.0 diffuser, metal magnetic barrel mount, plastic magnetic barrel mount, optic mount for flashlight, metallic mount for rifle scope, ALP-10S case, Fenix ALD-05 strap for using the flashlight on the helmet, bike holder, Fenix bike holder.

Using of the Fenix PD36 TAC

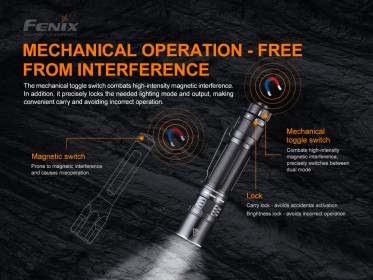

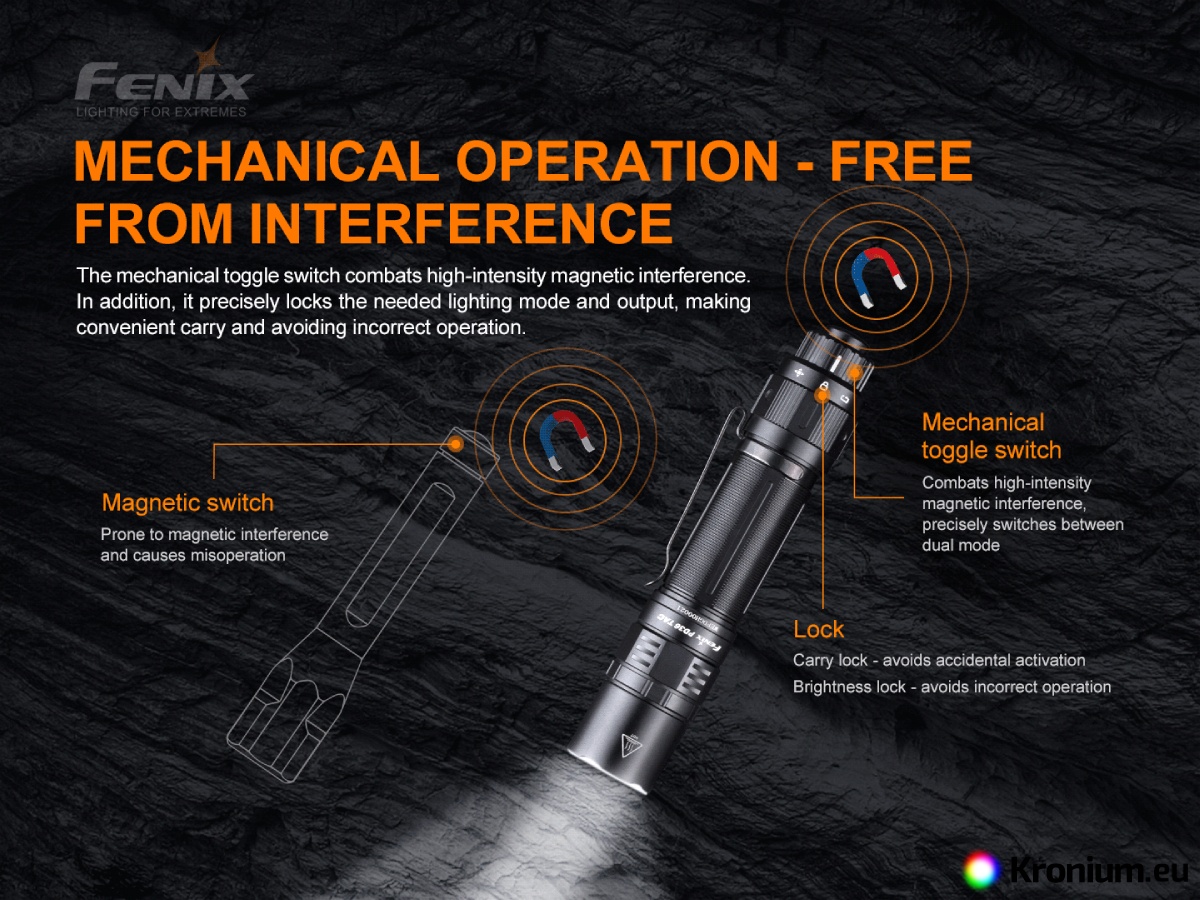

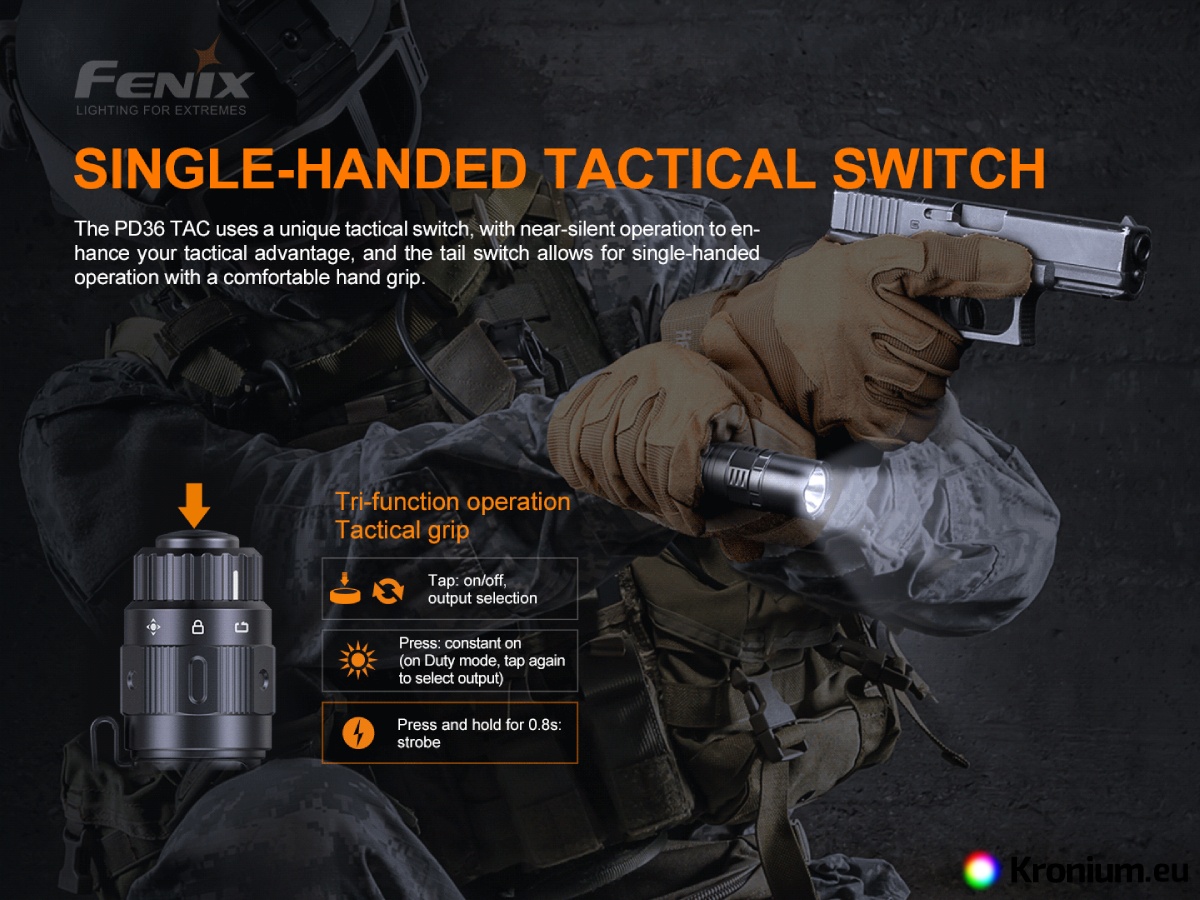

The rotary switch on the tail of the flashlight allows you to choose between light modes that have different controls.

Tactical mode (rotary control in left position): press the tactical button on the end of the flashlight to turn on, press the button halfway to activate immediately. The flashlight will always activate in the highest mode. To activate the strobe, hold the button down for 0.8 seconds (even from off state). Pressing the button returns the flashlight to its original mode. Pressing the button turns the flashlight off.

Service Mode (rotary control in right position): Press the tactical button on the end of the flashlight to turn on, press the button to activate immediately. The flashlight remembers the last selected mode (except strobe). The light modes (except strobe) can be cycled by pressing the button. To activate the strobe, hold the button for 0.8 seconds (even from the off state). Pressing the button returns the flashlight to its original mode. Pressing the button turns the flashlight off.

In the middle position of the rotary control, the lock control button can be activated. If the flashlight is turned off, it cannot be turned on. If it is on, the control will be locked in the currently set light mode and the control button will not respond. To reactivate the tactical button, the control must be turned to tactical or service mode. When using the wired switch, only the highest constant light mode is available.

Intelligent overheat protection - if the temperature of the flashlight exceeds 60°C, then it will reduce power by itself in incremental steps until the temperature drops below a safe limit. After cooling below 60°C, full power can be used again.

Discharged Battery Warning - the flashlight automatically switches to the lowest power level and flashes 3 times every five minutes.

Charging - Remove the battery from the flashlight and plug it into the side USB-C connector using the USB cable. During charging, the indicator light in the plus pole of the battery is red. When the battery reaches full charge, it glows blue or green. The charging currents of the built-in USB-C connector are 2A. Charging time takes approximately 3-4 hours.

Warning

• Do not disassemble the sealed parts in the head of the flashlight yourself, it will violate the warranty.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The battery is dead, charge it.
  • The contacts inside the flashlight are clogged – clean them with a cotton ball dipped in alcohol.
  • Back of the flashlight is loose, tighten it.
