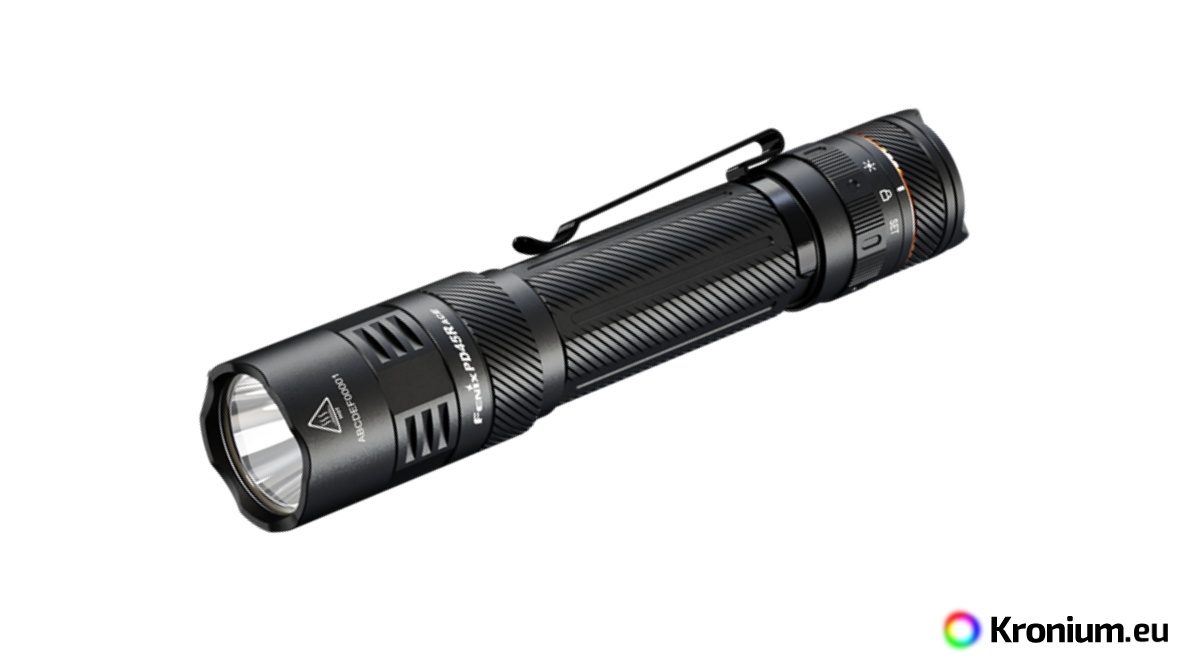

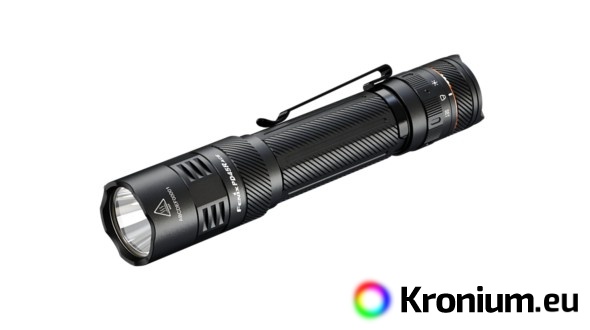

The Fenix PD45R ACE rechargeable tactical flashlight offers a peak light output of up to 3200 lumens (ANSI) and a range of up to 410 meters. Its revolutionary feature is the ability to program your own set of modes to suit your exact needs – from a simple Turbo + Stroboscope combination to a full range of seven functions. No more clicking through unnecessary modes at the critical moment, set up only the functions you will actually use.

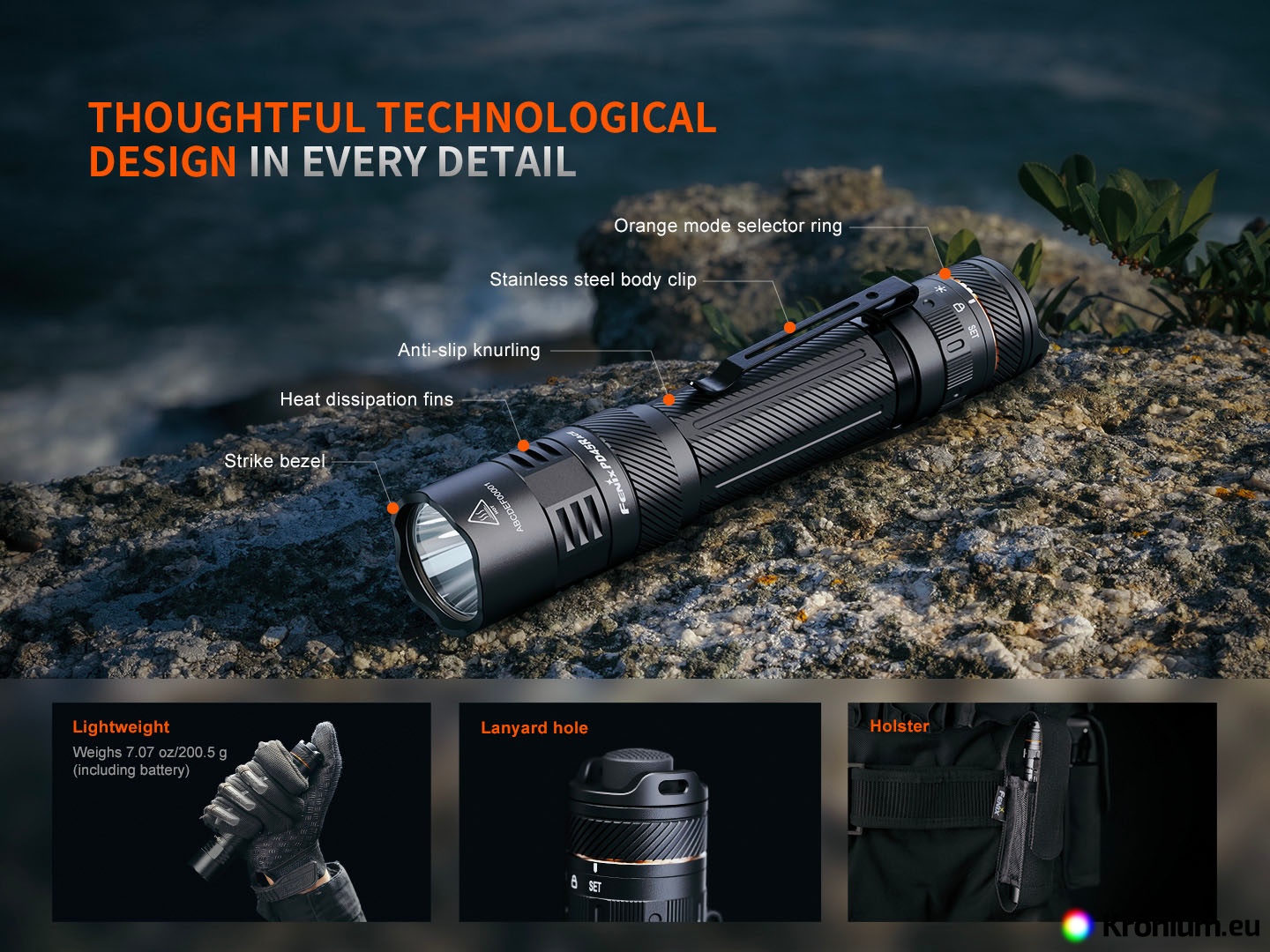

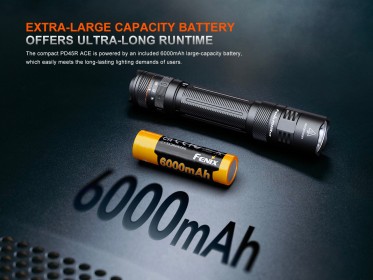

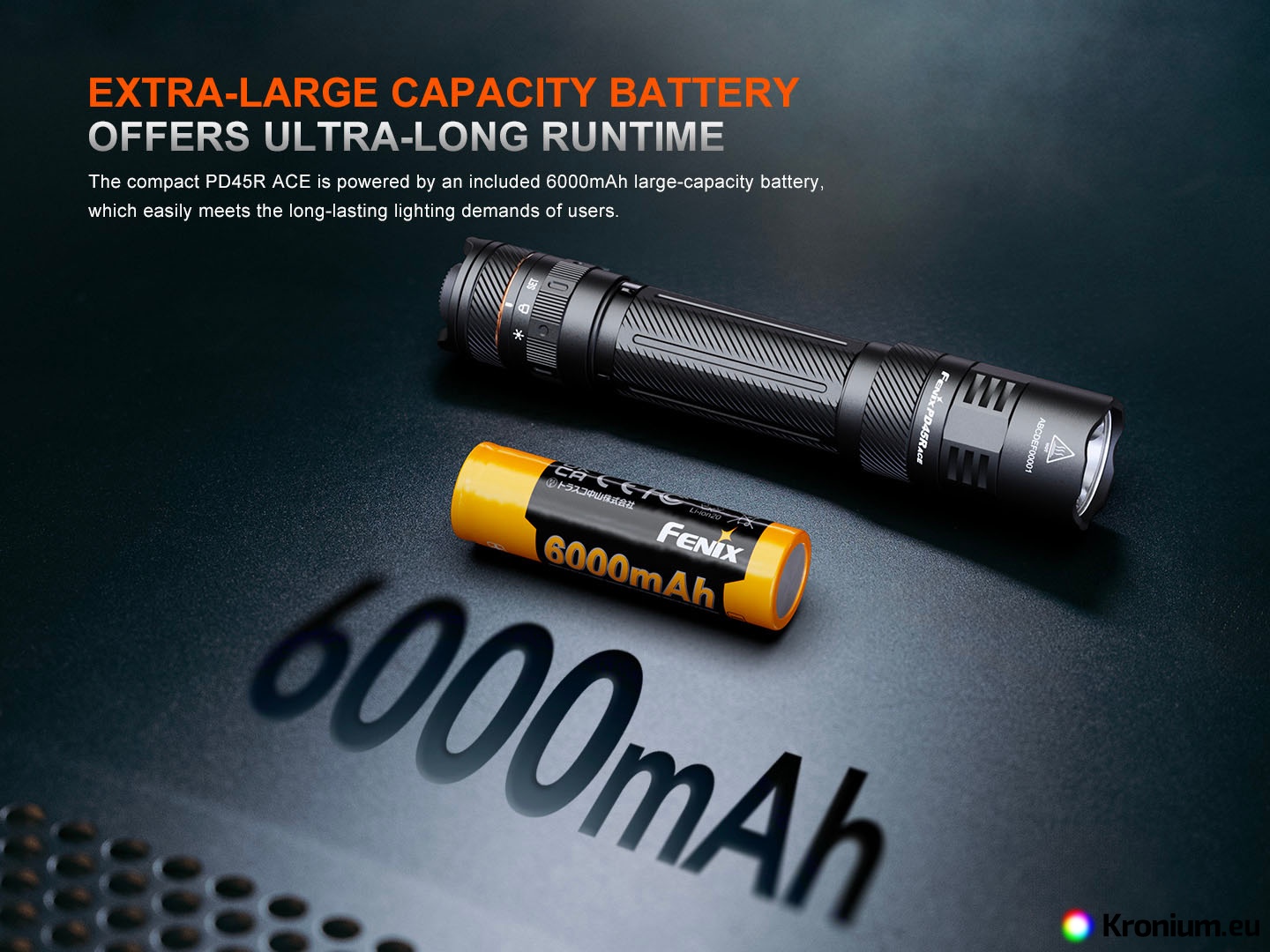

Thanks to the powerful 6000 mAh battery (included), you won't run out of power even during long events – the flashlight lasts up to 57 hours on a single charge. The battery is charged directly in the flashlight via the modern USB-C connector. Sophisticated screw cap protects the charging port from water, dust and dirt even in harsh conditions. Count on flashy and secure operation thanks to the tactical switch, plus the flashlight can be locked with the rotary ring and programmed in the SET position. The striking rim on the flashlight head not only protects the optics, but can also serve to break glass in an emergency or as an effective self-defense tool. The robust design makes the flashlight especially suitable for use by professionals, armed forces and hunters.

All parameters of the flashlight (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

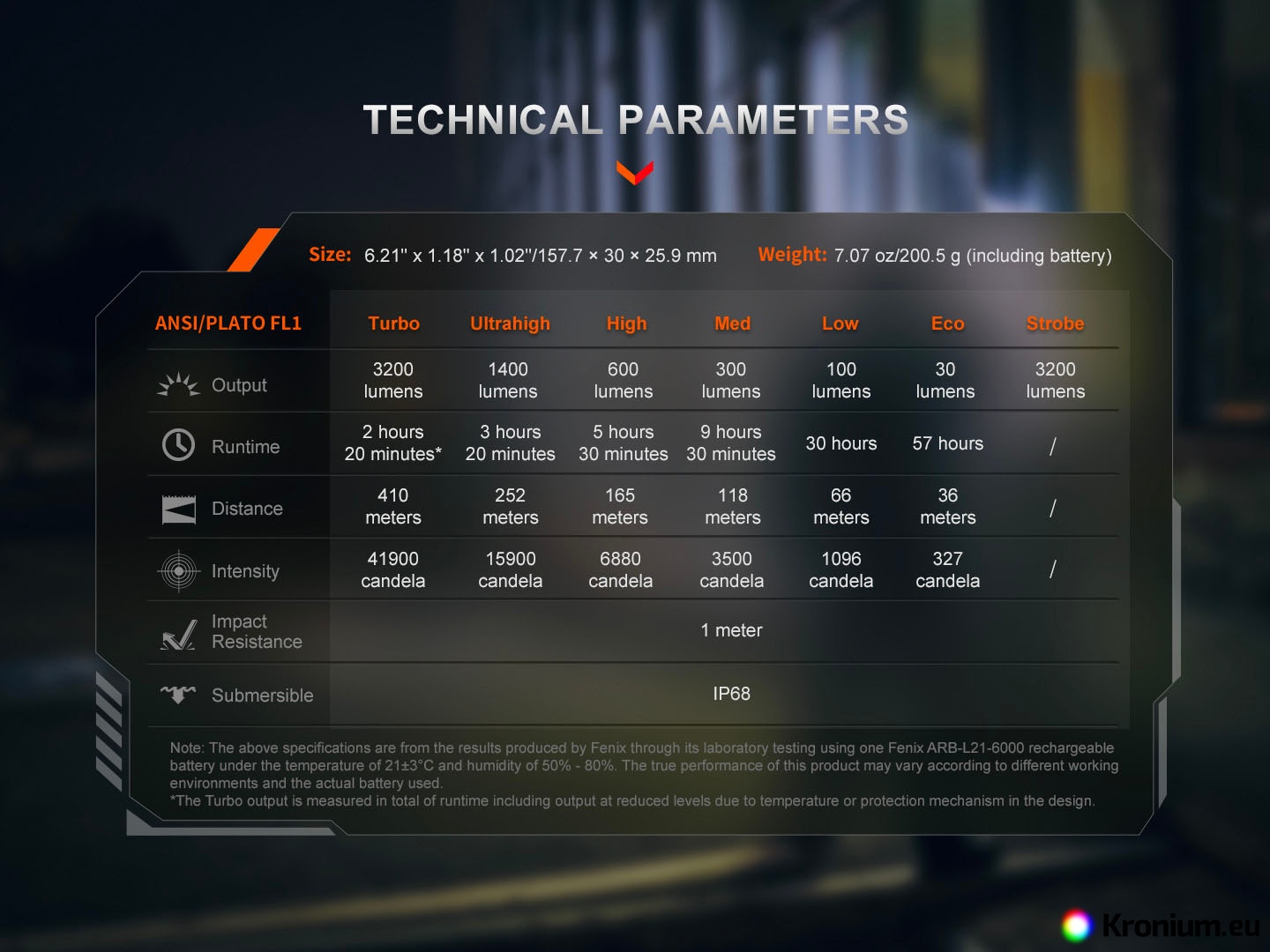

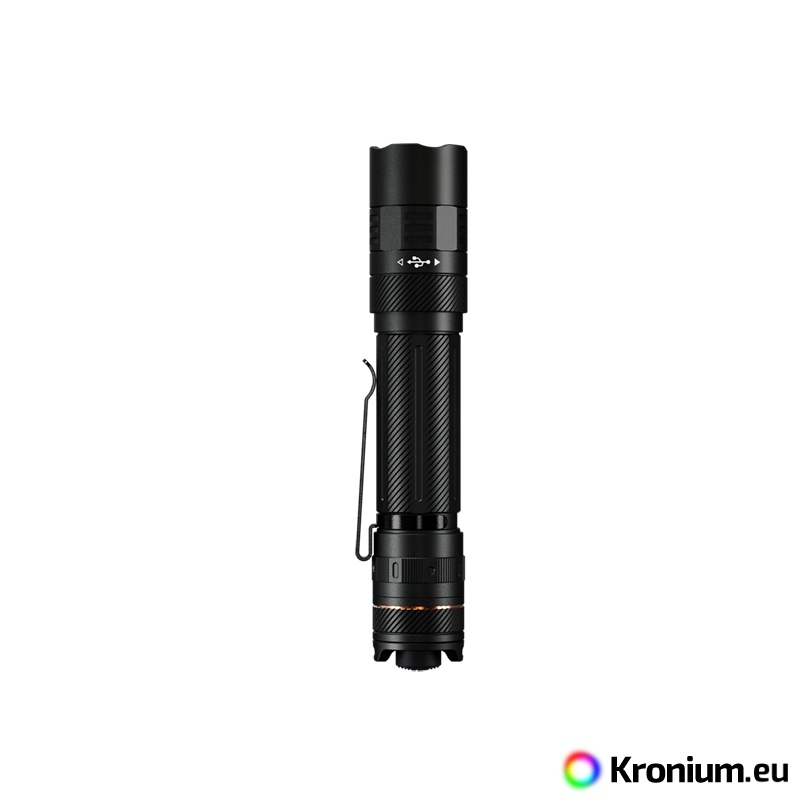

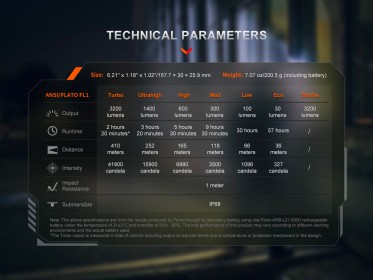

Fenix PD45R ACE LED Flashlight Specifications

• The powerful Luminus SFT-70X-WS65-H2-H1652 LED is used with a lifetime of 50000 hours.

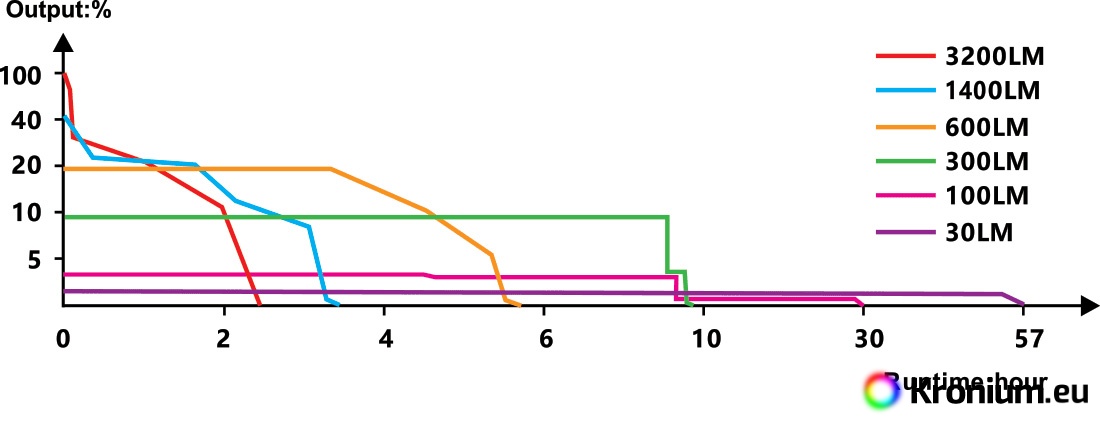

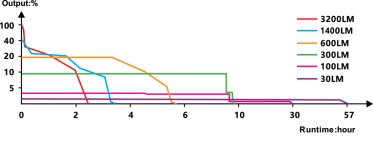

• Six power modes: 3200 lumens (2.3 hours) -> 1400 lumens (3.3 hours) -> 600 lumens (5.5 hours) -> 300 lumens (9.5 hours) -> 100 lumens (30 hours) -> 30 lumens (57 hours) -> strobe (3200 lumens).
• The power is supplied by a Li-ion battery type 21700 (ARB-L21-6000 included).
• Duration times are measured with rechargeable 21700 Li-ion battery with 6000mAh capacity.
• Patented Intelligent Overheat Protection.
• The flashlight has memory and will always turn on in the last set mode (not valid for strobe).
• Dimensions 15.77 cm x 2.59 cm x 3 cm.
• Weight 200.5 grams including battery.
• Made of aerospace hardened aluminium.
• Range up to 410 meters (41,900 cd).
• Resistant to falls from a height of 1 meter.
• Hard scratch resistant surface - Type III hard anodized.

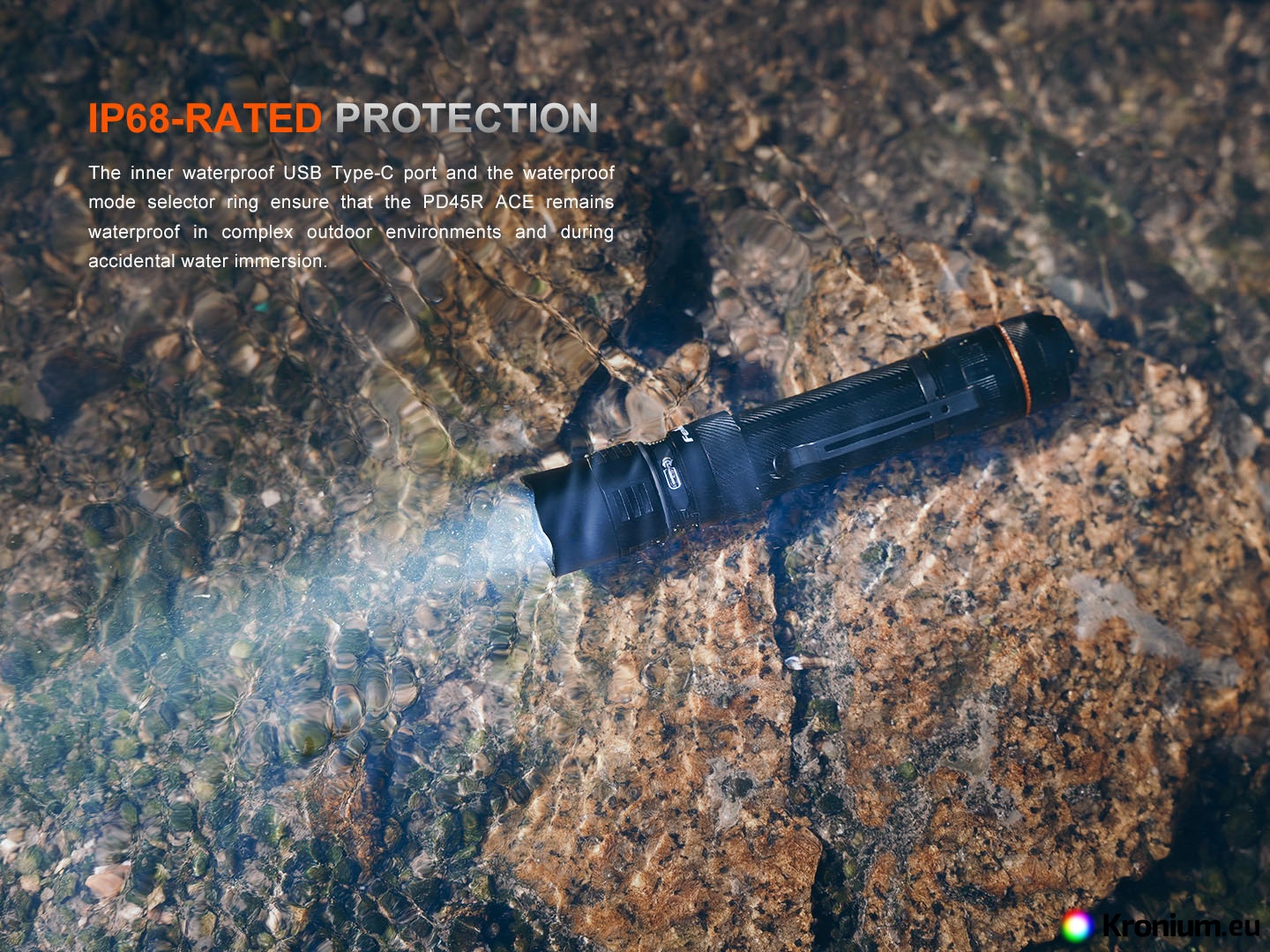

• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Tactical switch at the end of the flashlight (mode programming, flashlight lock, momentary on/off function).
• Solid clip for safe and easy carrying of the flashlight (removable).
• Thanks to its design, the flashlight does not rotate when put down.
• The flashlight comes with a Fenix ARB-L21-6000 battery pack, USB-C charging cable, wrist lanyard, belt pouch and spare o-rings.
• Optional accessories can be purchased: Fenix AER-04 cable switch, AER-05 cable switch, quick release rail mount ALG-00, mount to M-LOK Fenix ALG-16, barrel mount Fenix ALG-18, metal magnetic barrel mount, plastic magnetic barrel mount, quick-release ALG-15 rail mount, optic flashlight mount, metal mount for optics, Fenix ALD-05 strap for using the flashlight on a helmet, Fenix bike mount, white and red traffic cone AOT-03, ALP-10L case.

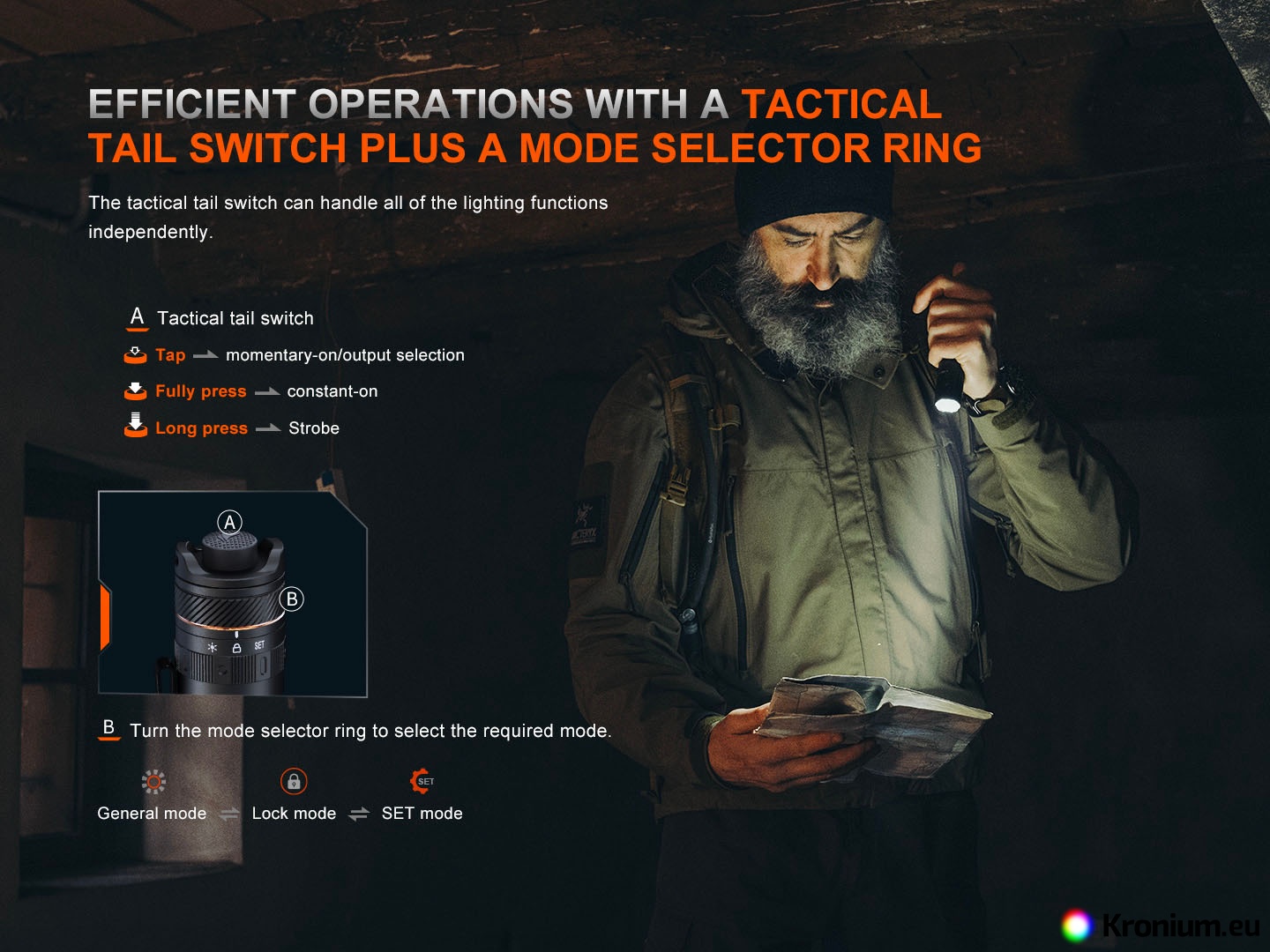

Fenix PD45R ACE flashlight control

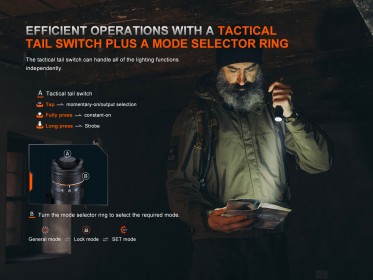

Turn on/off - When the flashlight is unlocked, press the tactical switch on the end of the flashlight to silently momentarily turn the light on, when released the light will turn off. Fully depress the tactical switch to permanently turn the light on/off. With the flashlight on, the tactical switch can be pressed to switch power modes in the following order: Eco (economy) → Low → Medium → High → Very High → Turbo. The number of modes that can be switched depends on the mode you choose.

Strobe Activation - With the flashlight on, hold the tactical switch for 0.5 seconds to turn on the strobe. Press the tactical switch again briefly to return to steady illumination.

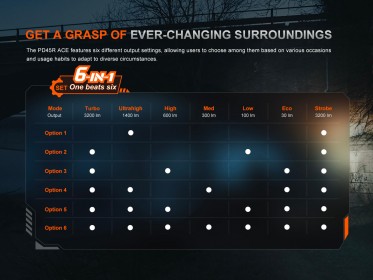

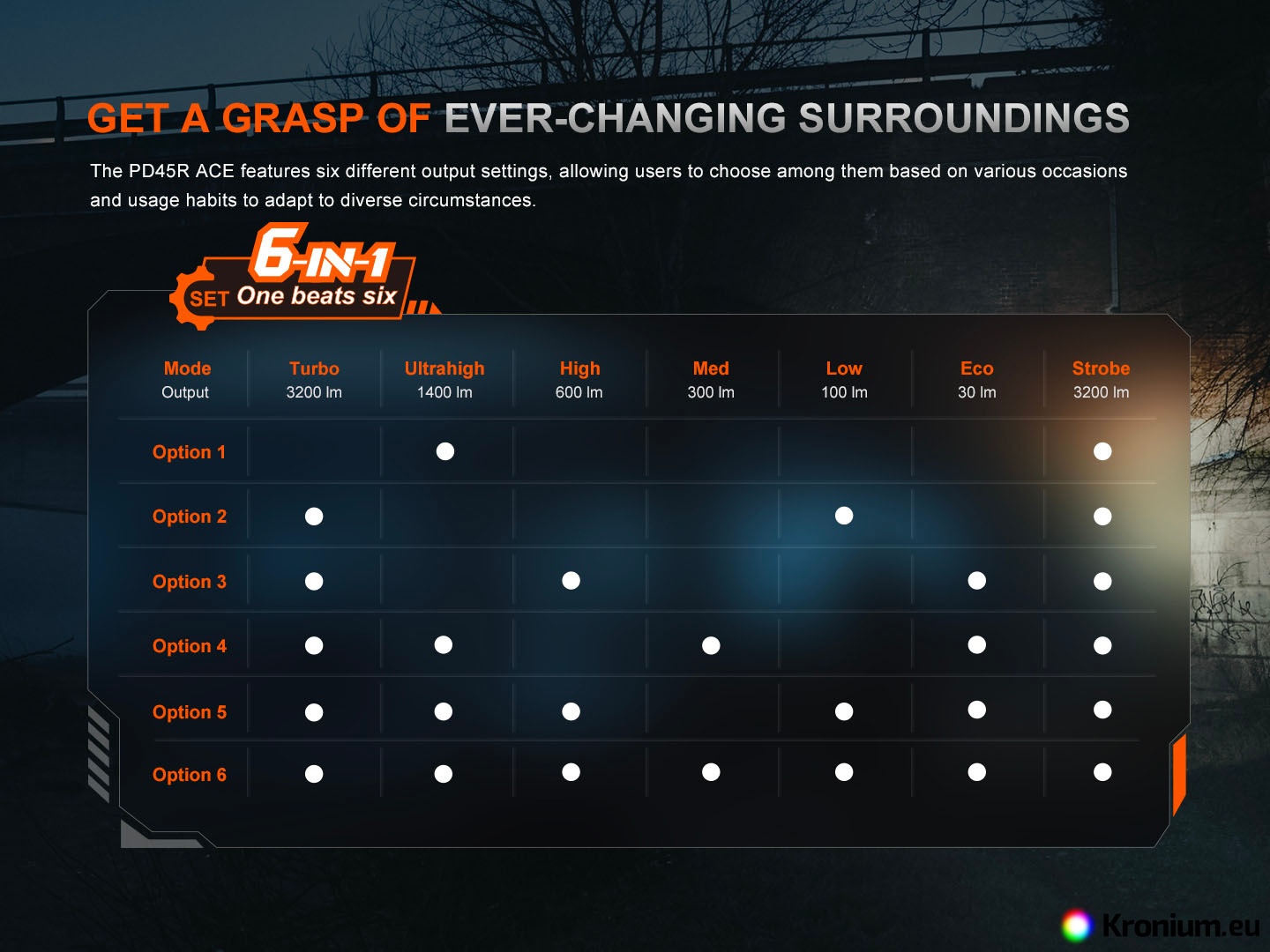

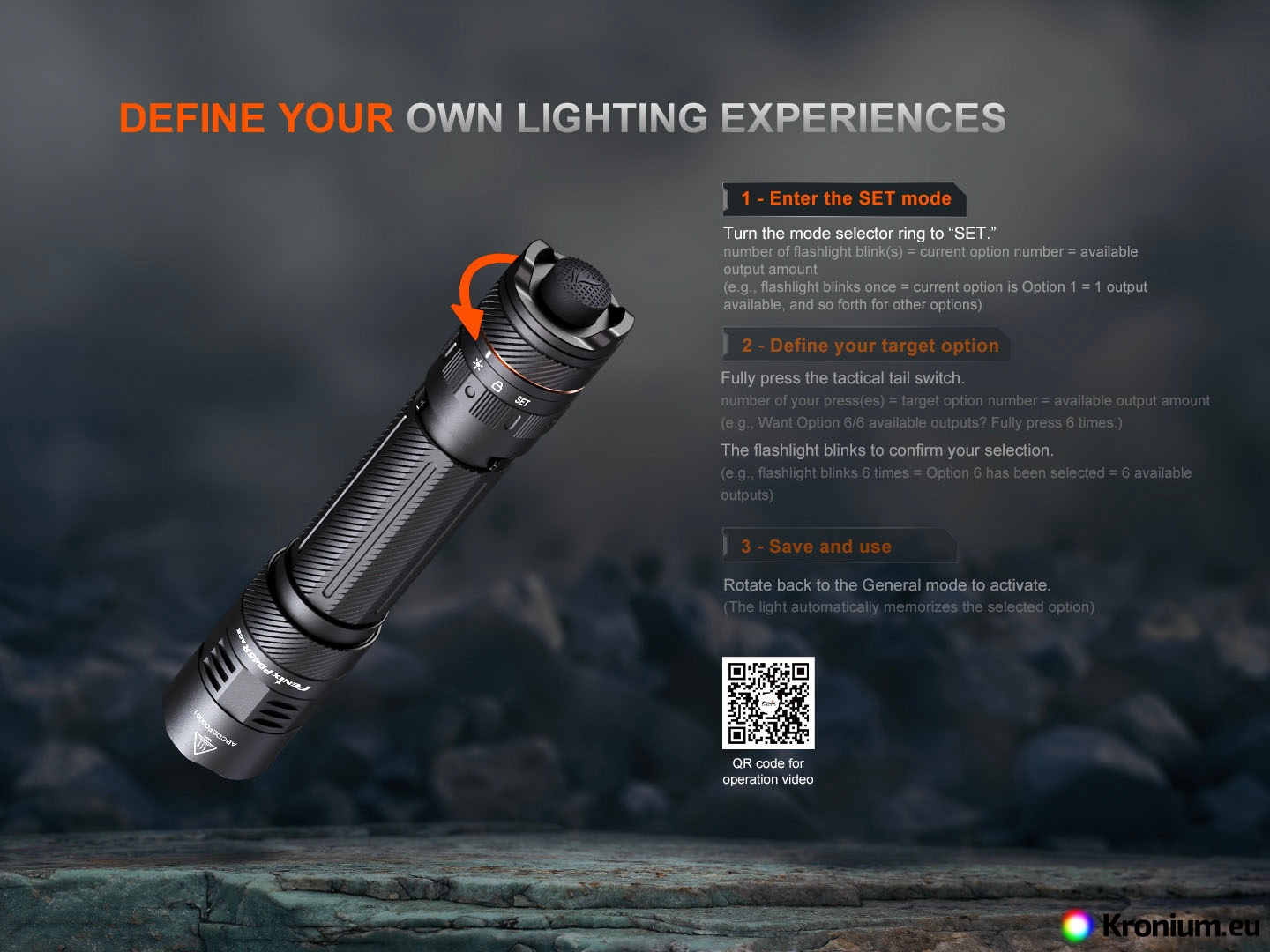

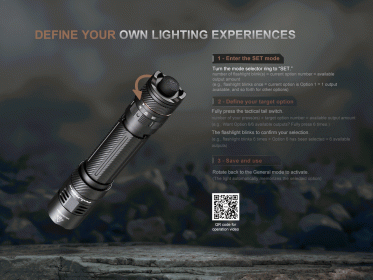

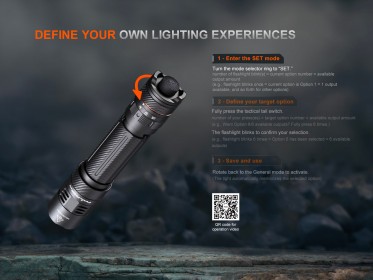

Setting power modes - In the „SET“position, you can choose between 6 modes which contain different groups of power modes see table below. Turn the switch to the „SET" position to move to the settings. The lamp will flash according to the currently set mode, the number of flashes of the lamp corresponds to the last selected mode number. For example, the flashlight will flash 6 times if mode 6 was last selected and will flash 5 times if mode 5 was last selected. Press the tactical switch fully to select the mode, the number of presses must correspond to the number of the mode you want. The flashlight will then flash as many times as the number of the currently selected mode to confirm the selection. When the mode selection is complete, the flashlight will automatically remember your choice. Turn the switch to the unlocked position and use the modes according to the mode you have selected.

Lock/Unlock - With the light on, set the rotary switch to the "lock" position to lock the current light mode. In this state, the light does not respond to pressing or depressing the tactical switch and cannot be turned off or power changed. With the light off, set the rotary switch to the "lock" position to lock the tactical rear switch. The light cannot be turned on in this condition. Turn the switch from the "lock" position to any other position to unlock the tactical rear switch and use the flashlight normally.

 Memory for last power mode set - The flashlight has memory for both the last mode and power mode set, so it will always turn on in the last power mode set with the exception of the strobe.

 Changing the Battery - Unscrew the flashlight end cap and insert the battery with the plus pole facing the reflector. Then fully tighten the end cap again.

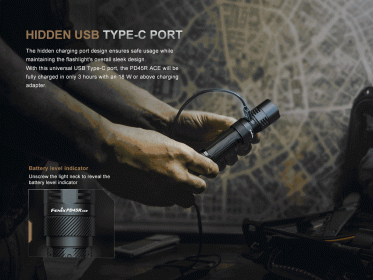

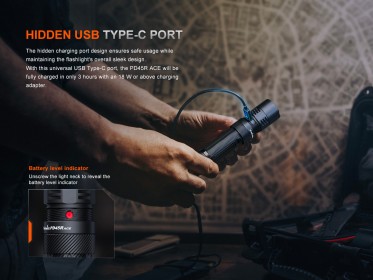

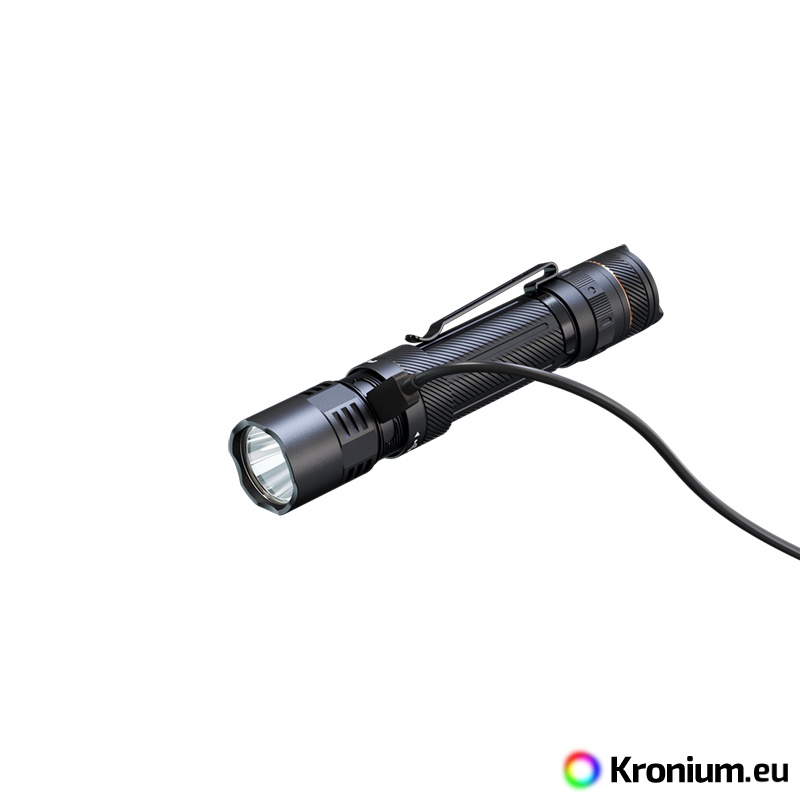

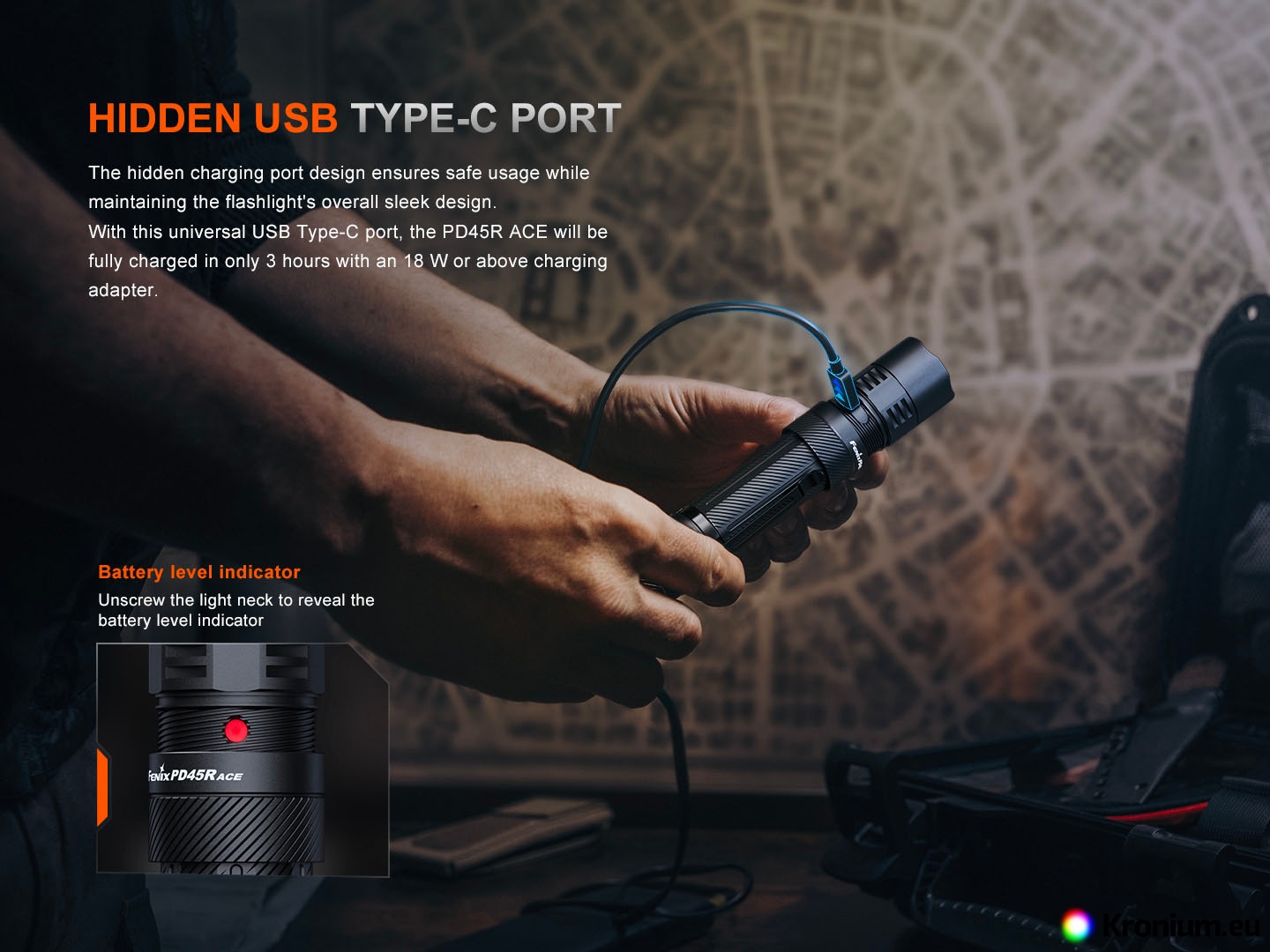

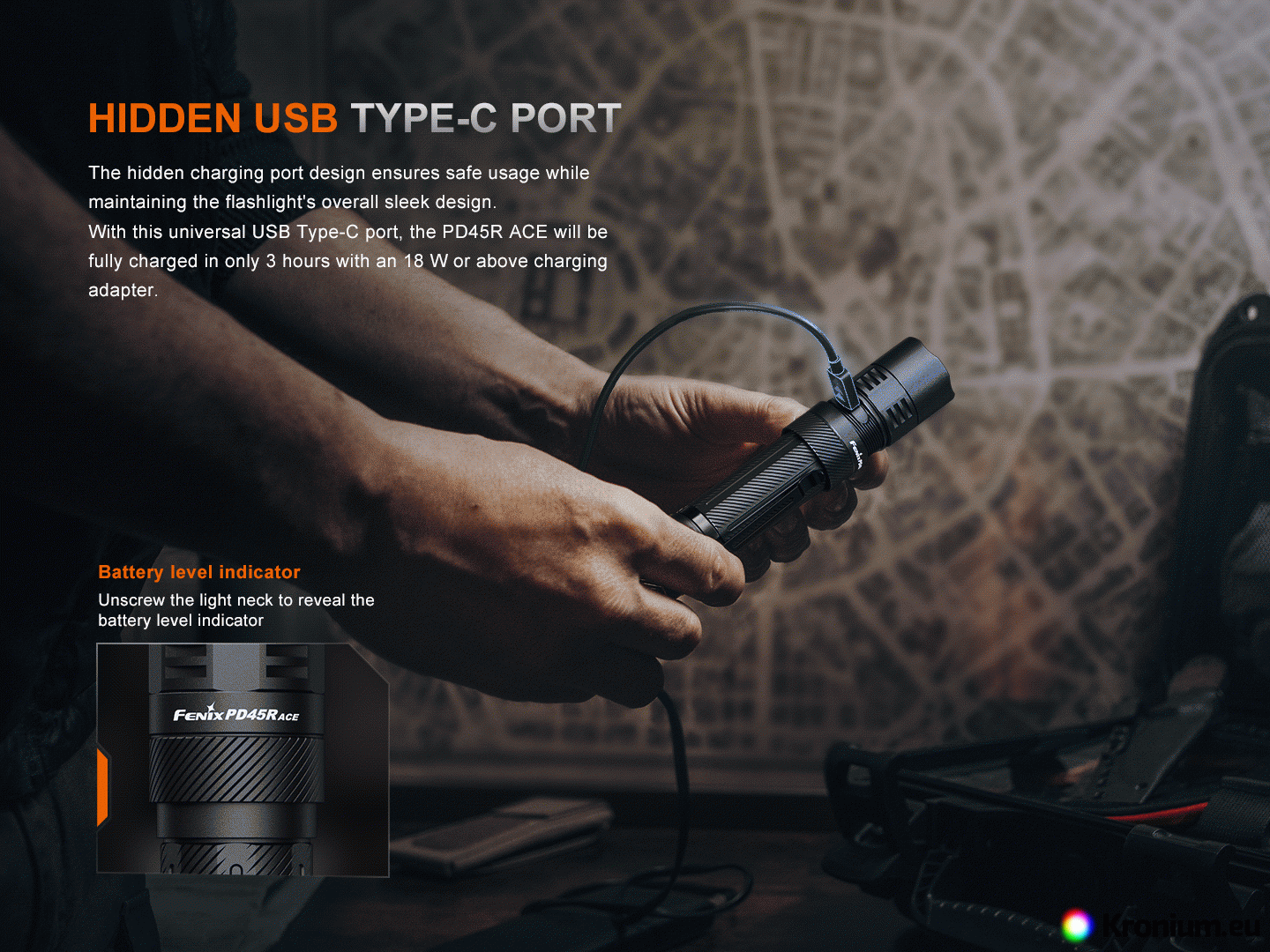

Charging - Unscrew the protective nut under the flashlight head to expose the charging port and plug the USB-C charging cable into the charging port. Tighten the nut again when charging is complete. During charging, the indicator opposite the charging connector glows red. When fully charged, it will light up green. The flashlight cannot be used while charging. The normal charging time for a fully discharged ARB-L21-6000 battery is approximately 3 hours using a USB power supply of 18 W.

Battery charge status indication - Each time the battery is switched on, the indicator LED against the charging connector is activated for three seconds. If the indicator LED is green, the battery is more than 85% charged. Green flashing indicates 50-85% capacity. If the LED is red, the battery is 25-50% charged. Red flashing indicates less than 25% capacity remaining.

Intelligent overheat protection - If the temperature of the flashlight exceeds 60 °C, it will automatically reduce the power. As soon as the temperature drops below 60 °C, the power will gradually increase again.

Battery low warning - If the voltage drops below the set level the flashlight will reduce the brightness to a lower level. When the lowest power level is reached, the battery charge indicator will flash red to remind you to recharge or replace the battery.

Warning

• Use only high quality rechargeable batteries type 21700 with protective electronics.
• Insert the batteries with the positive terminal facing the flashlight head.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
  • The battery is dead - charge or replace it.
  • The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.
  • Head, body or back of the flashlight is loose, tighten them.
