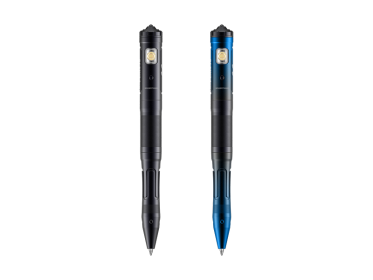

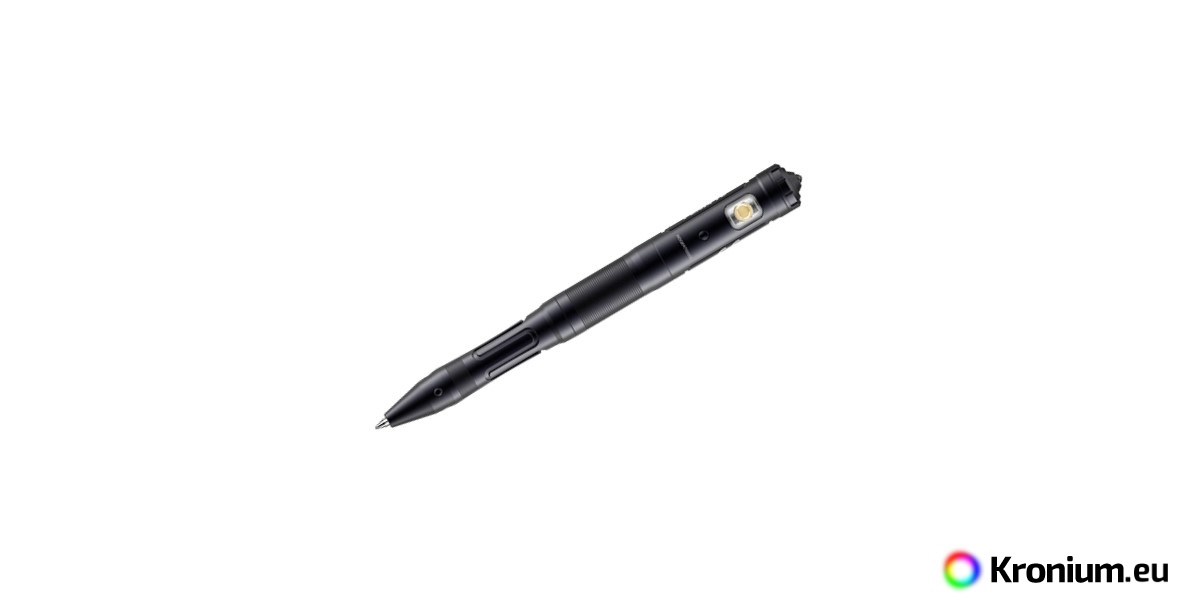

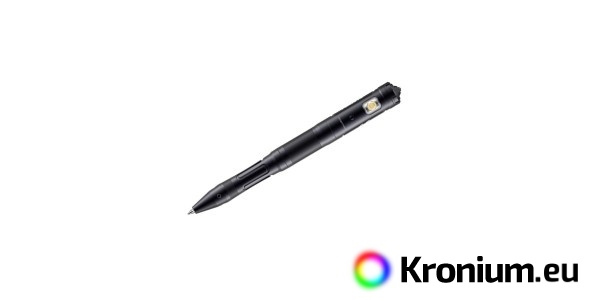

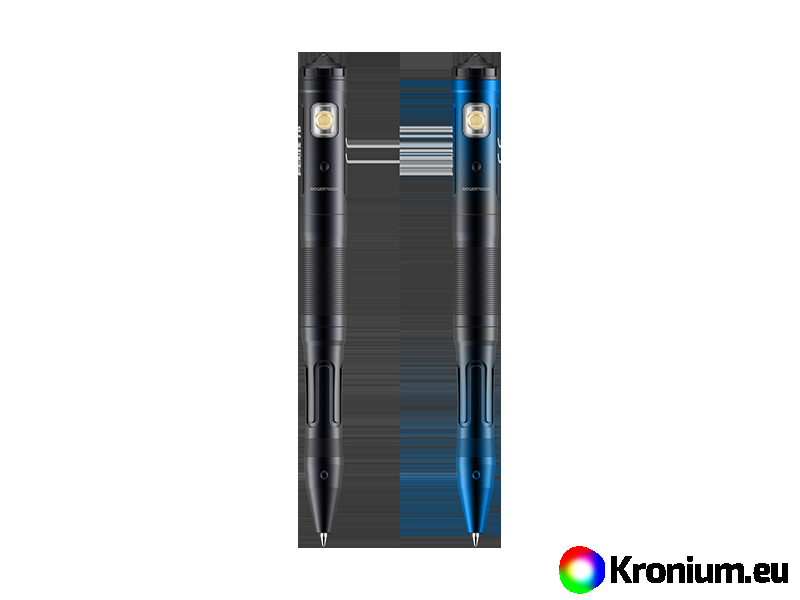

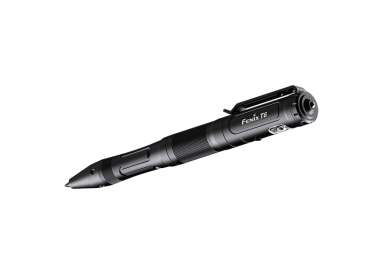

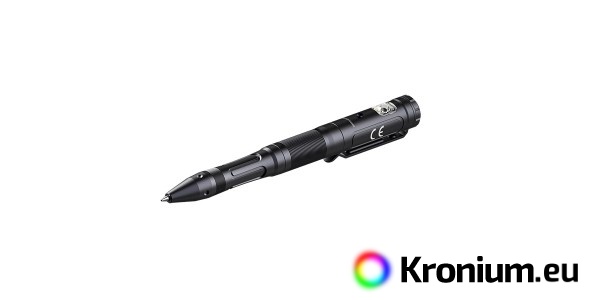

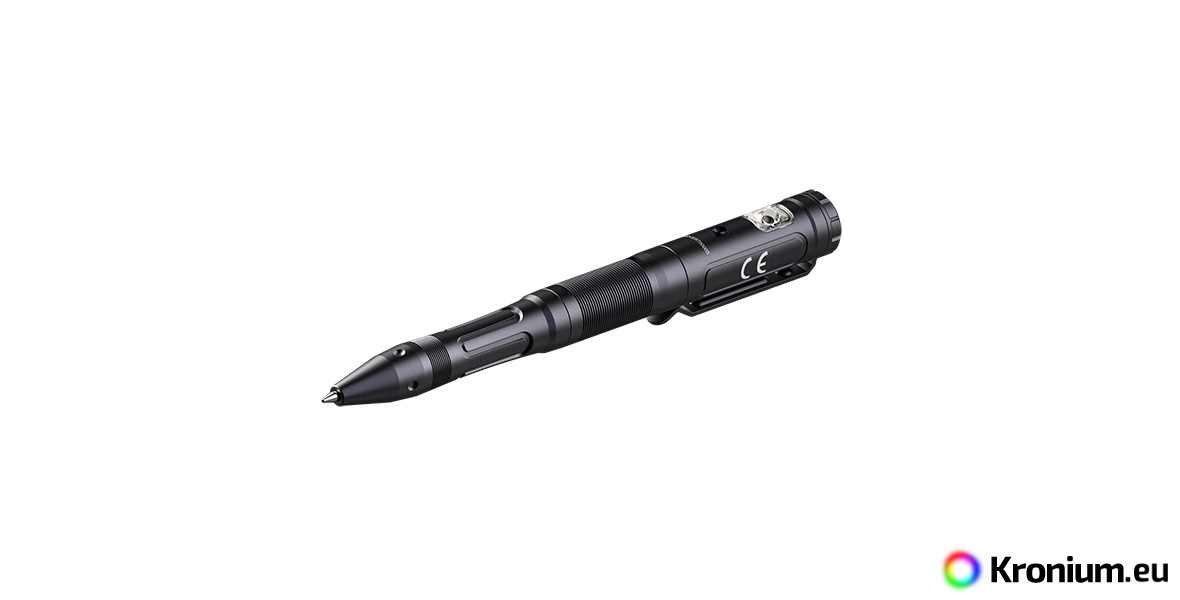

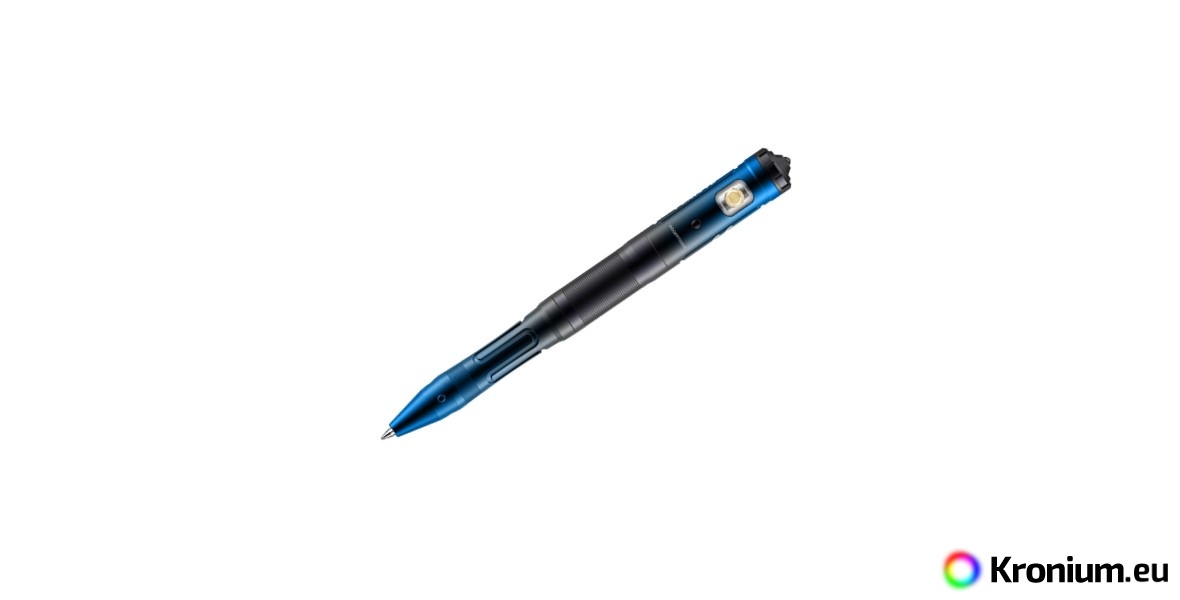

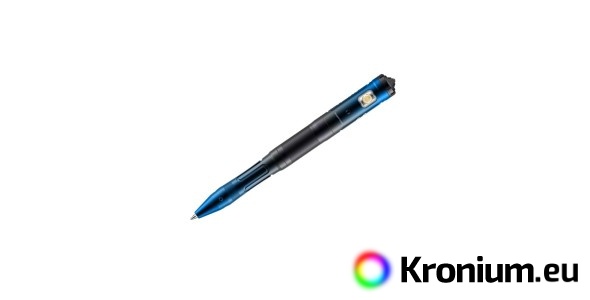

The Fenix T6 is a combination of tactical pen and flashlight that provides light output of up to 80 lumens and a range of up to 18 meters. The body is made of A6061-T6 aluminum alloy and its surface is hard anodized HA-III type with high scratch resistance. The flashlight is powered by a built-in Li-pol battery with 100 mAh capacity, which is recharged via a modern USB-C connector. In total, the flashlight offers three levels of light output with a battery life of up to 26 hours. A striking tip made up of a ceramic ball, refill from German manufacturer Schmidt (the pen comes with a black-colored refill) and a high-quality LED light make it an indispensable companion for writing, tactical defense or emergency situations in harsh and extreme conditions.
All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

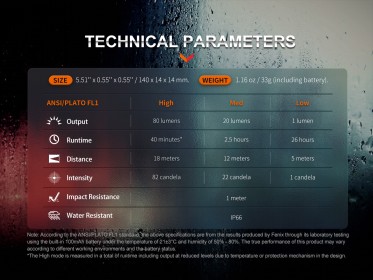

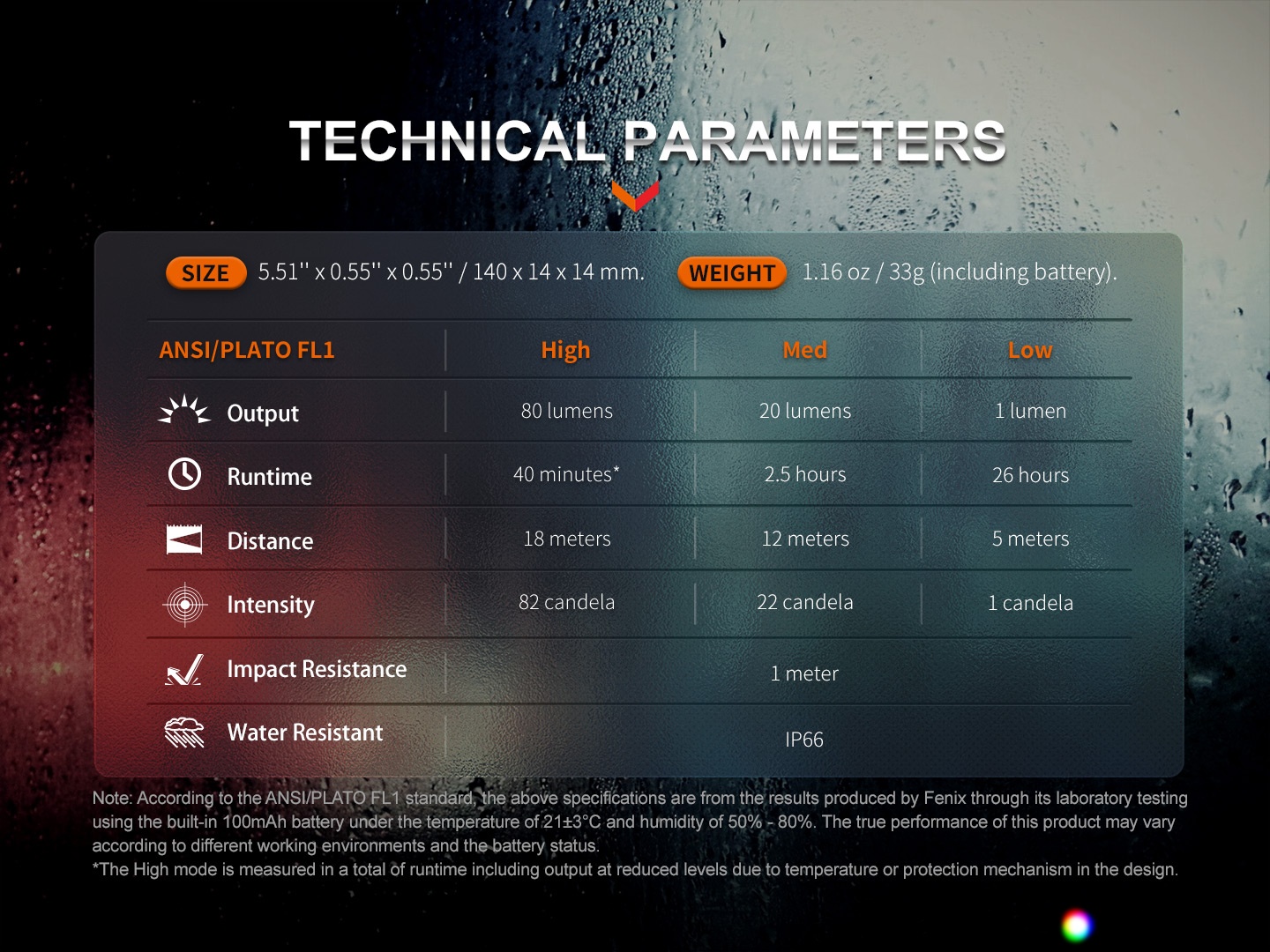

Fenix T6 tactical pen specifications
- Quality LED MATCH CA18 diode with 50,000 hours lifetime.
- Three light modes: 80 lumens (0.7 hours) -> 20 lumens (2.5 hours) -> 1 lumen (26 hours).
- Power is provided by a built-in 100mAh Li-pol battery.
- Charging via USB-C connector.
- Battery capacity indication, overheat protection.
- Range of 18 meters (82 cd).
- Exceptional craftsmanship.
- Punch tip - ceramic ball.

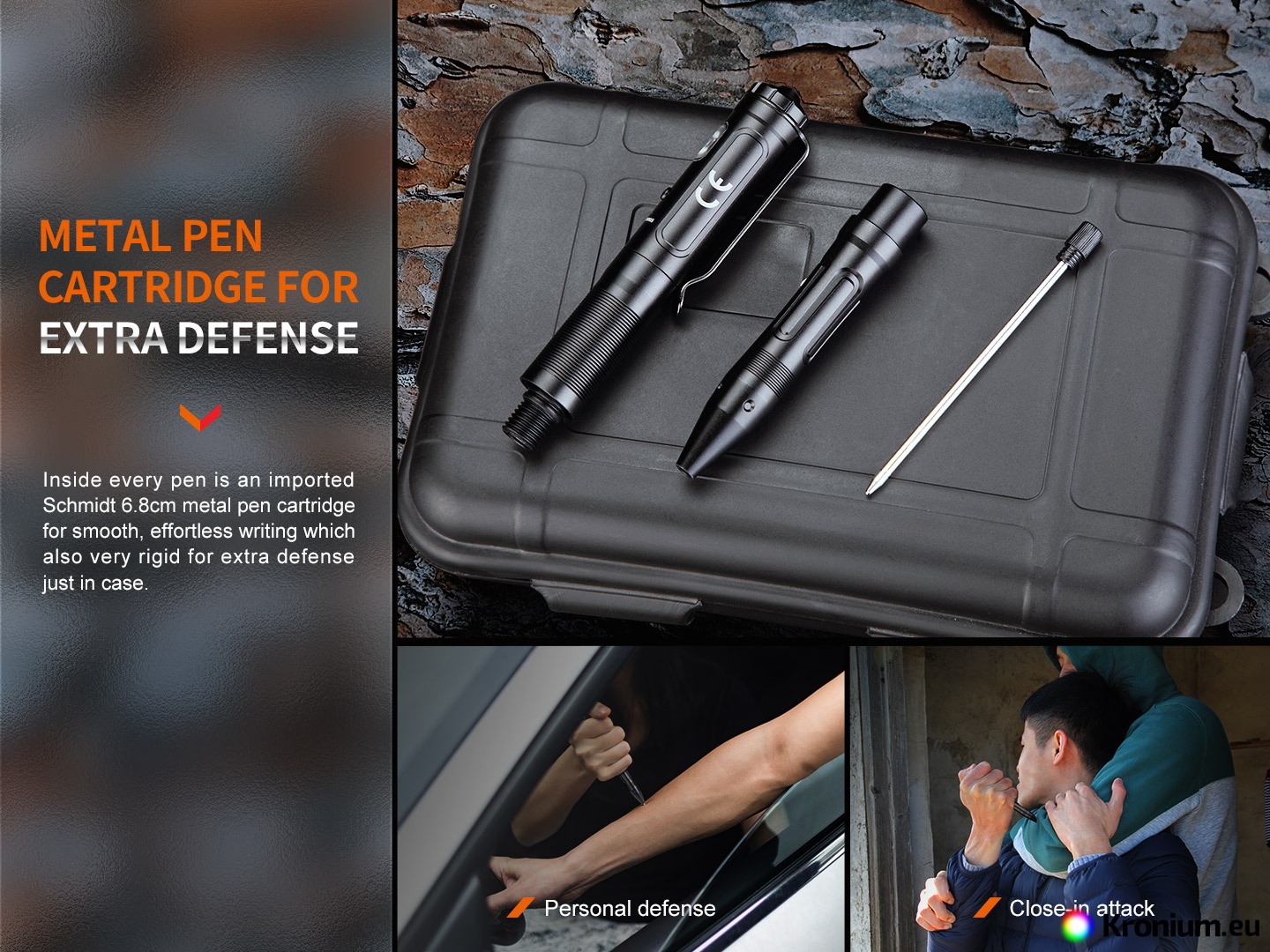

- Replaceable metal ball Schmidt Mine 635 M refill with black ink.
- Made of A6061-T6 aluminum alloy with anodized HAIII surface with high scratch resistance.
- Pen activation by twisting.
- Dustproof and waterproof to IP66 standard (spraying with strong jets of water from all directions).
- Shockproof to drops from a height of 1 meter.
- Dimensions 14 cm (length) x 1.4 cm (diameter).
- Weight 33 grams.

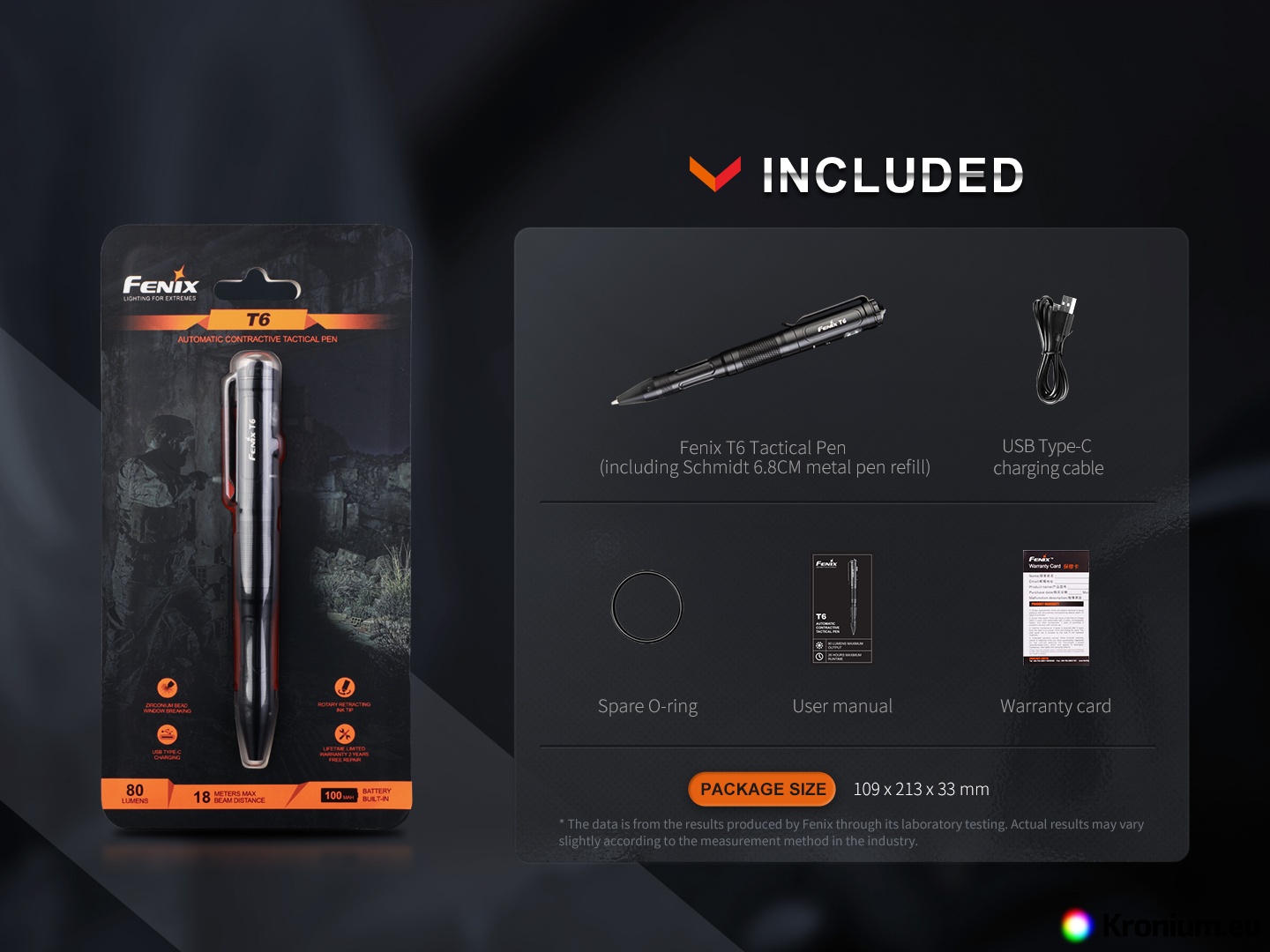

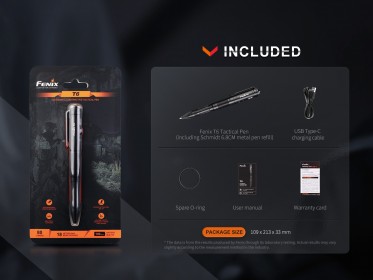

- Includes a replacement o-ring and USB-C charging cable.
Using the Fenix T6
The writing nib slides out of the pen by a twist mechanism, so just twist the front of the pen and start writing. Twist it to the other side to retract the nib again.
Turn on or off the flashlight by holding the button for 0.5 seconds. Additional short presses with the flashlight on, cycles through the light modes in order of 1 - 20 - 80 lumens.
The control button can be locked to prevent it from being switched on spontaneously, e.g. in a pocket or when transported in luggage. With the torch switched off, press the control button twice quickly (within 0.5 seconds). The flashlight will flash twice in the lowest light mode to indicate locking. To unlock, press the button again twice quickly, the flashlight flashes twice again and is unlocked.
Charging

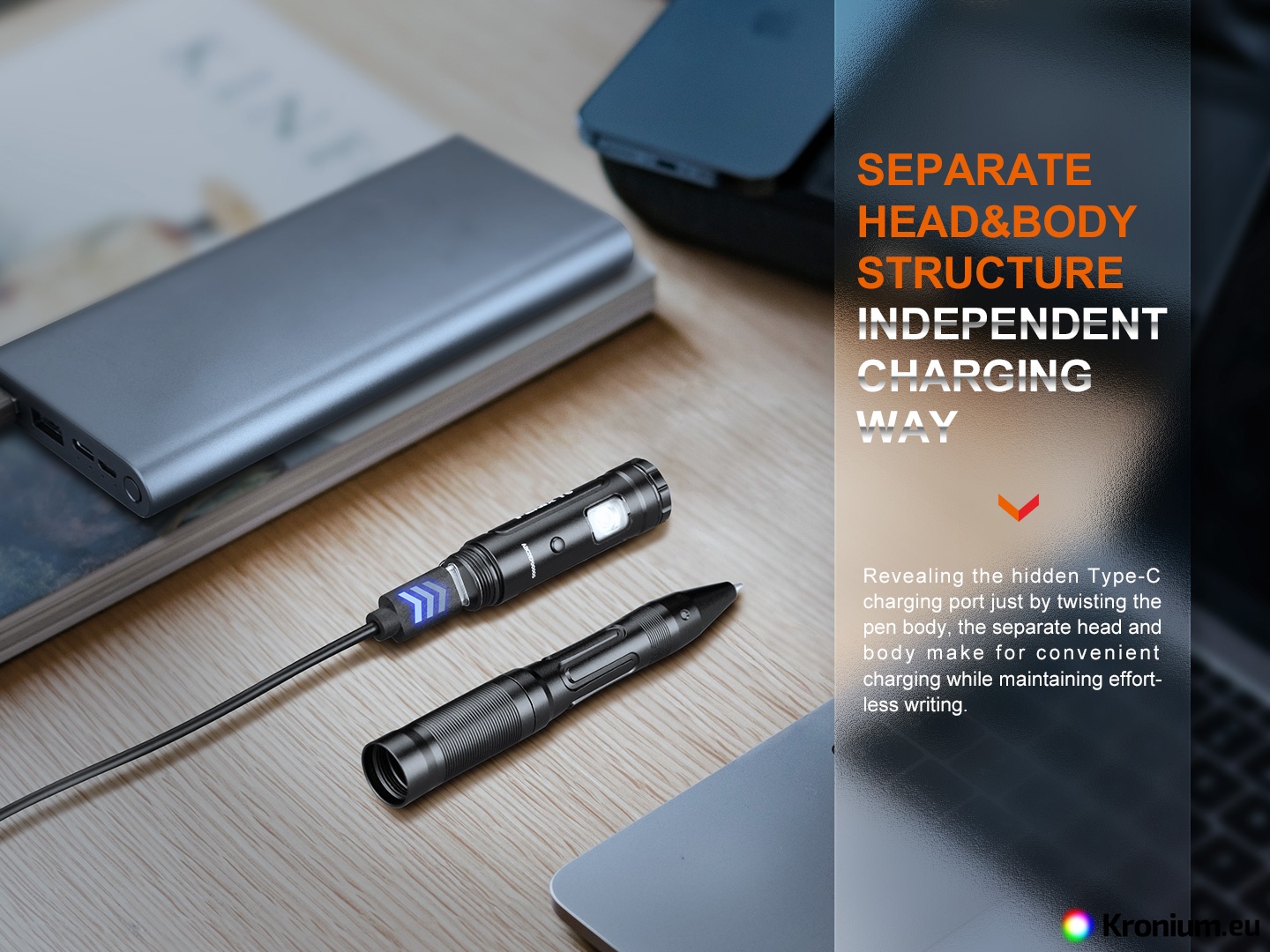

Unscrew the pen approximately halfway, this will expose the USB-C charging connector on the end. Then plug the USB-C charging cable into the pen and the other end of the cable into a USB connector to your computer, USB AC adapter, or car. The indicator LED on the flashlight glows red while charging, and glows green when fully charged. The standard charging time is approximately 1 hour.
Warning
- Do not disassemble the sealed parts yourself, it will violate the warranty.
- If the flashlight does not switch to higher power modes or does not light up, the battery is dead - recharge it.
Warranty
Warranty two years.
