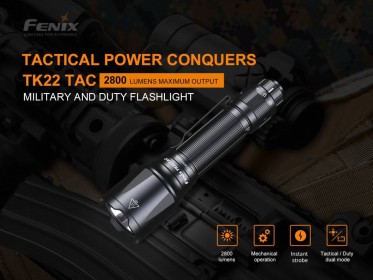

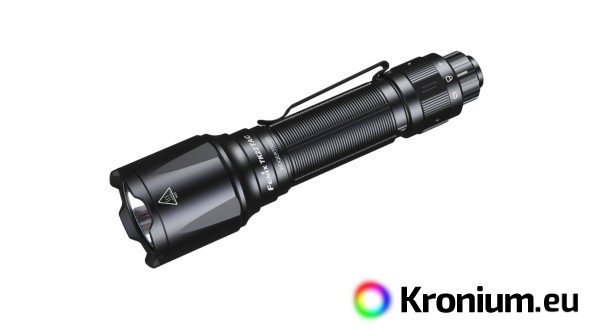

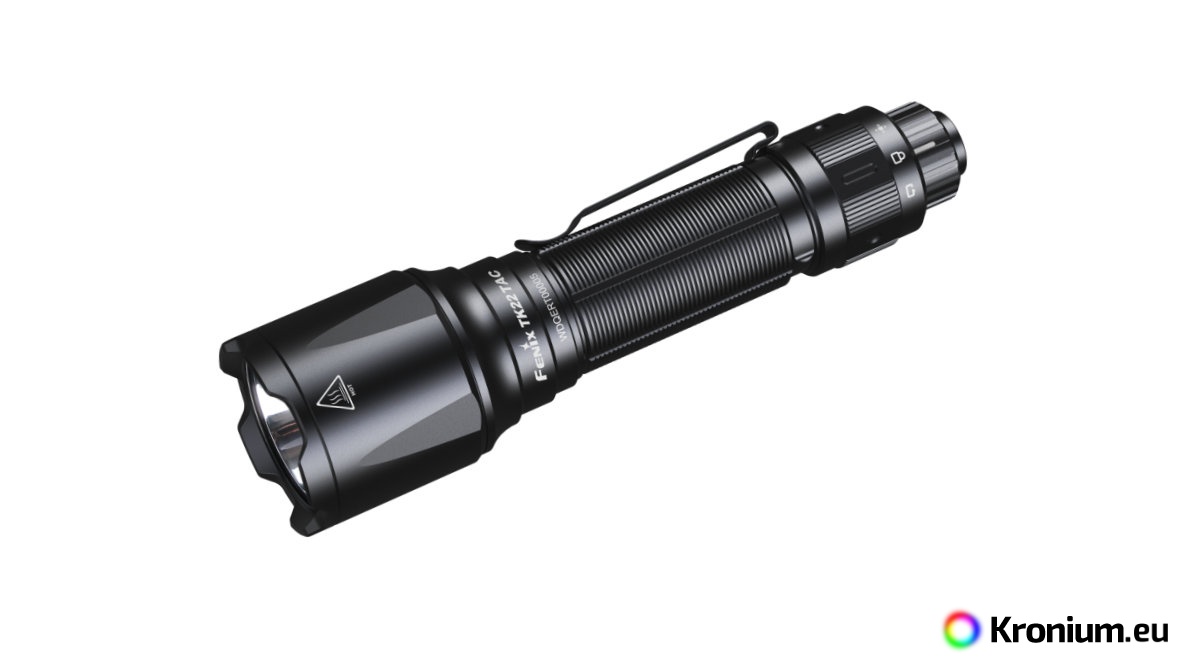

Fenix TK22 TAC is a very powerful tactical flashlight with simple operation with quick strobe activation. It is equipped with the latest LED LUMINUS SFT-70 and delivers lumen output up to 2800 lumens (ANSI) and range up to 540 meters. A rechargeable 21700 Li-ion battery with 5000 mAh capacity is included and charges via its own USB-C connector. The flashlight is equipped with a rotary dial that can be used to lock the controls or select one of two modes of use. In tactical mode, the flashlight can be switched to 2800 lumens or to a strobe mode with variable frequency. In service mode, it is possible to choose between four lighting modes and strobe, in which case the highest output is 1000 lumens. On the lowest mode, it can shine for up to 49.5 hours. The precise and waterproof design makes this tactical flashlight primarily suited for harsh outdoor conditions and also allows the flashlight to be used on long guns. Great for law enforcement, search and rescue operations and hunting.

All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

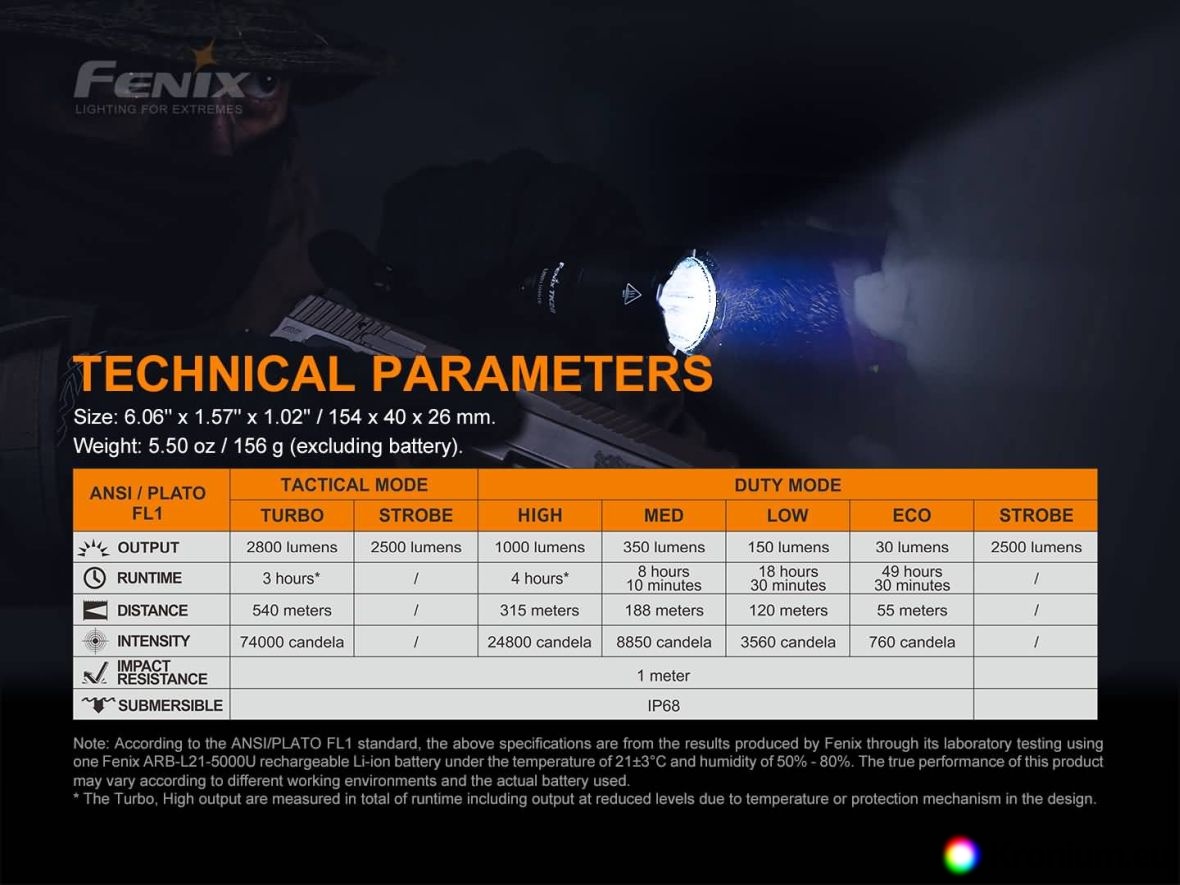

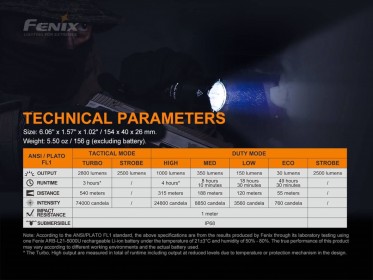

Fenix TK22 TAC tactical flashlight specifications

• Powerful Luminus SFT-70 LED with 50,000 hours lifetime is used.
• Two lighting modes:
  • Tactical mode: 2800 lumens (3 hours) -> strobe 2500 lumens.

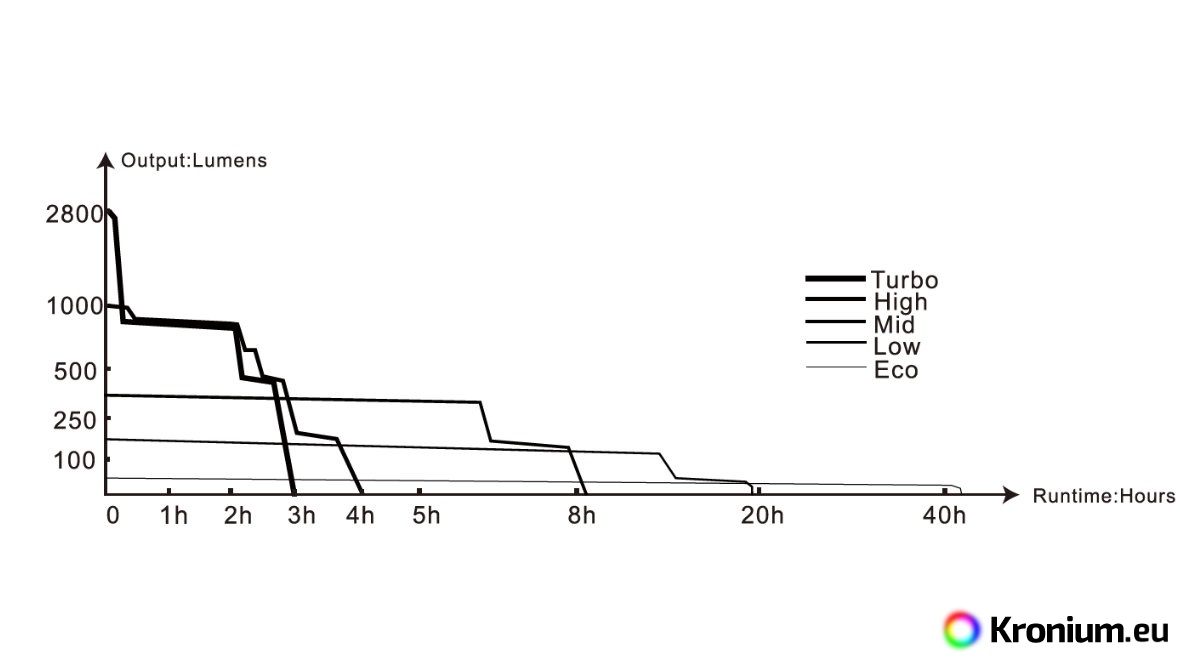

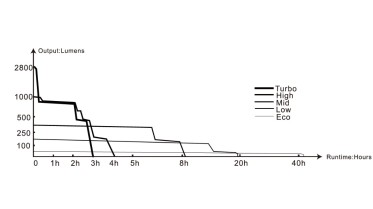

  • Service Mode: 1000 lumens (4 hours) -> 350 lumens (8.1 hours) -> 150 lumens (18.5 hours) -> 30 lumens (49.5 hours) -> 2500 lumen strobe
• Runtimes are measured with a Li-ion rechargeable battery type 21700 with a 5000 mAh capacity.
• Highly efficient smooth cone light reflector with range up to 540 meters (74000 cd).
• Intelligent overheat protection.
• Discharged battery warning.
• Dimensions 15.4 cm (length) x 4 cm (head diameter) x 2.6 cm (body diameter).
• Weight 228 grams (including battery), 156 grams (without battery).
• Body construction of A6061-T6 aerospace hardened aluminum.
• Scratch resistant finish - Type III hard anodized.
• Resistant to drops from a height of 1 meter.

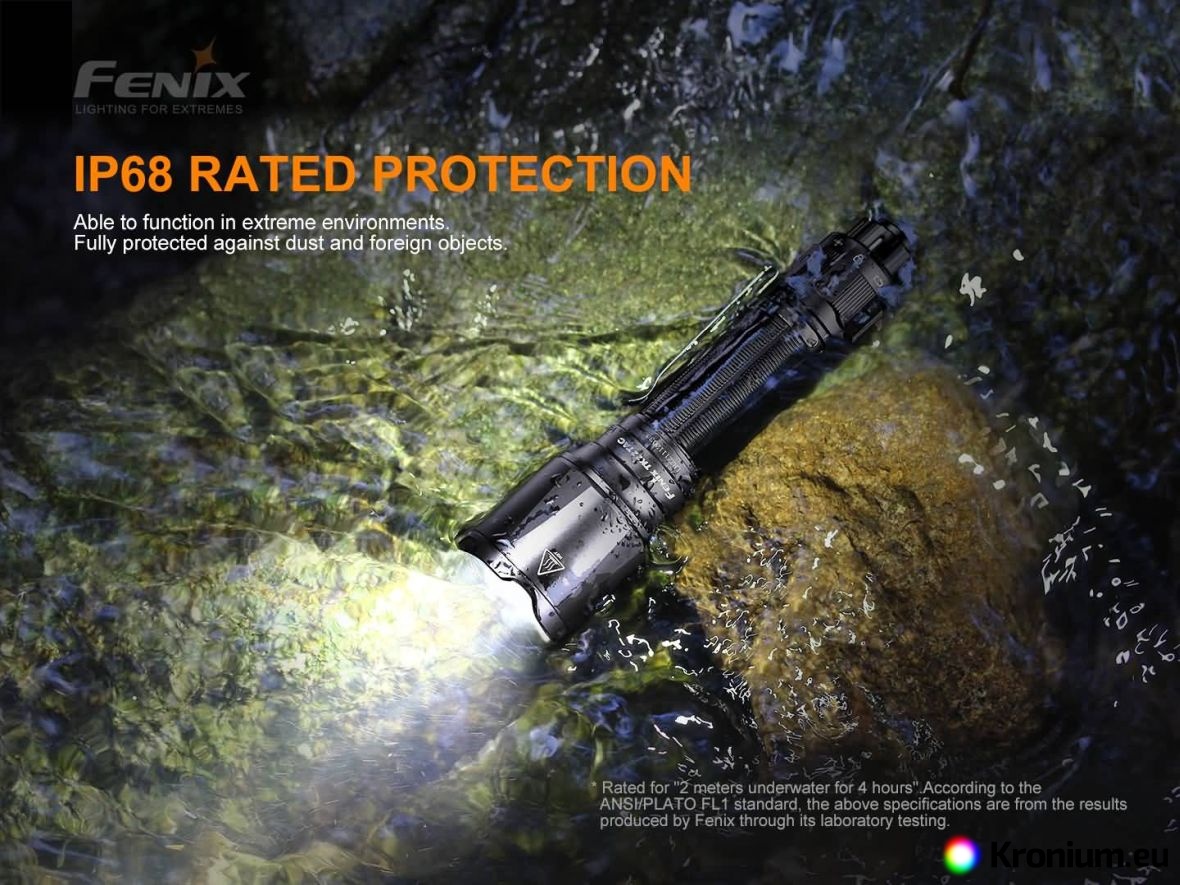

• Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Hardened ultra clear glass lens with anti-reflective surface.

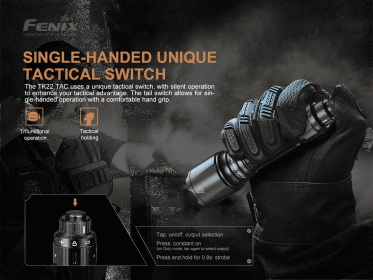

• Tactical switch at the end of the flashlight (instant on/off function by pressing).
• Solid buckle for safe and easy carrying of the flashlight on a belt or pocket (removable).
• Highly wear-resistant trapezoid threads.

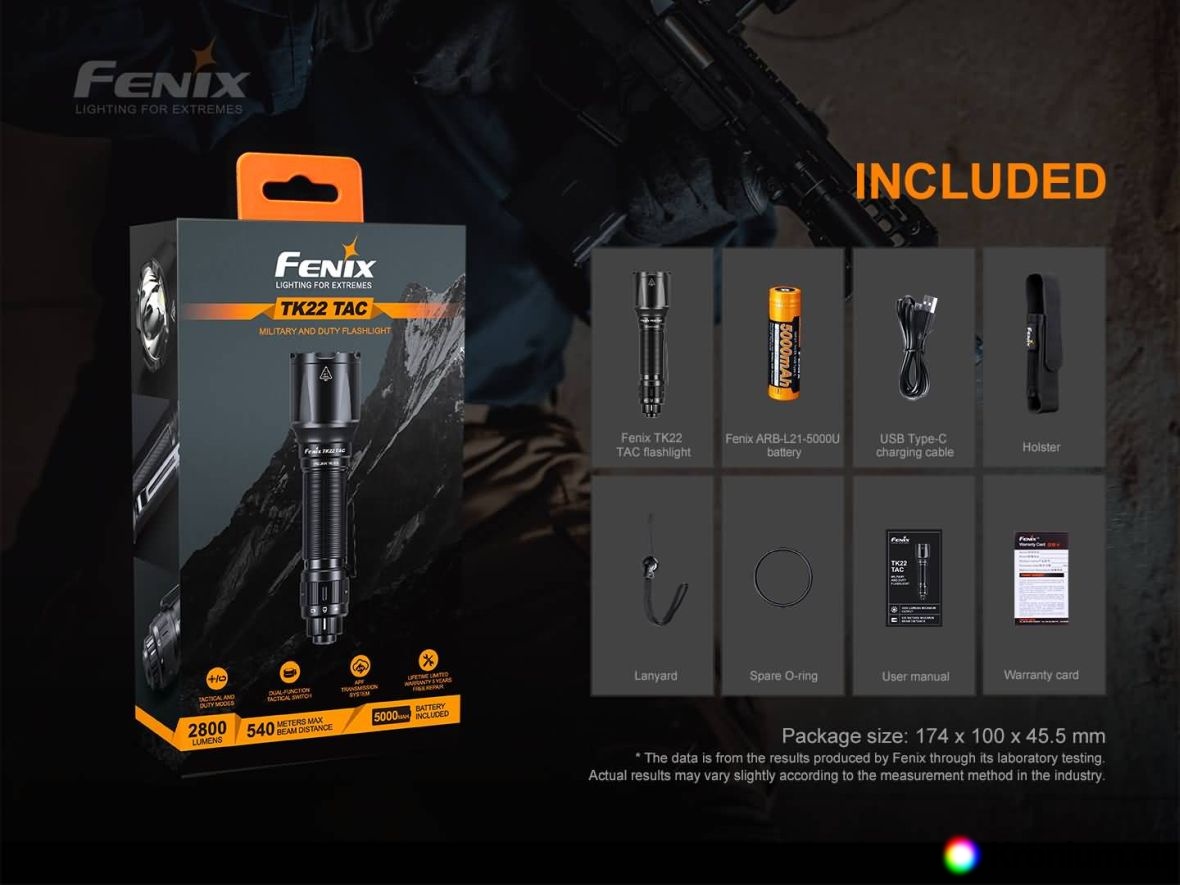

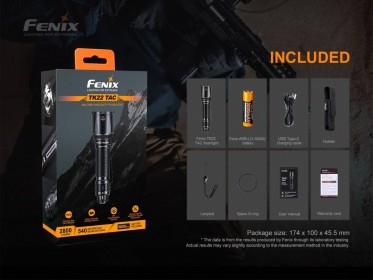

• Package includes flashlight, Fenix ARB-L21-5000U battery with USB-C connector, USB-C cable, replacement o-ring and belt pouch.
• Optional accessories can be purchased: cable switch AER-05 (cable switches do not fit older versions of the TK22!), red traffic cone AOT-L, red filter AOF-L.

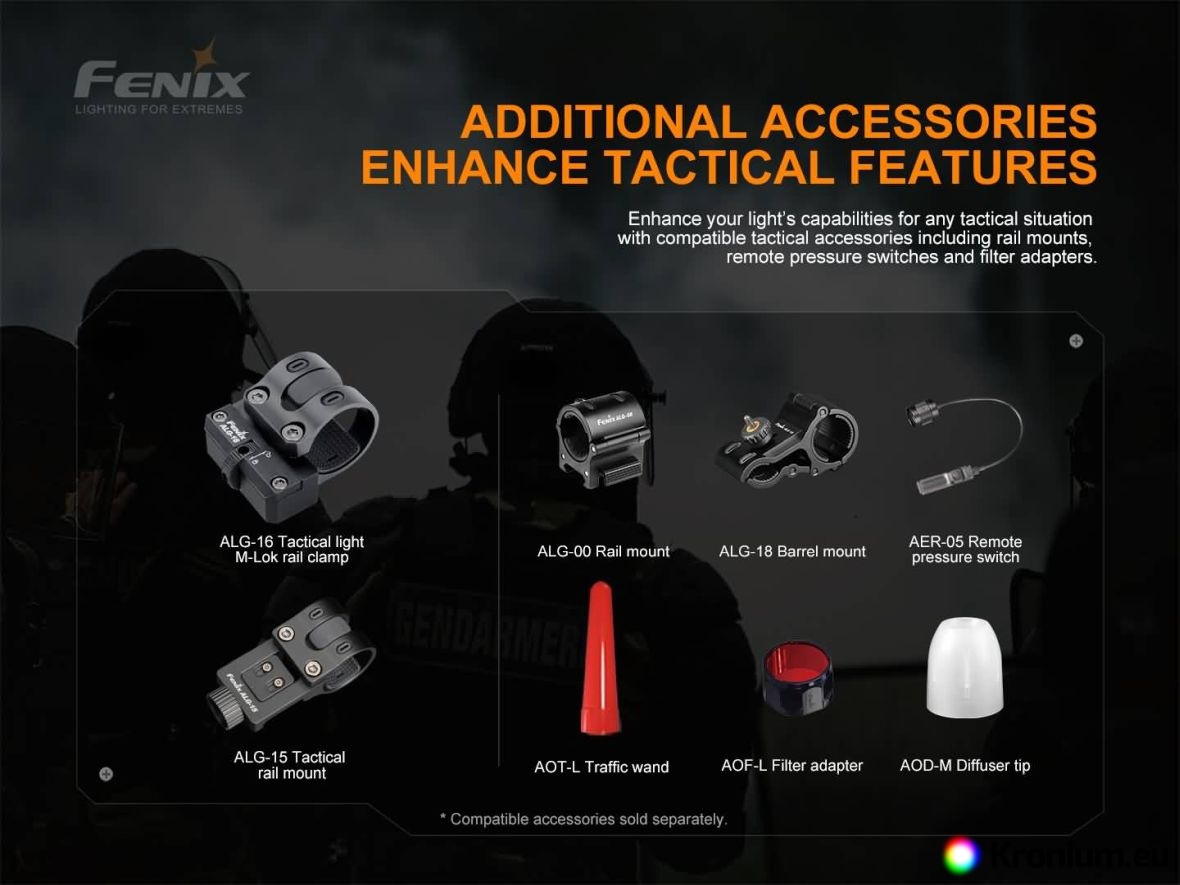

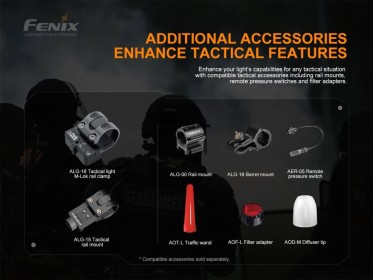

• The following accessories are also compatible with the flashlight: speed rail mount ALG-15, speed rail mount ALG-00, Fenix ALG-16 M-Barrel Mount, Fenix ALG-18 Barrel Mount, metal magnetic barrel mount, plastic magnetic barrel mount, optic flashlight mount, metallic scope mount, Fenix ALD-05 strap for use of the flashlight on helmet, Bicycle mount FB-1, Fenix bike holder.

• The flashlight can also be purchased with USB mains adapter and USB car adapter.

Using the

From manufacture, there may be a insulation cap inside the flashlight on the battery. Remove it from the battery before first use.

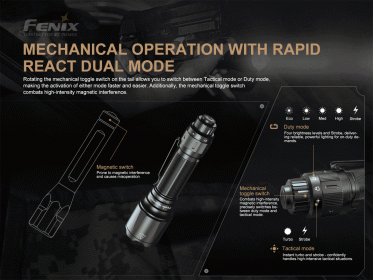

The rotary dial at the end of the flashlight allows you to select between light modes, which have different controls.

Tactical mode (rotary control in left position): press the tactical button on the end of the flashlight to turn on, press the button to activate immediately. The flashlight will always activate in the highest mode. To activate the strobe, hold the button down for 0.8 seconds (even from off state). Pressing it will return the flashlight to its original mode. Pressing the button turns the flashlight off.

Service Mode (rotary control in right position): Press the tactical button on the end of the flashlight to turn on, press the button to activate immediately. The flashlight remembers the last selected mode (except strobe). The light modes (except strobe) can be cycled by pressing the button. To activate the strobe, hold the button for 0.8 seconds (even from the off state). Pressing the button returns the flashlight to its original mode. Pressing the button turns the flashlight off.

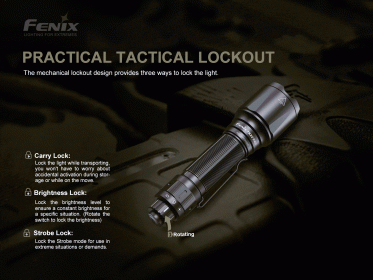

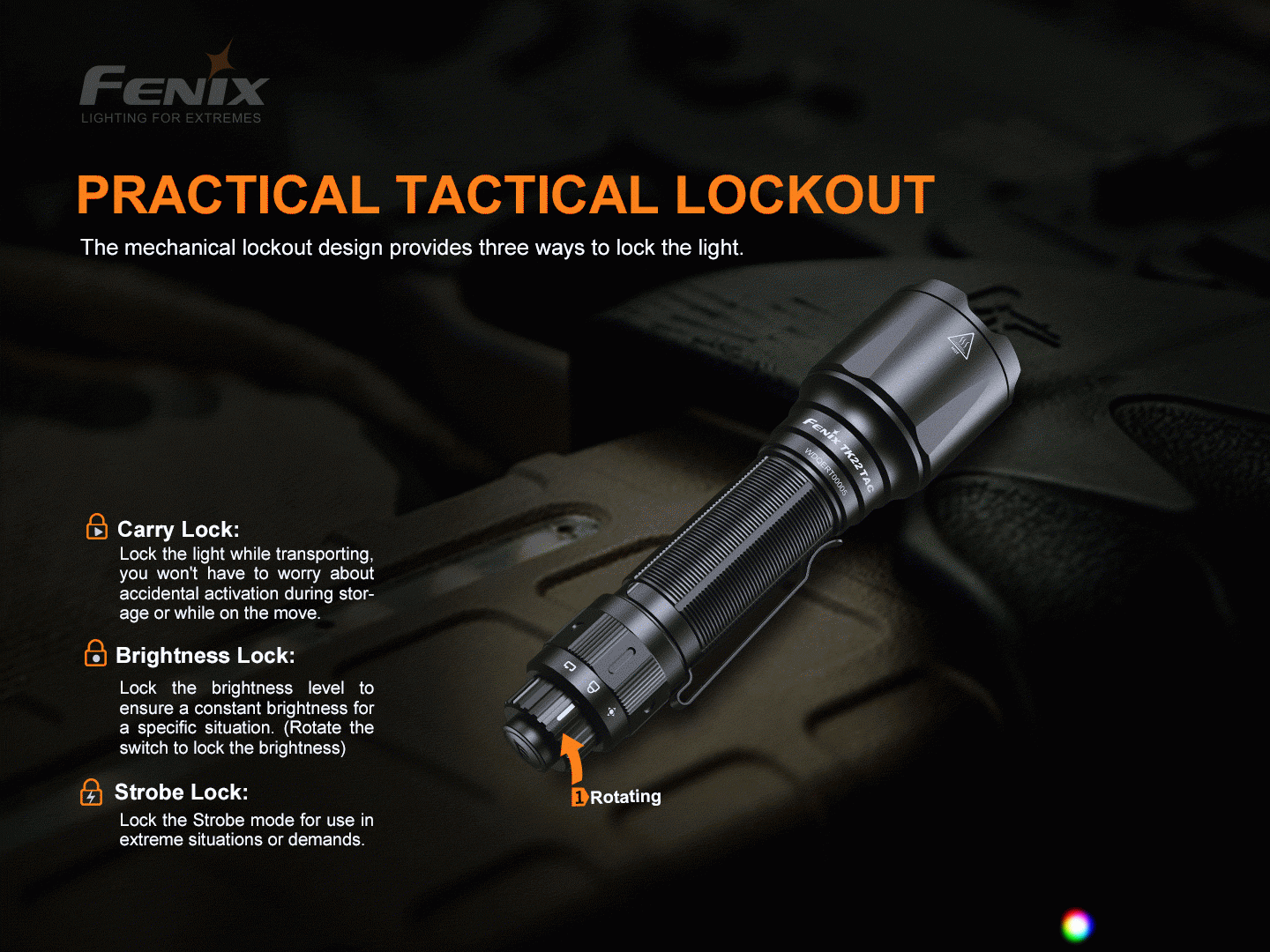

In the middle position of the rotary control, the lock control button can be activated. If the flashlight is turned off, it cannot be turned on. If it is on, the control will be locked in the currently set light mode and the control button will not respond. To reactivate the tactical button, the control must be turned to tactical or service mode.

When using the AER-05 corded switch, only the highest constant light mode is available.

Intelligent overheat protection - if the temperature of the flashlight exceeds 60°C, then it will reduce power by itself in incremental steps until the temperature drops below a safe limit. After cooling below 60°C, full power can be used again.

Discharged Battery Warning - the flashlight automatically switches to the lowest power level and flashes 3 times every five minutes.

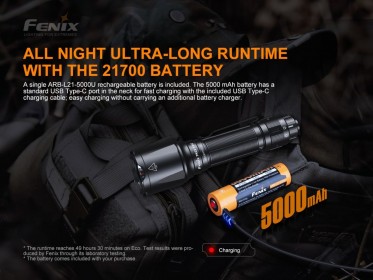

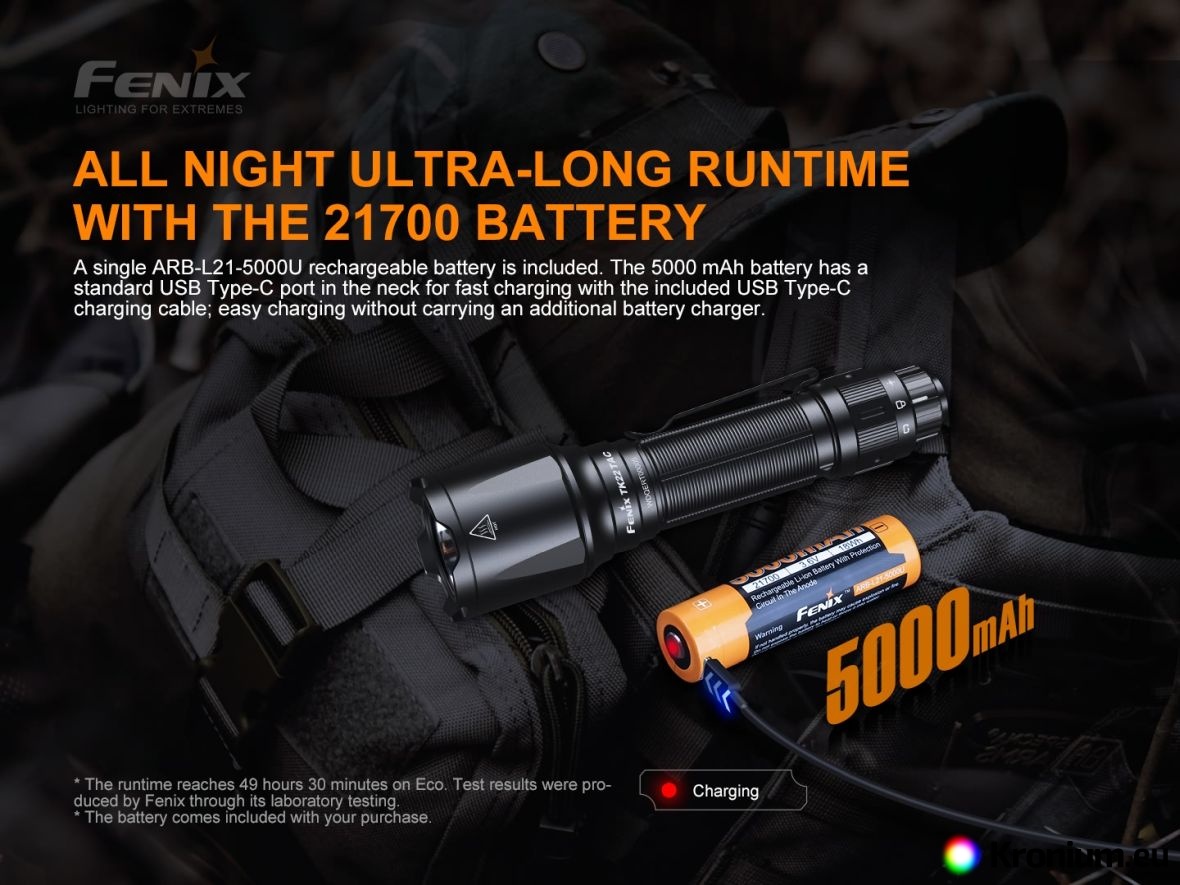

Charging - Remove the battery from the flashlight and plug the included USB cable into the side USB-C connector. During charging, the indicator light in the plus pole of the battery is red. When the battery reaches full charge, it glows blue or green. The charging currents of the built-in USB-C connector are 2A. Charging time takes approximately 3-4 hours.

Warning

• Do not disassemble the sealed parts in the head of the flashlight yourself, it will violate the warranty.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The battery is dead, charge it.
  • The contacts inside the flashlight are clogged – clean them with a cotton ball dipped in alcohol.
  • The back of the flashlight is loose, tighten it.
