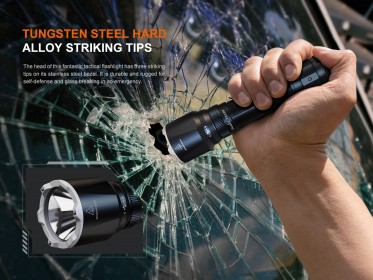

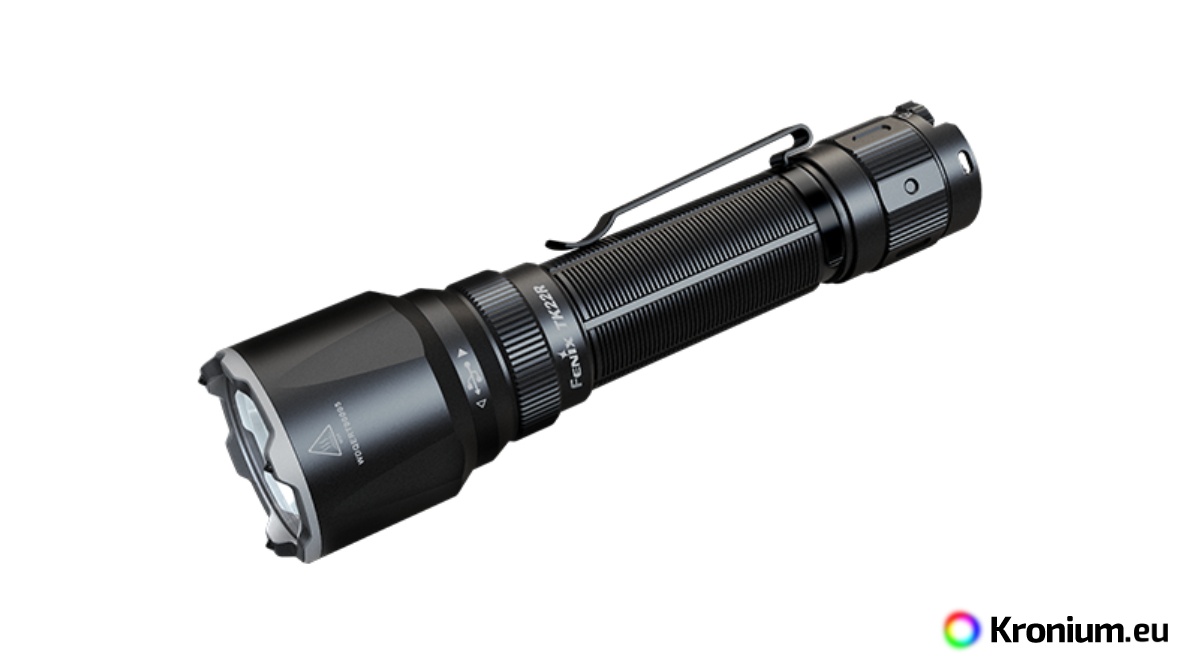

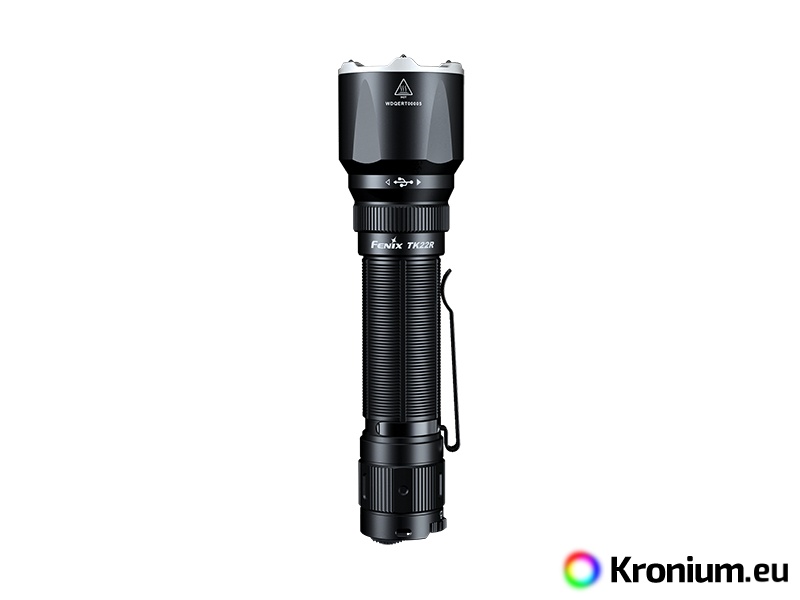

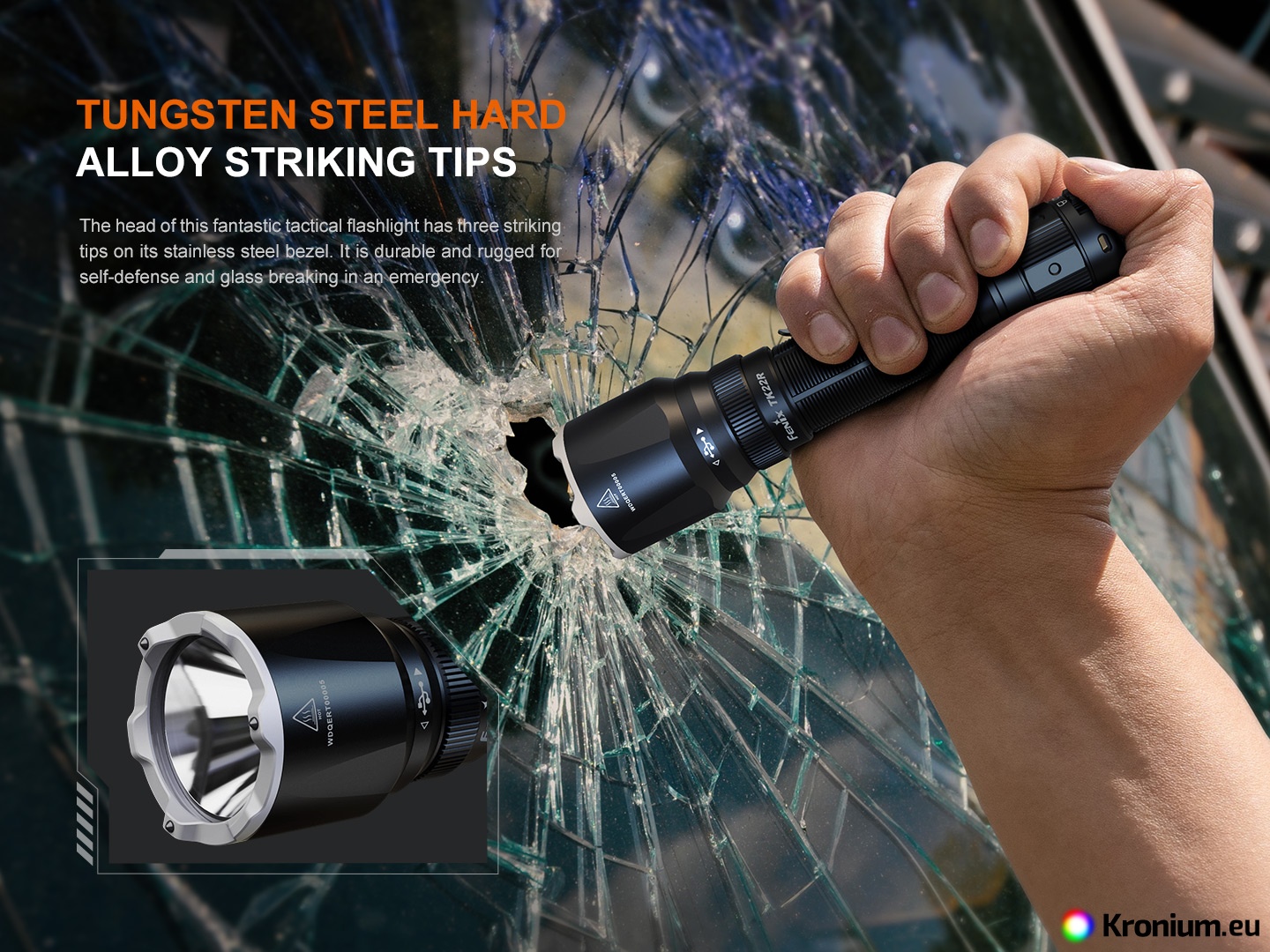

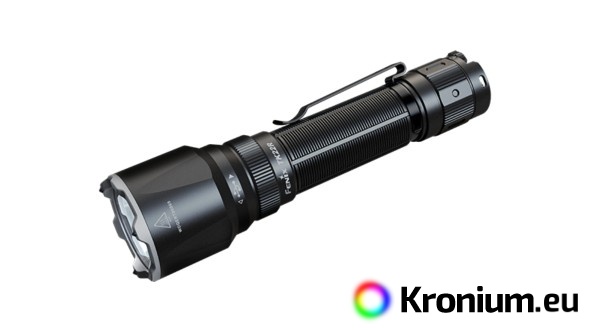

Tactical rechargeable flashlight Fenix TK22R offers a luminous flux of up to 3200 lumens. It is equipped with a top LED Luminus SST-70, which in combination with a smooth reflector creates a well-focused light beam with an extraordinary throw of 480 meters. The package includes a Li-ion battery 21700 with capacity 5000 mAh, which is charged via the USB-C connector directly in the flashlight. The charging socket is covered with a screw nut, so it is perfectly protected against water and dirt. On the end of the flashlight there is a tactical switch and a FlexiSensa control toggle lever, which can be used to lock the flashlight or choose one of the two modes of use. In tactical mode, the torch can be turned on to 3200 lumen mode or to a stroboscope with a variable frequency. In service mode, it is possible to choose between four lighting modes with a duration of up to 50 hours. The head of the torch is equipped with a striking rim made of steel, which is also equipped with three tungsten tips. Therefore, the flashlight can be used to break through glass in crisis situations or for self-defense. This tactical flashlight is solid as a tank thanks to its massive design. The robust design allows the flashlight to be used on long weapons, so it is suitable for professionals, armed forces and hunting.

All parameters of the police flashlight (luminous flux, battery operation time, waterproofing, throw and impact resistance) are measured in compliance with the ANSI standard /NEMA FL 1-2009.

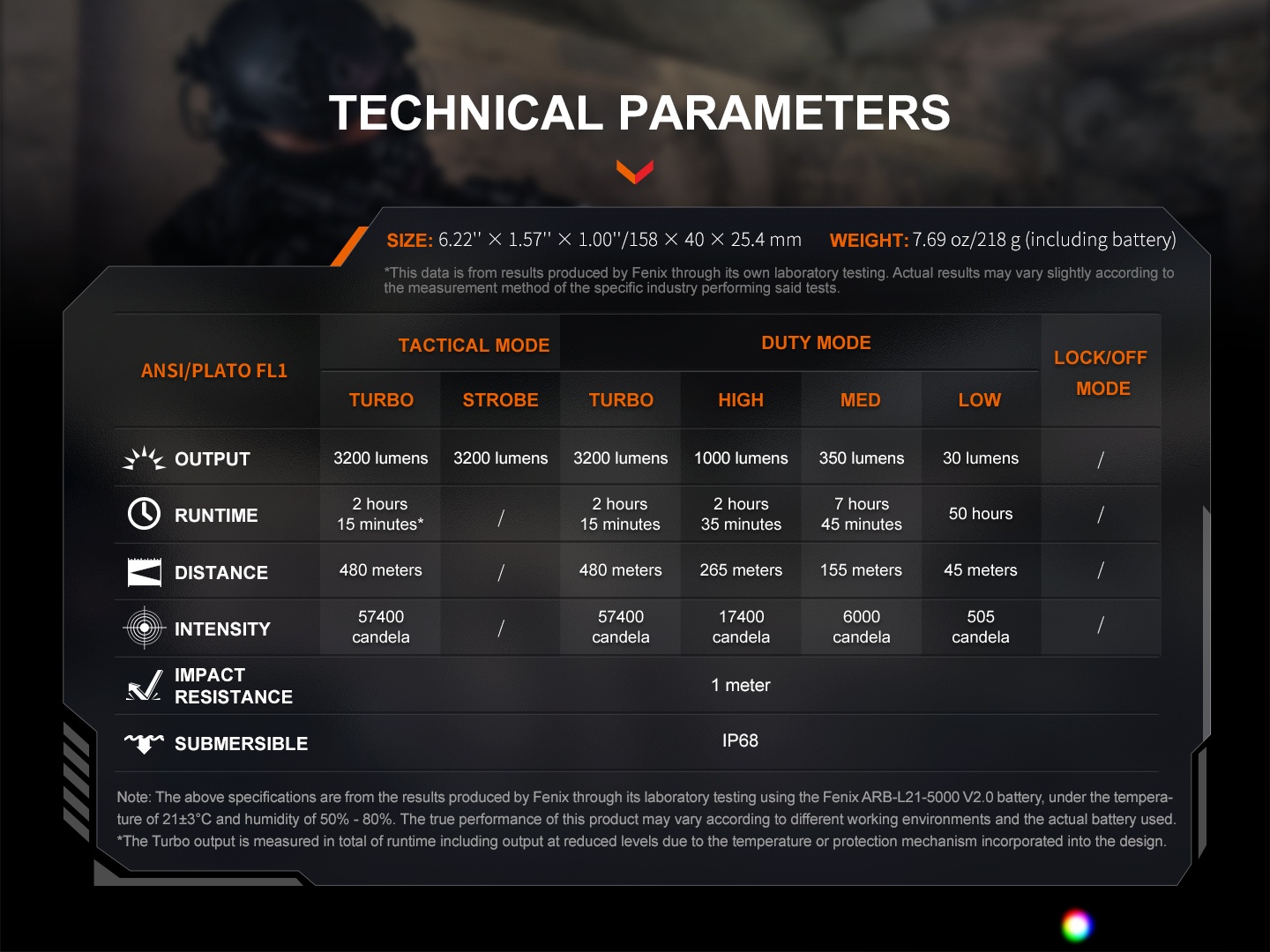

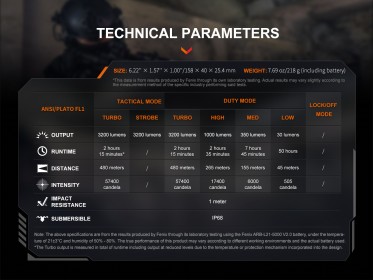

Parameters of the Fenix TK22R tactical flashlight

• A powerful Luminus SST-70 LED with a lifespan of 50,000 hours is used.
• Two lighting modes:
  • Tactical mode: 3200 lumens (2.25 hours) -> stroboscope 3200 lumens.
  • Service mode: 3200 lumens (2.25 hours) -> 1000 lumens (2.5 hours) -> 350 lumens (7.75 hours) -> 30 lumens (50 hours).
• Parabolic aluminum reflector for a perfect light beam with a throw of up to 480 meters (57400 cd).

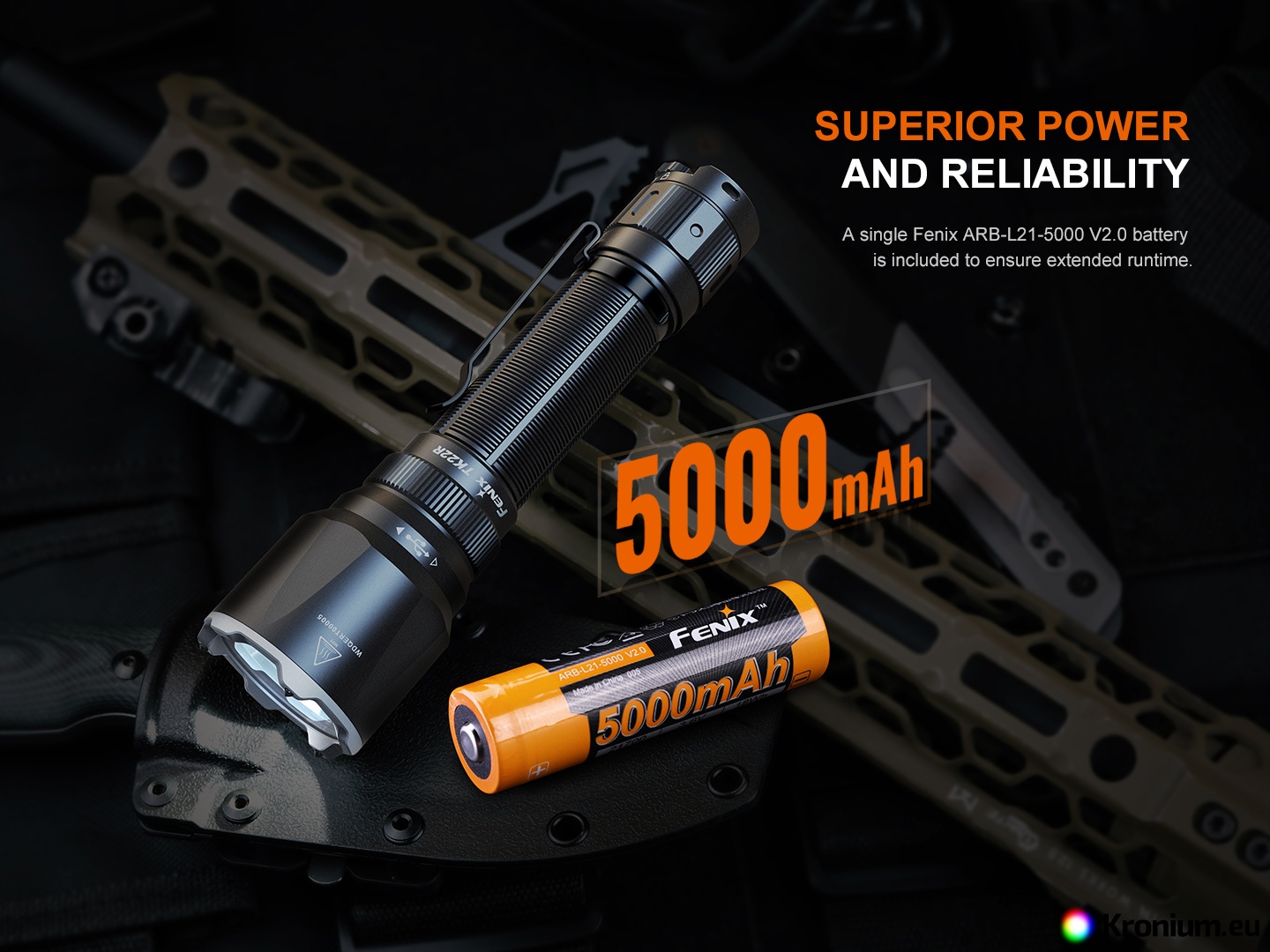

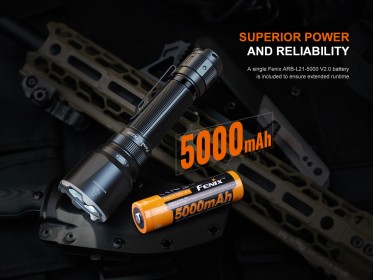

• For power, it uses one rechargeable high-capacity Li-ion battery 21700 with capacity 5000 mAh, which is included in the package.
• Charging via a sealed USB-C connector with an indication of battery charge status.

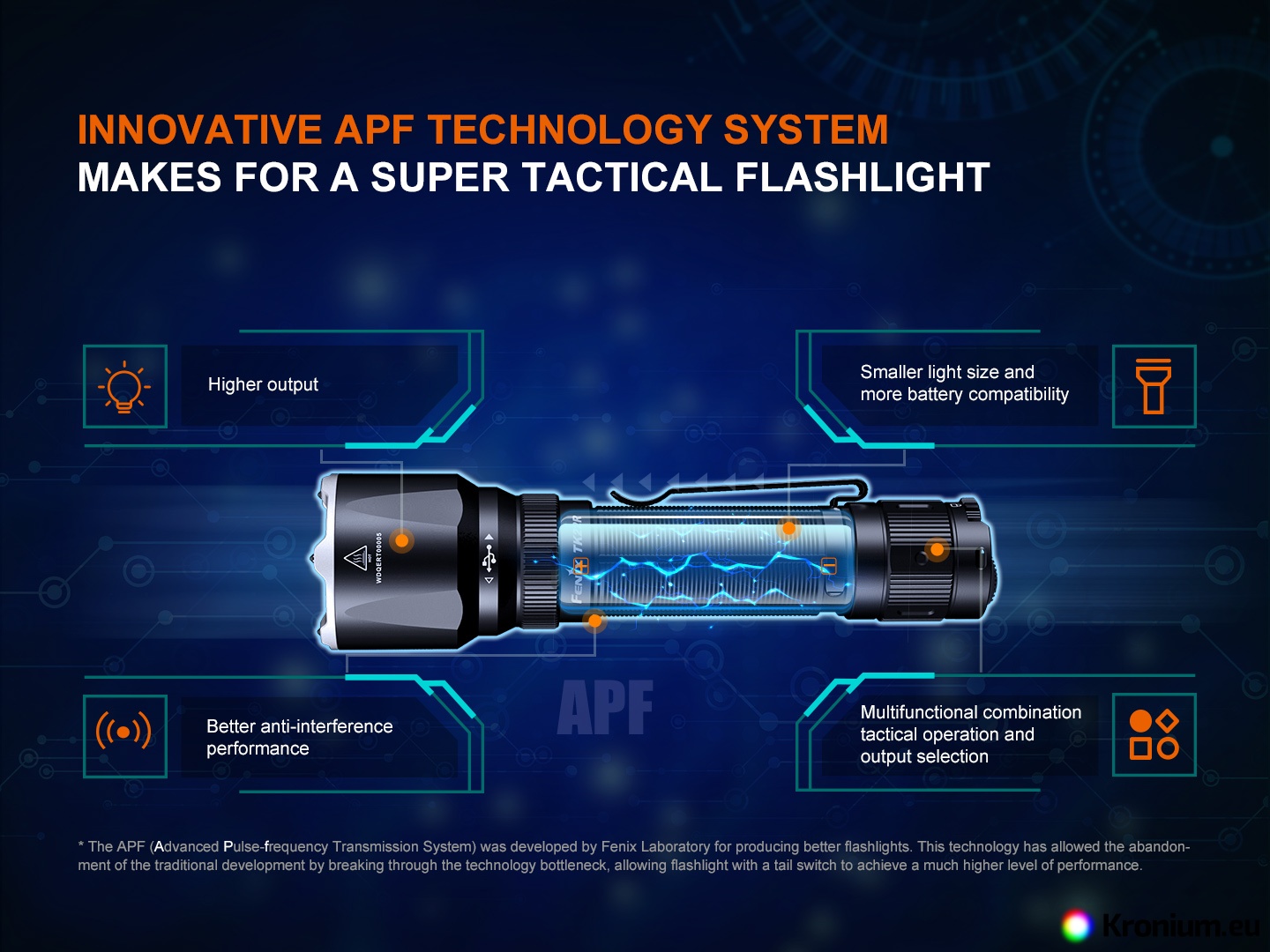

• Electronics with digital power regulation and protection against overheating.
• The flashlight has a memory and will always turn on in the last set mode (this also applies to the strobe in tactical mode).
• Dimensions 15.8 cm (length) x 4 cm (head diameter) x 2.54 cm (body diameter).
• Weight 218 grams including battery.
• The body of the lamp is made of aviation-hardened aluminum, the head of the lamp is completed with a steel impact rim with tungsten tips.

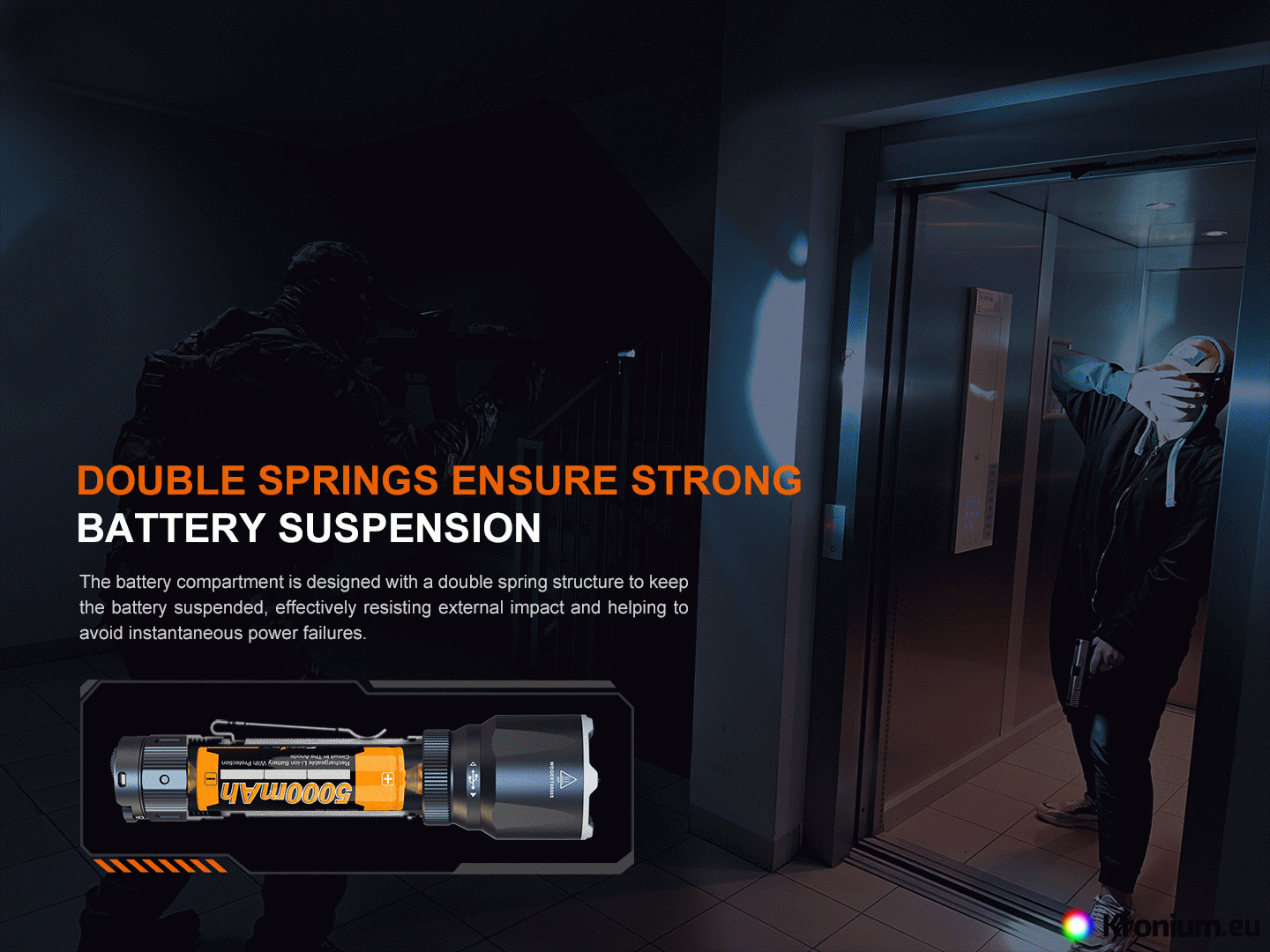

• Battery stored between two springs - easily endures recoil when used on a weapon.
• Impact resistant to drops from a height of 1 meter.
• Trapezoidal threads highly resistant to wear.
• Difficult to scratch surface - Type III hard anodized.

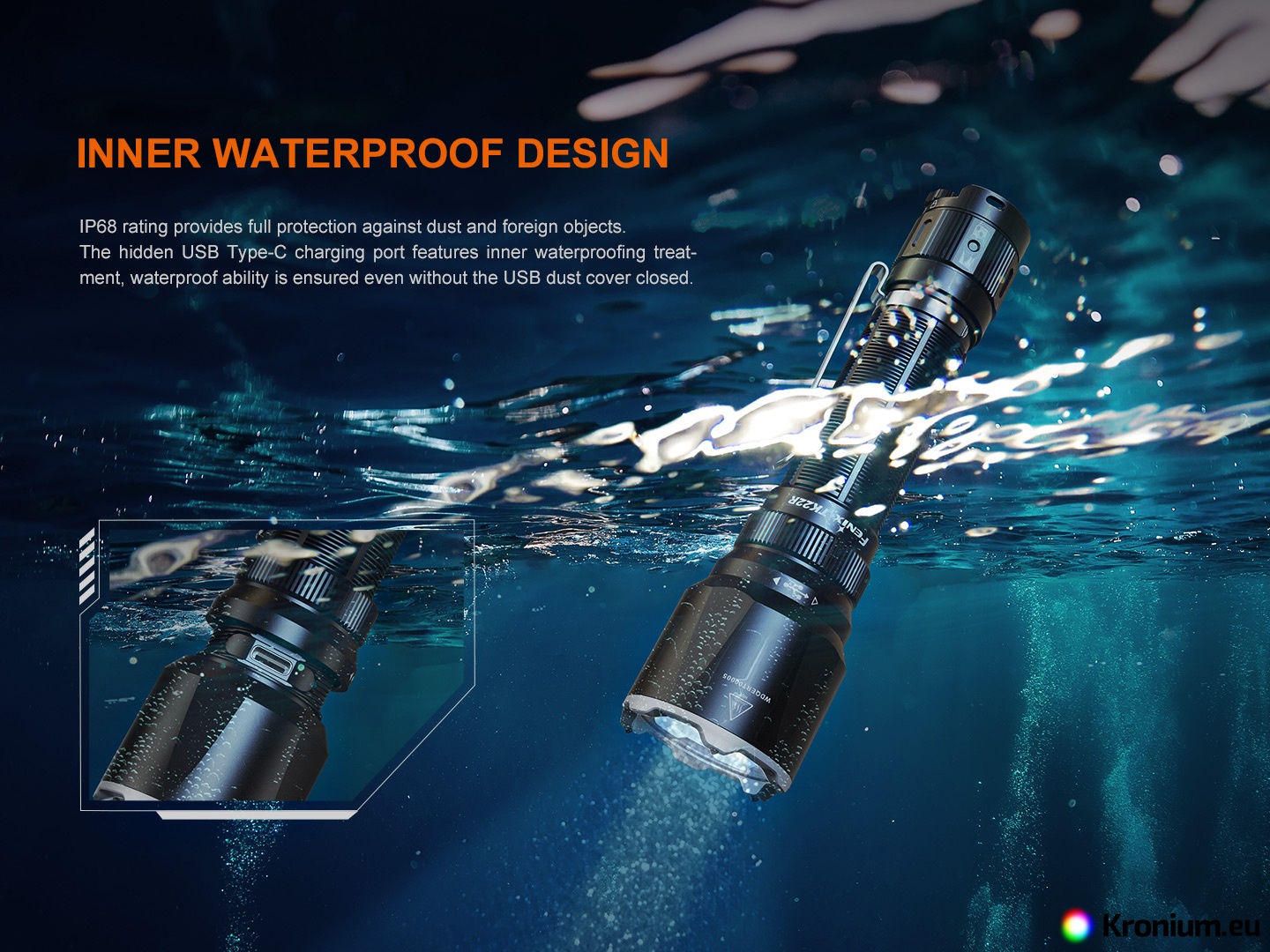

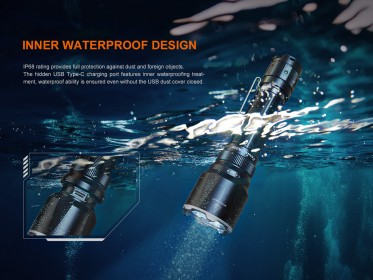

• Waterproof and dustproof according to the IP68 standard (tested under water at a depth of 2 meters).
• Toughened ultra clear glass lens with anti-reflective surface.
• Tactical switch FlexiSensa control at the end of the flashlight for switching modes and locking the flashlight.
• Fixed clip for safe and easy carrying of the torch (removable).
• Due to its design, the flashlight does not slip in the hand and does not rotate when placed.

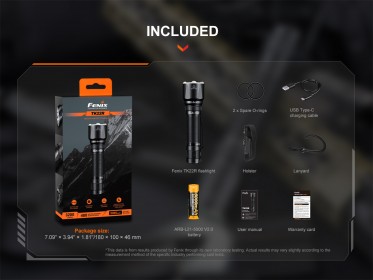

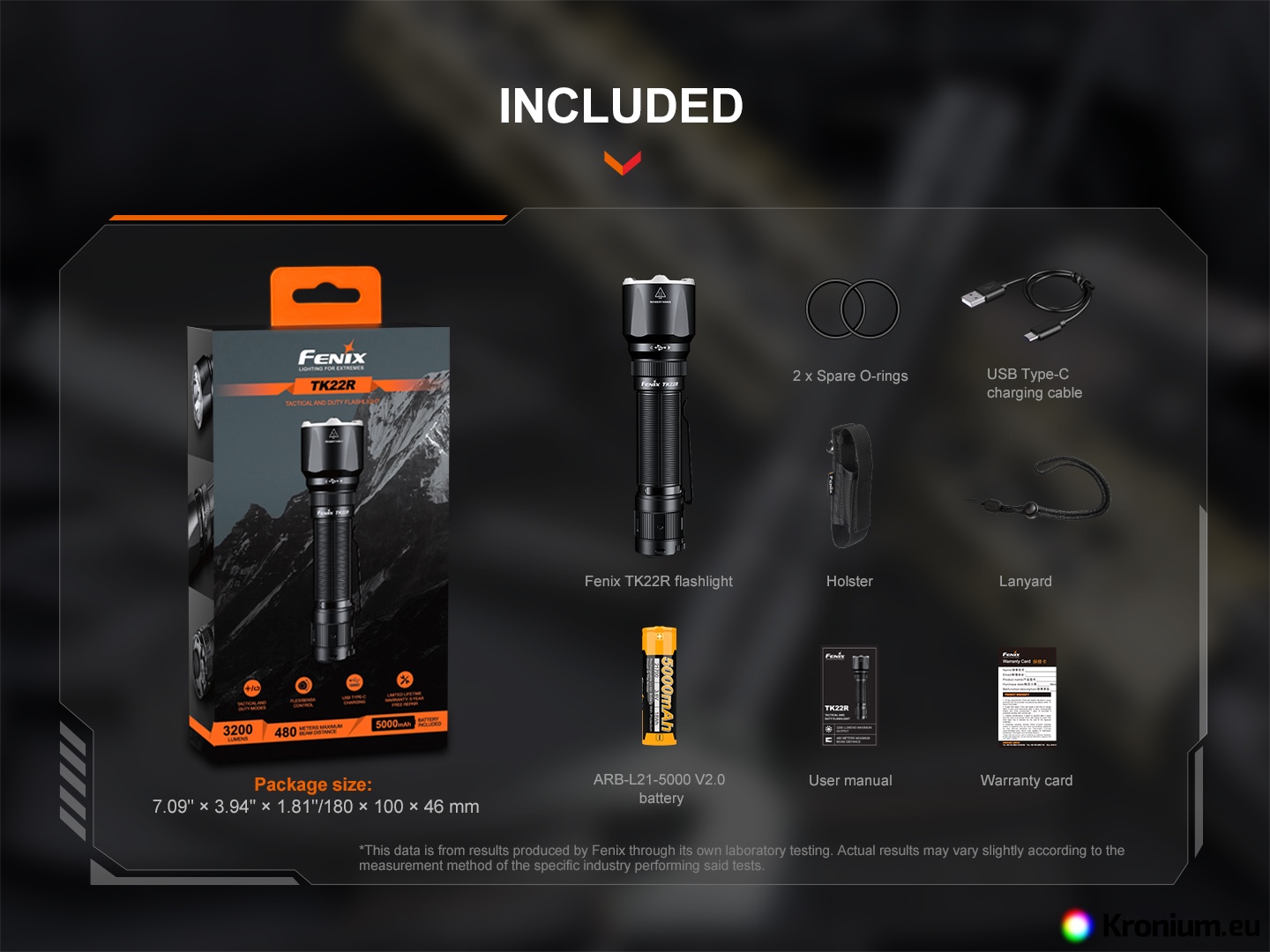

• The flashlight comes with a wrist strap, belt pouch, spare o-rings, USB-C charging cable, Fenix ARB-L21-5000 V2.0 battery.

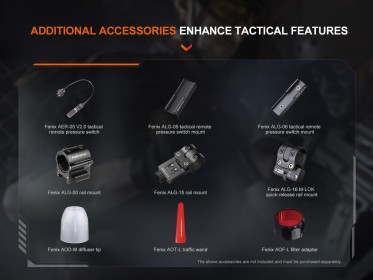

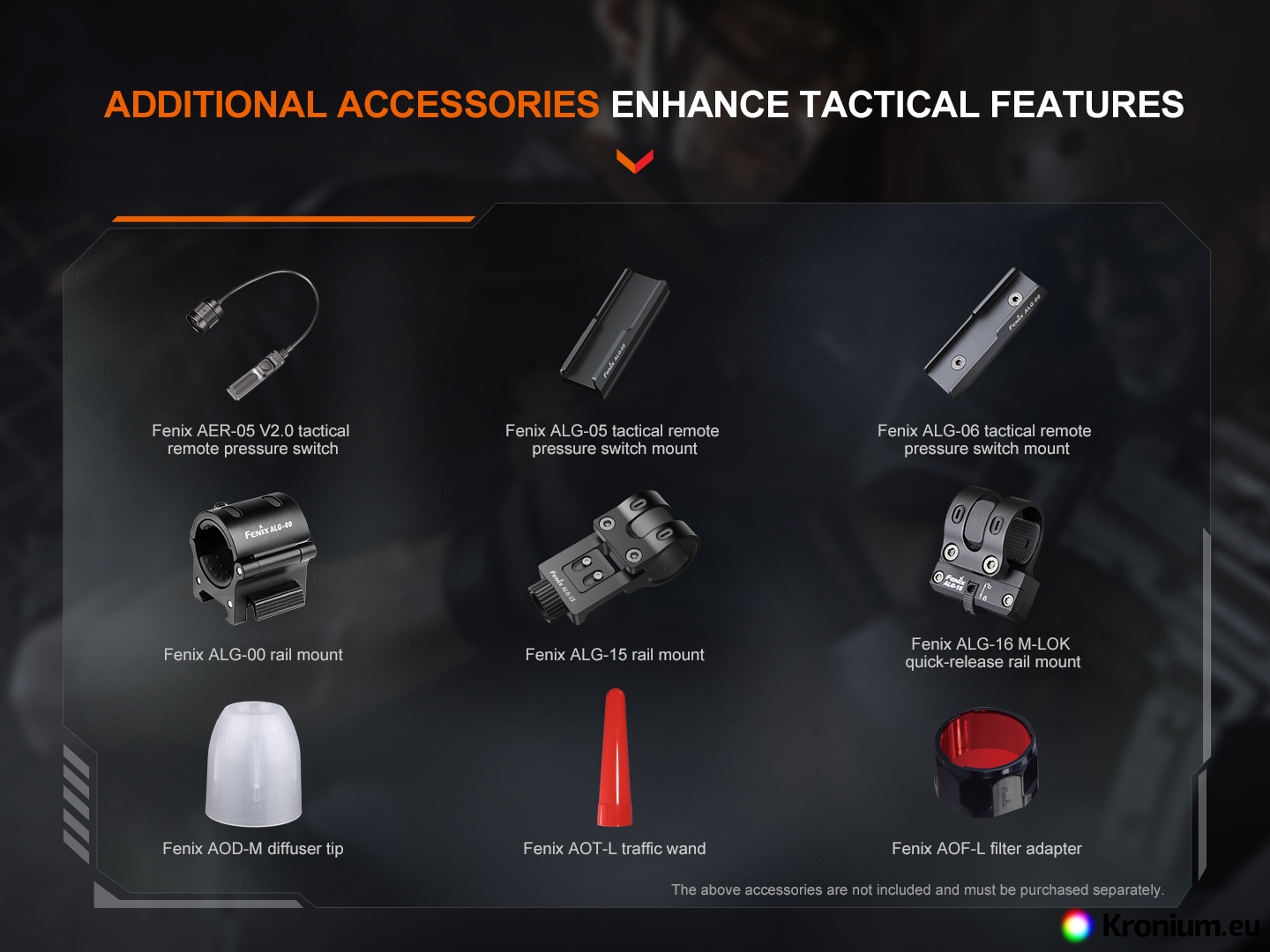

• The following can be purchased as optional accessories: cable switch AER-05, red traffic cone AOT-L, red filter AOF-L and AOD-M diffuser.
• The following accessories are also compatible with the flashlight: quick mounting on ALG-15 bar, ALG-00 quick release rail mount, M-LOK Fenix mount ALG-16, Fenix ALG-18 Barrel Mount, Metal Magnetic Barrel Mount, plastic magnetic barrel mount, optical mount , metal optic mount, Fenix strap ALD-05 for helmet flashlight use, bike holder FB-1, fenix bicycle holder.

• The flashlight can also be purchased with a USB power adapter and USB car adapter.

Using the Fenix TK22R flashlight

From the factory, there may be an insulating cap inside the flashlight on the battery. Remove it from the battery before first use.

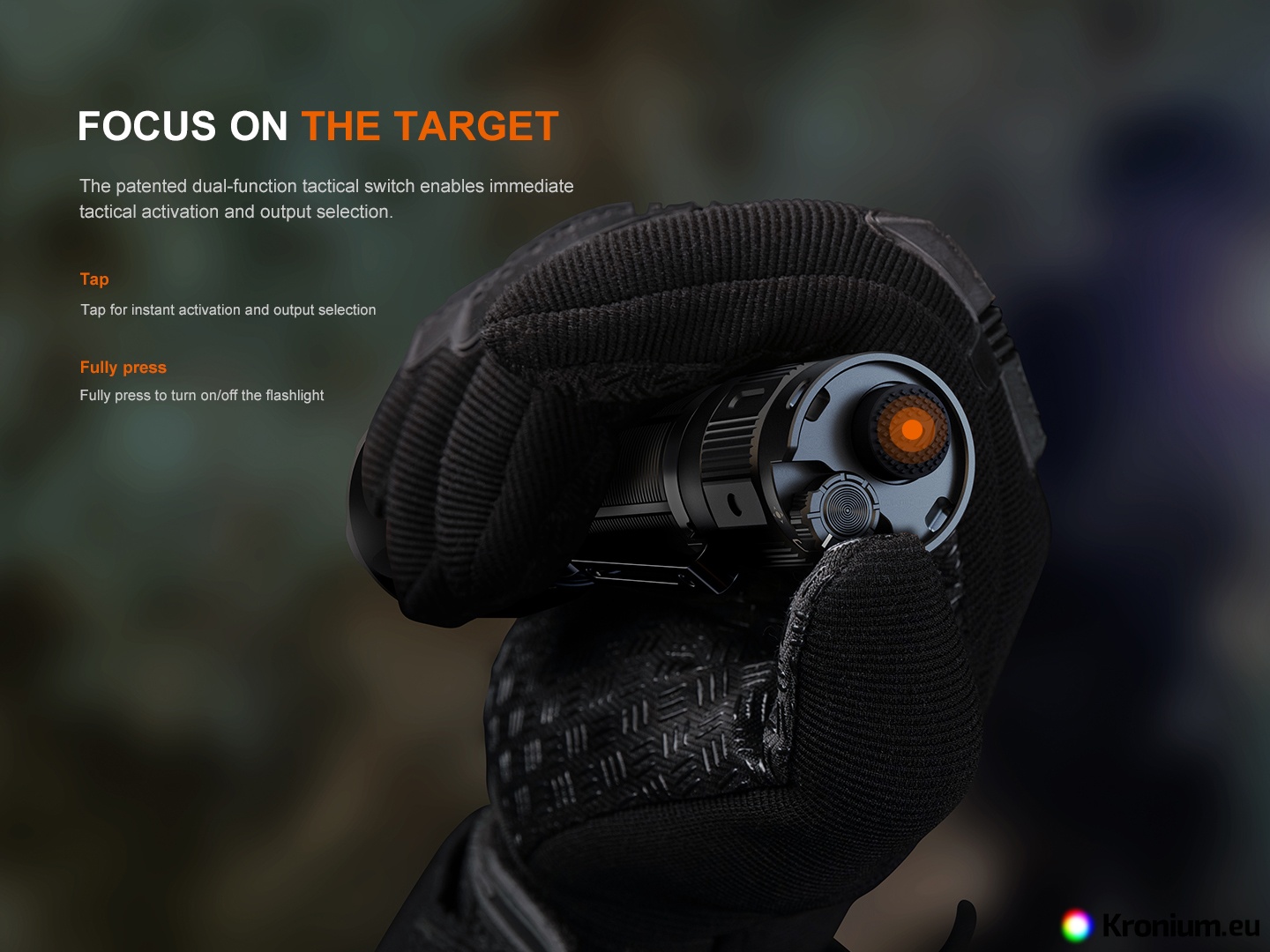

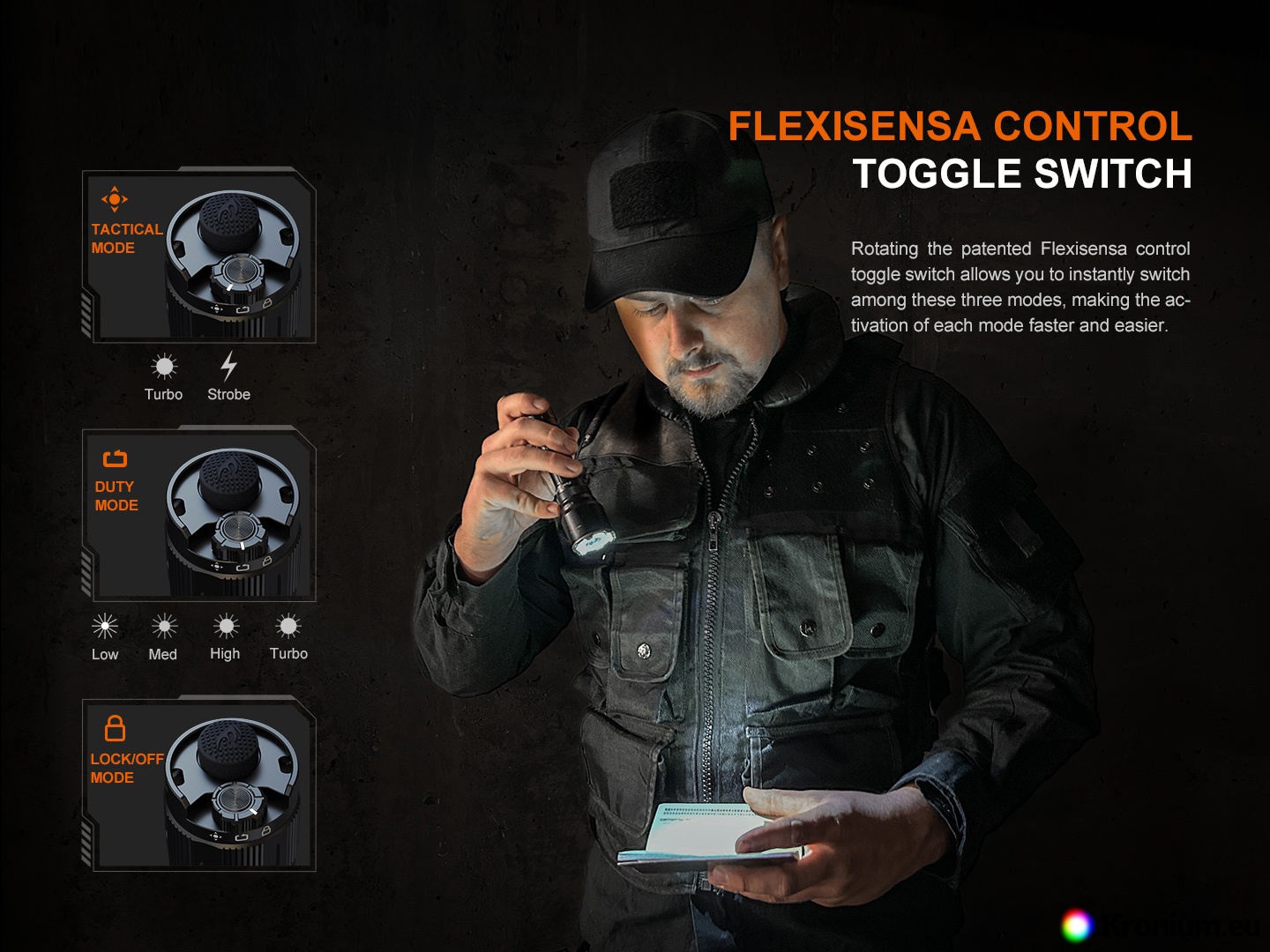

To turn on, press the tactical button at the end of the flashlight, for immediate activation, press the button. With the FlexiSensa control switch lever at the end of the flashlight, you can choose between tactical and service lighting modes and lock the flashlight.

Service mode - the flashlight turns on in the last selected lighting mode, the four performance modes can be changed cyclically by pressing the button.

Tactical mode - the flashlight turns on in the last selected lighting mode, a strobe is available and the highest output is 3200 lumens. Press the button to switch between modes.

Locking - the third position on the rotary selector locks the torch and it cannot be turned on - suitable, for example, when transporting in luggage. The flashlight can be locked in the off and on state, locking turns the flashlight off at the same time. Unlocking the flashlight will also turn it on in the last used mode of the respective mode.

Intelligent protection against overheating - due to the fact that the lamp reaches a huge output of 3200 lumens, there is an increase in temperature. If the temperature exceeds 60°C, there will be an automatic power reduction. As soon as the temperature drops below 60°C, it is possible to use the highest power again.

Battery charge status indication - for tactical reasons, the charge indicator is hidden under the protective nut of the charging connector, so it is necessary to unscrew the nut to check it. The flashlight always indicates the battery charge status three seconds after switching on. Green indicates a sufficient state of charge (100% - 85%), green flashing (85% - 50%), steady red (50% - 25%) and flashing red a critically discharged battery (25% - 1%). If the battery is discharged, the flashlight will gradually automatically switch to lower power modes, in the lowest mode it will flash 3 times every five minutes.

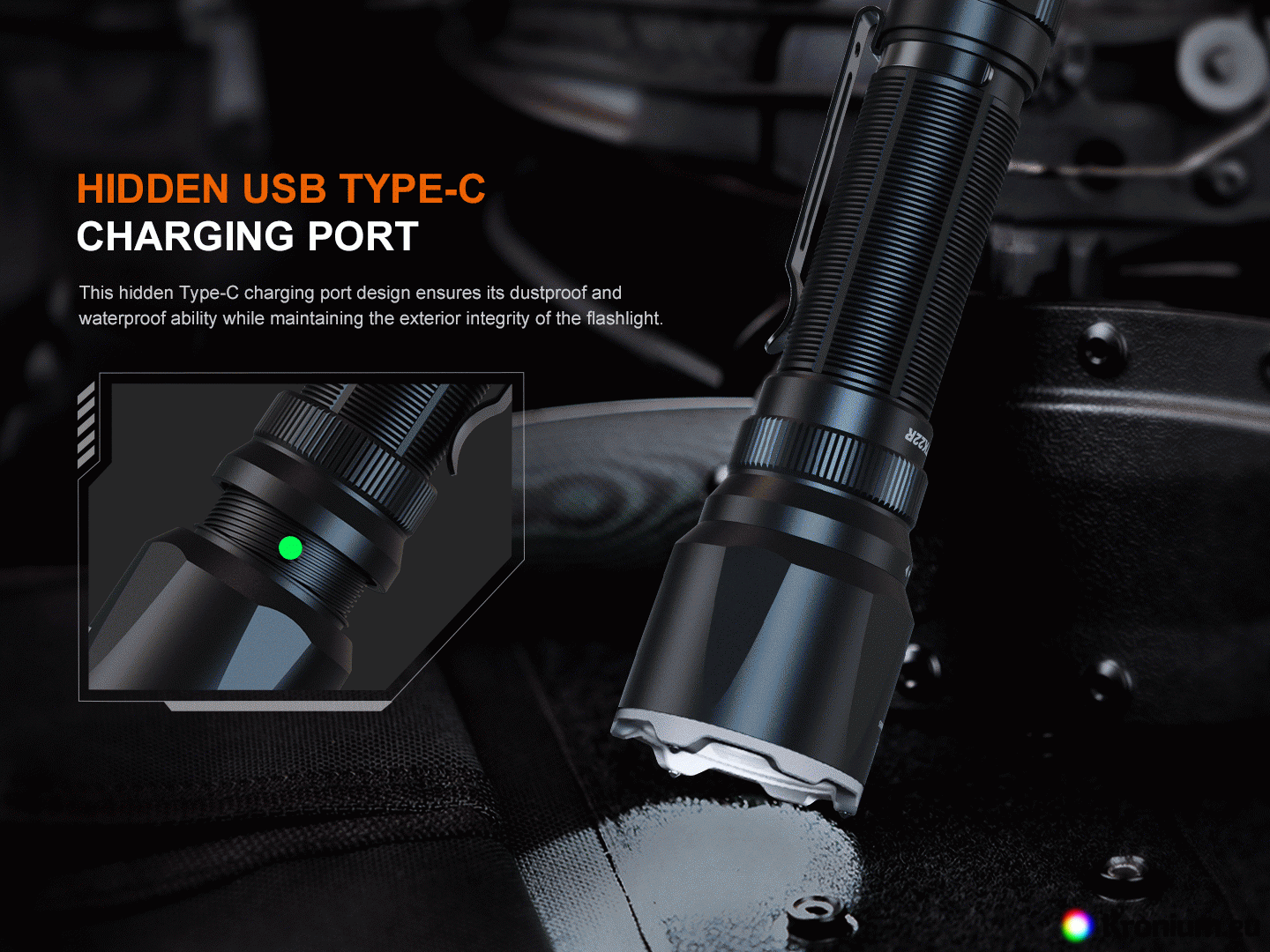

Charging the flashlight - Unscrew the protective nut under the head of the flashlight and connect it to the computer using the included USB-C cable, network USB adapter or USB car adapter (not included). Any mobile phone charger with a USB-C connector can also be used for charging. During charging, the indicator LED opposite the charging connector lights up red, after full charge it lights up green. Charging a fully discharged battery takes about 3.5 hours. The used Li-ion battery does not suffer from a memory effect, so the flashlight can be recharged at any time. The flashlight cannot be turned on while charging.

Warning

• Use only high-quality 21700 Li-ion batteries to avoid damage to the flashlight, for example due to leakage of substances from the battery.
• Insert the batteries with the positive pole towards the head of the torch.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings must also be lubricated to prevent rubber erosion. By following these rules, the lamp will be properly protected against water.
• If the flashlight flickers, does not switch to higher power modes, or does not light up, it may be for one of the following reasons:
  • The battery is almost empty – charge it.
  • The contacts inside the lamp are dirty – clean them with a cotton swab dipped in alcohol.
  • The back of the lamp is loose, tighten it.

Warranty

Five-year warranty on the flashlight, two-year warranty on the battery.
