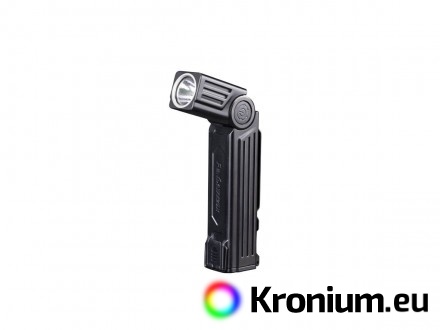

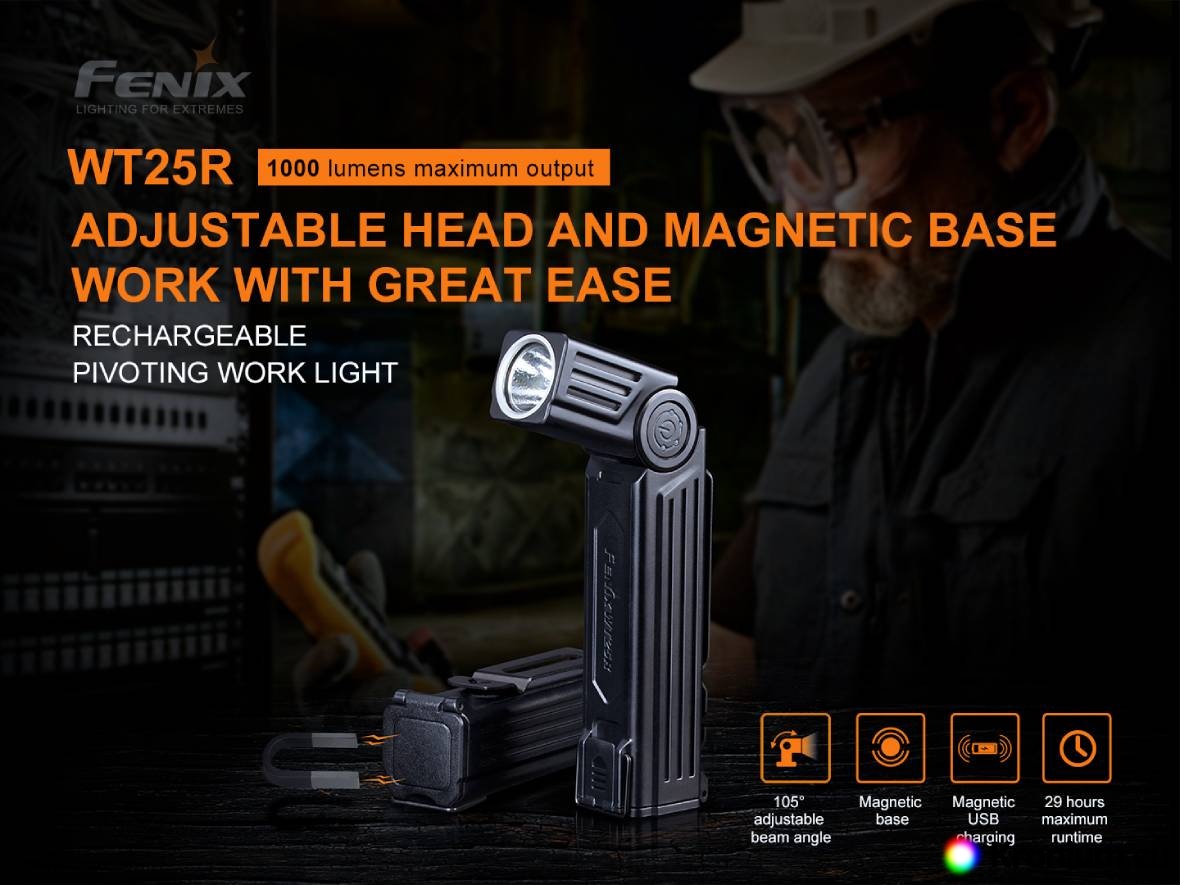

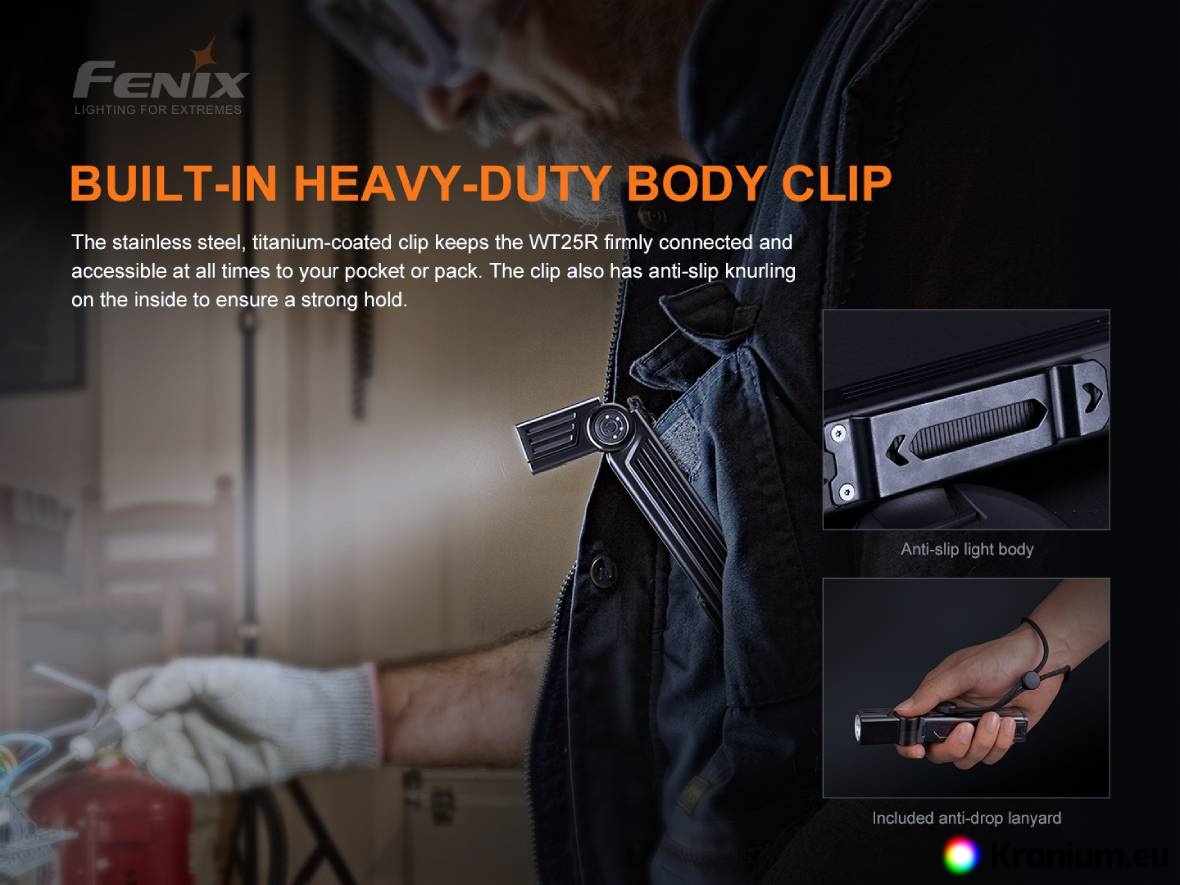

The Fenix WT25R is a universal rechargeable work light with a unique articulated design with a tilting reflector that uses Cree XP-L HI LEDs with a lumen output of up to 1000 lumens and range of up to 220 meters (ANSI). The tilting head in the range of 105 degrees guarantees maximum versatility. The Fenix WT25R flashlight is also equipped with a strong steel clip for easy wearing on a belt or work clothes and a magnetic end that can be easily attached to anything iron. Its variability makes the flashlight very useful especially for work use, camping, hiking in nature and many other activities.

The flashlight is powered by a lithium-ion battery type 18650 with capacity 3400 mAh, which is included in the package and is charged by a USB cable with magnetic end directly in the flashlight. The Fenix WT25R features six levels of illumination, including strobe and SOS signal, allowing users to choose the appropriate compromise between illumination intensity and run time. For all its functionality, the flashlight retains its small size and light weight of 137 grams including battery.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

Fenix WT25R work flashlight specifications

• Powerful Cree XP-L HI LED with 50,000 hours lifetime is used.
• Six power modes:

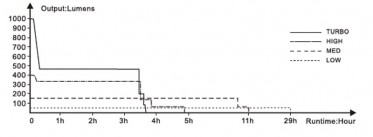

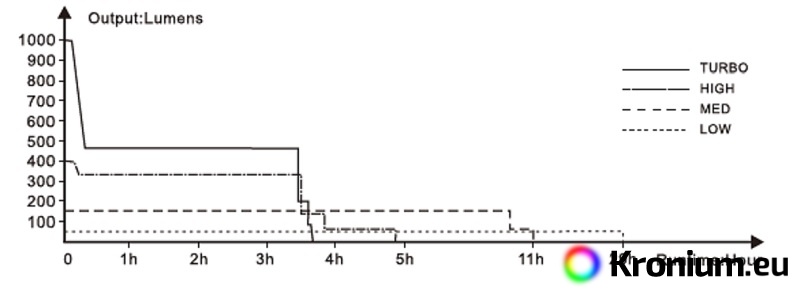

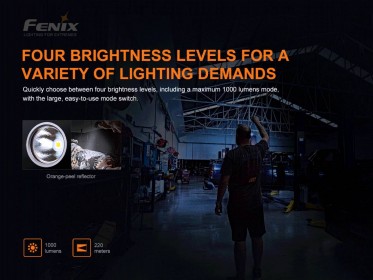

  • Constant light modes: 1000 lumens (3.66 hours) -> 400 lumens (4.83 hours) -> 150 lumens (11 hours) -> 50 lumens (29 hours).
  • Flash modes: strobe (1000 lumens) -> SOS signal (50 lumens).
• Digitally controlled for constant brightness, electronics remember last mode set.

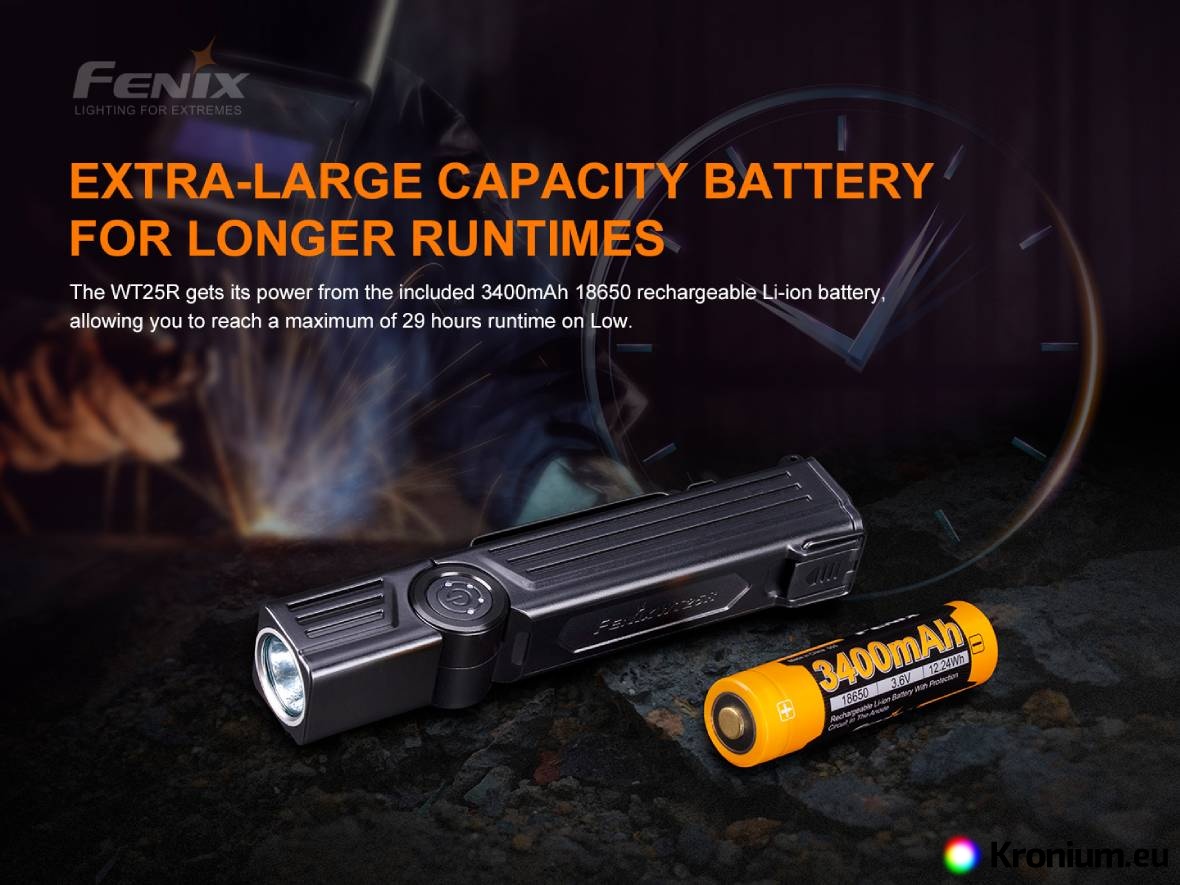

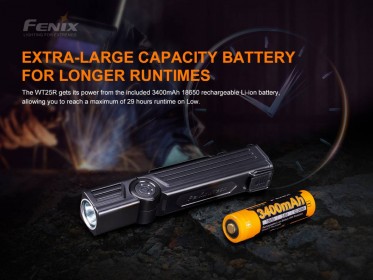

• Uses one Fenix 18650 Lithium-ion battery with 3400 mAh capacity.
• Battery charge status indication.
• Charging via magnetic connector on the flashlight.
• Textured reflector for light cone with output of 220 meters (11905 cd).
• Made of aerospace hardened aluminum and impact resistant plastic.
• Metal parts hard anodized with HA-III type anodizing.
• Dimensions 13.53 cm (length) x 2.94 cm (width) x 2.41 cm (height).
• Weight 137 grams (including battery).
• Electronics with protection against reverse insertion of batteries.
• Resistant to falls from a height of 1 meter.
• Waterproof to IP66 standard.

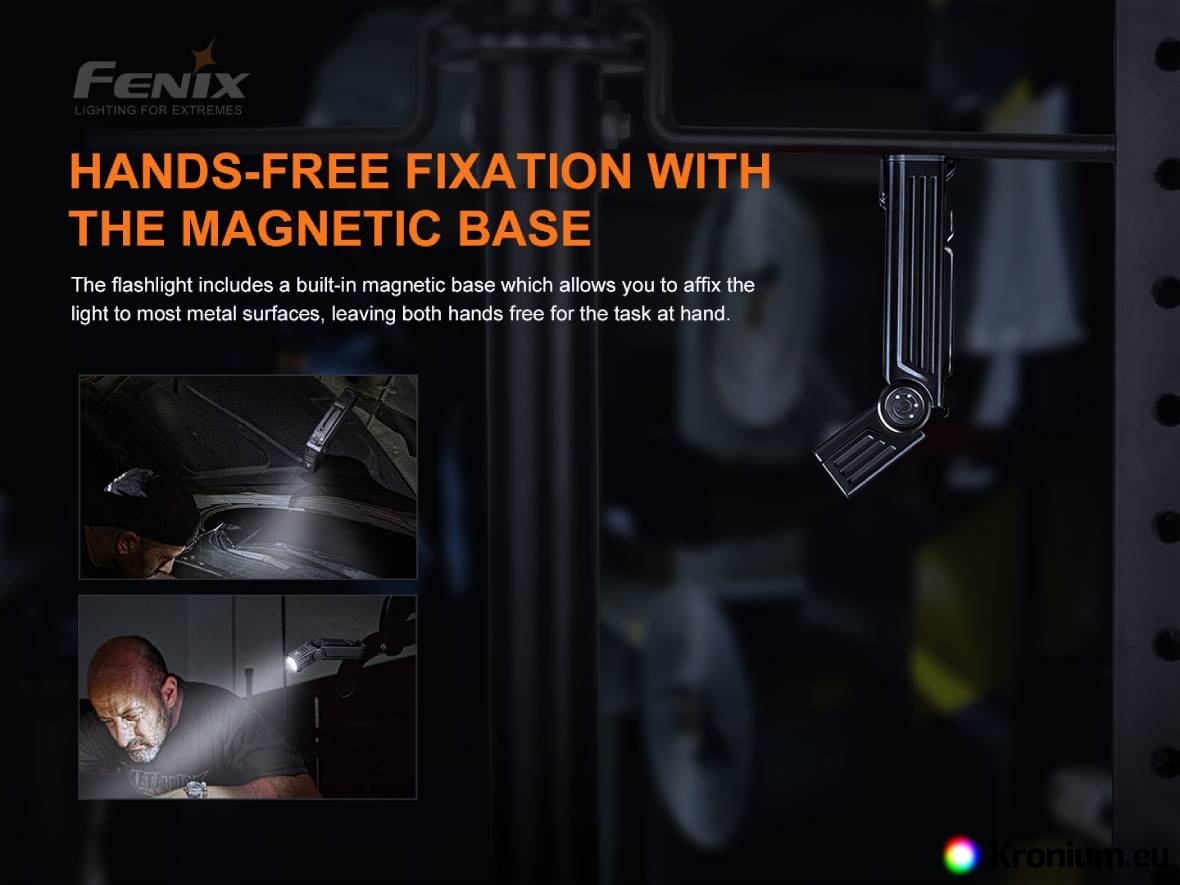

• Magnetic end cap - the flashlight can be attached to anything metal.
• Hardened ultra clear glass lens with anti-reflective surface.

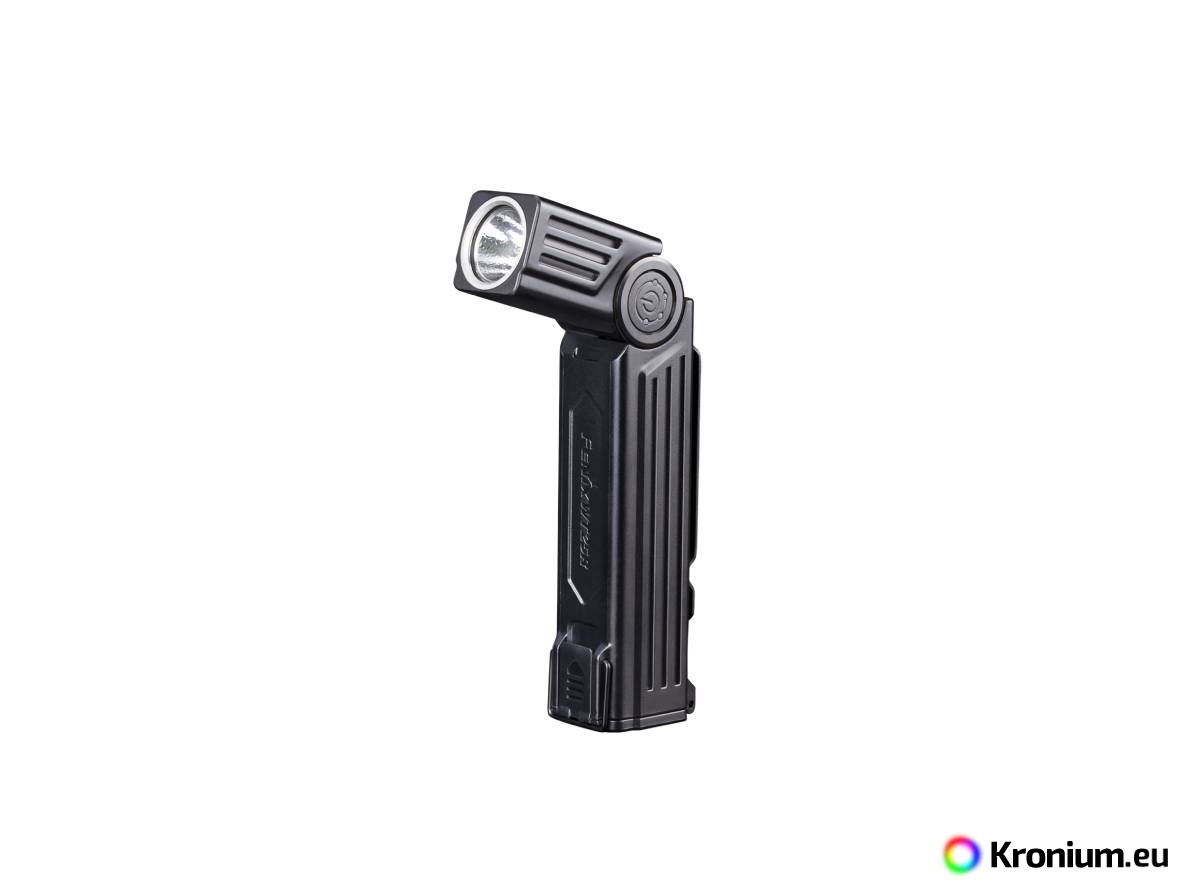

• Able to stand by itself on a flat spot, the head can be tilted in a range of 105° in several steps.
• Package includes flashlight with Fenix 18650 3400 mAh rechargeable battery, USB cable with magnetic end, wrist lanyard and replacement O-ring.
• The flashlight can also be purchased with USB mains adapter and USB car adapter.

Using the Fenix WT25R

The flashlight is switched on and off by holding the button for 0.5 seconds and once on, the light modes are switched by briefly pressing it. To switch to strobe mode, hold the button for 1.2 seconds, another short press of the button will then turn on the SOS signal. The flashlight remembers the last selected light mode (except flash modes).

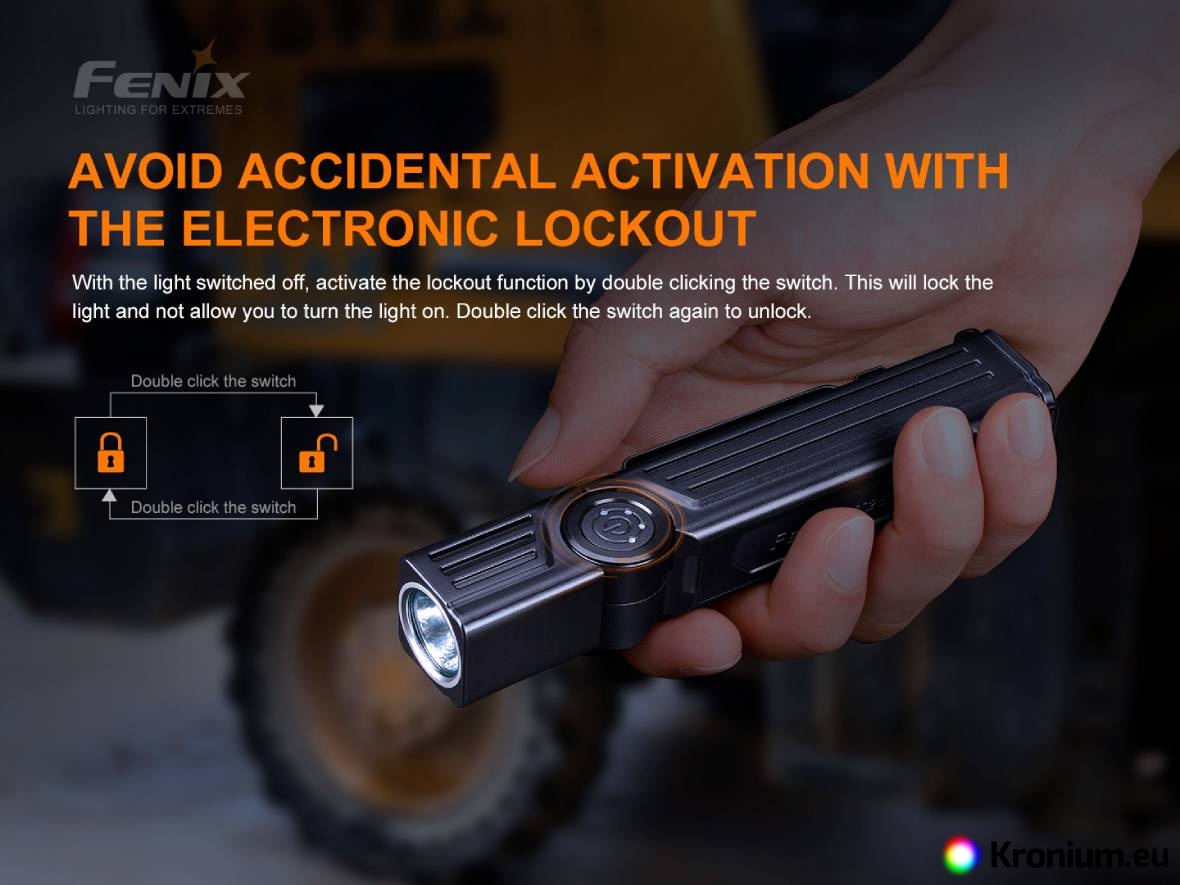

The control button can be locked to prevent it from switching on automatically, e.g. when transporting in luggage - press the control button twice quickly (within 0.5 seconds), the flashlight then flashes twice to signal locking. To unlock, press the button again twice quickly.

Overheat Protection - Due to the flashlight's high 1000 lumens output, the flashlight will experience a temperature rise in the highest mode for prolonged use. If the temperature exceeds 60°C, an automatic power reduction occurs. Once the temperature drops below 60°C, the highest power can be used again.

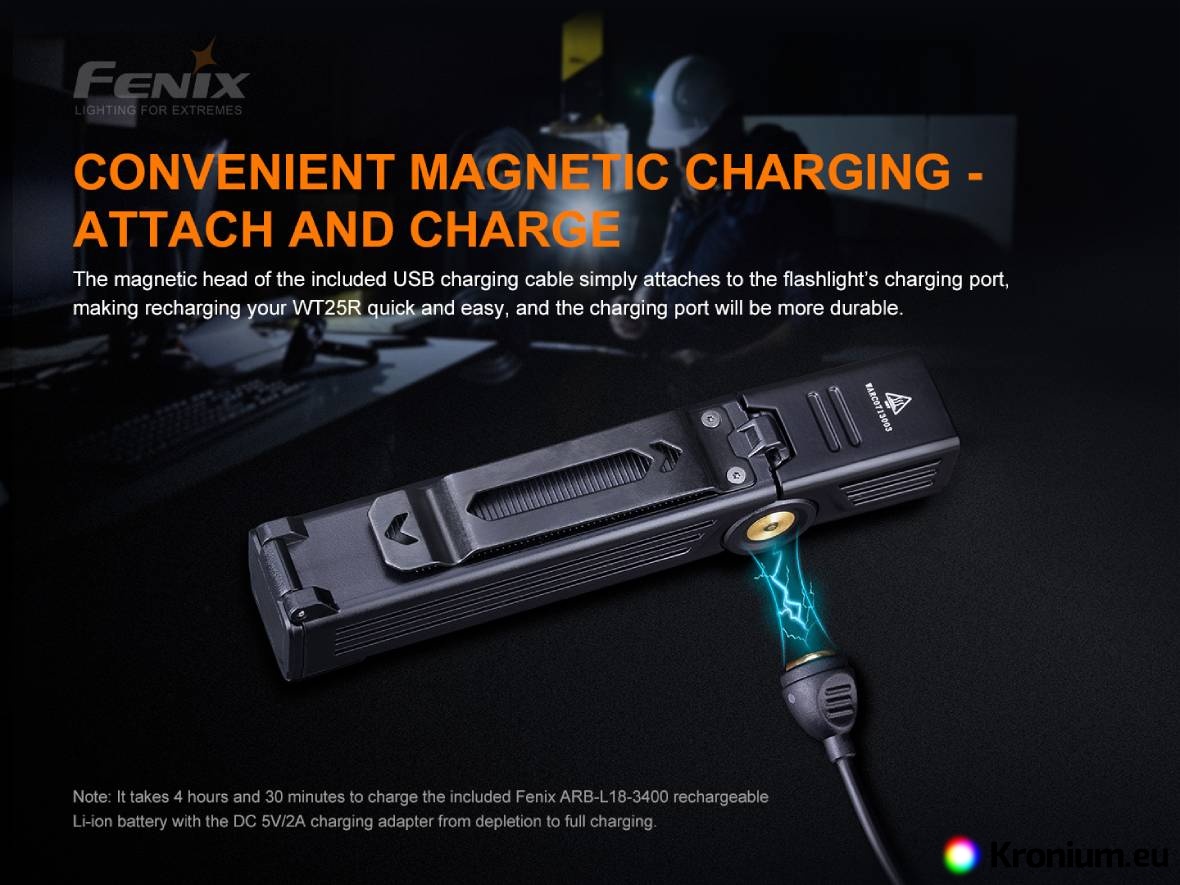

Charging - Plug the charging cable into the USB connector of your computer, USB mains adapter or car. Attach the cable to the charging plate on the flashlight, it will attach itself with magnets. The indicator light on the cable glows red while charging, and glows green when charging is complete. Charging a fully discharged Fenix ARB-L18-3400 battery takes approximately 4.5 hours.

Charge status indication (works only with original battery) - After a short press of the button (flashlight must be off), the LED battery charge status indicator in the button is activated. Four lit LEDs indicate that the battery is more than 80% charged, three lit 60-80%, two lit 40-60%, one lit 20-40% and one flashing LED indicates that the battery is less than 20% charged.

Warning

• Do not disassemble the sealed part in the head of the flashlight yourself, it will violate the warranty.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight flickers or does not light up, it may be due to one of the following reasons:
  • The battery is dead, charge it.
  • The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.

Warranty

Five years warranty on the flashlight, two years on the battery.
