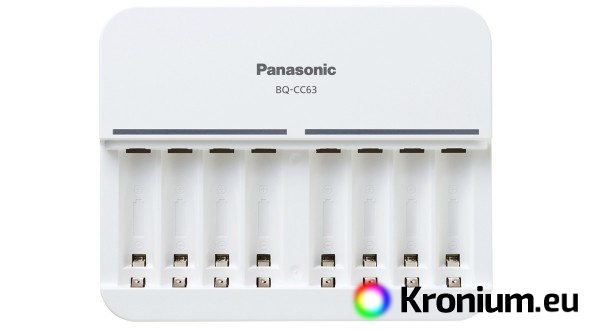

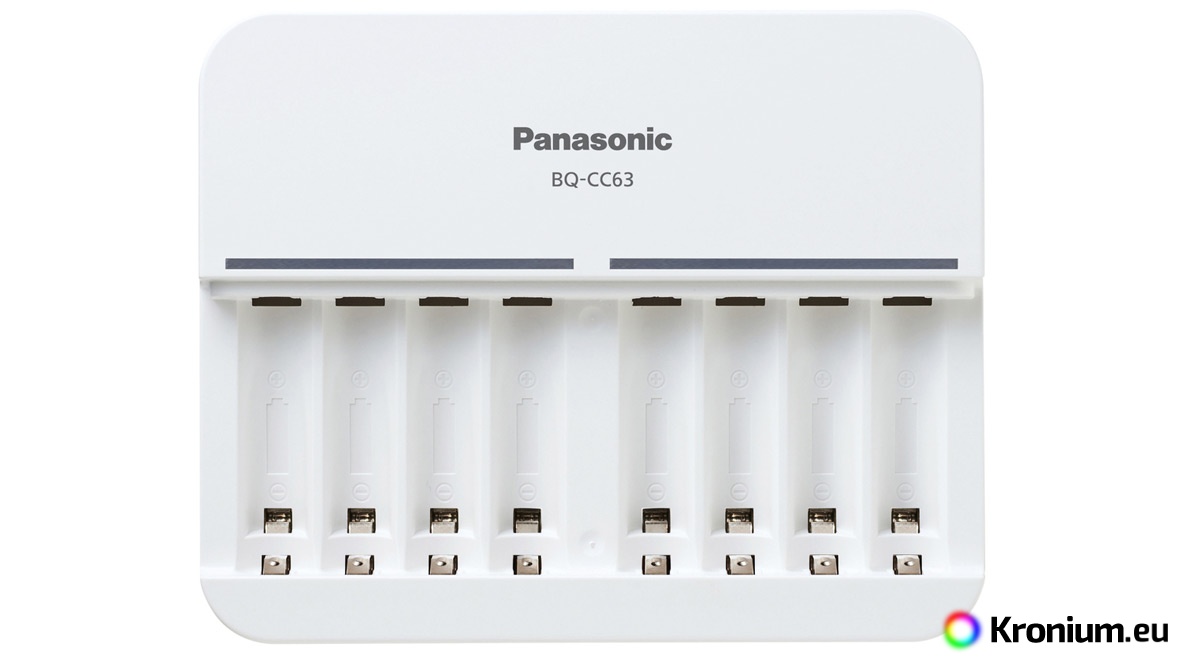

The Panasonic BQ-CC63E eight-channel charger is designed for charging 1-8 AA or 1-8 AAA NiMH/NiCd rechargeable batteries. Eight independent charging channels allow you to charge batteries with different capacities or in different states of discharge at the same time. Pulse charging controlled by a microprocessor with delta V detection terminates charging at the exact moment of full charge.
Charger specifications

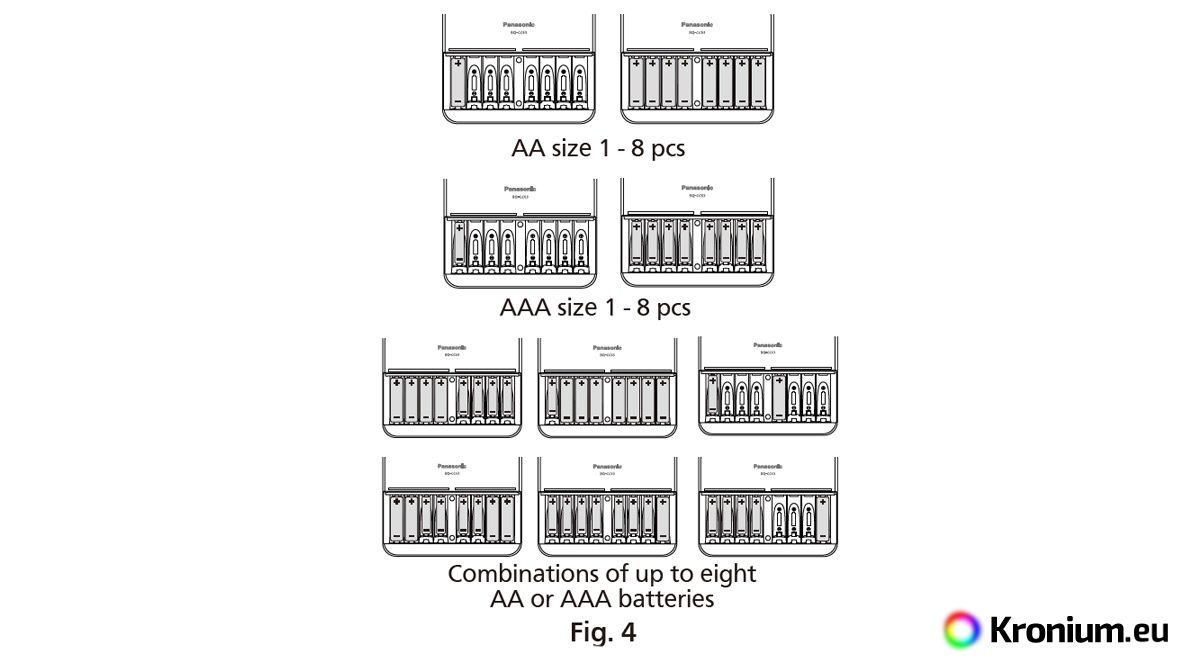

- Charges one to eight NiMH/NiCd batteries of size AA or AAA.
- Eight independent charging shafts.
- Detection of the end of charging by delta V.
- charging current for AA: 500mA (approximate charging time for AA Eneloop is 5 hours, AA Eneloop Pro 6 hours).
- charging current for AAA: 300mA (approximate charging time for AAA Eneloop is 3 hours, AAA Eneloop Pro 3.5 hours).
- Detection of defective cells and disposable batteries.
- LED charging indicators for each battery separately.
- Power supply 100-240 VAC, 50-60 Hz, European plug.
- Chargers and mains power cable included.
- For instructions directly from the manufacturer, please see here.
Using the charger

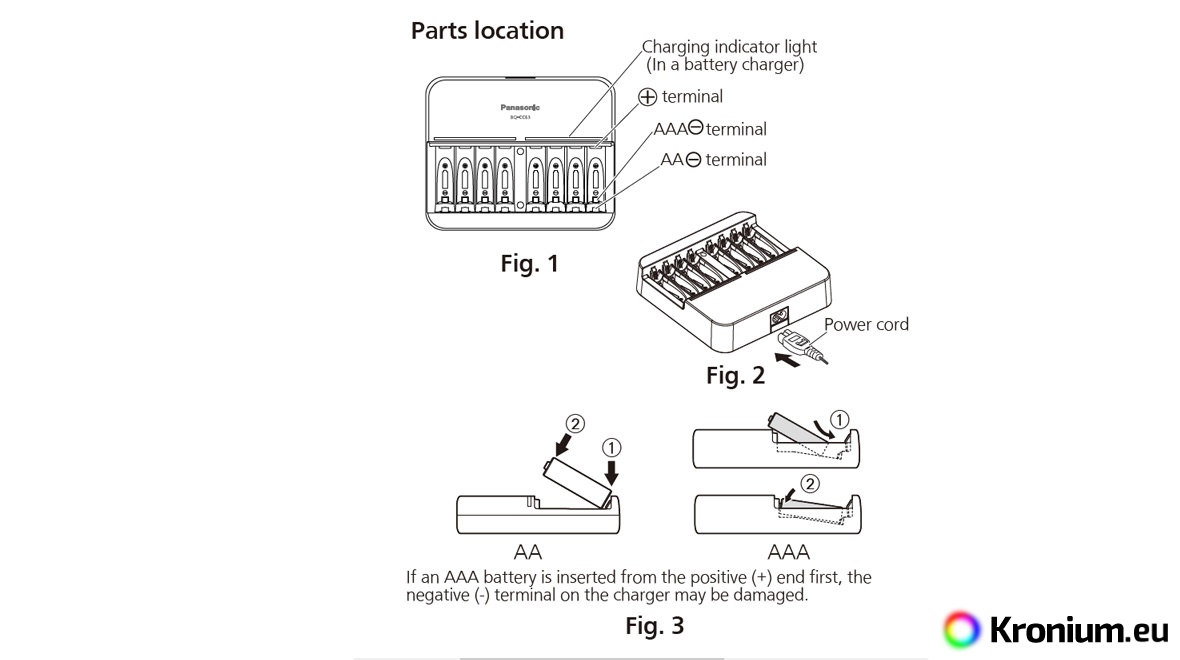

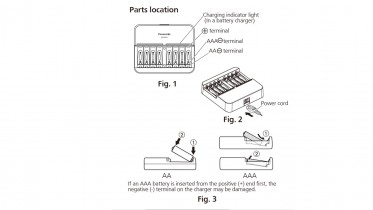

Insert the battery (-) poles first and then place the (+) poles into the ( +) contacts. After inserting the batteries, the indicator light first flashes rapidly several times, at this interval the battery status is diagnosed. After that, the indicator light remains steady, indicating that charging is in progress. When the green LED indicator goes off, charging is complete. If the green indicator does not light up when the batteries are inserted, the batteries are defective and cannot be charged.
Warning
- Do not insert batteries with reverse polarity.
- Do not insert disposable (non-rechargeable) batteries.
- Charge batteries only in temperatures around 0 - 40°C.
- If the indicator light flashes at 2 second intervals, charging is taking place outside the recommended temperature range.
- If the light flashes at 0.5 second intervals - incorrect charging mode.
Warranty
Legal two-year warranty.
