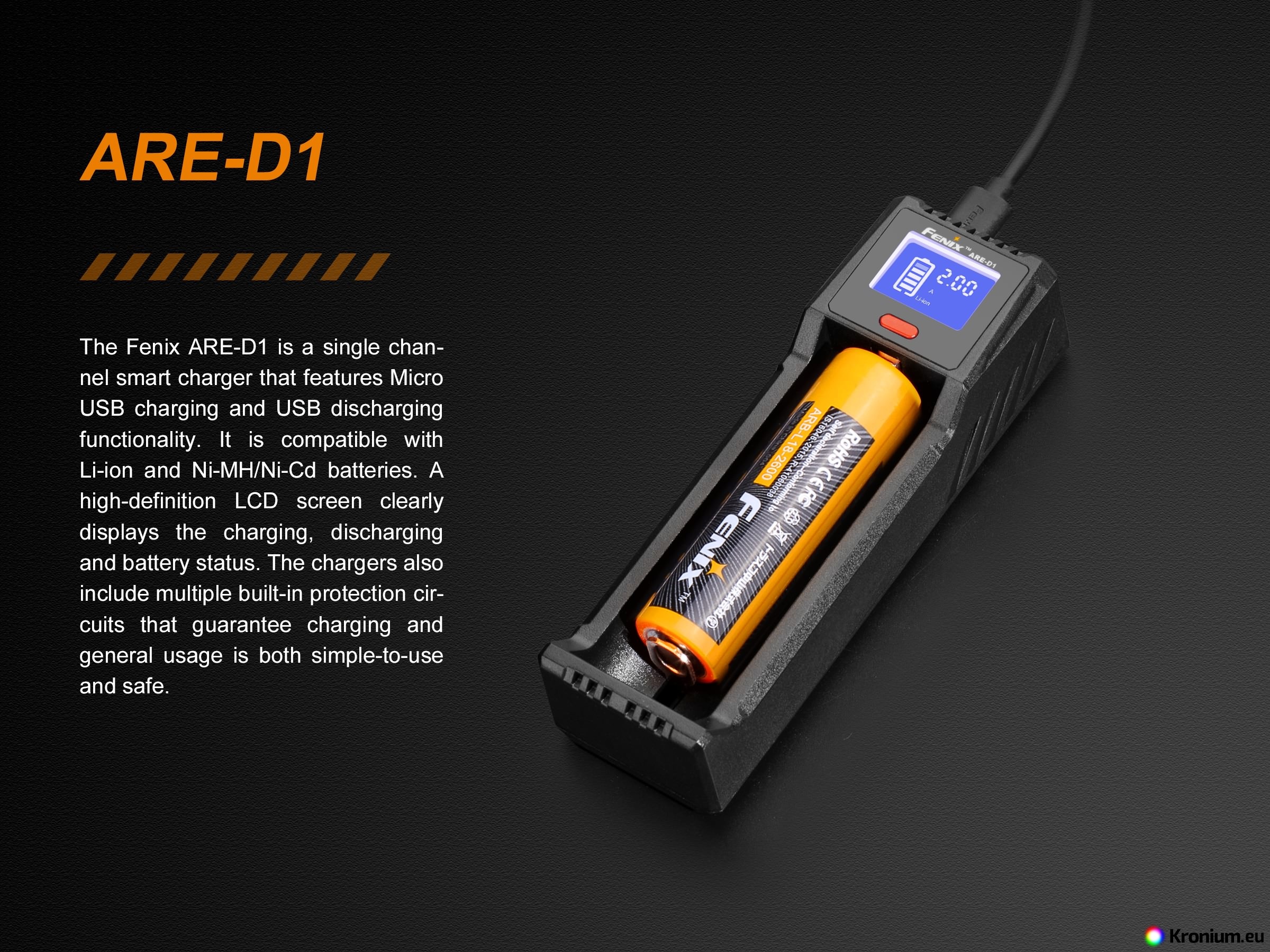

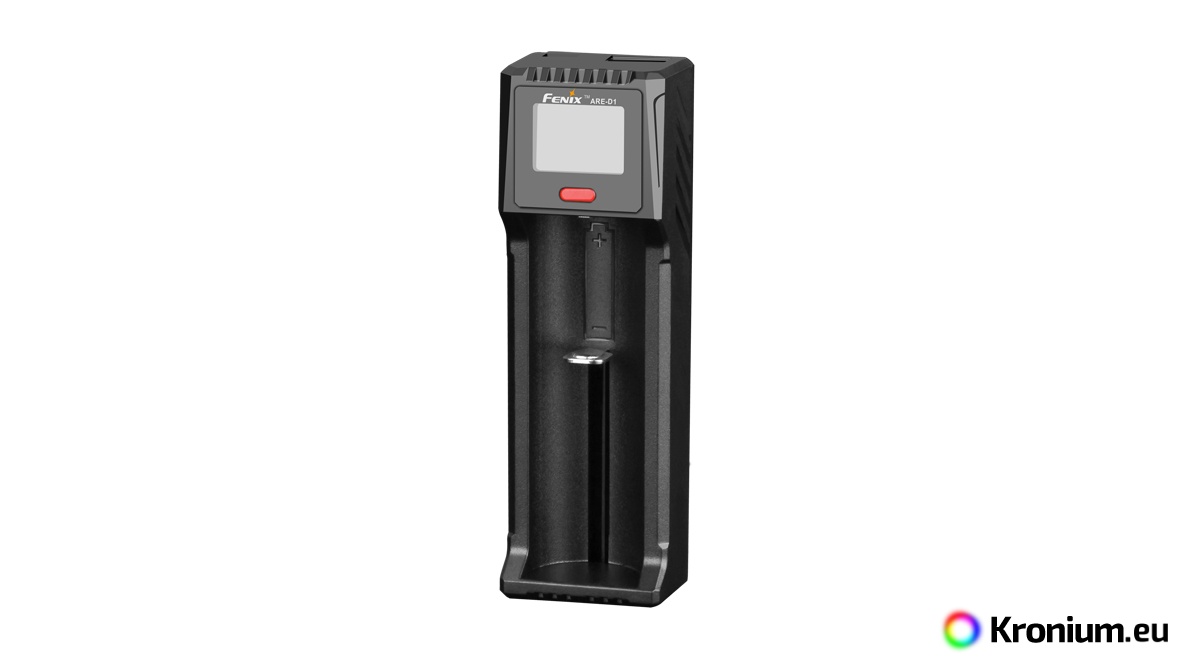

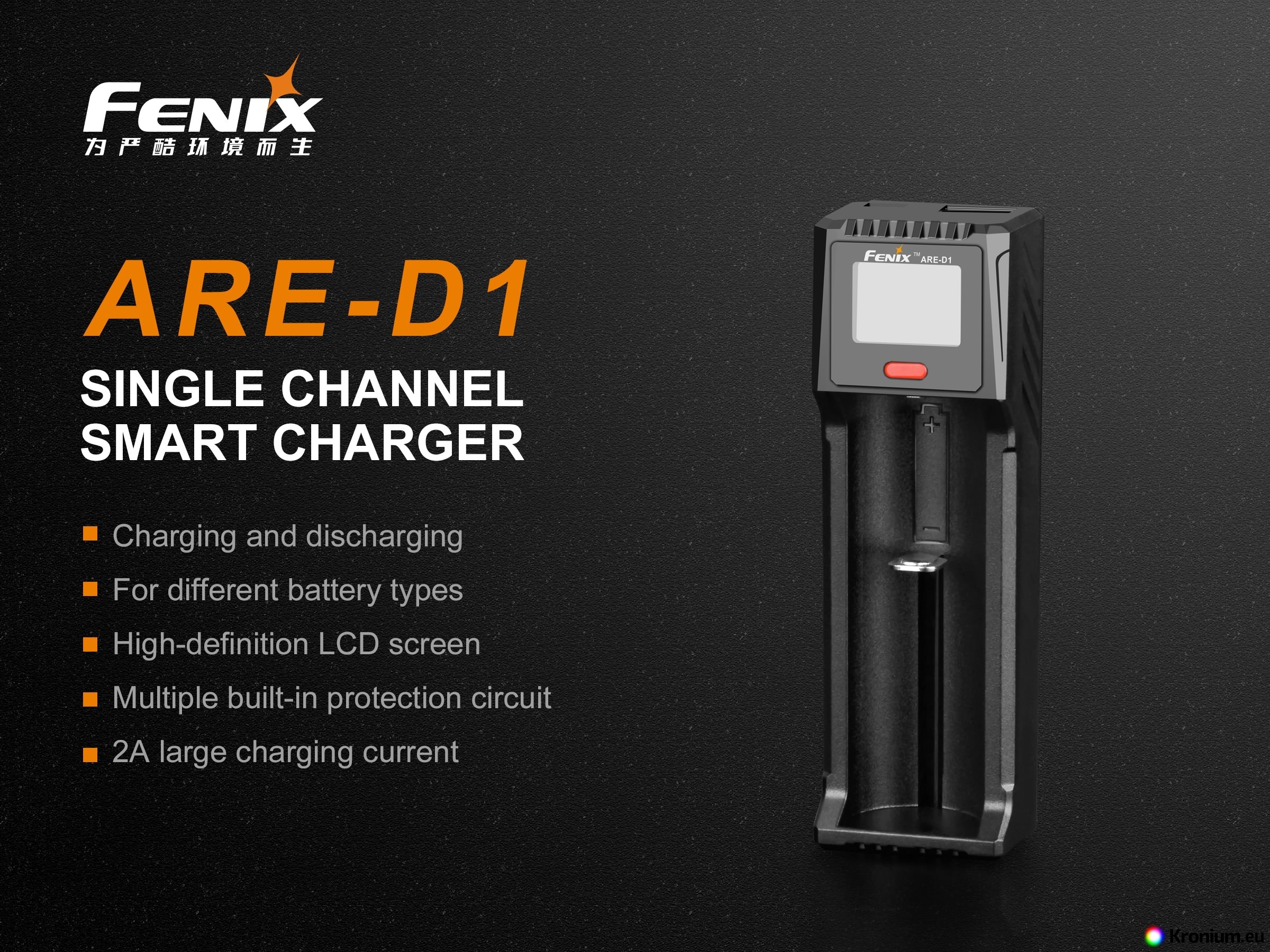

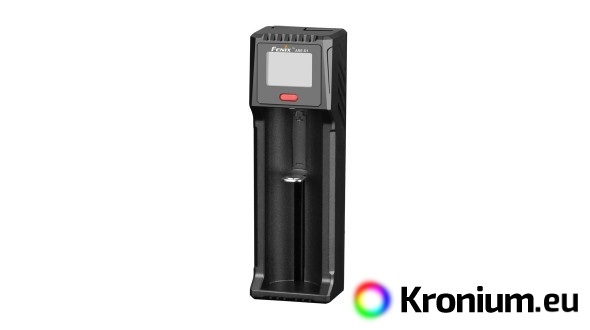

Compact universal USB charger Fenix ARE-D1 for one piece of Li-ion or NiMH/NiCd battery. Charging current up to 2000 mA (for NiMh/NiCd the maximum charging current is 1000 mA), depending on the capabilities of the USB source to which you will have the charger connected (computer, mains USB power supply, mobile phone charger with micro USB). When a charged battery is inserted, it also works as a backup power bank for charging USB devices (mobile phones, MP3 players and others). Thanks to its compact size, the charger is particularly suitable for travel. It automatically detects the inserted battery type and selects the optimal charging algorithm. The charger is equipped with an LCD display that shows the current battery voltage, the type of batteries being charged and other information.

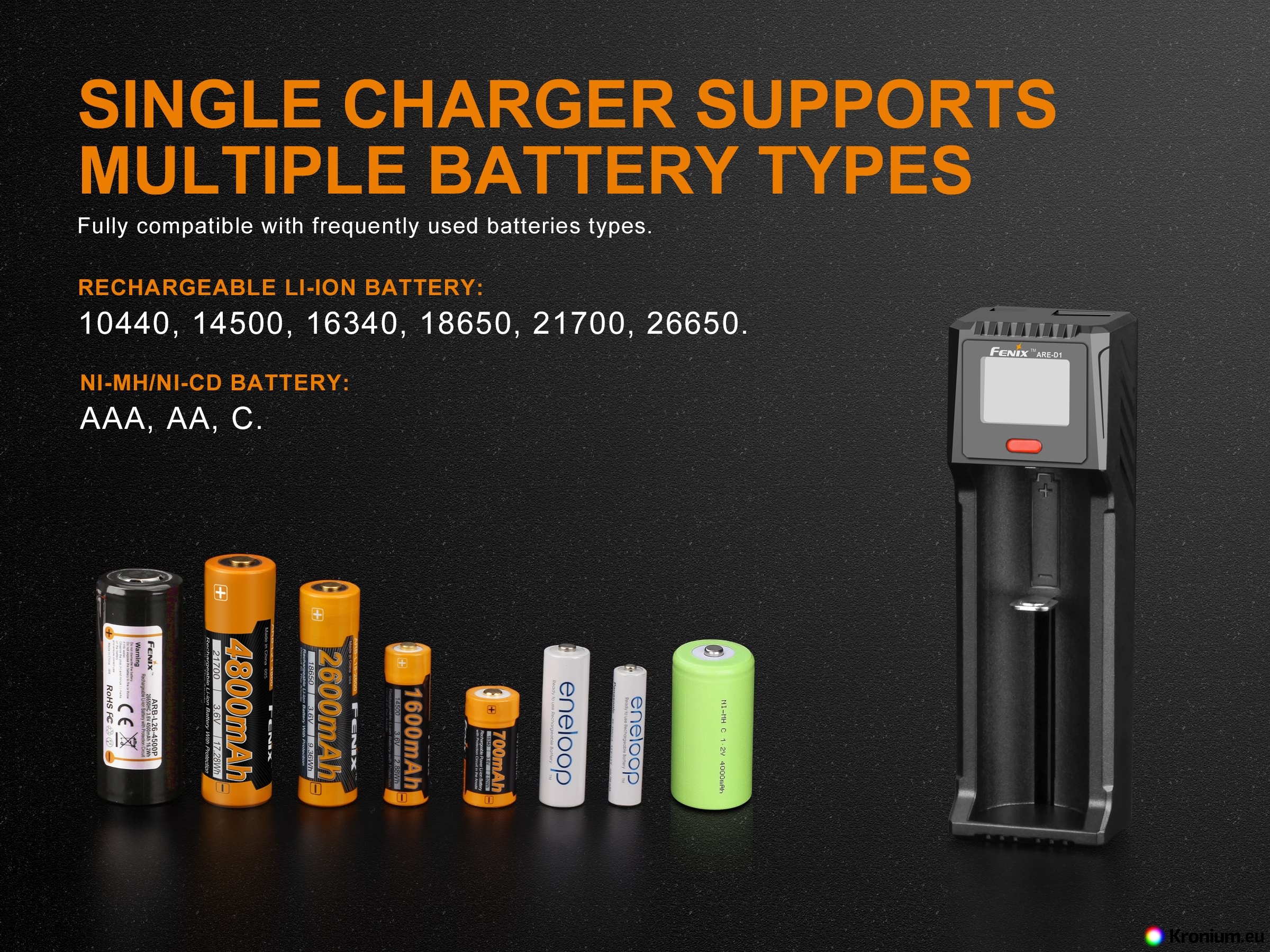

The charger can charge Li-ion batteries type: 26650, 22650, 25500, 21700, 18650, 17670, 18700, 14650, 18500, 18490, 18350, 17500, 14500, 16340, RCR123 and NiMH batteries size AAA, AA, C. The charger can also charge Li-ion batteries 21700 and 20700 with protective electronics.

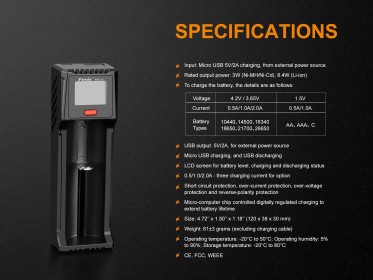

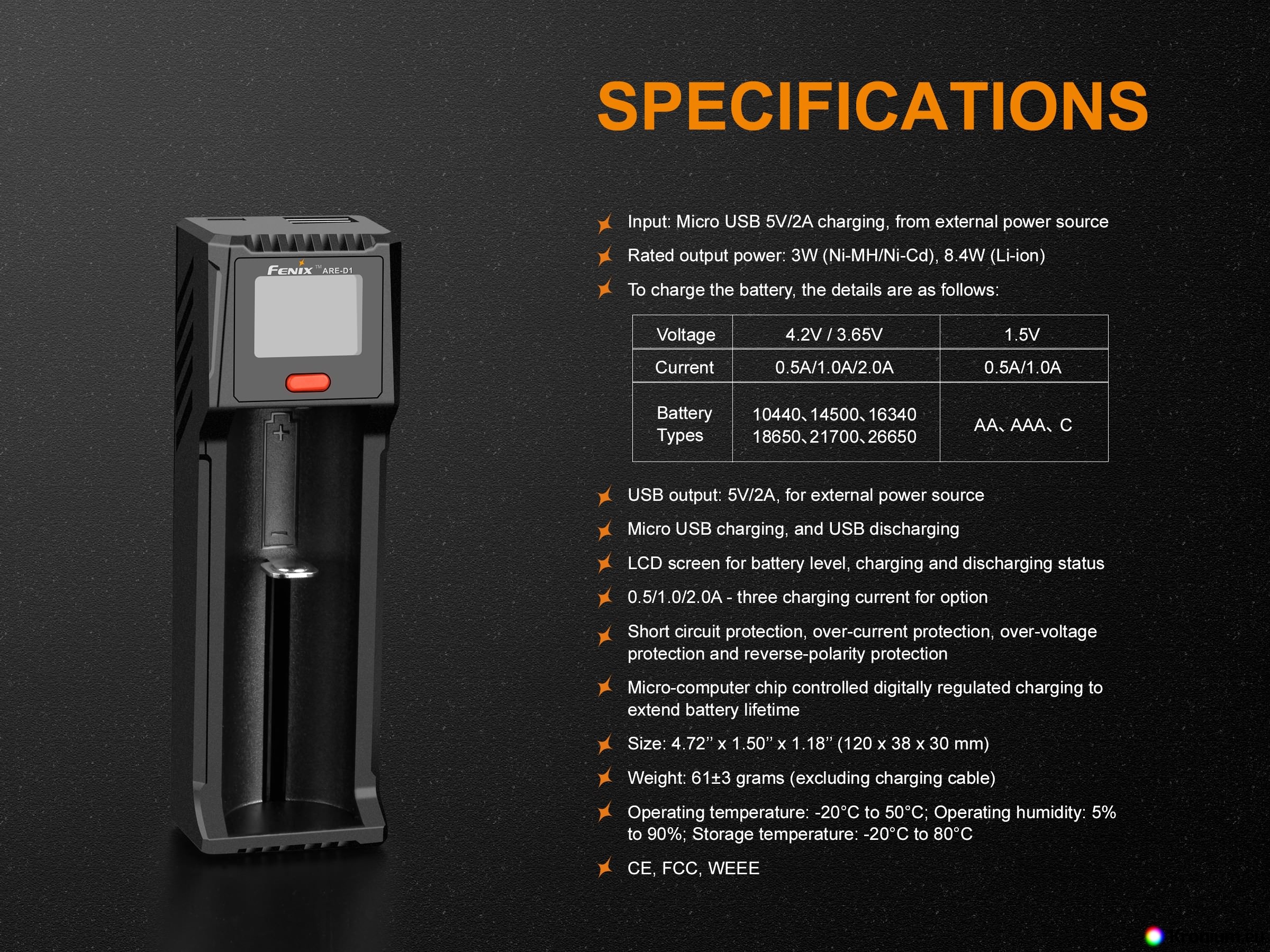

Specifications of the USB Li-ion charger

• One charging channel.

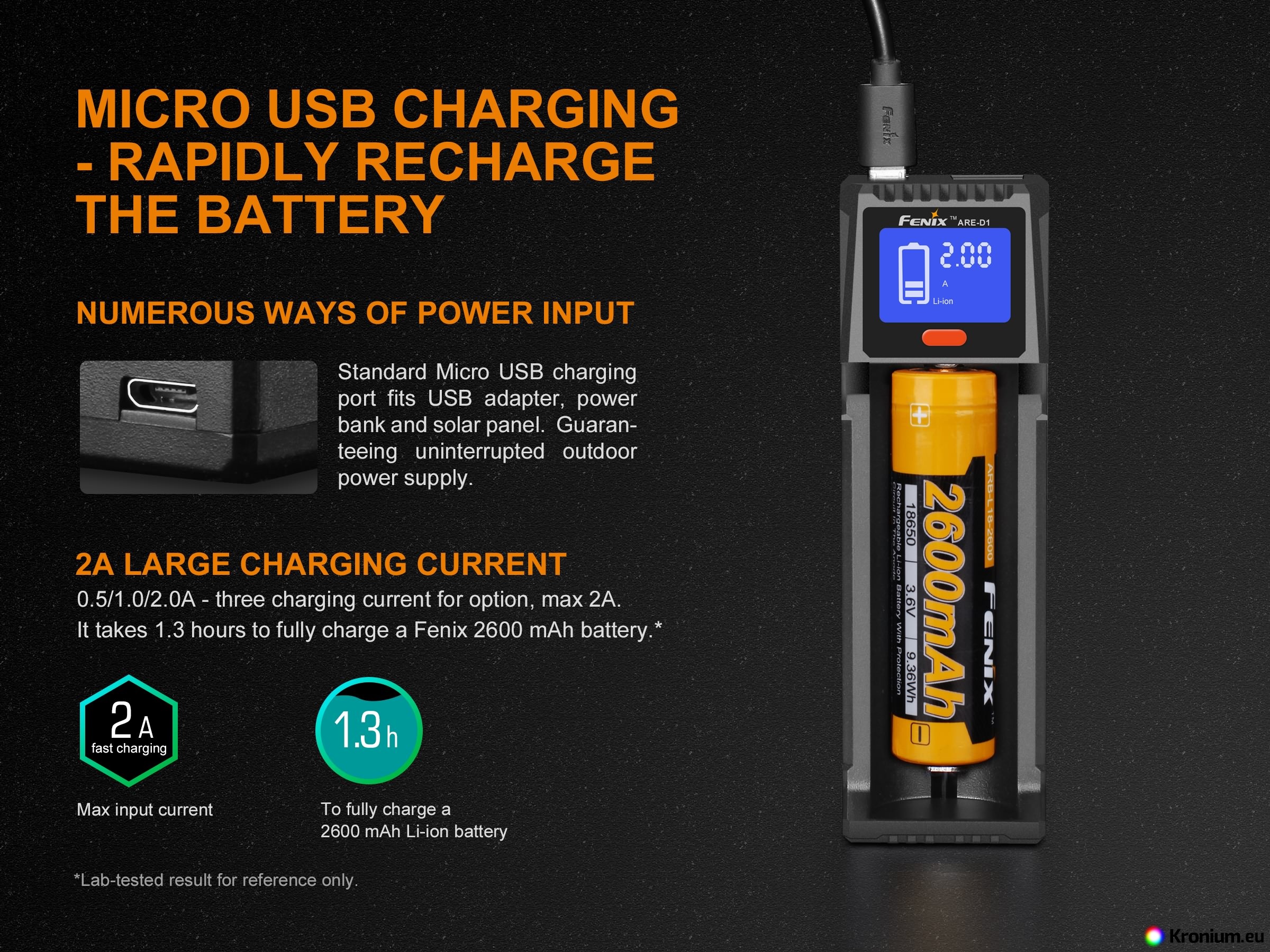

• Charging current up to 2000 mA (depending on USB power supply capabilities). Manually selectable charging current (500 mA, 1000 mA, 2000 mA).
• The following Li-ion batteries can be recharged in the charger: 26650, 21700, 18650 Li-ion, 14500, 16340, RCR123. You can also charge all AA and AAA batteries from our range.
• Protection against reverse battery insertion, short circuit and overcharging.
• LCD display shows charging progress, charging time, charging current and voltage.

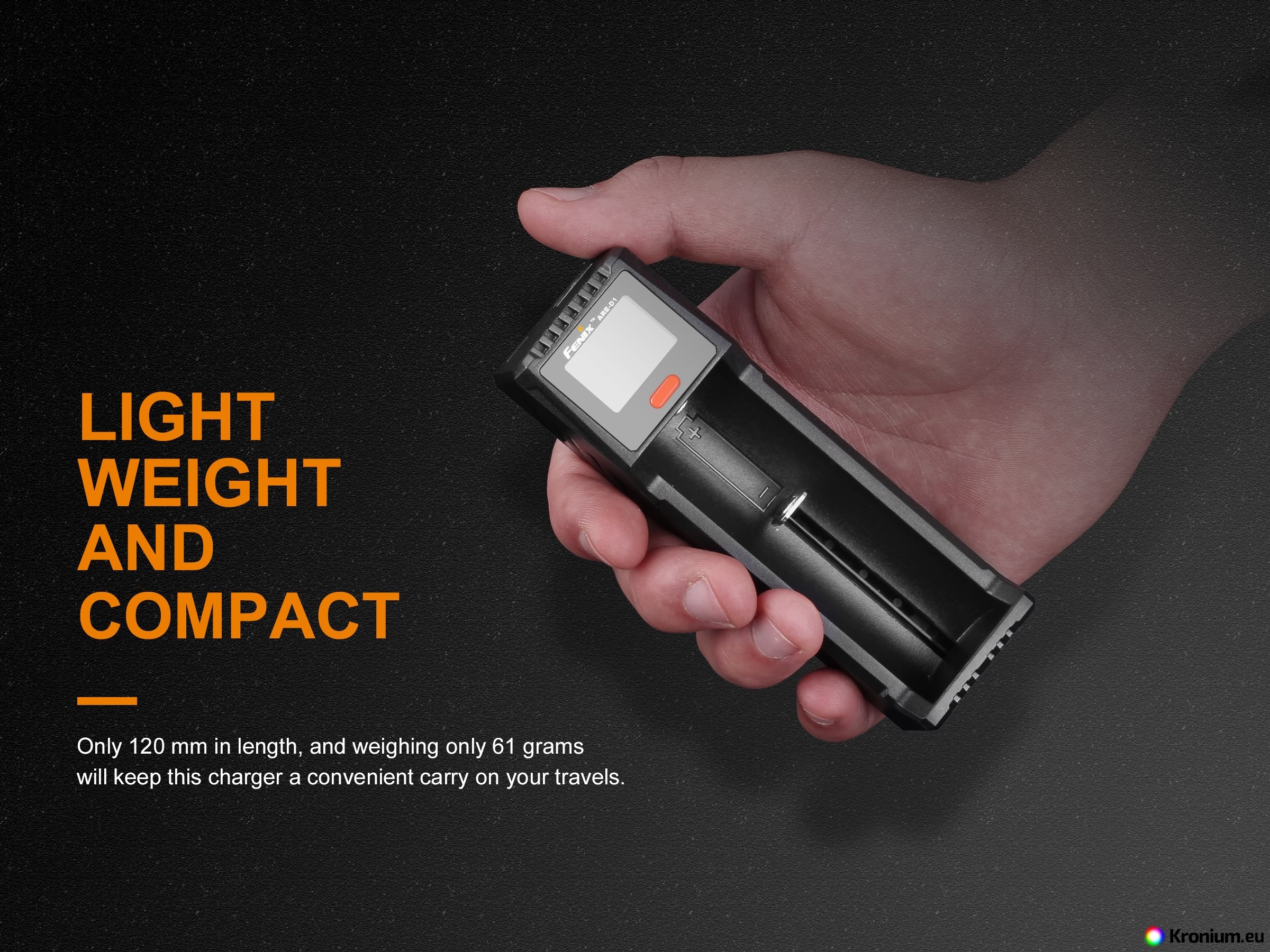

• Dimensions 30 x 120 x 38 millimeters.
• Weight: 61 grams.

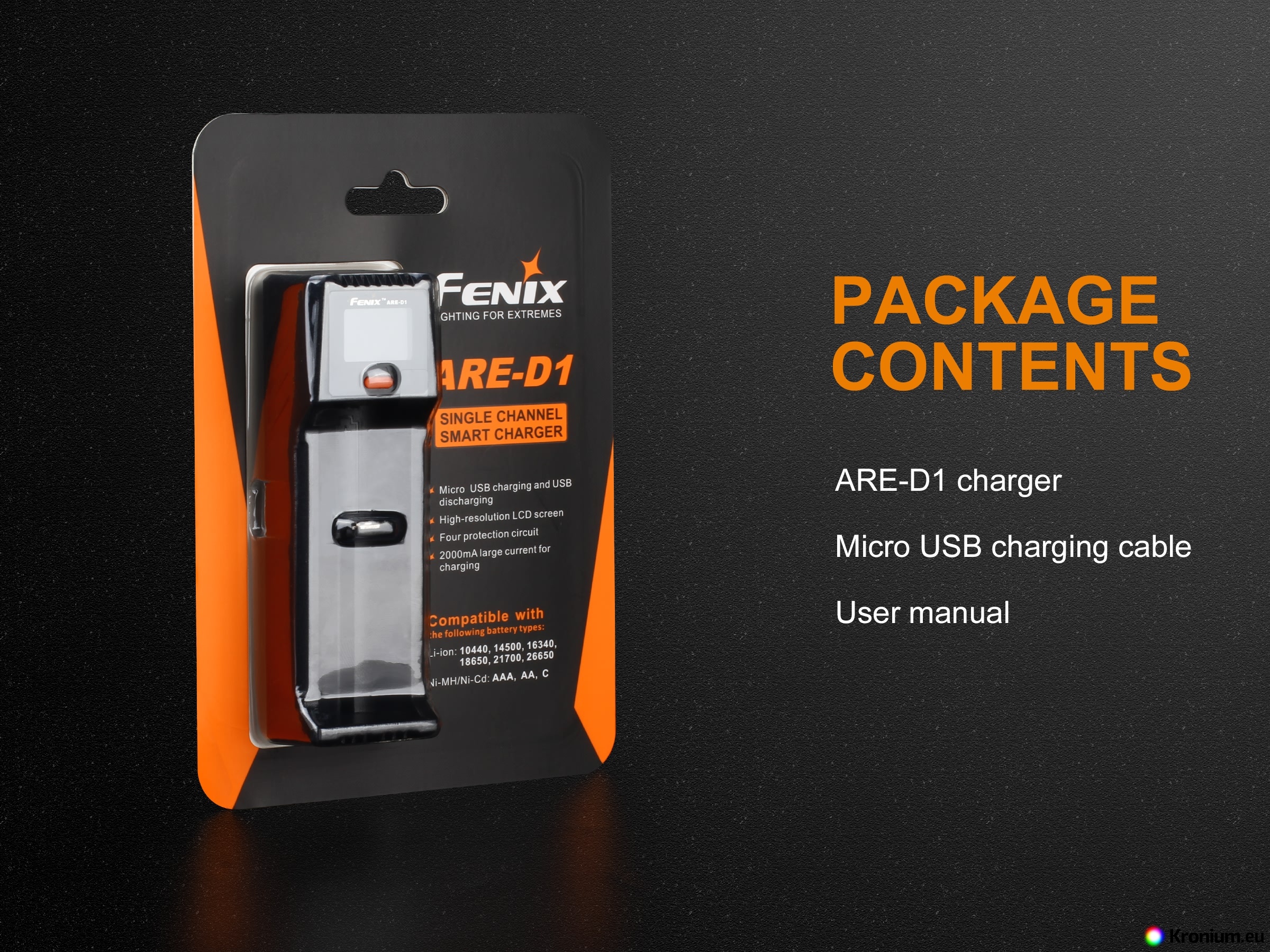

• Charger and USB cable included.
• The charger can be purchased with a USB network adapter or USB car adapter (not included).

Battery charging

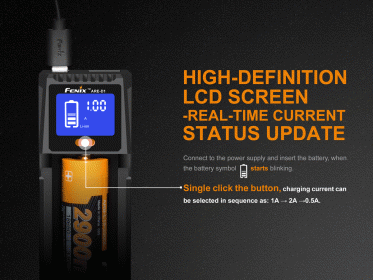

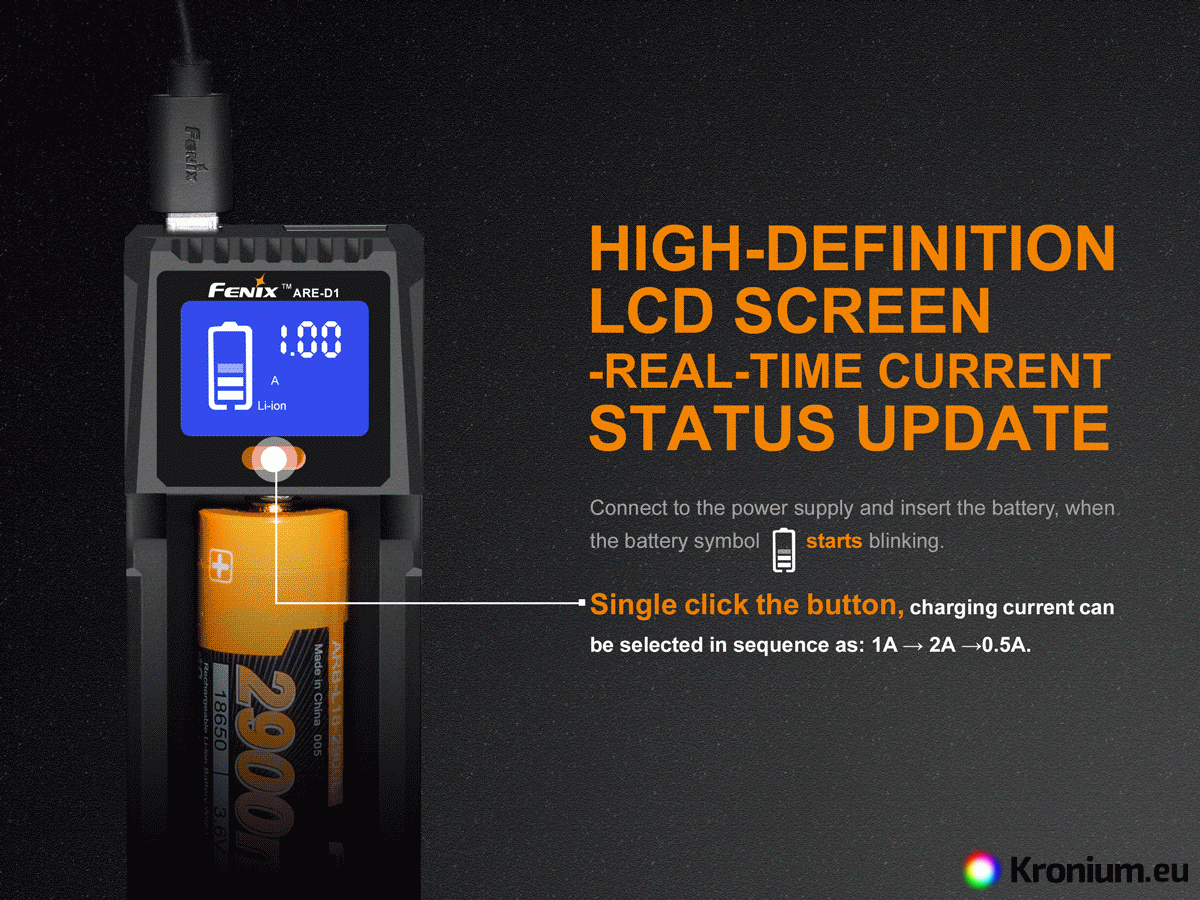

Plug the charger into the USB. The display will light up. When the battery is inserted, the display will show the battery type and charging status. The button is used to switch the charging current in order: 1000 mA - 500 mA - 2000 mA. The charging current can be selected during the first 8 seconds of charging (the battery icon flashes on the display).

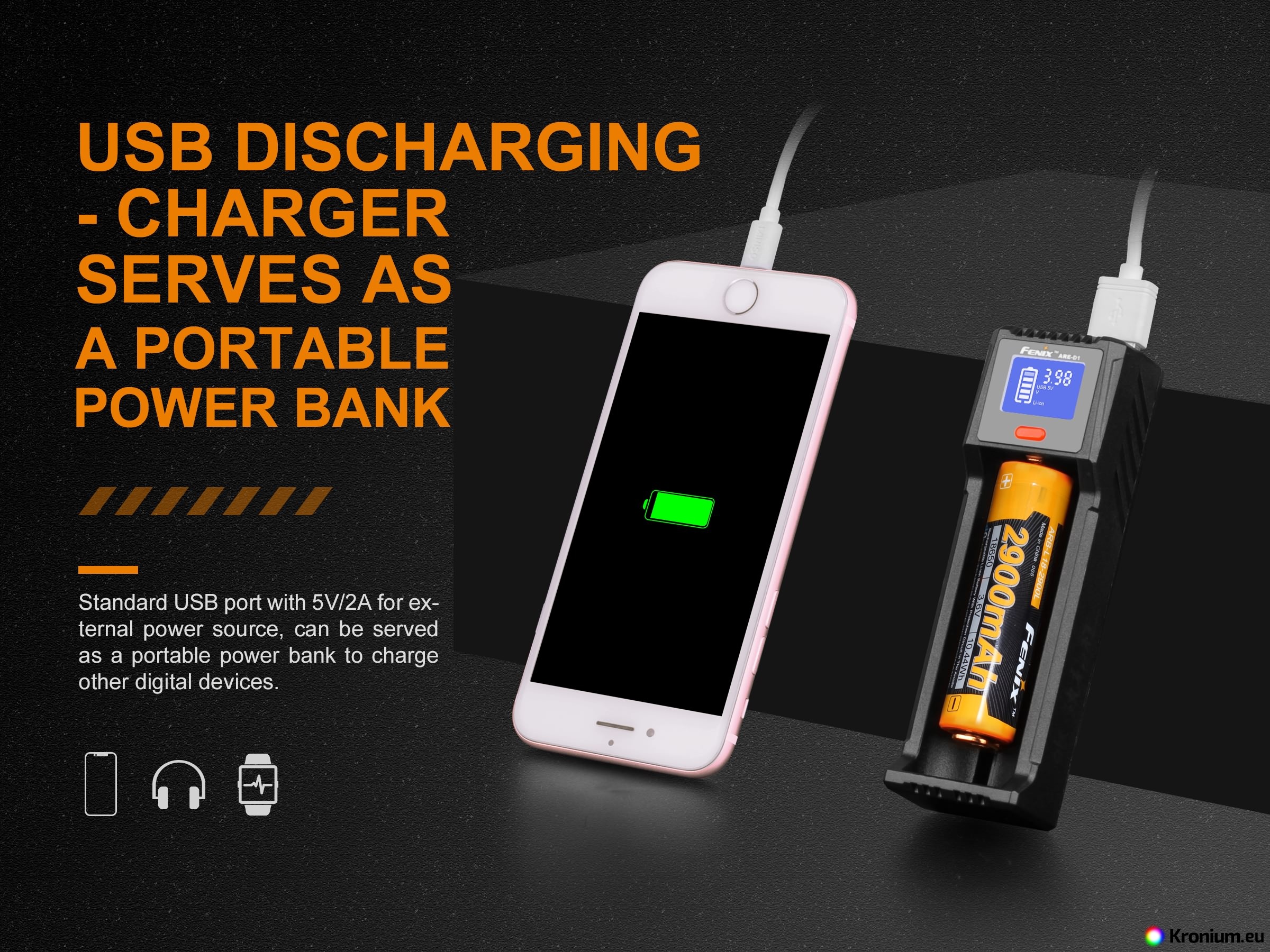

Powerbank functions (USB output)

• When a charged Li-ion battery is inserted, it also functions as a backup USB power supply for charging mobile phones and other USB devices.
• Standard output current up to 2000 mA (5V).
• To activate the power bank, simply insert a charged Li-ion battery into the slot and connect the USB cable to the USB output on the charger.
• Holding the button for a long time activates the powerbank function with limited output current to 100 mA (the display flashes "USB 5V").This mode is suitable for charging small portable electronics. Such as electronic bracelets, watches, headphones and so on.

Warning

• Do not charge Li-ion cells that have undergone a state of excessive discharge (below 2V).
• When using the charger, please observe the safety guidelines.
• We recommend using good quality protected Li-ion batteries.
• Not intended for charging LiFePO4 batteries.

Warranty

Legal two-year warranty.
