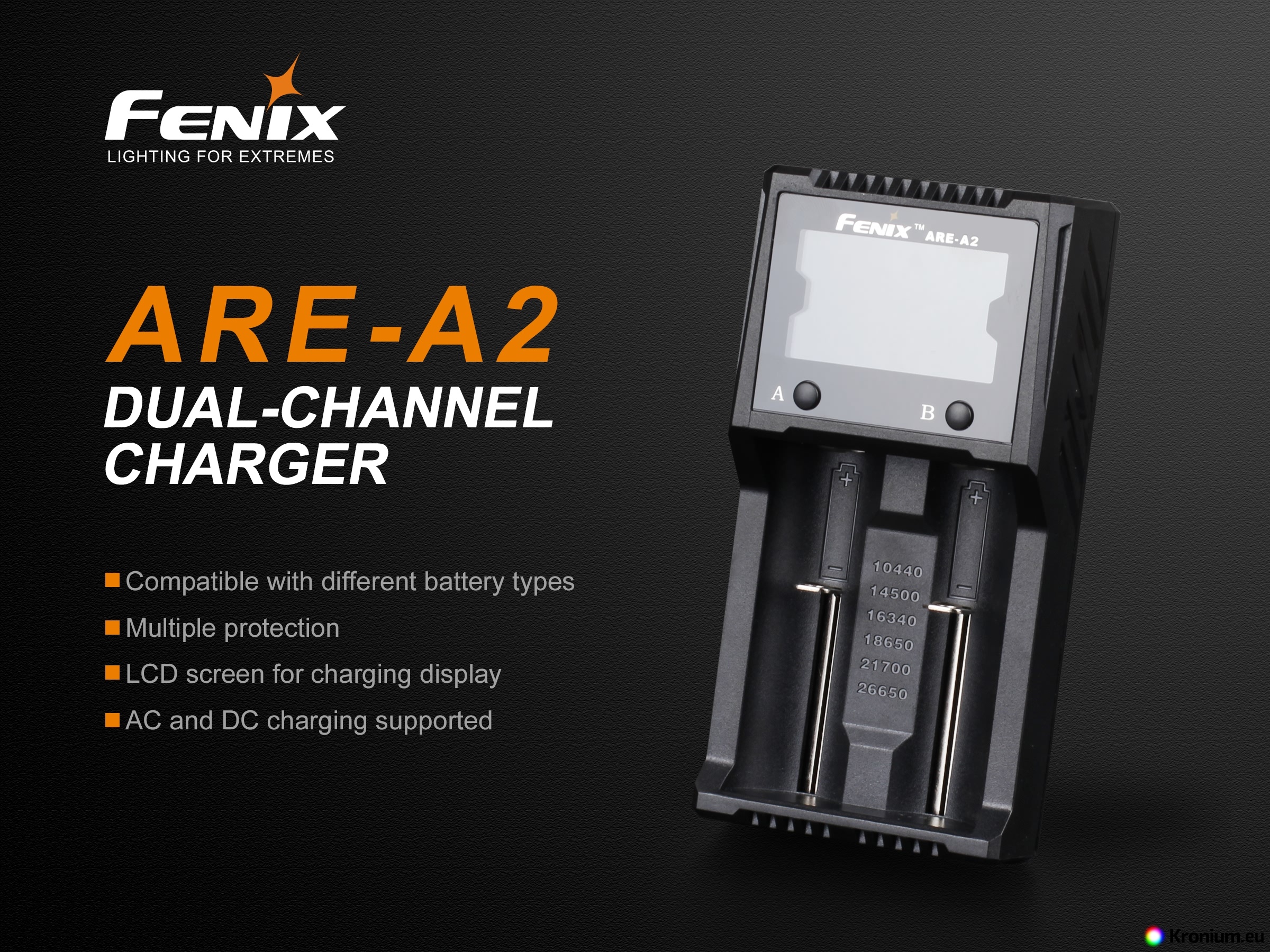

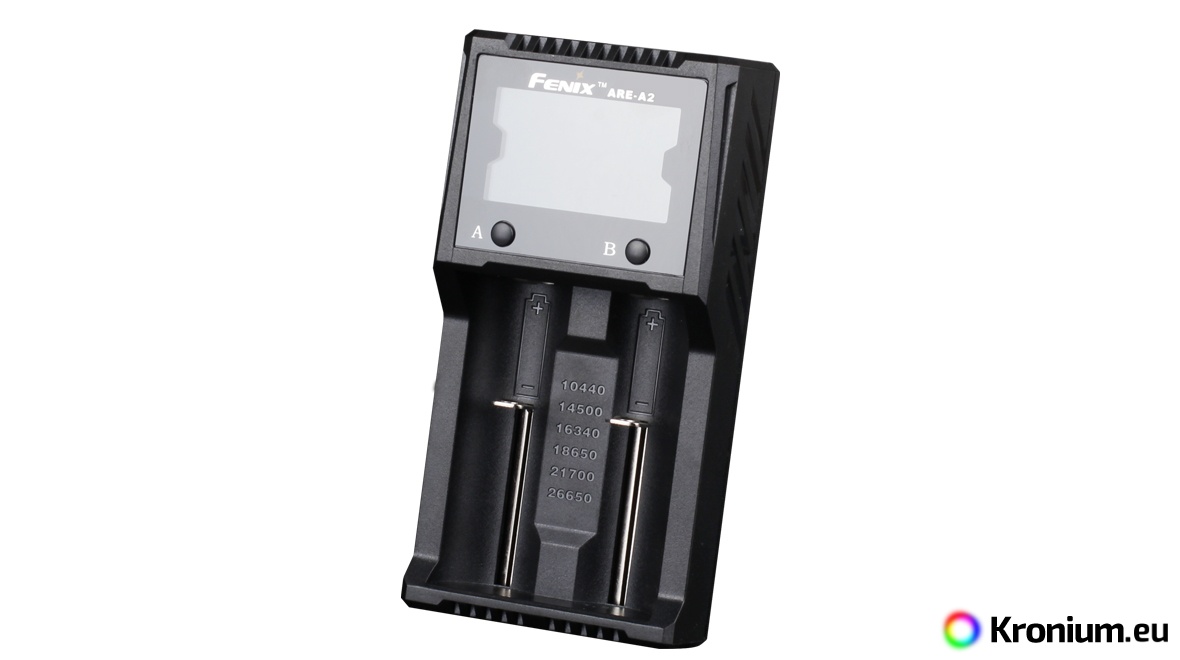

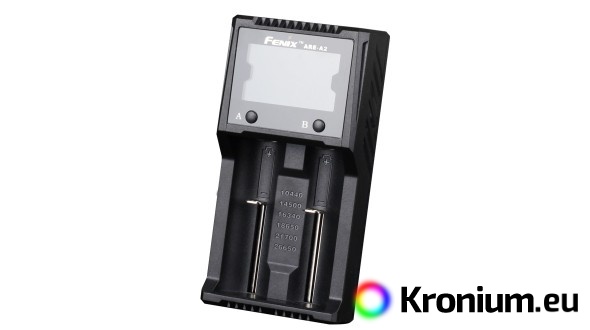

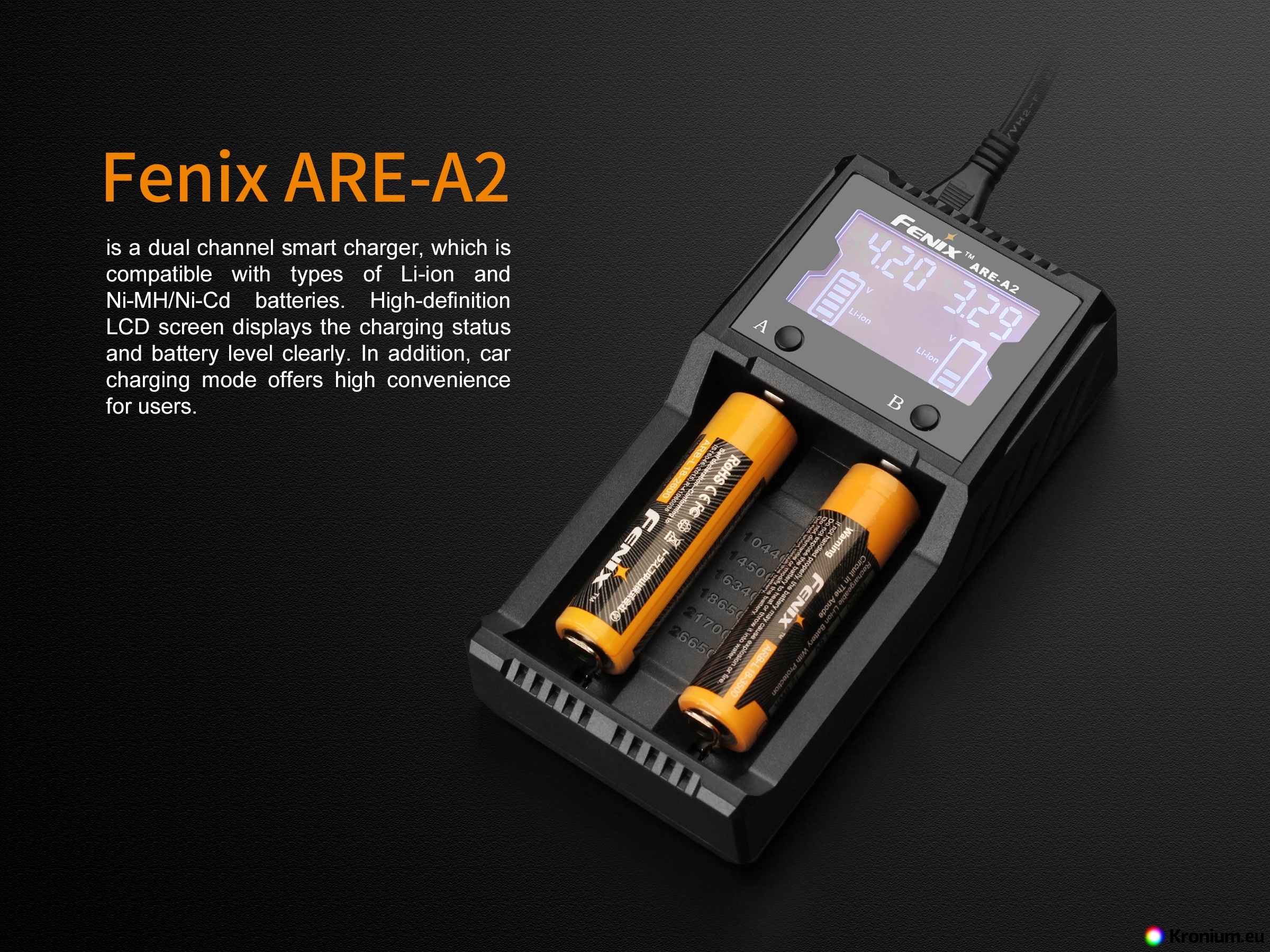

The versatile Fenix ARE-A2 dual-channel charger is designed for both 3.7V/3.6V Li-ion and NiMH/NiCd batteries. Each charging slot is monitored independently so that batteries of different sizes, capacities and even different chemistries can be charged simultaneously (both Li-ion and NiMH/NiCd can be charged at the same time). It automatically detects the inserted battery type and selects the optimal charging algorithm.

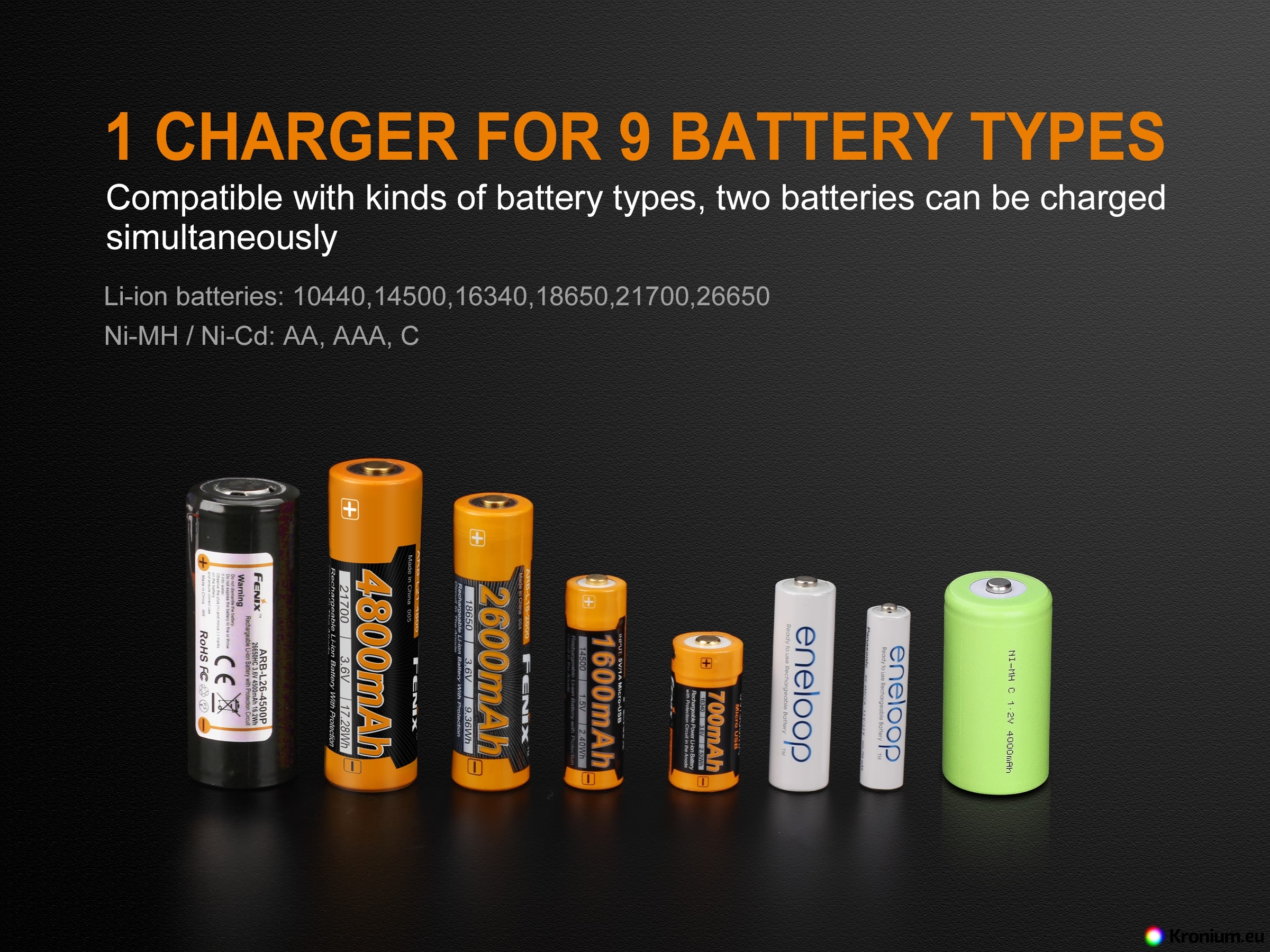

The charger can charge Li-ion batteries of the following types: 26650, 22650, 25500, 21700, 20700, 18650, 17670, 18700, 14650, 18500, 18490, 18350, 17500, 14500, 16340, RCR123, 10440 and NiMH batteries of AAA, AA, C. The charger can also charge Li-ion 21700 and 20700 batteries with protective electronics.

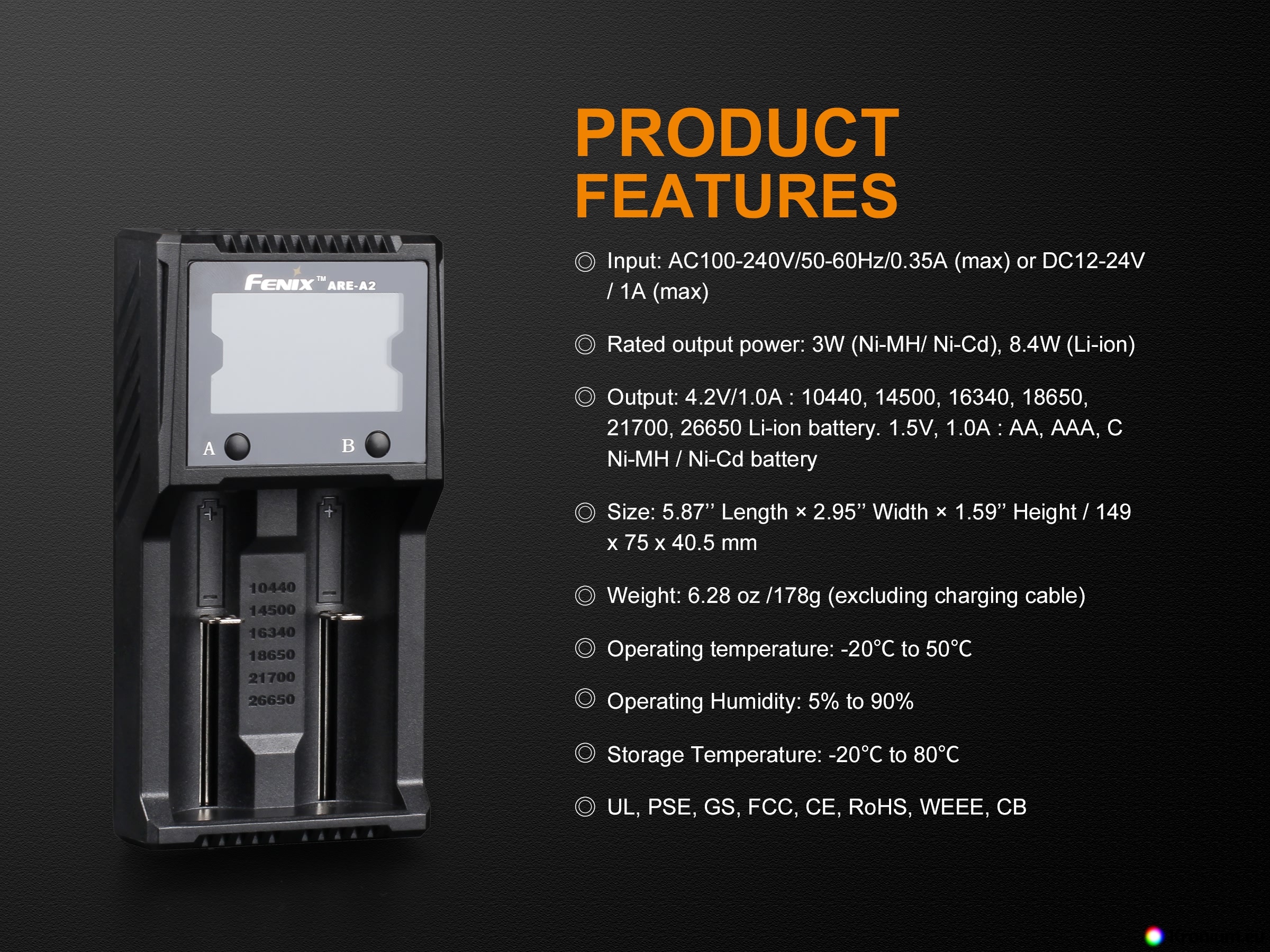

Fenix ARE-A2 charger specifications
- Two independently monitored charging channels, CC/CV charging algorithm.
- Charging current 1000 mA for all charging slots.
- The following Li-ion batteries, for example, can be recharged in the charger: 26650, 21700, 18650 Li-ion, 14500, 16340, RCR123. You can also charge rechargable AA batteries and AAA batteries from our range (except rechargeable USB AA battery Fenix ARB-L14-1600U).
- Two independent charging channels, automatic recognition of the type of battery being charged.
- Short circuit and reverse battery insertion protection.
- LCD display shows charging progress, charging time, charging current, voltage and type of battery being charged.
- Efficient heat dissipation from the charging electronics.
- Dimensions 149 x 75 x 40.5 millimeters.
- Weight of the charger 178 grams.

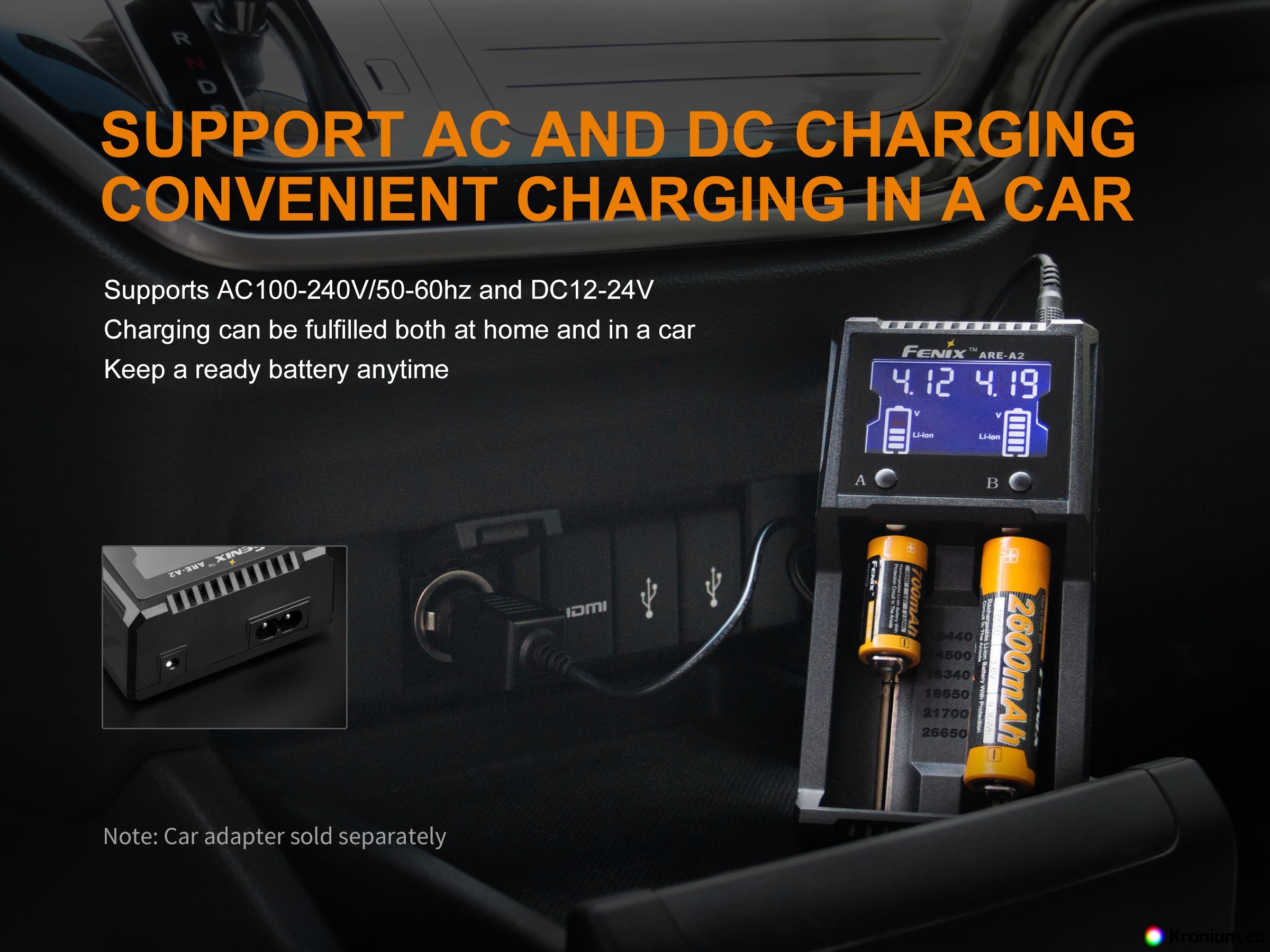

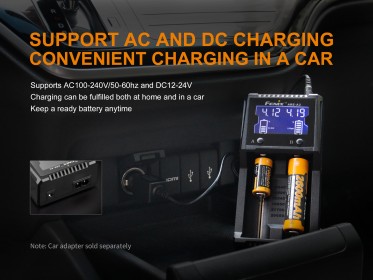

- Supported charger supply voltage 100 - 240 VAC, 12 - 24 VDC.

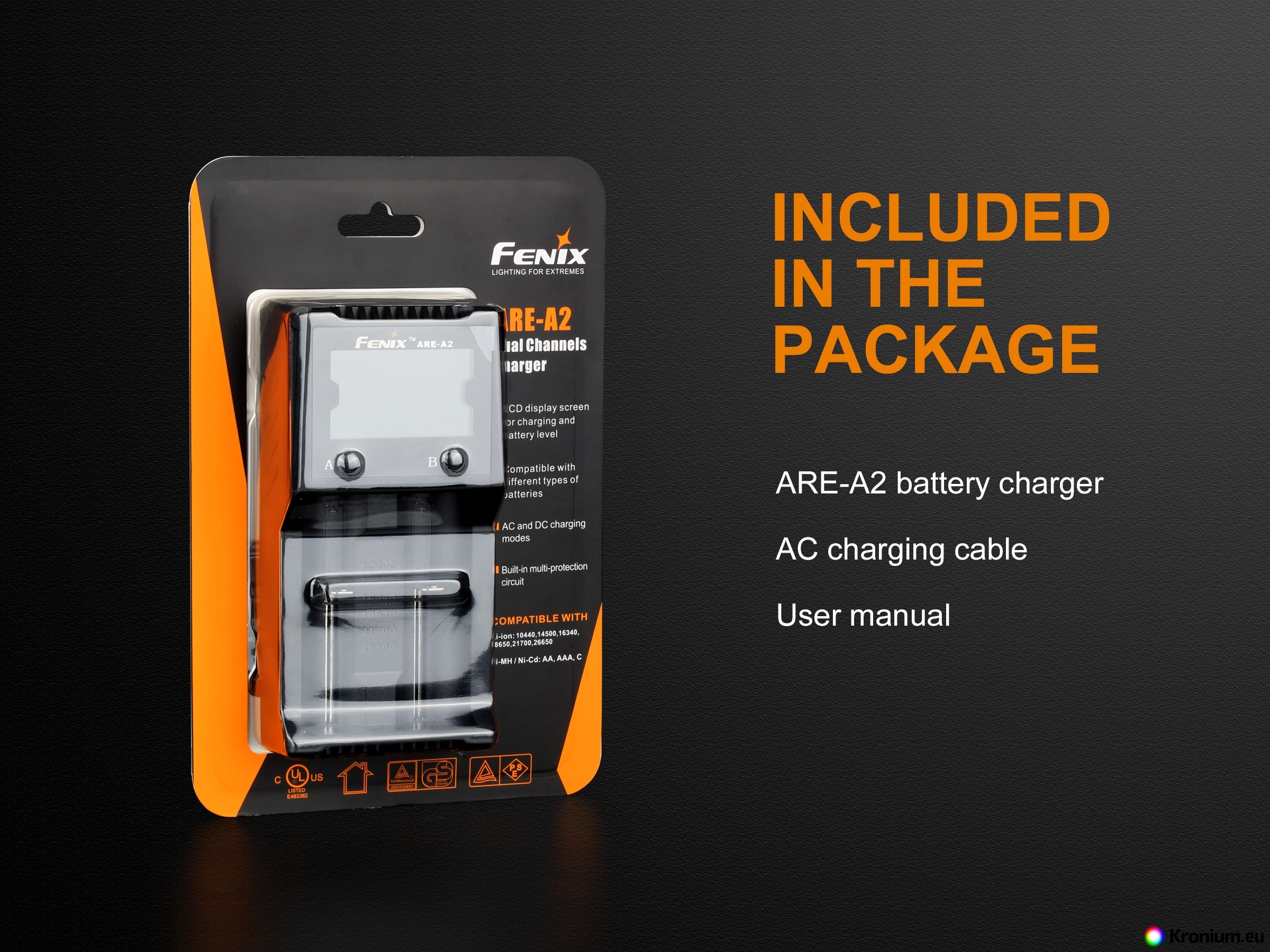

- Charger and power cord included.
Using the Fenix ARE-A2 charger

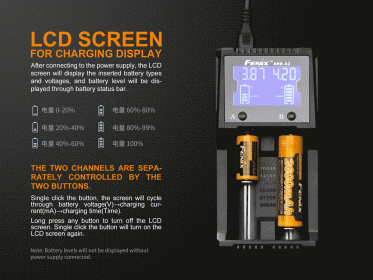

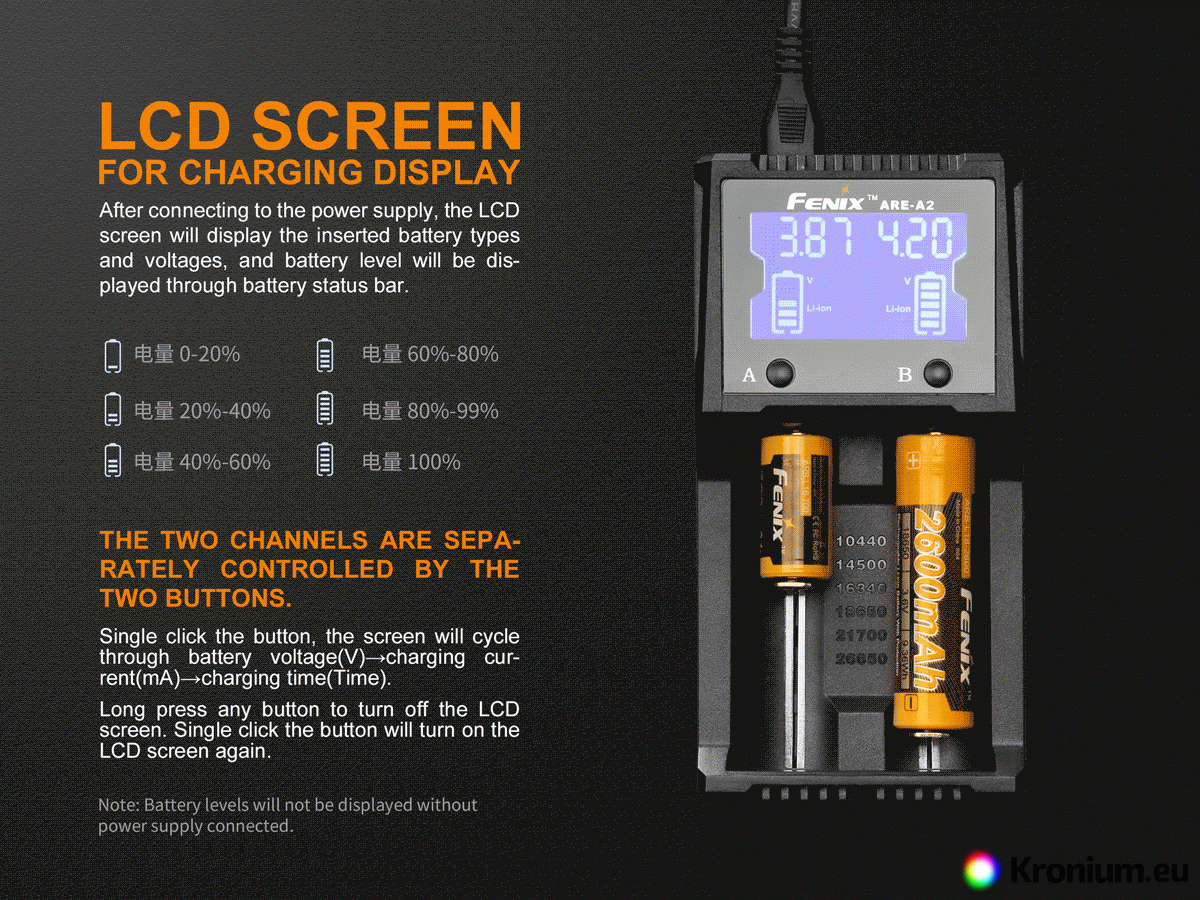

Plug the charger into a power outlet. The display will light up. When the batteries are inserted, the display will show the battery type and charging status. The button at each charging channel is used to switch the displayed information in order: voltage - charging current - charging time. By holding the button for a long time, the display can be switched off and then switched on again and the current battery voltage will be displayed again.
Warning
- Do not charge Li-ion cells that have undergone an over-discharge condition (below 2V).
- Do not insert batteries into the charger in reverse (reverse polarity).
- When using the charger, observe safety guidelines.
- We recommend using high quality protected Li-ion batteries.
- Not intended for charging LiFePO4 batteries.
Warranty
Legal two-year warranty.
