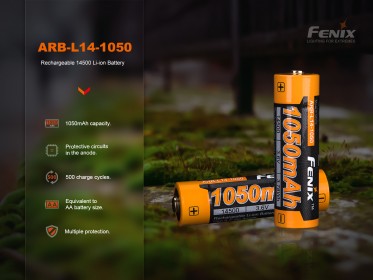

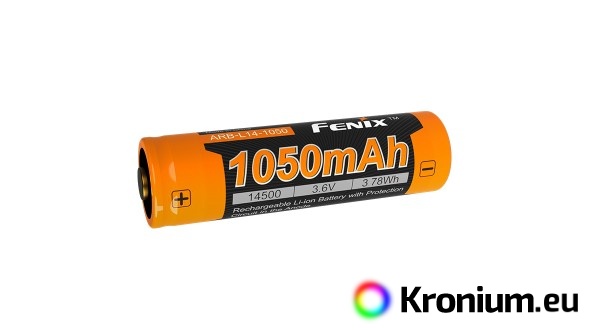

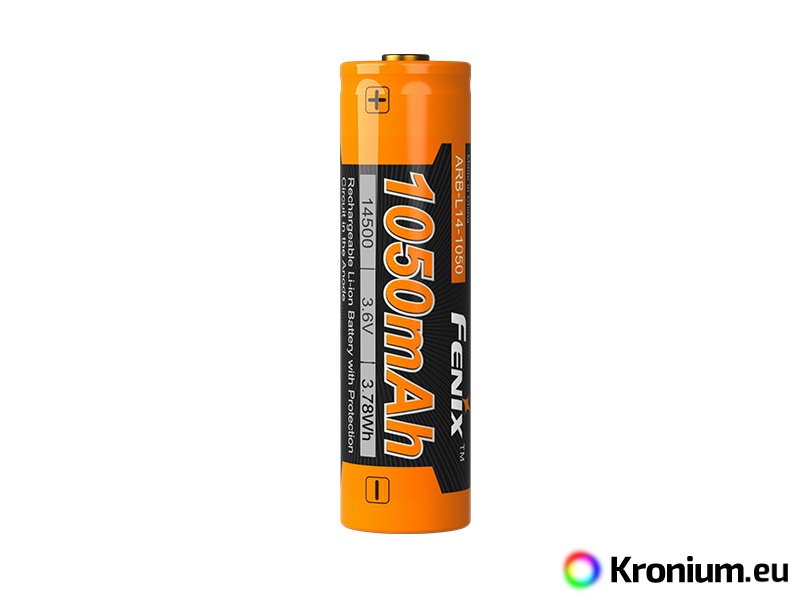

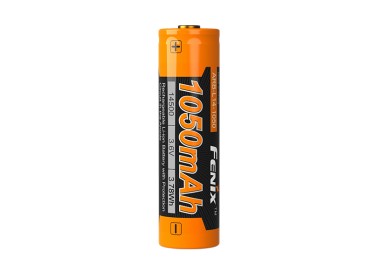

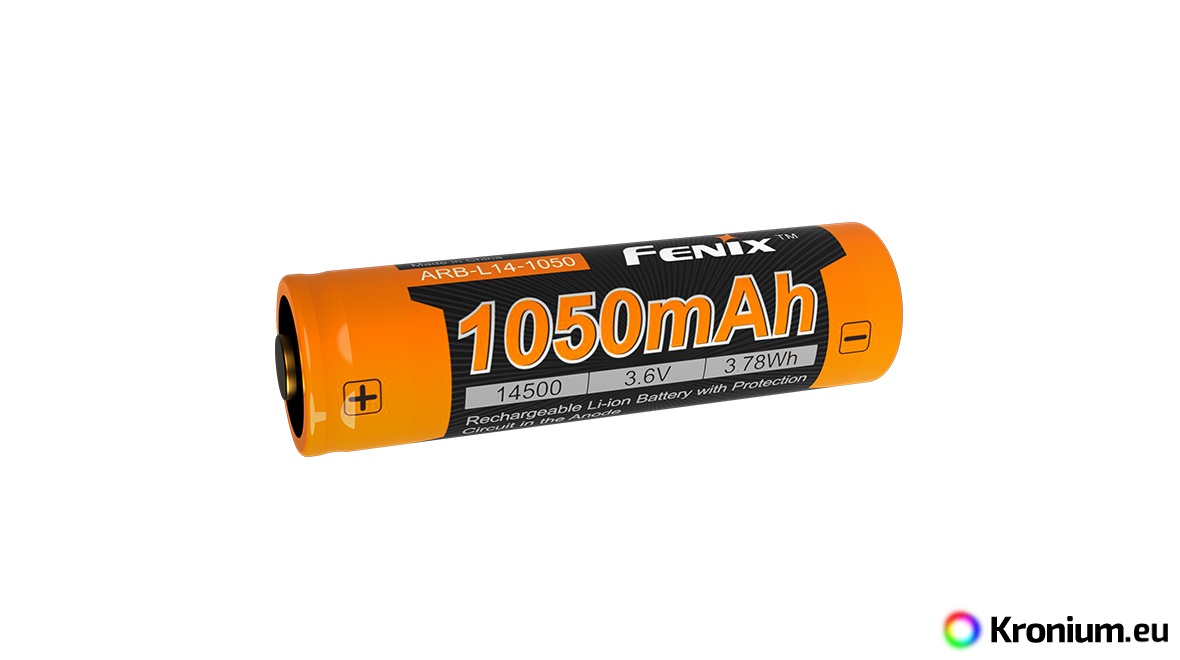

Fenix ARB-L14-1050 (14500) rechargeable Li-ion battery with protection (protected) is based on lithium ion technology. Li-ion technology gives one of the best ratios of the amount of stored energy to the weight of the cell, batteries have no memory effect and self-discharge is minimal.

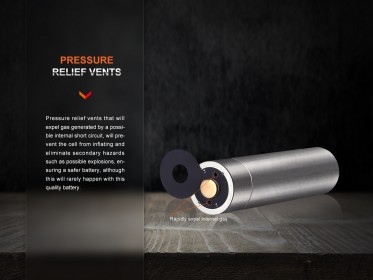

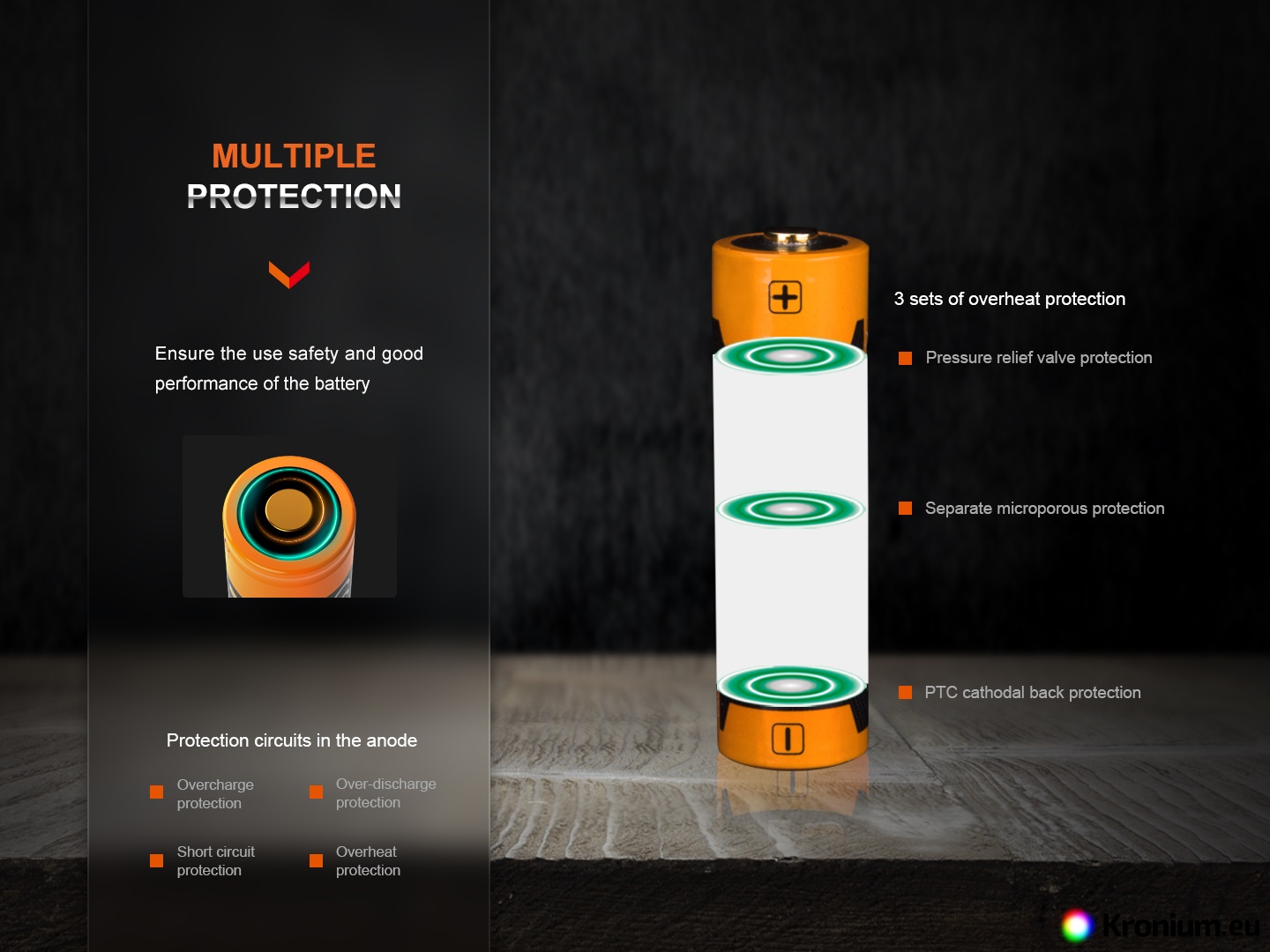

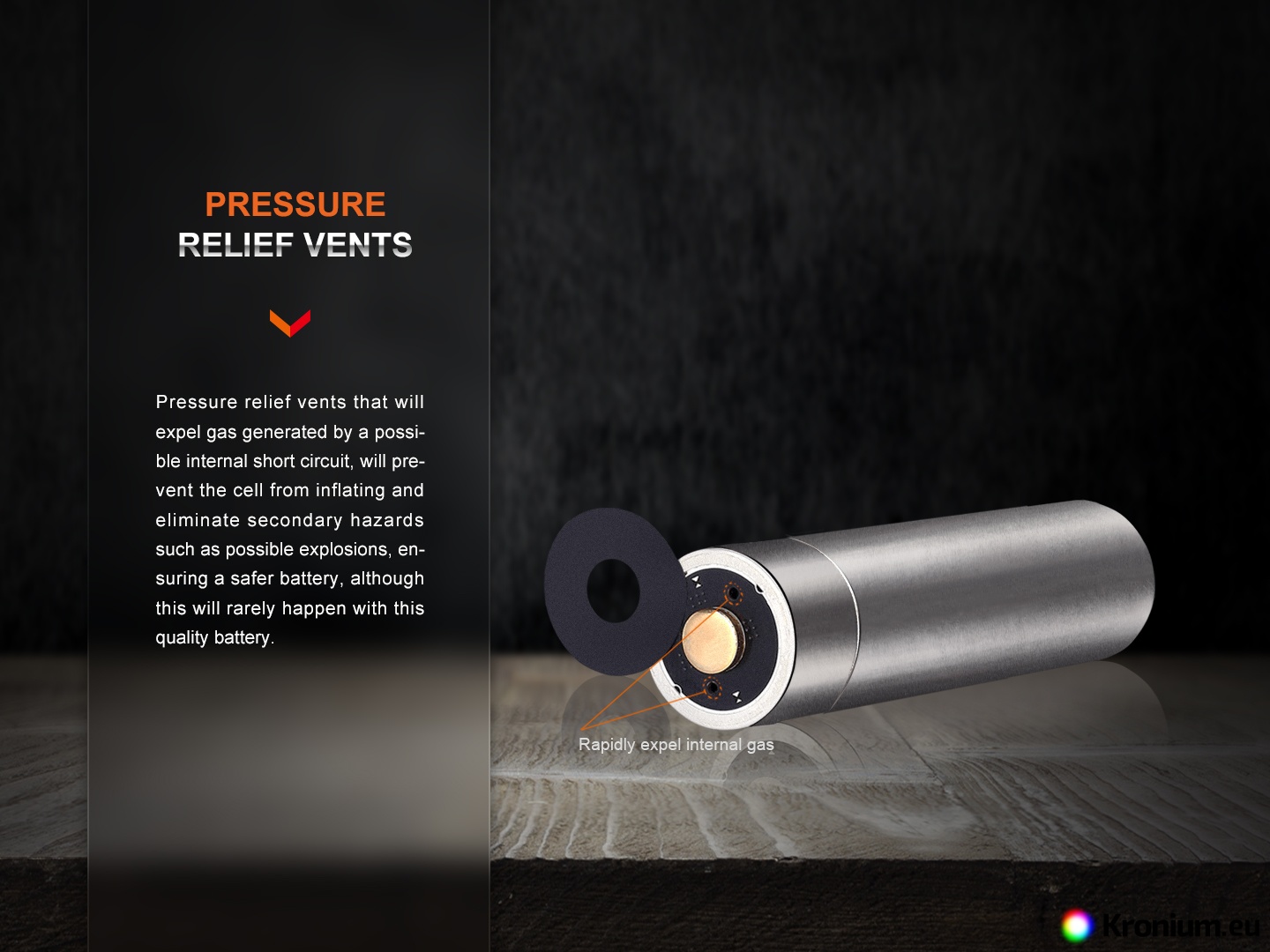

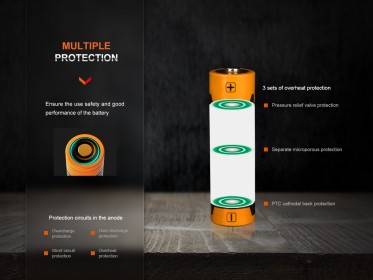

Battery protection can be divided into two areas. In the first, electronic circuits are added that prevent the cell from being overcharged (a situation where there is a risk of explosion with classical li-ion batteries) or, on the contrary, its excessive discharge (the battery would then not be able to be recharged). In addition, these circuits protect the battery against a short circuit or high current consumption, which could damage the battery. If the battery electronics evaluates reaching the limit values, it disconnects the cell. In the second there is protection against overheating (PTC thermal protection) and a special anti-explosion valve. Unlike other valves used in Li-ion batteries, this one, when the gas pressure in the cell exceeds a certain limit, separates the electrodes inside the battery and thus de-facto interrupts the exothermic reaction and releases the excess gas pressure outside the battery. Thanks to the combination of electronic and mechanical (temperature and pressure) protection, Fenix batteries are among the safest Li-ion batteries available.
The size of the 14500 battery roughly corresponds to a classic pencil battery (type AA), but it has about 3x higher voltage. Therefore, it can only be used to power lamps and headlamps that support this higher voltage. Can be used, for example, in Fenix RC05, Fenix LD09 (220 lumen version only), Fenix LD11, Fenix LD12 (320 lumen version only), Fenix LD12R, Fenix LD22 V2.0, Fenix E25 Ultimate Edition, Fenix HL35 headlamp. Check first if your appliance supports this article!

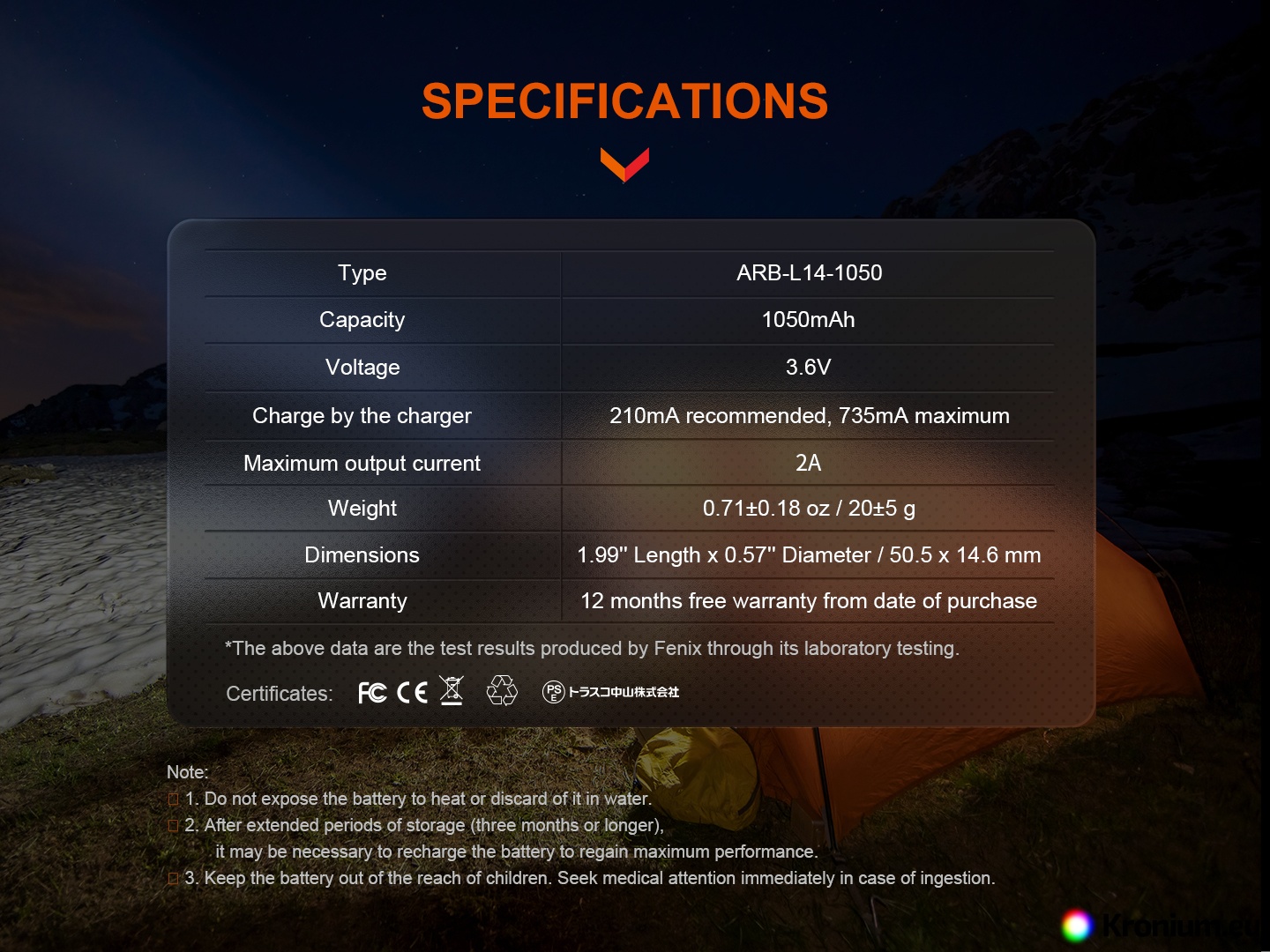

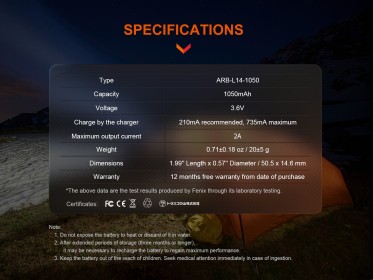

Battery parameters
- Nominal voltage: 3.6 V.
- Capacity: 1050 mAh (3.78Wh).

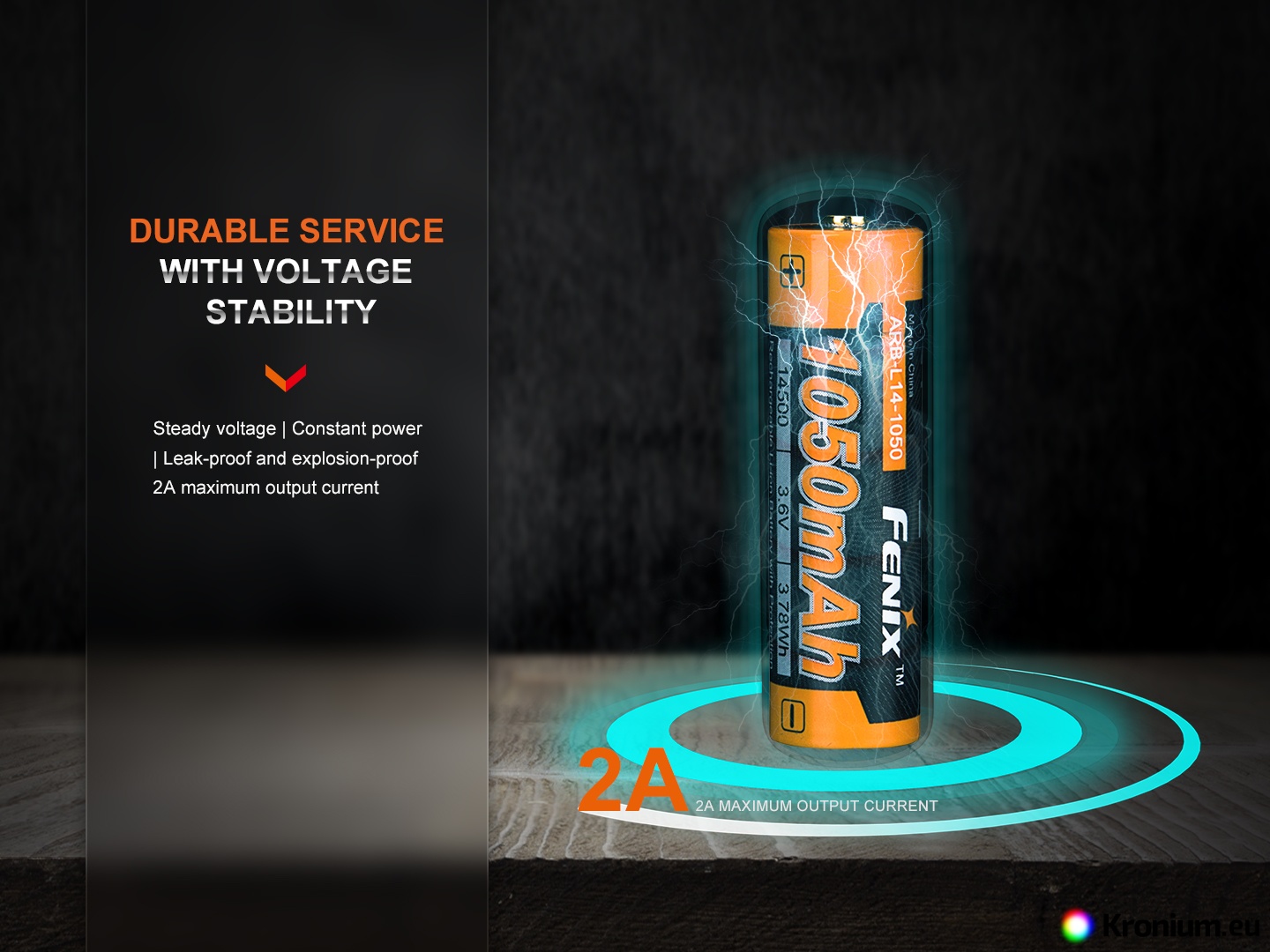

- Maximum current consumption: 2 A.
- Maximum charging current: 1A (recommended 0.25A).

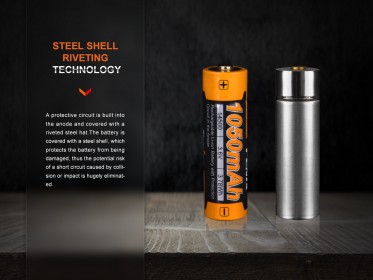

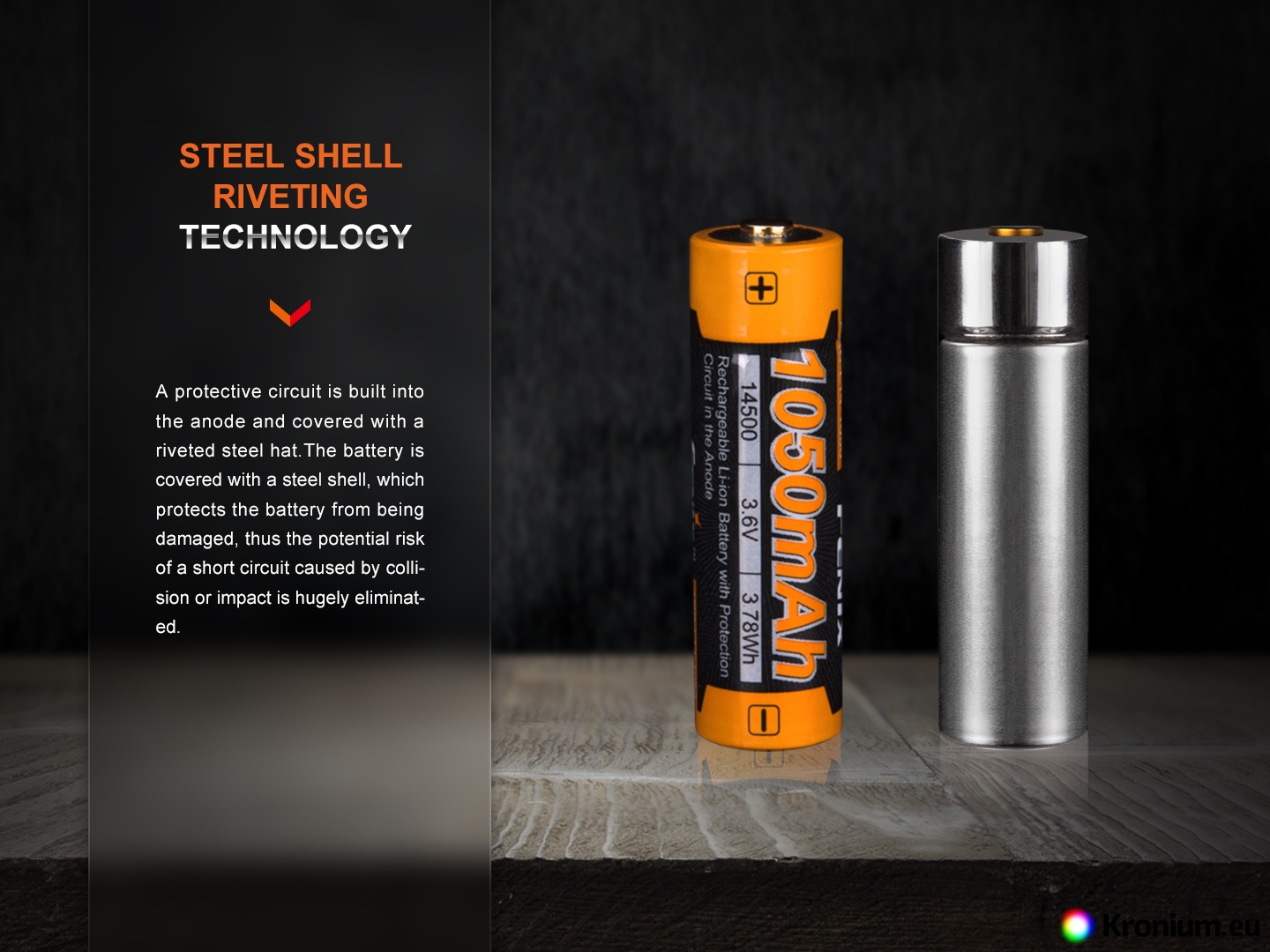

- Protective electronics built into the plus pole ensure protection against overcharging, complete discharge and short circuit.
- Lifetime of 500 charging cycles
- Diameter: 14.6 mm (+/- 0.2 mm)
- Height: 50.5mm (+/- 0.5mm)
- Weight: 20 grams.
Recommended chargers
Fenix ARE-A2 charger
Fenix ARE-A4 charger
USB charger Fenix ARE-D1
USB charger Fenix ARE-D2
Mini USB charger MC1
Dual-channel USB charger FC2
Four-channel USB charger VC4SL
8-channel USB charger VC8
Lii-100 USB charger
Lii-500S four-channel charger
Lii-600 four-channel charger
SkyRC MC3000
Warning
- Do not try to discharge the battery below 2.5V
- Do not short-circuit the battery (do not connect the cell poles with a wire)
- Do not throw the battery into fire
- Never put the battery in the charger upside down (opposite polarities)
- When using the accumulator, observe the safety principles
- Use only an adequate charger supporting Li-ion batteries
Warranty
Two-year warranty.
