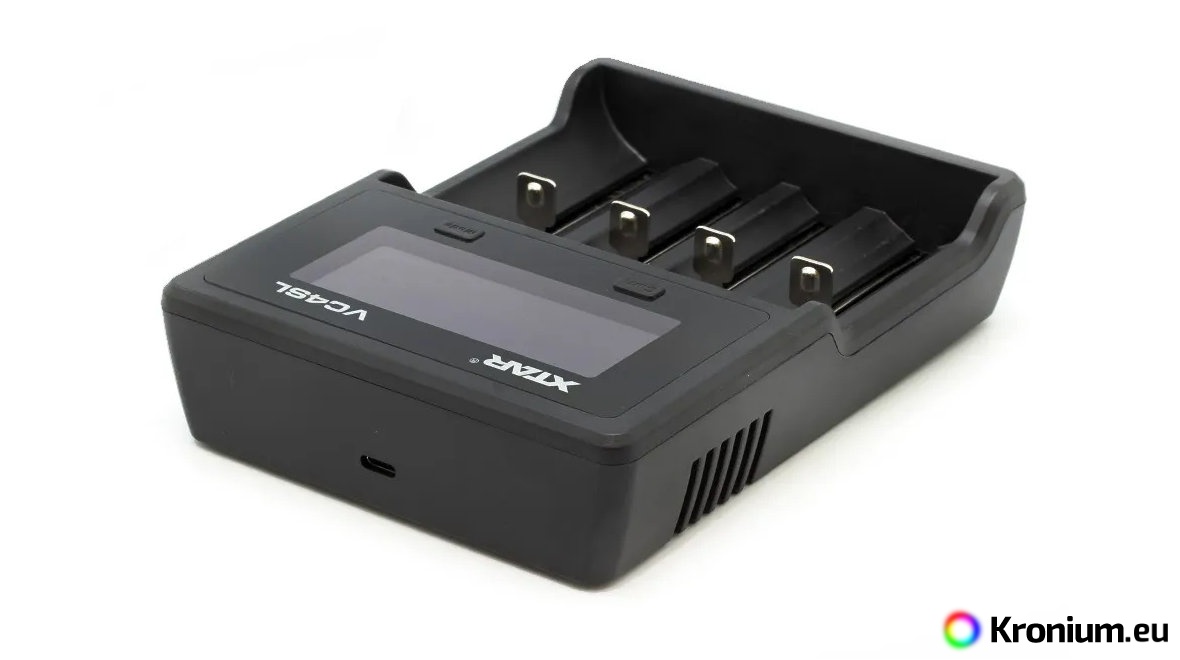

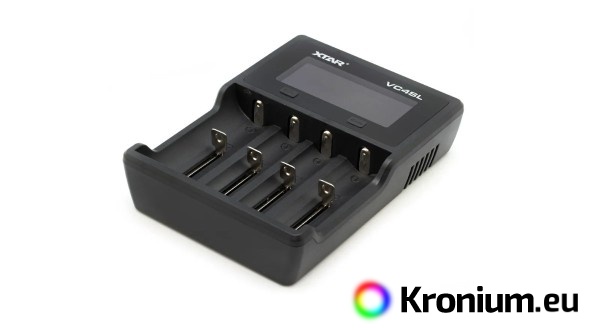

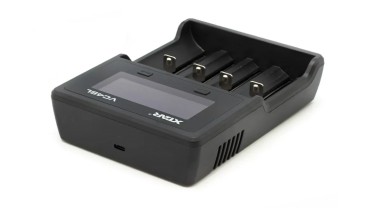

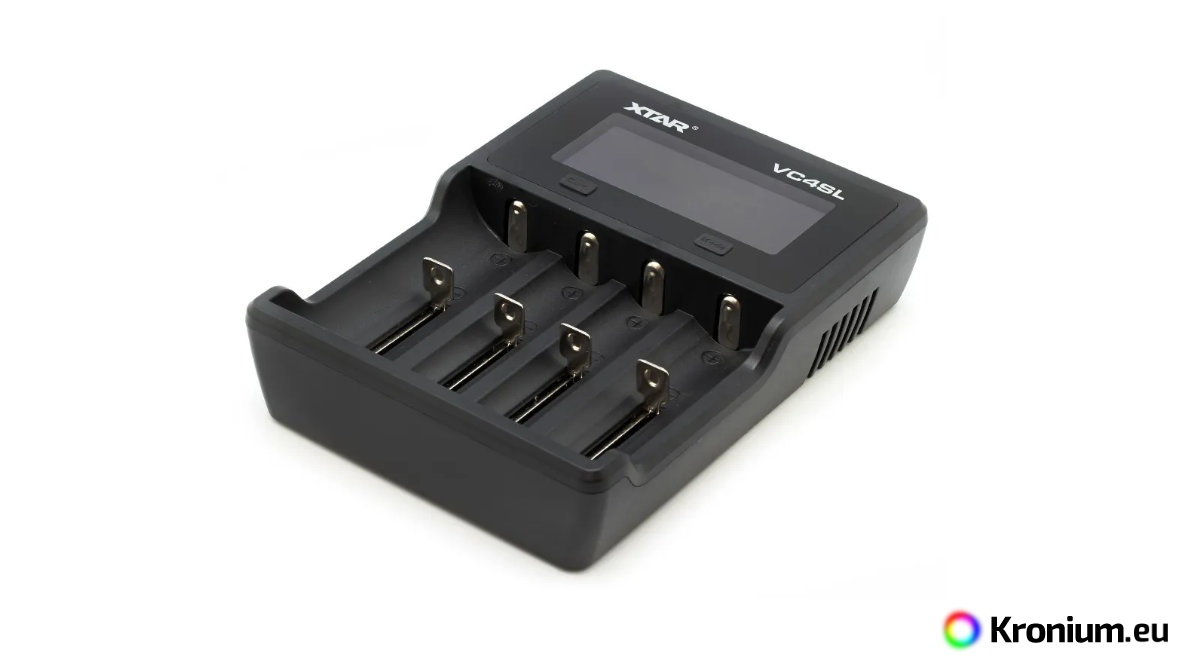

VC4SL is a universal four-channel USB charger for 3.7V/3.6V Li-Ion and NiMH/NiCd batteries. Each charging slot is monitored independently so that batteries of different sizes, capacities and even different chemistries can be charged at the same time (both Li-Ion and NiMH/NiCd can be charged at the same time). It automatically detects the inserted battery type and selects the optimal charging algorithm. The display shows the current voltage, the capacity already charged in the battery and the amount of charging current. The maximum charging current is up to 3000mA when one slot is occupied, 2000mA in two slots, 1000mA in 4 slots (assuming the use of a powerful QC3.0 USB power supply capable of delivering 18W). You can manually set the charging current for each slot in a range of 250 mA to 3000 mA. In addition, all four slots are capable of discharging and measuring battery capacity. The charger can also charge protected Li-ion 21700 and 20700 batteries.
The charger can charge Li-ion batteries of the following types: 26650, 22650, 25500, 27100, 21700, 20700, 18650, 17670, 18700, 14650, 18500, 18490, 18350, 17500, 14500, 16340, RCR123, 10440 and NiMH batteries of AAA, AA, C size.
VC4SL USB Li-ion Charger Specifications
- Four independently monitored charging channels, automatic selection of the correct charging algorithm according to the type of batteries inserted.
- Maximum charging current is 3000 mA. When all slots are occupied, the maximum charging current is 1000 mA. If the used USB power supply is not strong enough, the charger will automatically reduce the current. The charging current can be manually set in the range of 250 mA to 3000 mA.
- The following Li-ion batteries can be recharged in the charger: 26650, 21700, 18650 Li-ion, 14500, RCR123 / 16340. You can also charge all NiMH AA and AAA batteries from our shop.
- LCD display shows the current charging current, battery voltage and capacity charged into the battery.
- Weight of the charger 212 grams.
- Activation of discharged batteries, gentle initiation of charging with lower current.
- Protection against reverse insertion of batteries.
- Detection of defective and incompatible batteries.
- Dimensions 149 x 115 x 35 millimeters.
- Supports QC3.0 fast charging.
- Charger and USB-C cable included (USB power supply not included).
- The charger can be purchased with a QC3.0 USB mains adapter and a USB car adapter.
Battery charging

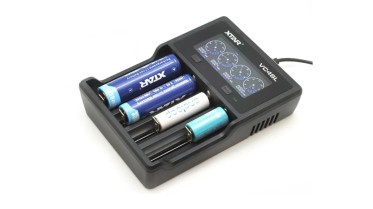

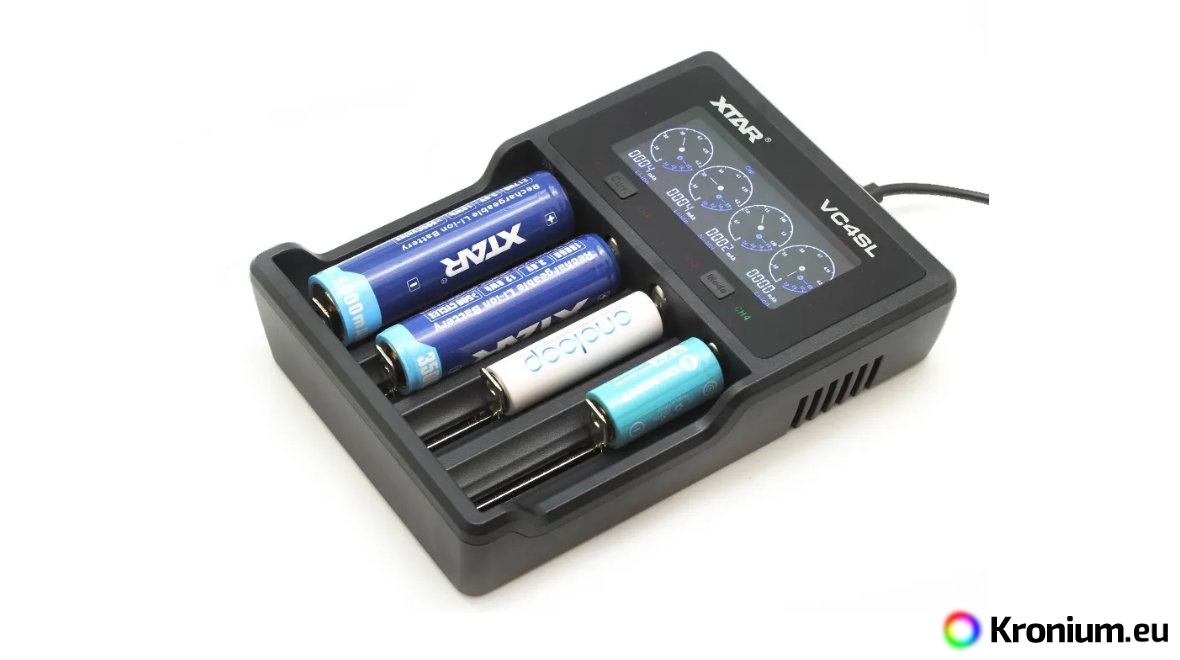

Plug the charger into your computer, USB AC adapter or USB car adapter using the included USB-C cable. Insert the discharged battery, the LCD display will show the current voltage, the capacity charged into the battery and the current charging current during charging. The charger automatically detects the type and chemistry of the inserted battery. After a full charge, FULL will appear on the display. The display of information for the battery being charged can be toggled with the "Mode/Disp" button in the order of Curr (charging current), Cap (battery capacity) and IR (internal resistance of the battery). The "Curr" button is used to manually switch the charging current.
By holding the Mode button for a long time, the "Grad" mode can be selected in addition to the charging mode, in which the battery is charged, discharged and recharged and the capacity is measured. Store mode can also be selected to charge the batteries to a lower capacity for long term storage. Modes are always set for all four channels at once.
In case of reverse battery insertion or short circuit, the charger will show ERR on the display. If a faulty or incompatible battery is inserted, the display will show NULL (detection can take up to 10 minutes).
Warning
- Do not charge Li-ion cells that have undergone an over-discharge condition (below 2 V).
- Do not insert batteries into the charger in reverse (reverse polarity).
- When using the charger, observe safety guidelines.
- We recommend using high quality protected Li-ion batteries.
- Not intended for charging LiFePO4 batteries.
