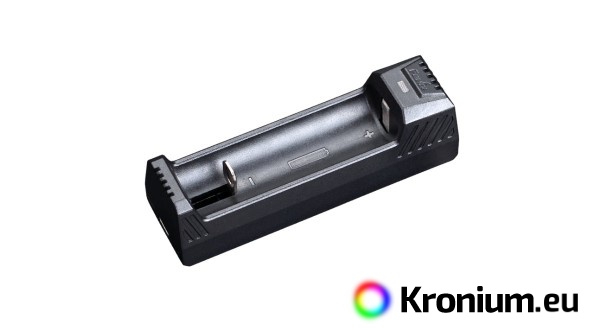

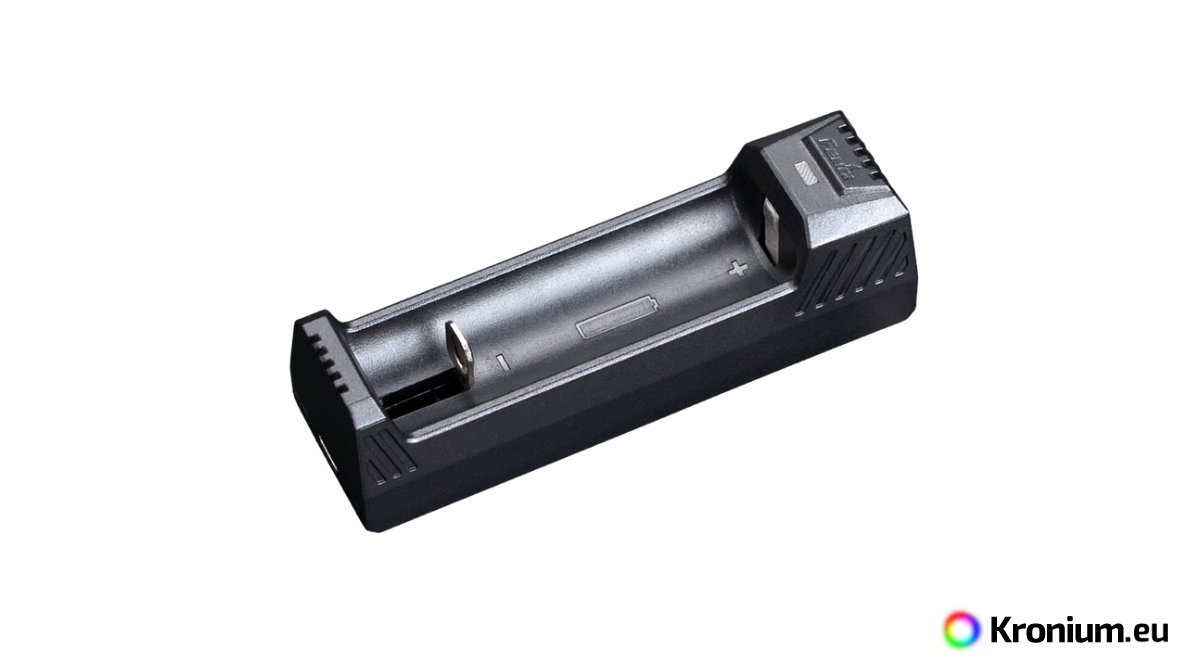

Compact universal USB charger Fenix ARE-X1 V2.0 for one piece of Li-ion battery type 21700, 26650 or 18650. When a charged battery is inserted, it also works as a backup power bank for charging USB devices (mobile phones, MP3 players and more). The charger is designed for 3.7V and 3.6V lithium ion batteries with a length of 65 - 75 millimeters. Charging current up to 1500mA, depending on the capabilities of the USB source to which you will have the charger connected (computer, mains USB source, mobile phone charger with micro USB). Charging time can thus range from approximately 2 to 6 hours. Thanks to its minimal size, the charger is particularly suitable for travelling.

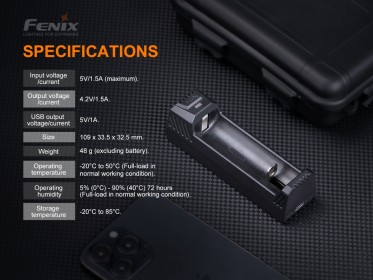

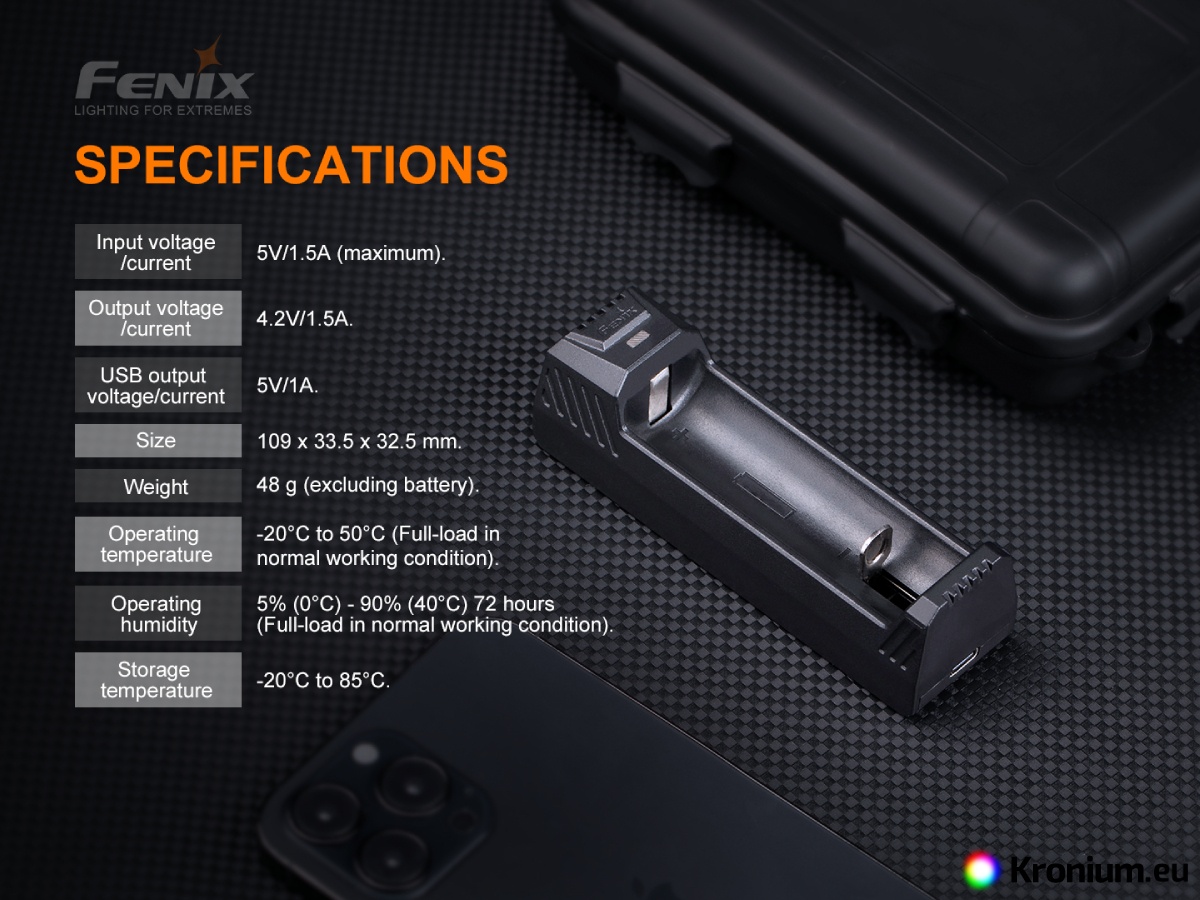

Fenix ARE-X1 V2.0 charger specifications

• One charging channel, CC/CV charging algorithm.

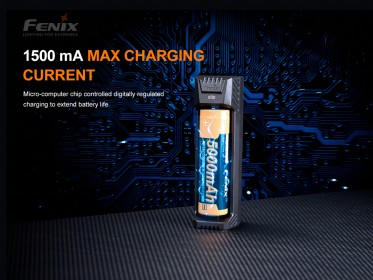

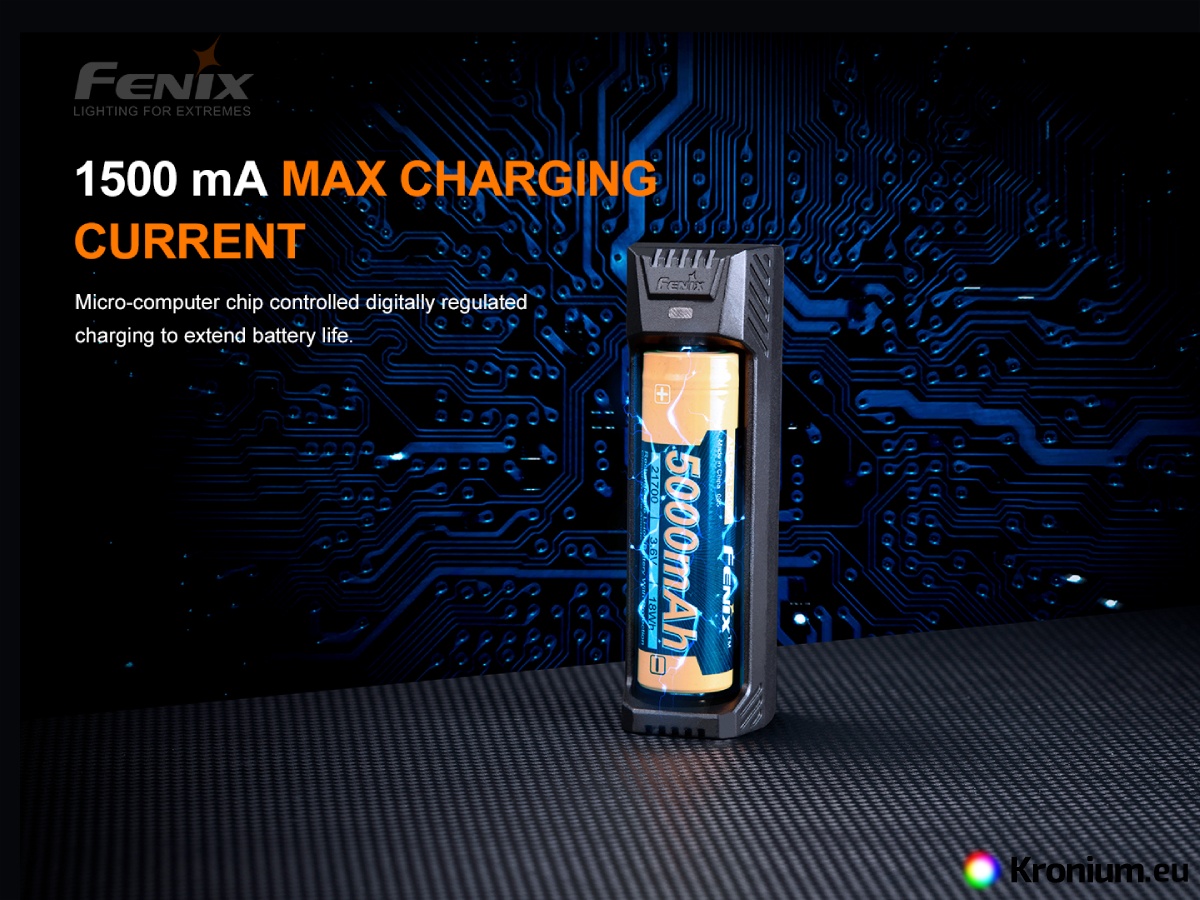

• Charging current up to 1500 mA (depending on USB source capabilities).
• Charge termination at battery voltage of maximum 4.20 V.
• Powerbank function, USB-A output parameters: 5 V, max 1000 mA.
• USB-C type power connector.

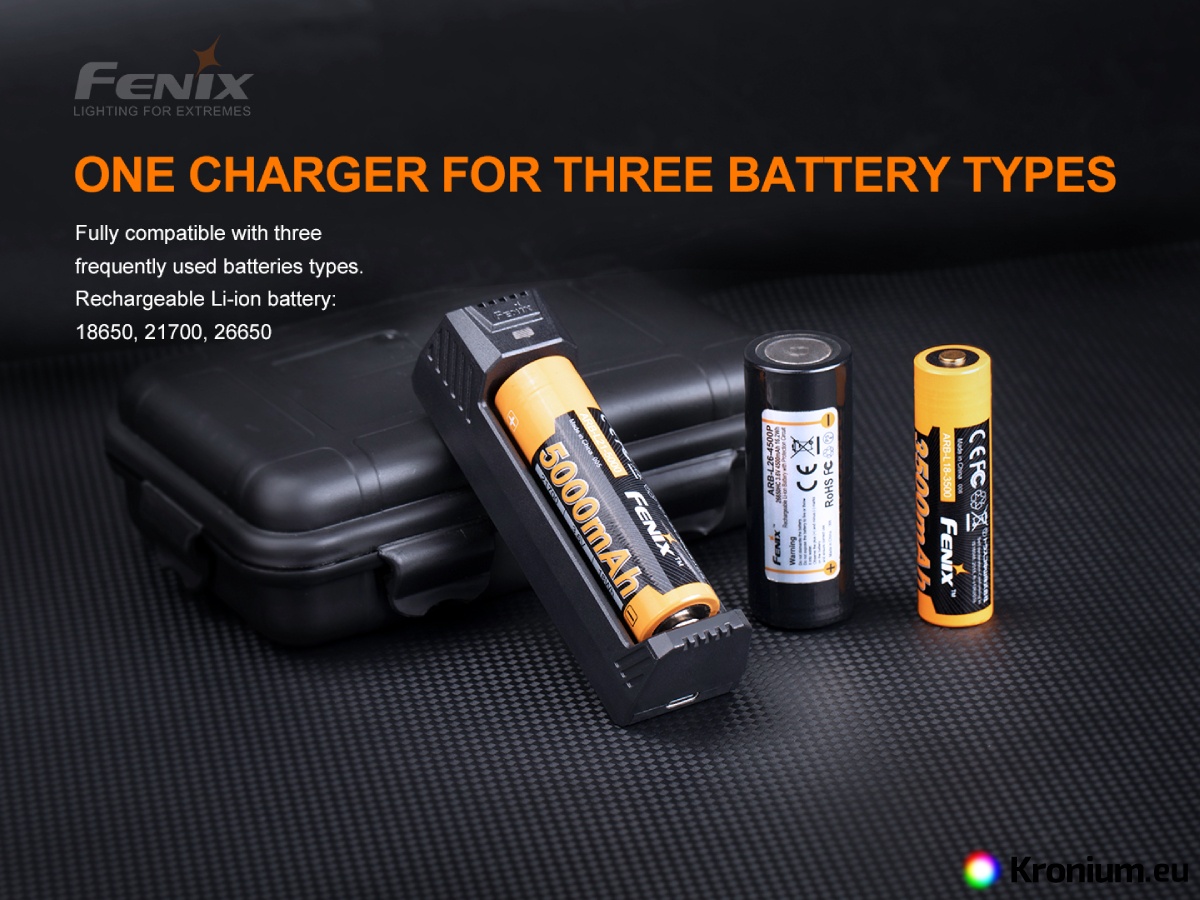

• The following Li-ion batteries can be recharged in the charger: 21700, 26650, 18650 Li-ion.
• LED indicator showing charging progress.
• Dimensions 10.9 cm x 3.3 cm x 3.2 cm.
• Weight: 48 grams

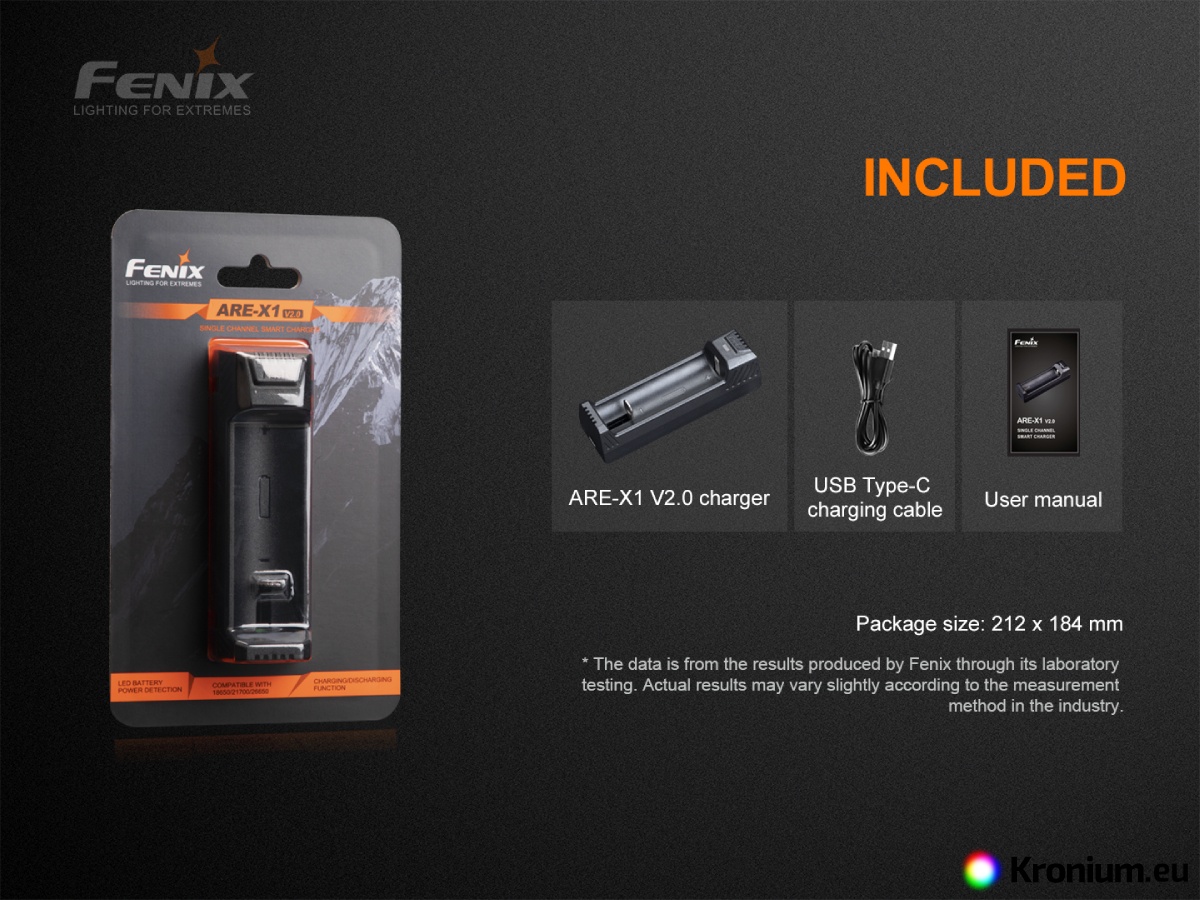

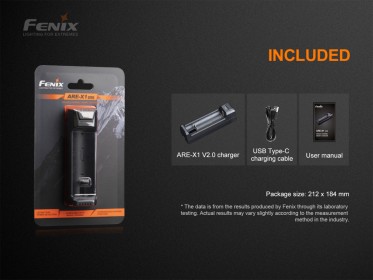

• Charger and USB-C cable included.
• The charger can be purchased with a USB network adapter or USB car adapter (not included).

Using the Fenix ARE X1 V2.0 Charger

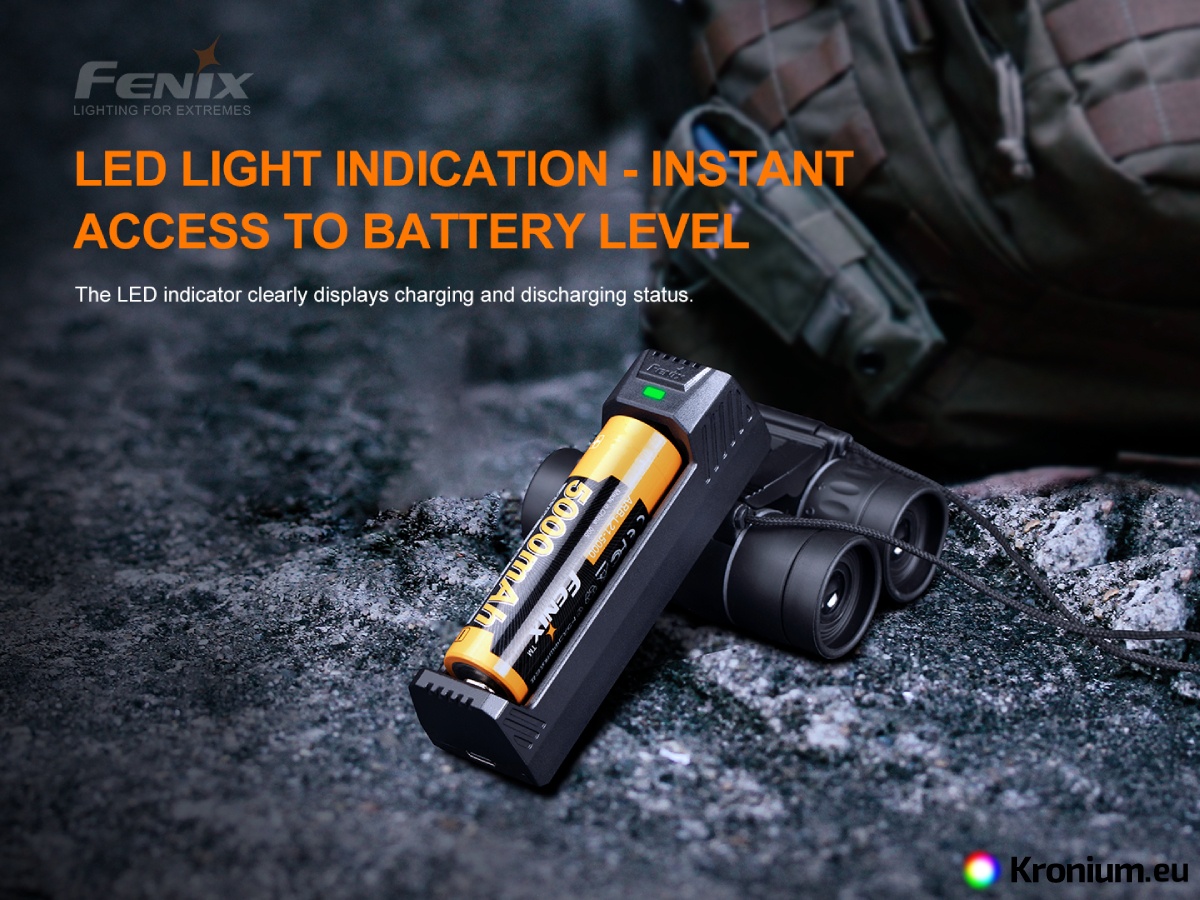

Charging: Plug the charger into a USB power source and insert the battery. When charging, the LED indicator glows red and turns green when fully charged.

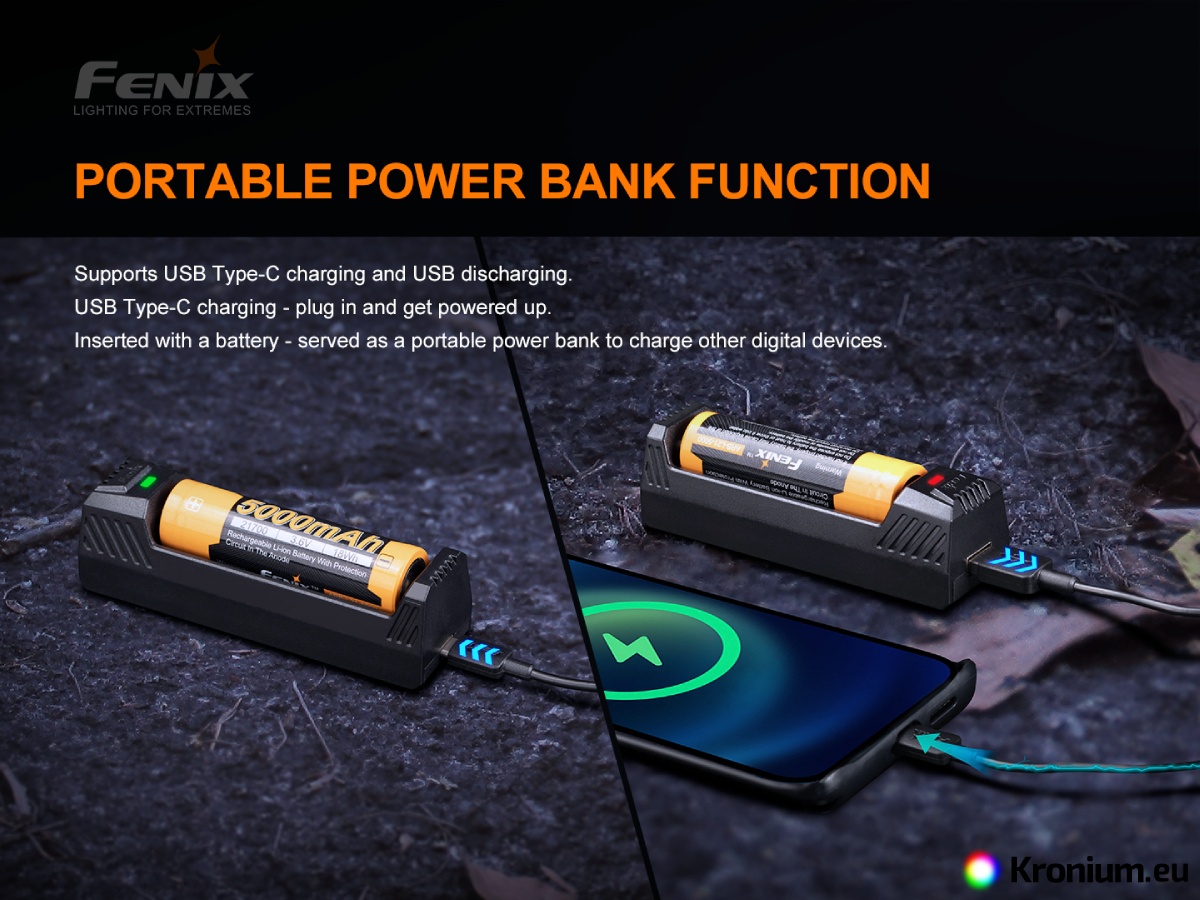

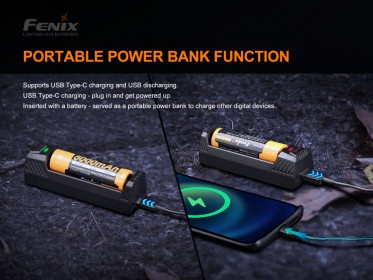

Discharging: Insert a charged Li-ion battery into the charger. Plug the USB cable into the USB output connector. During charging of USB devices (e.g. mobile phone), the indicator LED flashes red. When the charging is finished or the battery is discharged, the indication LED goes off completely.

Warning

• Do not charge Li-ion cells that have undergone an over-discharge condition (below 2V).
• When using the charger, please observe the safety guidelines.
• We recommend using good quality protected Li-ion batteries.
• Not intended for charging LiFePO4 and NiMH/NiCd batteries.

Warranty

Legal two-year warranty.
