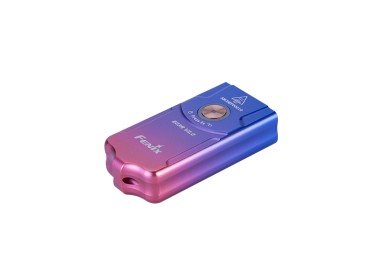

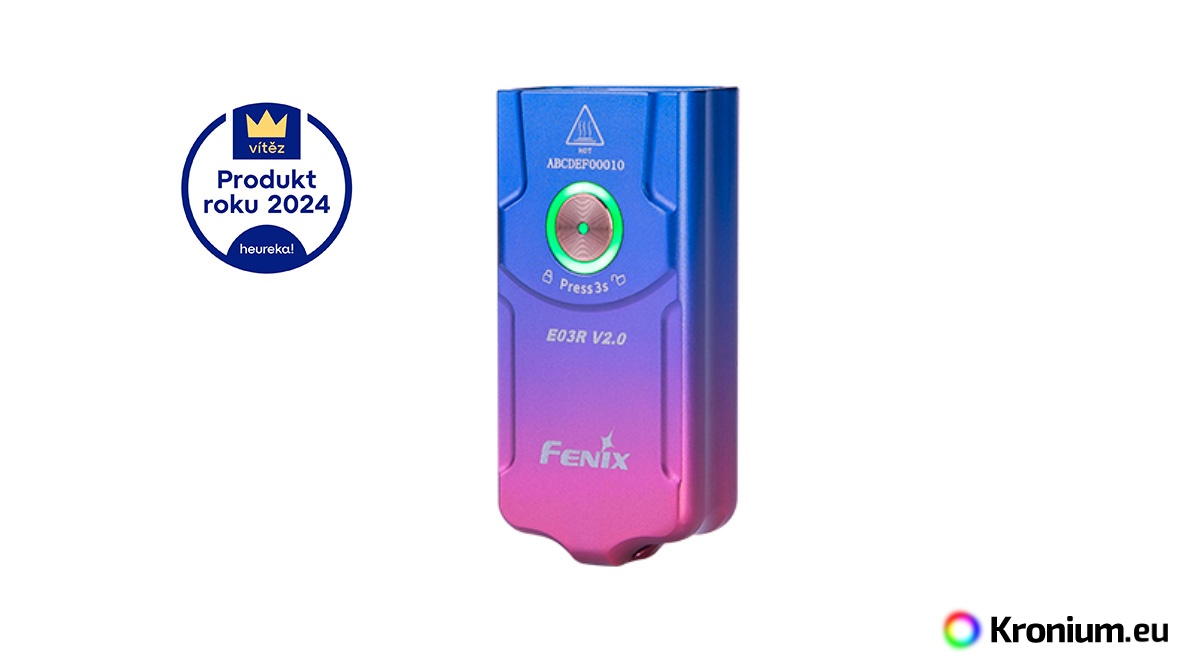

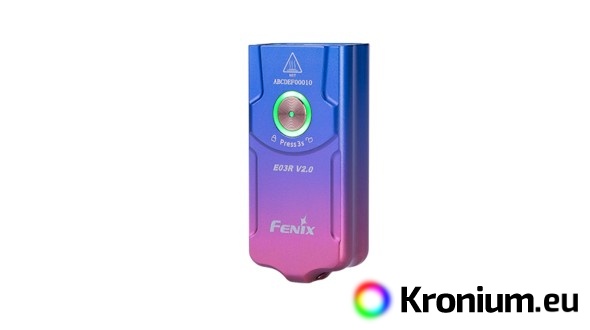

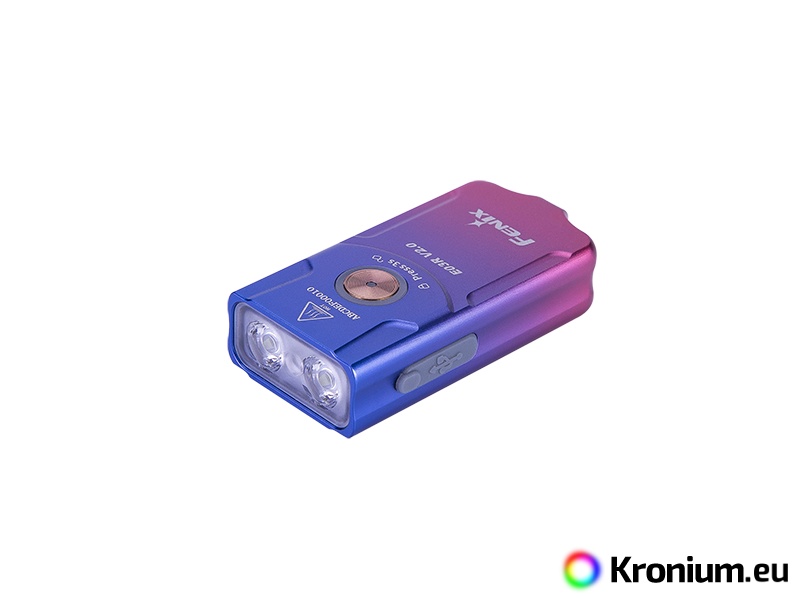

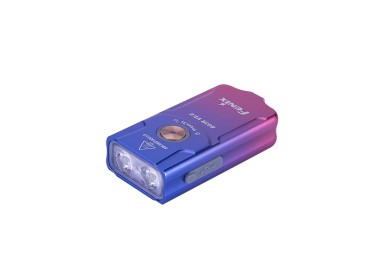

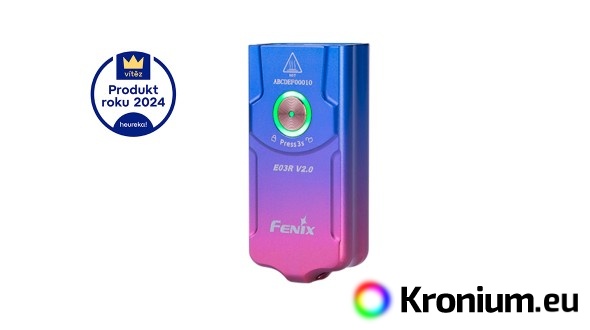

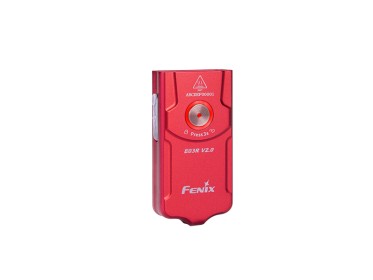

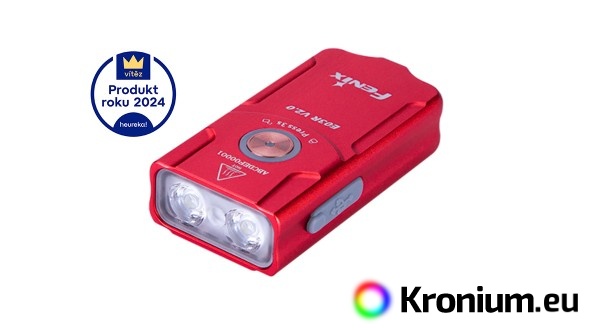

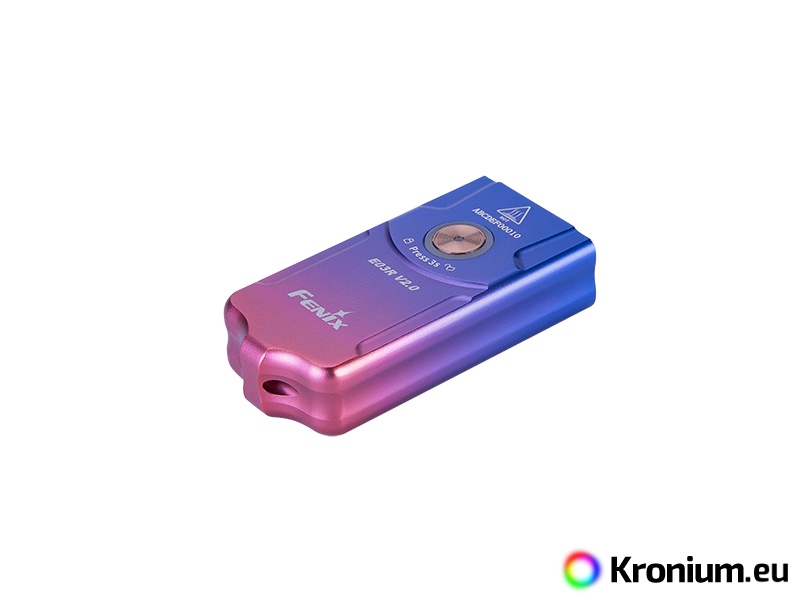

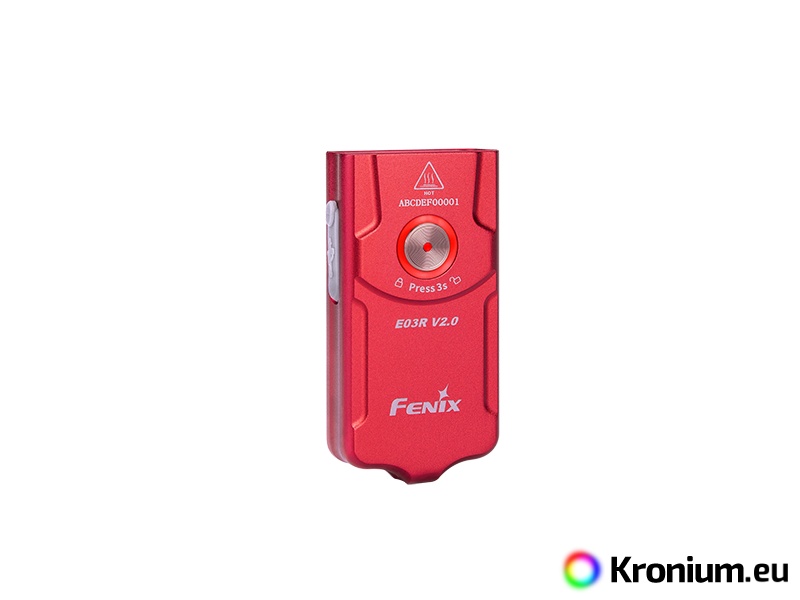

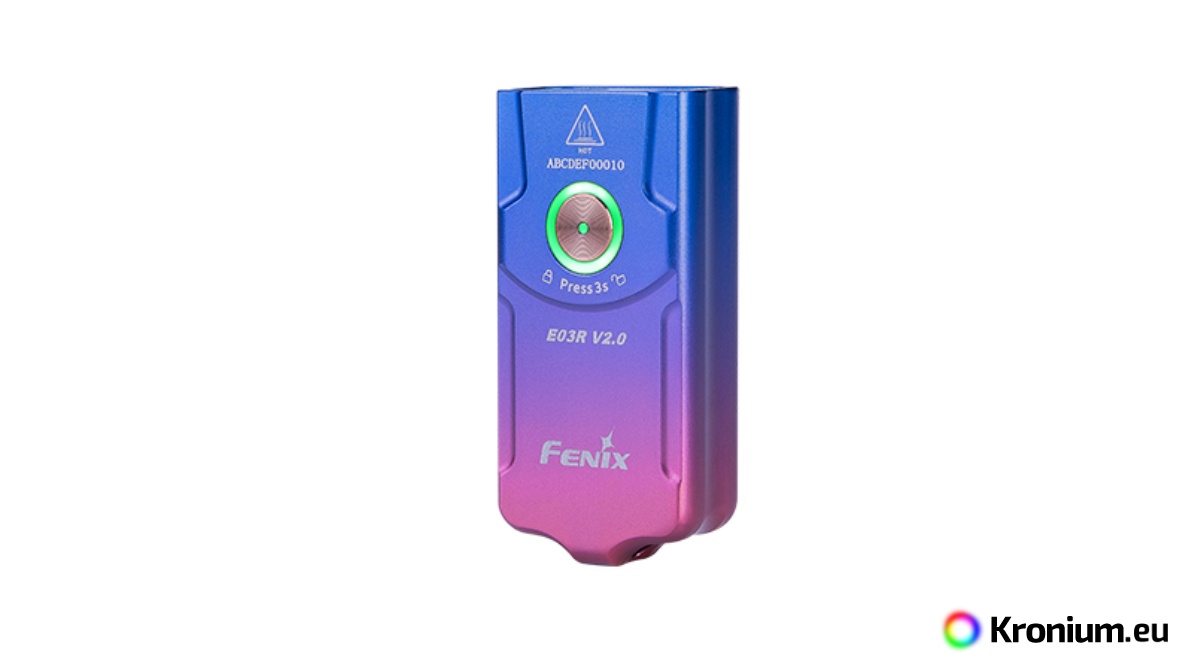

Fenix E03R V2.0 Gift Edition is the successor of the successful miniature rechargeable flashlight that can be carried on your keys or in your purse. Despite its minimal size and weight of just 30 grams, it offers a high lumen output of up to 500 lumens (ANSI). The light cone evenly illuminates a wide area up to 90 meters. Power is supplied by an integrated 400 mAh Li-pol battery, which is charged via the modern USB-C connector on the side of the flashlight. There are a total of four modes of white light and two modes of red light with maximum durability up to 30 hours in the lowest mode. A unique novelty is the Breathing light, a pulsating light around the switch button of 1 lumen, which you can use for unobtrusive signaling or identification of the flashlight location. The flashlight comes with a ring for hanging it on your keys, so you can easily carry it with you at all times. The battery charge indicator in the button is also handy. This useful gift will always make anyone happy.

All flashlight parameters (luminous flux, battery life, waterproof, shockproof and range) are measured in accordance with ANSI/NEMA FL 1-2009.

Fenix E03R V2.0 flashlight specifications

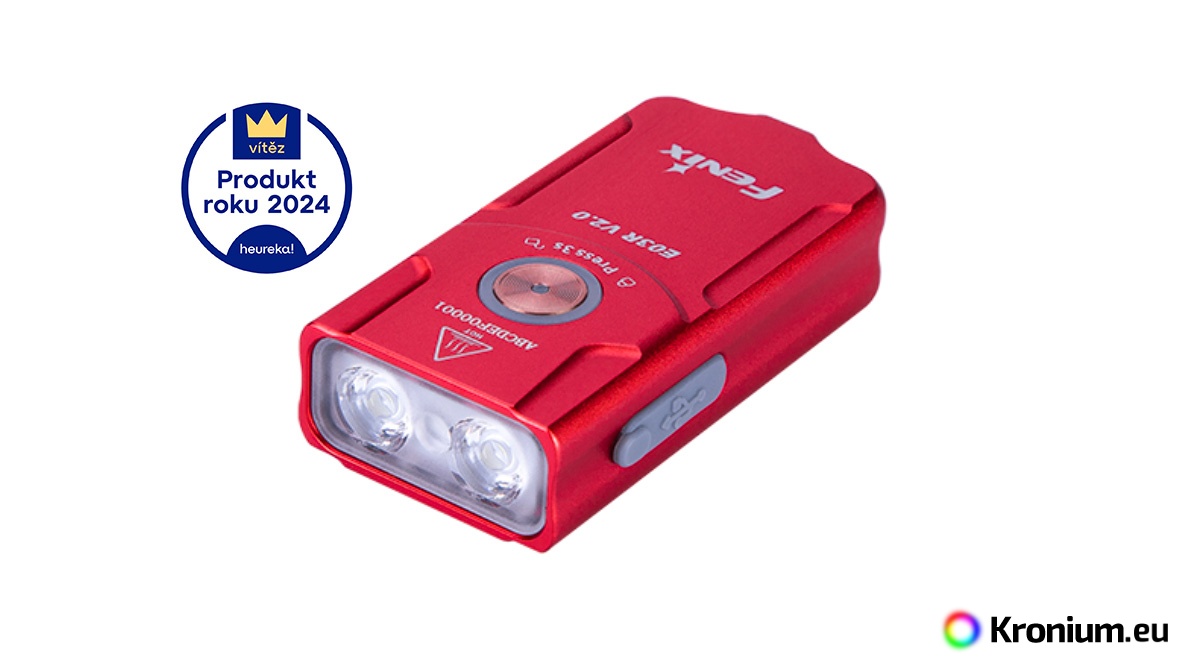

• Two white MATCH CA18 LEDs and a red Everlight 2835 LED are used. All with a lifetime of 50,000 hours.
• Four white light modes: 500 lumens (1.3 hours) -> 150 lumens (2 hours) -> 30 lumens (6.5 hours) -> 5 lumens (30 hours).
• Two red light modes: 5 lumens -> red flashing (5 lumens).
• Pulsating light around the switch button of 1 lumen (Breathing light).
• The flashlight is powered by a built-in rechargeable lithium polymer battery with 400 mAh capacity.
• Battery charge status indication in the button.

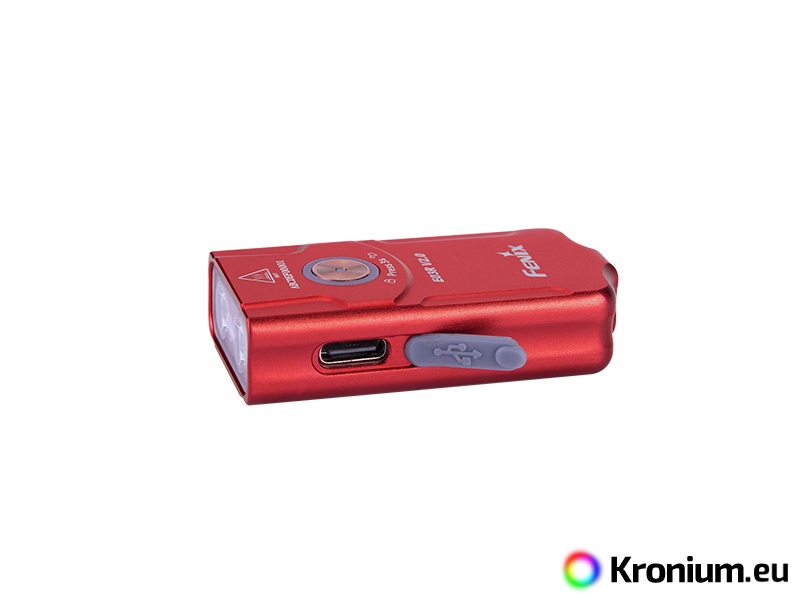

• Charging via modern USB-C connector.
• Memory for the last used white light mode.
• Intelligent overheat protection.
• CNC milled aluminum alloy body with Type III hard anodized anti-scratch finish.
• Dimensions 5.25 cm (length) x 2.6 cm (width) x 1.3 cm (height).
• Range 90 meters (2082 cd).
• Weight 30 grams (including battery).
• Waterproof to IP66 standard (spraying with strong jets of water from all directions).
• Shockproof to falls from a height of 1 meter.
• Includes gift box, key ring and USB-C charging cable.
• Can be purchased colored USB-C cable or micro-USB to USB-C.

Using of the Fenix E03R V2.0 flashlight

Hold the side button for about 0.5 seconds to turn on or off. To turn on the red light, hold the button for 1.2 seconds. You can switch power modes at any time during operation by pressing the side button. To turn on the Breathing light, turn off the flashlight and press the button twice quickly.

The control button can be locked so that it does not switch on by itself, e.g. when transported in luggage - to lock, turn off the flashlight and hold the button for 3 seconds. The flashlight will then flash twice to indicate a lock. To unlock, hold the button again for 3 seconds.

Battery charge indication - with the flashlight off, press the button once briefly, then the small LED in the button will light for three seconds. A green light indicates a 100-85% charged battery, a green flash indicates 85-50%, a red light indicates a 50-25% charged battery, and a red flash indicates a battery less than 25% charged.

 Overheat protection- If the temperature of the flashlight exceeds 60°C, it will automatically reduce the power. Once the temperature drops below 60°C, the highest power can be used again.

Low Battery Warning - the flashlight automatically switches to the lowest power mode and the indicator LED in the switch button starts flashing red.

Charging

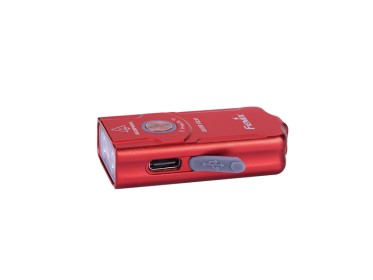

• Unplug the rubber cap of the USB-C connector and plug the flashlight into a computer, USB network adapter or USB car adapter. Alternatively, any mobile phone charger with a USB-C connector can be used for charging.
• During charging, the indicator LED in the button glows red, after a full charge it glows green.
• The charging time of a fully discharged battery takes about 2 hours.
• The Li-pol battery used does not suffer from memory effect, so the flashlight can be recharged at any time.
• Thoroughly seal the USB connector cap after each charge.

Warning

• Do not disassemble the sealed parts yourself, it will violate the warranty.
• In humid environments, ensure that the USB-C connector cap is properly seated in the flashlight.
• If the flashlight does not switch to higher power modes or does not light up, the battery is dead - charge the flashlight.
