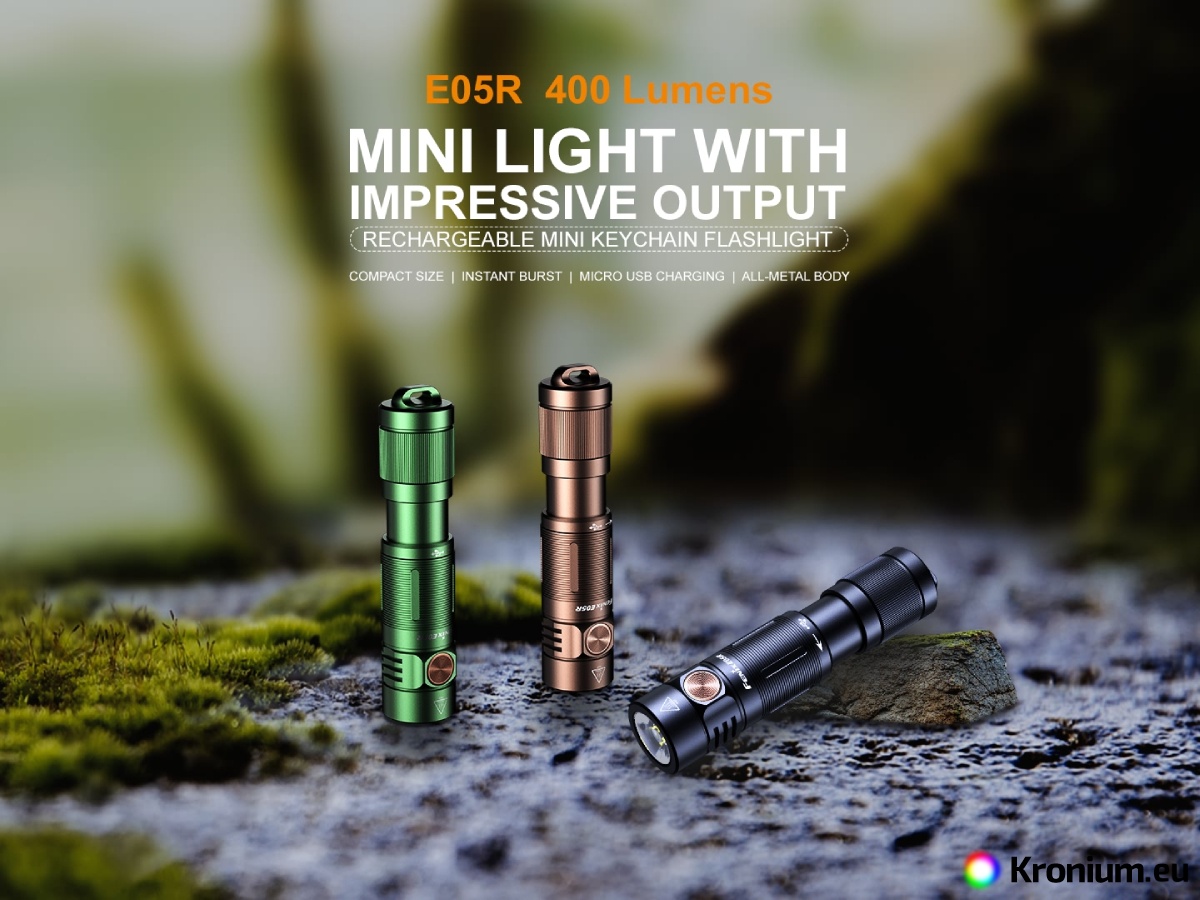

The Fenix E05R rechargeable flashlight, despite its miniature size of less than 7 cm and weight of only 24 grams, has up to 400 lumens (ANSI), which in BURST mode can illuminate a distance of up to 64 meters. It is powered by a built-in Li-pol battery with a capacity of 320 mAh, which is charged via a micro-USB connector directly in the flashlight. With this capacity, it can light up to 30 hours in the lowest mode. It goes without saying that it has a high quality design, durability and waterproofness according to the IP68 standard. The four light modes, which can be easily switched cyclically with one button on the side of the lamp, make this lamp a great companion for everyday wear. Clipped on your keys, in your pocket, purse or backpack, it certainly won't take up much space.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

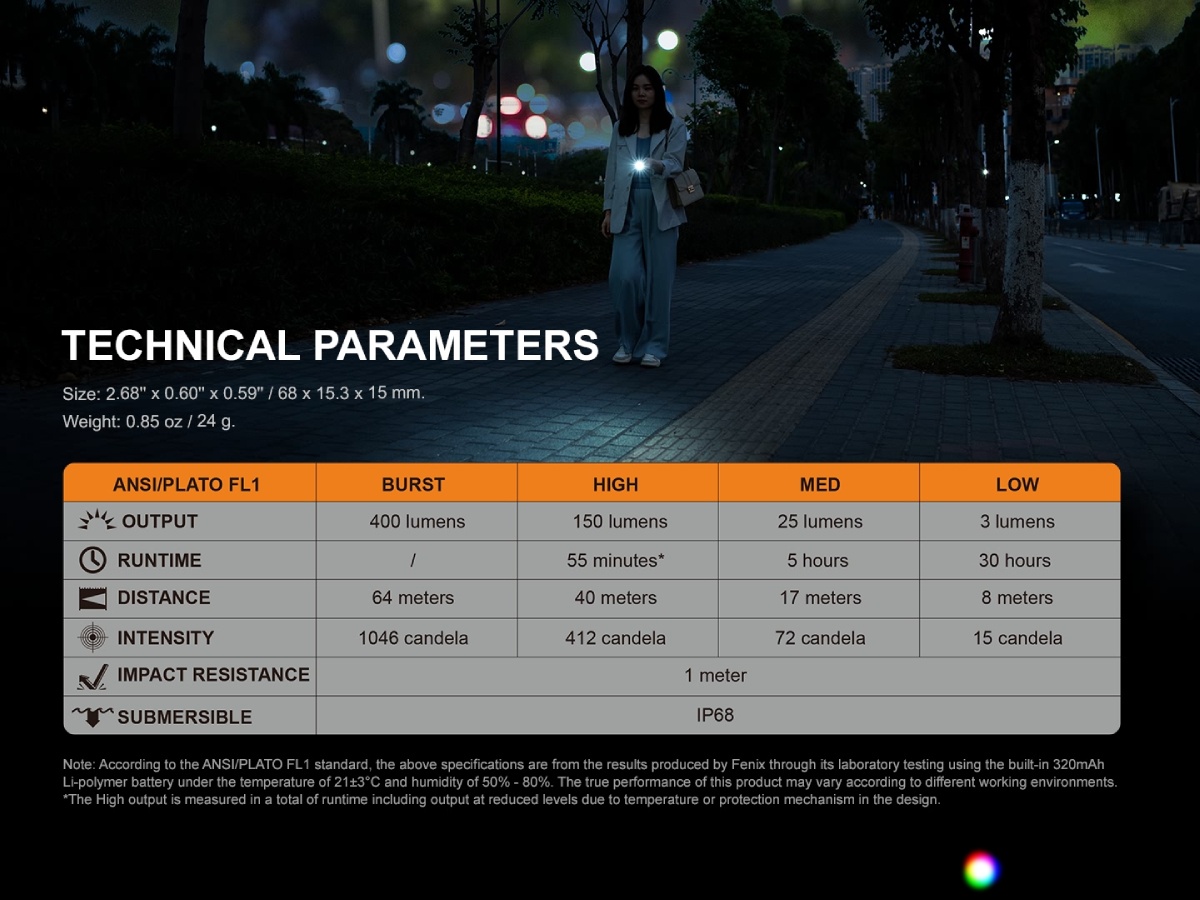

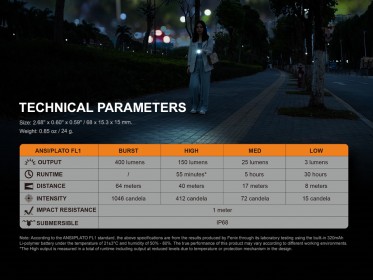

Fenix E05R flashlight specifications

• Powerful LED Luminus SST-20 with 50,000 hours life is used.
  • Four power modes: BURST 400 lumens ->(for the time the button is pressed down)-> 150 lumens (0.93 hours)-> 25 lumens (5 hours)-> 3 lumens (30 hours).
  • Powered by a built-in Li-pol battery with 320 mAh capacity.
  • Charges via micro-USB connector.
  • Charging time for a fully discharged battery is about 1 hour.
  • Overheat protection.

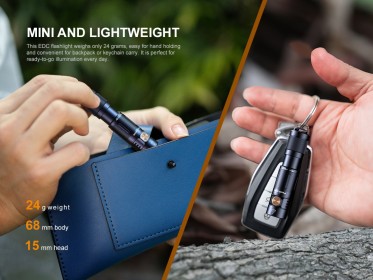

  • Dimensions 6.8 cm (length) x 1.53 cm (head) x 1.5 cm (body).
  • Weight 24 grams.
  • Light cone with a range of 64 meters (1046 cd).

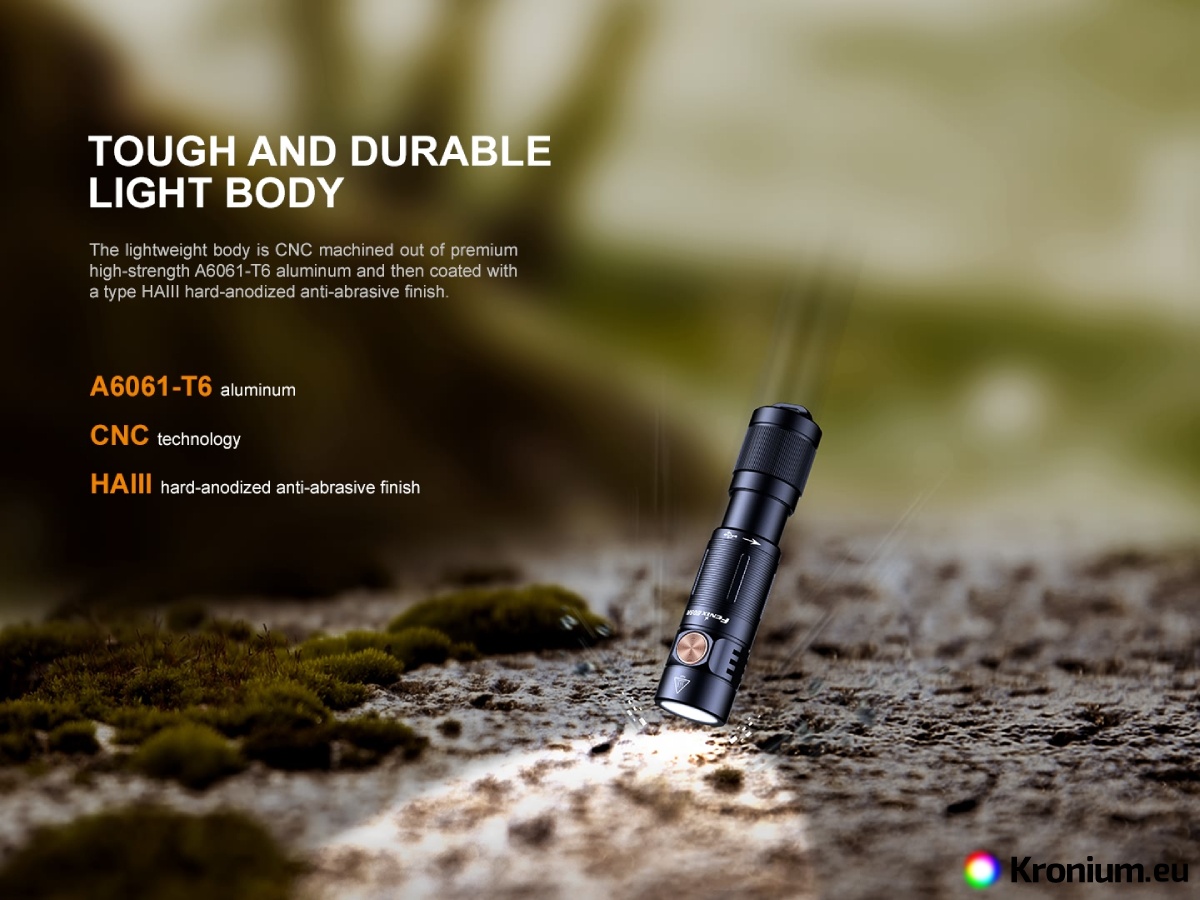

  • Made of aerospace-grade hardened aluminum. Durable surface - Type III hard anodized.
  • Shock resistant to drops from 1 meter.

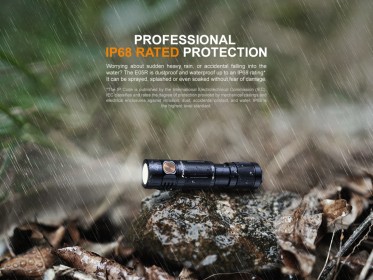

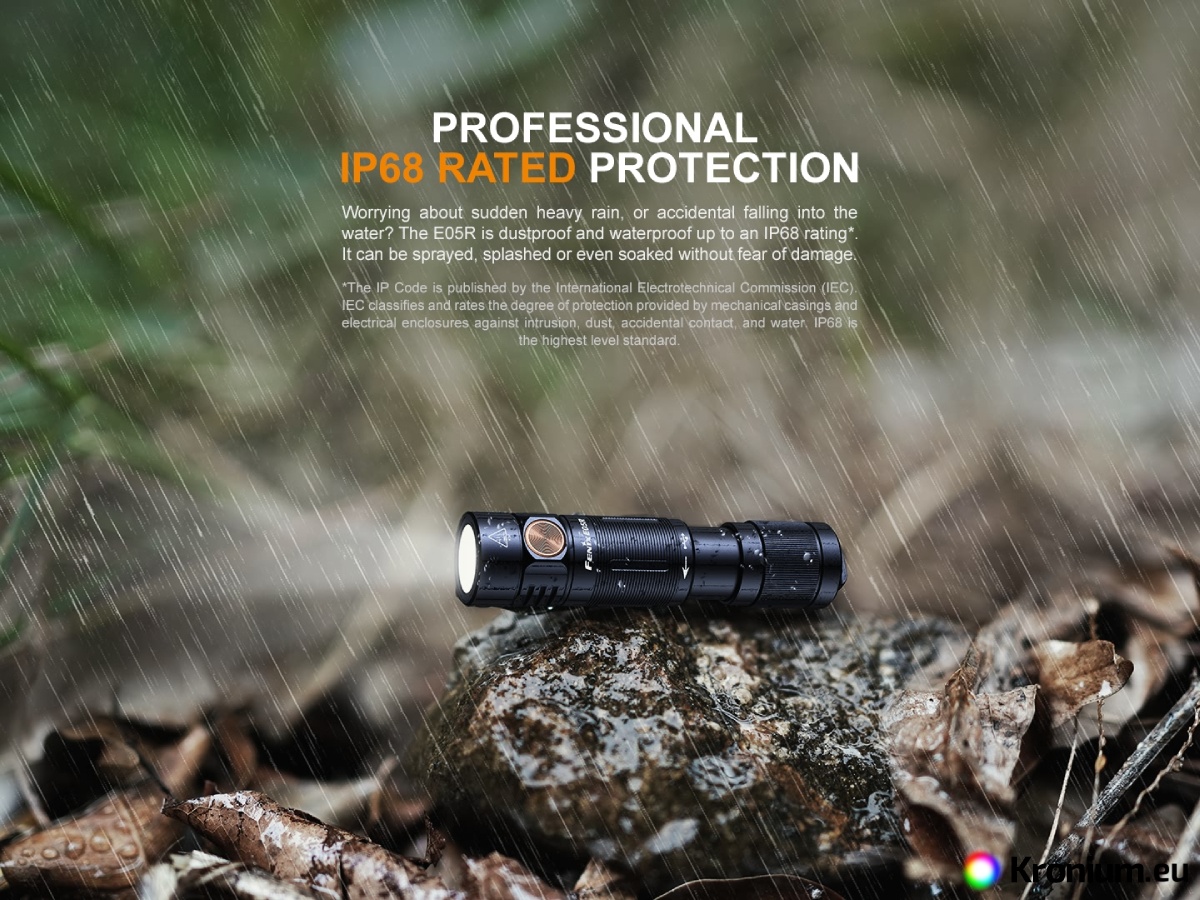

  • Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).

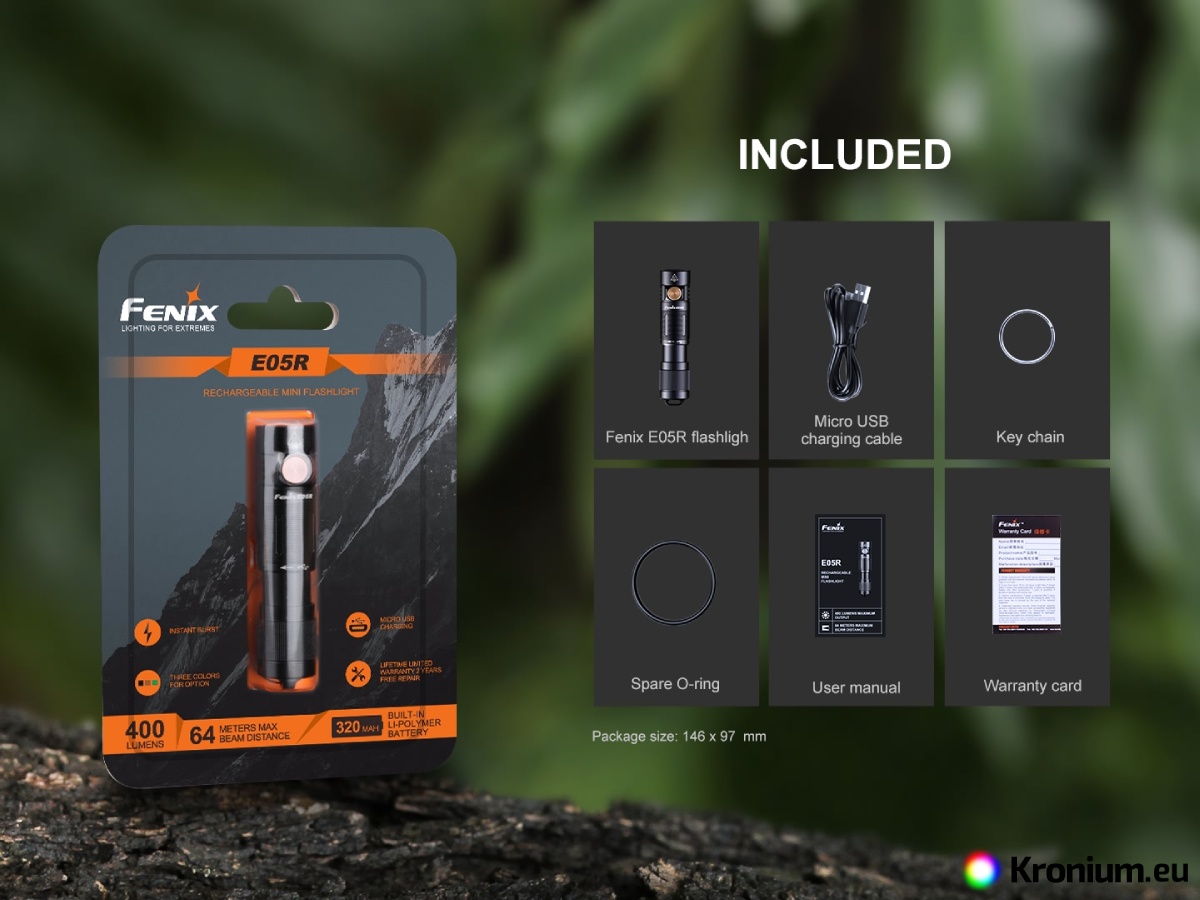

  • Includes metal ring for hanging on keys, replacement o-ring, micro-USB cable.

Using of the Fenix E05R flashlight

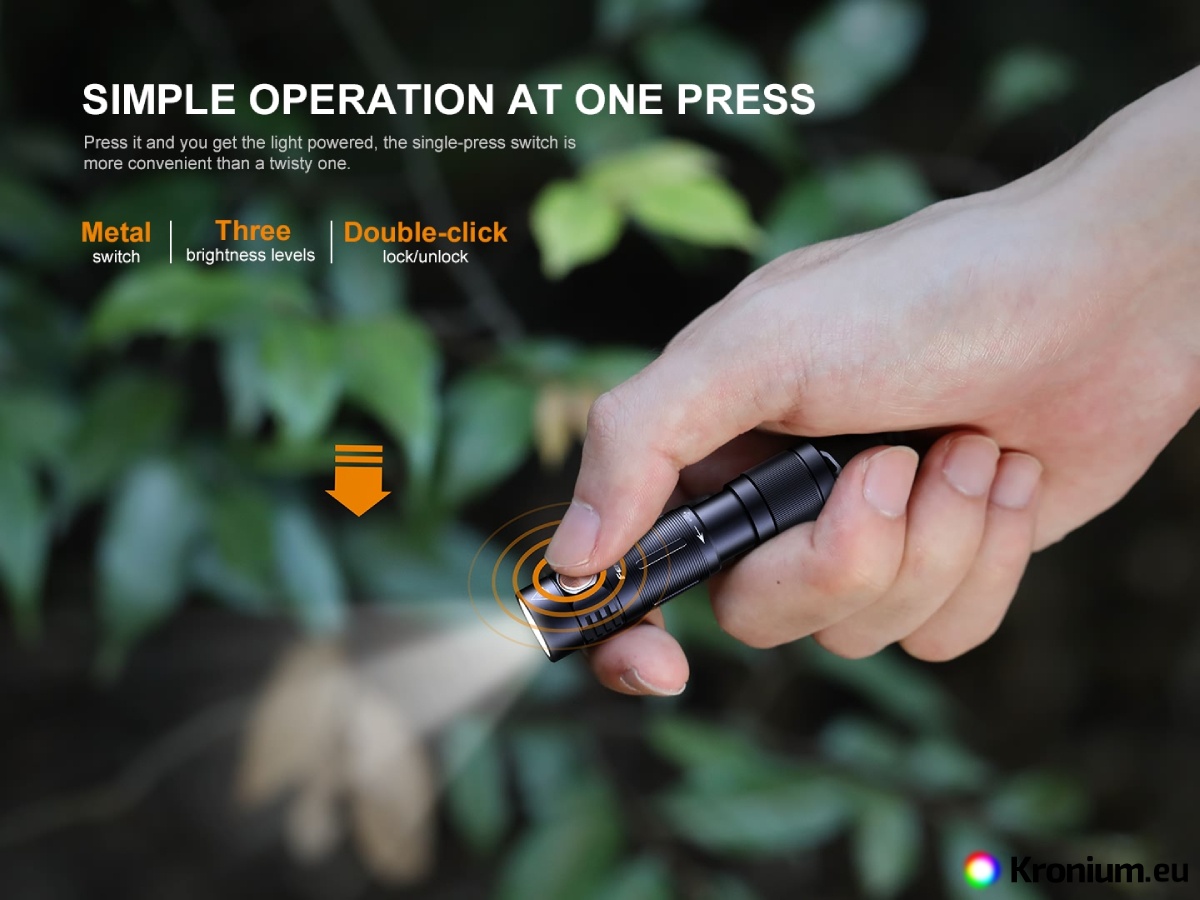

Turn on or off the flashlight by holding the button for 0.5 seconds. Further short presses cycle between light modes 3 - 25 - 150 lumens. To activate the 400 lumen BURST mode, hold the button for more than 1.2 seconds. When the button is released, the flashlight will return to the last light mode used.

The control button can be locked to prevent spontaneous activation, e.g. when transported in luggage. Press the control button twice quickly (within 0.5 seconds). The flashlight will flash twice in the lowest light mode to indicate a lock. To unlock, quickly press the button twice again, the flashlight will flash twice again and it is unlocked.

Overheat Protection - Due to the miniature size of the flashlight and the high power in highest modes, the flashlight will automatically reduce brightness once it exceeds 60°C. Once the temperature is lowered, the highest modes can be reactivated.

Charging

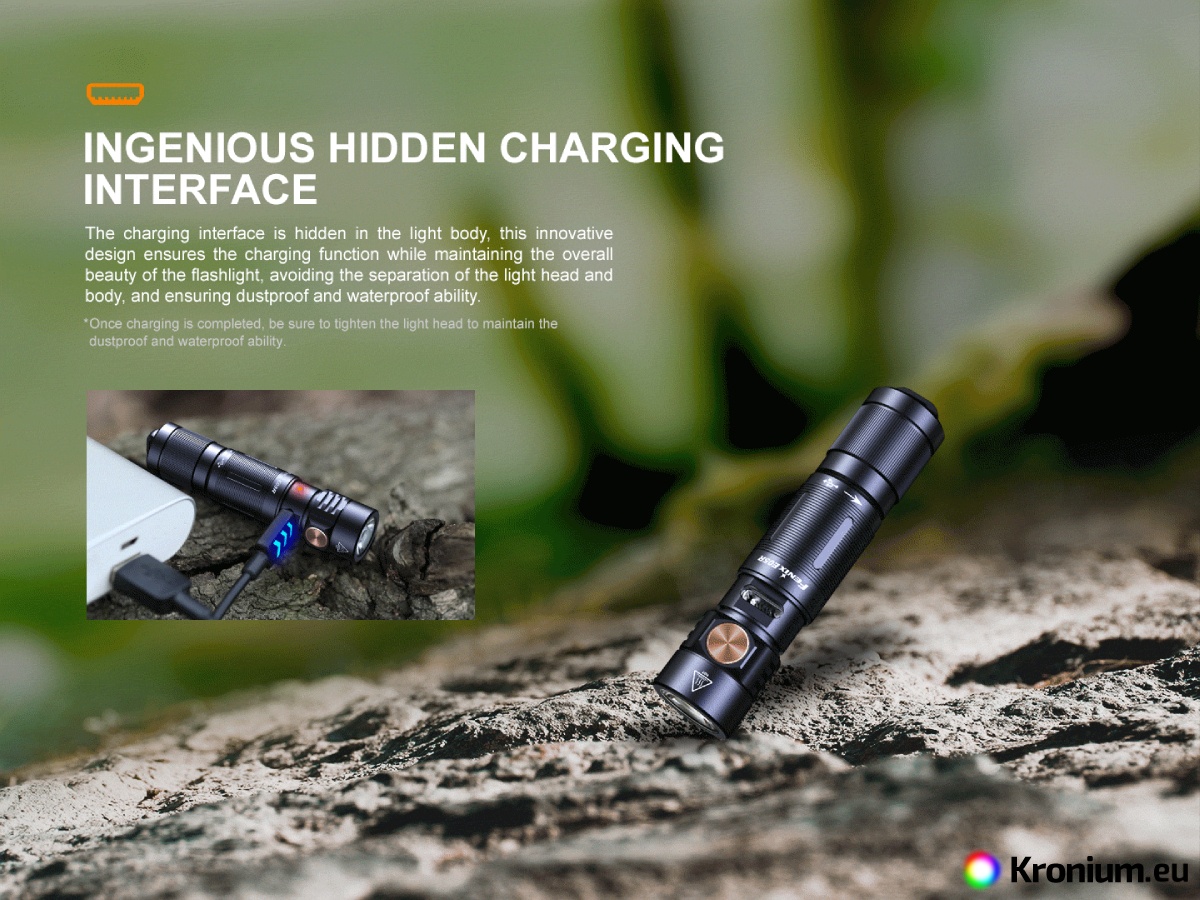

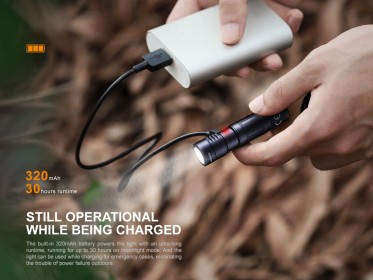

Screw off the waterproof nut that covers the micro-USB connector. Then plug the charging cable into the USB connector of your computer, mains adapter or car. During charging, the indicator LED on the flashlight glows red, and when fully charged, it glows green. The standard charging time for a fully discharged flashlight is 1 hour.

Warning

• Do not disassemble the sealed parts yourself, it will violate the warranty.
• If the flashlight flickers or does not light up, it may be due to one of the following reasons:
  • The battery is dead, charge it.

Warranty

Warranty two years.
