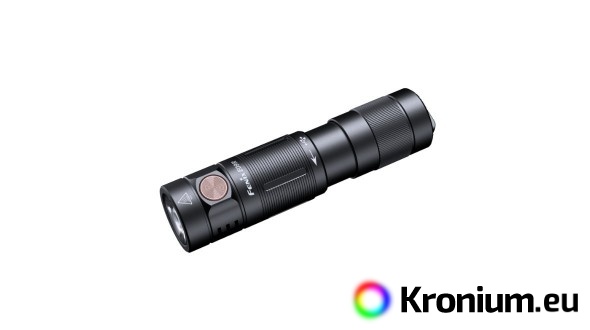

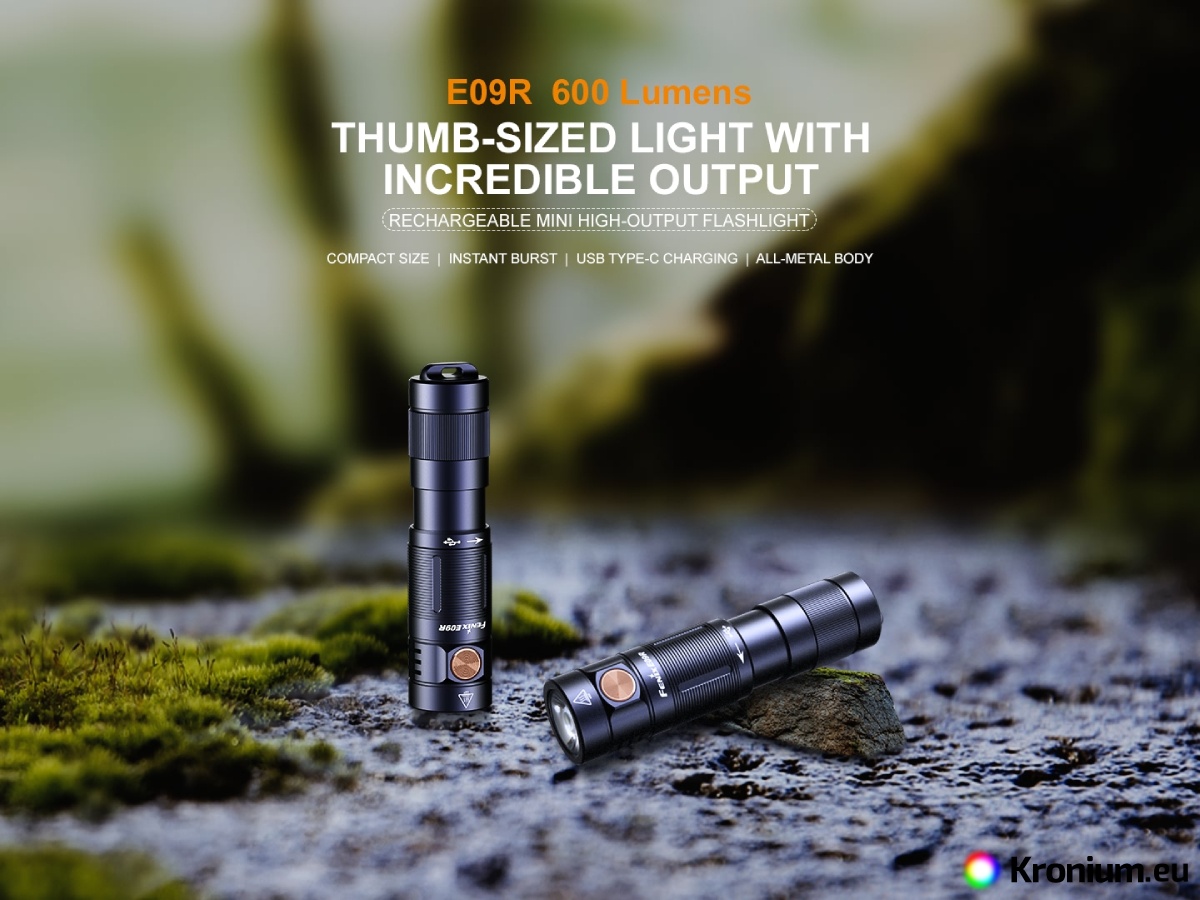

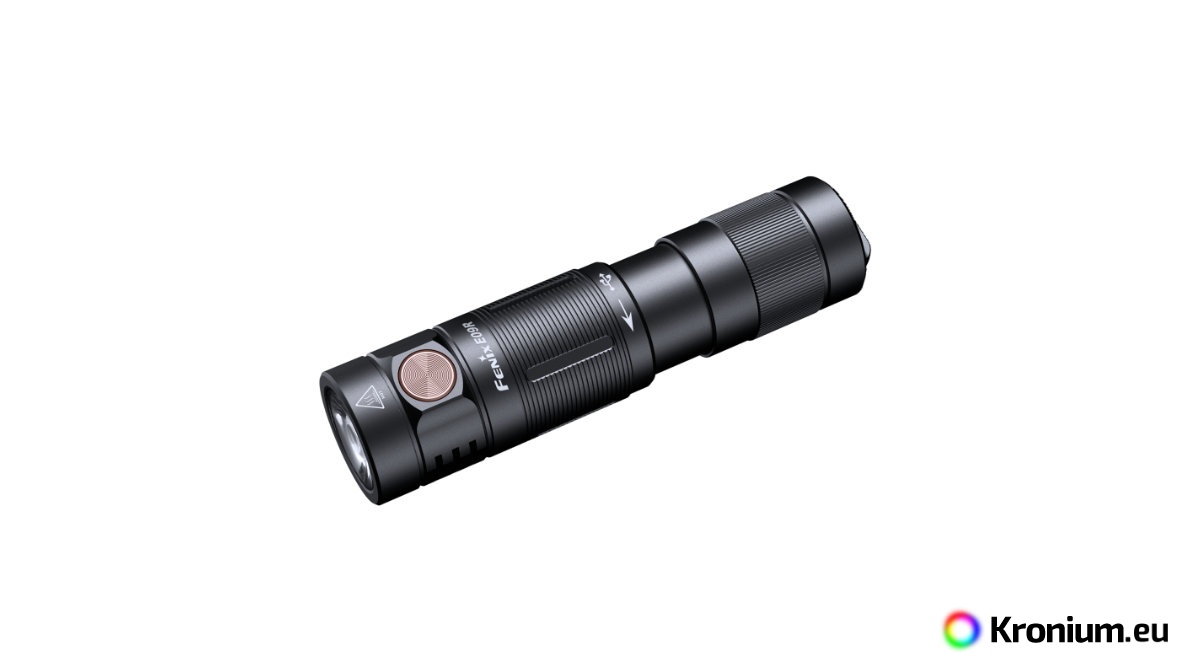

The Fenix E09R charging flashlight offers a high light output of up to 600 lumens (ANSI) in BURST mode, despite its minimal dimensions and low weight of 45 grams. The light source is a powerful LED Luminus SST-20, which can be used to light up to a distance of 124 meters. It has five light modes, the lowest of which lasts for 70 hours. It is powered by a built-in Li-pol battery with a capacity of 800 mAh, which is charged via a modern USB-C connector directly in the flashlight. It goes without saying that it has a high quality design, durability and waterproofness according to the IP68 standard. The flashlight is destined by its characteristics to serve as a small and at the same time powerful lighting tool for every day. Clipped on your keys, in your pocket, purse or backpack, it certainly won't take up much space.
All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

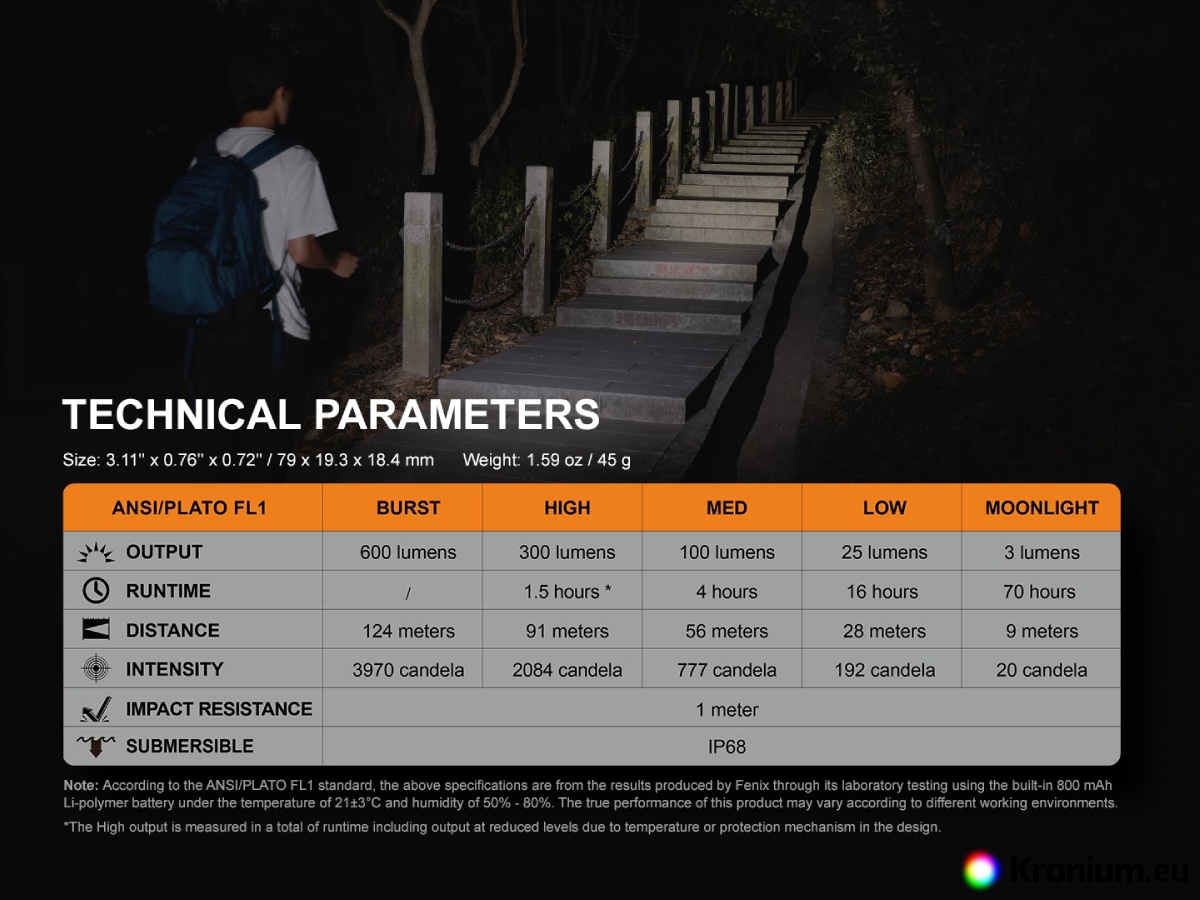

Fenix E09R flashlight specifications
- The powerful Luminus SST-20 LED with a 50,000 hour lifetime is used.
- Five power modes: BURST 600 lumens (for the time the button is pressed down) -> 300 lumens (1.5 hours) -> 100 lumens (4 hours) -> 25 lumens (16 hours) -> 3 lumens (70 hours).
- Powered by built-in Li-pol battery with 800 mAh capacity.
- Charges via USB-C connector.
- Charging time for a fully discharged battery is about 1 hour.
- Overheat protection.
- The flashlight has memory and always turns on in the last used mode (not valid for BURST mode).

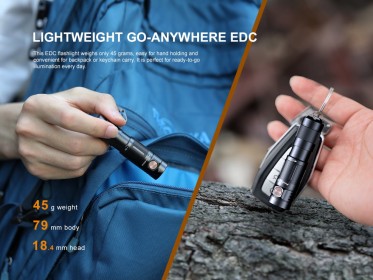

- Dimensions 7.9 cm (length) x 1.93 cm (head) x 1.84 cm (body).
- Weight 45 grams.
- Light cone with a range of 124 meters (3970 cd).

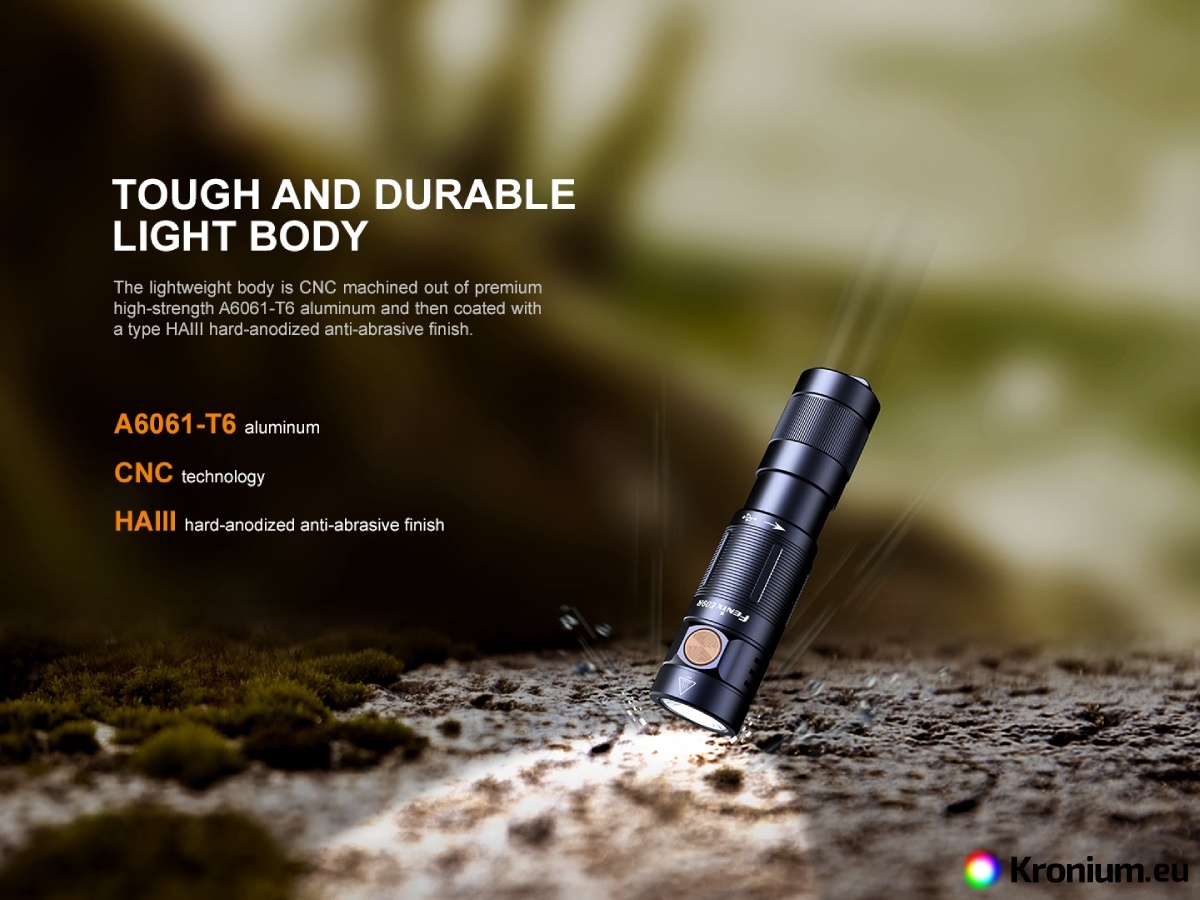

- Made of aerospace-grade hardened aluminum. Durable surface - Type III hard anodized.
- Shock resistant to drops from 1 meter.

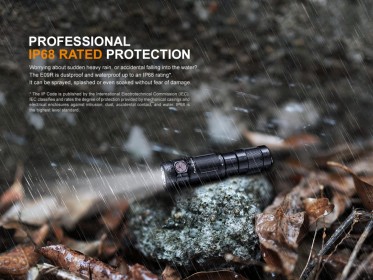

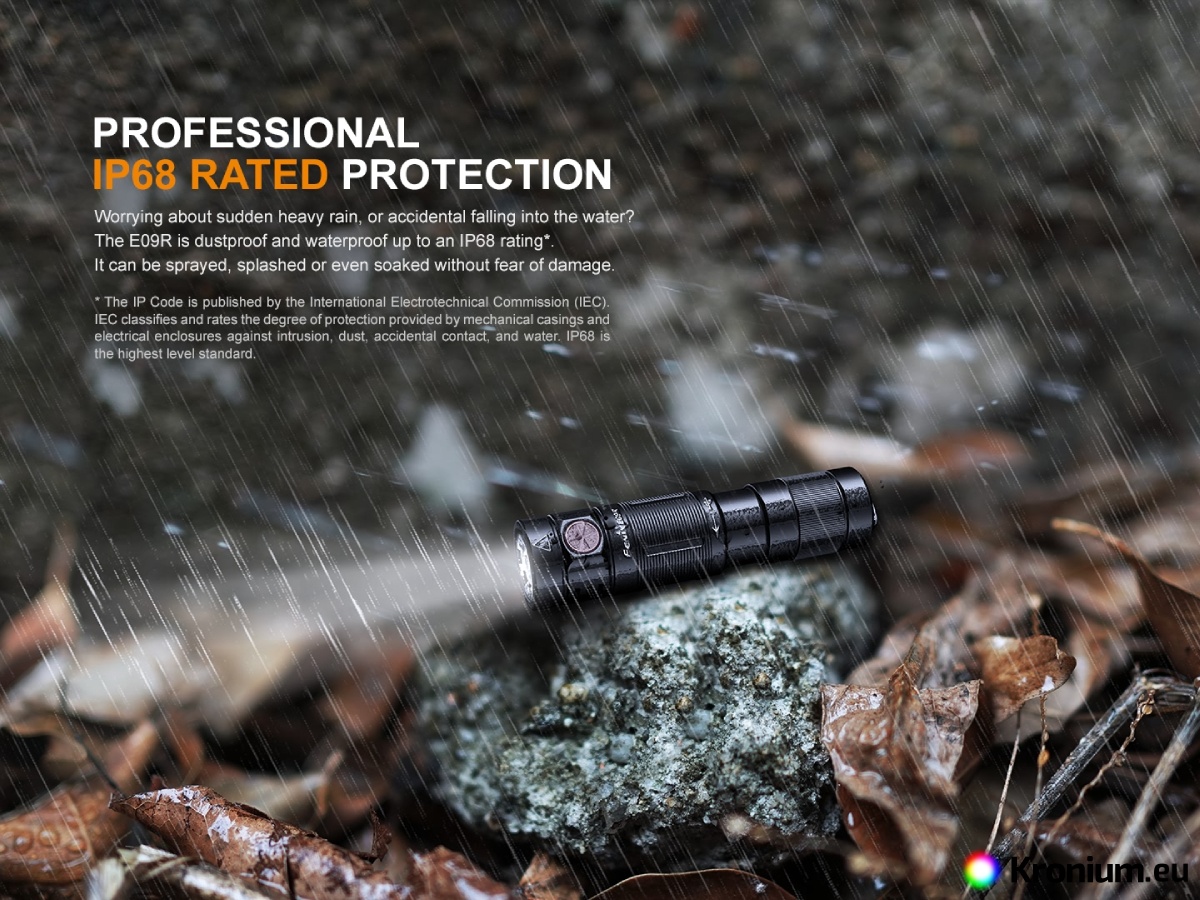

- Waterproof and dustproof to IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).

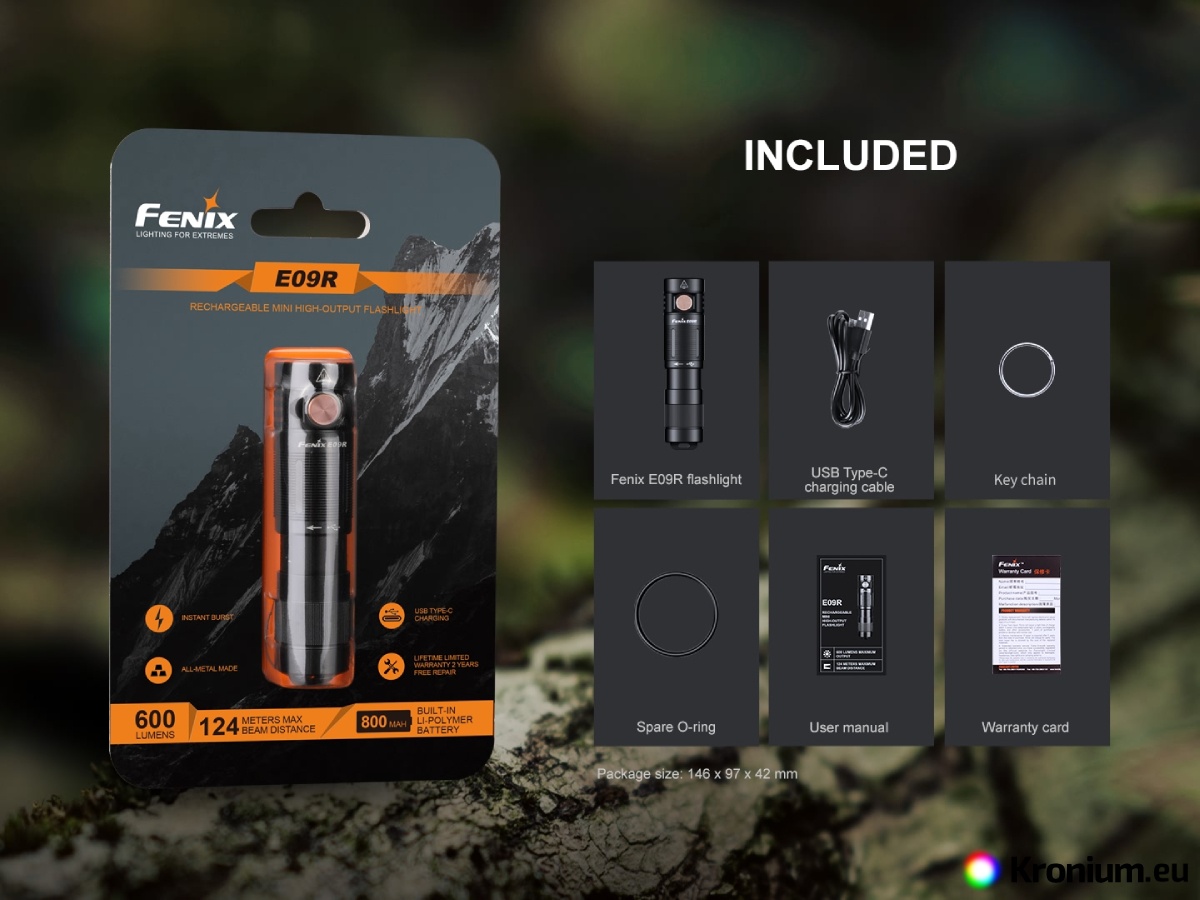

- Includes metal ring for hanging on keys, replacement o-ring, USB-C cable.
Using of the Fenix E09R flashlight

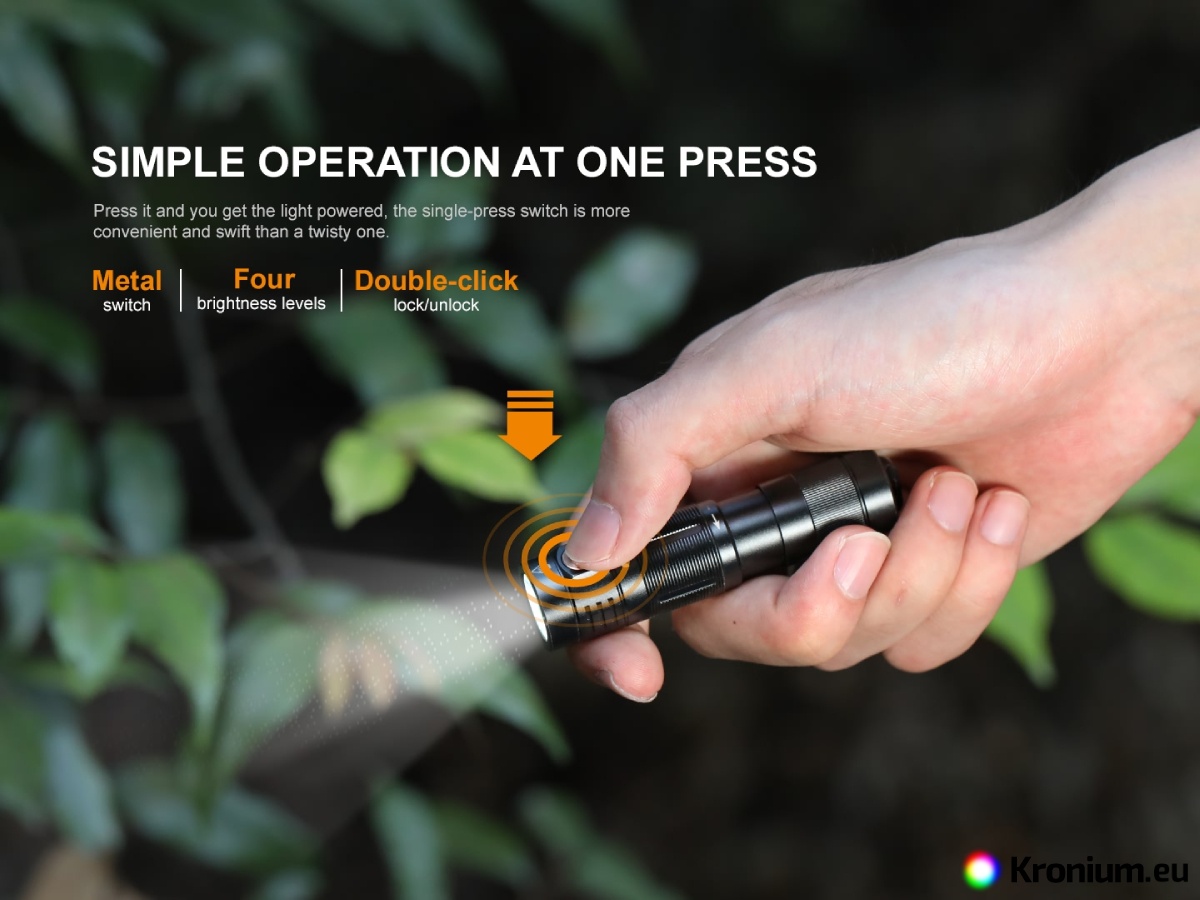

Turn on or off the flashlight by holding the button down for 0.5 seconds. Further short presses cycle through the light modes 3 - 25 - 100 - 300 lumens. To activate the 600 lumen BURST mode, hold the button for more than 1.2 seconds. When the button is released, the flashlight returns to the last used mode.
The control button can be locked to prevent spontaneous activation, e.g. when transported in luggage. Press the control button twice quickly (within 0.5 seconds). The flashlight will flash twice in the lowest light mode to indicate a lock. To unlock, quickly press the button twice again, the flashlight will flash twice again and it is unlocked.
Overheat Protection - Due to the miniature size of the flashlight and the high power in highest modes, the flashlight will automatically reduce brightness once it exceeds 60°C. Once the temperature is lowered, the highest modes can be reactivated.
The flashlight has a memory and will always turn on in the last used mode (not valid for BURST mode).
Charging

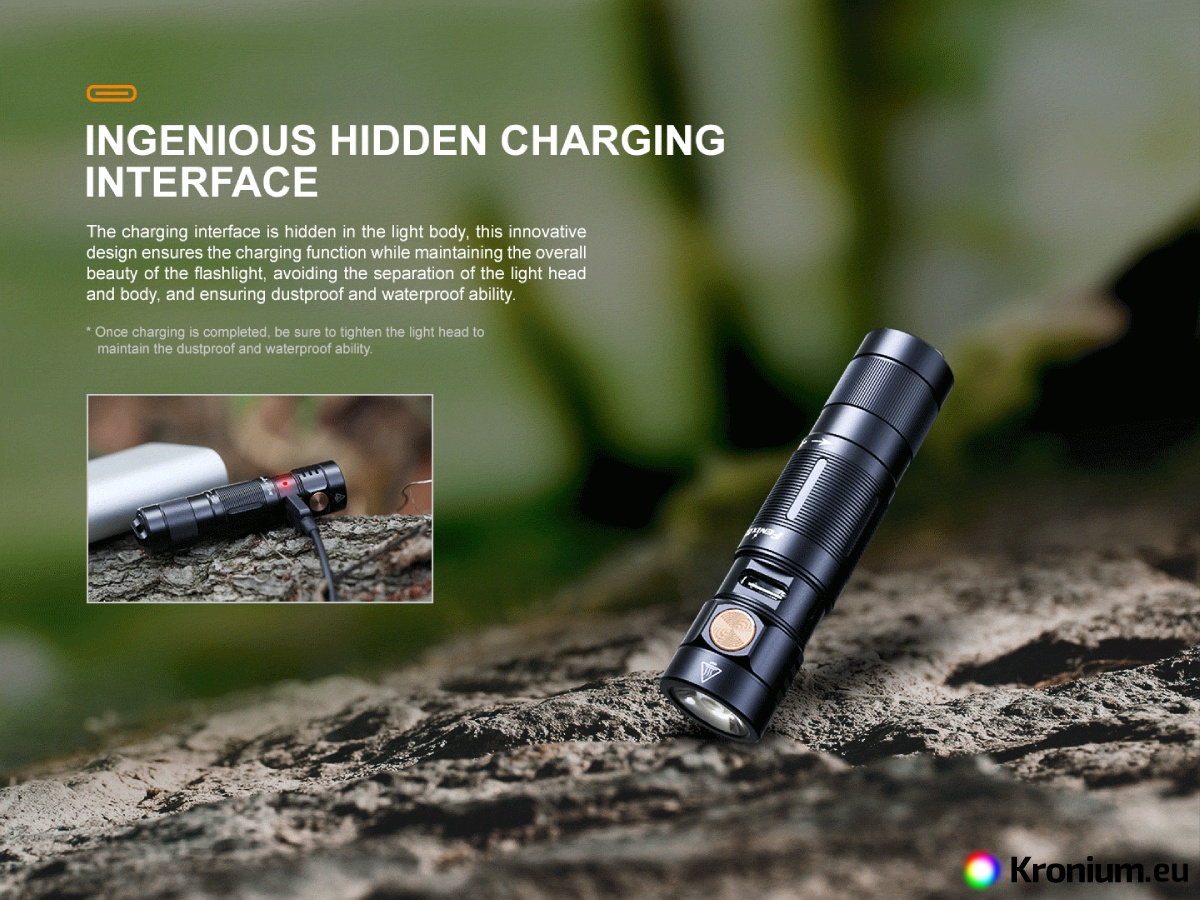

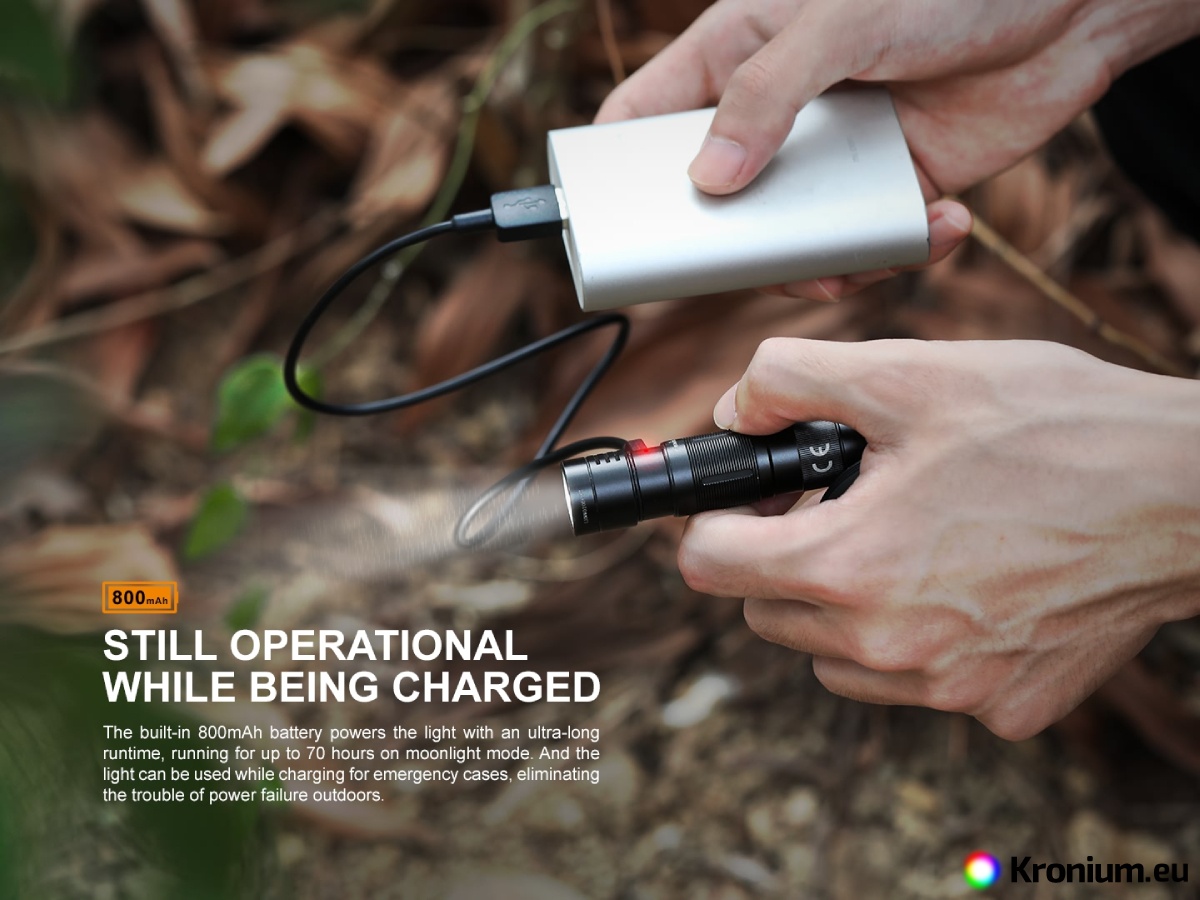

Screw off the waterproof nut that covers the USB-C connector. Then plug the USB-C charging cable into the USB connector of your computer, USB AC adapter or car. During charging, the indicator LED on the flashlight glows red, and when fully charged, it glows green. The standard full charge time is 1 hour.
Warning
- Do not disassemble the sealed parts yourself, it will violate the warranty.
- If the flashlight flickers or does not light up, it may be due to one of the following reasons:
- The battery is dead, charge it.
Warranty
Warranty two years.
