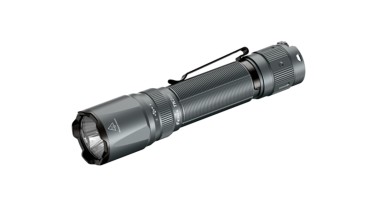

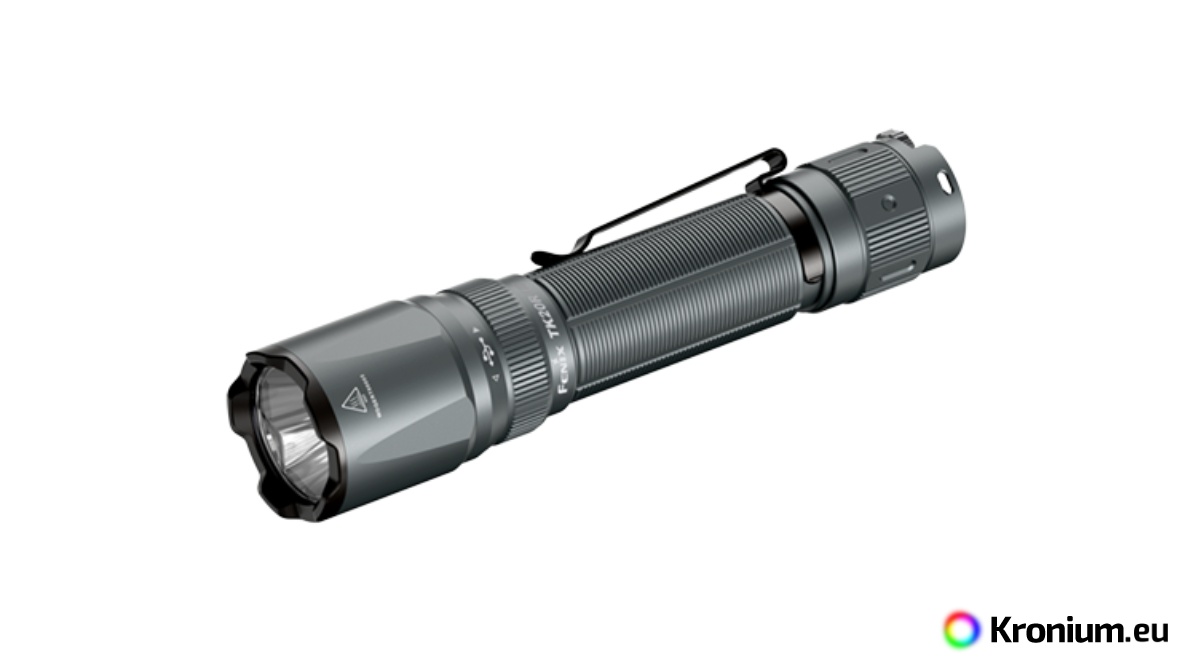

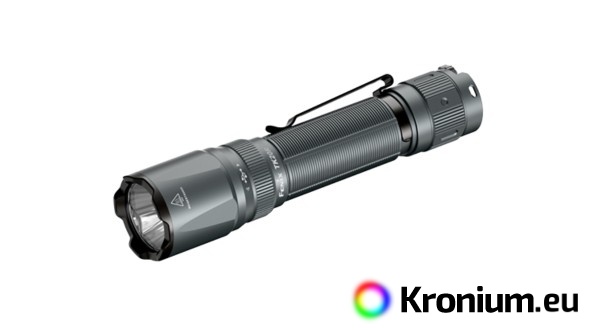

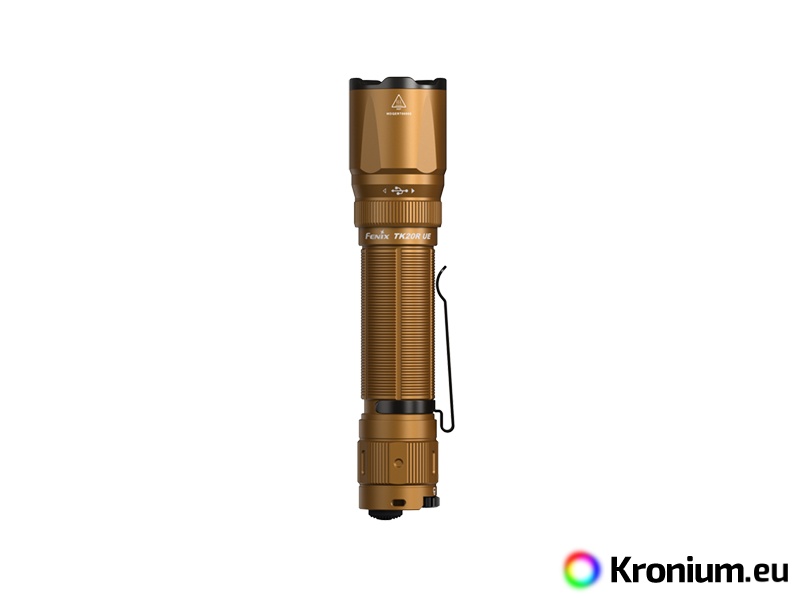

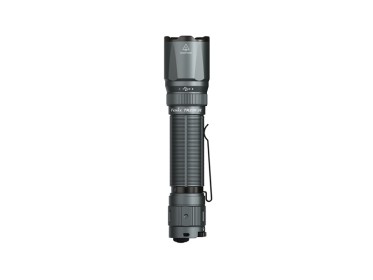

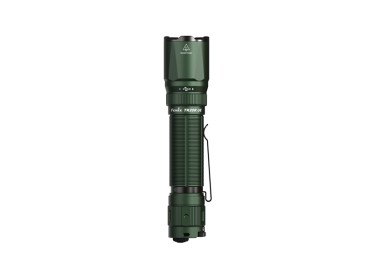

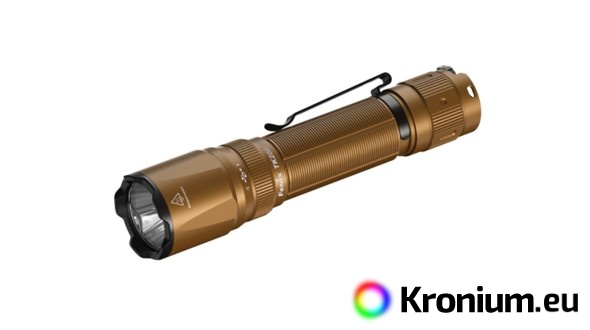

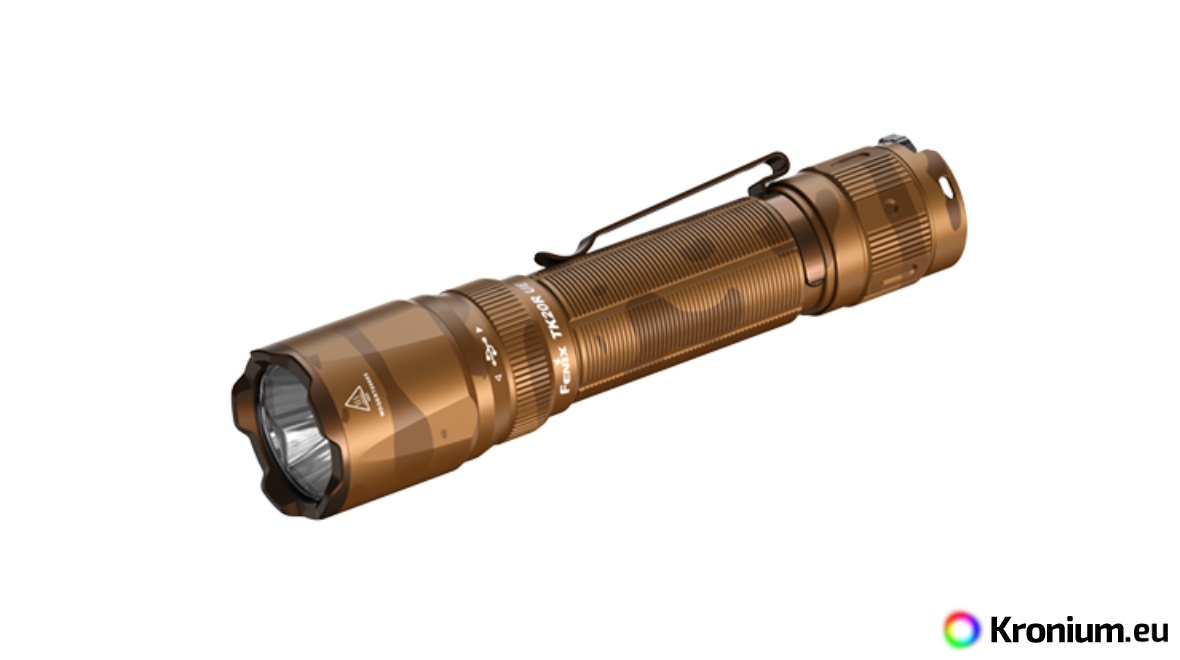

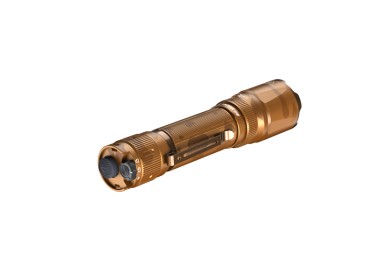

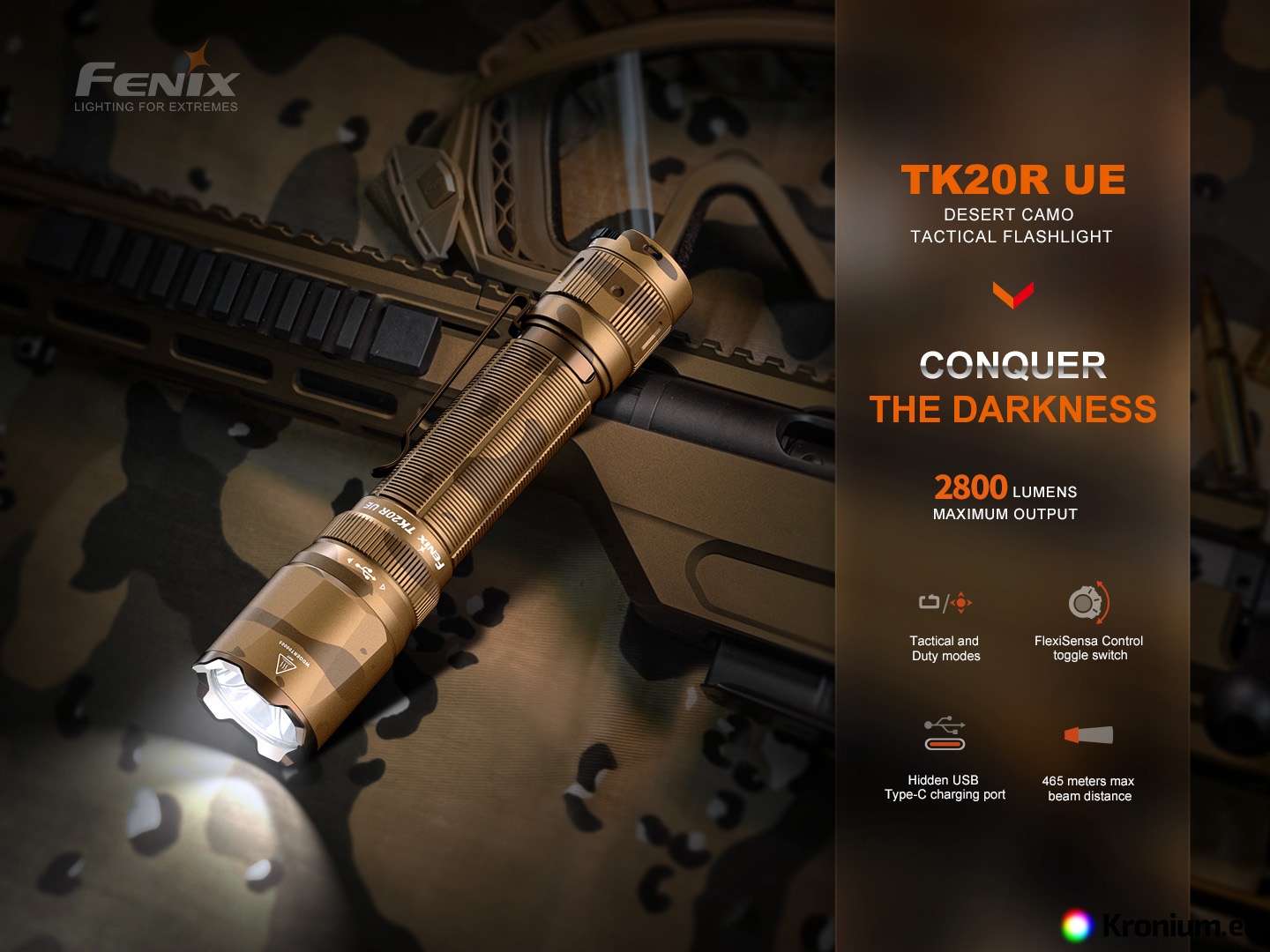

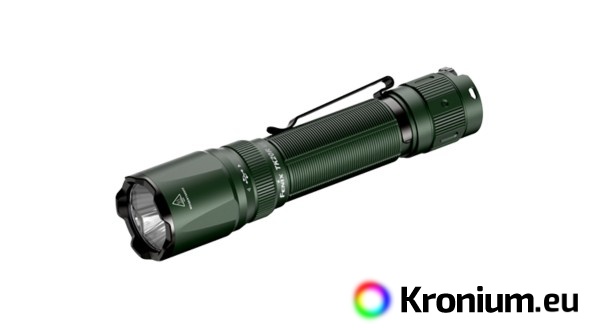

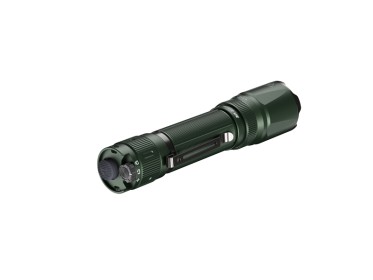

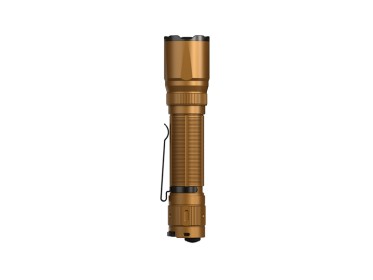

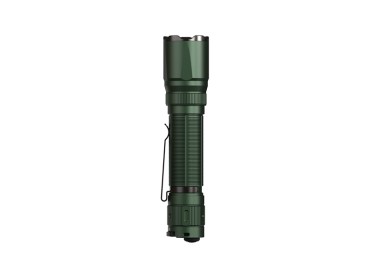

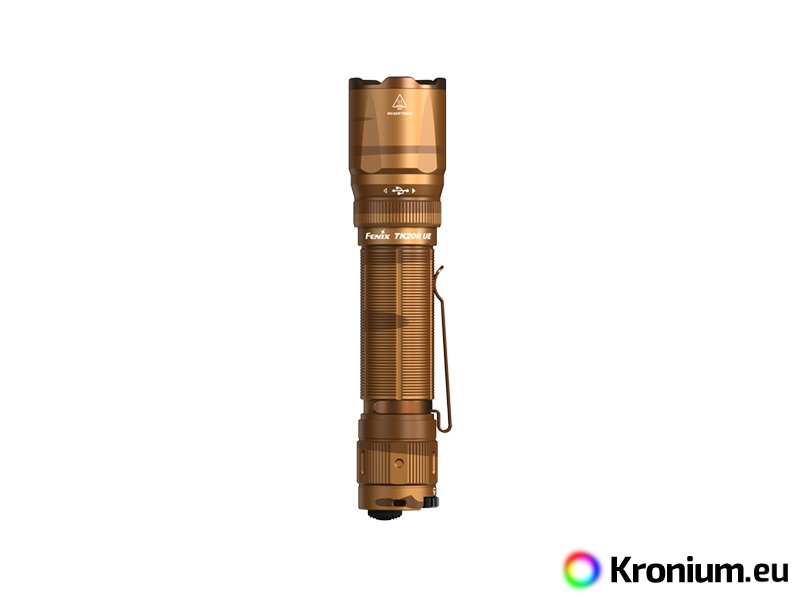

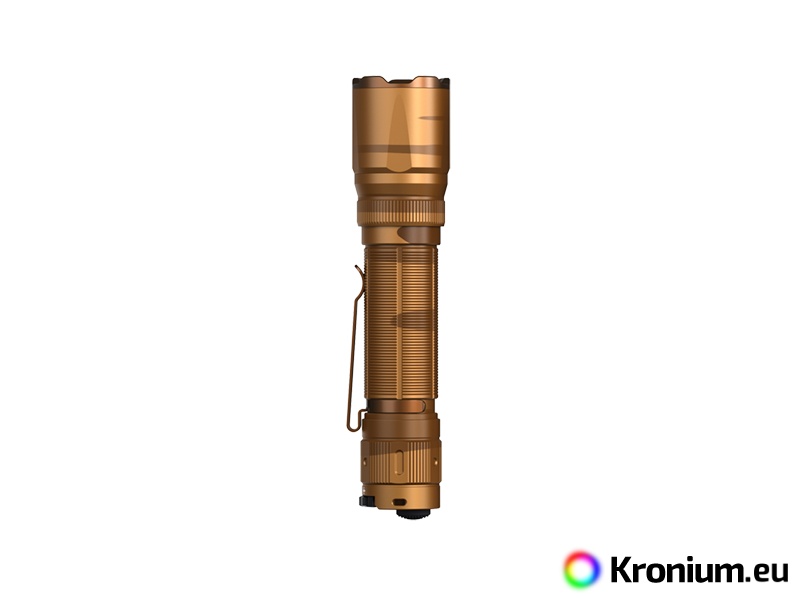

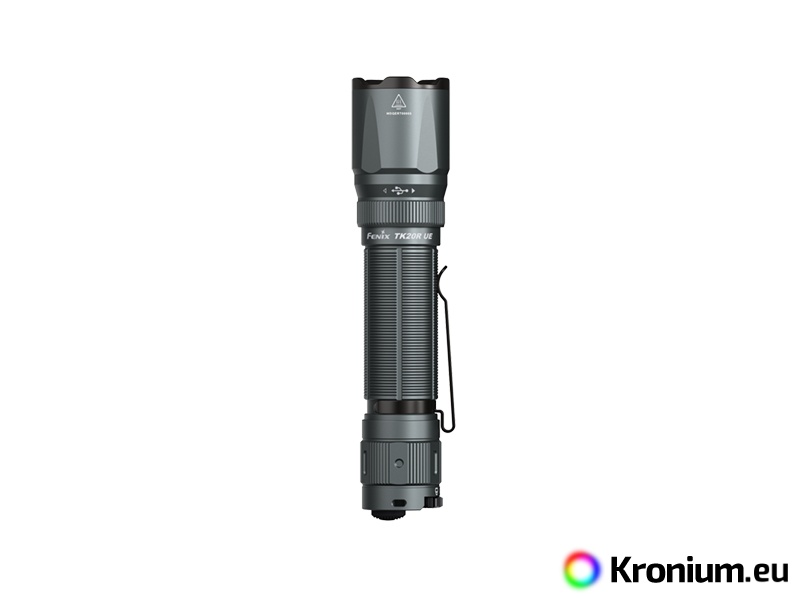

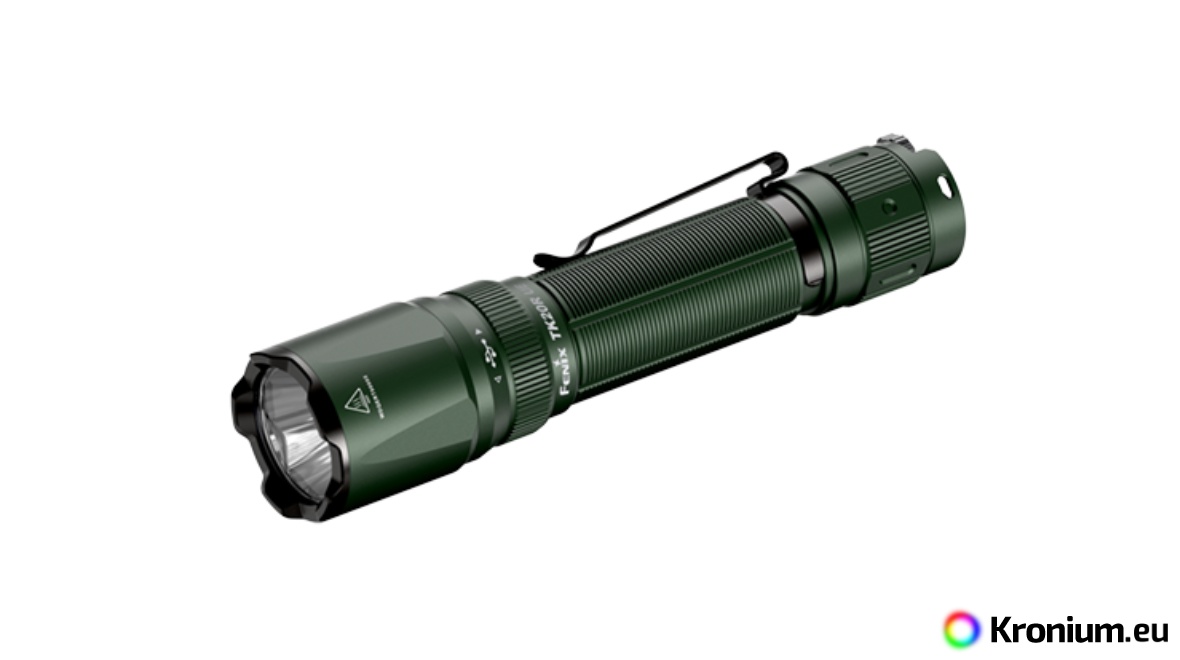

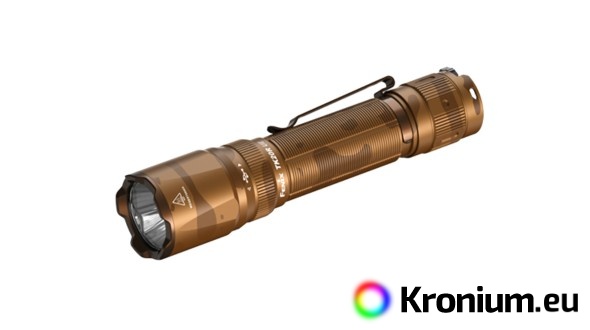

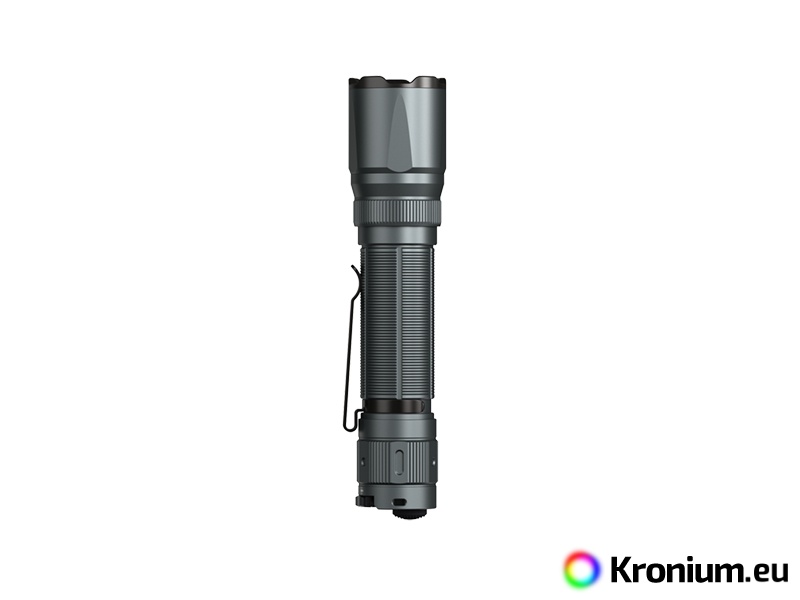

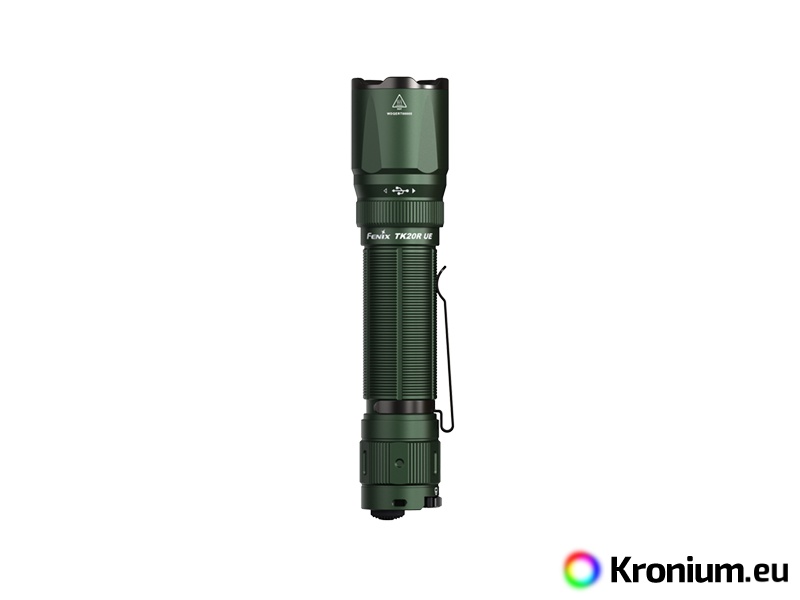

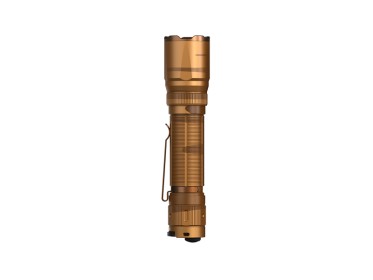

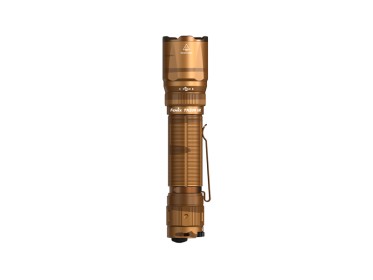

The Fenix TK20R UE tactical rechargeable flashlight offers a light output of up to 2800 lumens (ANSI). It is equipped with a top-of-the-line LED Luminus SFT-70, which combines with a smooth reflector to create a well-focused light cone with an extraordinary throw of 465 meters. Included in the package is a 21700 Li-ion battery with 5000 mAh capacity that charges via a USB-C connector directly in the flashlight. The charging socket is covered by a screw nut, so it is perfectly protected against water and dirt. There is a tactical switch on the end of the flashlight and a FlexiSensa control toggle lever, which can be used to lock the flashlight or select one of the two modes of use. In Tactical mode, the flashlight can be switched to 2800 lumens or to strobe mode with variable frequency. In Duty mode, you can choose between four light modes with a 40 hour runtime.This tactical flashlight is as tough as a tank thanks to its solid design, while maintaining a compact size. The rugged design allows the flashlight to be used on long guns, making it suitable for professionals, armed forces and hunting.

All parameters of the police flashlight (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

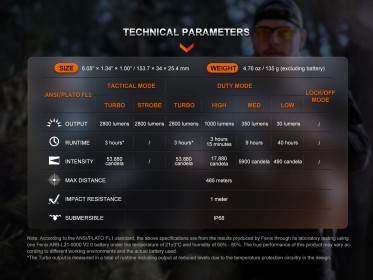

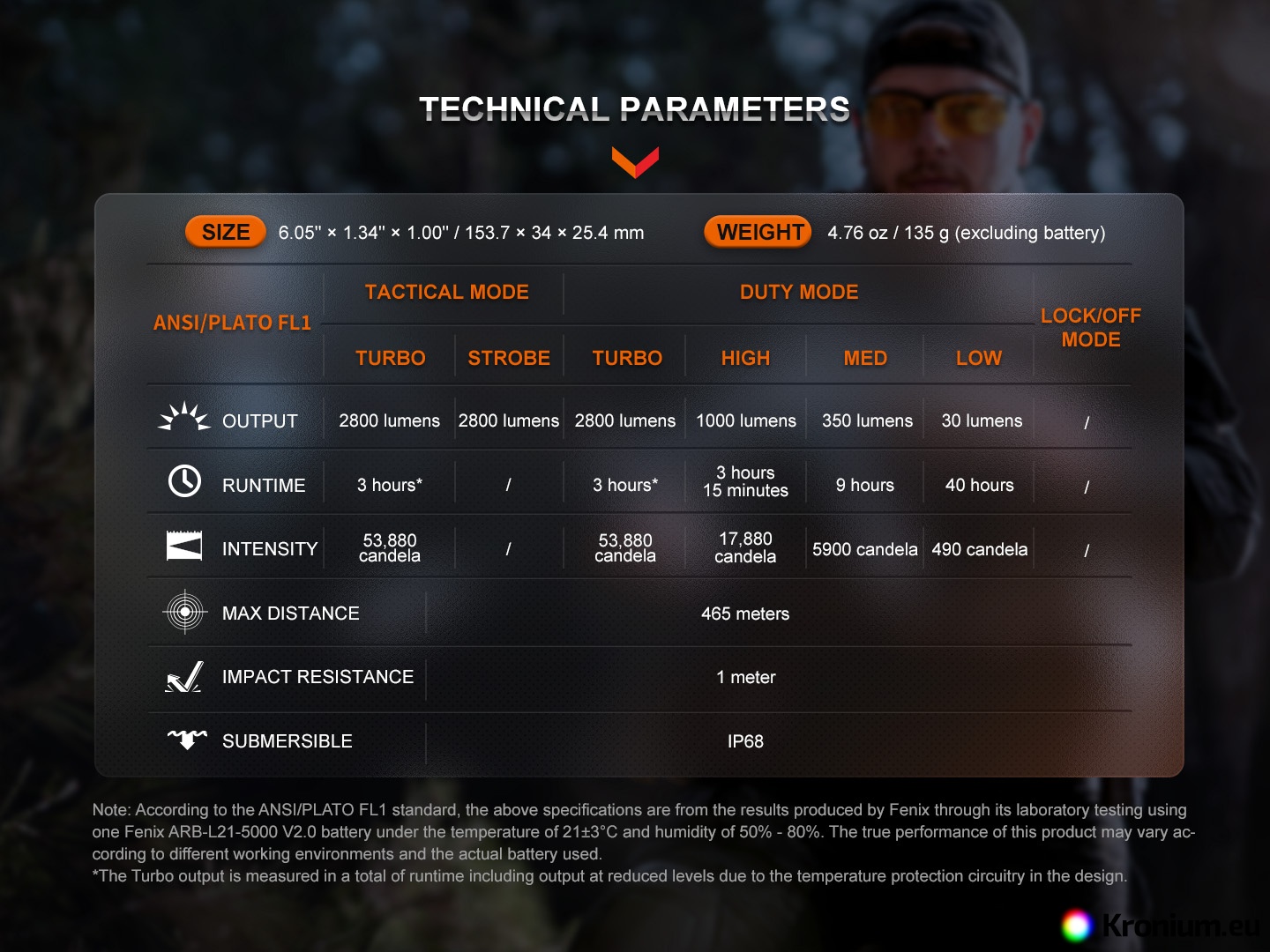

Fenix TK20R UE tactical flashlight specifications

• Powerful Luminus SFT-70 LED with 50,000 hours lifetime is used.
• Two lighting modes:
  • Tactical mode: 2800 lumens (3 hours) -> strobe 2800 lumens.
  • Duty mode: 2800 lumens (3 hours) -> 1000 lumens (3.25 hours) -> 350 lumens (9 hours) -> 30 lumens (40 hours).
• Parabolic aluminum reflector for a perfect light beam with a range of up to 465 meters (53880 cd).

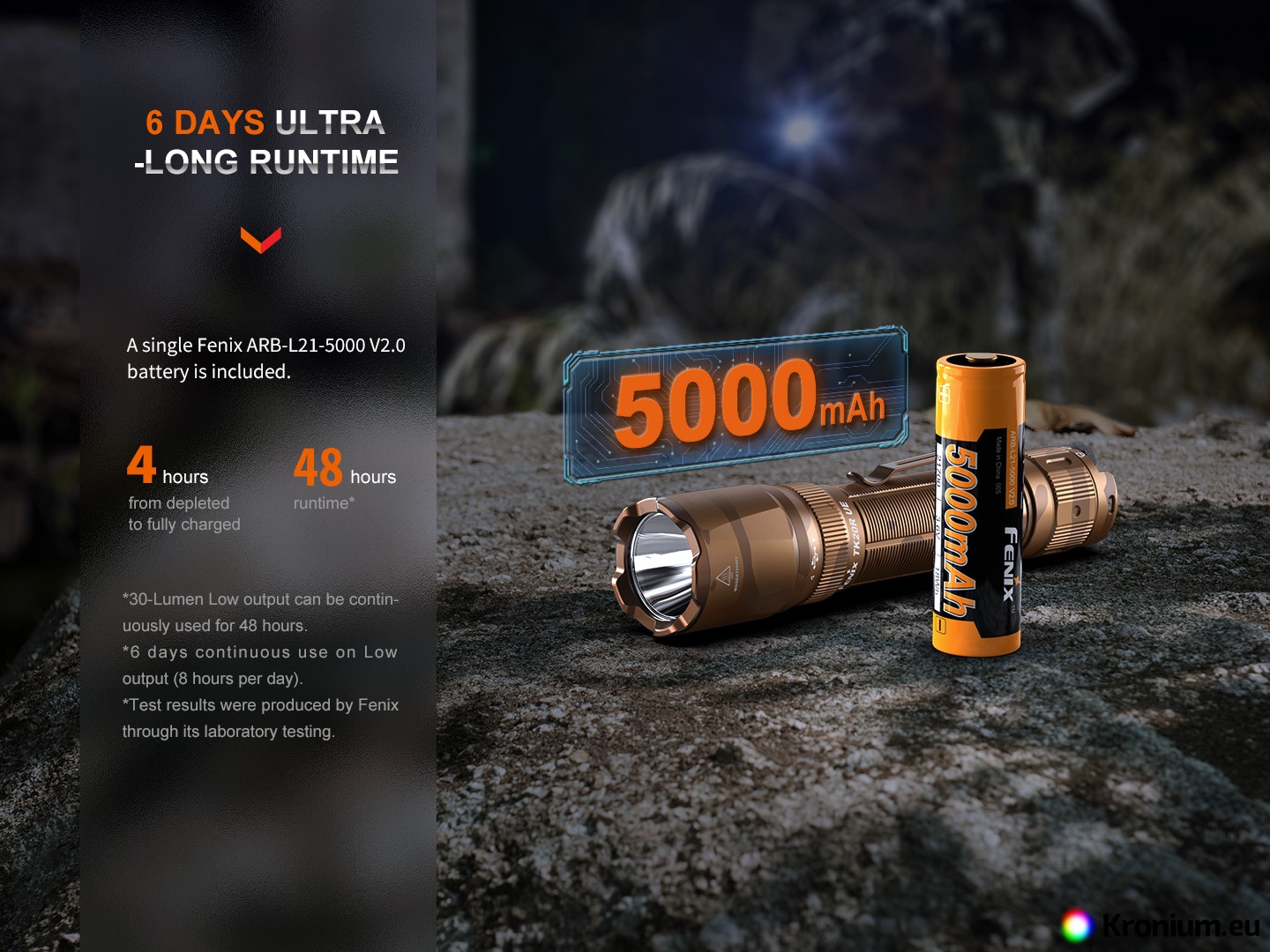

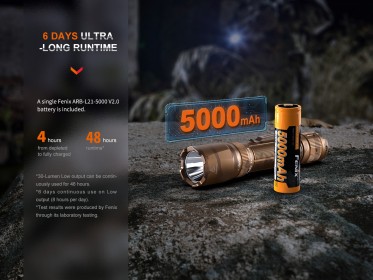

• Uses a single rechargeable high-capacity Li-ion 21700 battery with 5000 mAh capacity, which is included for power.
• Charges via a sealed USB-C connector with battery charge status indication.
• Electronics with digital constant power control and overheat protection.
• The flashlight has memory and always turns on in the last set mode (also applies to strobe in tactical mode).
• Dimensions 15.37 cm (length) x 3.4 cm (head diameter) x 2.54 cm (body diameter).
• Weight 207 grams including battery.
• Body of the flashlight made of aerospace hardened aluminum, the head of the flashlight is completed with striking rim in black color.
• Battery housed between two springs - easily bears recoil when used on a weapon.
• Resistant to falls from 1 meter height.
• Highly wear-resistant, light-weight threads.
• Hard scratch resistant surface - Type III hard anodized.
• Waterproof and dustproof to IP68 standard (tested underwater at 2 meters depth for 4 hours).
• Hardened ultra clear glass lens with anti-reflective surface.

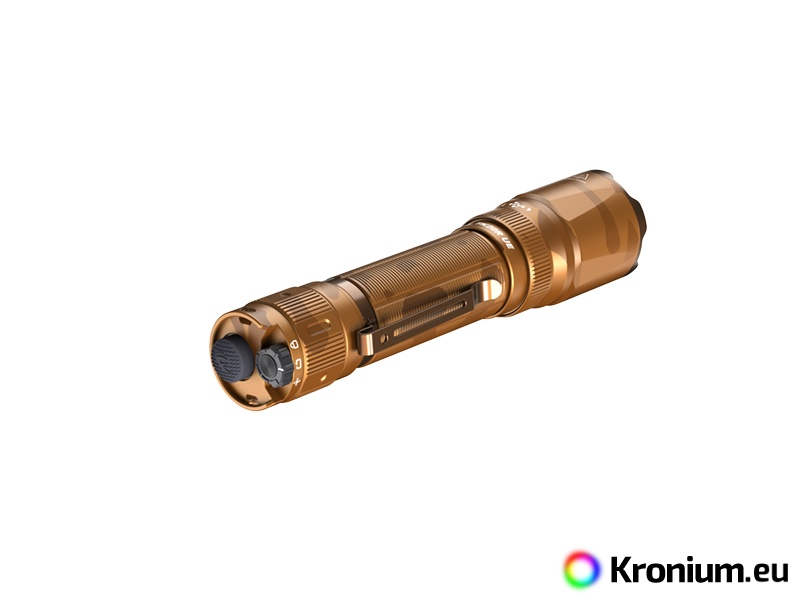

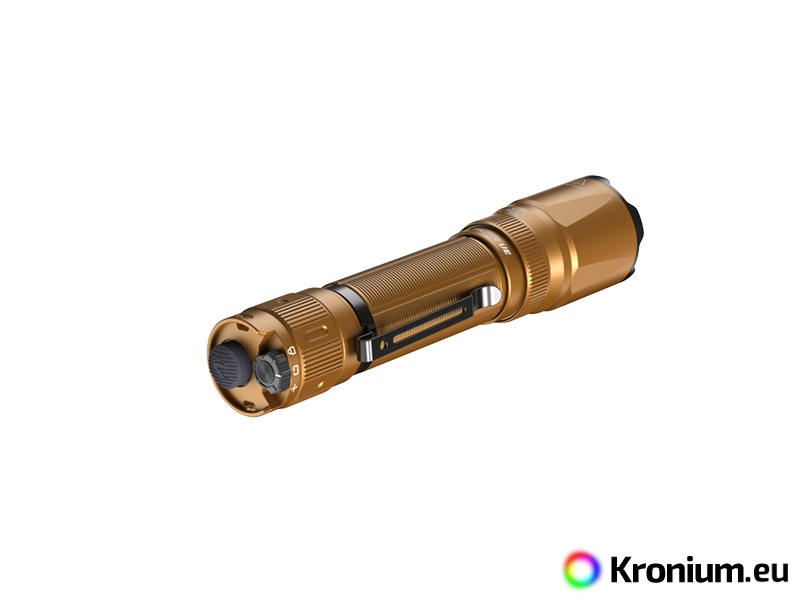

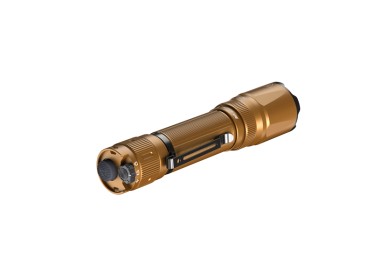

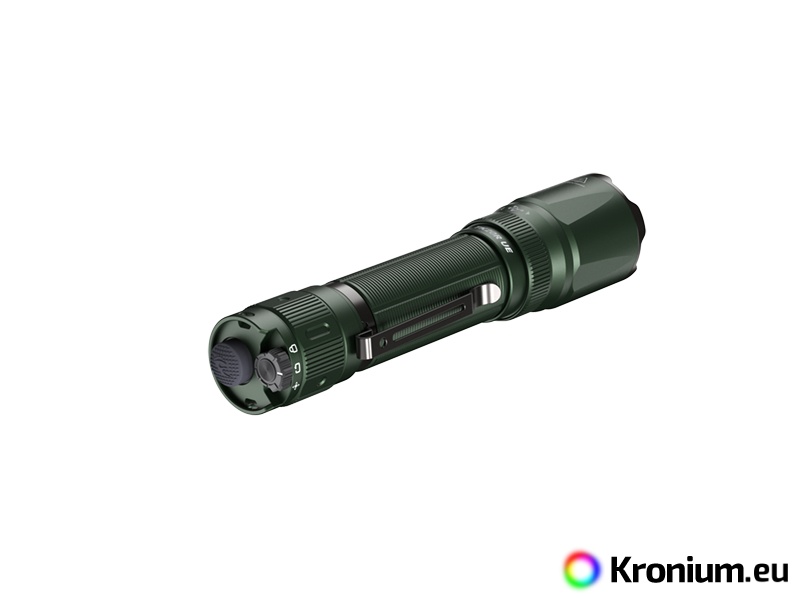

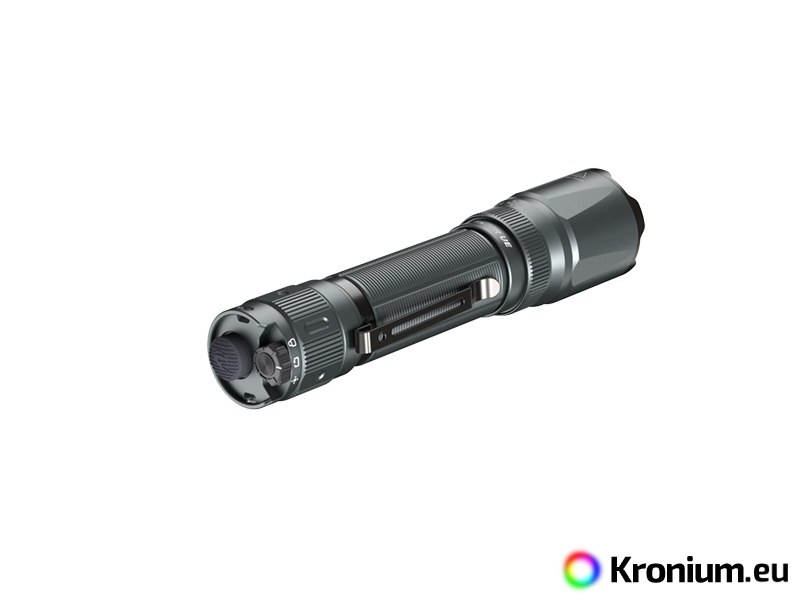

• Tactical FlexiSensa control switch at the end of the flashlight for switching modes and locking the flashlight.
• Solid clip for safe and easy carrying of the flashlight (removable).
• The flashlight does not slip in the hand due to its design and does not twist when placed.

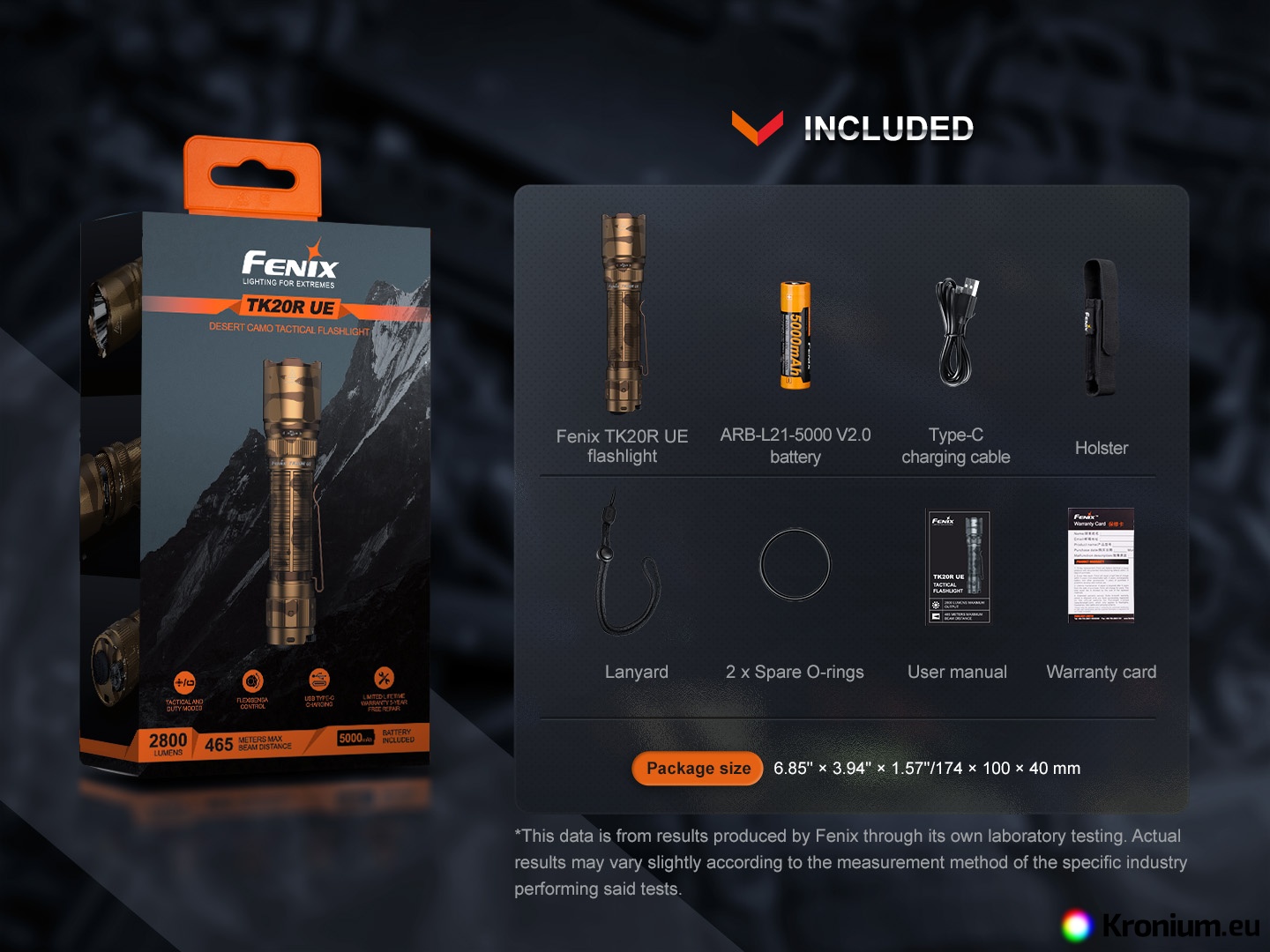

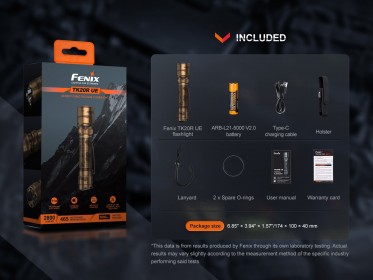

• The flashlight comes with a wrist lanyard, belt pouch, spare o-ring, USB-C charging cable, Fenix ARB-L21-5000 V2.0 battery.

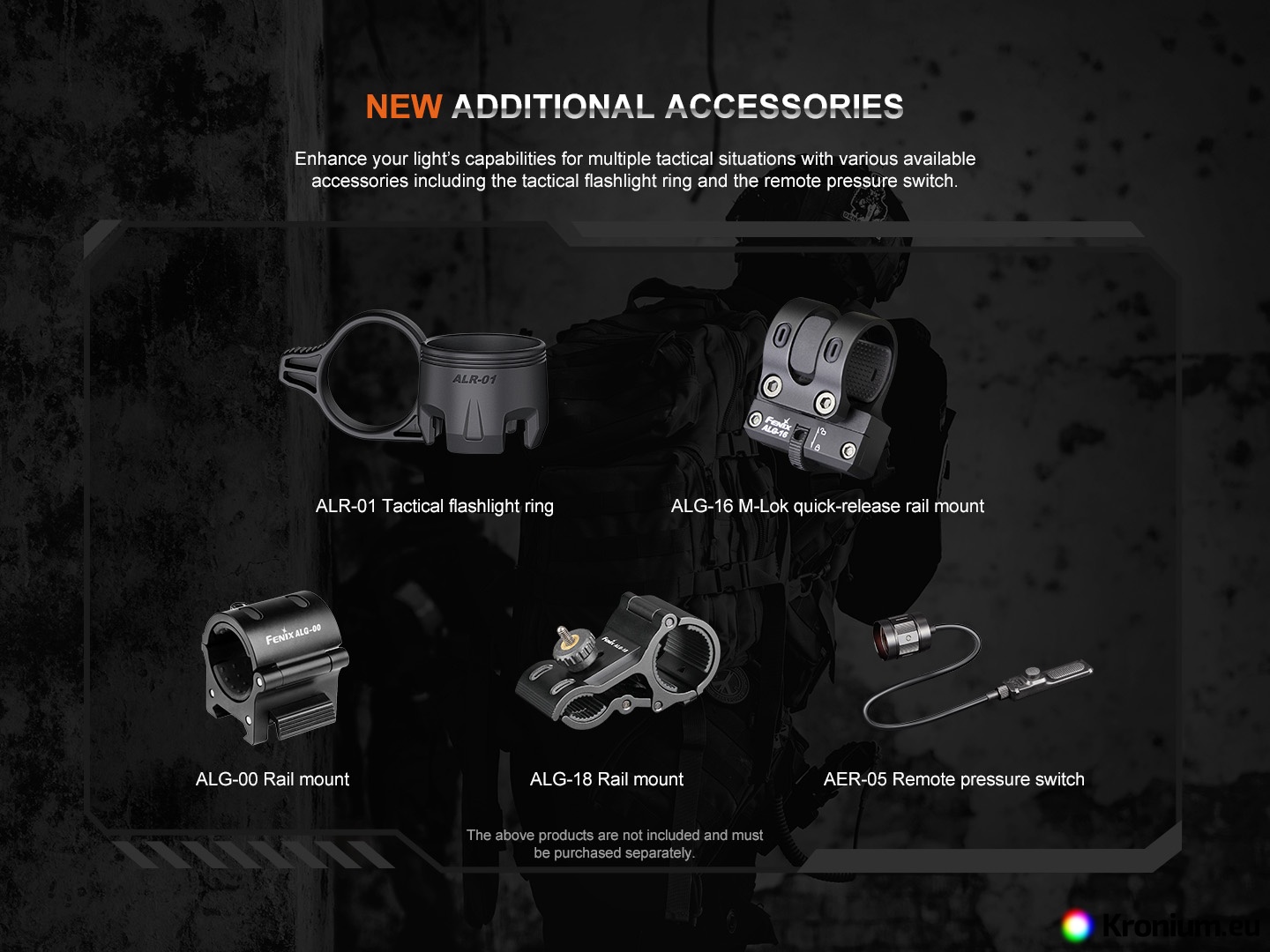

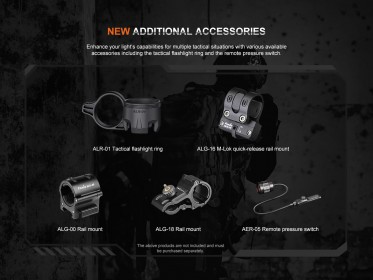

• Optional accessories available: AER-05 cable switch, transport cone AOT-M, red filter AOF-M and diffuser AOD-M.
• The following accessories are also compatible with the flashlight: Angle Bar Mount ALG-15, Angle Bar Mount ALG-00, Fenix ALG-16 M-Barrel Mount, Fenix ALG-18 Barrel Mount, metal magnetic barrel mount, plastic magnetic barrel mount, optical flashlight mount, metallic scope mount, Fenix ALD-05 strap for using the flashlight on a helmet, Bicycle mount FB-1, Fenix bike holder.

• The flashlight can also be purchased with USB mains adapter and USB car adapter.

Using the Fenix TK20R UE flashlight

From the factory, there may be an insulating cap inside the flashlight on the battery. Remove it from the battery pack before first use.

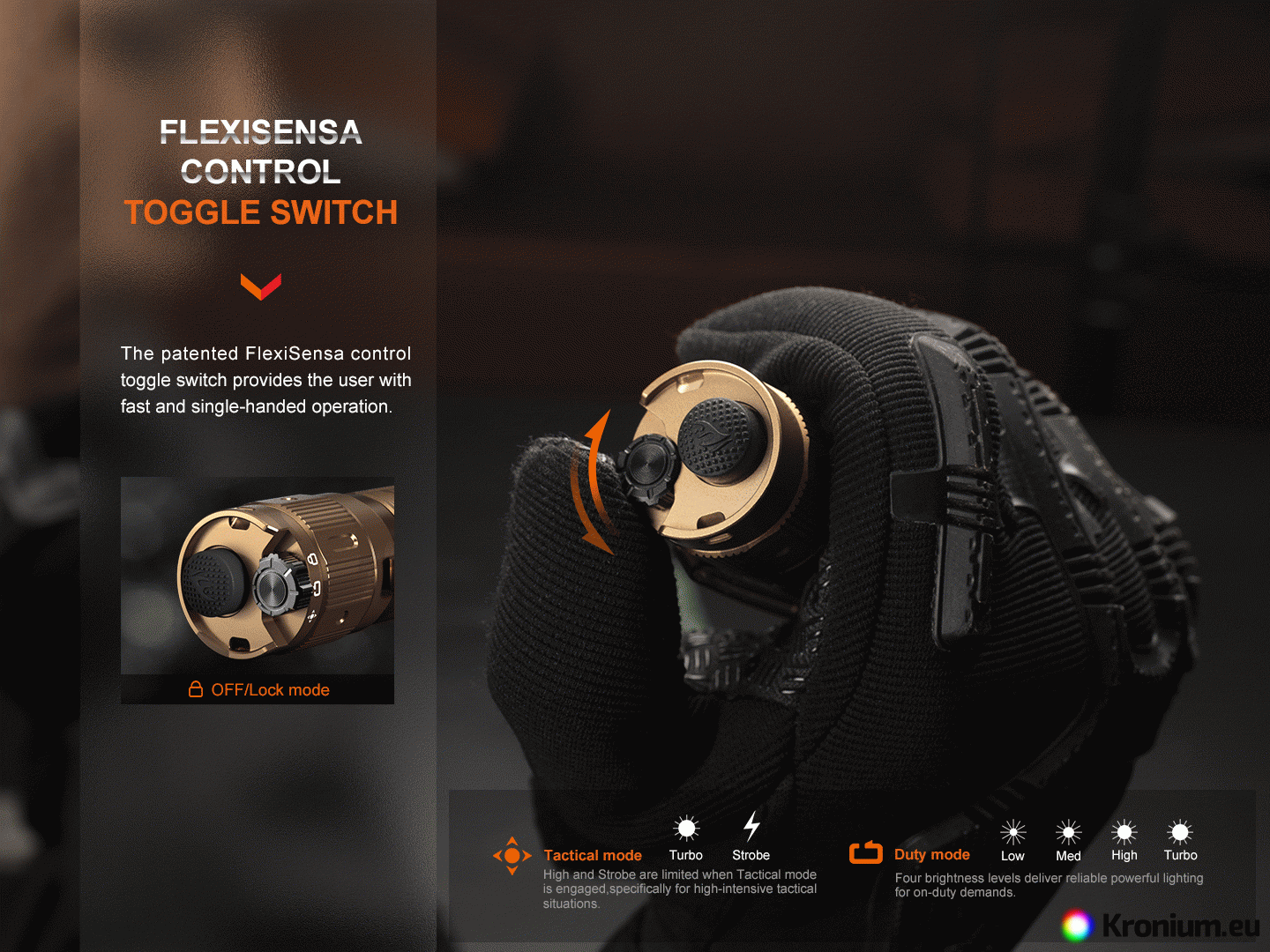

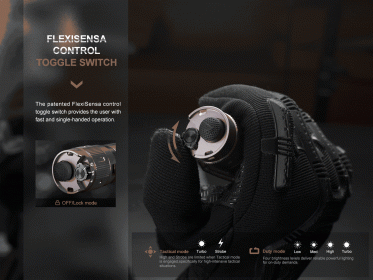

Press the tactical button on the end of the flashlight to turn it on, press lightly on the button for immediate activation. Use the FlexiSensa control toggle lever on the end of the flashlight to select between tactical and duty modes and to lock the flashlight.

Duty Mode - the flashlight turns on in the last selected lighting mode, the four power modes can be cycled by pressing the button.

Tactical Mode - the flashlight turns on in the last selected light mode, strobe and highest output of 2800 lumens are available. Press the button to switch between modes.

Lock - the third position on the rotary dial locks the flashlight and cannot be switched on - useful for example when transporting in luggage. The flashlight can be locked in the off and on state, locking also turns the flashlight off. Unlocking also switches the flashlight on in the last used mode of the respective mode.

Intelligent overheat protection - Due to the flashlight's huge 2800 lumens output, it does experience a temperature rise. If the temperature exceeds 60°C, an automatic power reduction occurs. Once the temperature drops below 60°C, the highest power output can be used again.

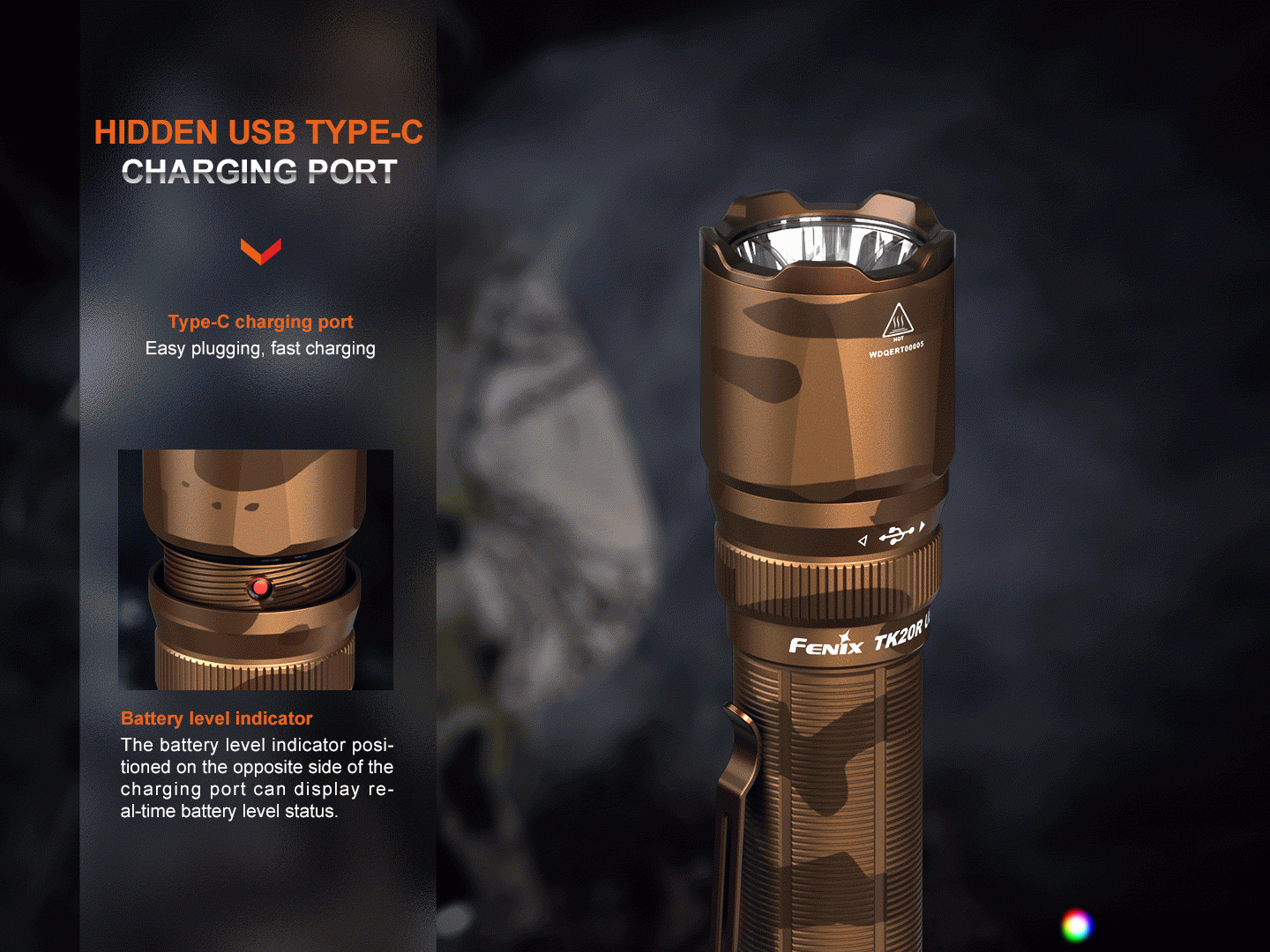

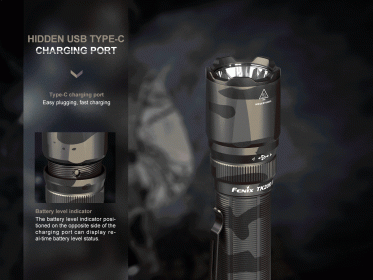

Battery charge status indication - The charge indicator is hidden under the protective nut of the charging connector for tactical reasons, so the nut must be unscrewed to check it. The flashlight always indicates the battery charge status three seconds after switching on. Green indicates a sufficient state of charge (100% - 85%), green flashing (85% - 50%), steady red (50% - 25%), and flashing red indicates a critically low battery (25% - 1%). If the battery is low, the flashlight will automatically switch to lower power modes, then flash 3 times every five minutes in the lowest mode.

Charging the flashlight - Unscrew the protective nut under the head of the flashlight and use the included USB-C cable to plug it into a computer, network USB adapter or USB car adapter (not included). Alternatively, any mobile phone charger with a USB-C connector can be used for charging. During charging, the indicator LED opposite the charging connector glows red, after a full charge it glows green. Charging a fully discharged battery takes about 3.5 hours. The Li-ion battery used does not suffer from a memory effect, so the flashlight can be recharged at any time. The flashlight cannot be switched on while charging.

Warning

• Use only high-quality 21700 Li-ion batteries to prevent damage to the flashlight, for example due to leakage of substances from the battery.
• Insert the batteries with the positive pole towards the flashlight head.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The battery is almost dead – charge it.
  • The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.
  • The back of the flashlight is loose, tighten it.

Warranty

Five years warranty on the flashlight, two years warranty on the battery.
