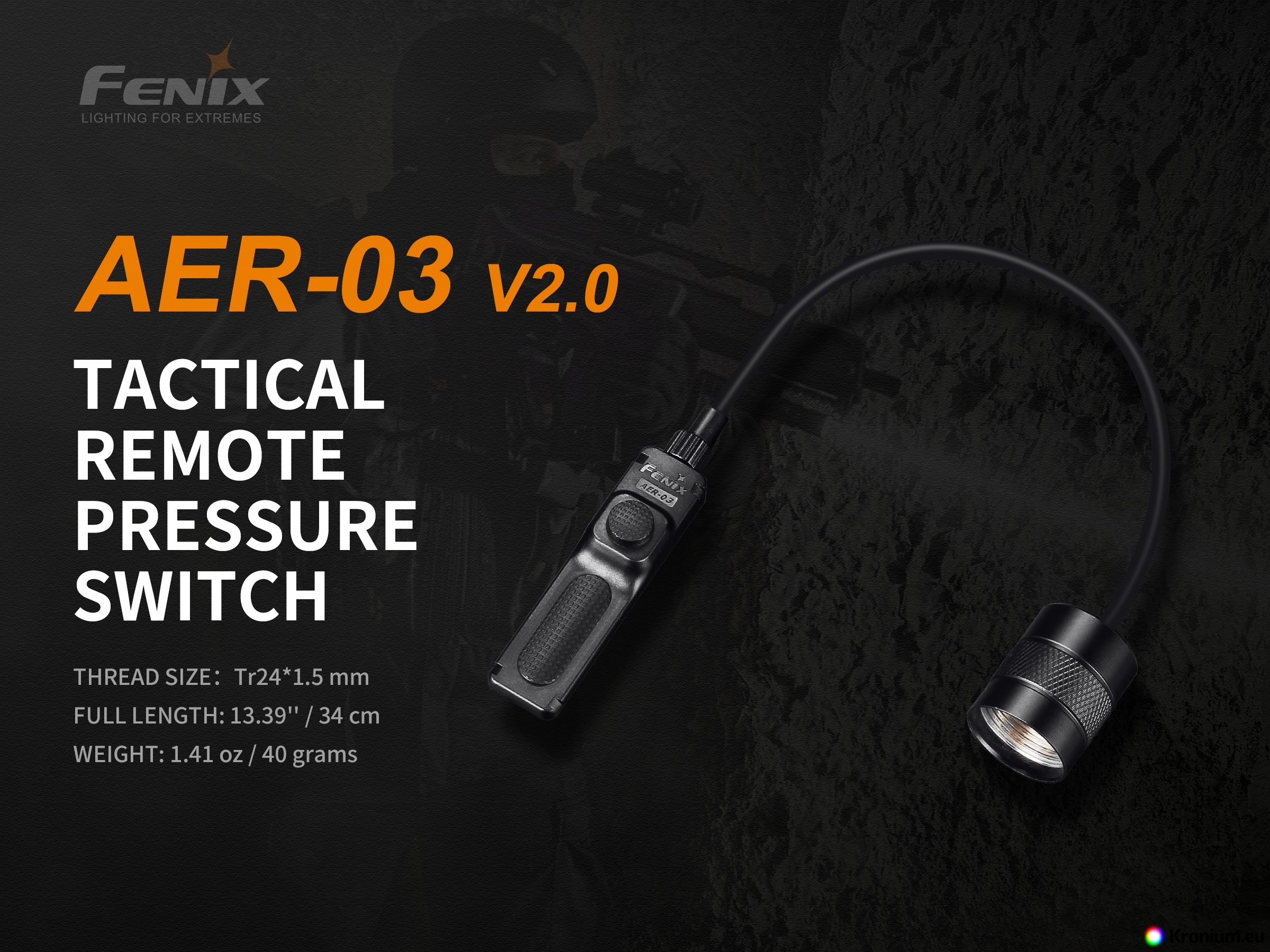

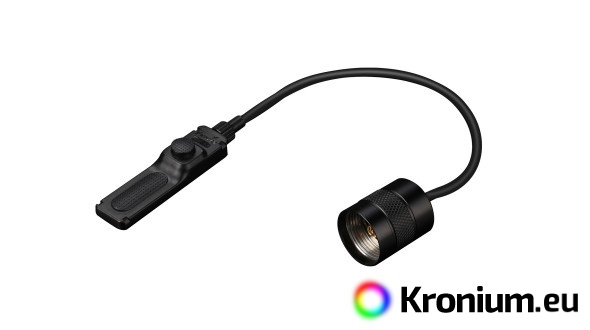

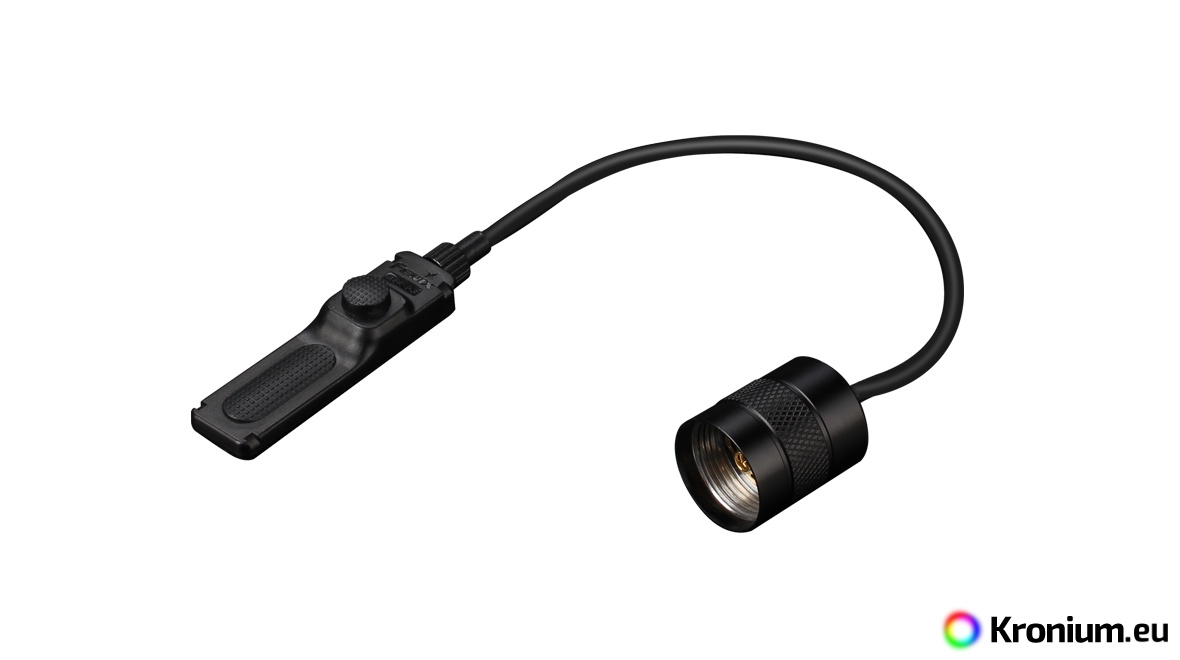

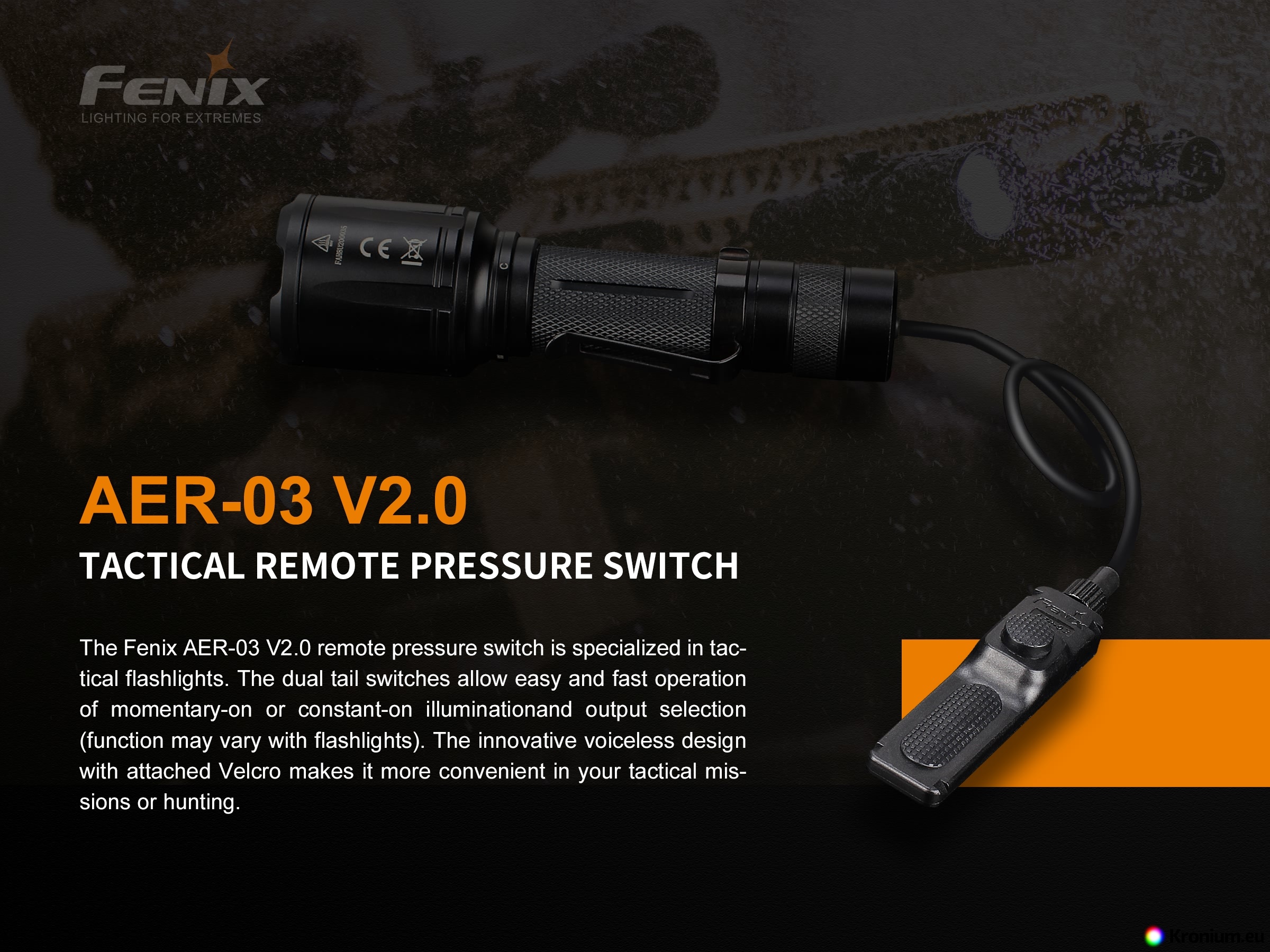

Tactical cable switch AER-03 V2.0 for flashlights Fenix TK16 (1000 lm version only), TK20R, TK25 IR, TK25 R&B, TK25 Red, TK25 UV, TK26R and Fenix TK32. Suitable for use with a long gun mounted flashlight. Two noiseless switches are located at the end of the cable. One push-button with momentary press activation function and also the possibility of permanently lighting the flashlight and the other flat pressure switch. The switch also has Velcro, which will help you with placing it anywhere on the gun.
The precise functions of the switch varies depending on the model of flashlight you use it with:
Fenix TK16 (1000 lm version only), Fenix TK25 IR, Fenix TK25 R&B, TK25 Red, TK25 UV, TK26R - the round push-button switch allows momentary activation of the flashlight by pressing it lightly, fully pressing it allows the flashlight to be turned on permanently. When the flashlight is switched on with this round button, the light modes can be switched by pressing the flat pressure switch. When the flashlight is switched off, it can be switched directly into strobe mode by pressing the flat pressure switch (for TK25 models the LEDs must be set to white light, for the TK26R this does not apply, they must always be on to activate the strobe).
Fenix TK20R - the round push-button switch allows momentary activation of the flashlight by pressing it lightly, by fully pressing it the flashlight can be switched on permanently. The flat pressure switch is not functional with this flashlight (if you want to switch the lighting modes, it is necessary to use the side button directly on the flashlight).
Fenix TK32 - the round push-button switch allows momentary activation of the flashlight into white light mode by pressing it halfway, fully pressing allows the flashlight to be switched on permanently. When the flashlight is switched on with this round button, the white light modes can be switched by pressing the flat pressure switch. When the flashlight is switched off it can be switched to red light mode by pressing the flat pressure switch, repeatedly pressing the flat switch switches between red and green light modes.
Product specifications
- Cable made of flexible polyurethane.

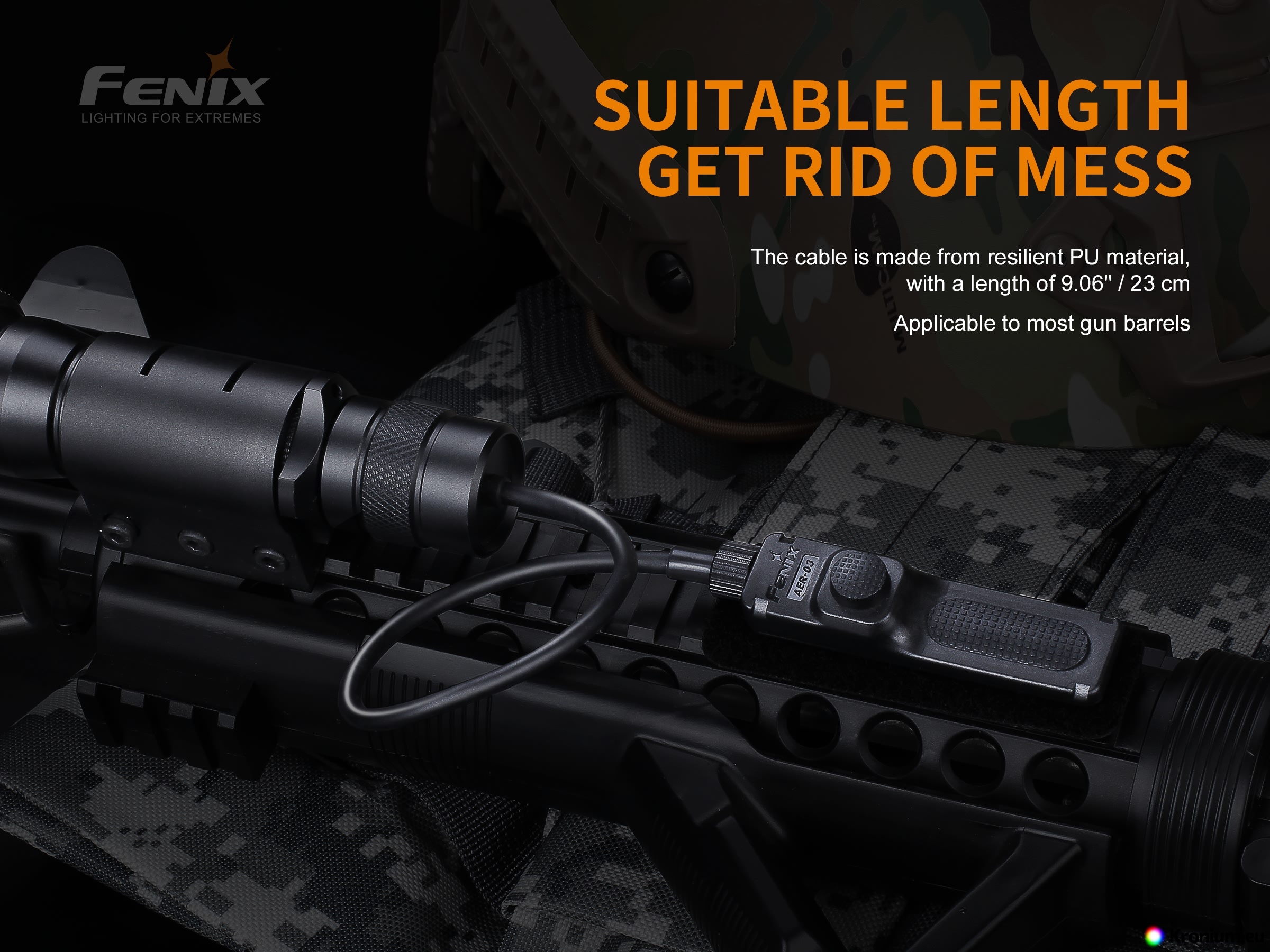

- Cable length 23 centimeters.

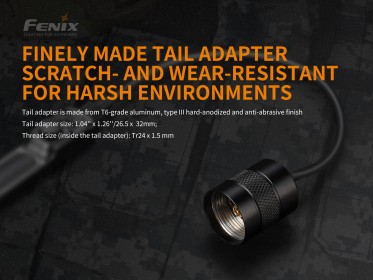

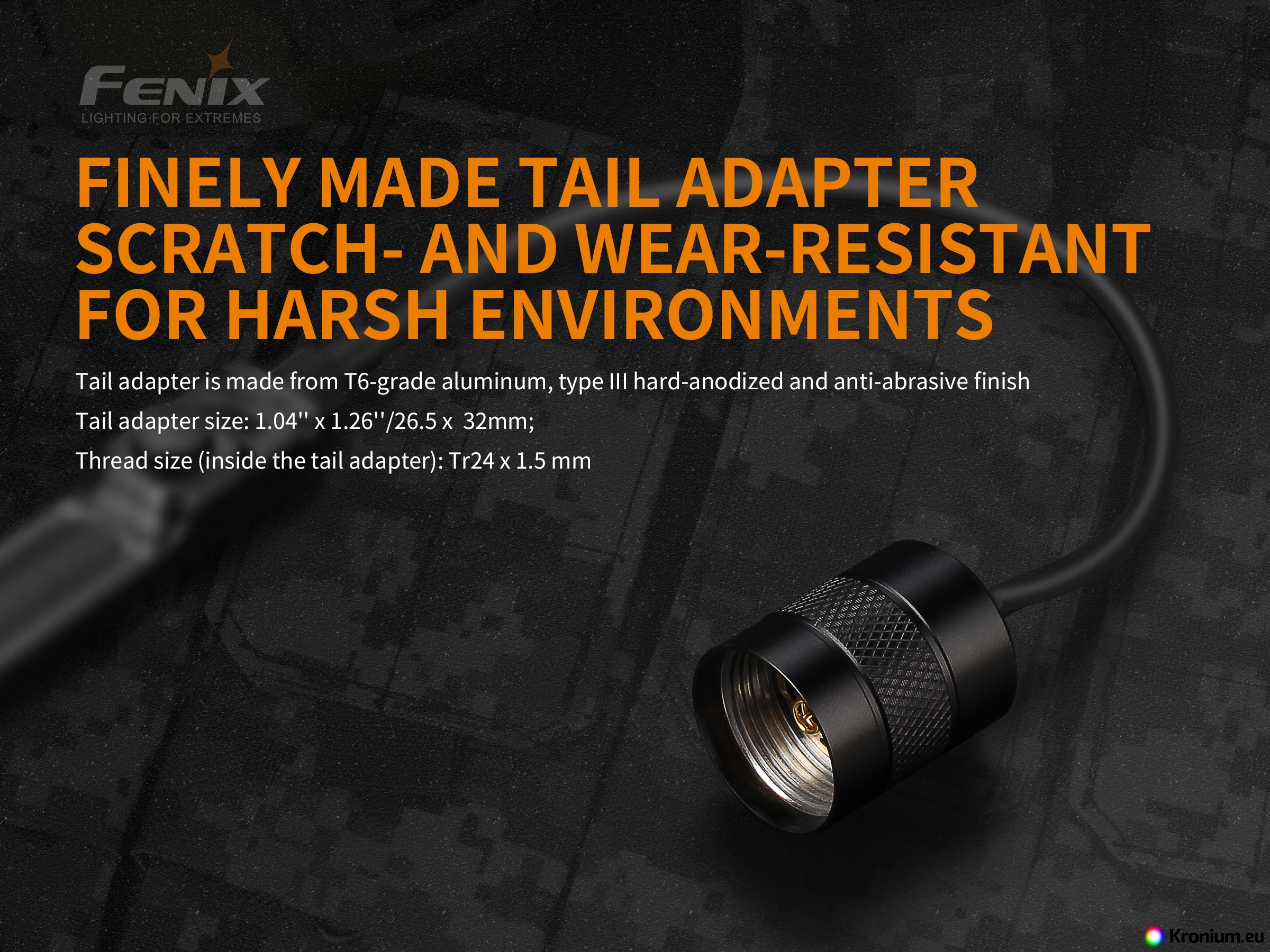

- End screw part made of high quality T6 aluminum alloy and hard Type-III anodization.
- Highly wear-resistant trapezoid thread.

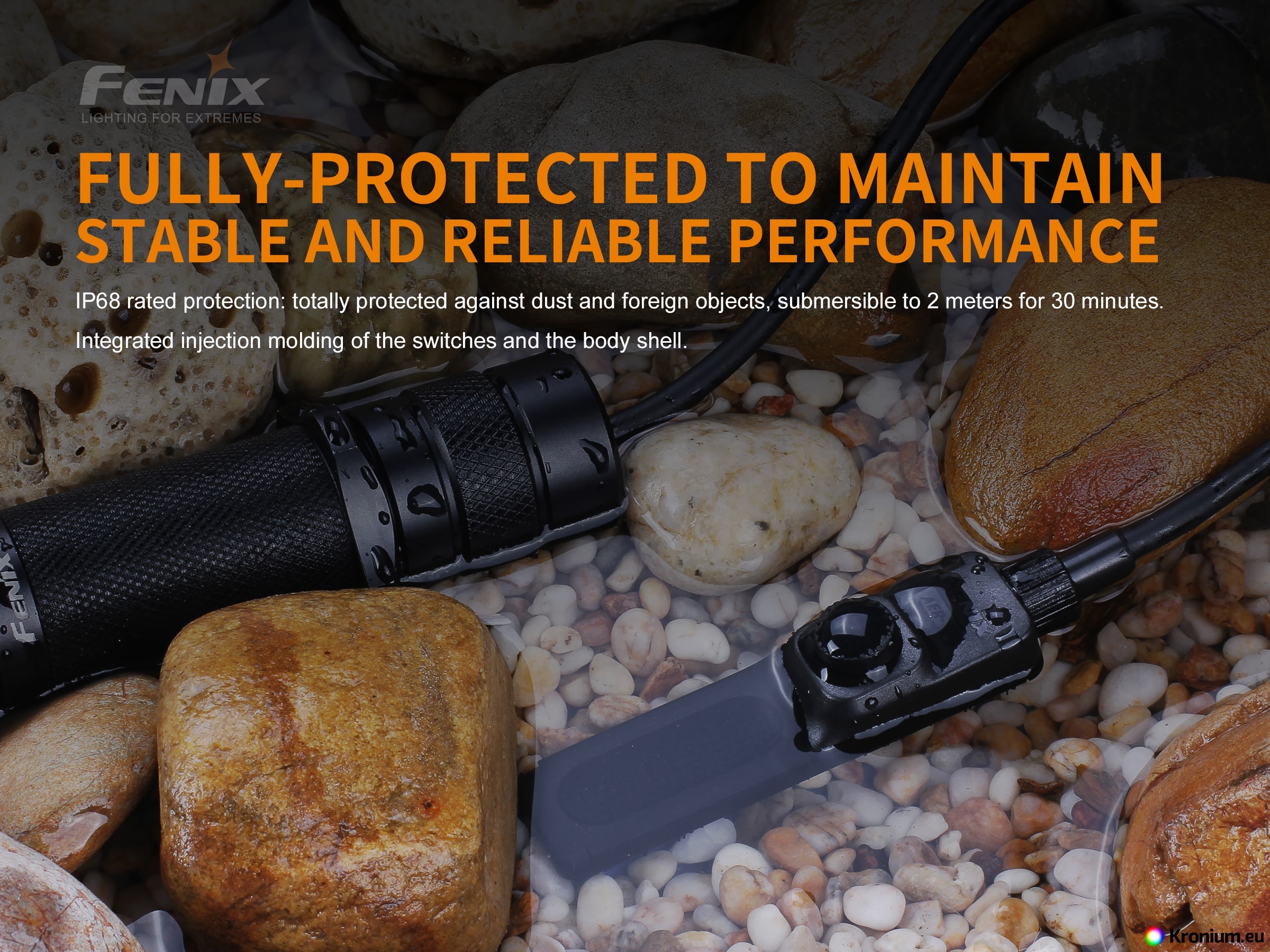

- Waterproof to IP68 standard.
- Dimensions of the screw-in part: 3.2cm (length) x 2.65cm (diameter).
- Weight 40 grams.

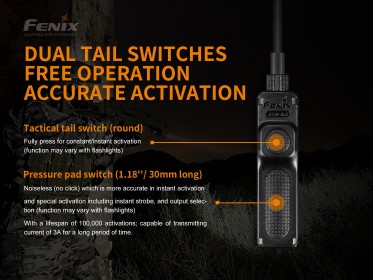

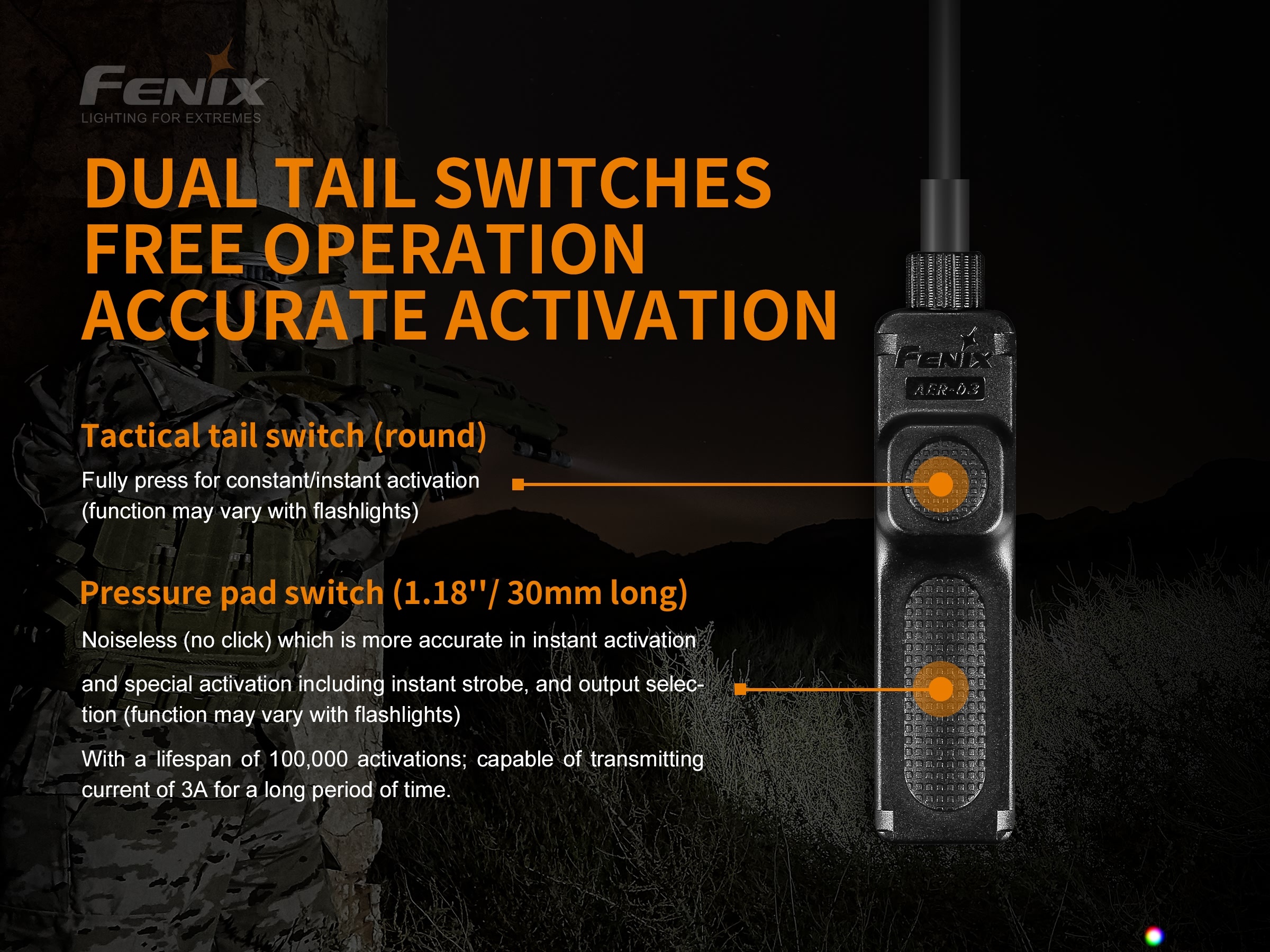

- Flat pressure switch and push-button tactical switch at the end of the cable with momentary press activation capability.

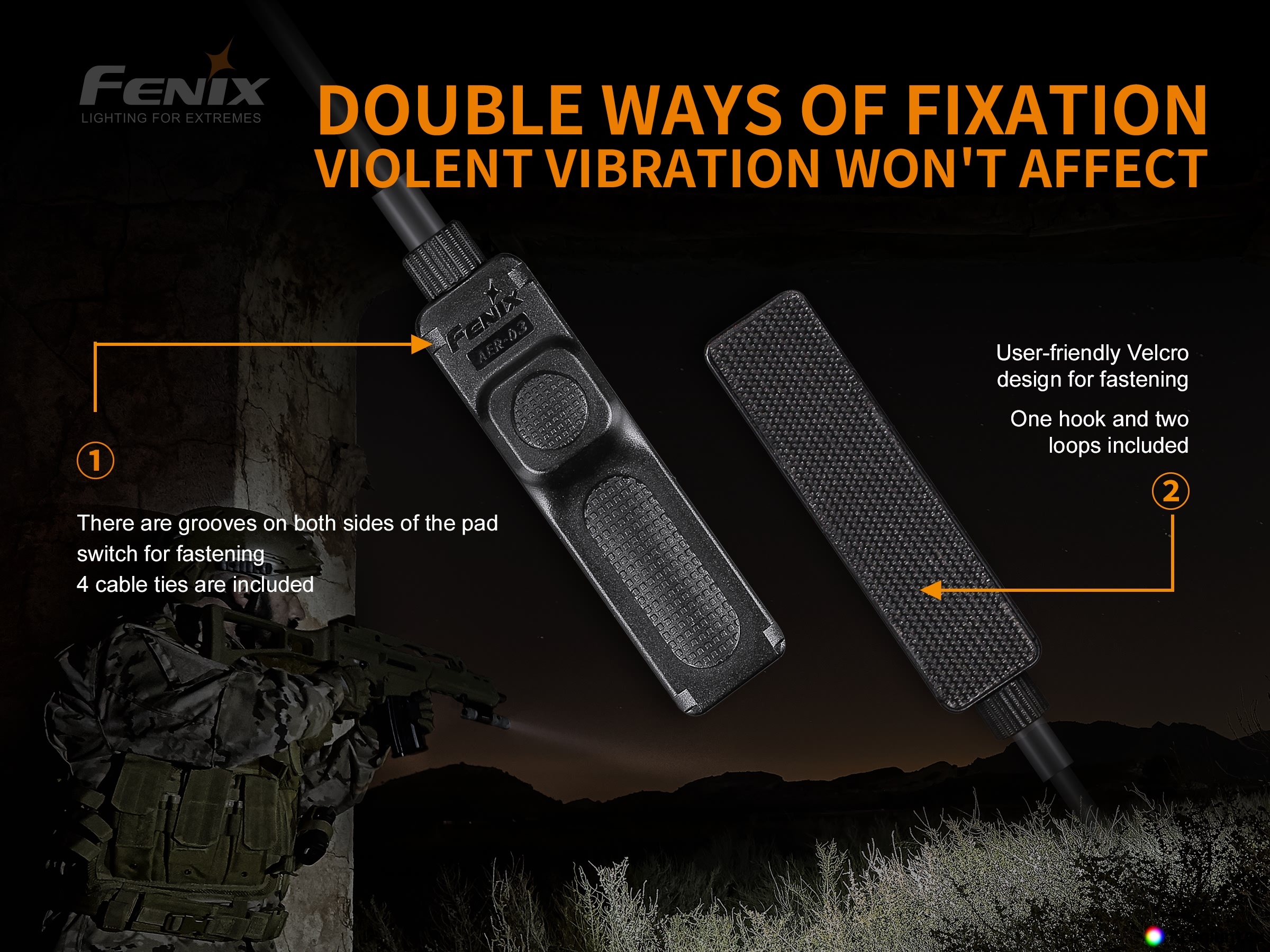

- Also included is a Velcro to attach the switch to the weapon.
- Compatible with Fenix TK16, TK20R, TK25 IR, TK25 R&B, TK25 Red, TK25 UV, TK26R and TK32 2016 Edition flashlights.
Warranty
Legal two-year warranty.
