Tip: The flashlight is also available in a prigood value set with rechargeable Li-Ion 3500 mAh batteries and USB cable.

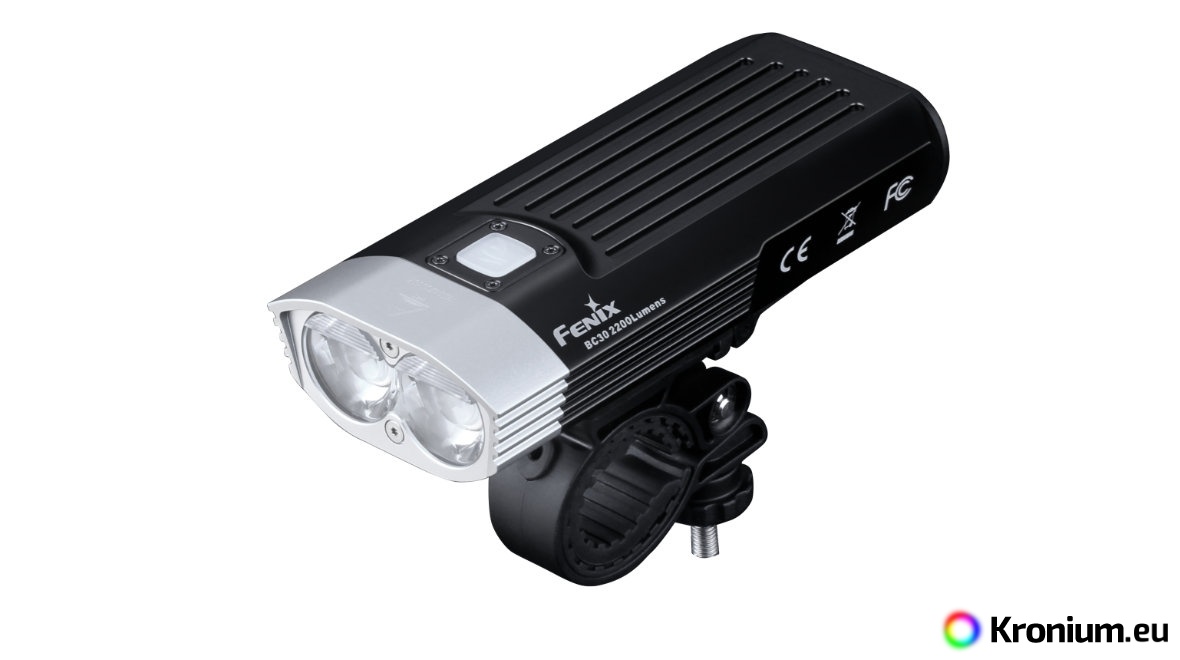

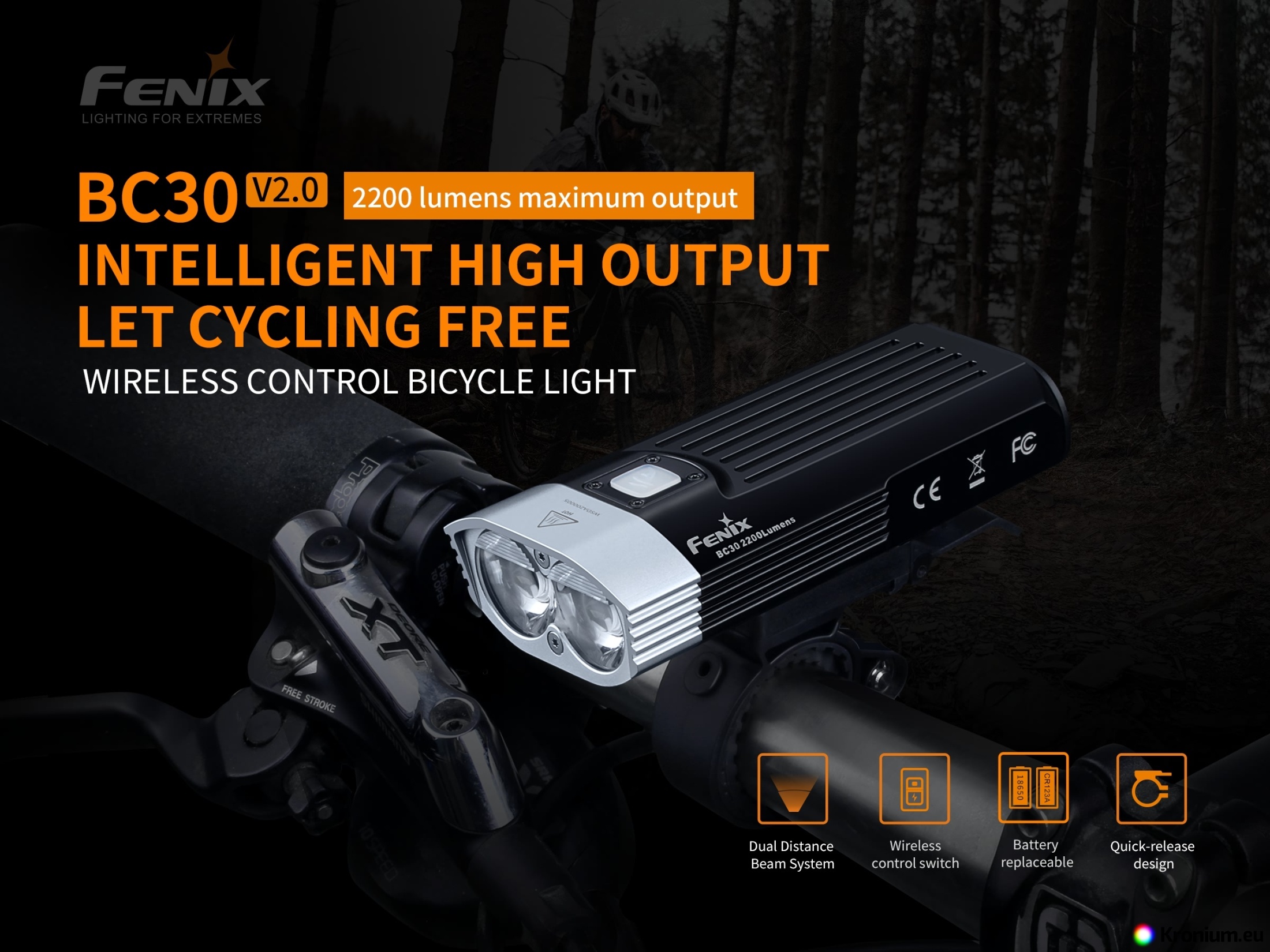

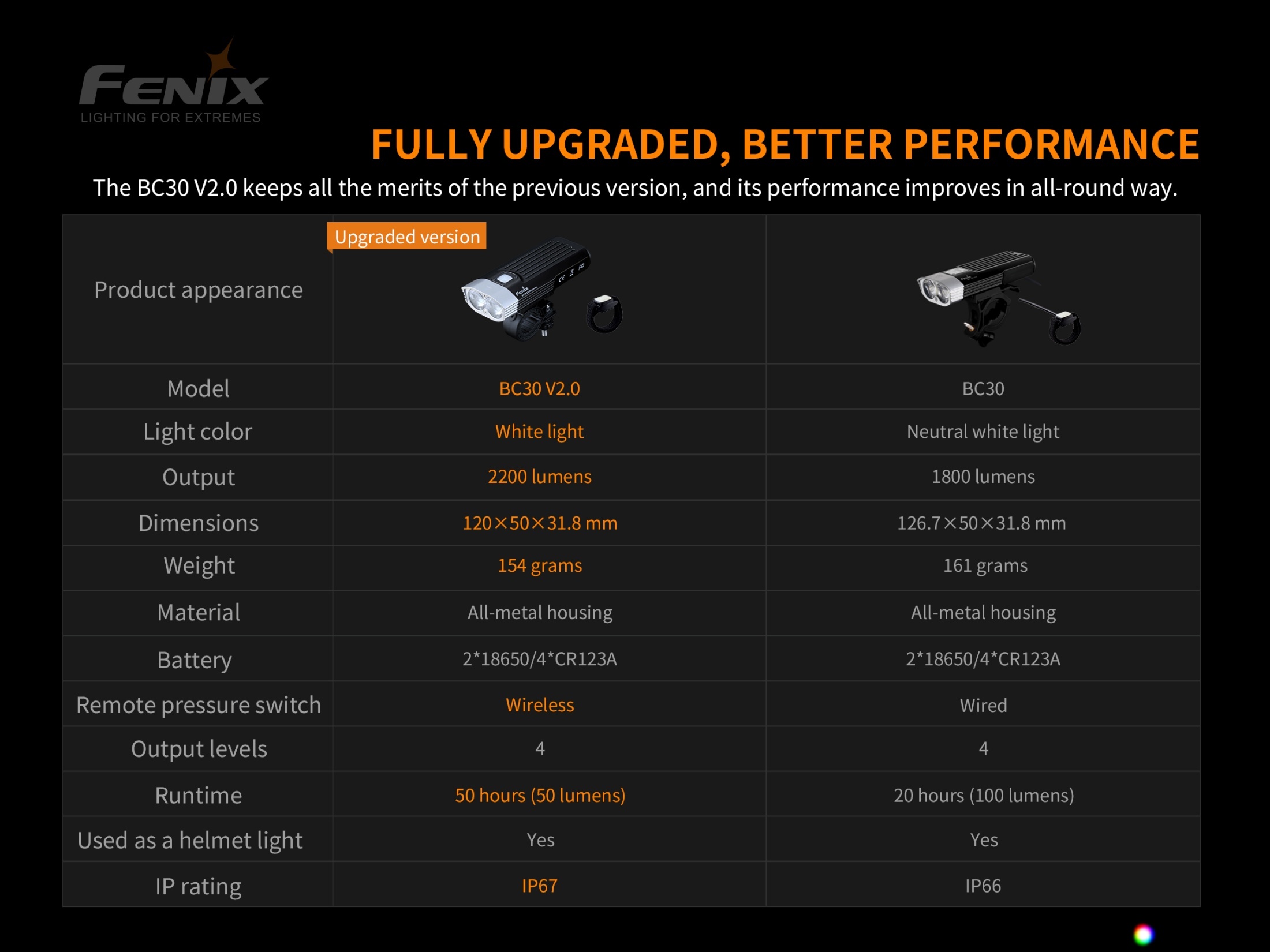

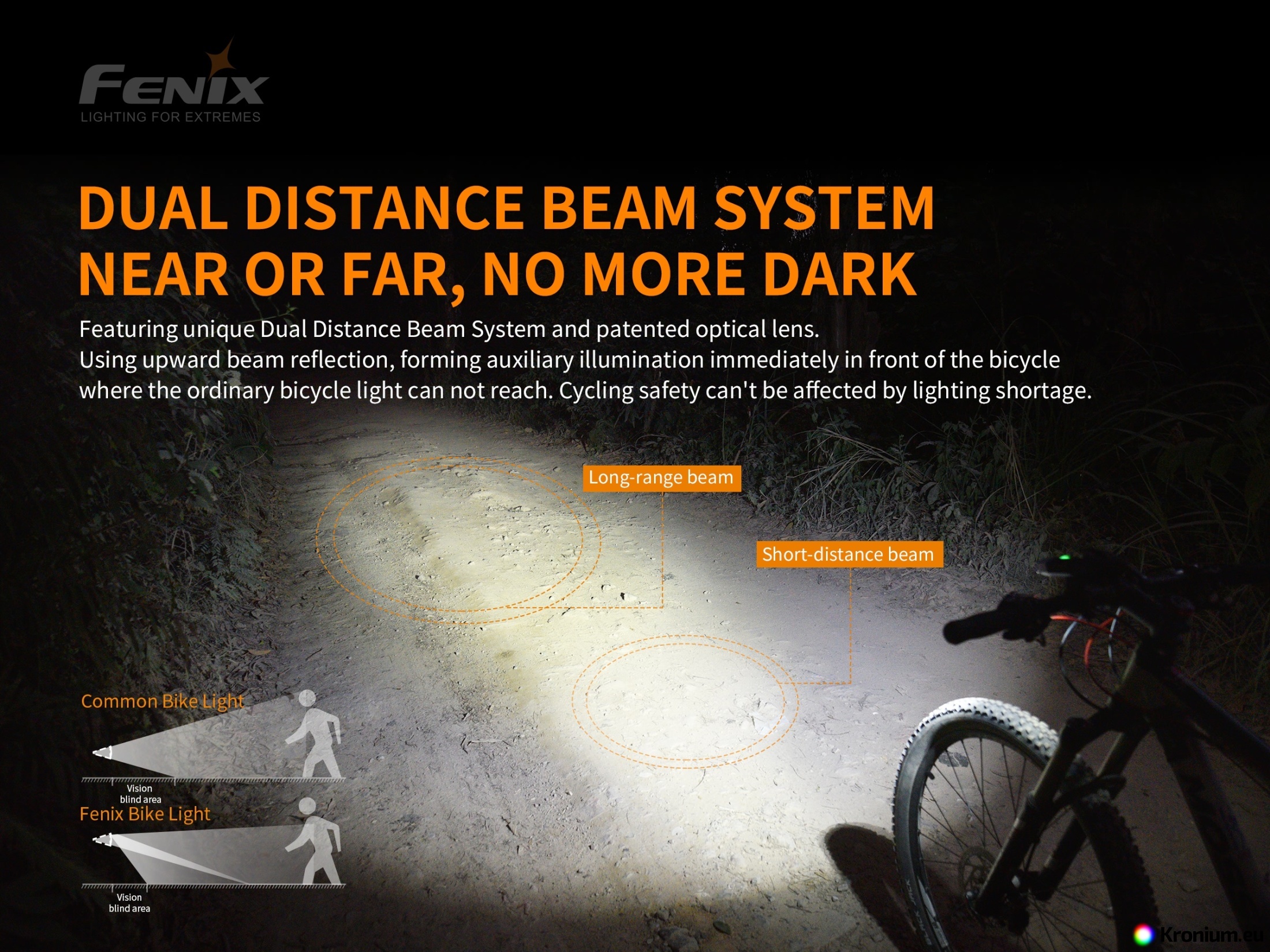

The second generation of the extremely powerful Fenix BC30 V2.0 bike light delivers up to 2200 lumens (ANSI). A pair of rechargeable Li-ion 18650 batteries, (18650s without a protruding plus pole in the flashlight have insufficient contact) or four disposable CR123A batteries can be used to power the bikelight. The light source is two modern LED Luminus SST-40. The flashlight uses proven Dual Distance Beam System“ technology. The main cone of light is created by specially designed optics and reaches up to 187 meters, while a secondary wide beam cone completes the optical member, which is shaped at the top so that upward-facing light refracts down to the ground. This creates a cone that continuously illuminates the entire area in front of the bicycle - even in places that conventional bicycle lights do not cover. Compared to the previous generation, the bike light is equipped with a wireless remote control, which can be used to change light modes or activate Burst mode. The bracket design allows for quick mounting and dismounting of the light on the handlebars without tools, and the bracket also allows for quick removal of the light so it can be used as a high-performance handheld light. The holder can be used on all handlebar diameters from 22 to 32 millimetres. A total of six digitally controlled power modes are available, including a warning flash and low battery warning. The Fenix BC30 V2.0 bicycle front light will provide you with quality lighting for night training, regular commutes and 24-hour races. Batteries are not included!

All flashlight parameters (lumen output, battery life, waterproofing and range) are measured in accordance with ANSI/NEMA FL 1-2009.

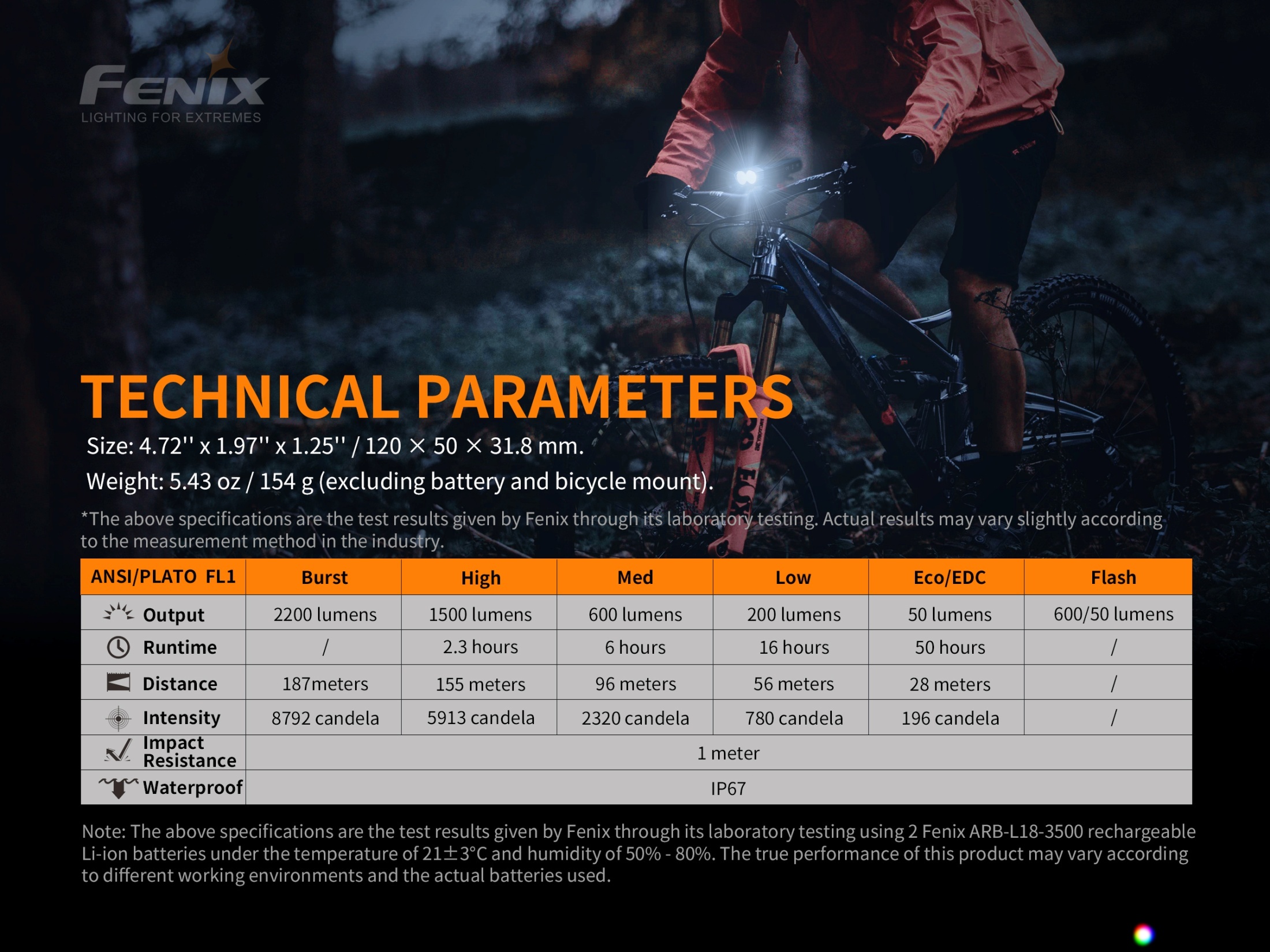

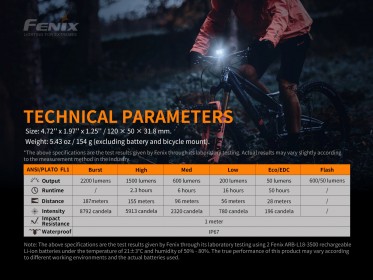

Fenix BC30 V2.0 bikelight specifications

• Two powerful Luminus SST-40 LEDs with a lifetime of 50000 hours are used.
• Total of six power modes: BURST 2200 lumens (for the time holding down the button, max. 30 sec) -> 1500 lumens (2.3 hours) -> 600 lumens (6 hours) -> 200 lumens (16 hours) -> 50 lumens (50 hours) -> warning flash (pulsing between 50 and 600 lumens).
• Runtimes are measured with rechargeable 18650 li-ion batteries with 3500mAh capacity.
• Electronics with digital constant power control and low battery warning. Maximum supply voltage of 12.8V.
• Power can be supplied by two rechargeable 18650 Li-ion batteries or four disposable lithium CR123/CR123A batteries. The batteries are inserted inside the flashlight.
• Specially shaped optics create a light cone combining broad peripheral illumination with a range of over 187 meters (8792 cd).

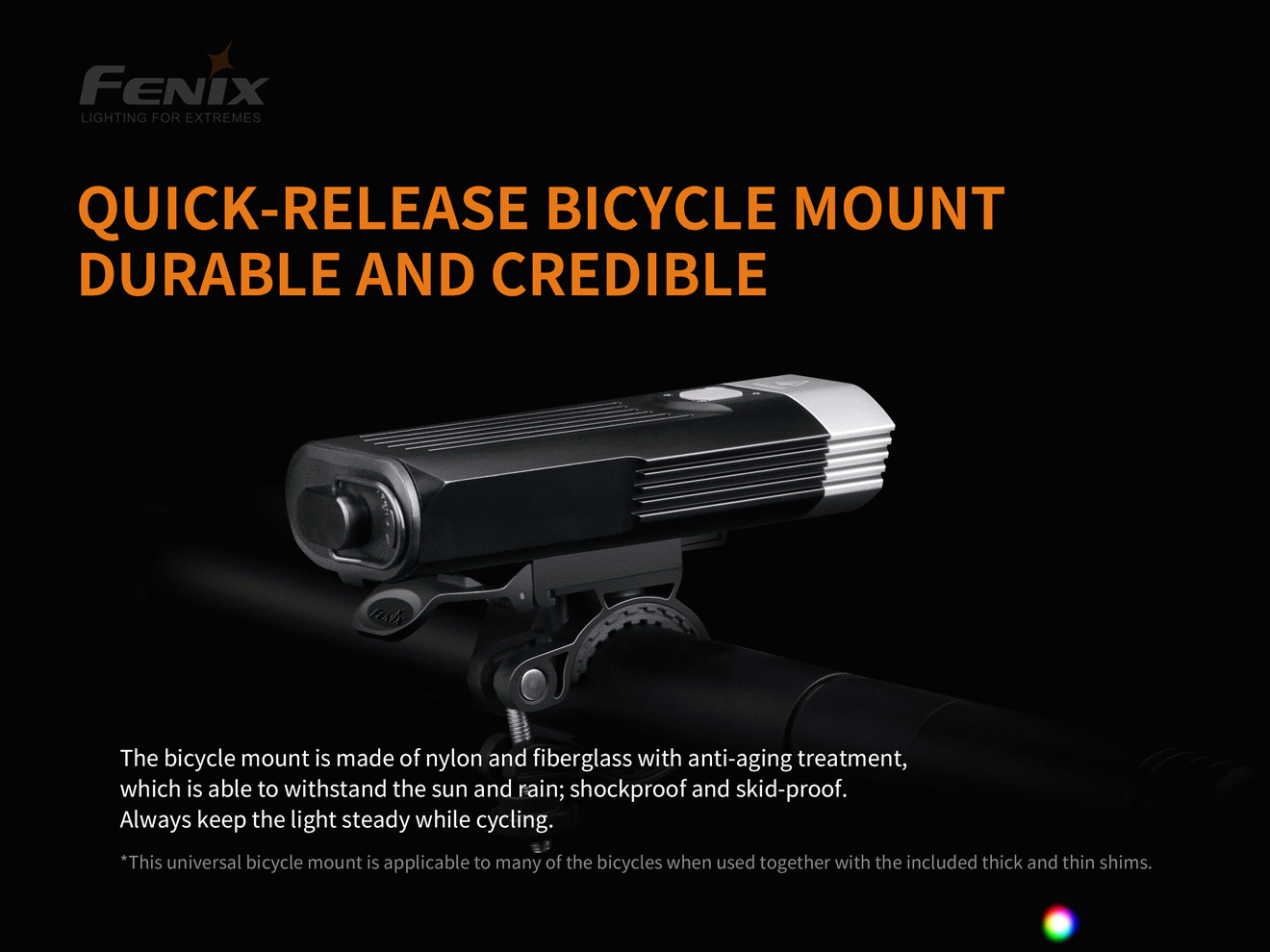

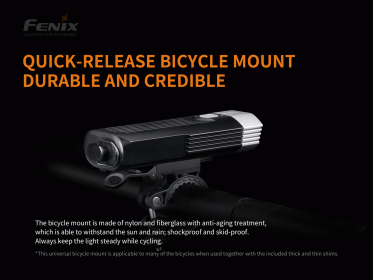

• The flashlight attaches to the mount using a quick-release mechanism that allows it to be removed in an instant and reattached securely just as quickly.
• The rubberised design of the holder sleeve ensures a firm and secure fit of the flashlight to the bike with easy and reliable adjustment of the direction of light.

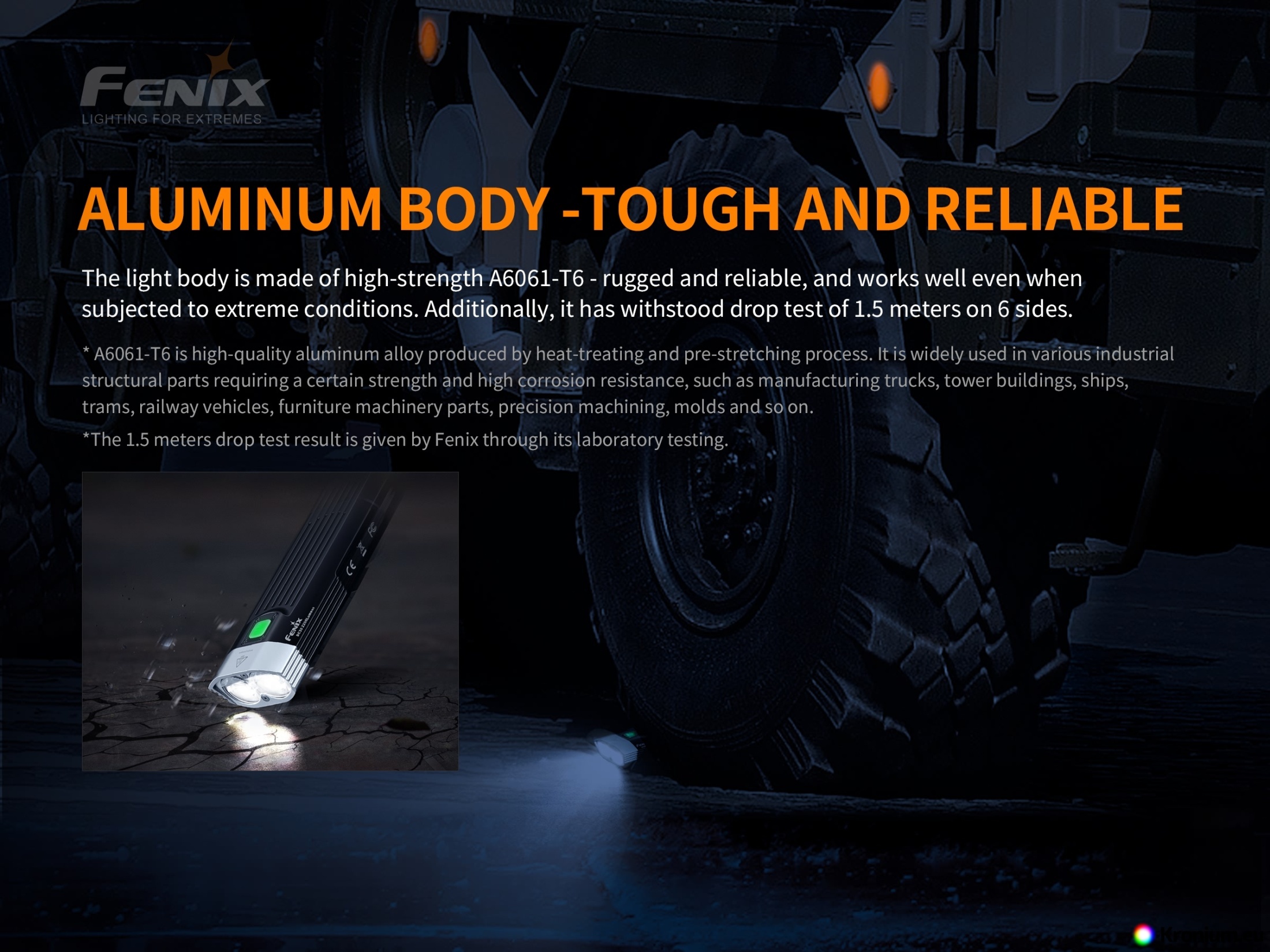

• The body of the flashlight is made of aluminum alloy.

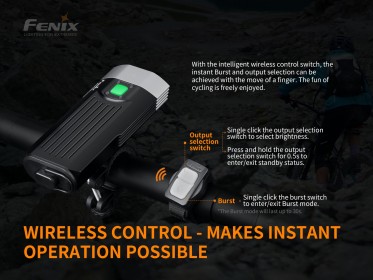

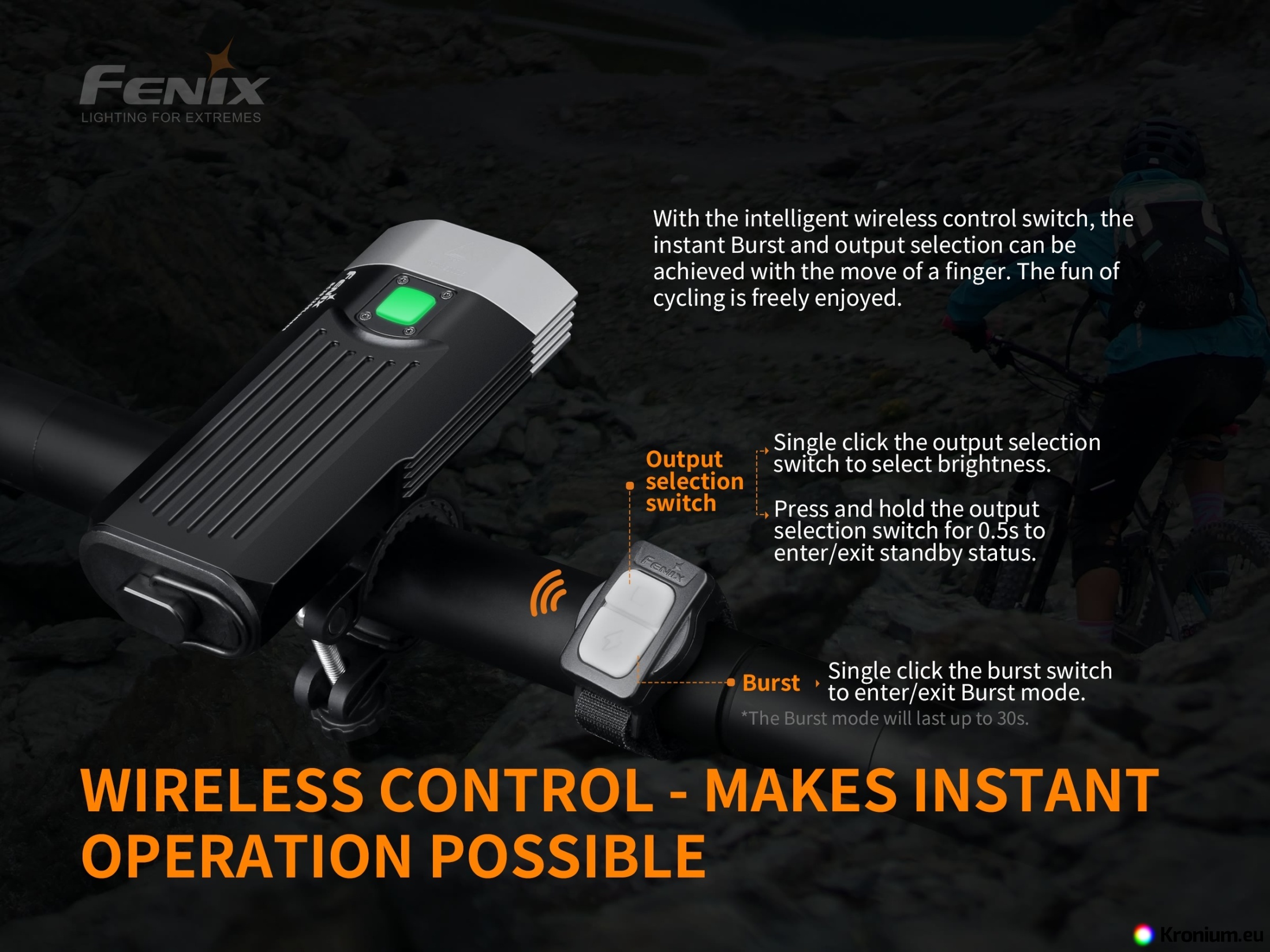

• The flashlight comes with a remote wireless switch that can be used to change light modes and activate Burst mode. Its width at the handlebar is 2.6 cm.
• The wireless remote switch is powered by a CR1632 battery that lasts approximately 360 hours of use.
• Overheat protection - if the flashlight gets hotter than a safe limit, it will automatically switch to a lower power level.
• Dimensions 12 cm x 5 cm x 3.18 cm.
• Weight 154 grams (without batteries and holder).

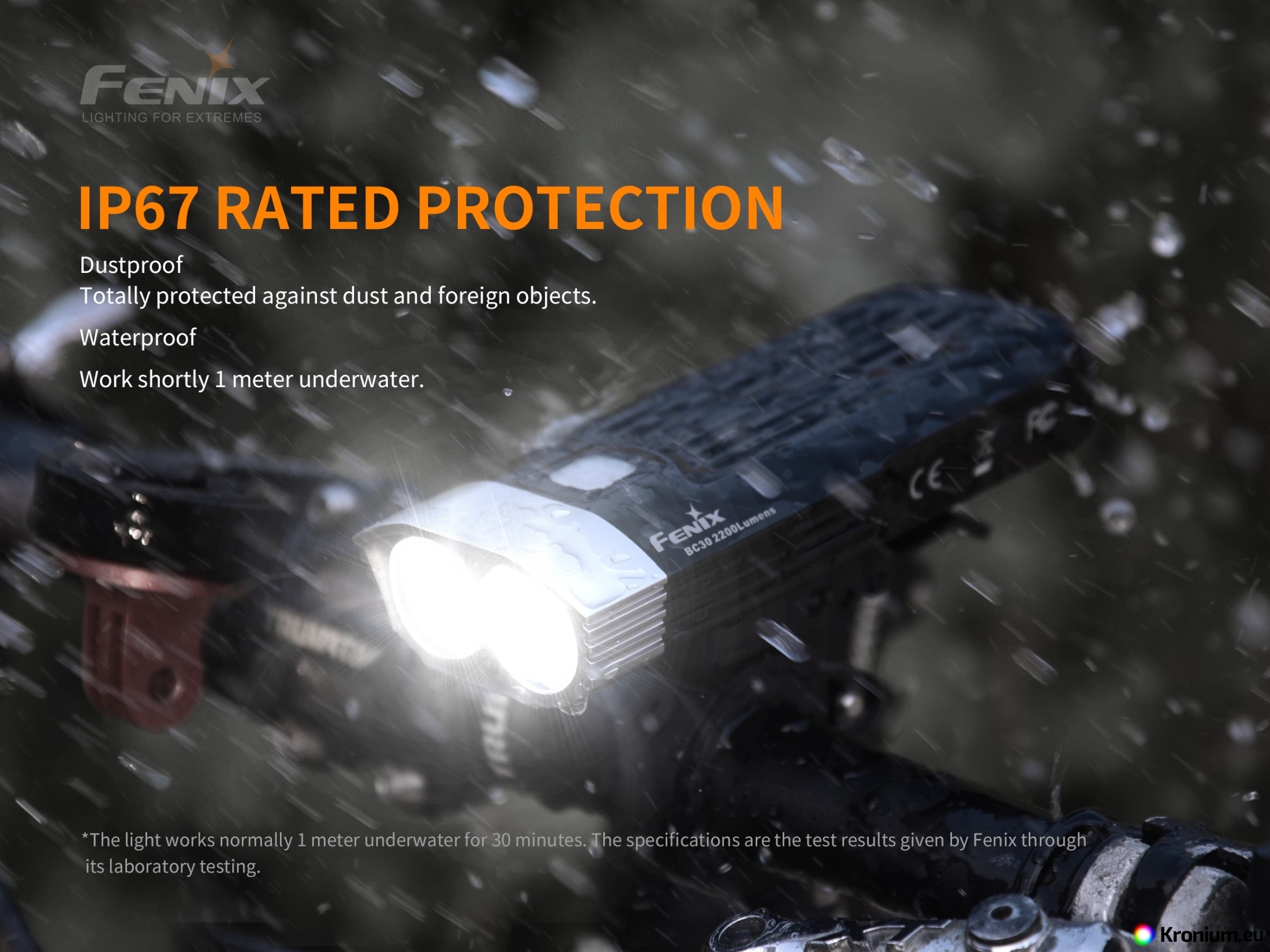

• Waterproof and dustproof to IP67 standard (tested underwater at 1 meter depth).

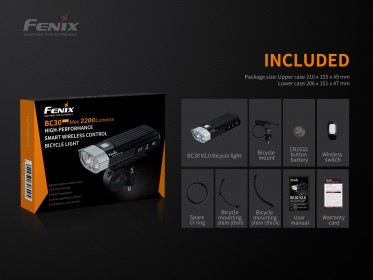

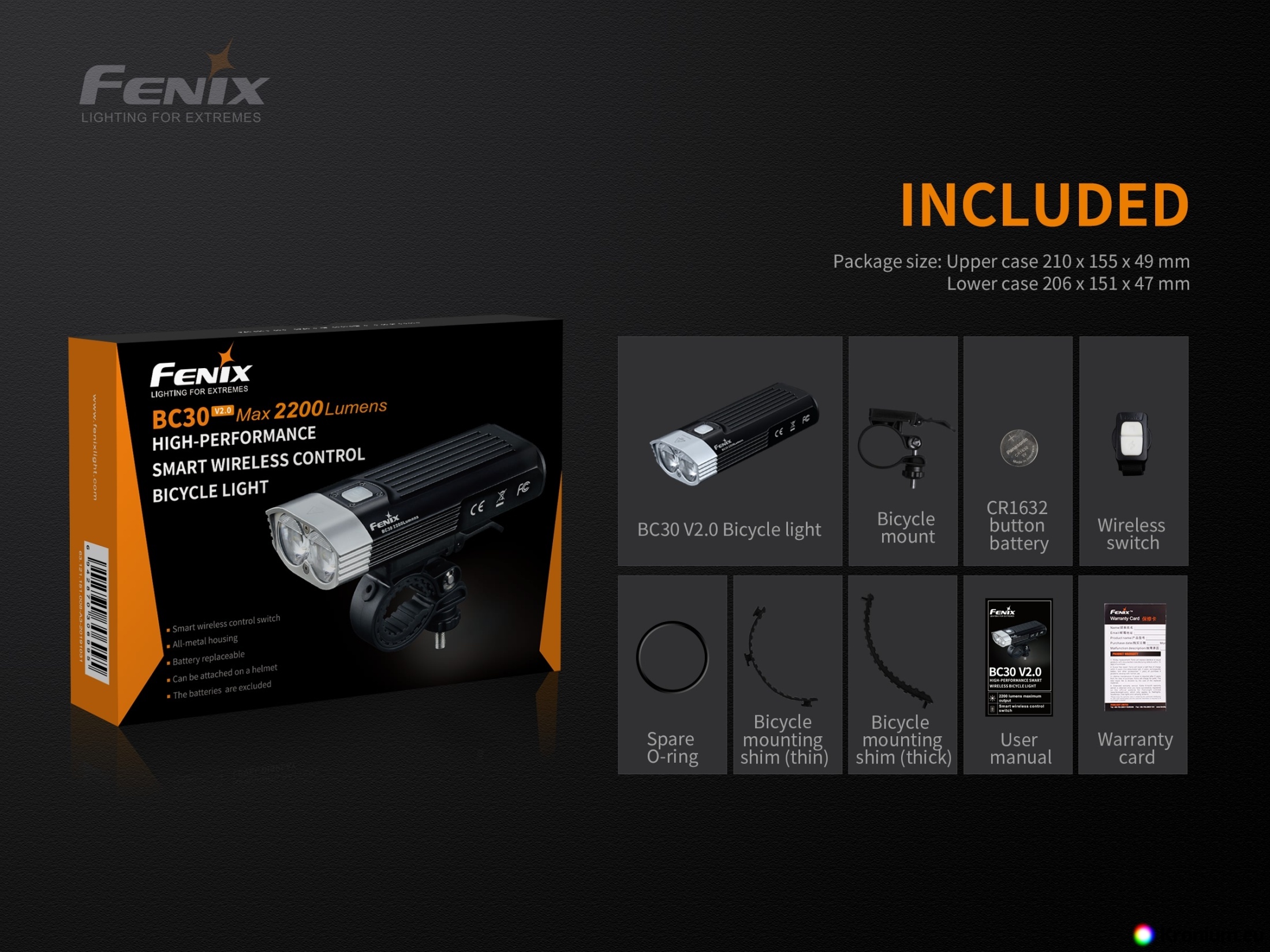

• Package contents: flashlight, handlebar mount with spacers (thin and thick), remote control, CR1632 battery (for remote switch), replacement o-ring.
• The flashlight can be purchased with a handlebar mount for a second bike, or a Fenix ALD-08 mount for a bicycle helmet or flat road aero handlebars.
• Batteries are not included.

Using the Fenix BC30 V2.0 headlight

To turn on or off, hold the button on the flashlight for approximately 0.5 seconds. The light will always turn on in the lowest mode, you can switch to the other power levels at any time during operation by pressing the button. To switch to flashing mode, press the button twice quickly. If the flashlight is on, the modes can also be switched with the remote wireless controller. Burst mode is activated by pressing the button with the flash symbol, the other permanent light modes are switched by a second smaller button. The flashlight can be switched off by holding the smaller button for 0.5 seconds.

Before using the wireless remote switch for the first time, it must be paired with the flashlight: Hold the control button on the flashlight for 5 s. The button will then flash alternately green and red and the flashlight will turn off. Then press any button on the remote control and the flashlight will light up again to indicate successful pairing. The distance between the flashlight and the remote control during pairing should be no more than 1.5 meters. This process only needs to be done once, the remote control and the flashlight are then permanently paired.

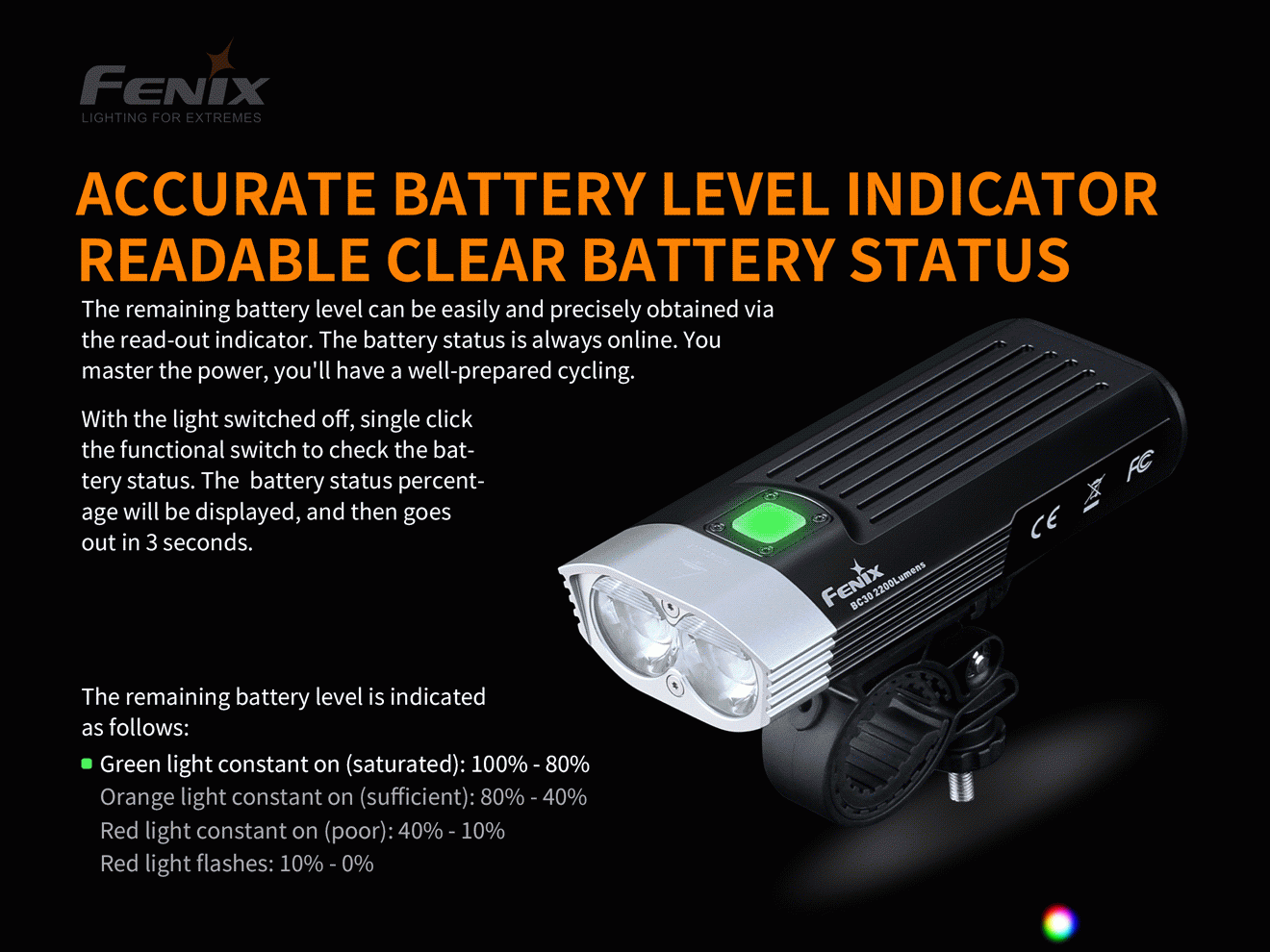

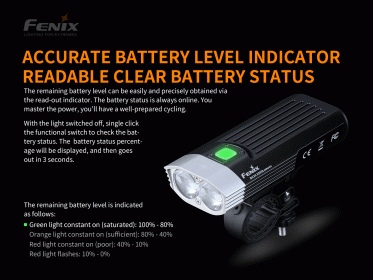

Battery charge indication - during operation of the headlight, the indicator LEDs in the button are lit. If the indicator LED is green the batteries are more than 80% charged, orange means 40-80% capacity. If the light is red, the batteries are 10-40% charged. Red flashing indicates less than 10% battery capacity remaining. If the button is flashing red, the flashlight will automatically switch the power to lower modes to ensure the longest battery life. In this case, we recommend replacing the batteries with charged ones as soon as possible to prevent the protective electronics built into the batteries from switching off and thus turning the light off. The indication can be switched on even when the lamp is switched off, just press the control button and then the indication LED will light up for three seconds. Note: the low battery indicator is designed to function correctly with 18650 batteries, it may not indicate correctly when using disposable CR123A cells.

Changing batteries in the flashlight

• Release the battery case by turning the locking tab to the left. Pull out the battery case.
• Insert the batteries according to the marked polarity.
• Slide the battery case back into the flashlight. Secure the case by turning the lock to the right.

Replacing the batteries in the remote control

• Use a coin (1, 2, 5 cents fit) to open the back cover of the remote switch by turning it counterclockwise.
• Replace the CR1632 battery. Be sure to observe the correct polarity.
• Close and secure the back cover with a coin by turning it clockwise.
• The battery in the remote will last approximately 360 hours of use.

Warning

• Do not disassemble the sealed parts of the flashlight yourself, it will void the warranty.
• If the power button is red and cannot be switched to high power modes, then the batteries are dead and need to be replaced.
• If the flashlight blinks or does not light up, it could be due to one of the following reasons
  • The batteries are dead - replace them.
  • The contacts on the connectors are dirty. Clean them with a cotton swab dipped in alcohol.

Warranty

Five years warranty.
