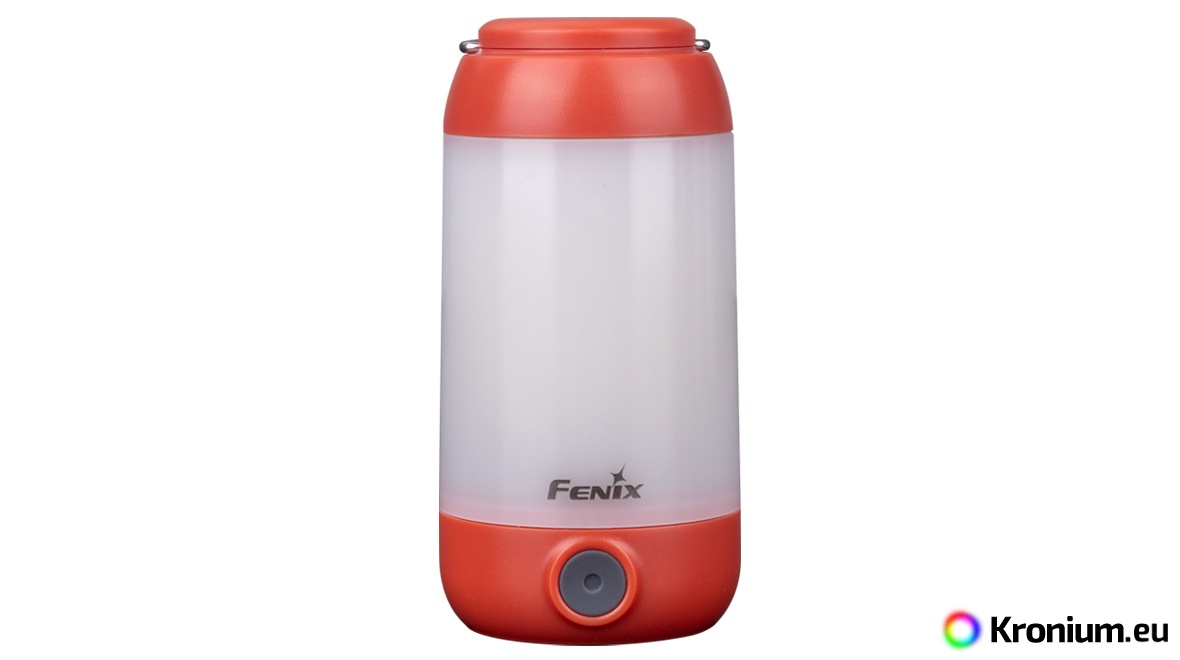

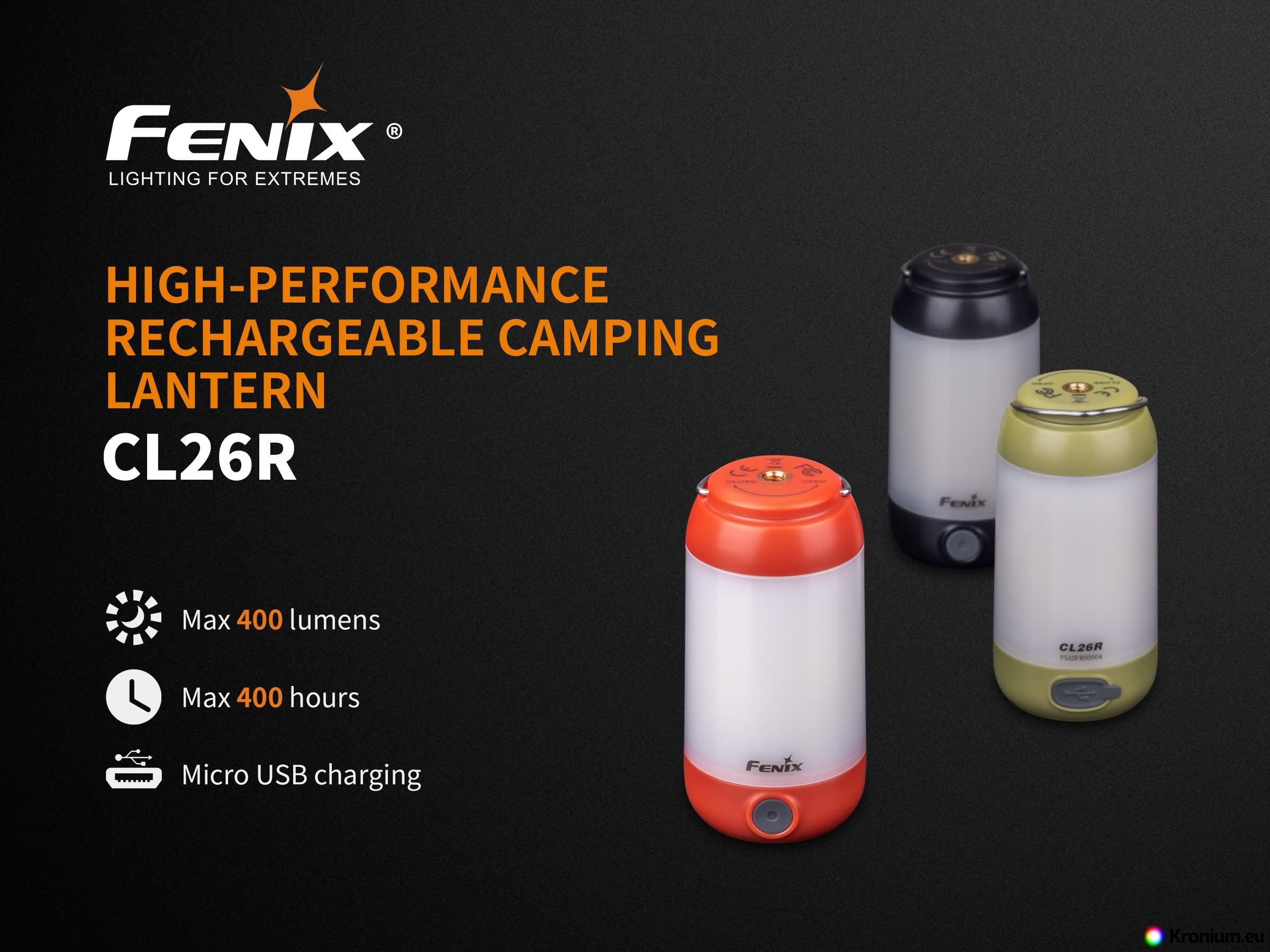

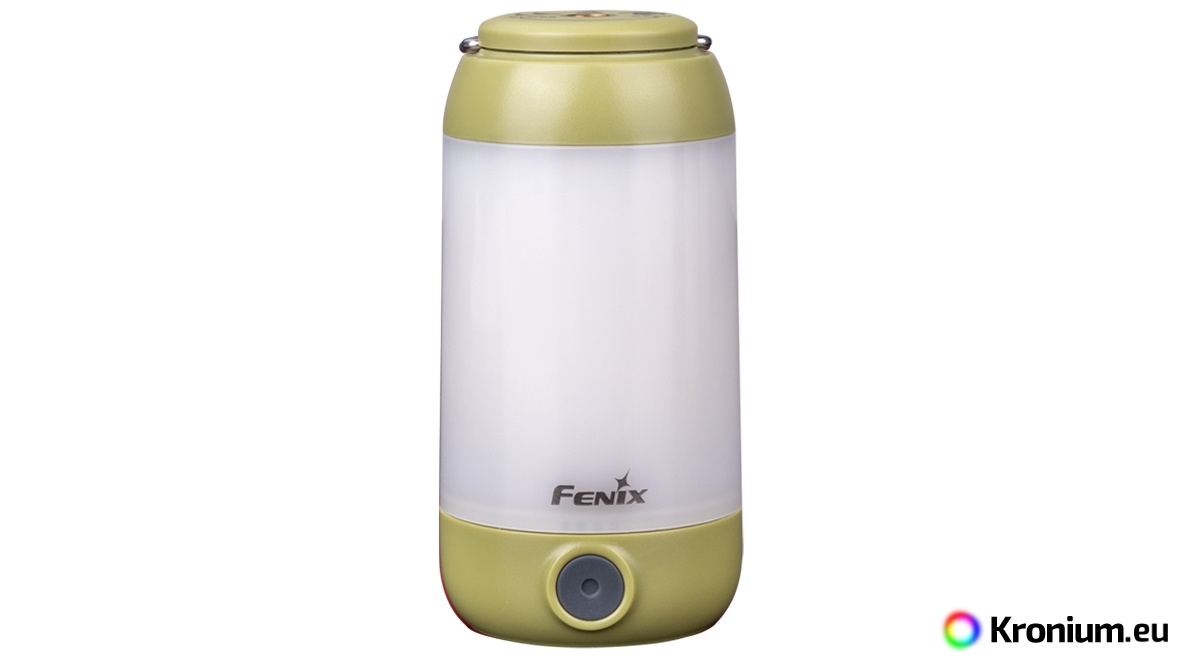

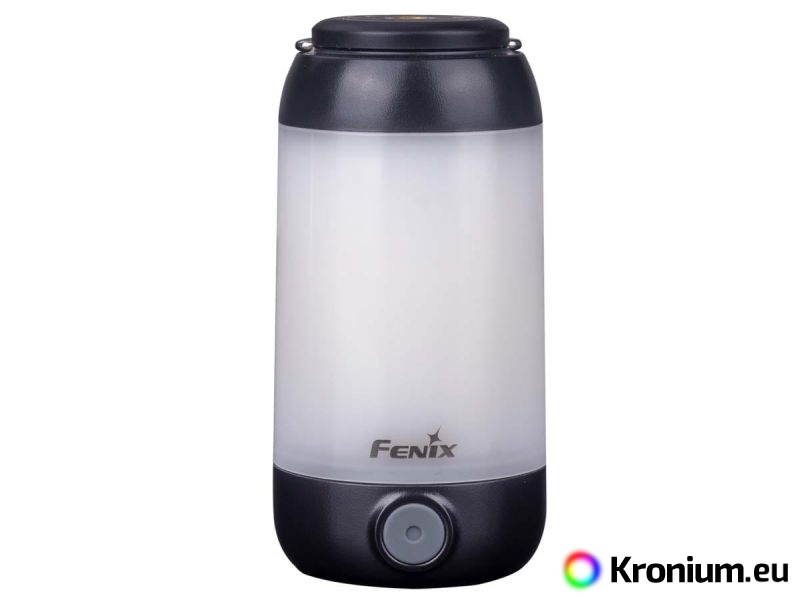

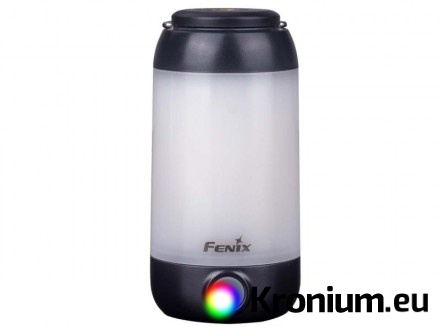

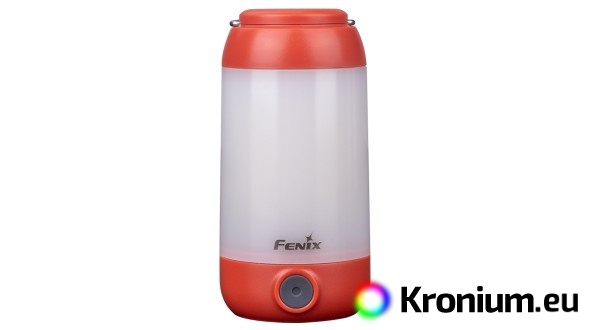

Fenix CL26R is a practical portable rechargeable lantern that can be used to illuminate a room, tent or workbench. The high-brightness LEDs hidden under the cylindrical diffuser provide up to 400 lumens (ANSI) and last up to 400 hours. The lantern is powered by a Li-ion battery type 18650 with a capacity of 2600 mAh (included), which is charged directly in the lantern via a micro-USB connector. In case of emergency, the lantern can also be powered by two disposable CR123A batteries. The lantern offers a total of eight lighting modes, including bottom and side lighting, and there is also a red light that does not interfere with the eyes' adaptation to darkness.

Sidelight and the bottom light are very practical energy saving features. They are particularly useful in situations where circular omnidirectional lighting is not needed. The lantern is also equipped with an extended runtime function. For extended use in turbo (400 lumens) and high (150 lumens) modes, the lantern gradually reduces power in small increments to achieve longer light duration. Thanks to the durable and shockproof construction with IP66 protection, the lantern can be safely used even in adverse weather (heavy rain). The top of the lantern is fitted with a hanging eye and a strong neodymium magnet, so it can be easily hung or attached to anything iron. The mounting options are further expanded by the tripod thread, which is also on the top of the lantern. Thanks to its compact dimensions and weight of 165 grams, the lantern is particularly suitable for camping and hiking.

All parameters of the lantern (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

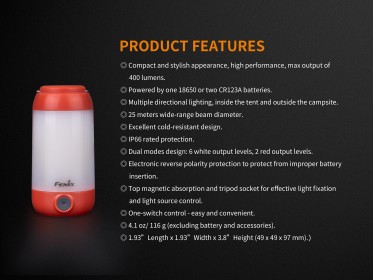

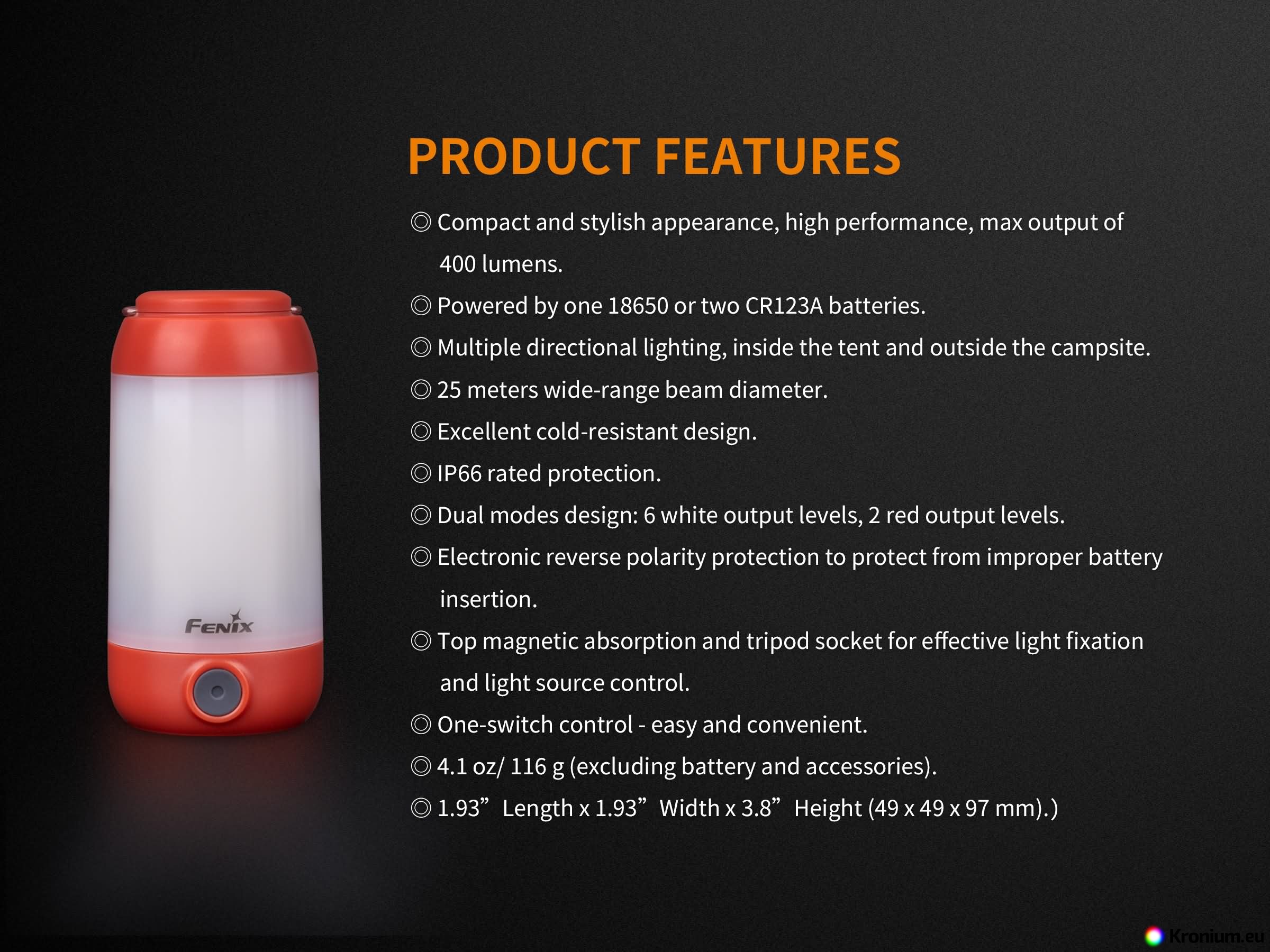

Fenix CL26R rechargeable lantern specifications

• The light source is high bright SMD diodes and red LEDs.

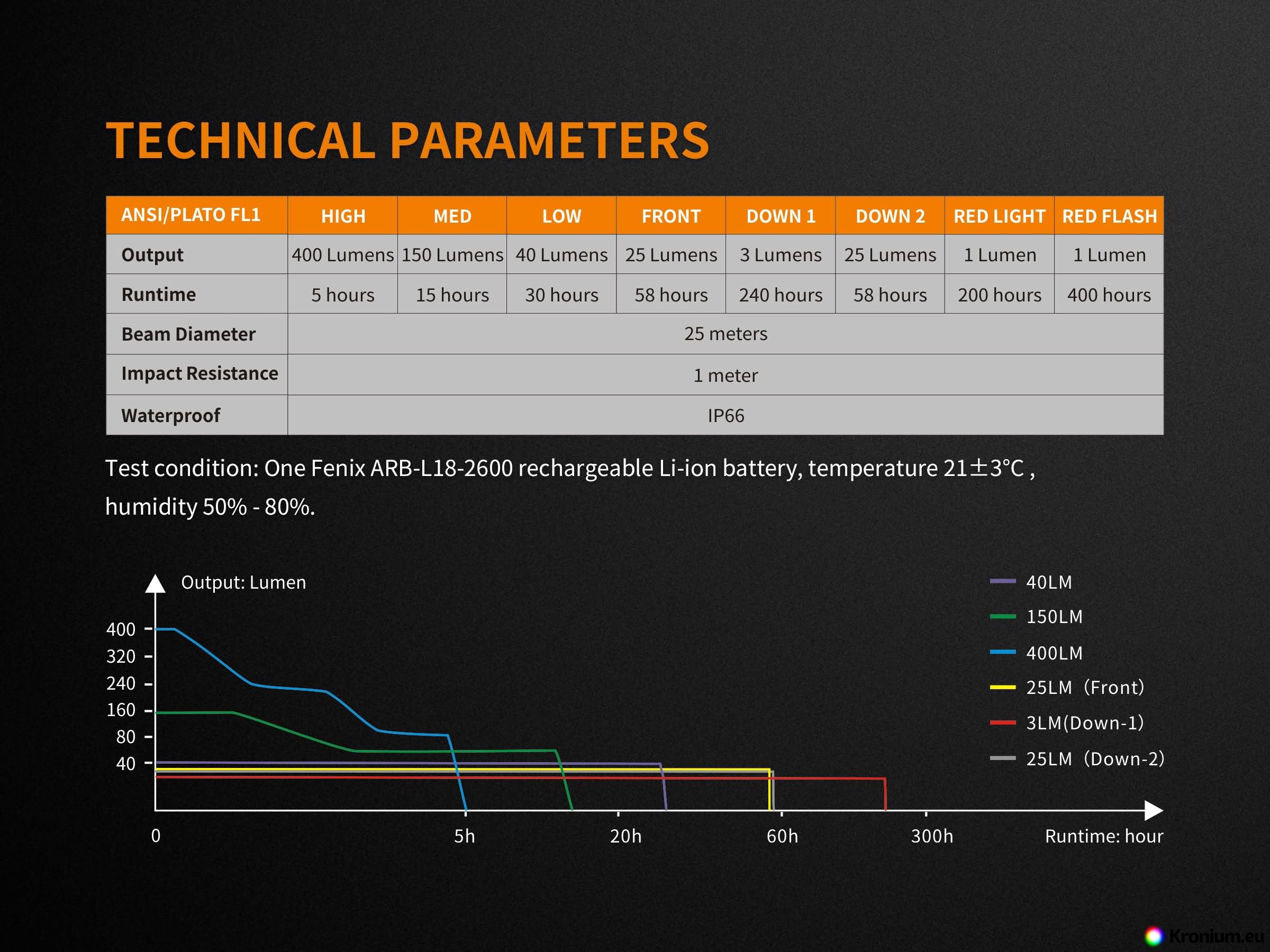

• Eight power modes: 400 lumens (5 hours) -> 150 lumens (15 hours) -> 40 lumens (30 hours) -> sidelight 25 lumens (58 hours) -> bottomlight 3 lumens (240 hours) -> bottomlight 25 lumens (58 hours) -> red LED 1 lumen (200 hours) -> red flash 1 lumen (400 hours).
• Measured with included 18650 Li-ion battery with 2600 mAh capacity.
• Electronics with extended light time function and reverse battery insertion protection.

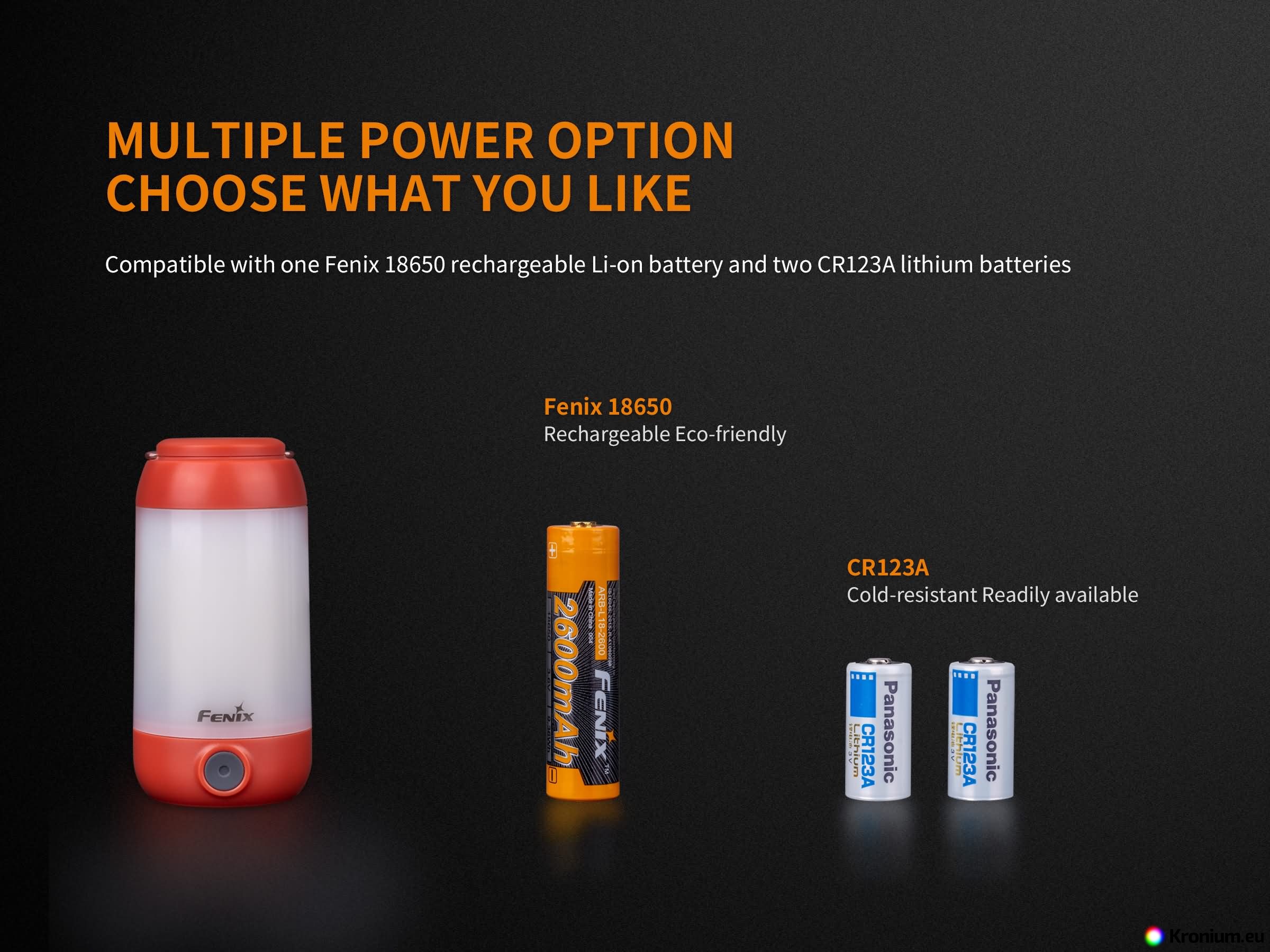

• A 18650 battery with 2600 mAh capacity is already included, any 18650 battery from our range can be used as a replacement. In case of emergency, the lantern can also be powered by two disposable CR123A batteries.
• Charge via micro-USB connector.
• Freezeproof design, the battery is well insulated against low temperatures, so the lantern can be used even in temperatures well below zero.
• Made of durable plastic, the lantern is impact resistant to falls from 1 meter.
• Waterproof to IP66 standard (spraying with strong jets of water from all directions).

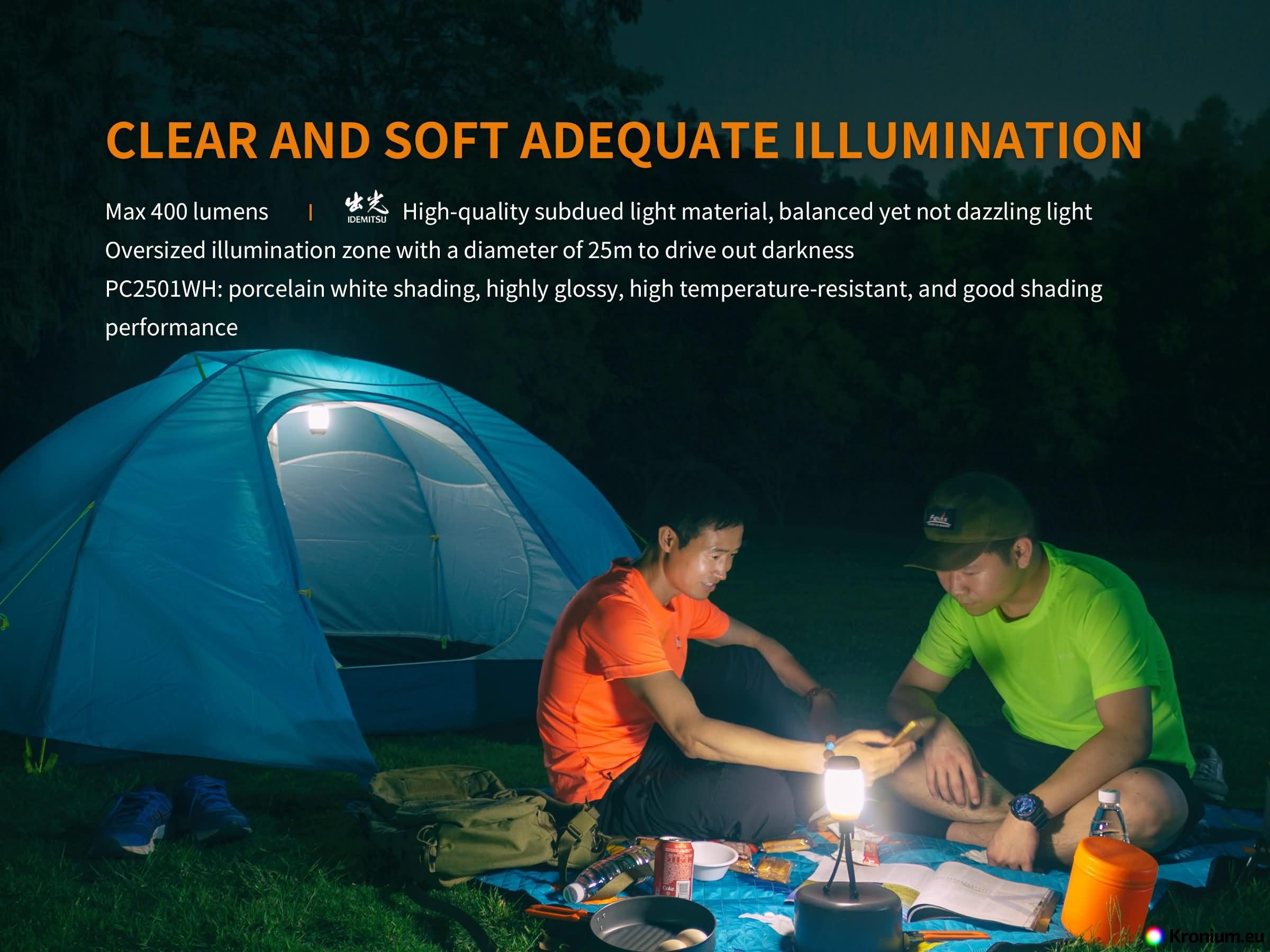

• An omnidirectional diffuser produces a wide, uniform light cone with a range of up to 25 meters.
• Top side features a hanging eye, neodymium magnet for attaching to anything metal and a thread for mounting on a tripod.

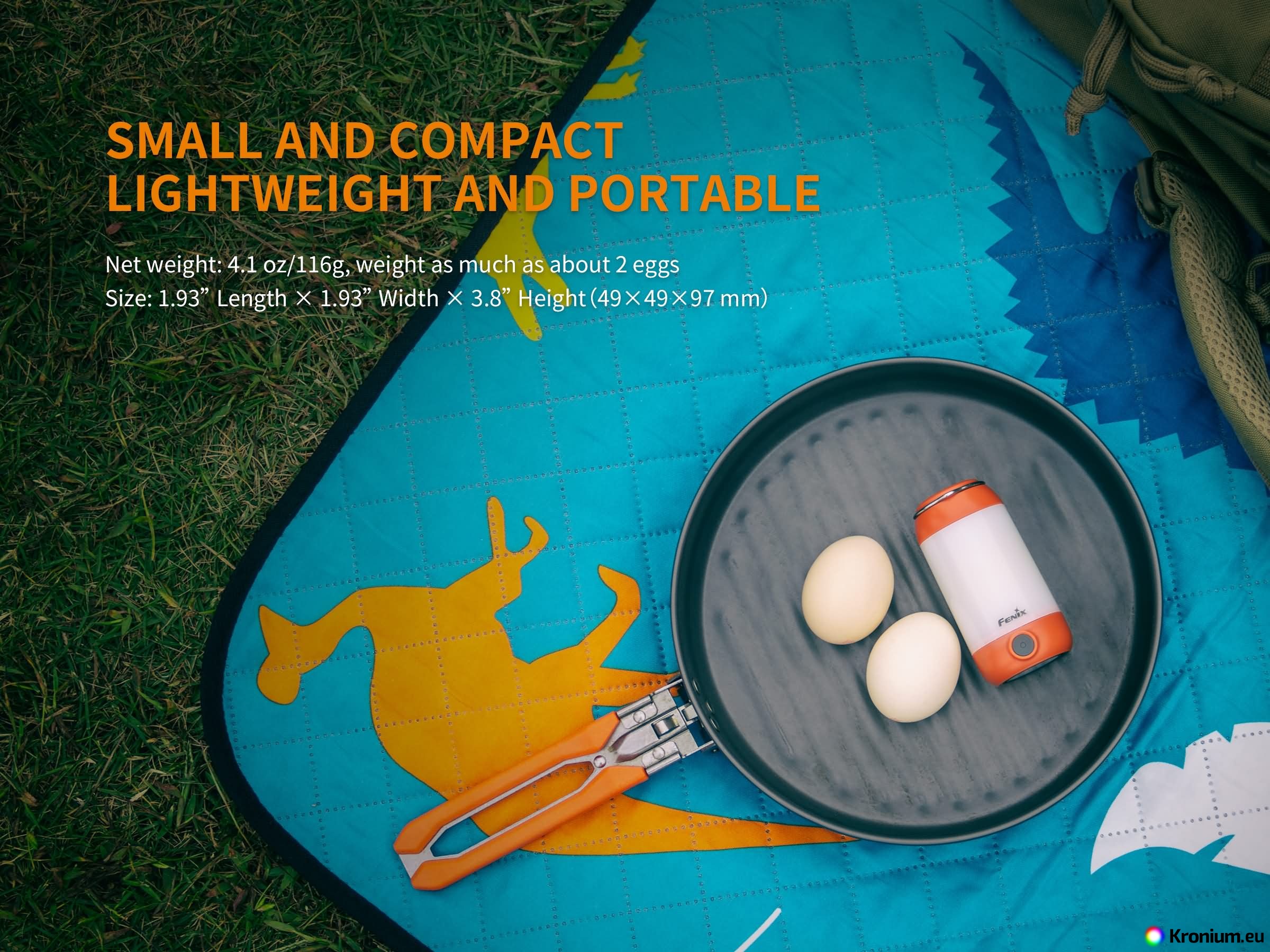

• Dimensions 4.9 cm (diameter) x 9.7 cm (height).
• Weight 165 grams (including battery).

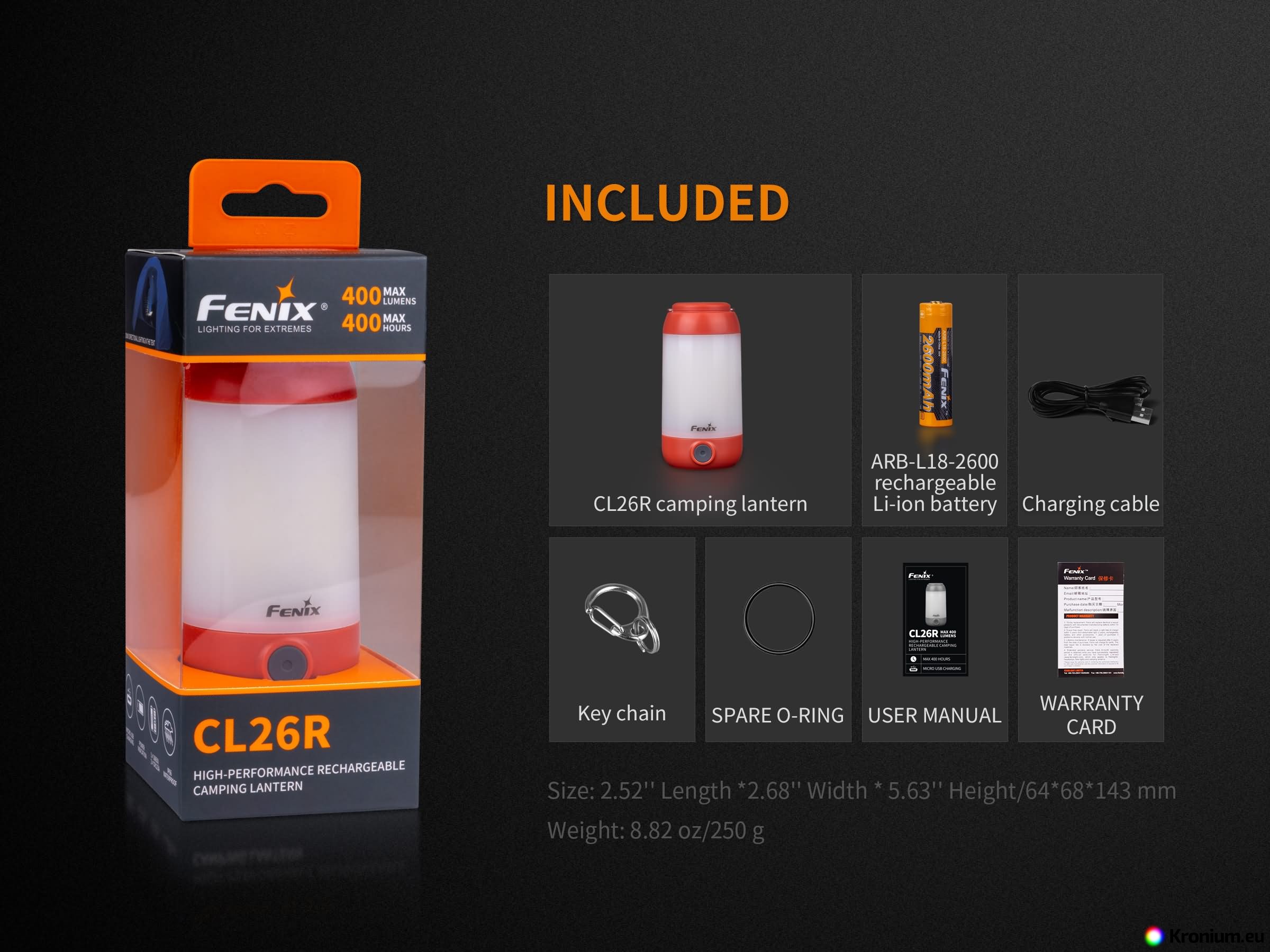

• Package includes lantern, Fenix 18650 2600 mAh battery, spare o-ring, hanging carabiner and USB cable.
• The lantern can also be purchased with USB mains adapter and USB car adapter.

Using the Fenix CL26R

From manufacture, there may be a black insulating cap inside the lantern on the battery. Remove it from the battery pack before first use.

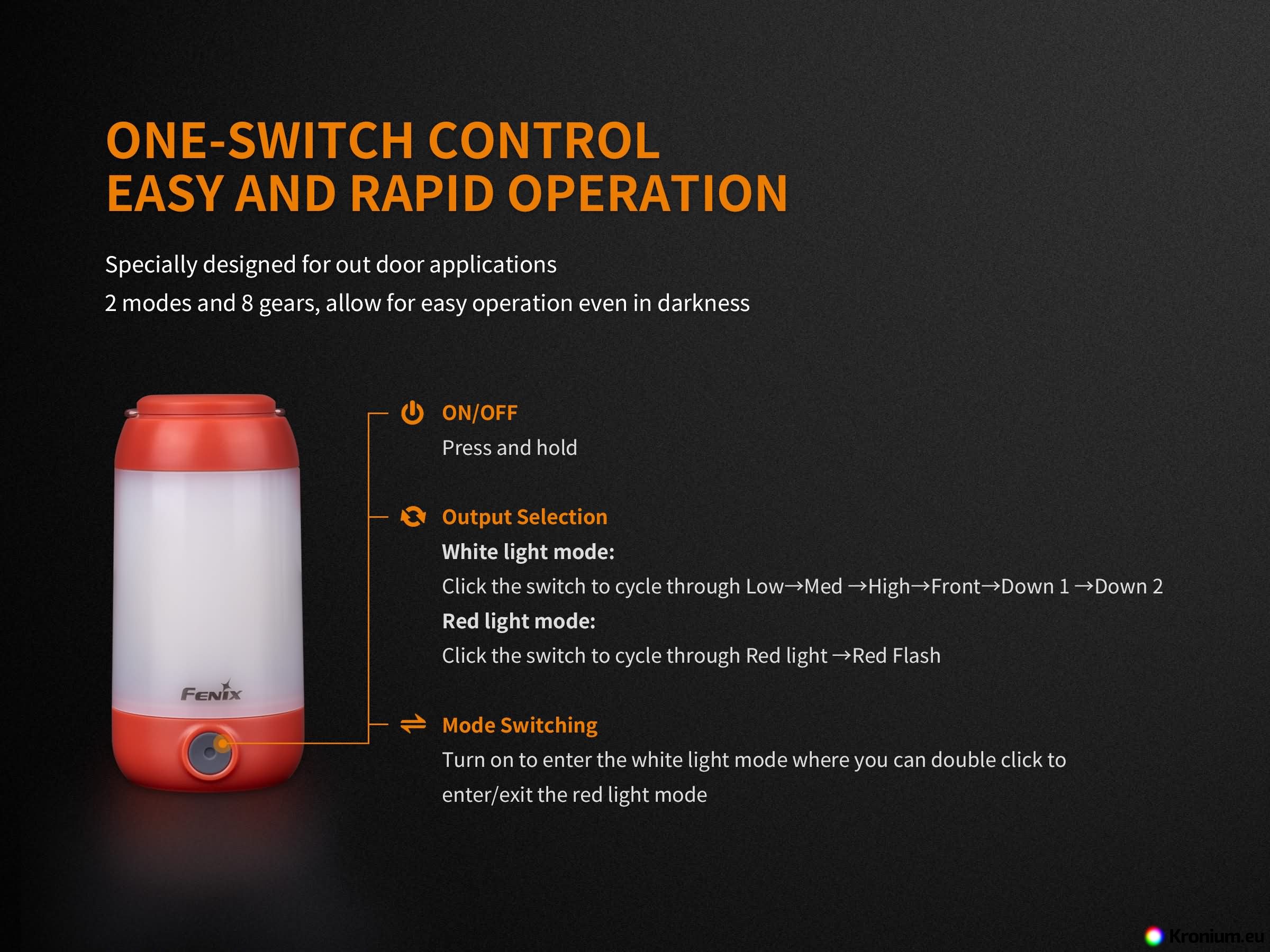

To turn on or off, hold the side button down for 1 second. The six power levels of the white light are cycled by pressing the button, the red light is activated by pressing the button twice quickly. Another press switches to red flashing mode and a double press returns to white light modes.

The lantern is equipped with a battery life extension feature. When used for extended periods of time in turbo (400 lumens) and high (150 lumens) modes, the lantern gradually reduces output in small steps to achieve longer runtime.

Discharged battery warning - the flashlight automatically switches to the lowest mode gradually.

Charging the Fenix CL26R

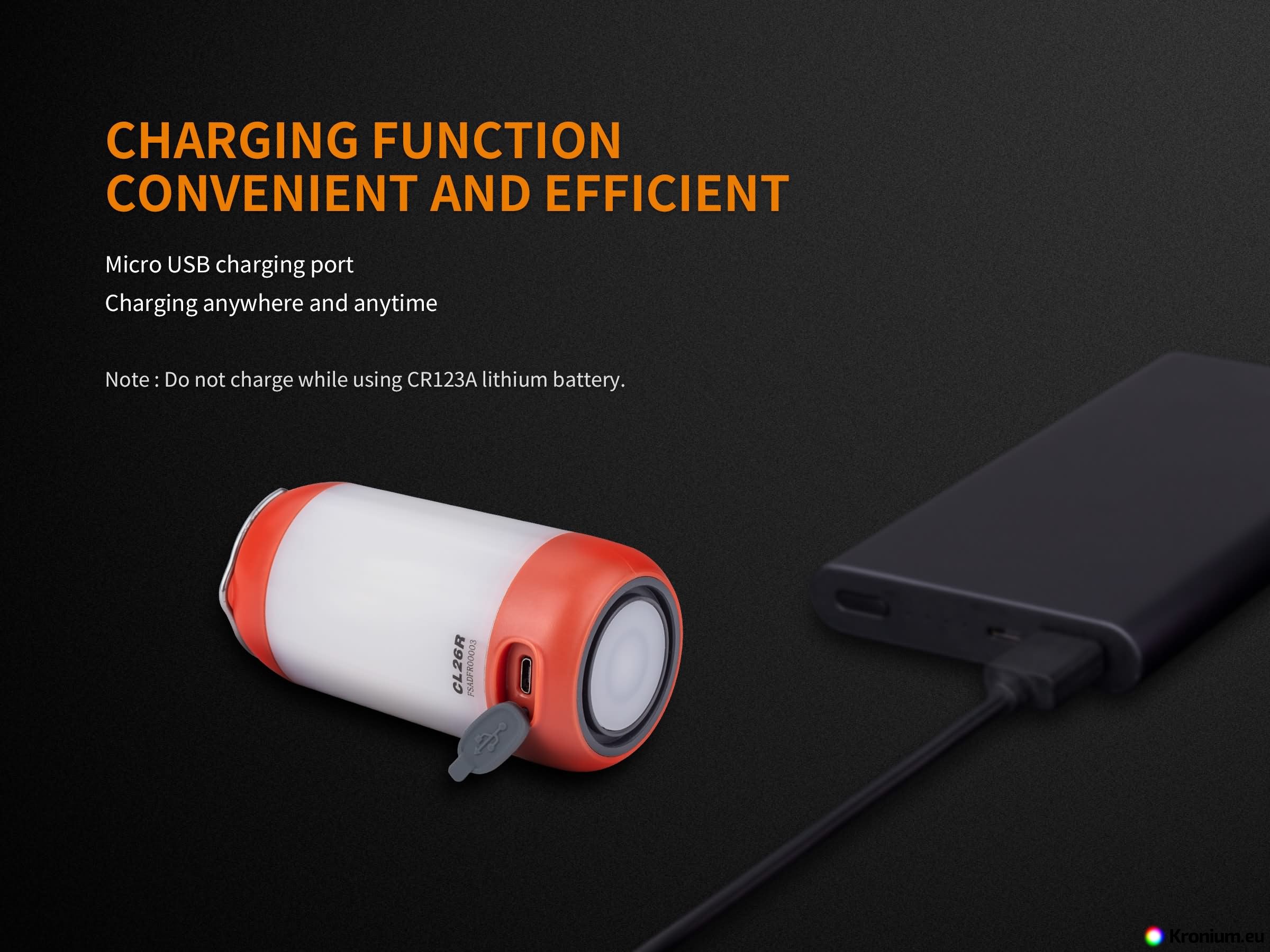

To charge the lantern, flip off the rubber cap of the micro-USB connector. Connect it using the included USB cable to your computer, USB network adapter or USB car adapter. You can also use a standard mobile phone charger with a micro-USB connector or a power bank to charge. During charging, the indicator LEDs above the side button flash to show the charging progress. They will remain lit when charging is complete.

The battery doesn't suffer from memory effect, so it can be recharged at any time and there is no need to wait until it is discharged. Charging a fully discharged battery takes approximately 2.5 - 4 hours (depending on the strength of the charging source used).

During charging, the lantern can only be switched on in 40 lumen mode.

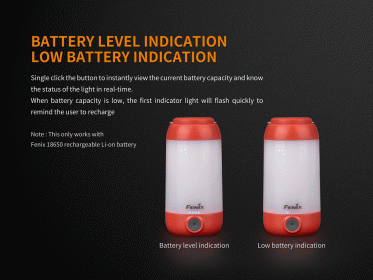

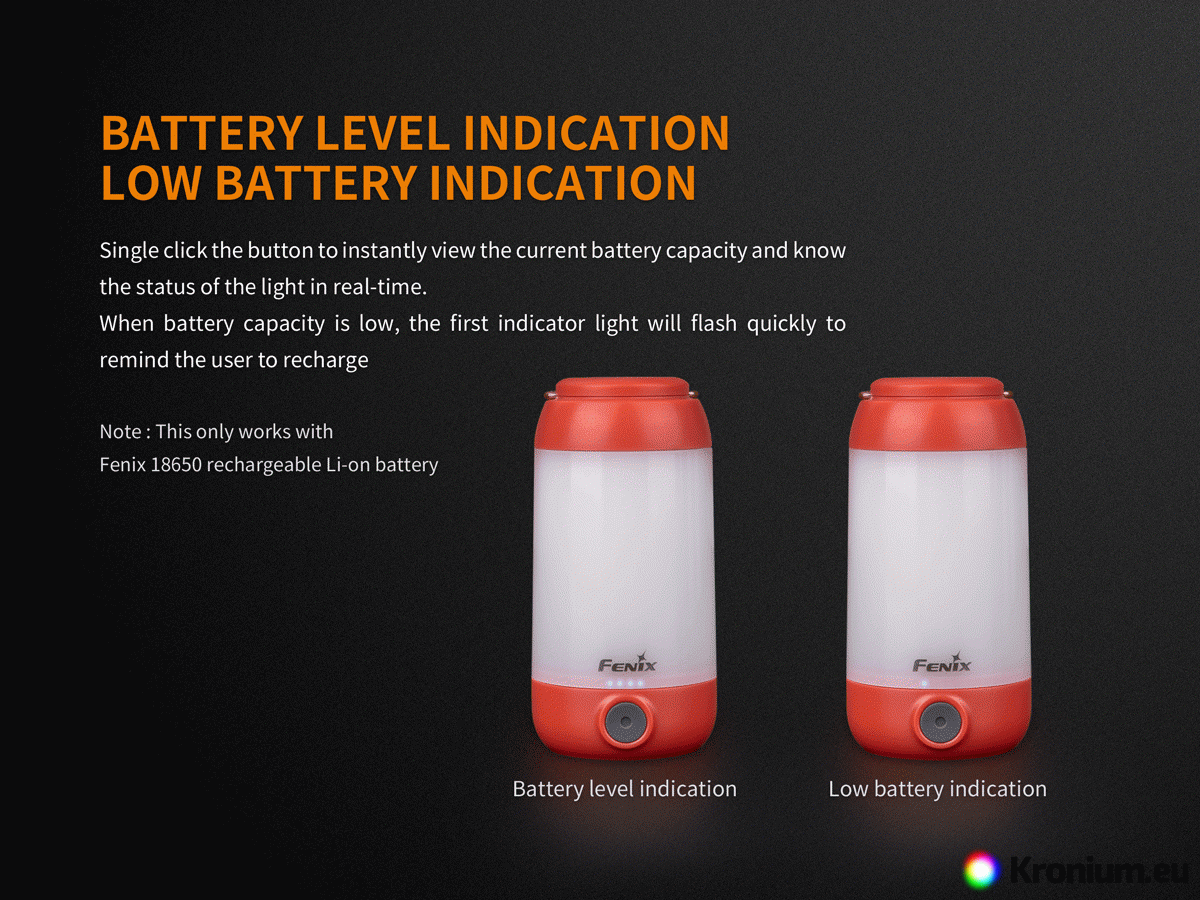

Battery charge indication - after a short press of the button (the lantern must be switched off) the LED battery charge indicator above the control button is activated. Four lit LEDs indicate that the battery is more than 80% charged, three lit 60-80%, two lit 40-60%, one lit 20-40% and one flashing LED indicates that the battery is less than 20% charged.

Warning

• Do not disassemble the sealed parts yourself, it will violate the warranty.
• If using disposable CR123A batteries, do not attempt to charge them in the flashlight.
• If the flashlight blinks, does not switch to higher power modes, or does not light up, it may be due to one of the following reasons:
  • The battery is almost dead – charge it.
  • The electrical contacts are dirty – clean them with a cotton ball dipped in alcohol.
  • Battery cap is loose, tighten it.
