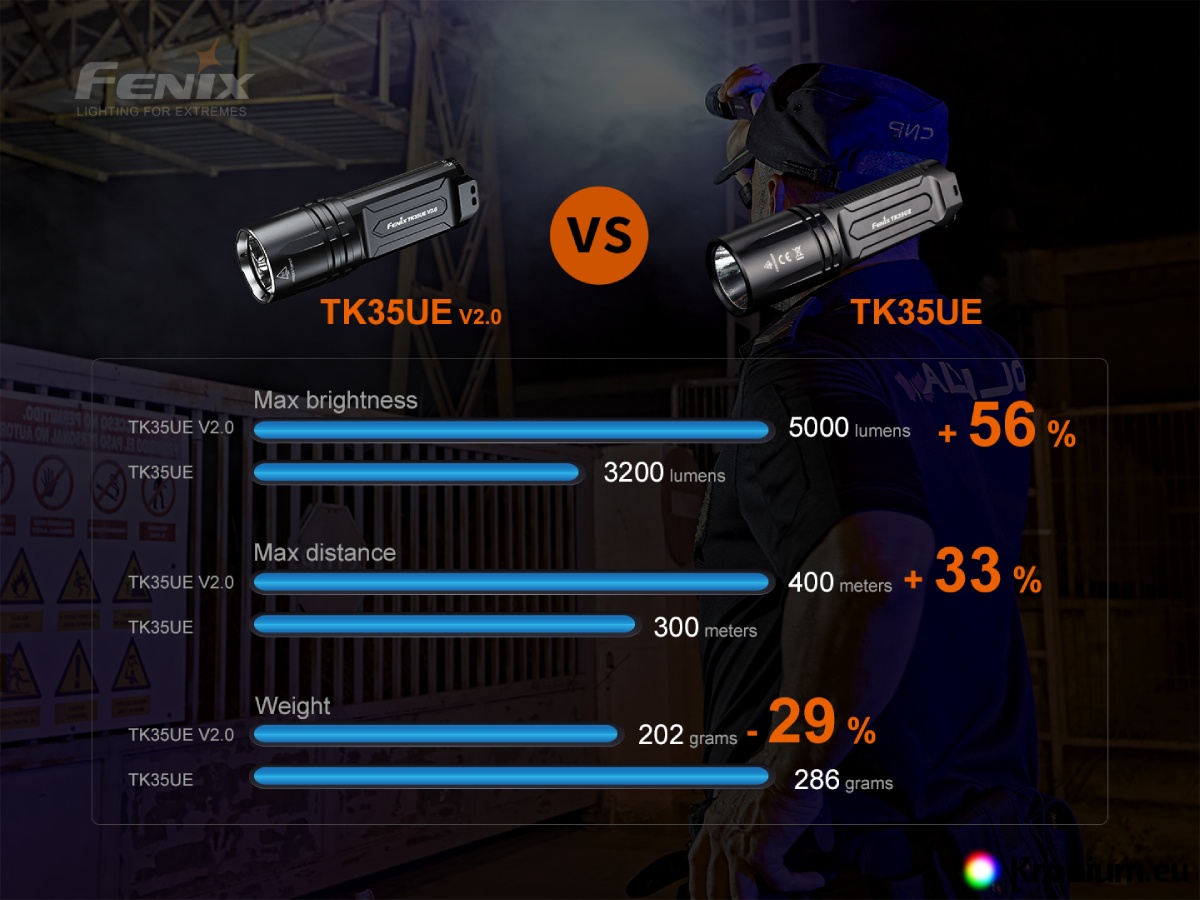

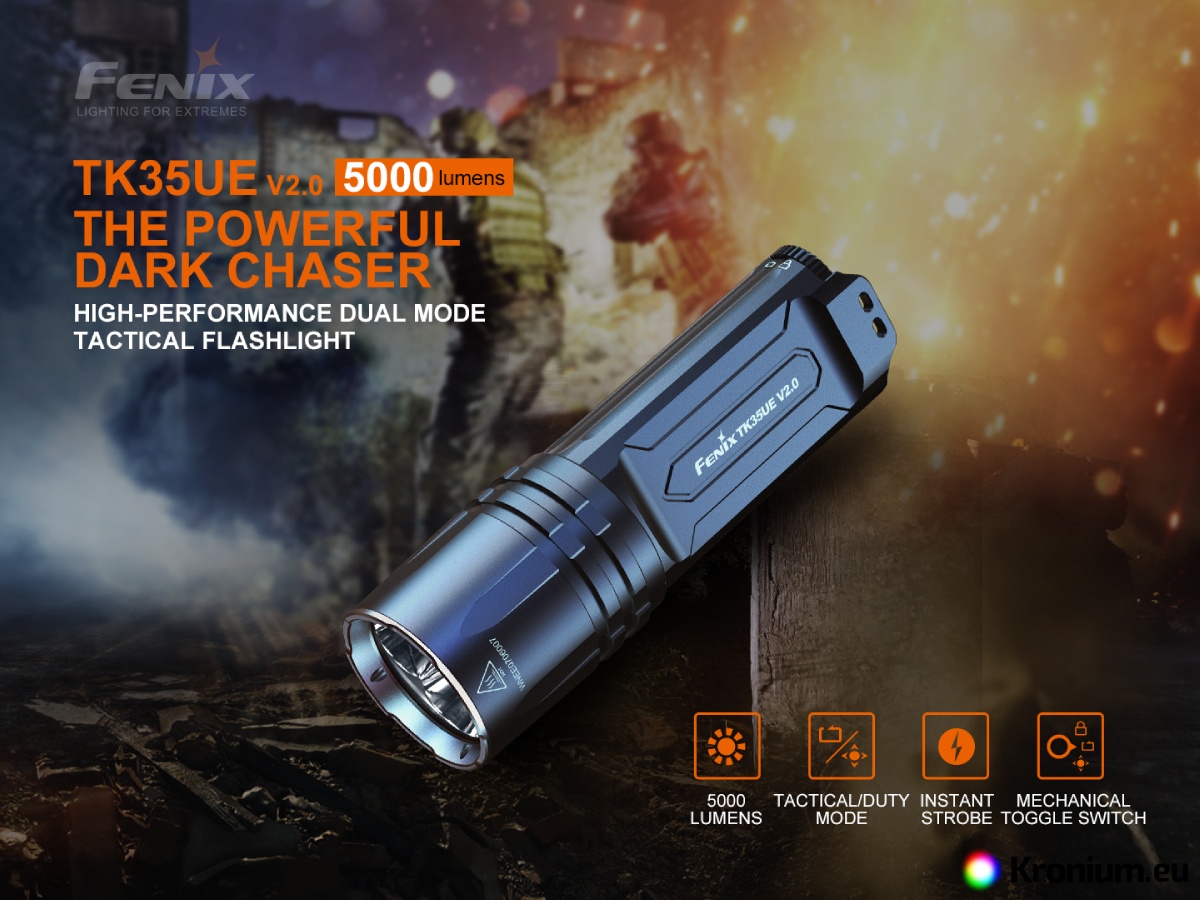

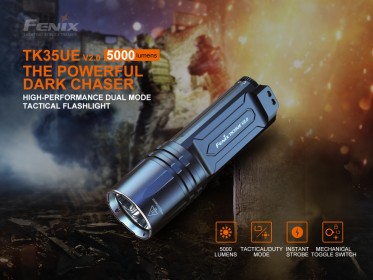

The fourth generation of the Fenix TK35 Ultimate Edition V2.0 tactical flashlight delivers up to 5000 lumens ANSI and a wide, continuous beam with a range of up to 400 meters. These parameters are achieved thanks to three high-power Luminus SST-40 LEDs. It is recommended to power the lamp with two 18650 Li-ion batteries (not included in the lamp package). In case of emergency, you can use four or two CR123A batteries or only one 18650 battery, in which case the highest modes will not be available. The lamp is equipped with a rotary control to lock the control or to choose between two modes of use. In tactical mode, the lamp can be switched to either a 3500 lumen mode or a strobe mode of the same power. In service mode, there is a choice of five lighting modes (30 - 350 - 800 - 2000 - 5000 lumens) and strobe. In the lowest mode, it can light for up to 85 hours. Thanks to the juxtaposition of the elements, the lamp is surprisingly short and fits perfectly in the hand. With an IP68 compliant precision and waterproof design, this tactical lantern is primarily designed for demanding outdoor environments. It will serve rescue teams great for either search and rescue, but is also ideal for hunters and other outdoor activities.

All flashlight parameters (lumen output, battery life, waterproof, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

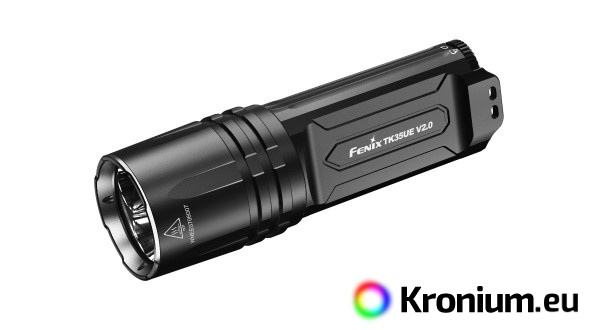

Fenix TK35 UE V2.0 Flashlight Specifications

• Three high-performance LED Lumius SST-40 with a lifetime of 50,000 hours are used.

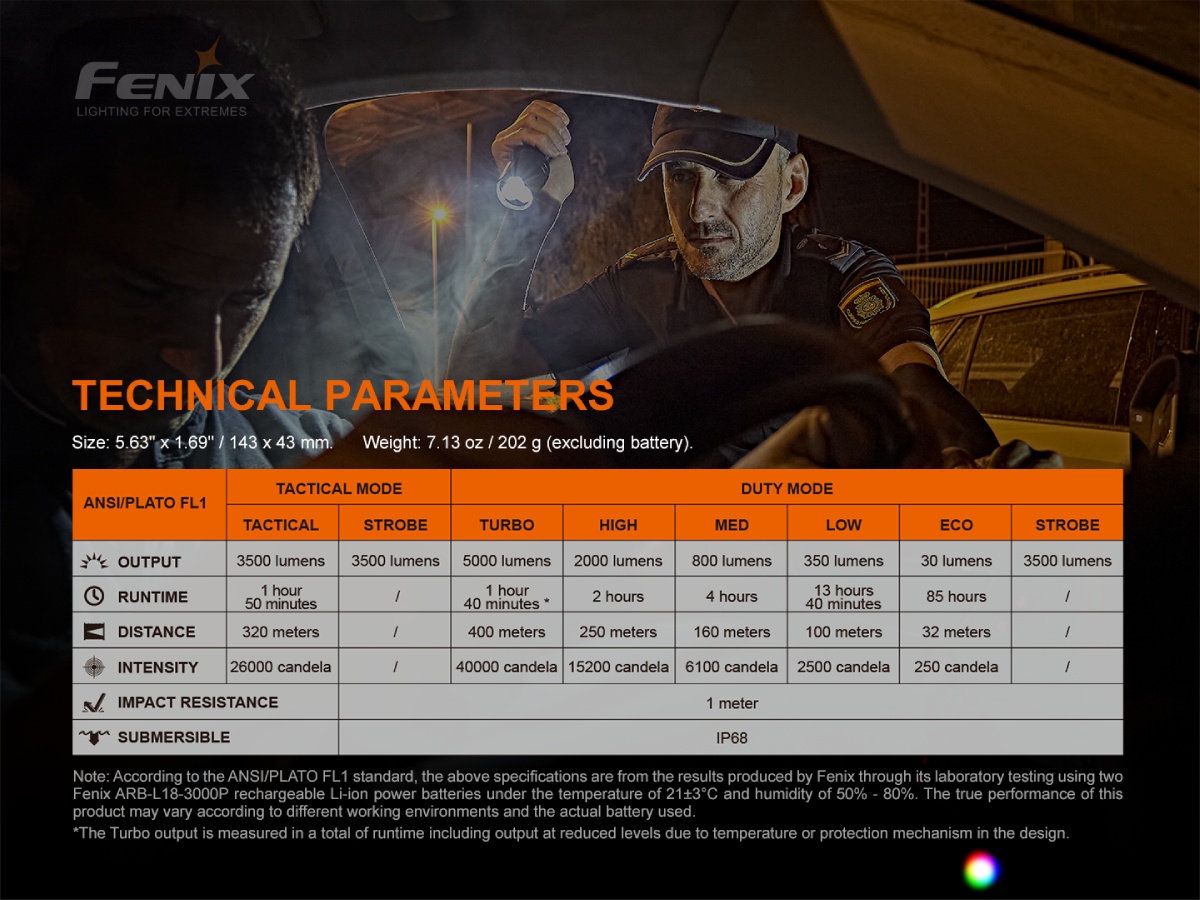

• Total of eight power modes:

  • Tactical mode: 3500 lumens (1.8 hours) -> 3500 lumen strobe
  • Service Mode: 5000 lumens (1.7 hours) -> 2000 lumens (2 hours) -> 800 lumens (4 hours) -> 350 lumens (13.7 hours) -> 30 lumens (85 hours) -> 3500 lumen strobe
• Duration times are measured with 18650 Li-ion batteries with 3000 mAh capacity (not included)
• You can also use 4 pieces (2 pieces in case of emergency) of disposable lithium CR123/CR123A batteries or 1x 18650 Li-ion rechargeable batteries to power the battery. S however, the highest modes will not be available.
• Textured reflector for a smooth wide cone with range up to 400 meters (40000 cd).
• Digitally controlled for constant brightness.
• Light has memory and will always turn on in the last mode set (not applicable to strobe).
• Switch for quick activation of strobe.
• Protection against accidental insertion of the battery in reverse (reverse polarity).
• Made of aerospace hardened aluminum type A6061-T6.
• Highly wear-resistant arched threads.
• Hard scratch resistant finish - Type III hard anodized.

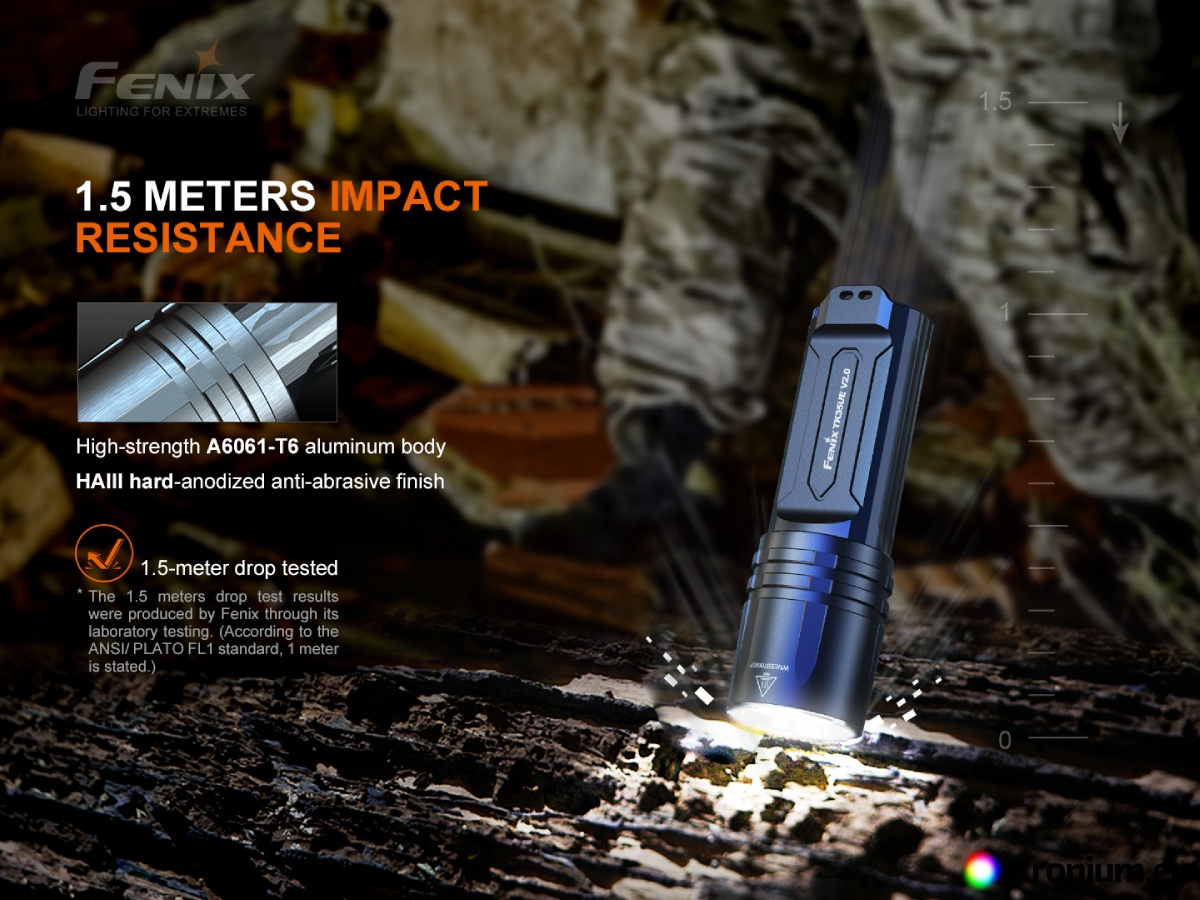

• Resistant to falls from a height of 1 meter.
• Waterproof to IP68 standard (to a depth of 2 meters for 30 minutes).
• Tactical switch at the end of the flashlight (momentary on/off function).
• Dimensions 14.3 cm (length) x 4.3 (reflector diameter).
• Weight 202 grams (without batteries).
• Hardened ultra clear glass lens with anti-reflective surface.

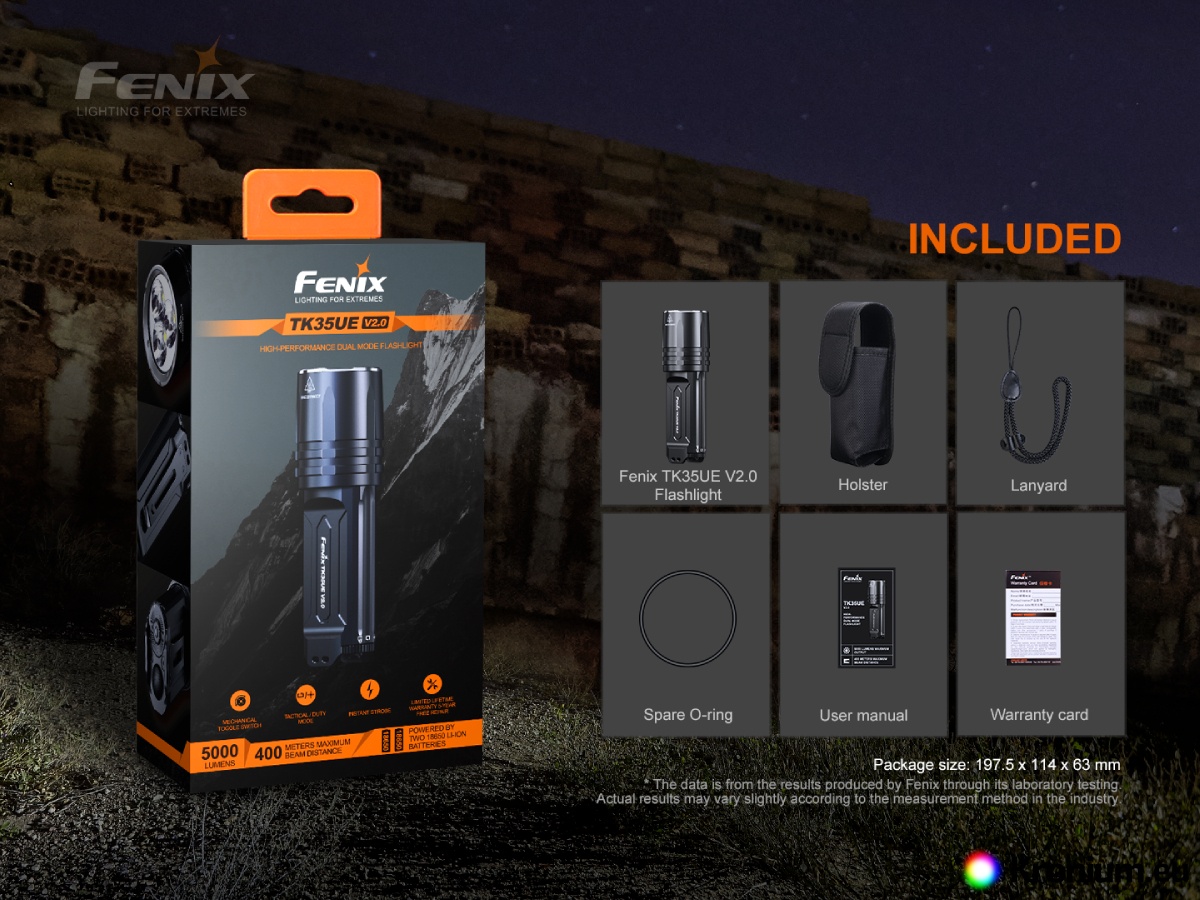

• The flashlight comes with a hand strap, carrying case, spare o-ring.
• Batteries not included.
• We recommend purchasing Fenix 18650 high-current 3000mAh batteries or Fenix 18650 3500mAh batteries.

Using the Fenix TK35 UE V2.0 Flashlight

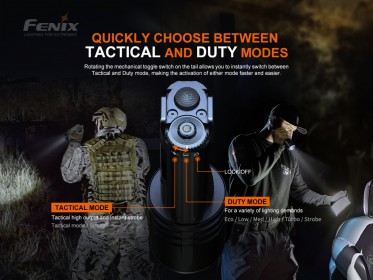

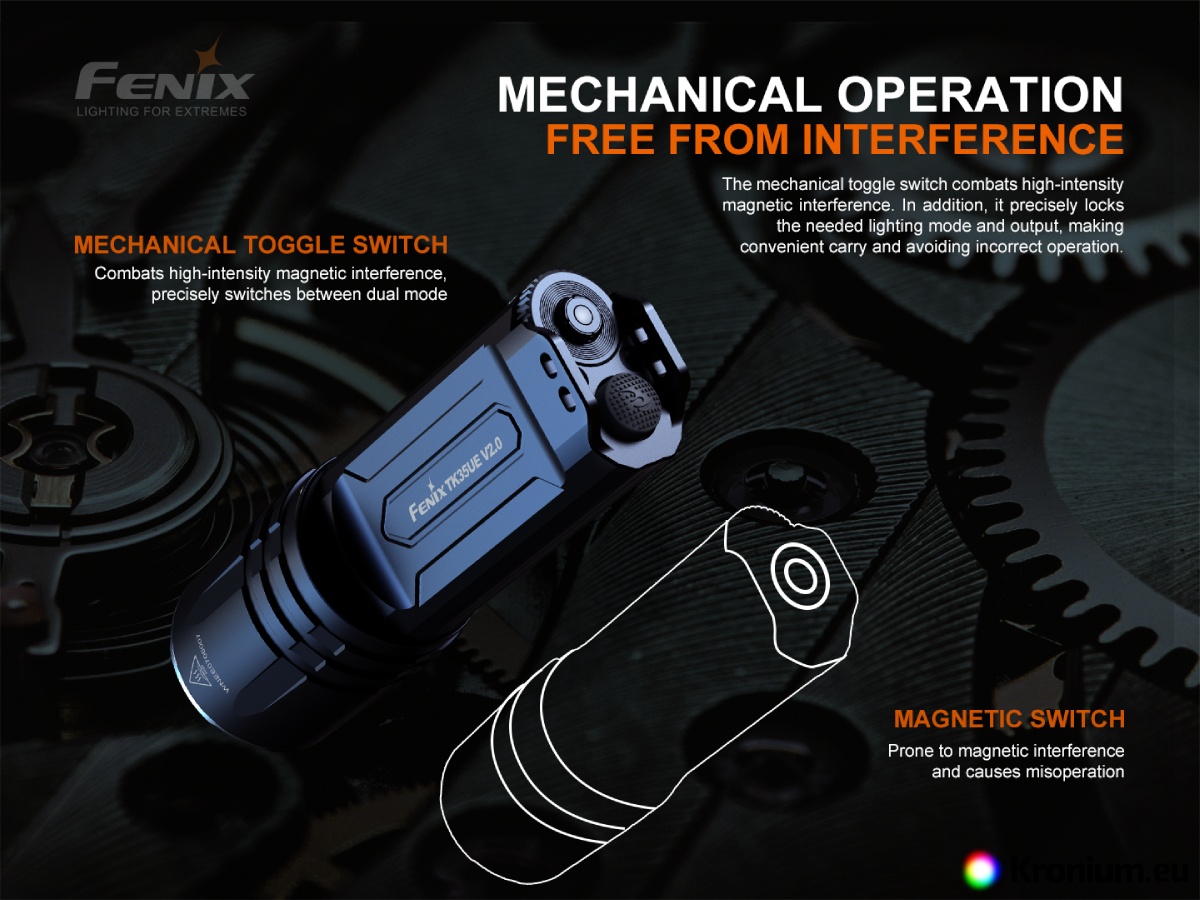

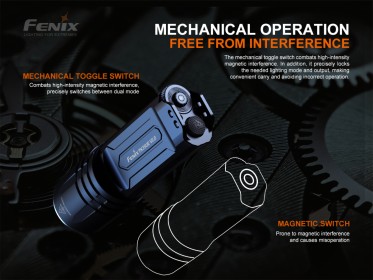

The flashlight offers three modes. The modes are switched between by a rotary wheel located at the end of the flashlight.

Service Mode - Press the main switch of the flashlight to turn it on. Then with further short presses of the smaller button (located in the middle of the rotary dial), the modes are cycled through in the order of 30 - 350 - 800 - 2000 - 5000 lumens. To activate the strobe, hold the smaller switch for approximately 1 second. To switch the flashlight back to steady light, press the smaller switch again or turn the flashlight off and on. In service mode, the flashlight remembers the last mode set except strobe.

Tactical Mode - Press the main switch to turn the flashlight on and off. Only the 3500 lumen mode is available in tactical mode. When the flashlight is turned on in tactical mode, the strobe is activated by pressing the smaller button. Press it again to deactivate the strobe.

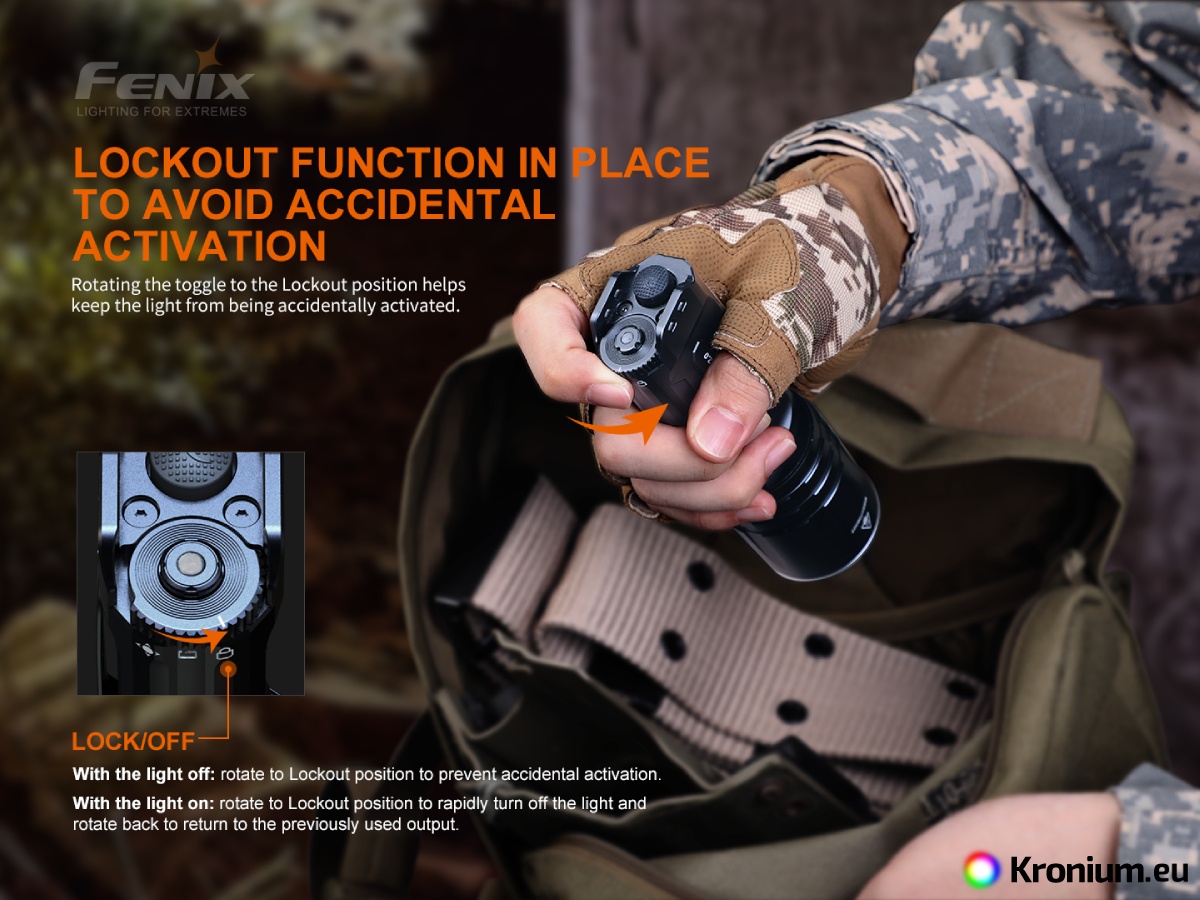

Lock - the third position on the rotary dial locks the flashlight and cannot be switched on - useful for example when transporting in luggage. The flashlight can be locked in the off and on state, locking also turns the flashlight off. Locking is signalled by a permanent green-red flashing of the indicator LEDs in the switch, which can help, for example, to find the flashlight in the dark. The lock indication can be switched off or on again by holding the smaller button for 3 seconds.

Locking the flashlight directly into strobe mode - press and hold the switch on the rotary button, the strobe will be active for as long as it is held.

Intelligent overheat protection - once the temperature exceeds 60 °C the flashlight will automatically gradually reduce power, once cooled below this limit the highest modes will be available again.

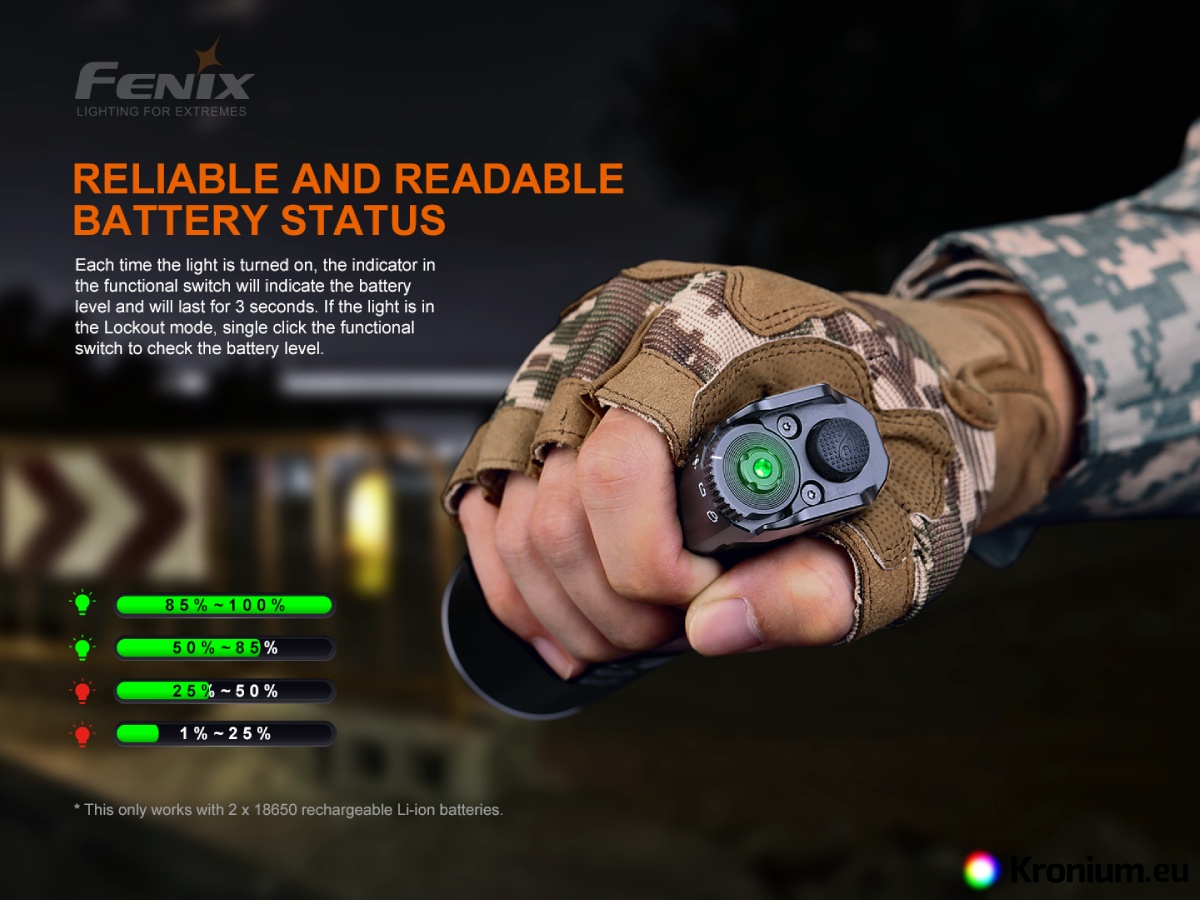

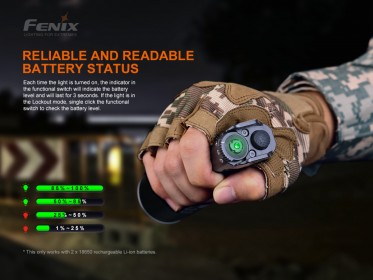

Battery capacity indication - after switching on the flashlight, the colored LED indicator in the switch lights up for 3 seconds. If the indicator LED is green the battery is more than 85% charged. Green flashing means 50-85% capacity. If the light is red, the battery is 25-50% charged. Red flashing indicates less than 20% battery capacity remaining. The indication only works properly with the use of Fenix 18650 batteries.

Battery Low Warning - the flashlight will automatically switch to the lowest power mode and the indicator LED in the switch button will flash red.

Warning

• Do not disassemble the sealed parts of the flashlight yourself, it will violate the warranty.
• Never use differently discharged batteries or batteries with different capacities.
• Use only high quality batteries and accumulators to avoid damage to the flashlight, for example due to leakage of substances from the battery.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent erosion of the rubber. By following these rules, the flashlight will be properly protected against water.
• If the flashlight is flickering, not switching to higher power modes, or not lighting up, it may be due to one of the following reasons:
  • The batteries are almost dead – replace them.
  • The contacts inside the flashlight or battery holder are dirty – clean them with a cotton ball dipped in alcohol.
  • The flashlight body is loose – add lubricant to the sealing rings and tighten.

Warranty

Five years warranty.
