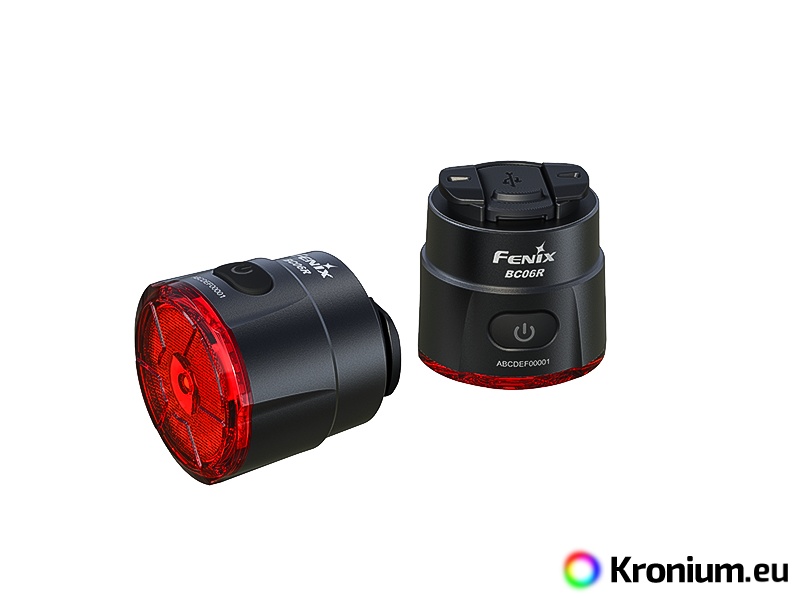

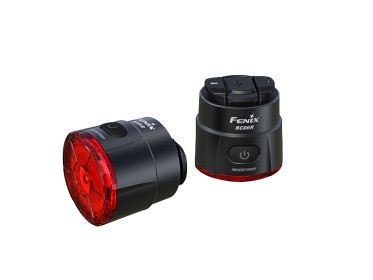

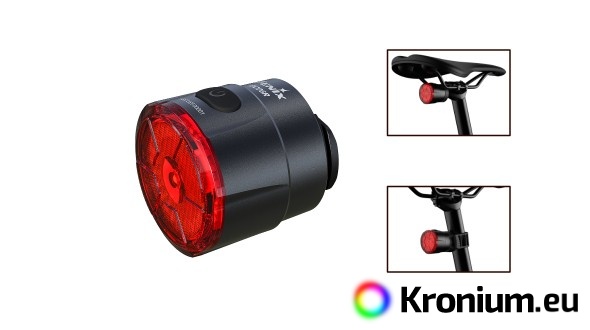

The Fenix BC06R rechargeable red flashlight delivers two power levels - 10 and 30 lumens plus a brake light mode - 90 lumens. In both power levels, it has fast flash, slow flash and constant light functions, and in the lower level it also offers rotating light. Power is supplied by a built-in 560 mAh lithium-polymer battery, which is charged via a USB-C connector directly in the flashlight. The light source are red LEDs that are hidden beneath a slightly flared optic that creates a wide light beam visible at up to 270 degrees. The effective warning distance of the flasher is 100 metres. The weight of the flashlight is only 44.5 grams.

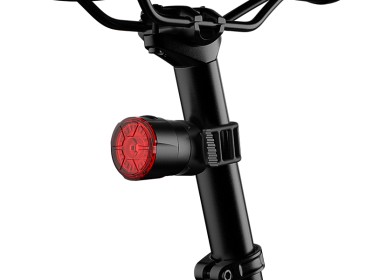

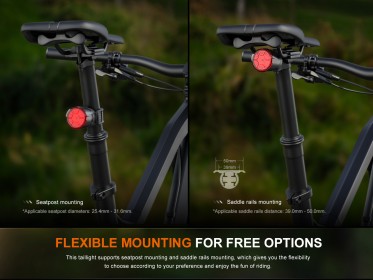

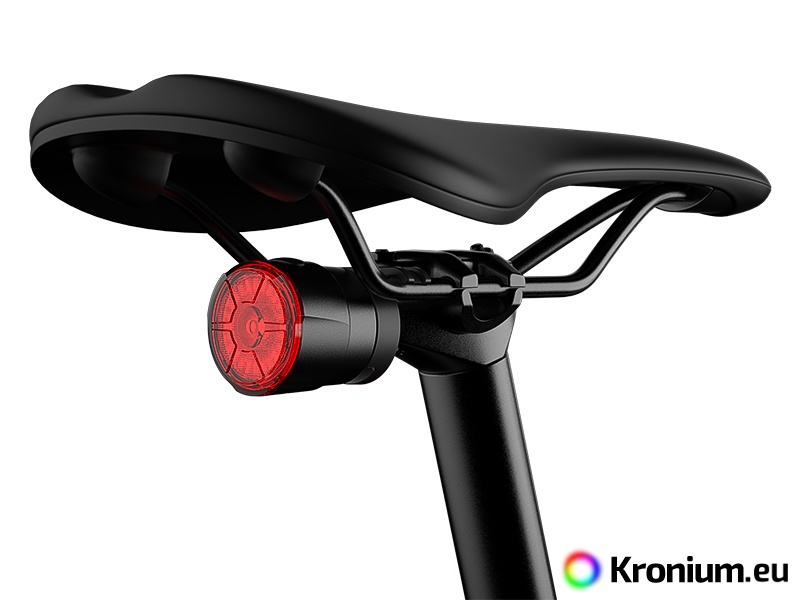

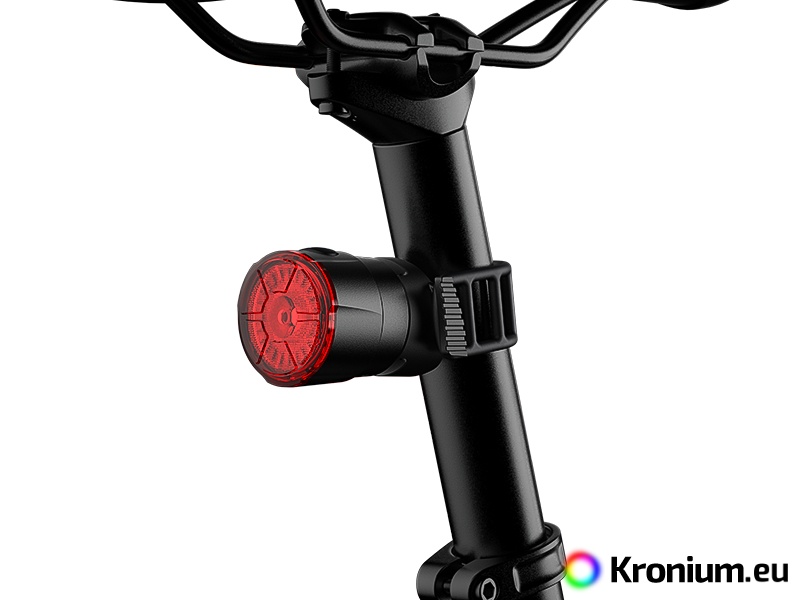

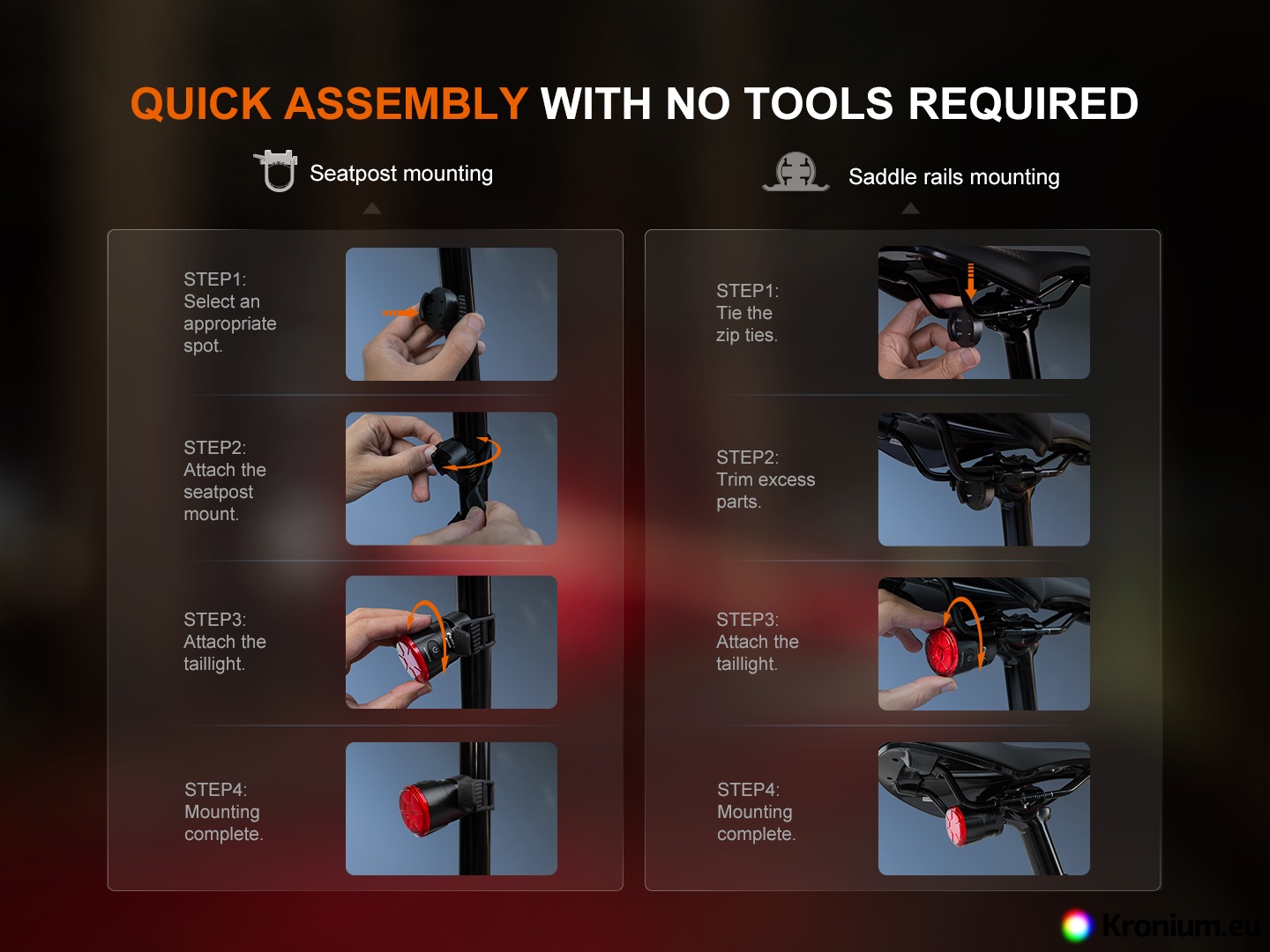

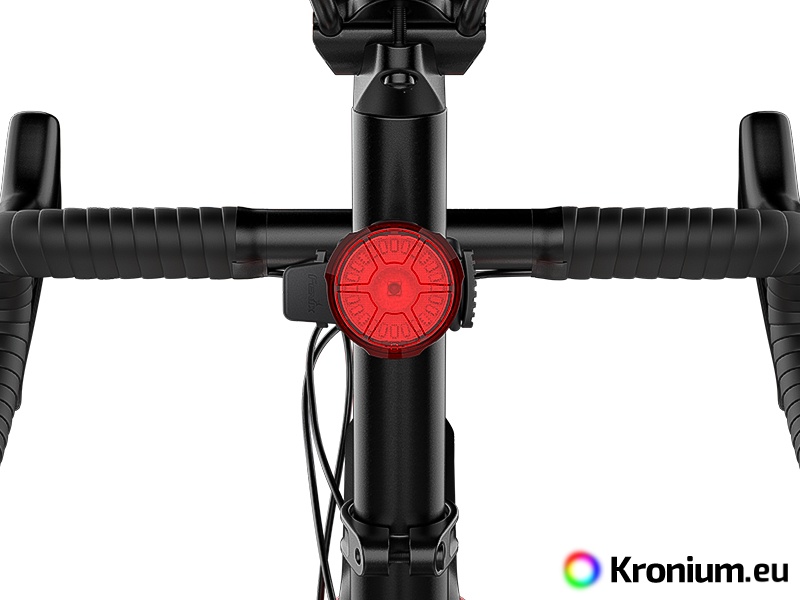

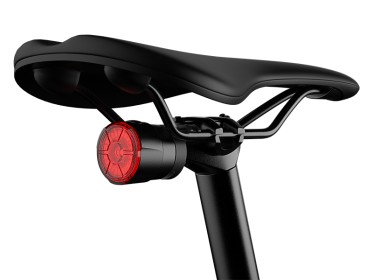

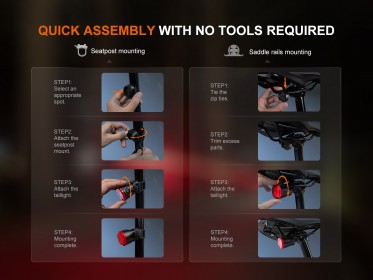

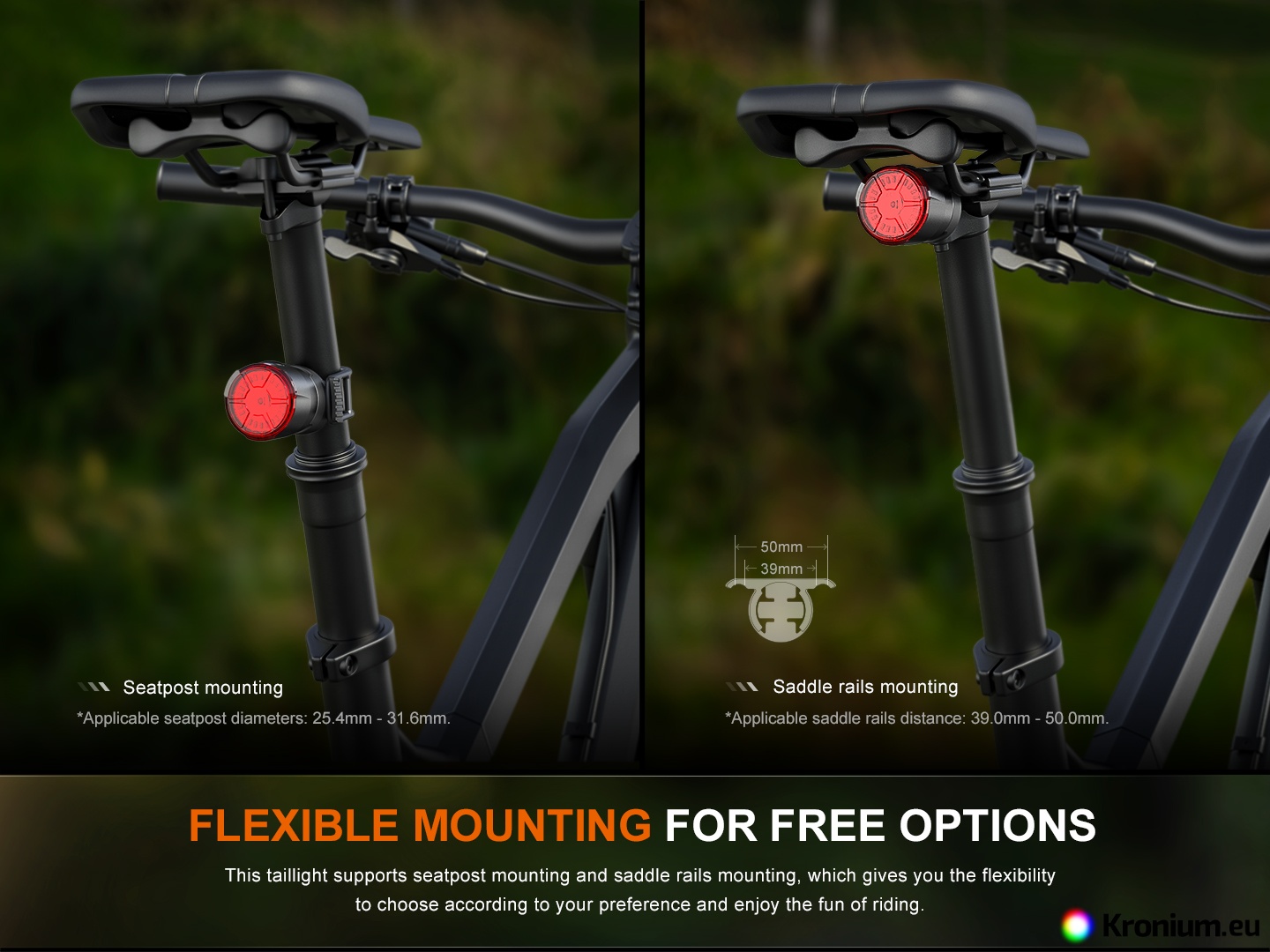

The mounting design allows for quick mounting and dismounting of the light on the bike without tools. The clamp fits a seat tube with a diameter of 25.4 to 31.6 millimeters. Also included is a bracket that can be used to attach the flasher to the saddle rails (the distance of the rails must be between 39 and 50 millimeters). With a 10 lumen fast flash mode, the Fenix BC06R can last up to 24.5 hours, providing safe lighting for night training, regular commuting and endurance racing.

All flashlight parameters (lumen output, battery life, waterproofing and range) are measured in accordance with ANSI/NEMA FL 1-2009.

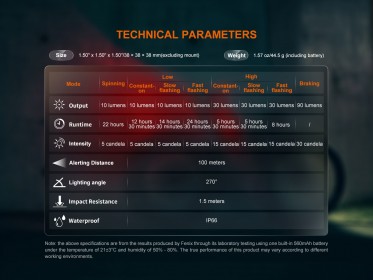

Fenix BC06R bikelight specifications

• Uses red Cree XP-E2 LEDs with a 50,000 hour lifetime.

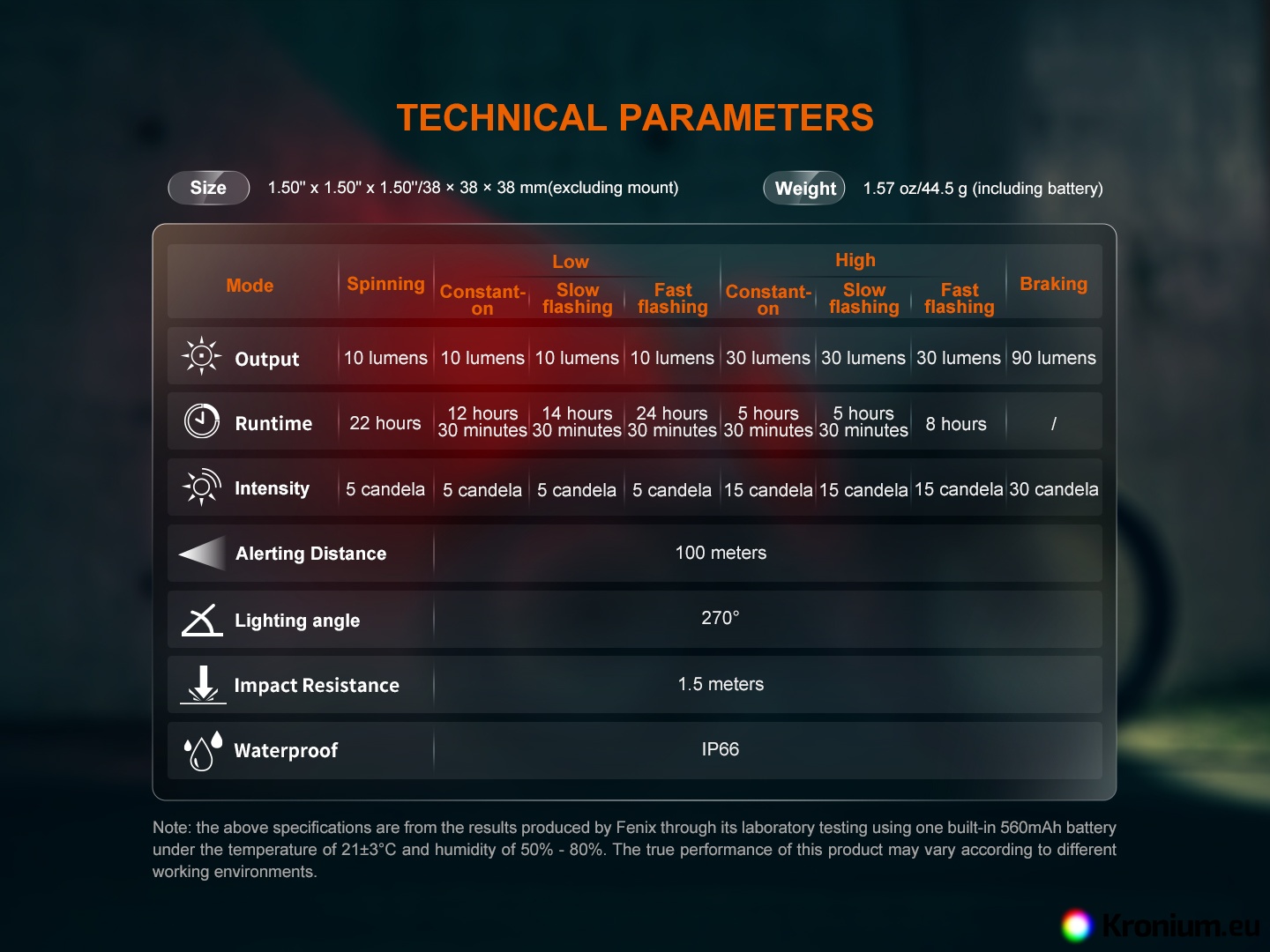

• Total of seven power modes: 30 lumens (5.5 hours) -> slow flash 30 lumens (5.5 hours) -> fast flash 30 lumens (8 hours) -> 10 lumens (12.5 hours) -> slow flash 10 lumens (14.5 hours) -> fast flash 10 lumens (24.5 hours) -> rotating light 10 lumens (22 hours).
• Brake light function detects sudden change of speed and increases power to 90 lumens for 2 seconds.
• The flashlight has a built-in Li-pol battery with 560mAh capacity.
• Charging via USB-C connector.
• Discharged battery warning, overcharge and full discharge bettery protection.
• Indication of battery charge status.
• Slightly raised optics create a wide light cone visible at 270°.
• Range up to 100 meters.
• Rubberised construction of the holder sleeve ensures a firm and secure fit.
• Light made of durable plastic.
• Resistant to falls from a height of 1.5 metres.
• Light dimensions 3.8 cm x 3.8 cm x 3.8 cm (without socket and without holder).
• Weight of the light 44.5 grams including battery.

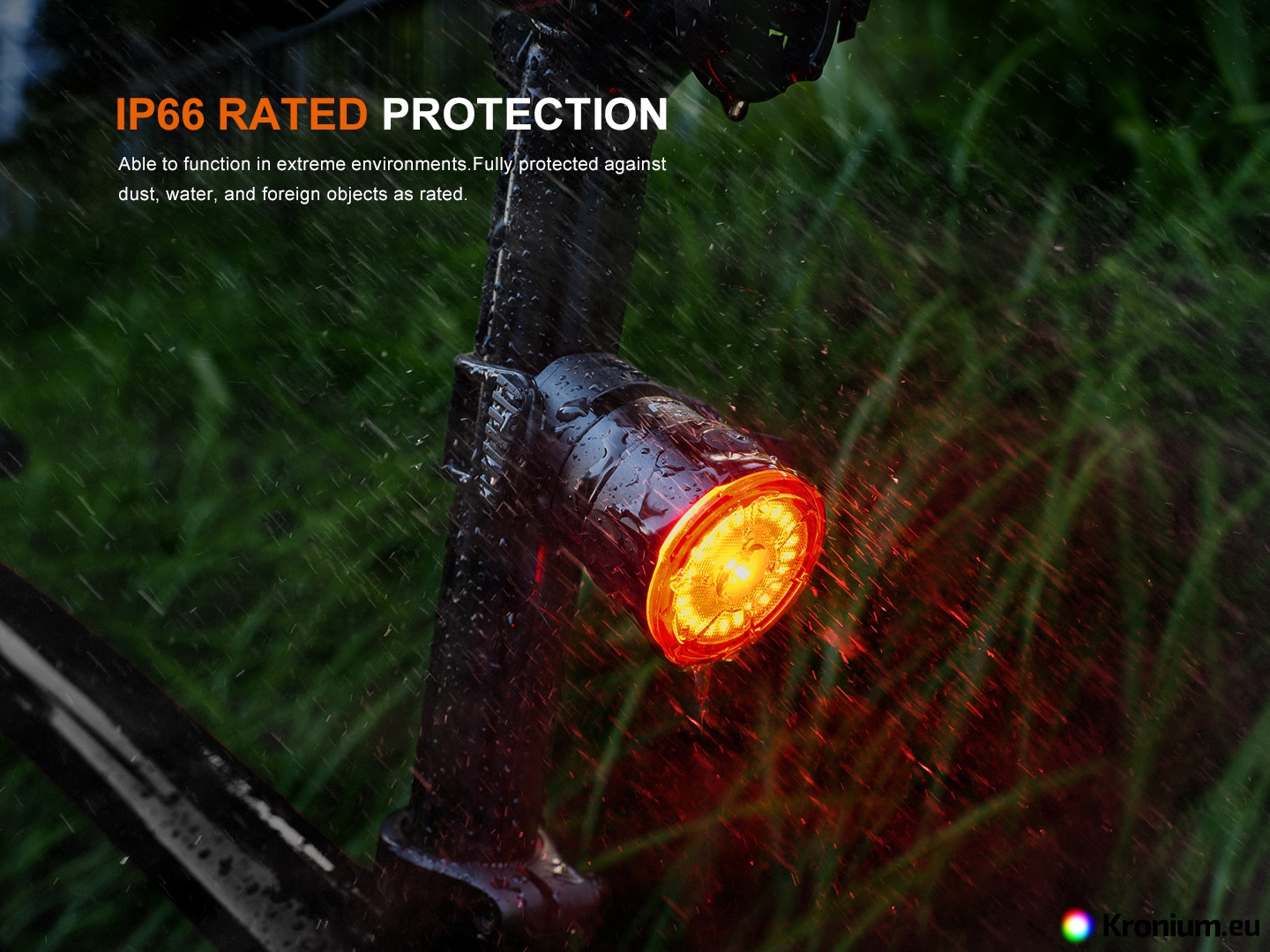

• Waterproof and dustproof to IP66 standard (spraying with strong jets of water from all directions).

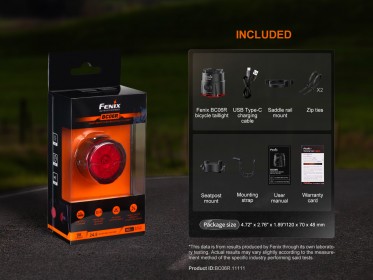

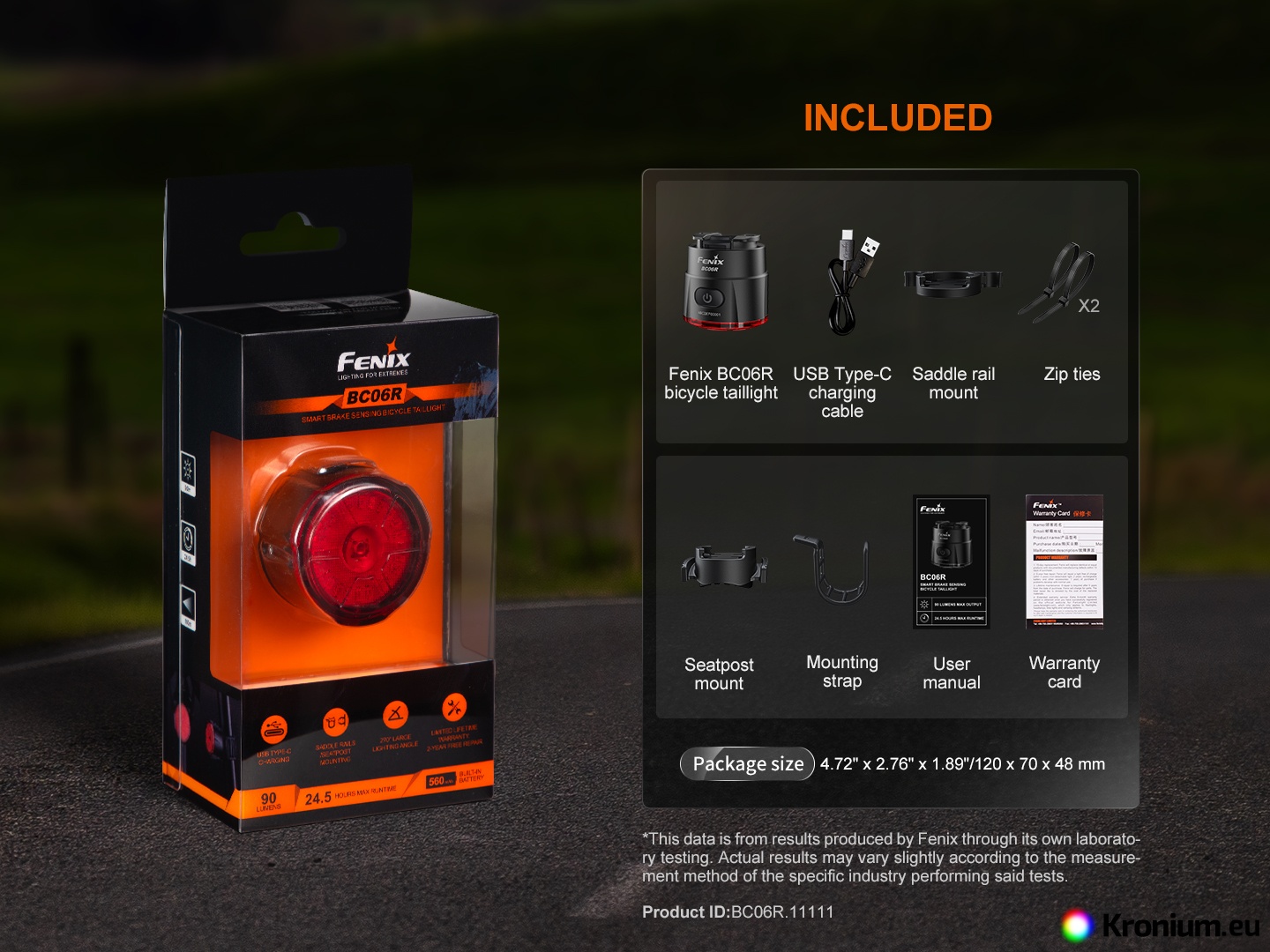

• Package contents: flashlight, clamping rubber with mount for mounting on the saddlebag, mount for mounting on the rails under the saddle, 2x thumb straps, USB-C cable.
• Also available USB mains adapter and USB car adapter, USB adapter supporting fast charging and coloured USB-C cable.

Using the bike light

To turn on or off, hold down the button on the flashlight for approximately 0.5 seconds. The flashlight will always turn on in the last used mode with the exception of the 90 lm brake light. The power modes can be switched at any time during operation by briefly pressing the button (cycling through in the order of low 10 lm - slow flash 10 lm - fast flash 10 lm - high 30 lm - slow flash 30 lm - fast flash 30 lm - rotating light 10 lm).

Brake light function - if there is a sudden change of speed when the light is on, the flashlight will automatically activate the 90 lumen brake light. After two seconds, the light automatically returns to the previous light mode.

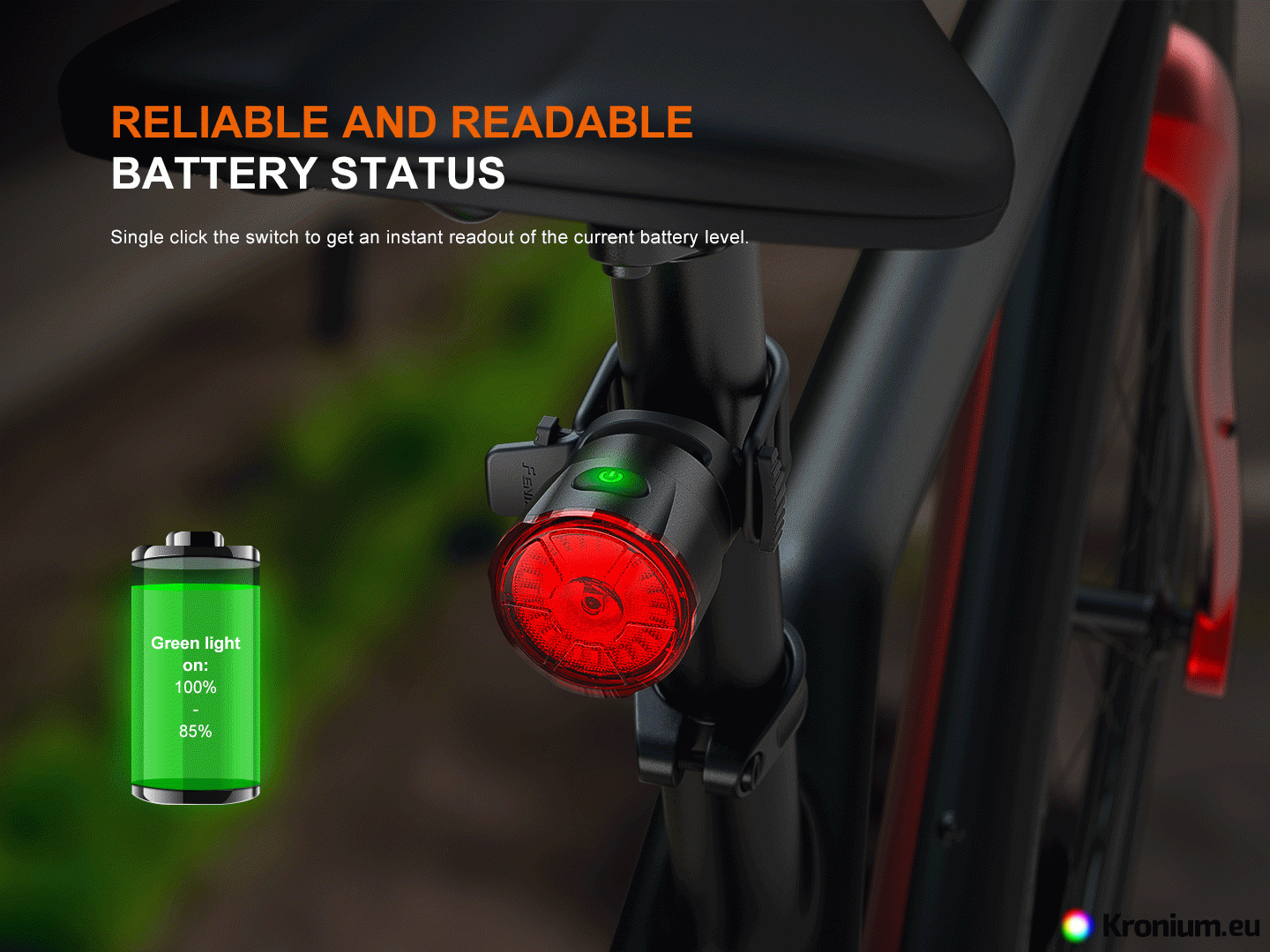

Battery capacity indication - With the flashlight off, press the button once briefly, then the button backlight will illuminate for five seconds. A steady green light indicates a battery charge of more than 85%, a green flash indicates a charge of approximately 50-85%, a steady red light indicates a charge of approximately 25-50% and a red flash indicates a nearly dead battery (less than 25%).

Discharged Battery Warning- If the battery voltage drops below 3.0 V the flashlight will reduce the brightness to a lower level and the LED indicator in the button will flash red to remind you to recharge.

Charging

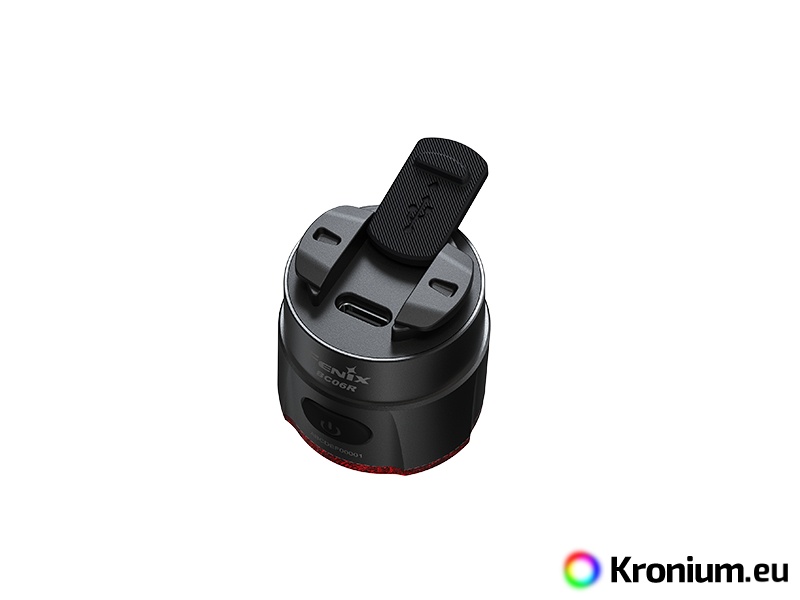

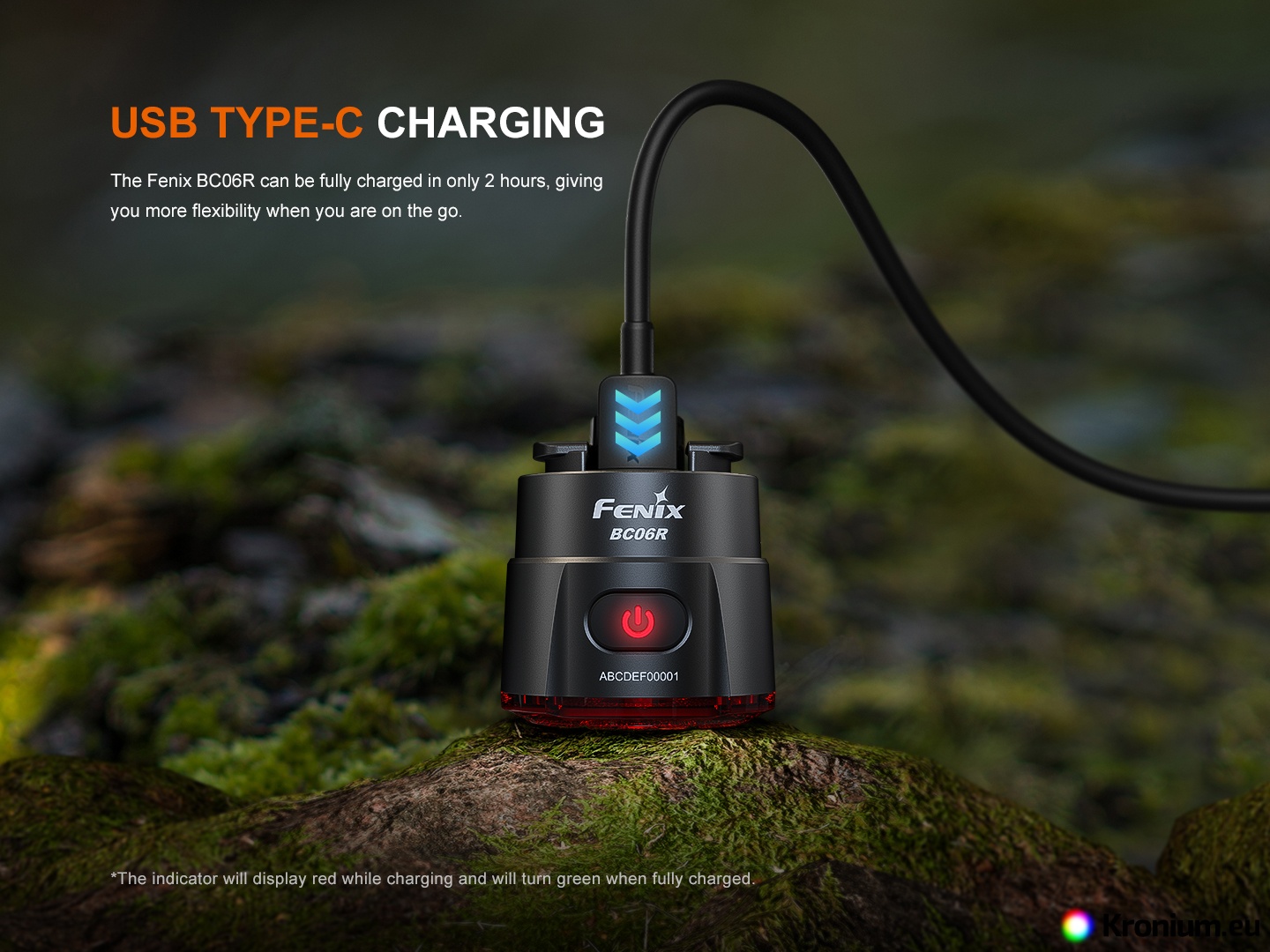

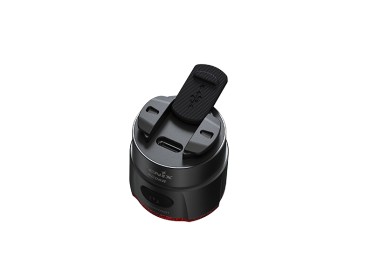

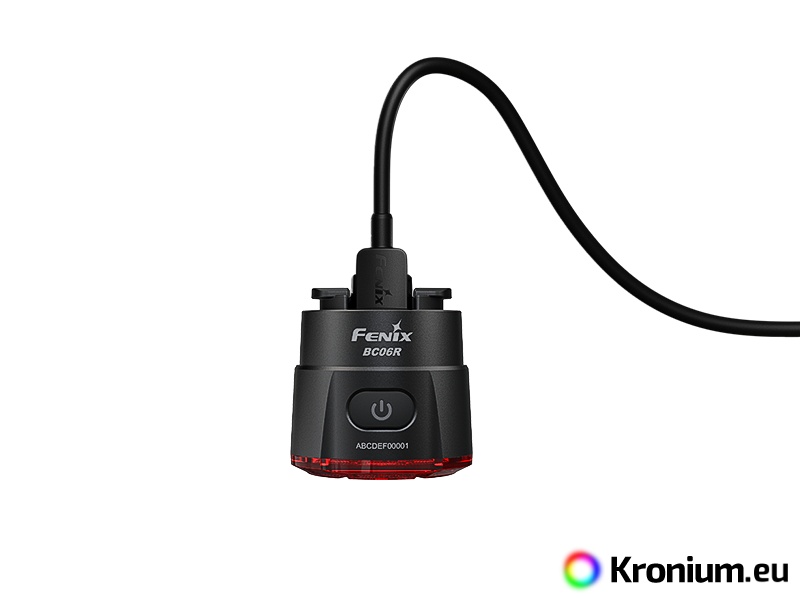

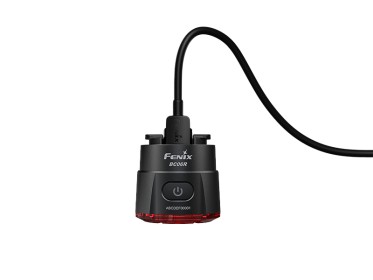

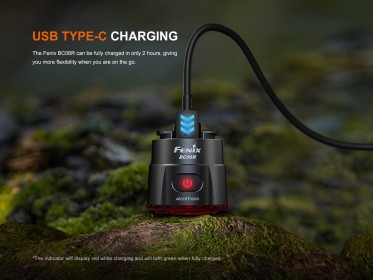

• Unclip the rubber cap of the USB-C connector on the back of the flashlight and use the included cable to plug it into a computer, power bank, USB network adapter or USB car adapter. Alternatively, any mobile phone charger with a USB-C connector can also be used for charging.
• Button glows red while charging, glows green when fully charged.
• Charging time is approximately 1.5 hours. The Li-pol battery used does not suffer from memory effect, so the flashlight can be recharged at any time.
• After charging and removing the power cable, be sure to seal the USB connector cap.

Warning

• Do not disassemble the sealed parts yourself it will break the warranty.
• If the flashlight does not switch to higher mode or does not light up, it may be due to one of the following reasons:
  • The battery is dead – charge it.
