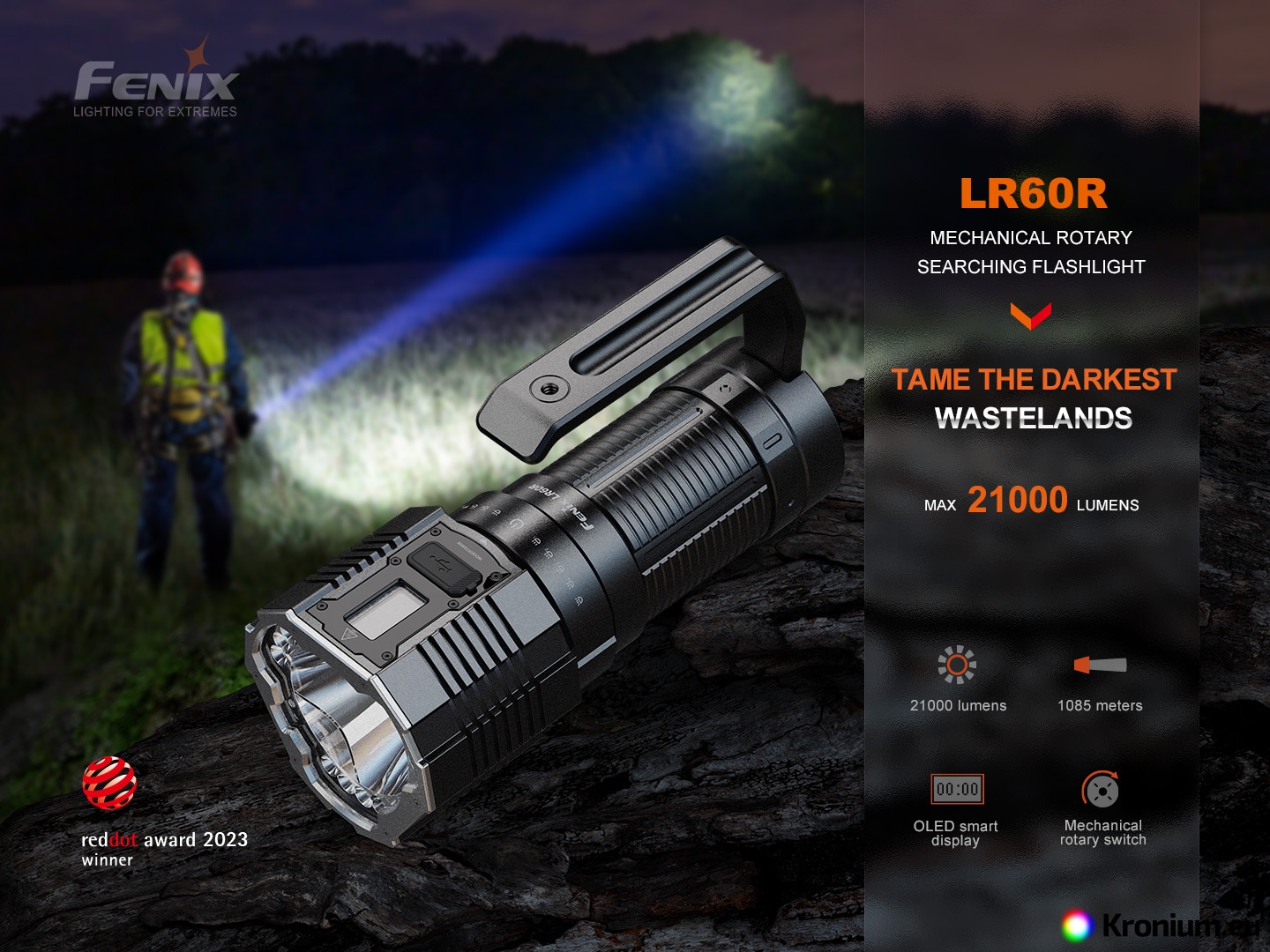

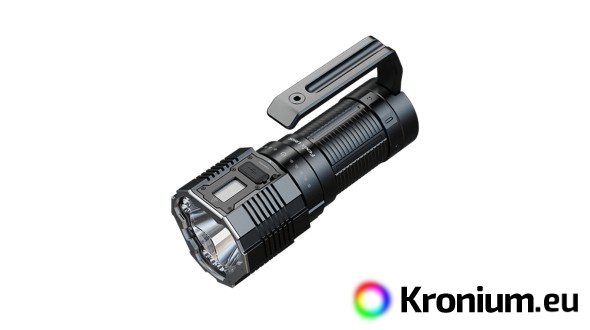

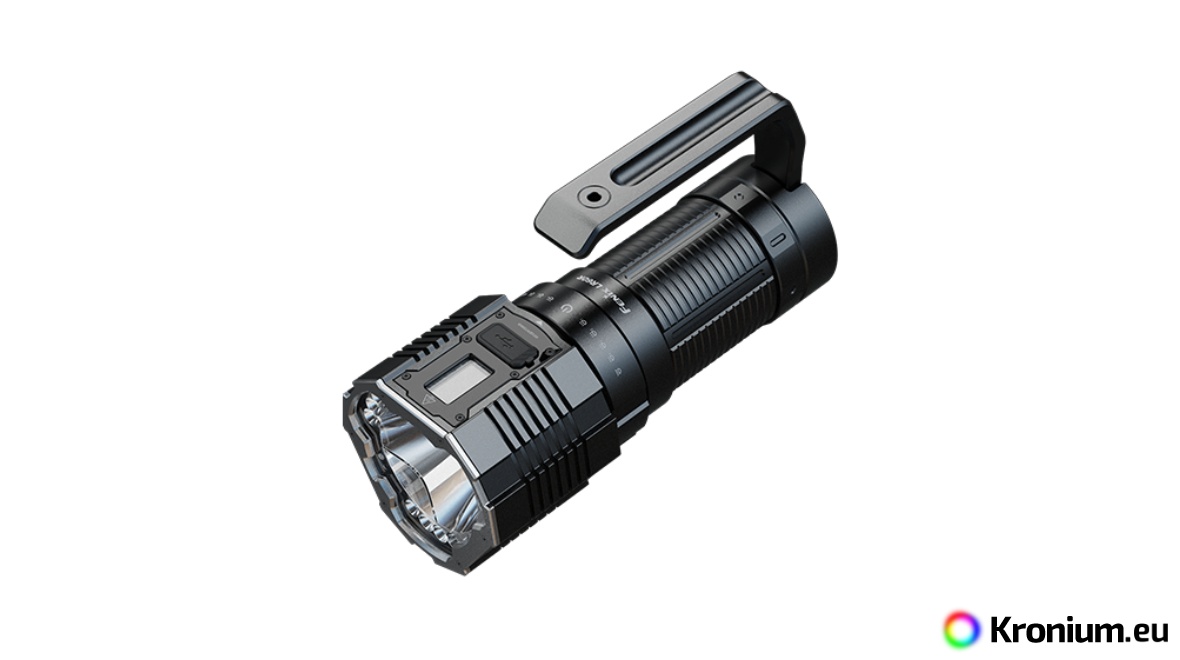

The ultra-powerful Fenix LR60R rechargeable flashlight delivers extreme light output of up to 21,000 lumens and a range of up to 1085 meters. It achieves its performance with one premium Luminus SFT-70 LED and twelve Luminus SST-40 LEDs, which are powered by an internal high-current Li-ion battery with 57.6 Wh (4x 4000 mAh). The battery is recharged directly in the flashlight via a modern USB-C connector. The flashlight is controlled by a rotary ring that can be used to switch between two modes: search (up to 21,000 lm) and camping (up to 15,000 lm).

The flashlight is equipped with an OLED status display that shows the selected power mode, light duration and battery charge level. In addition, the flashlight can also be used as a power bank and charge other USB devices from it. This searchlight is suitable for example for security of large premises, service use or reconnaissance and rescue operations and for all flashlight enthusiasts.

All flashlight parameters (luminous flux, battery life, waterproofness, range and shock resistance) are measured in accordance with ANSI/NEMA FL 1-2009.

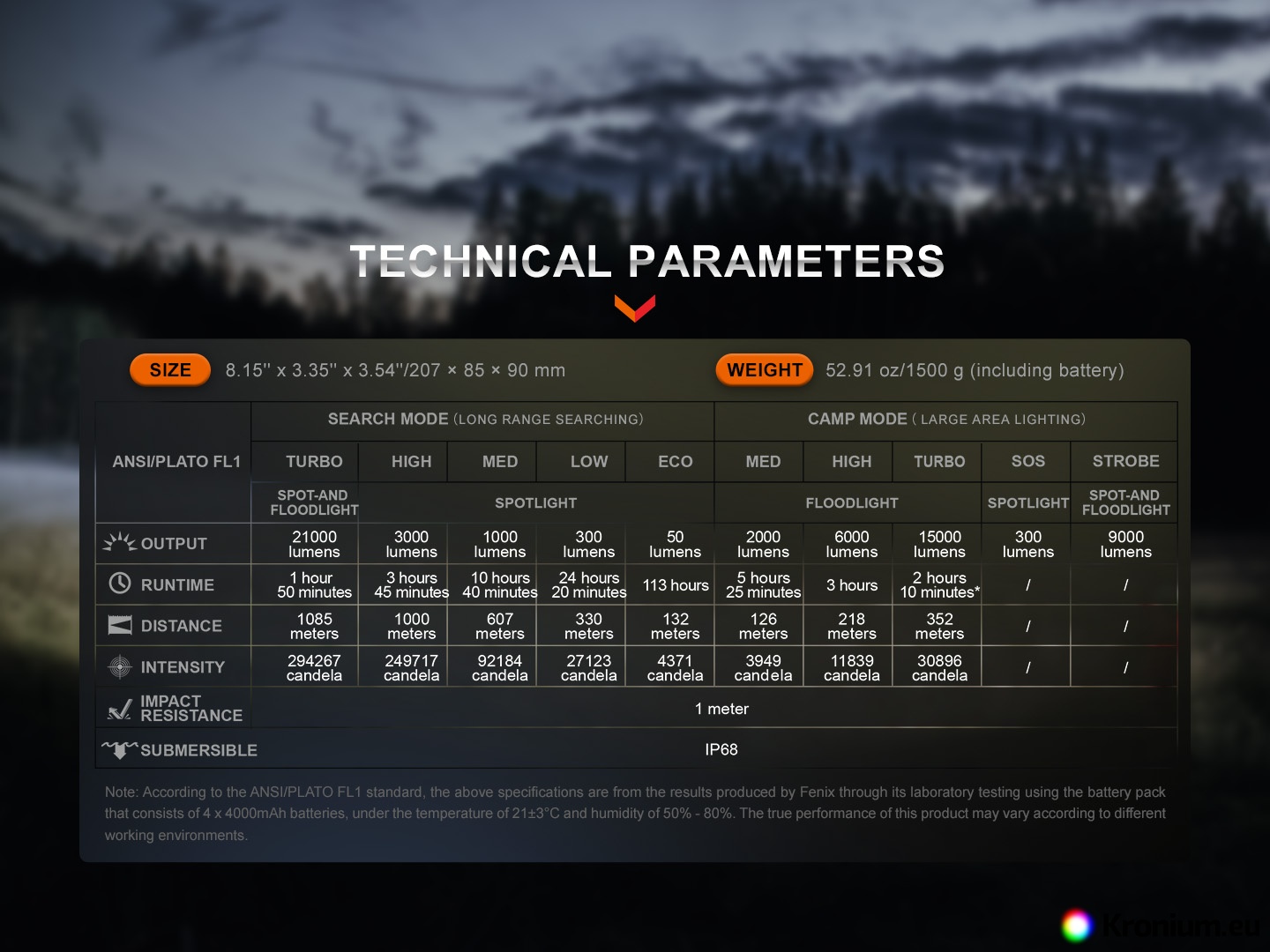

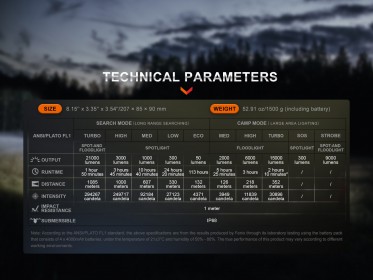

Fenix LR60R flashlight specifications

• Light source is one powerful Luminus SFT-70 LED and twelve Luminus SST-40 LEDs with 50,000 hour lifetime.
• Total of 10 lighting modes:

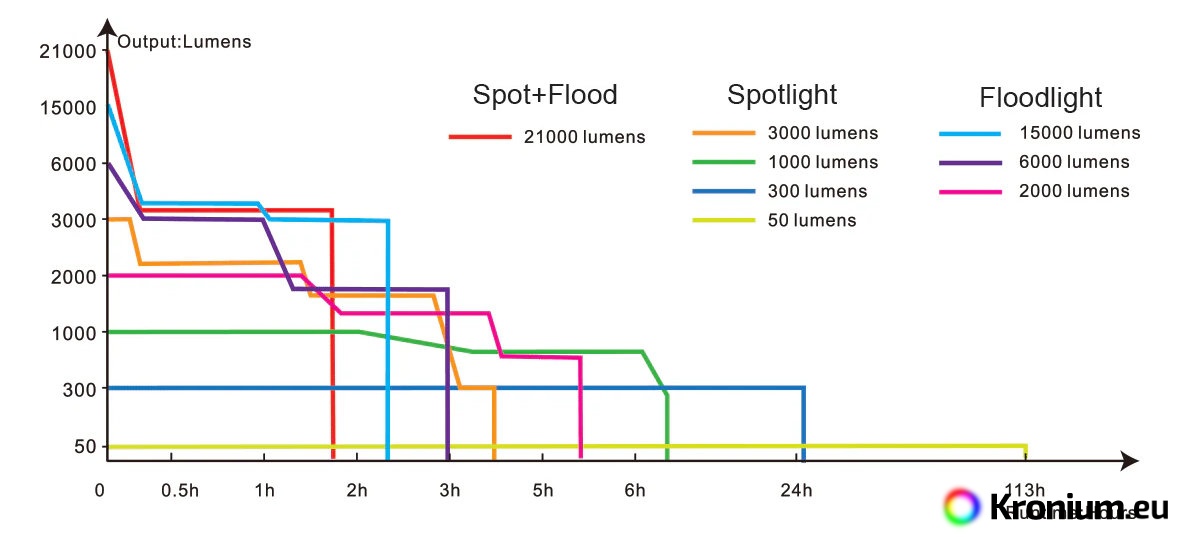

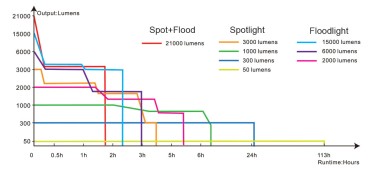

• • Search mode: 21000 lumens (1.8 hours) -> 3000 lumens (3.75 hours) -> 1000 lumens (10.7 hours) -> 300 lumens (24.3 hours) -> 50 lumens (113 hours).
  • Camping Mode: 15000 lumens (2.17 hours) -> 6000 lumens (3 hours) -> 2000 lumens (5.4 hours) and SOS 300 lumens –> Strobe 9000 lumens.
• Uses a replaceable high-current Li-ion ARB-L56-4000 battery consisting of 4x 4000 mAh (57.6 Wh) cells for power.
• Charges via USB-C with up to 45W. USB-A output with powerbank function. Supports PD, QC2.0, QC3.0, FCP, AFC, SCP fast charging protocols for charging and discharging.
• OLED display shows the selected power mode, runtime and battery charge level.
• Rotary ring for quick switching of power modes.
• Digital power control, overheat protection.
• Combined TURBO mode of both spotlights offers a range of up to 1085 meters (294267 cd), wide spotlights reach up to 352 meters (30896 cd).
• The electronics are equipped with a protection function against too deep battery discharge, when the voltage drops below a certain threshold, it automatically switches to a lower power mode.
• Dimensions 20,8 cm (length) x 6,25 cm (body diameter) x 9,1 cm (diameter at the reflector).
• Weight 1500 grams.

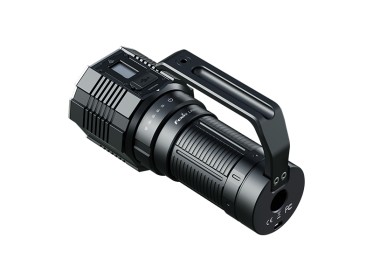

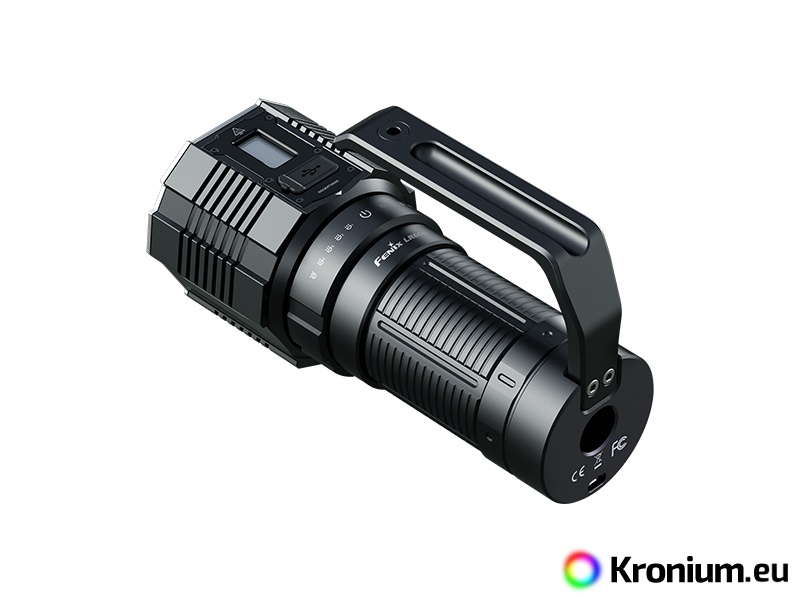

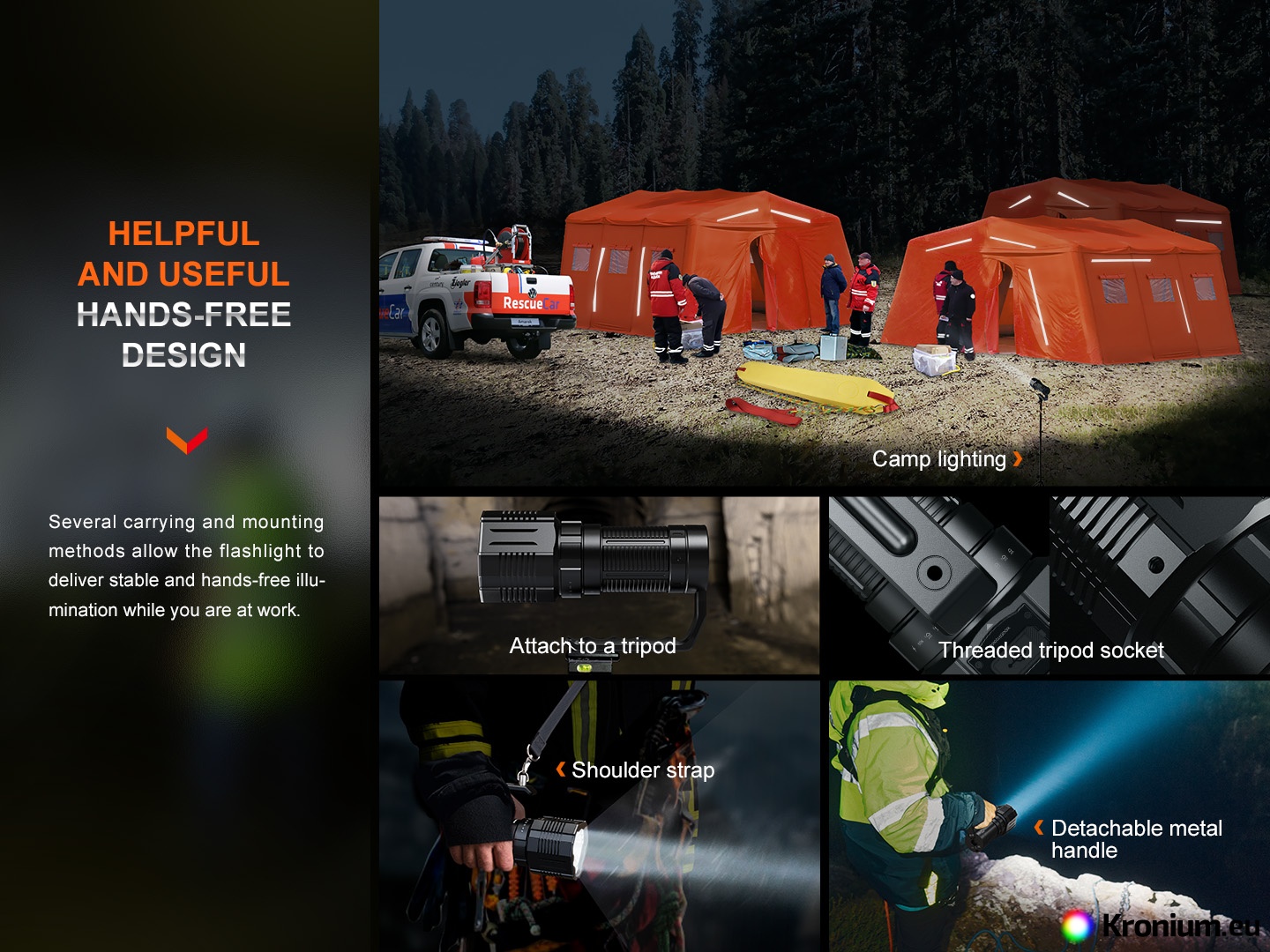

• Removable metal handle, tripod thread and shoulder strap allow the flashlight to be used in a variety of situations.
• Scratch resistant surface - Type III hard anodized.

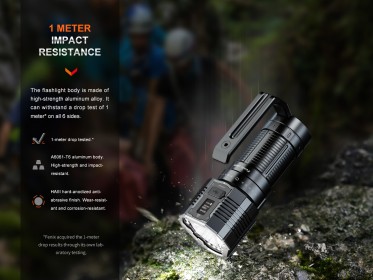

• Resistant to falls from 1 meter.

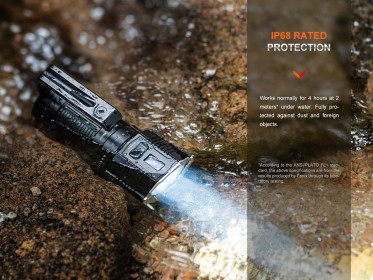

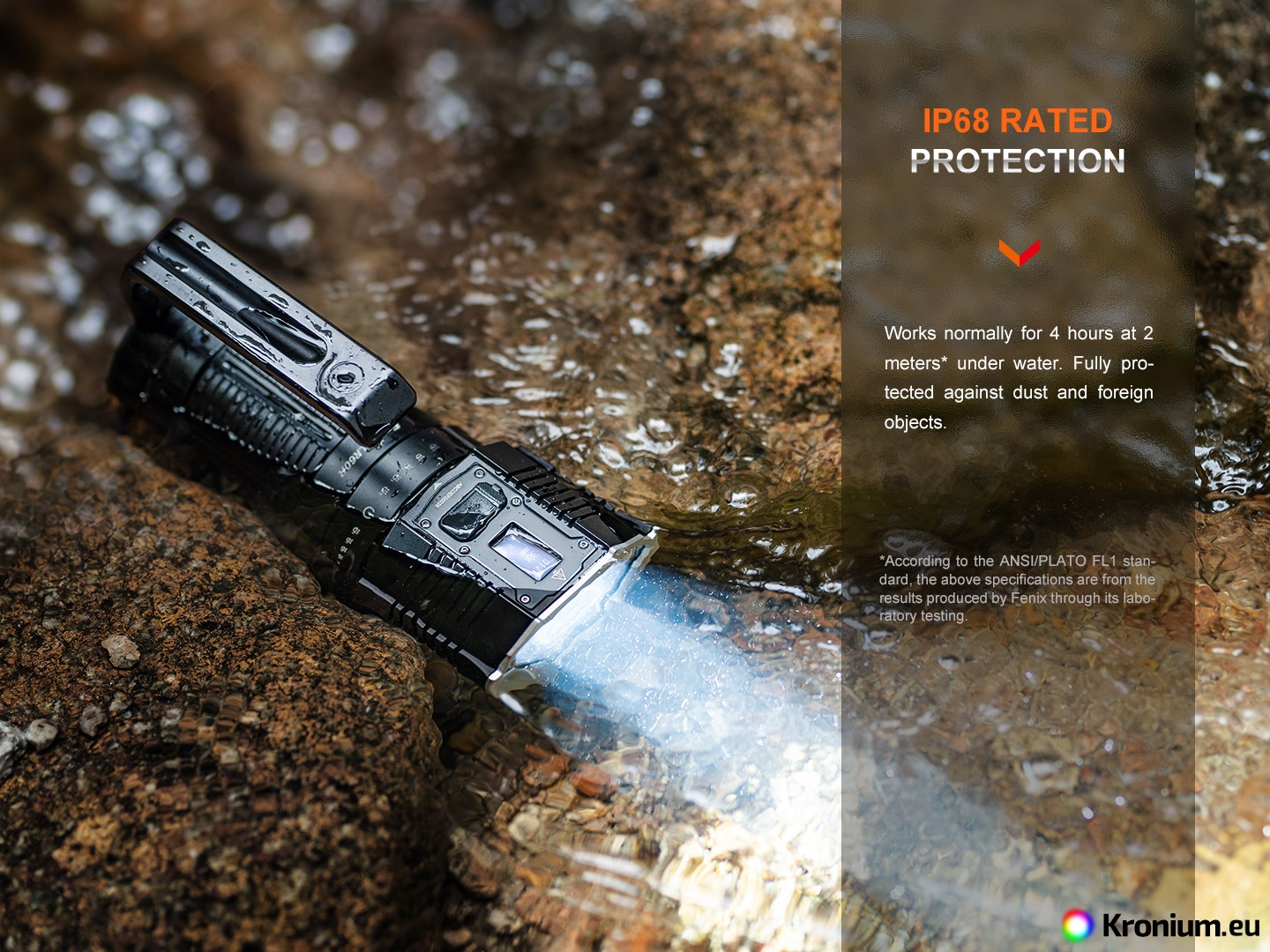

• Waterproof and dustproof according to IP68 standard (tested underwater at a depth of 2 meters for 4 hours).
• Hardened ultra clear glass lens with anti-reflective surface.

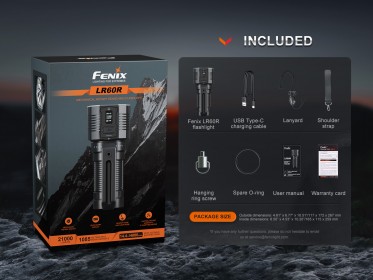

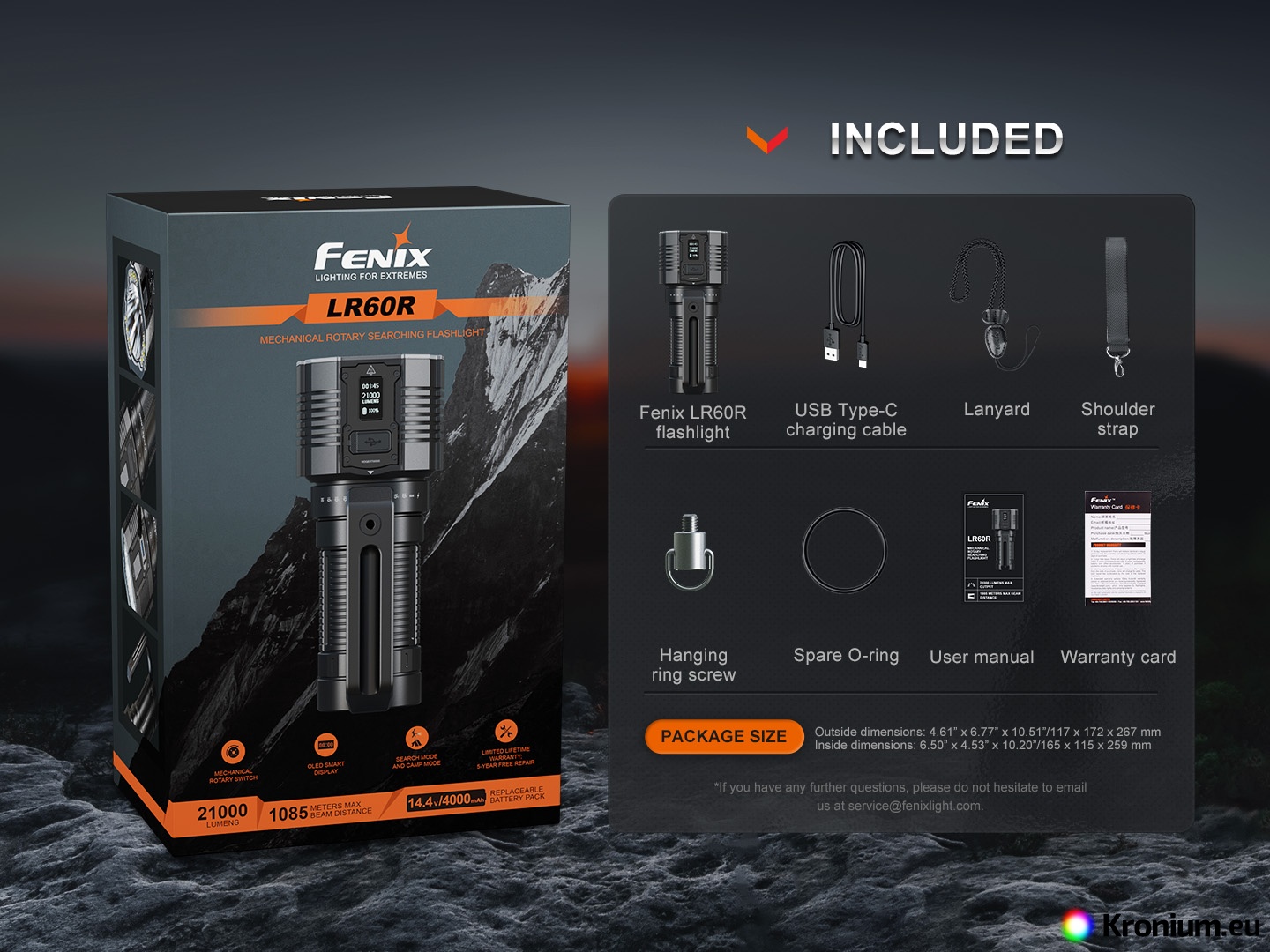

• Includes USB-C charging cable, spare o-ring, shoulder strap incl. screw with eyelet for hanging and wrist strap.
• The flashlight can also be purchased with a fast charging GAN5 adapter, USB mains adapter and USB car adapter and colour USB-C cable.

Using the Fenix LR60R search light

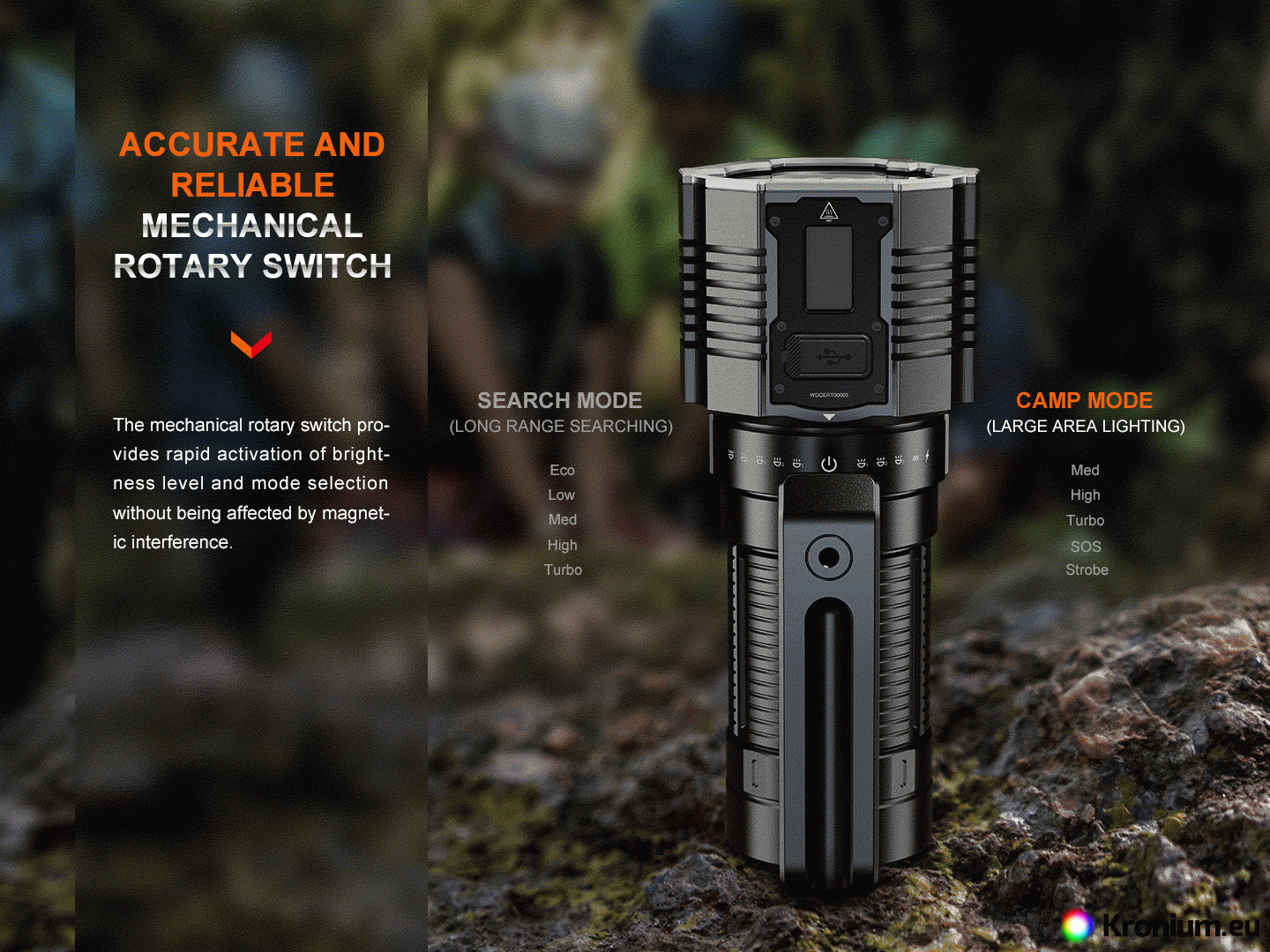

On/Off and power mode switching - Search mode is turned on by turning the control ring on the head of the flashlight clockwise, camping mode is turned on by turning the ring counterclockwise. Turning the ring in the selected direction switches the other lighting modes of the selected mode. Turning the ring to the middle position switches the flashlight off again.

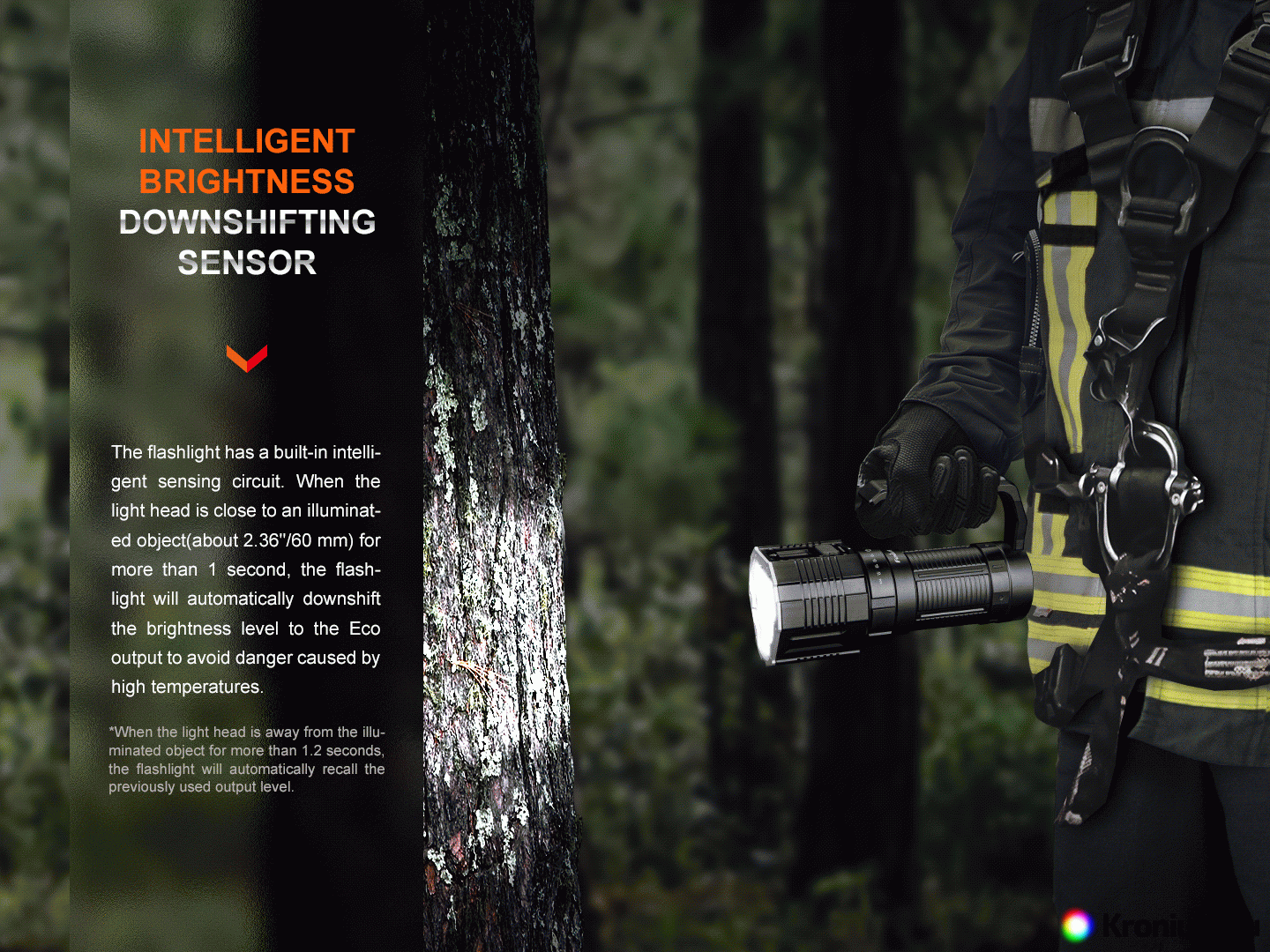

Intelligent proximity sensor - the flashlight has a built-in protection circuit. When the spotlight approaches the object to be illuminated (about 60 mm) for more than 1 s, the flashlight automatically reduces the output to 50 lumens to prevent damage to the object by strong light and glare from reflected light. When the reflector is away from the illuminated object for more than 1.2 s, the flashlight automatically resumes the previously used power level. The sensor is activated as follows: Turn the mechanical rotary switch to off → 50 lumens → off, three times within 3 seconds. The OLED display will show „ON“ and the flashlight will flash twice in 50 lumen mode, indicating that the sensor function is activated. Turn the mechanical rotary switch to the off → 50 lumens→ off positions three times within 3 seconds. The OLED display will show „OFF“ and the flashlight will flash eight times in 50 lumen mode, indicating that the sensor function is deactivated.

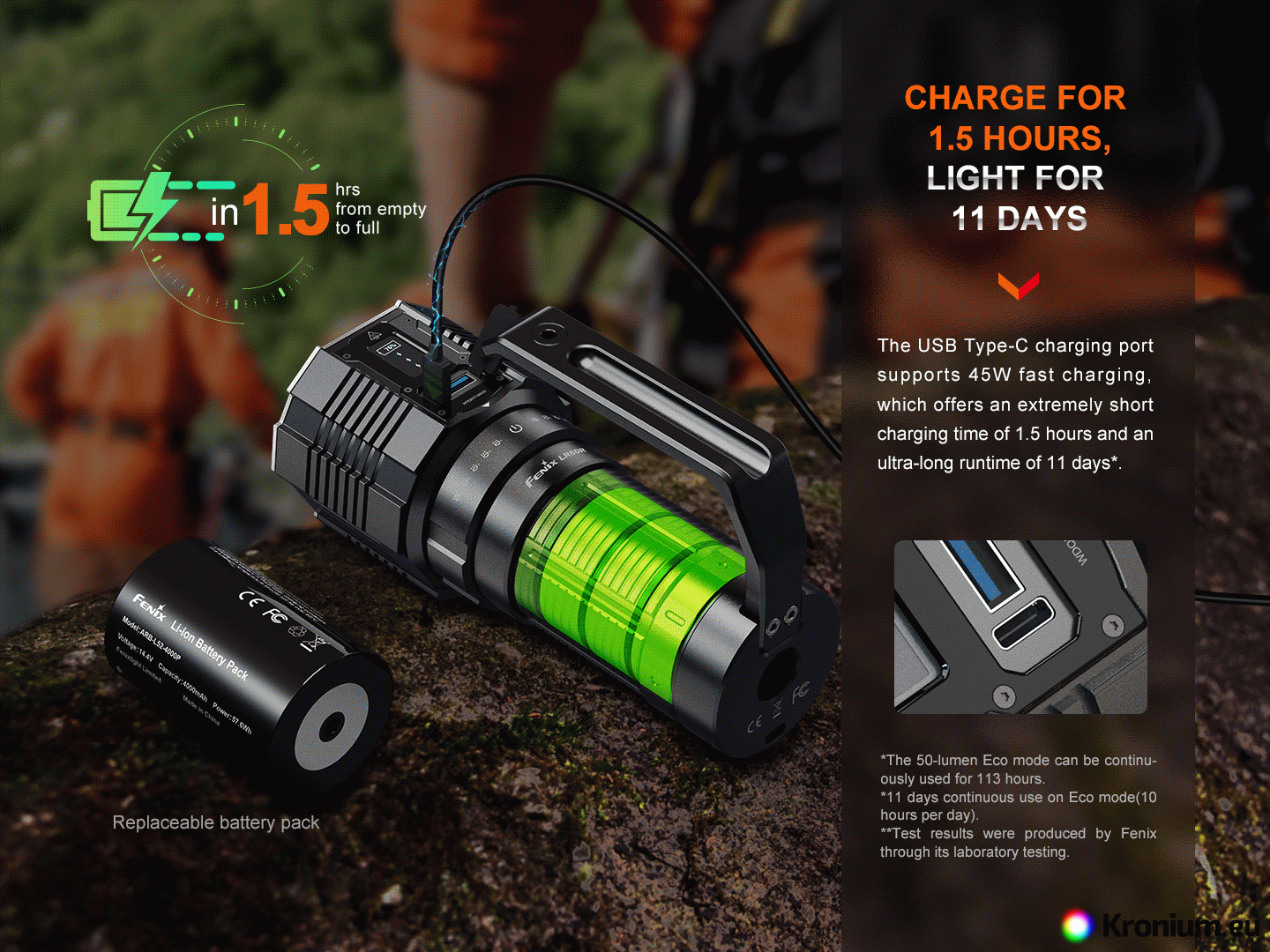

Charging - Turn off the flashlight and open the dust cap of the charging connector, plug the USB Type-C cable into the flashlight, and then plug the other end of the charging cable into any USB adapter. During charging, the OLED display shows the charging status. Normal charging time is approximately 1.5 hours when using a fast charging USB adapter with 40W or higher. During charging, the flashlight can only be used in the 50 lumen mode. Be sure to seal the dust cap after charging is complete.

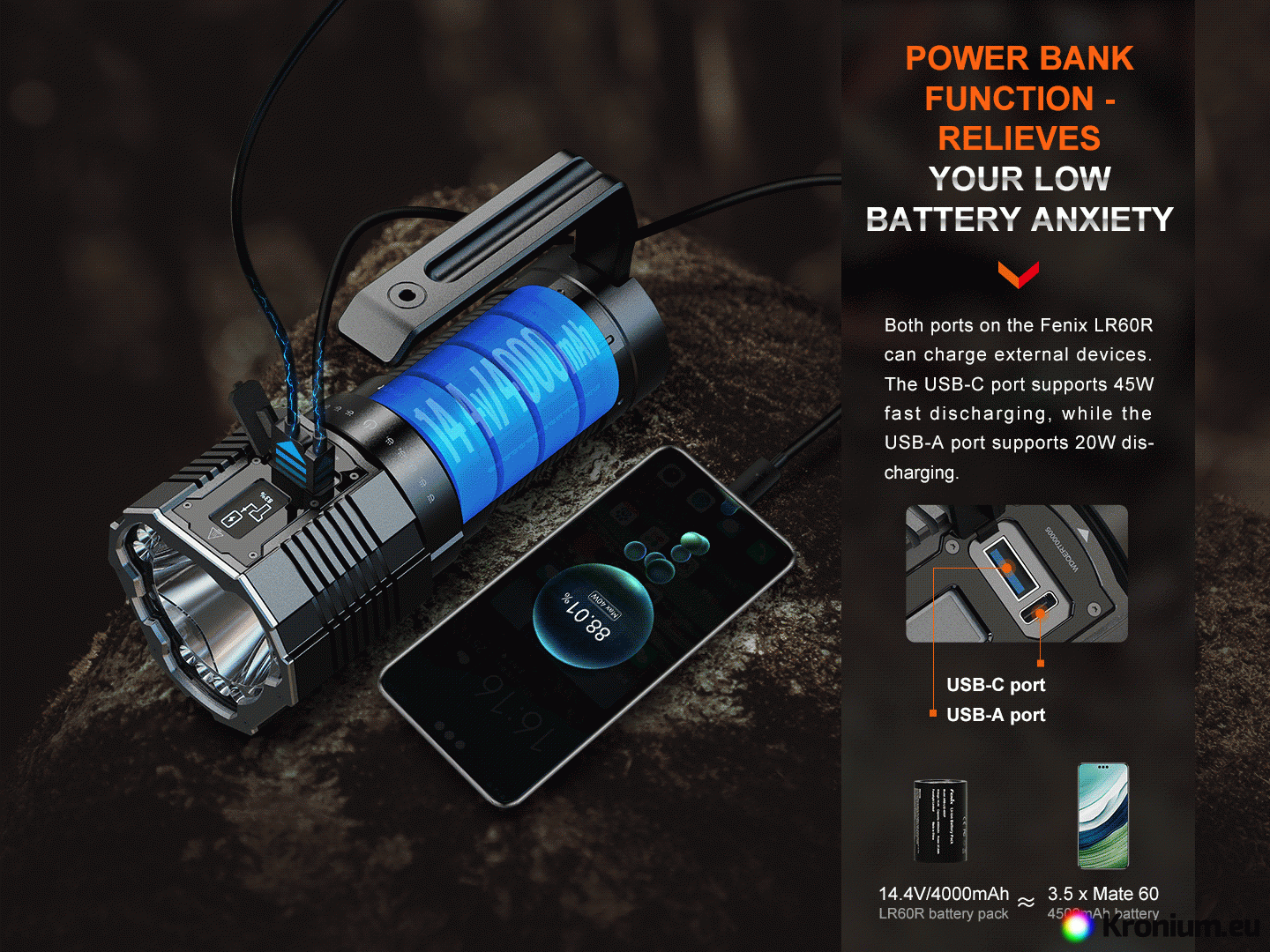

Powerbank Function - Turn off the light, open the dust cap and insert the USB cable into the USB Type-A discharge port or the universal USB-C port on the flashlight, then plug the other end of the cable into the USB device being charged. During discharge, the OLED display shows the current battery capacity, the flashlight can be used in all power modes. When you have finished charging the external USB device, be sure to seal the dust cap.

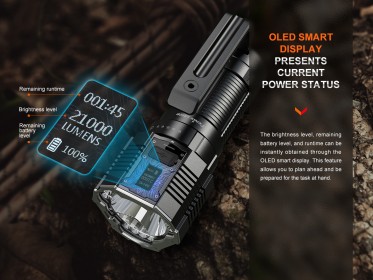

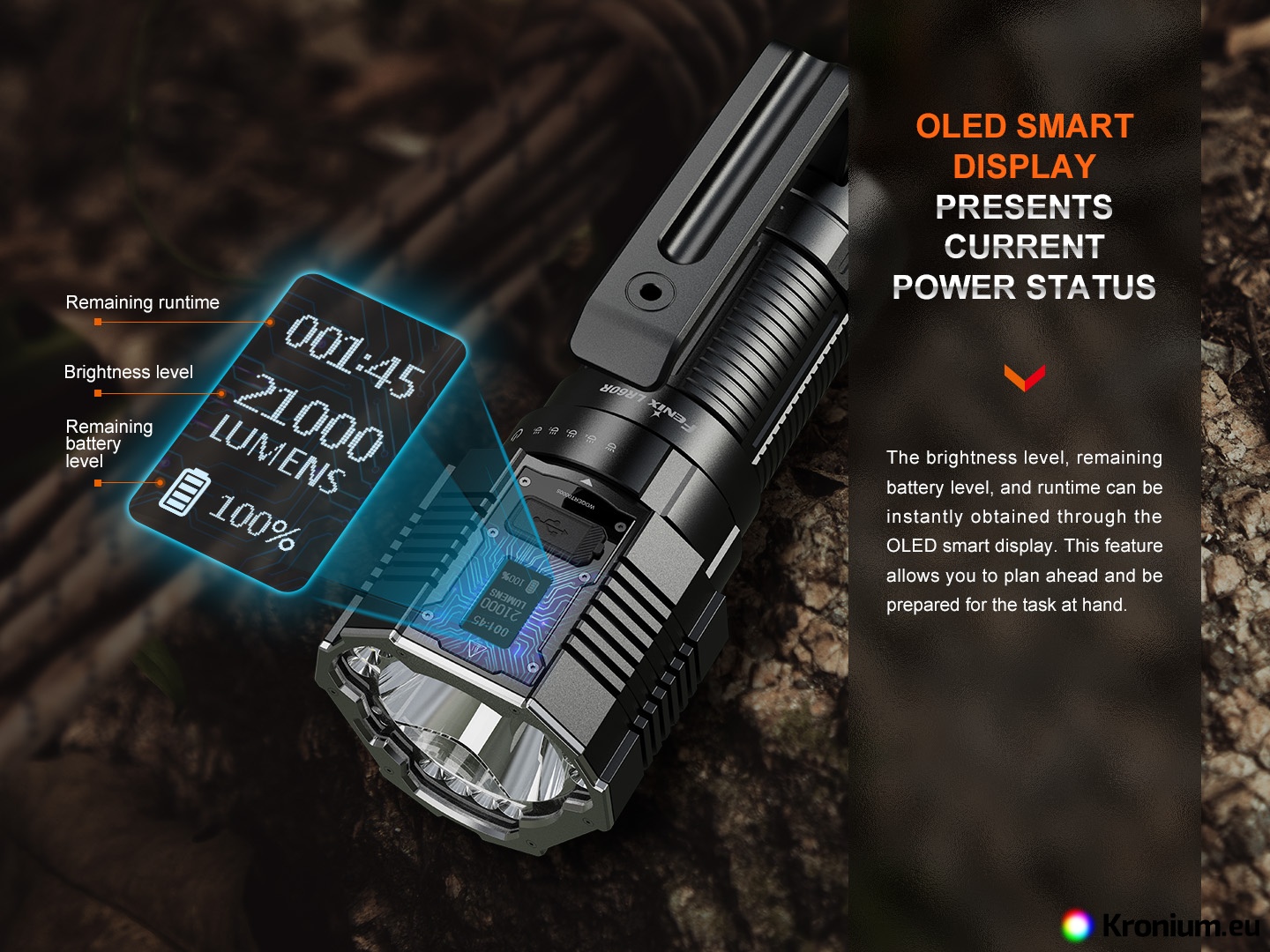

OLED display - after turning on the flashlight, the OLED display shows the battery capacity, the selected mode and the light time. If the battery is less than 10% charged, the battery icon will flash on the display. If the charge level is less than 5%, a large flashing low battery icon will appear on the display to alert the user that the flashlight needs to be charged as soon as possible.

Intelligent overheat protection - the flashlight will heat up when using high power levels for extended periods of time. When the flashlight reaches a temperature of 60 °C or higher, it will automatically reduce power to lower the temperature. When the temperature drops below 60 °C, high power levels can be used again.

Low battery warning - When the battery voltage drops below the set level, the flashlight is programmed to switch to a lower power level until the 50 lumen mode is reached. When the power is reduced to 50 lumens, the battery icon on the OLED display will flash to remind you to recharge the battery in a timely manner.

Warning

• Do not disassemble the sealed parts of the flashlight yourself, it will violate the warranty.
• Do not attempt to charge the flashlight if it does not have the battery inside.
• Long term use may lead to O-ring wear. To maintain a proper water seal, replace the O-ring with a spare.
• Regular cleaning of the electrical contacts ensures trouble-free operation of the flashlight, as dirty contacts can cause flickering, intermittent illumination or even malfunction of the flashlight for the following reasons:
  • The battery is dead. Charge it or replace it with a charged one.
  • The electrical contacts inside the flashlight are dirty, clean them with a cotton ball dipped in alcohol.
