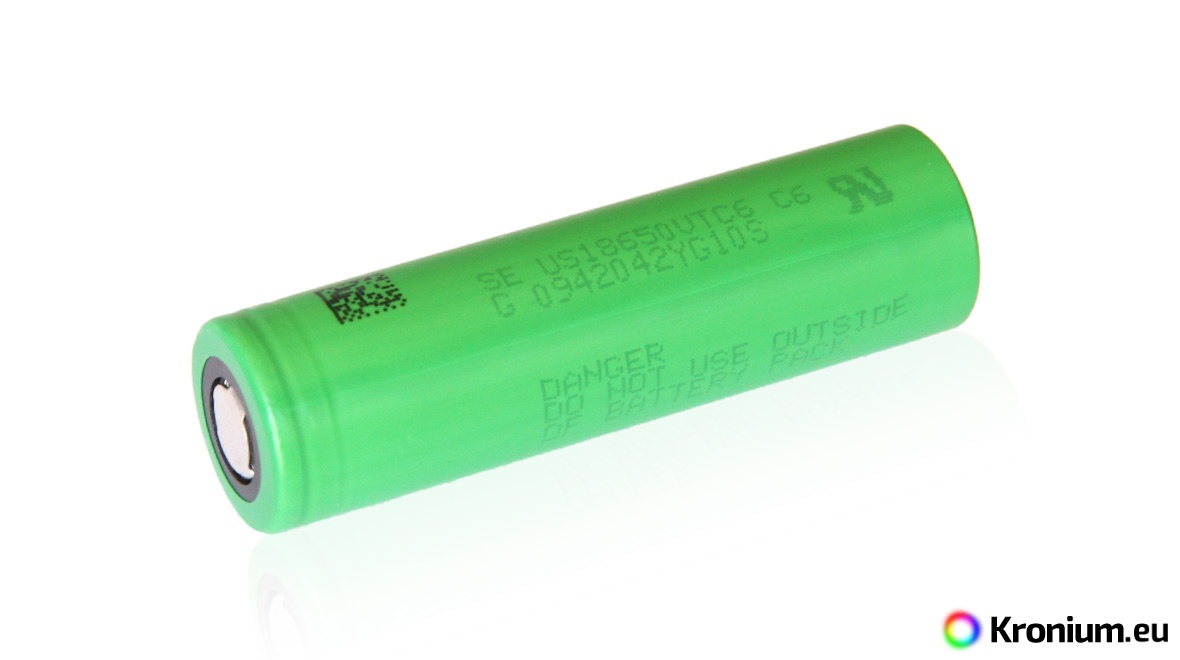

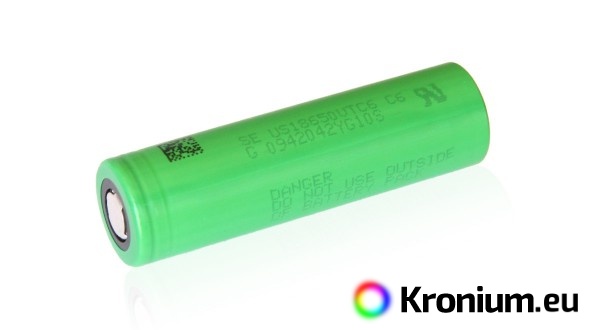

The SONY US18650VTC6 high-current battery offers a typical capacity of 3120 mAh (min. 3000 mAh) and can deliver 30 A current continuously (replaces AW IMR 18650 3000 mAh). Its characteristics make these batteries suitable for devices with very high current draw, such as electronic cigarettes and vaporizers. The battery is in an industrial design, without protective electronics.
These are some of the best high-current Li-ion 18650 batteries on the market, they are characterized by very high capacity, low internal resistance, do not suffer from memory effect (can be recharged at any time) or self-discharge. Li-ion in the 18650 size are the best choice in terms of stored energy due to the size and weight of the battery. Please check first whether your appliance supports this cell.
Battery specifications
- Nominal voltage : 3.6 V (charging voltage 4.20 V +-0.05 V)
- Capacity : 3120 mAh (min. 3000 mAh)
- Maximum continuous current draw: 30 A (with sufficient cooling, temperature must not exceed 80°C)
- Without protective electronics
- Limited discharge voltage: 2.5 V
- Lifetime >500 cycles at 3 A discharge current, 500 cycles at 7.5 A discharge current, 300 cycles at 15 A discharge current (capacity drop to 2000 mAh)
- Recommended operating temperatures: 0-45°C (charging), -20 to +60°C (discharging)
- Impedance 12.8 mOhm
- Weight 46.5 grams.
- Diameter : 18.35 mm, length : 65 mm
- A detailed datasheet directly from the manufacturer can be downloaded here.
- The battery pack can be purchased with a plastic box.
Recommended chargers
Fenix ARE-A2 Charger
Fenix ARE-A4 charger
USB charger Fenix ARE-D1
USB charger Fenix ARE-D2
Mini USB charger MC1
USB charger SC1
Two Channel USB Charger FC2
Lii-100 USB charger
Lii-500S charger
VC8 eight-channel USB charger
SkyRC MC3000
Warning
- Do not discharge the battery below 2.5V.
- Do not short-circuit the battery (do not connect the cell poles with a wire).
- Do not throw the battery into a fire.
- Never insert the battery into the charger in reverse (opposite polarities).
- When using the battery, observe safety guidelines.
- Use only an adequate charger that supports Li-ion batteries.
