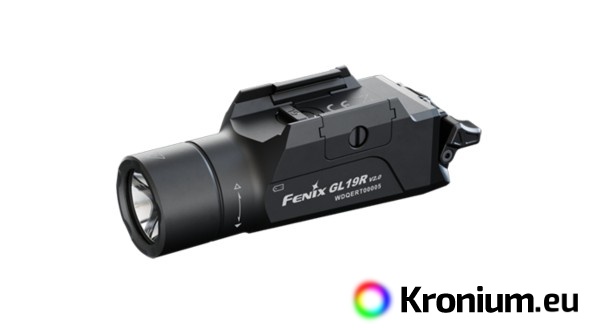

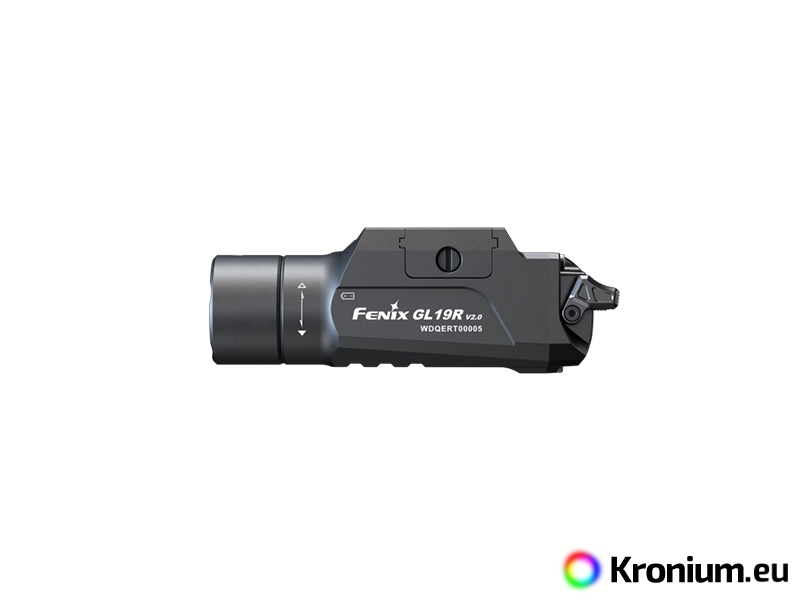

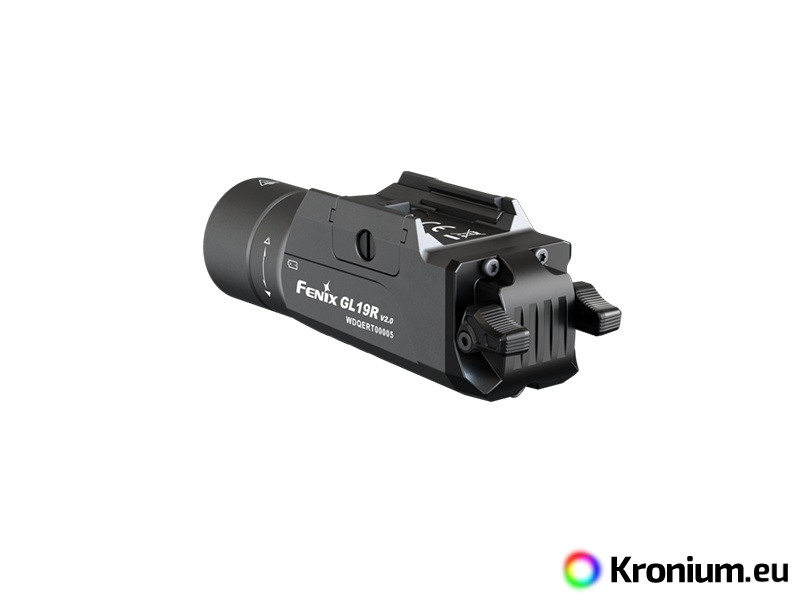

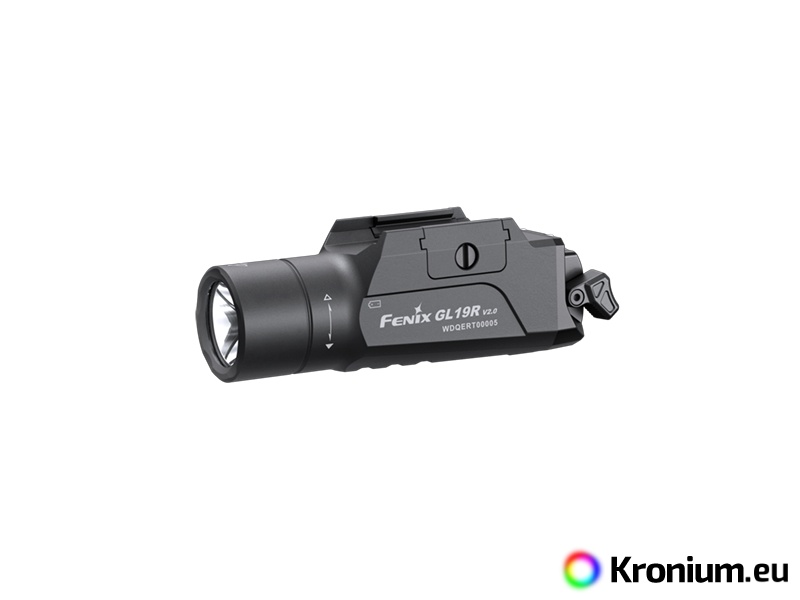

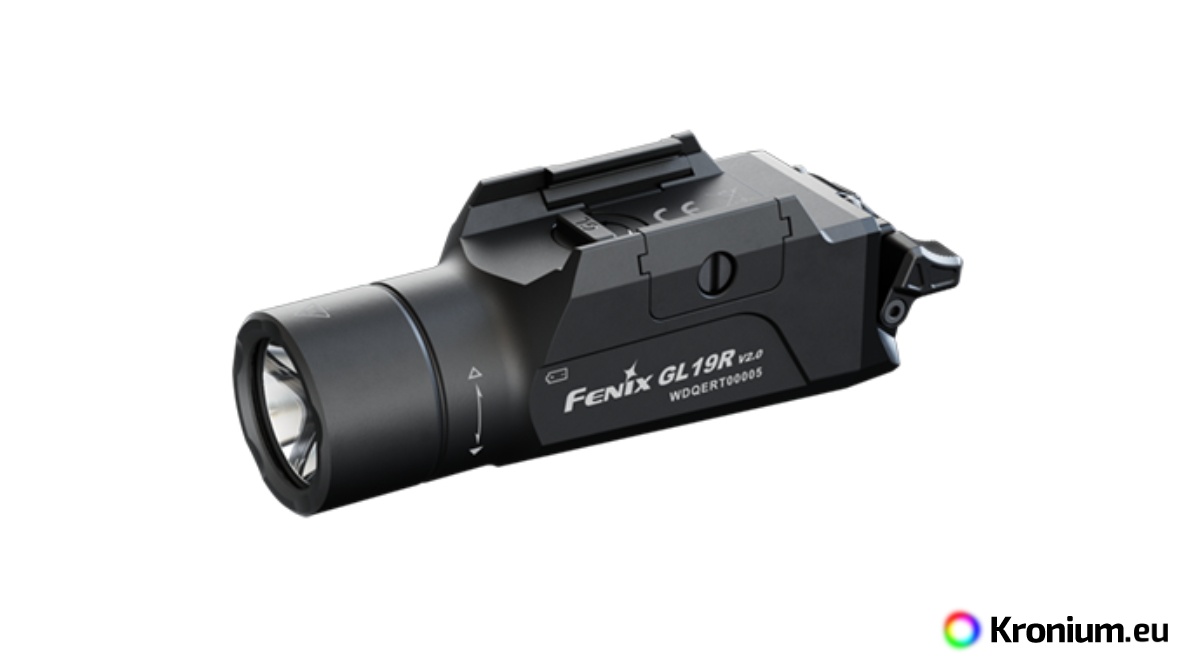

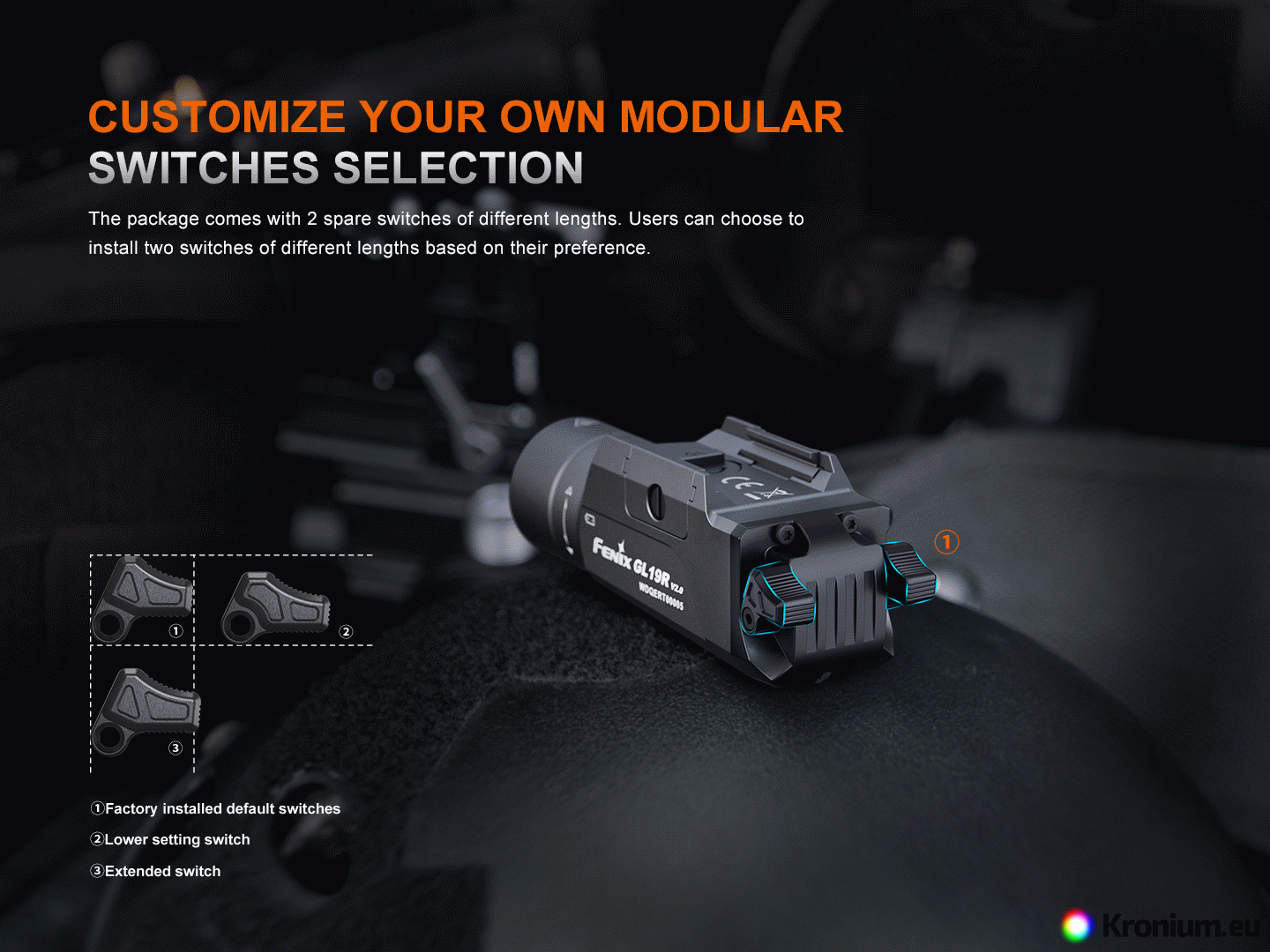

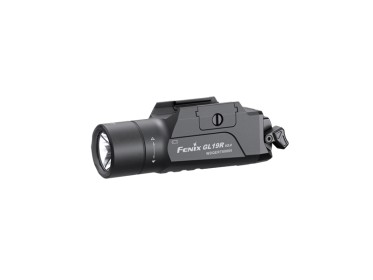

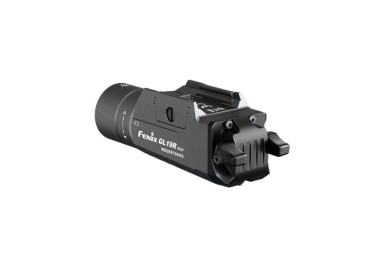

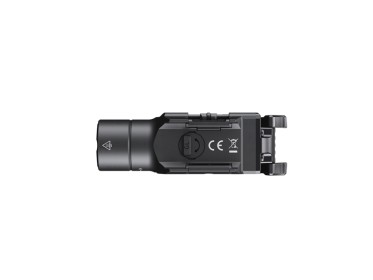

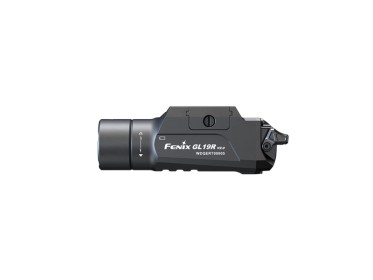

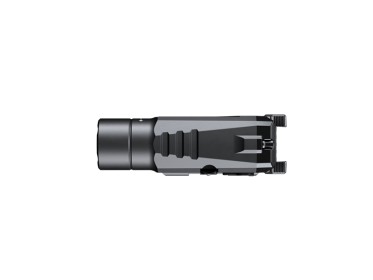

The Fenix GL19R V2.0 rechargeable LED pistol flashlight is designed specifically for use on short guns. It offers a peak light output of 1200 ANSI lumens with a range of up to 420 meters.The flashlight is powered by a single Li-ion battery Fenix 18350 1100 mAh, which recharges directly in the flashlight via the USB-C connector on its side and is included in the package. Simplified flashlight control is ambidextrous (for right and left-handed users). GL19R V2.0 comes with three switch lengths (universal - factory-fitted, shortened and extended versions), which can also be combined (use a different switch length on each side of the flashlight according to personal preference). Mounting on the gun rail is easy and requires no tools - the flashlight slides onto the gun rail and secures with a lever. It can be mounted on Picatinny MIL-STD-1913 and GLOCK standard weapon rails (may not fit on slimline weapons, e.g. Glock 30 model). It fits on Czech Police service weapons (CZ 75D). The flashlight is suitable for professionals, sport and hobby shooters and airsoft.

All flashlight parameters (lumen output, battery life, waterproofness and range) are measured in accordance with ANSI/NEMA FL 1-2009.

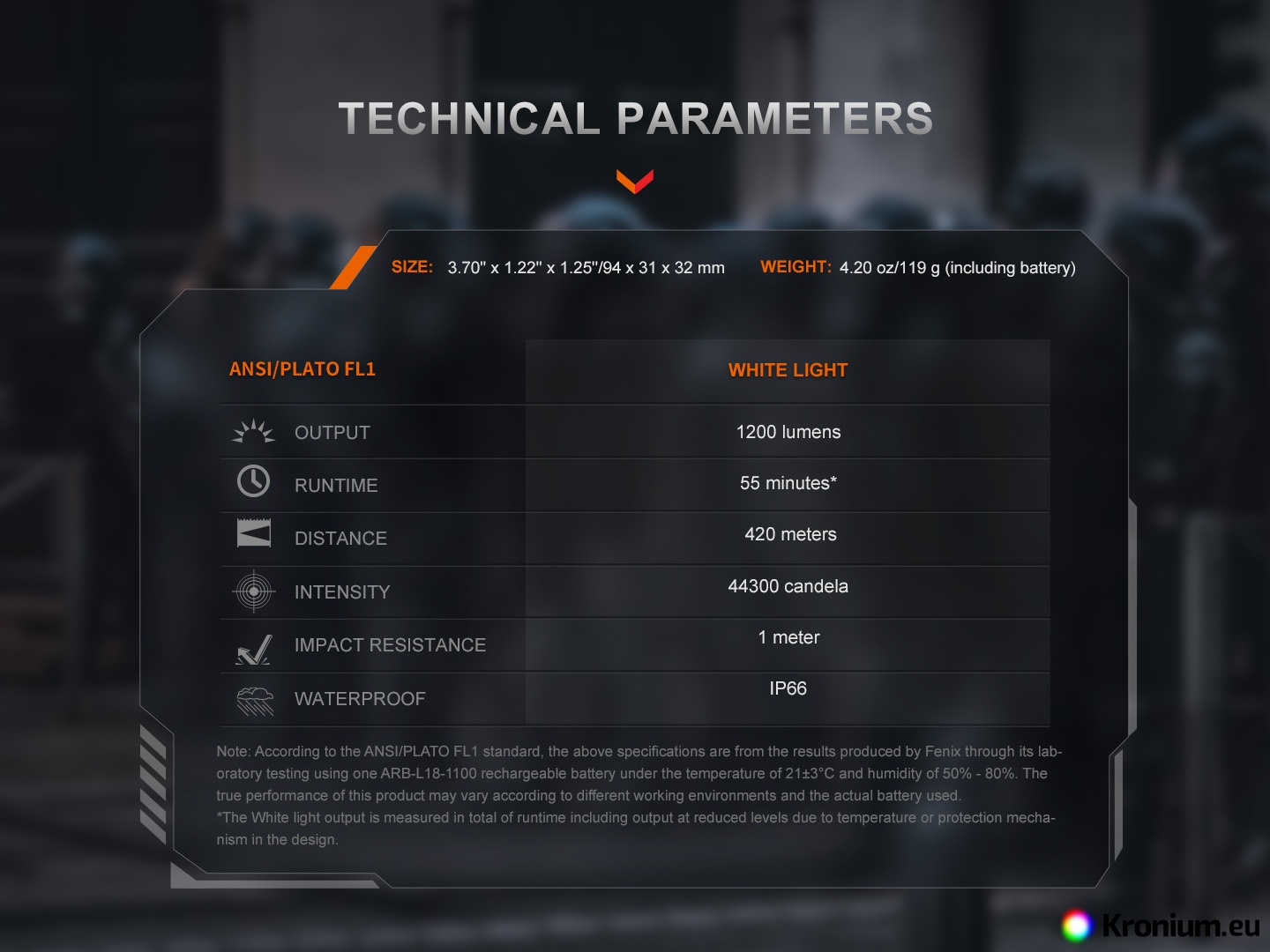

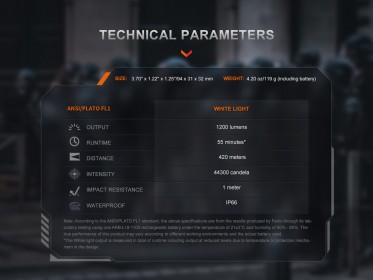

Fenix GL19R V2.0 Rechargeable Pistol Flashlight Specifications

• Premium LED Luminus SFT-25R with a 50,000 hour lifetime is used.
• Lighting mode:
  • 1200 lumens (55 minutes).
• TIR optics produce a focused light cone with a range of 420 meters (44,300 cd).
• Back-insert protection and battery over-discharge protection.
• Uses a single Li-ion battery to power the Fenix ARB-L18-1100 or 18350 (included).

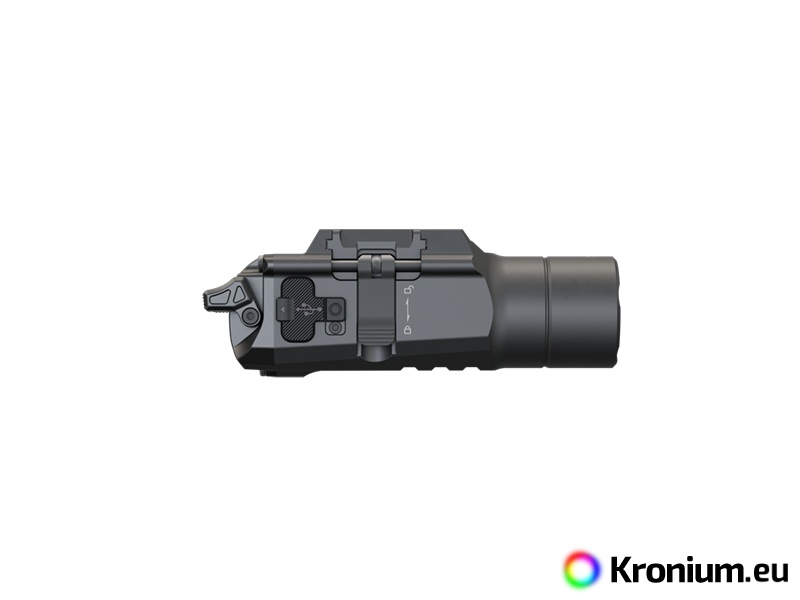

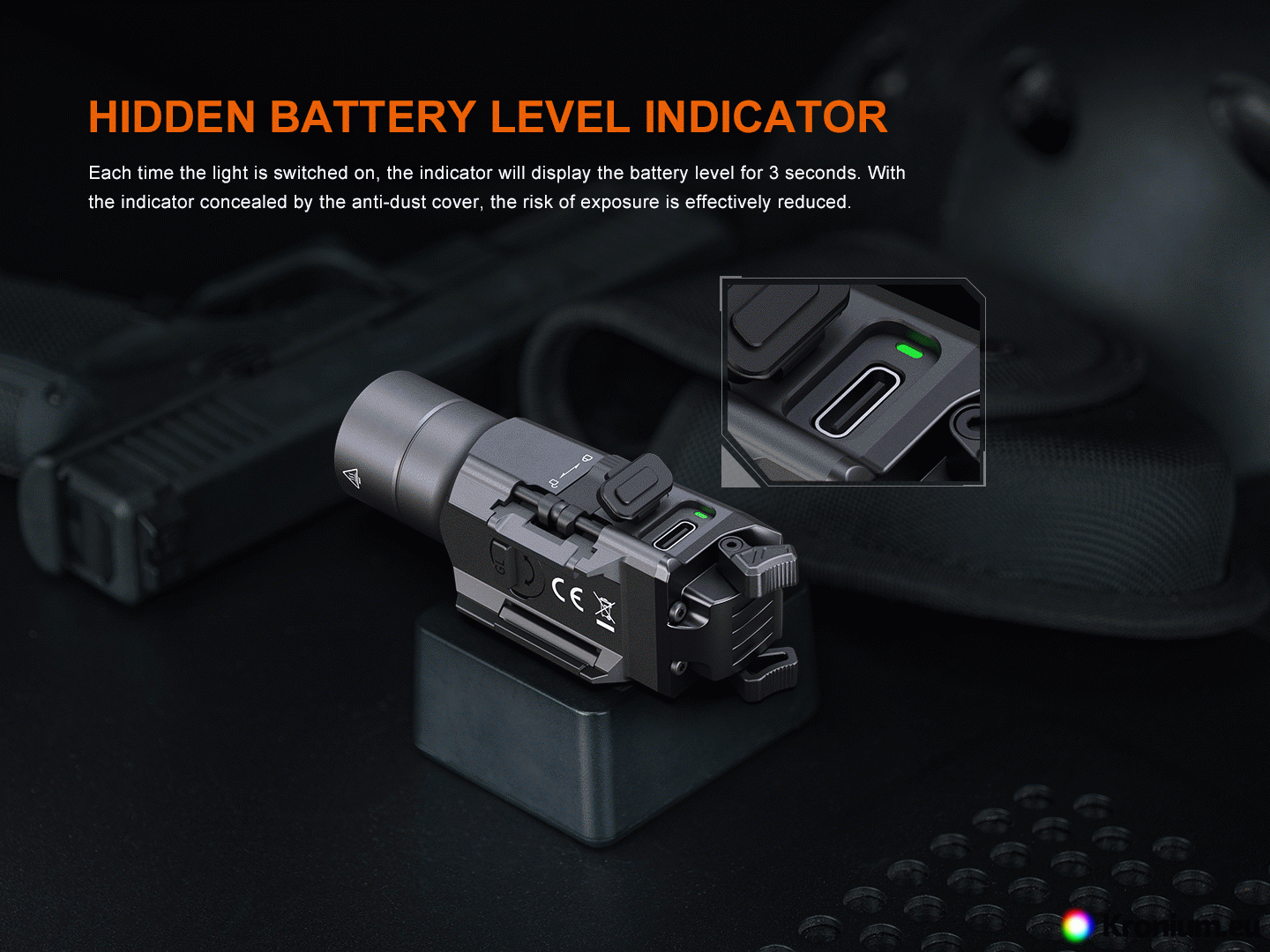

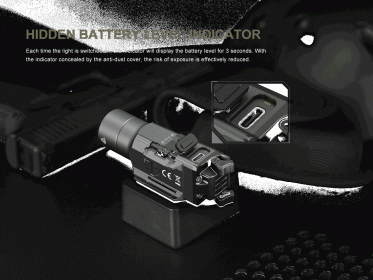

• Charge via USB-C connector with battery charge status indication.
• Dimensions 9.4 cm (length) x 3.1 cm (height) x 3.0 cm (width).

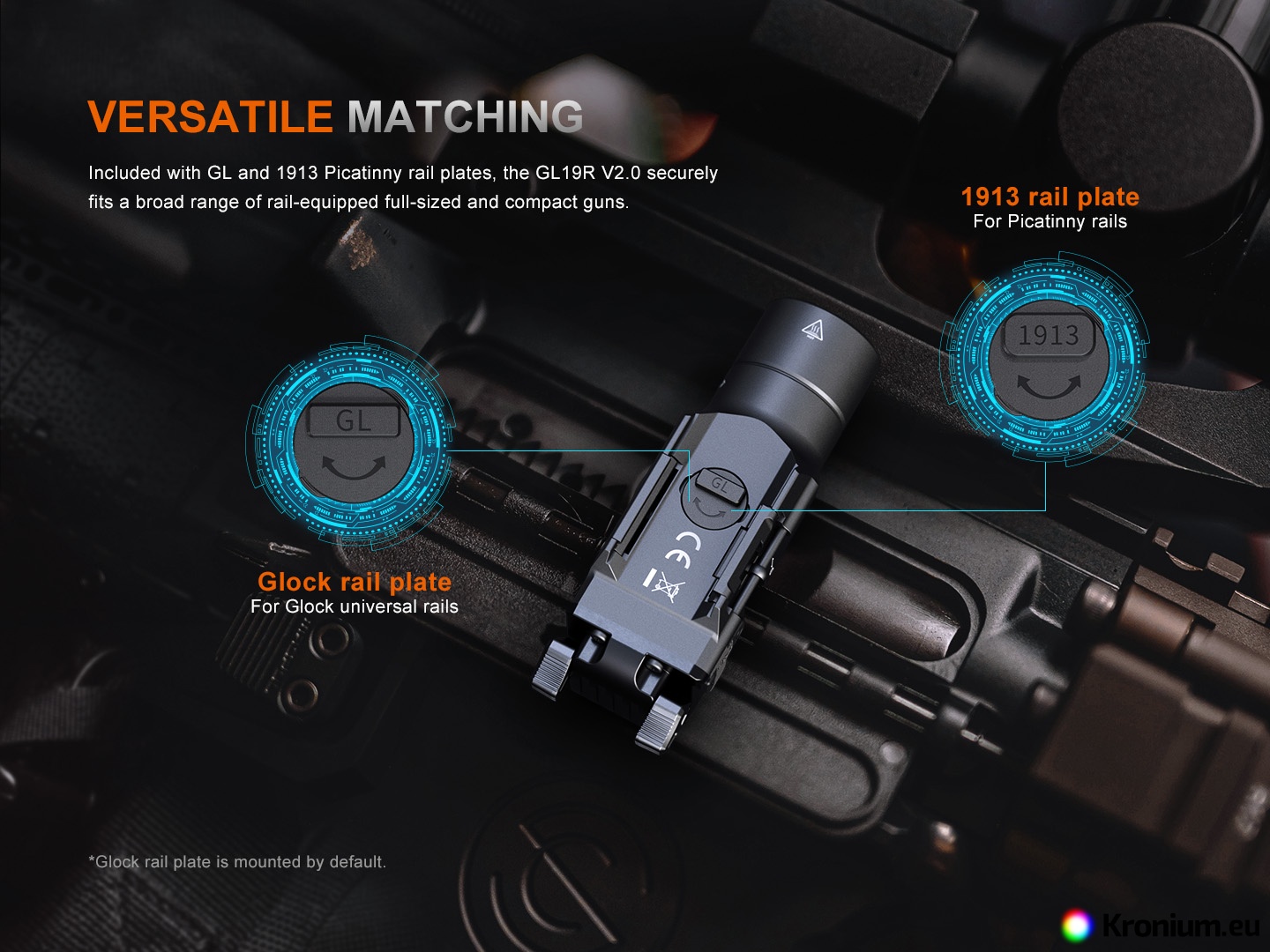

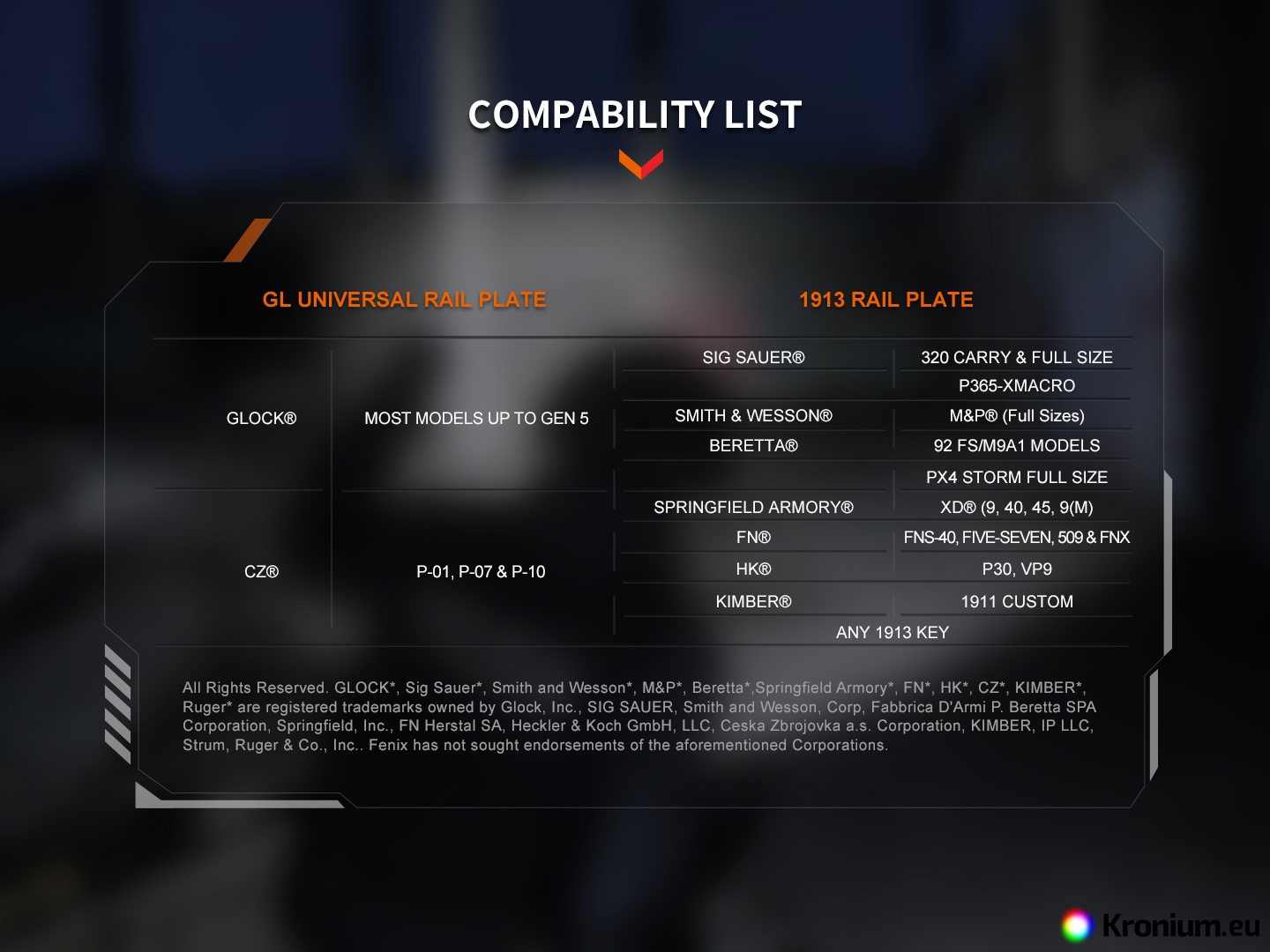

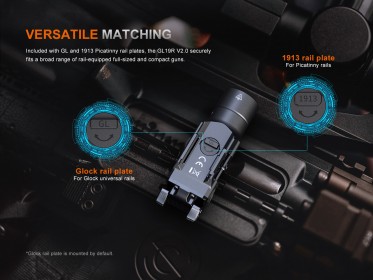

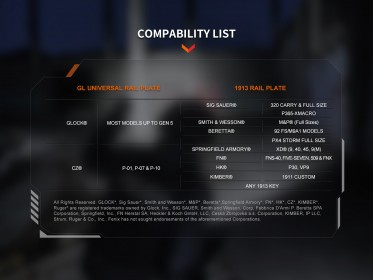

• Compatible with Picatinny MIL-STD-1913 and GLOCK standard weapon rails
• Weight 119 grams (including battery).
• Intelligent overheat protection.
• Body of the flashlight made of aerospace hardened aluminum.
• Hard scratch resistant finish - Type III hard anodized.
• Impact resistant to falls from a height of 1 meter.
• Highly wear-resistant light-weight threads.

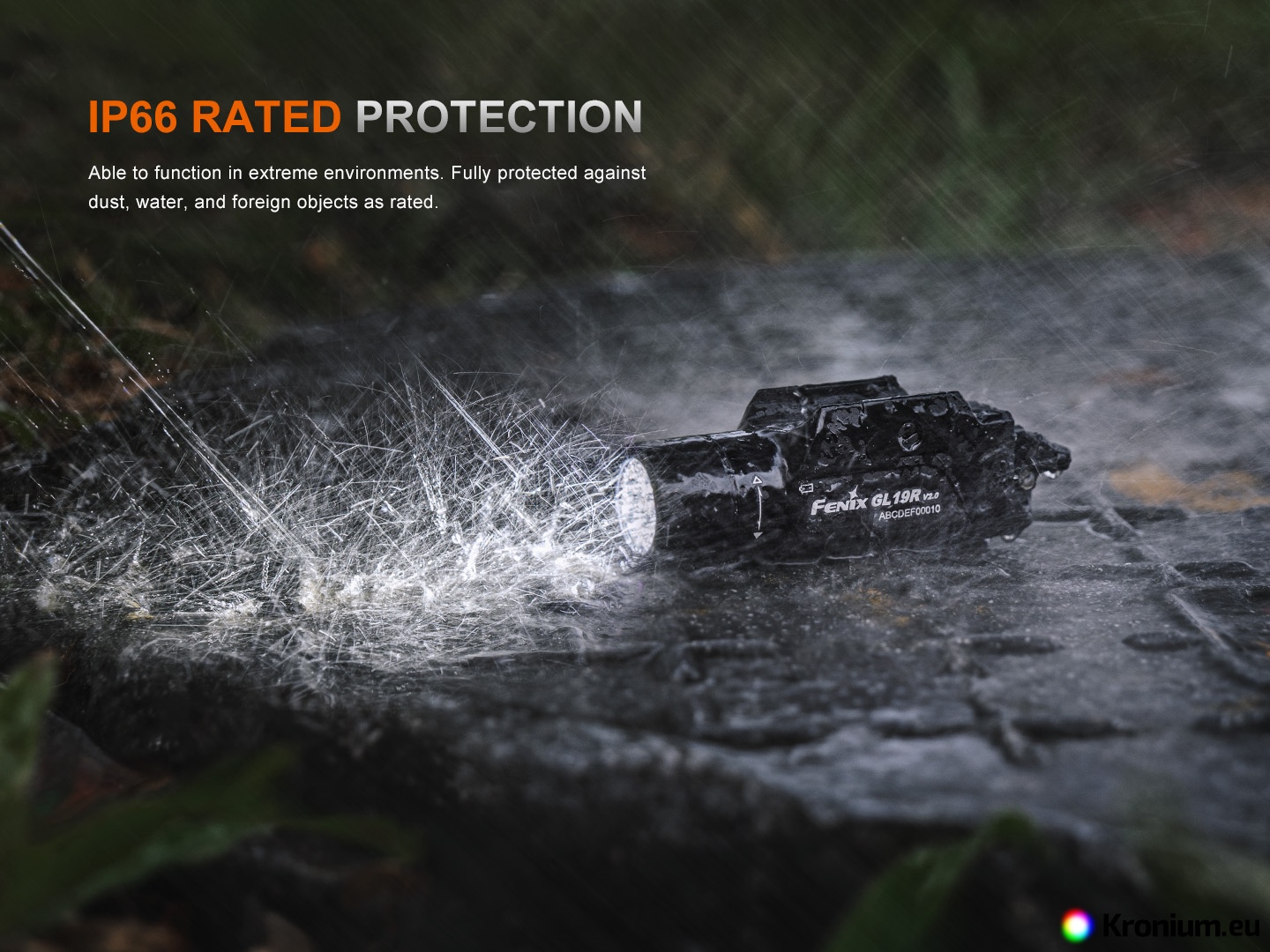

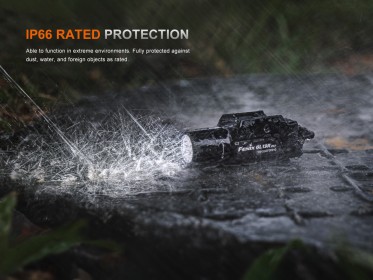

• Waterproof and dustproof to IP66 standard.

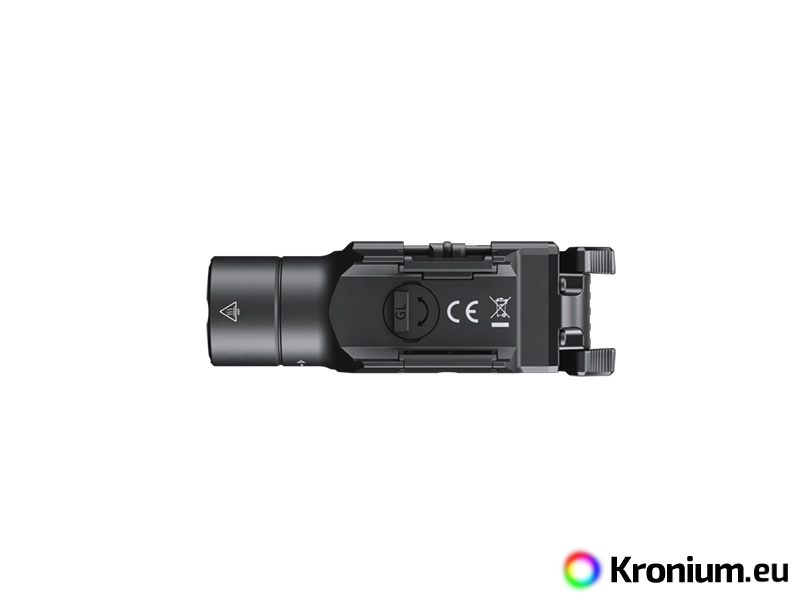

• Included in the package is a Fenix ARB-L18-1100 battery, two sets of replacement control levers (third set is already installed on the flashlight from factory), USB-C charging cable, Allen wrench, Picatinny rail mounting plate (GLOCK plate is already pre-installed on the flashlight from factory), replacement USB connector cap, replacement o-ring and instructions.

 Fenix GL19R V2.0 flashlight controls

From the factory, there may be an insulation cap on the battery inside the flashlight. Remove it from the battery before first use.

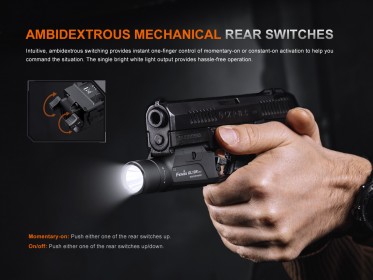

To turn on momentary lighting, switch the rear switch to the top position and hold. When released, the switch will return to the center position and the flashlight will turn off.

For constant lighting, switch the rear switch to the lower position. Switch back to the center position to turn the flashlight off.

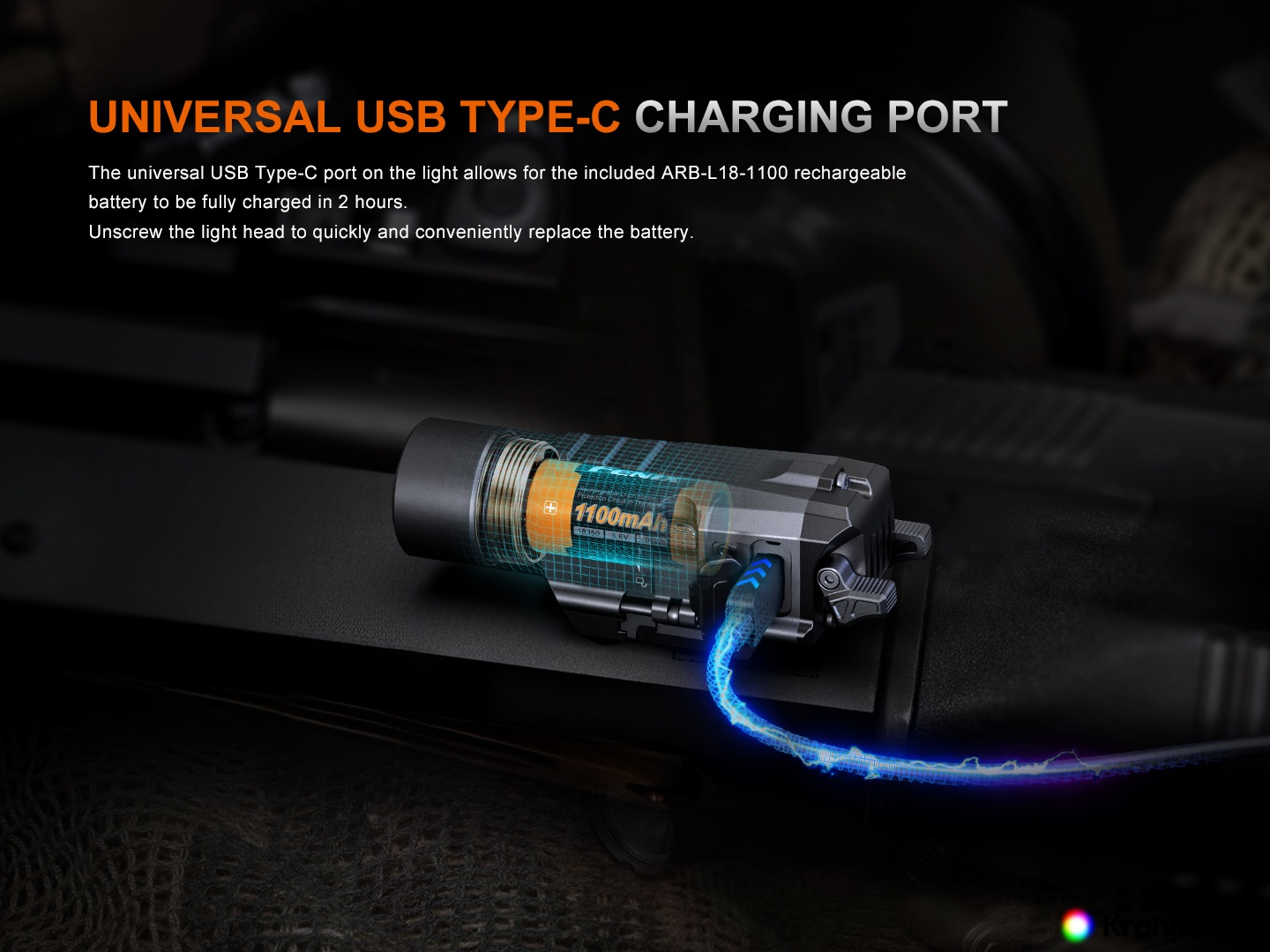

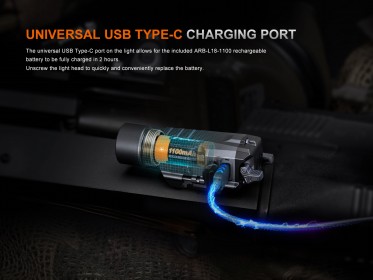

Charging the flashlight - flip off the rubber cap of the charging connector and use the included USB-C cable to plug it into a computer, USB network adapter or USB car adapter (not included). Alternatively, any mobile phone charger with a USB-C connector can be used for charging. During charging, the indicator LED on the side of the flashlight glows red, after a full charge it glows green. Charging a fully discharged battery takes about 2 hours. The Li-ion battery used does not suffer from memory effect, so the flashlight can be recharged at any time.

Changing the battery - unscrew the head of the flashlight and insert the battery with the plus pole facing out (towards the head). Then fully tighten the head again.

Intelligent overheat protection - if the temperature of the flashlight exceeds 60 °C, it will automatically reduce the power. As soon as the temperature drops below 55 °C, the power will gradually increase again.

 Warning

• Use only high-quality rechargeable batteries to prevent damage to the flashlight, for example due to leakage of substances from the battery.
• When using the flashlight on a weapon, observe all safety guidelines.
• Insert batteries with the positive pole facing the flashlight head.
• If the flashlight flickers, glows at low power, or fails to light, it may be due to one of the following reasons:
  • The battery is dead – replace it or charge it.
  • The contacts inside the flashlight are dirty – clean them with a cotton ball dipped in alcohol.

Warranty

Five years warranty on the flashlight. Two years on the battery.
