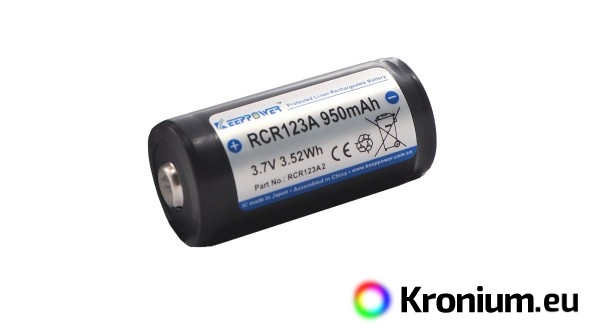

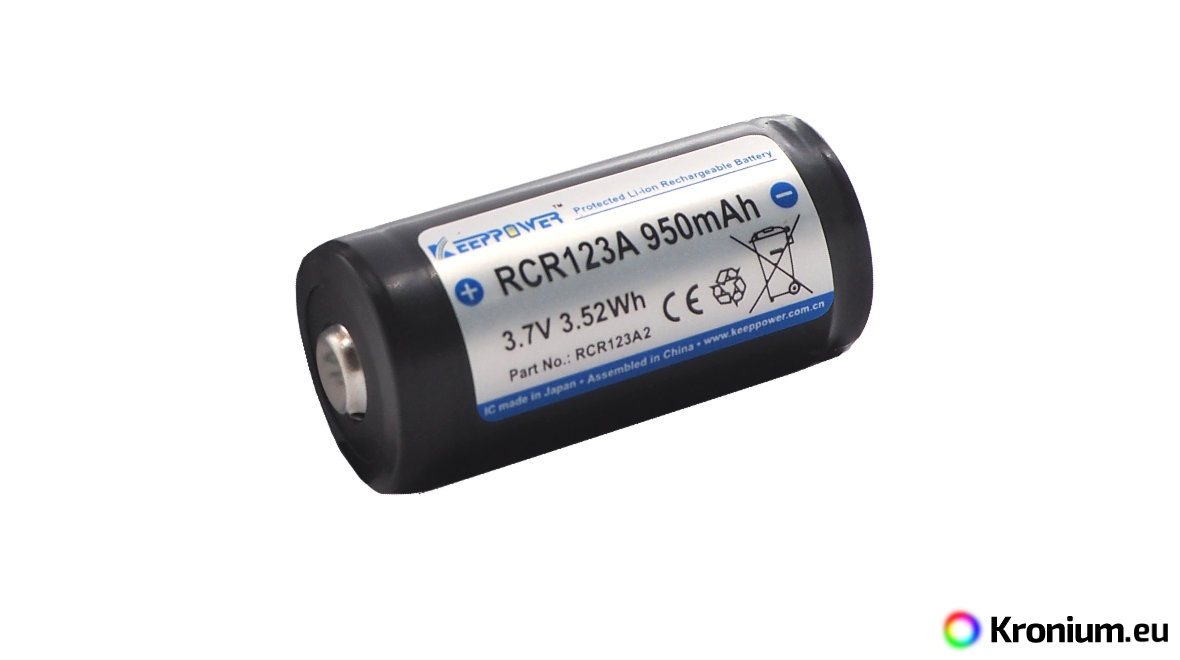

The Keeppower RCR123A 950 mAh (16340) rechargeable battery with protection is based on lithium ion technology. Li-ion technology gives one of the best ratios of the amount of stored energy to cell weight. The batteries have no memory effect and self-discharge is minimal. Compared to standard Fenix RCR123A batteries, this cell has about 30% higher capacity while maintaining the same dimensions, so the light time is also about 30% longer with this battery. We have verified the capacity with our own measurements.
Battery protection can be divided into two areas. In the first one, electronic circuits are added on the negative pole to prevent overcharging of the cell (a situation where there is a risk of explosion with conventional Li-ion batteries) or, on the contrary, over-discharging (the battery could not be recharged). In addition, these circuits protect the battery against short circuits or high current draw that could damage the battery. If the battery electronics assess that the limits have been reached, they will disconnect the cell. The second is the overheating protection ( PTC thermal protection ) and a special anti-blast valve.
The RCR123A battery corresponds in size to the disposable lithium CR123A battery, which is why it is often used in flashlights as a rechargeable alternative to these disposable cells. Check first if your appliance supports this cell as unlike the disposable battery it has a higher nominal voltage. These batteries can be used for example in Fenix E15 XP-G2, E16, E18R, PD25R, LD15R, Fenix RC09, HM50R, HM51R, CL09, PD30, TK10, TK12, TA20, TA30.
WARNING - Do not use in Fenix E15 (not applicable to E15 XP-G2), PD10, PD12, PD20, PD22 (not applicable to Ultimate Edition) and HL50, damage to electronics may occur!
Battery Specifications
- Nominal voltage : 3.7 V.
- Capacity : 950 mAh (min. 900 mAh)
- Maximum current draw : 3.5 A
- Protective electronics built-in on the negative pole provides protection against overcharging, complete discharge and short circuit.
- Lifetime of 300 charge cycles.
- Diameter: 16.8 mm (+/- 0.2 mm).
- Height: 34.0 mm (+/- 0.2 mm).
- Weight: 18 grams.
Recommended chargers
Fenix ARE-A2 Charger
Fenix ARE-A4 charger
USB charger Fenix ARE-D1
USB charger Fenix ARE-D2
Mini USB charger MC1
Two Channel USB Charger FC2
USB charger Lii-100
Lii-500S four-channel charger
SkyRC MC3000
Warning
- Do not discharge the battery below 2.8V if possible
- Do not short-circuit the battery (do not connect the cell poles with a wire)
- Do not throw the battery into fire
- Never insert the battery into the charger in reverse (opposite polarities)
- When using the battery, observe safety guidelines
- Use only an adequate charger that supports Li-ion batteries
Warranty
Legal two-year warranty.
