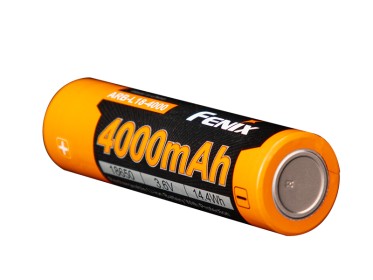

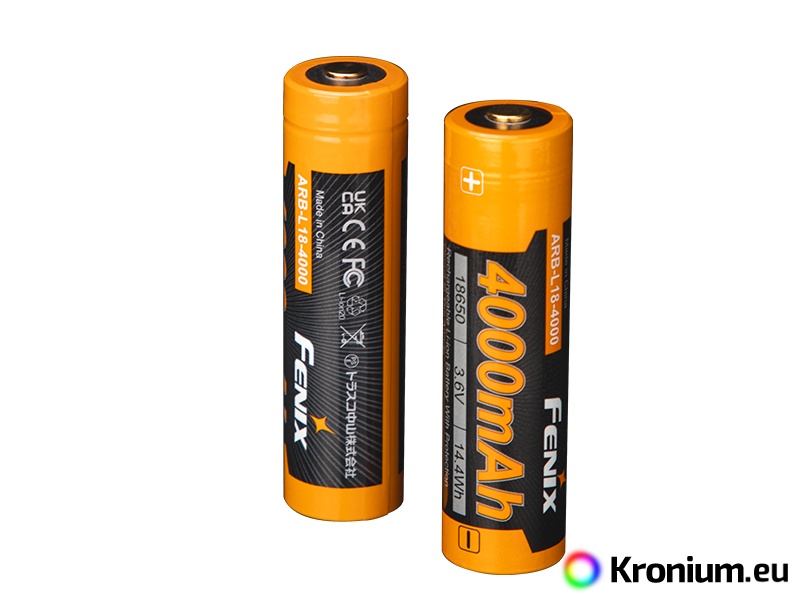

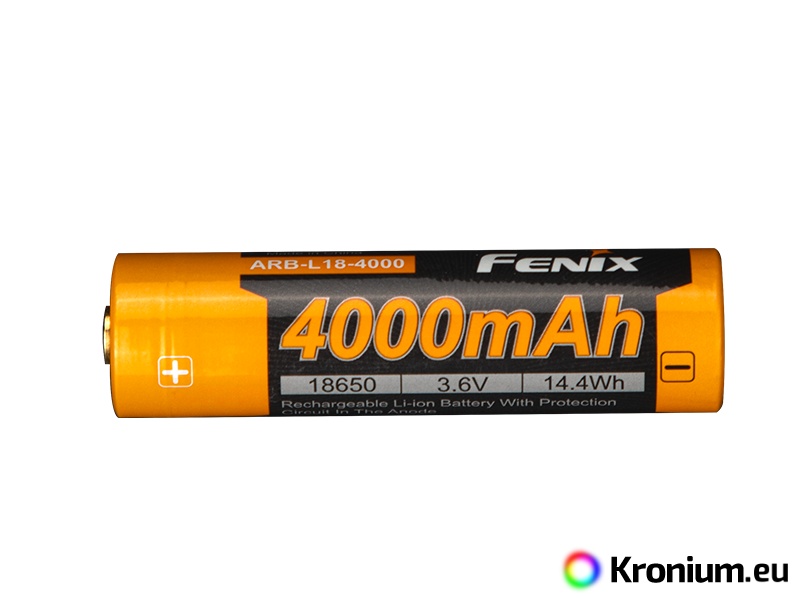

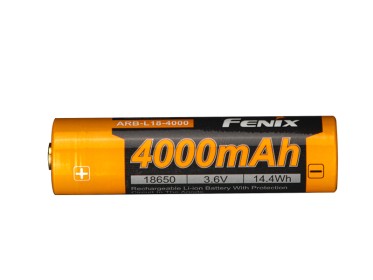

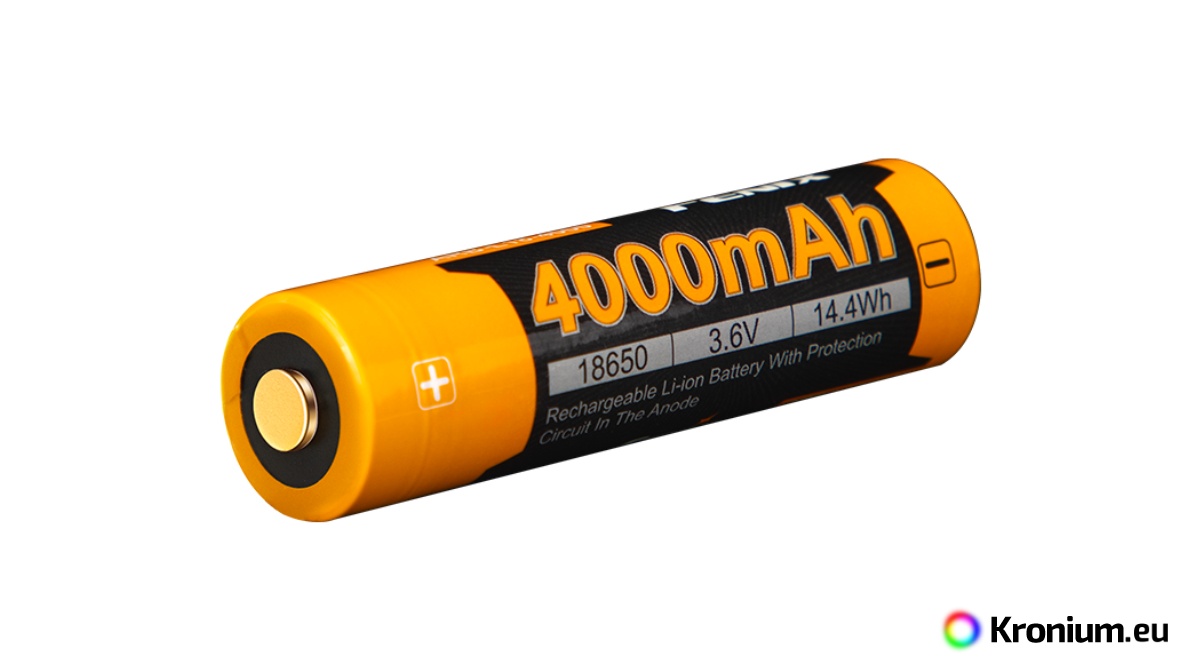

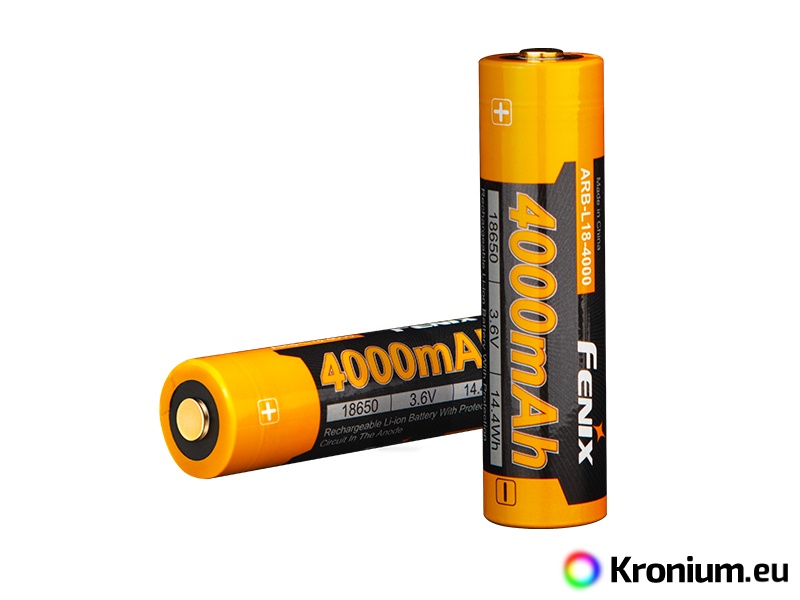

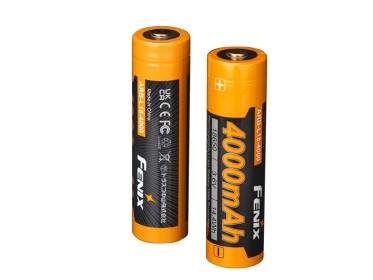

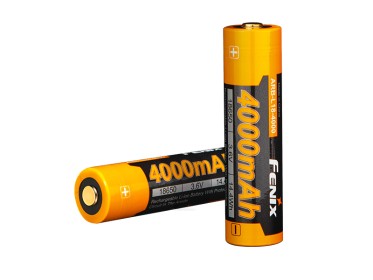

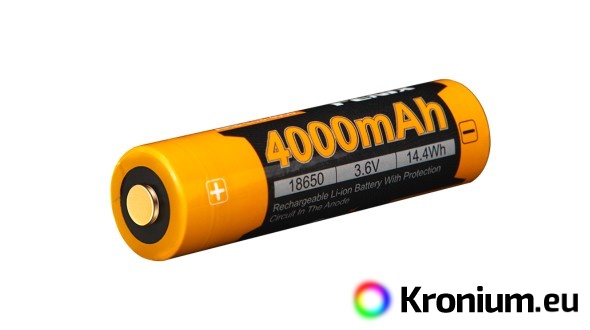

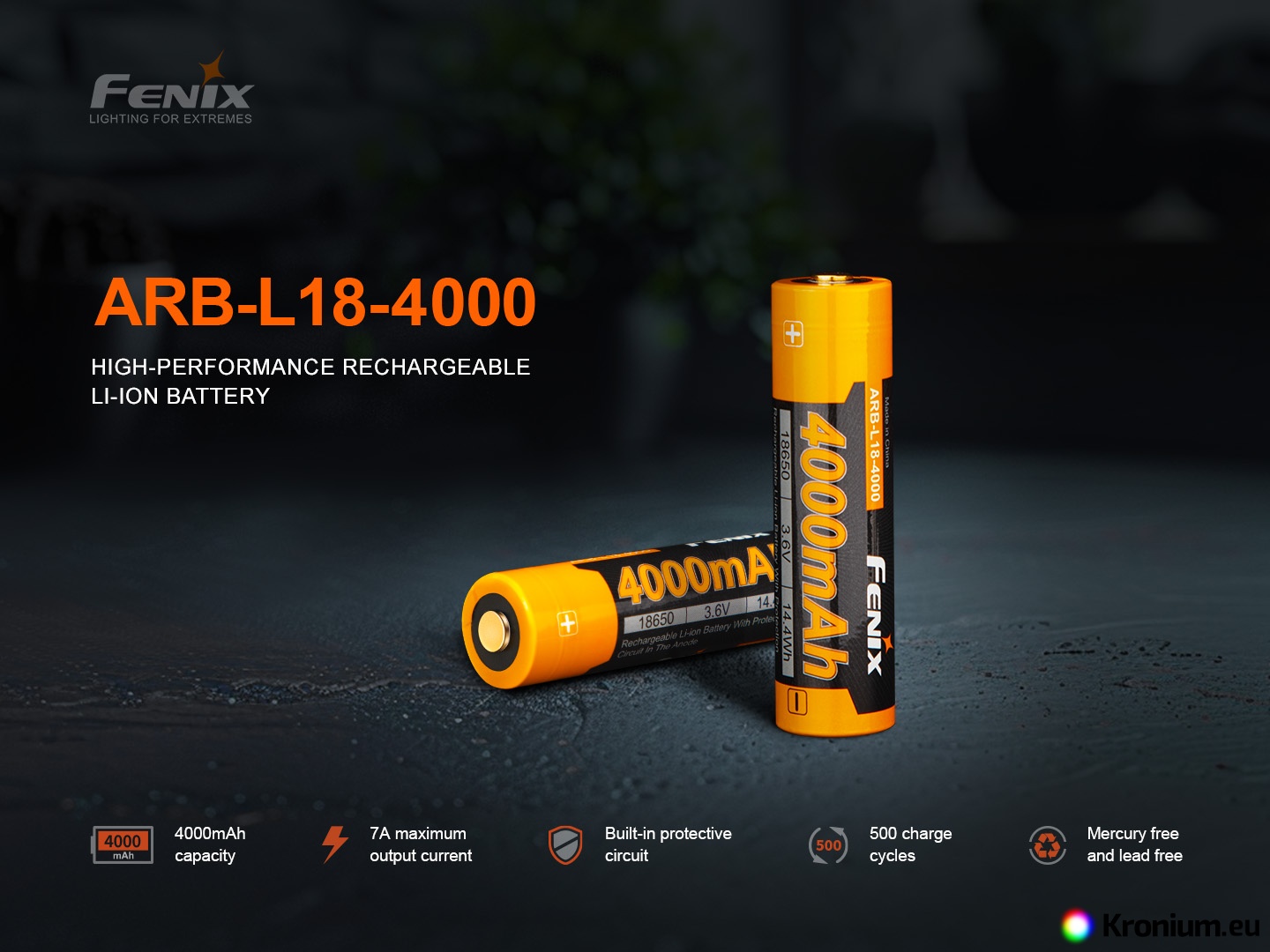

The Fenix 18650 4000 mAh rechargeable battery (ARB-L18-4000) with protected electronics offers the highest capacity on the market. Li-ion rechargeable batteries are characterized by very high capacity, do not suffer from memory effect or self-discharge. Li-ion in 18650 size are the best choice in terms of stored energy due to the size and weight of the battery.

Fenix battery protection consists of internal safety mechanisms and protective electronics. Added electronic circuits prevent the cell from overcharging, over-discharging and against short circuit or over-current draw. If the battery electronics assess that the limits have been reached, they safely disconnect the cell.

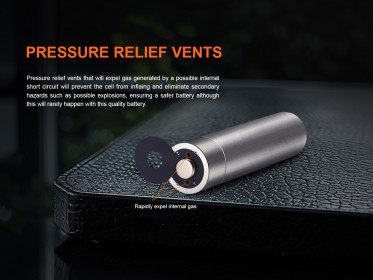

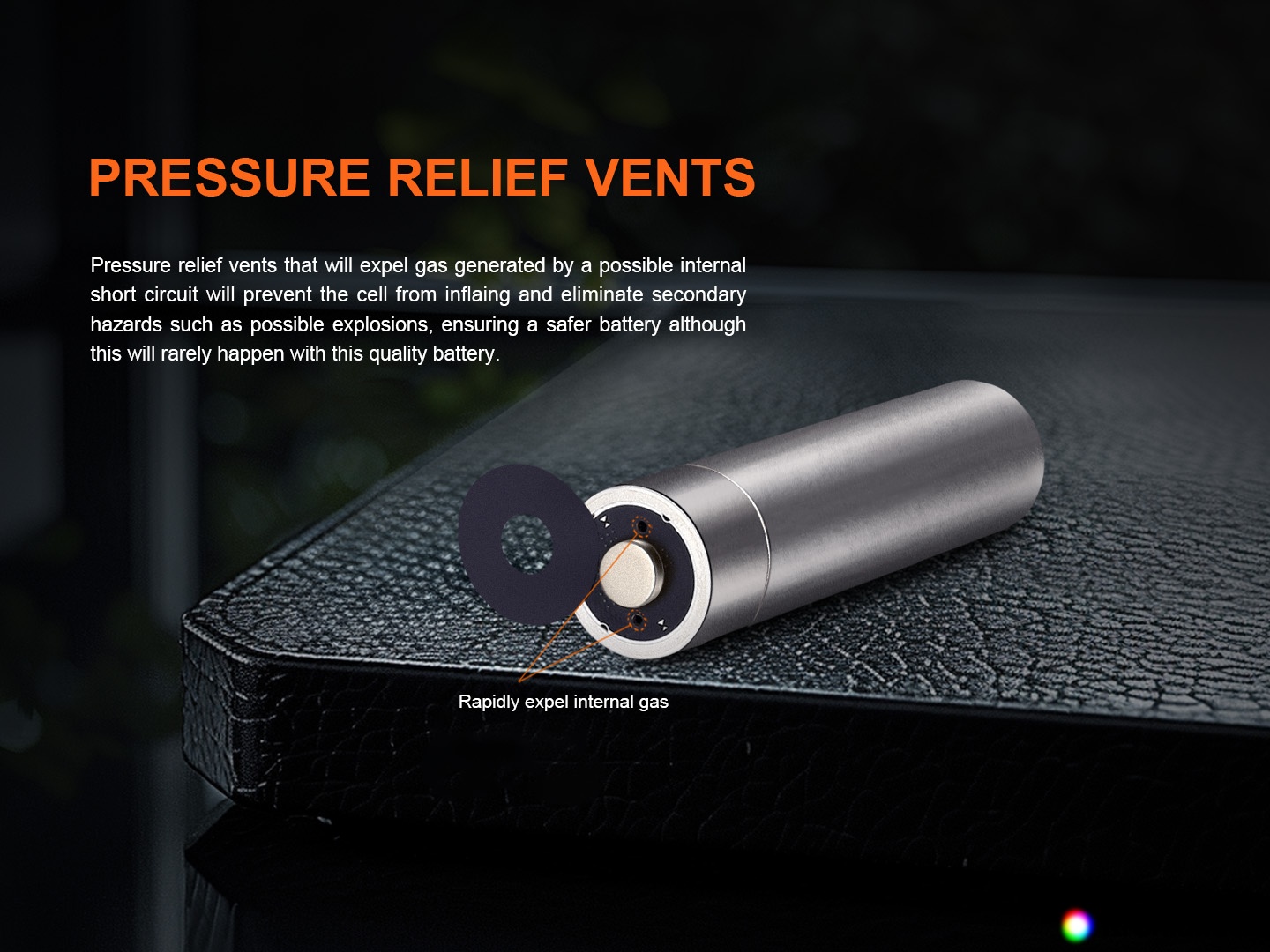

Internal protection consists of a separator, state-of-the-art overheat protection (HRL - Heat Resistance Layer) and a special anti-blast valve. In the event that the gas pressure in the cell exceeds a certain limit, the internal separator separates the electrodes inside the battery and thus de-facto interrupts the exothermic reaction and the anti-blast valve releases the excess gas pressure outside the battery. The combination of electronic and mechanical (temperature and pressure) protection makes Fenix batteries among the safest li-ion batteries available.

The 18650 battery is roughly equivalent in size to two CR123A lithium batteries (but is slightly longer and wider), which is why it is often used in flashlights as a rechargeable alternative to these primary cells. Please check first whether your appliance supports this cell. This battery is designed to operate in, for example Fenix E28R, PD32R, PD35, PD35R, TK11R, TK25 UV, TK25 Red, LD30R, WT25R, HM60R, HM61R, HM65R, HM65R-T, HM75R CL26R, CL30R and bike lights Fenix BC21R a BC30.

Caution, due to length and diameter, may not fit some old models - for example Fenix PD31, TK11, TK21.

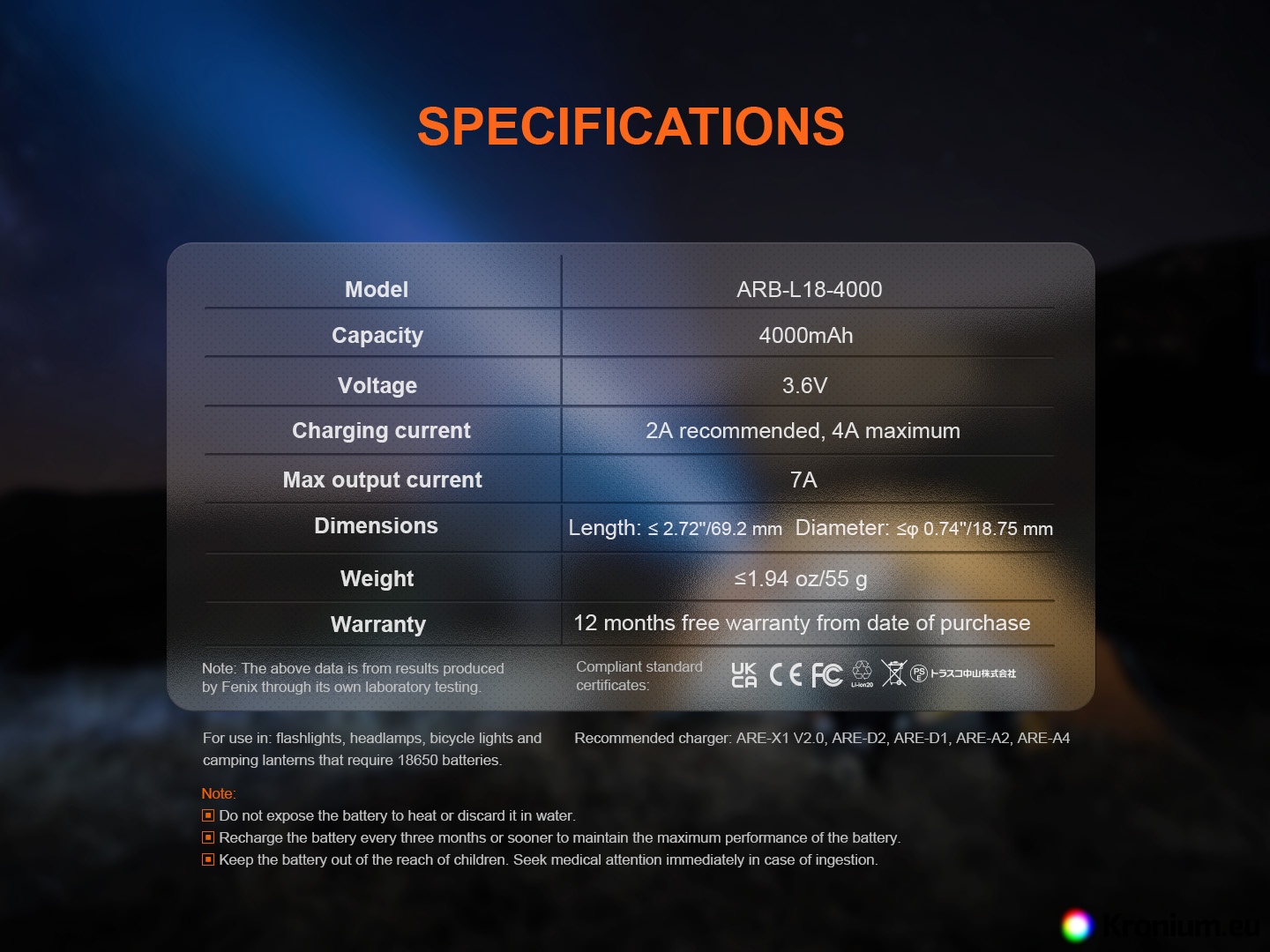

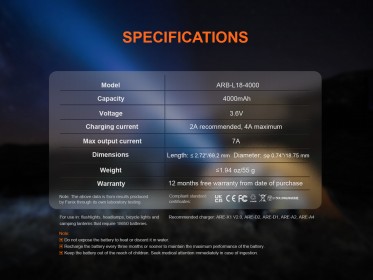

Fenix 18650 4000mAh battery specifications

• Nominal voltage : 3.6V
• Capacity : 4000 mAh

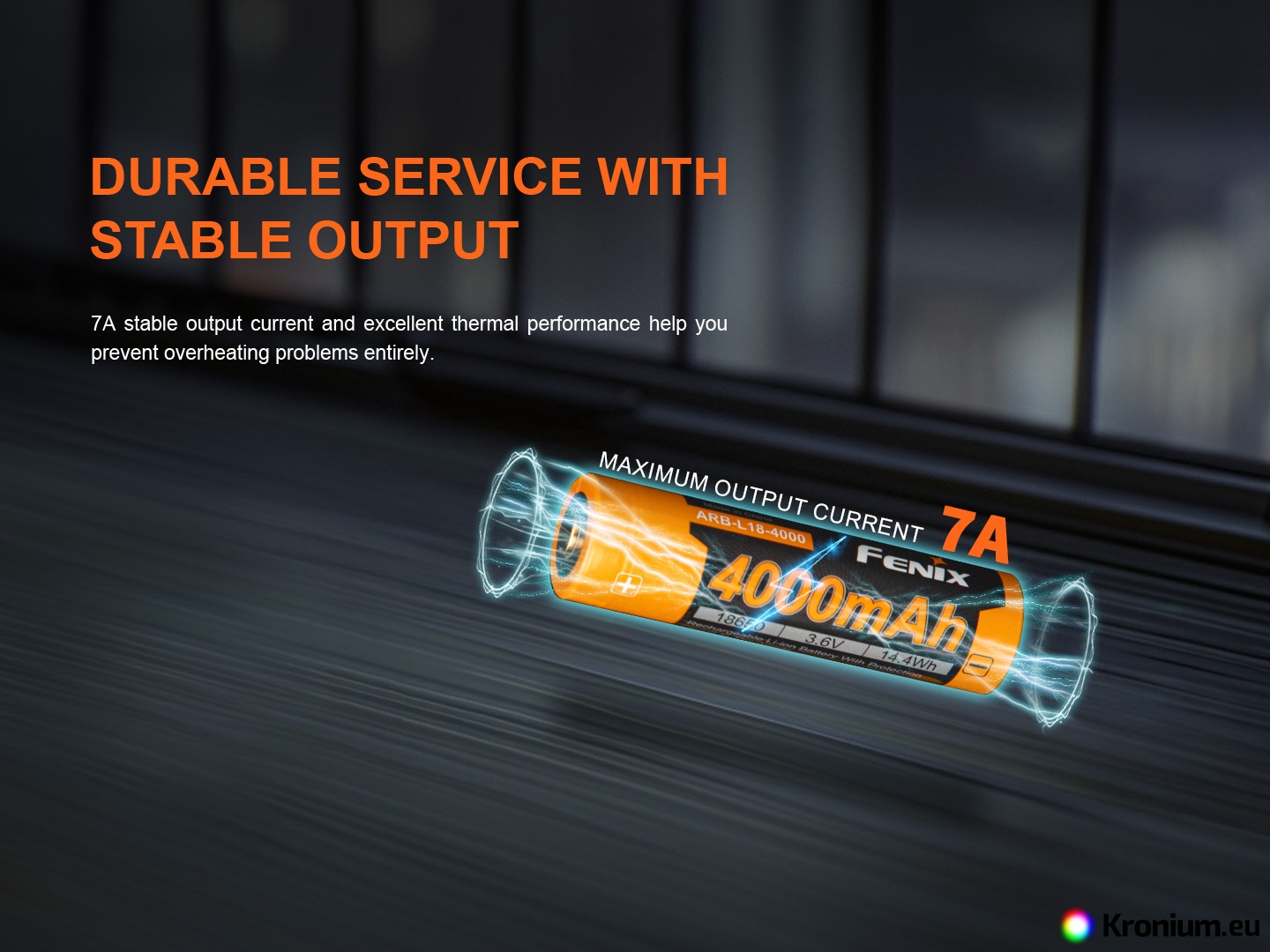

• Maximum current draw :7 A
• Maximum charging current: 4 A
• Dimensions: 18.75 mm (diameter) x 69,2 mm (length) (+/- 0.5mm)
• Weight 50 grams

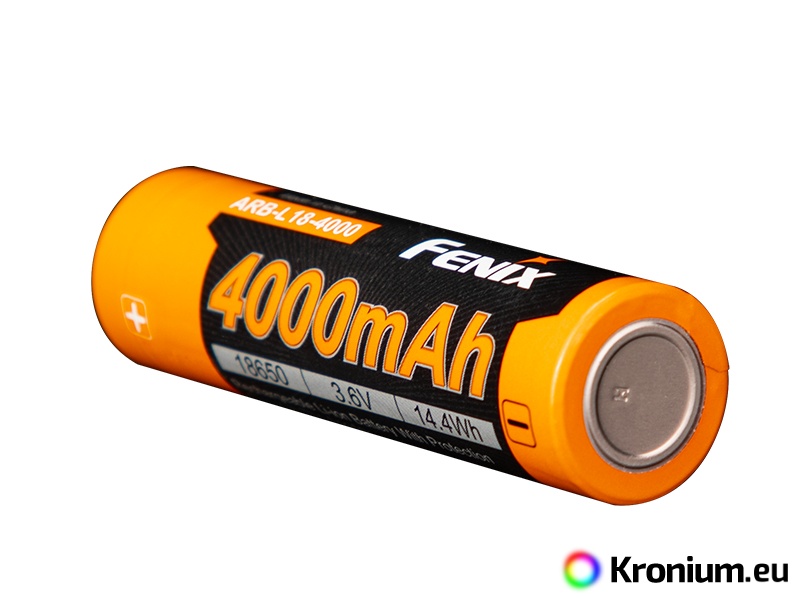

• Overcharge, full discharge and short circuit protection (>7 A). Protective circuit mounted on the plus pole.
• Lifetime of more than 500 charge cycles
• Recommended operating temperatures: 0-45°C (charging), -20 to +60°C (discharging)
• Scope of delivery: one piece of Fenix 18650 4000mAh battery (ARB-L18-4000).

Recommended chargers

Fenix ARE-A2 Charger
Fenix ARE-A4 charger
USB charger Fenix ARE-D1
USB charger Fenix ARE-D2
Mini USB charger MC1
USB charger SC1
Two Channel USB Charger FC2
Lii-100 USB charger
Lii-500S charger
VC8 eight-channel USB charger
SkyRC MC3000

Warning

• If you are using an older charger purchased approx. before 2014, please check first if it will fit batteries with a length of 69-70 mm.
• Do not discharge the battery below 2.5V if possible
• Do not short-circuit the battery (do not connect the cell poles with a wire)
• Do not throw the battery into fire or water
• Do not insert the battery into the charger in reverse (opposite polarities)
• When using the battery, observe safety guidelines
• Use only an adequate charger that supports li-ion batteries

Warranty

Warranty two years.
